TAFDM41X Electric Controlled Continuous Zoom and Autofocus Digital Microscope
TAFDM41X is a series of electric controlled continuous zoom and autofocus all-in-one digital microscope is the latest AFDM camera developed by ToupTek Photonics that can connect to a 13.3-inch touch screen. It is integrated with Touch Screen, HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective and LED Integrated Illumintaion Light. TAFDM is the abbreviation of Touch Auto Focus Digital Microscope. Different products in the TAFDM series can be formed with different part to satisfy the applicatuon requirement.
TAFDM41X series camera can be assembled with various brackets or arms and offer a continuous zooming ratio with different lens. TAFDM41X series camera also supports autofocus mode and manual focus mode. TAFDM41X series camera supports 4K/30FPS HDMI output and USB/NETWORK outputs.
TAFDM41X series camera has XCamView software built within it, which allows direct operation of the Camera Control Panel, Measurement Toolbar, Image Adjustment Toolbar,and Auto Focus Control Panel through the touch interface by default. You can also switch to the mouse interface and perform interface operations through the mouse;The images and videos captured by TAFDM41X series camera can be saved on an SD card for on-site analysis and follow-up research.
The basic characteristic of TAFDM41X series camera
- The camera is connected to a 13.3-inch 1080p touch screen for touch operation, providing two sets of interfaces (touch interface and mouse interface), and support switching
- 5 groups 16 elements EMZO with 0.028~0.56X, 20 zoom ratio (TAFDM411), or achieve 0.0218X~0.392X, 18 zoom ratio (TAFDM412), supports auto and manual focus
- 192mm standard working distance with 150~195mm depth of field(TAFDM411), 250mm standard working distance with 205~255mm depth of field(TAFDM412)
- At standard working distance, the large field of view 200mm*112.5mm(TAFDM411) / 255mm*145mm(TAFDM412) at low magnification, helping users to quickly locate the target object, the small field of view 10mm*5.6mm(TAFDM411) / 14.2mm*8mm(TAFDM412) at higher magnification, helping users to observe microscopicall
- Sony 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio

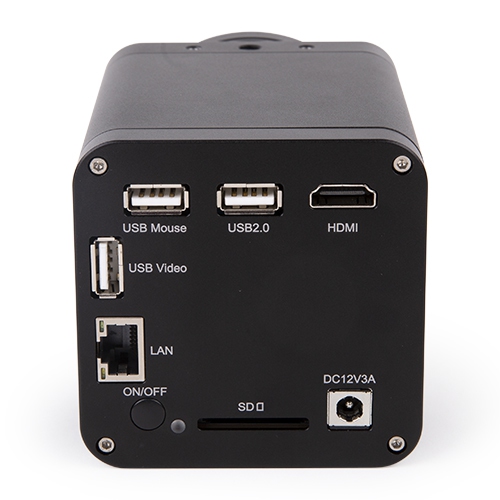

- 4K HDMI/USB/NETWORK multiple video outputs
- 4K/1080P HDMI auto switching according to monitor resolution
- SD card/USB flash drive for captured image and video storage, support local preview and playback
- Embedded XCamView software enables camera control through touch screen or mouse, with an embedded touch or mouse controlled Camera Control Panel, Measurement Toolbar, Image Adjustment Toolbar, AF Control Panel
- Excellent ISP with local tone mapping and 3D denoising
- Head suction LED ring light, the brightness can be directly controlled by XCamView
- With the adapter bracket of 76mm diameter, a electric controlled continuous zoom TAFDM41X can be built
Model
Sensor & Size(mm)
Pixel(μm)
G Sensitivity/
Dark Signal
FPS/Resolution
Binning
Exposure(ms)
TAFDM411
TAFDM412
Sony IMX415LQR-C
1/2.8"(5.57x3.13)
1.45x1.45
300mv/0.13 with 1/30s
30@3840*2160(HDMI)
30@3840*2160(NETWORK)
30@3840*2160(USB)
1x1
0.04~1000
C: Color; M: Monochrome or Black and White;
