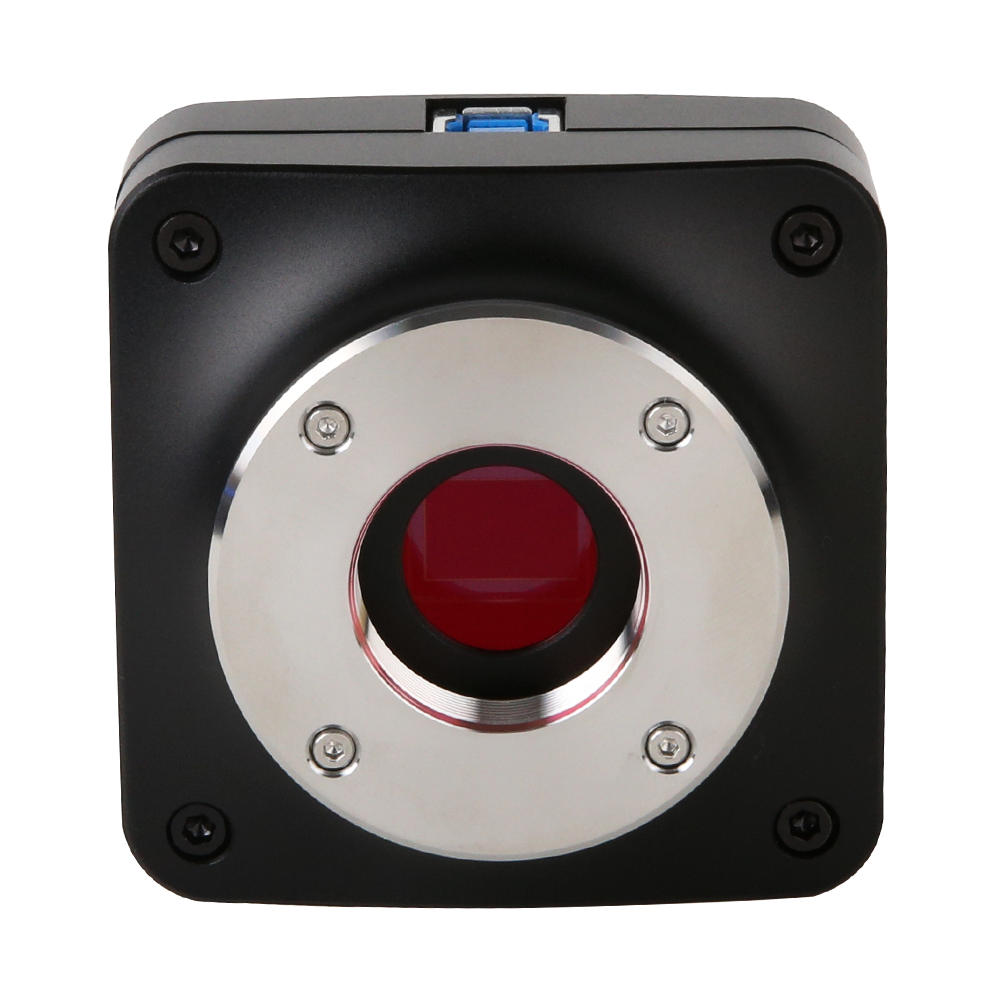

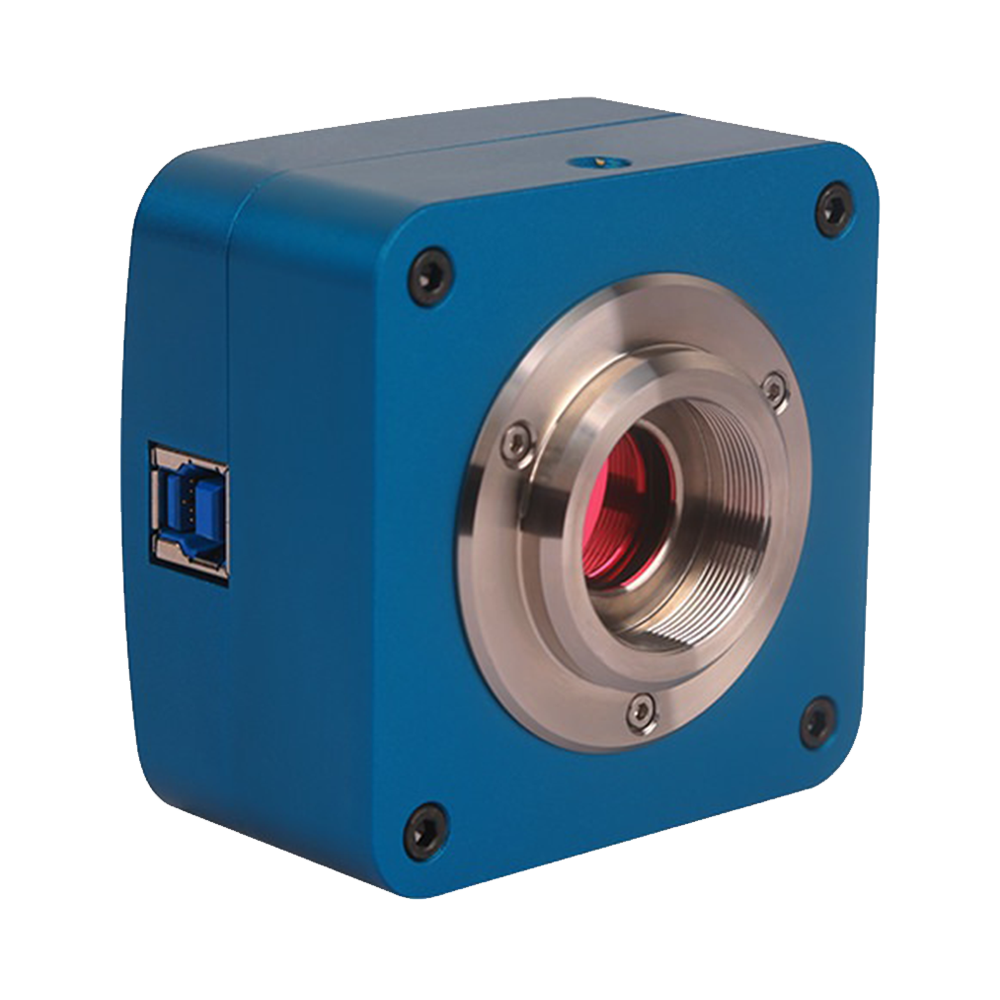

E3ISPM Series
Product Introduction

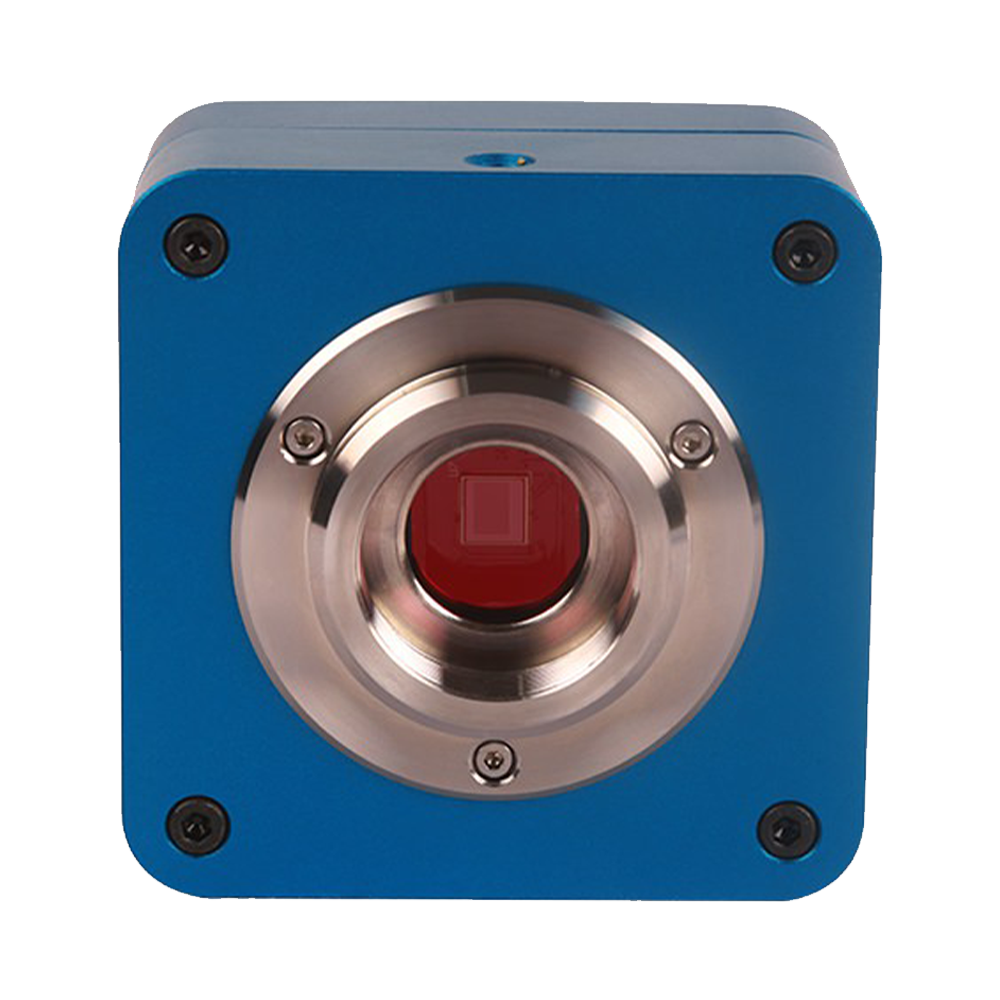

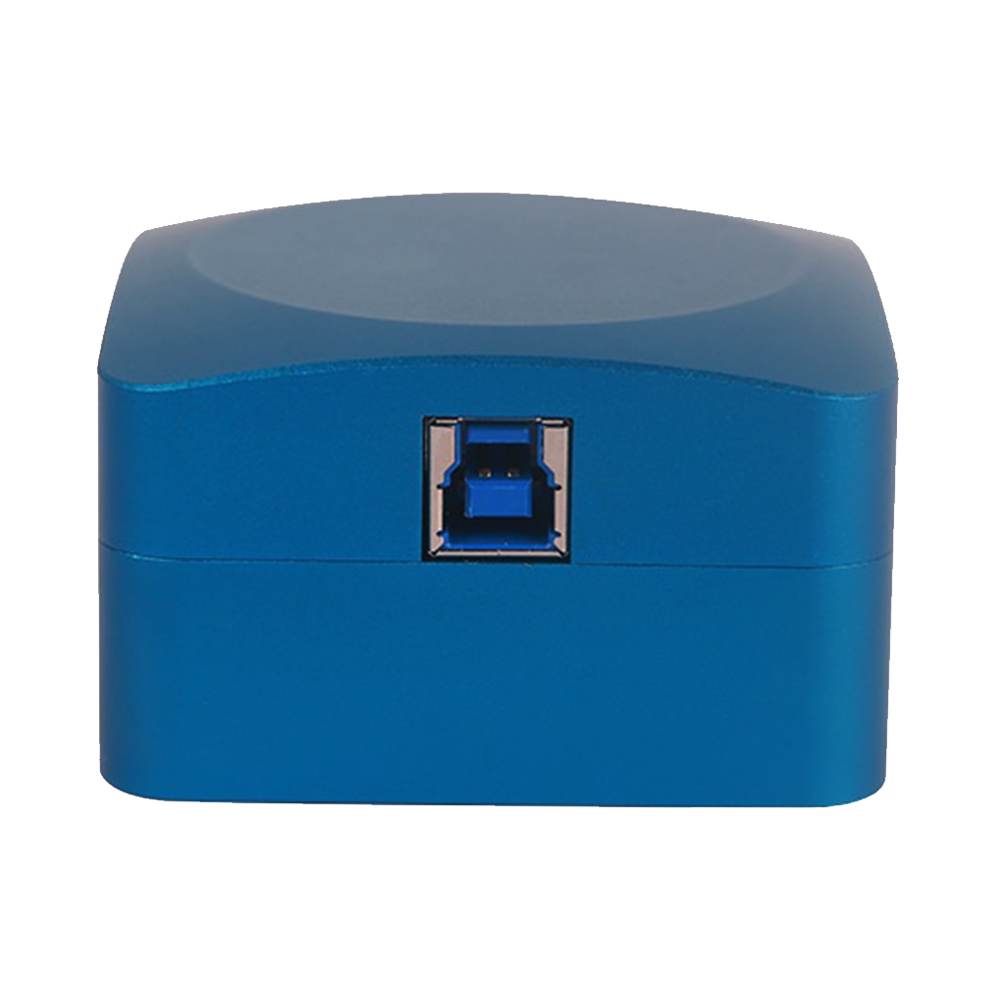

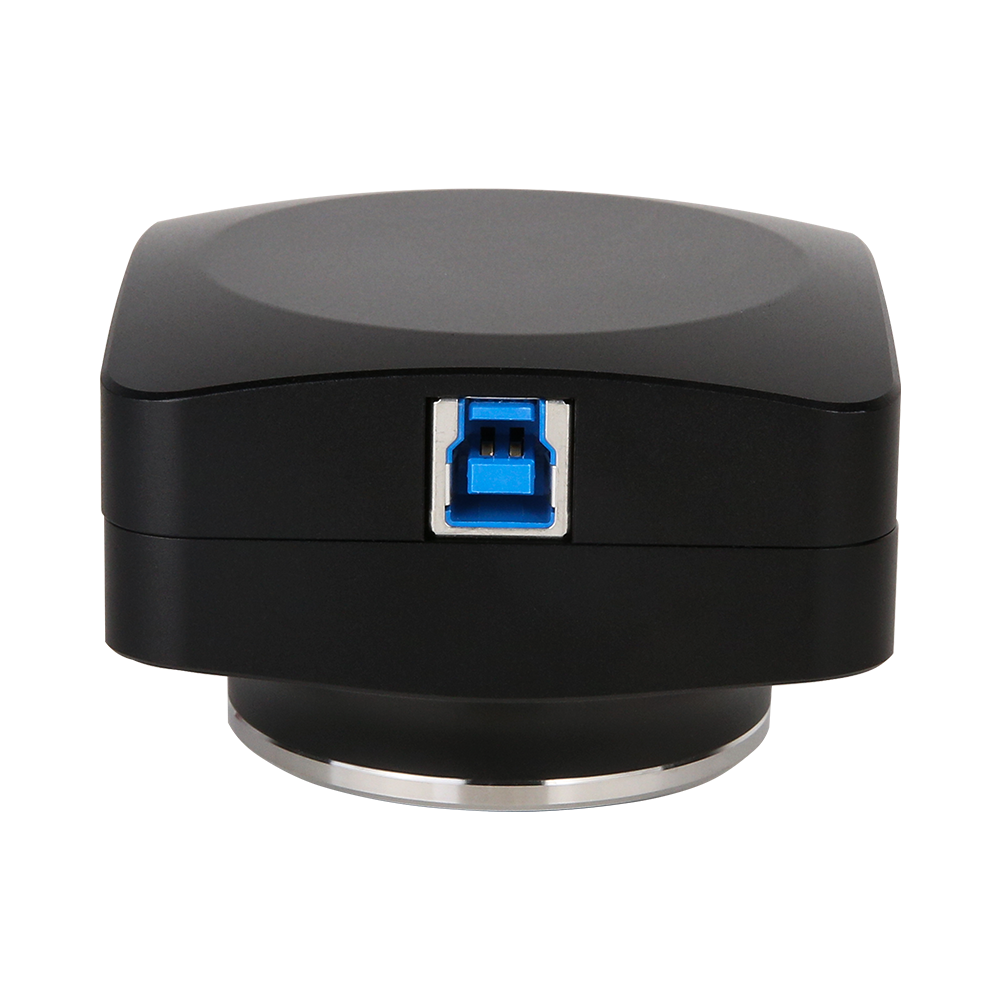

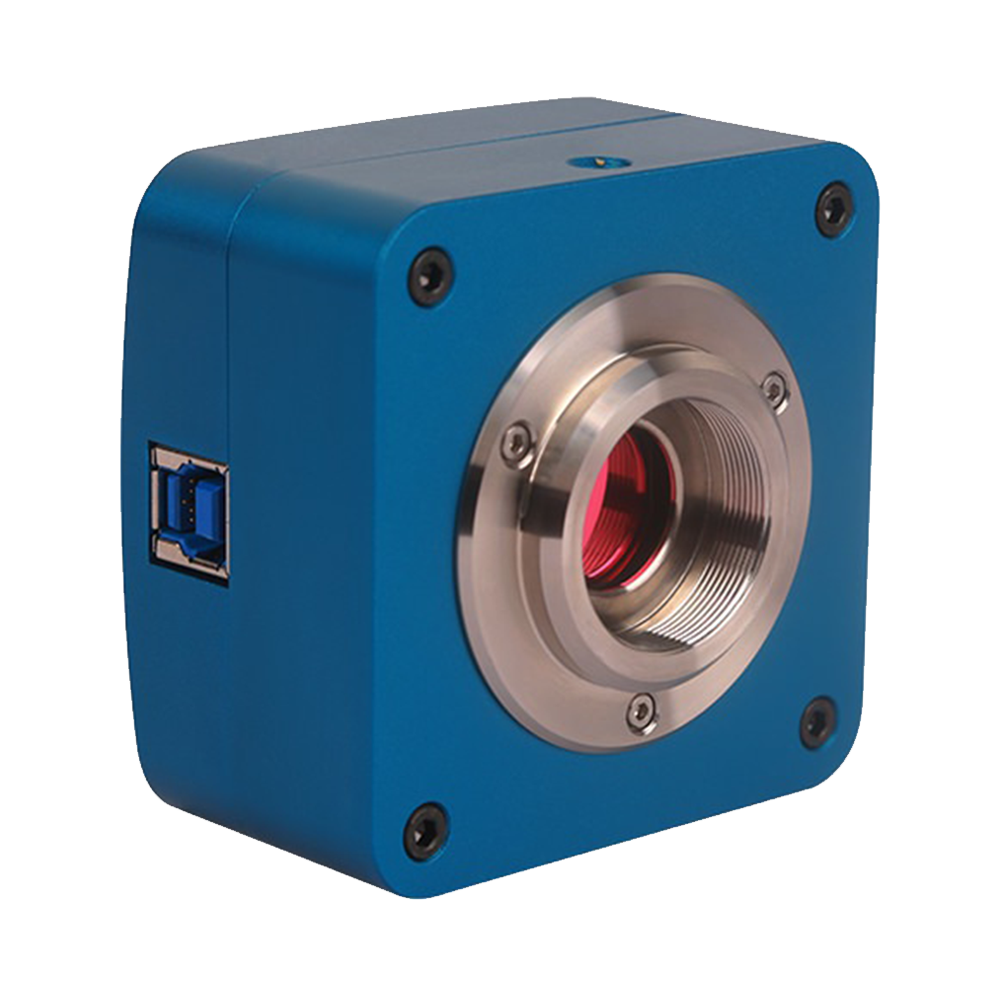

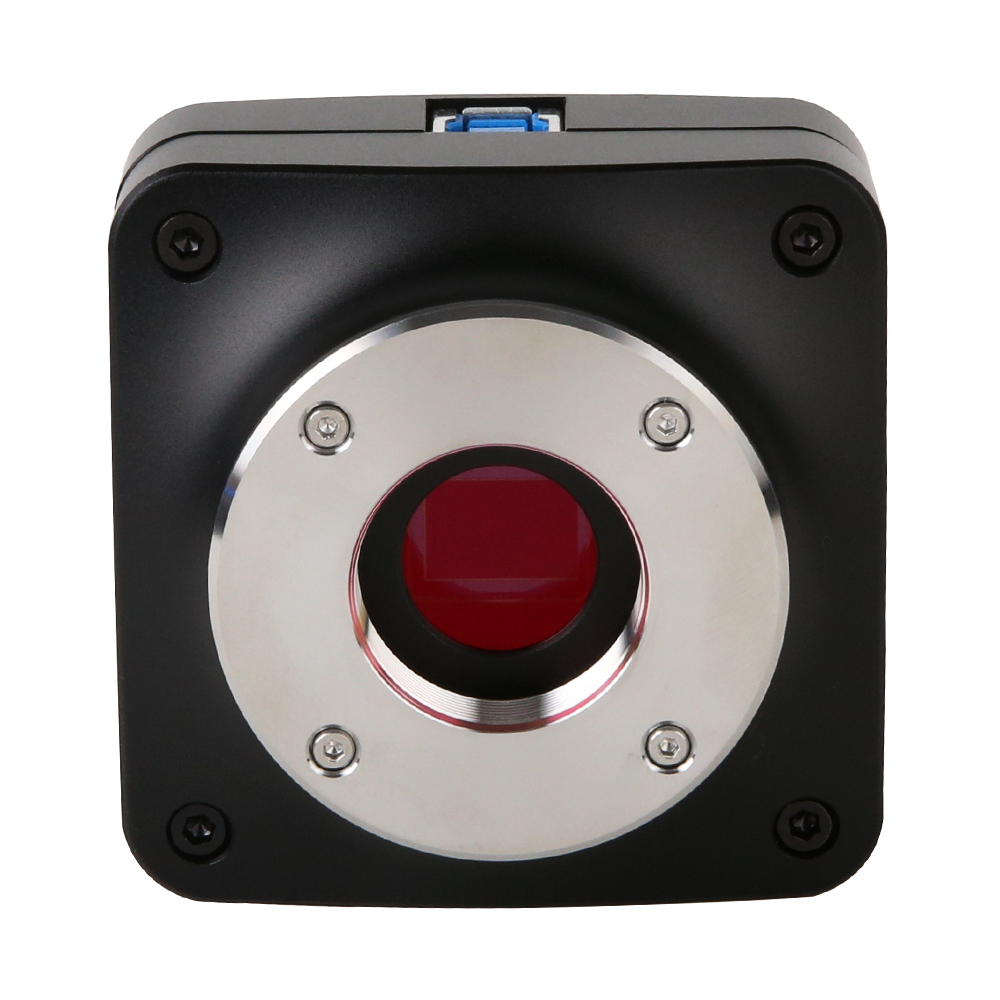

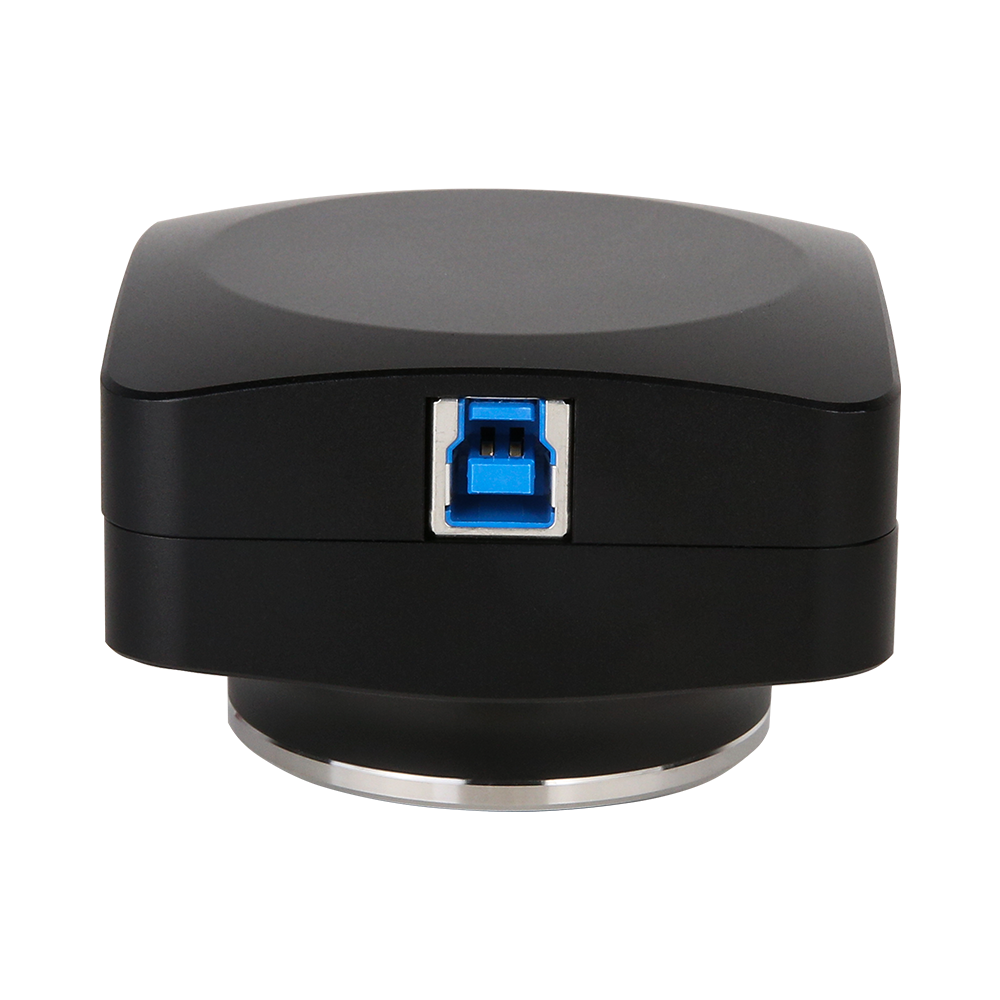

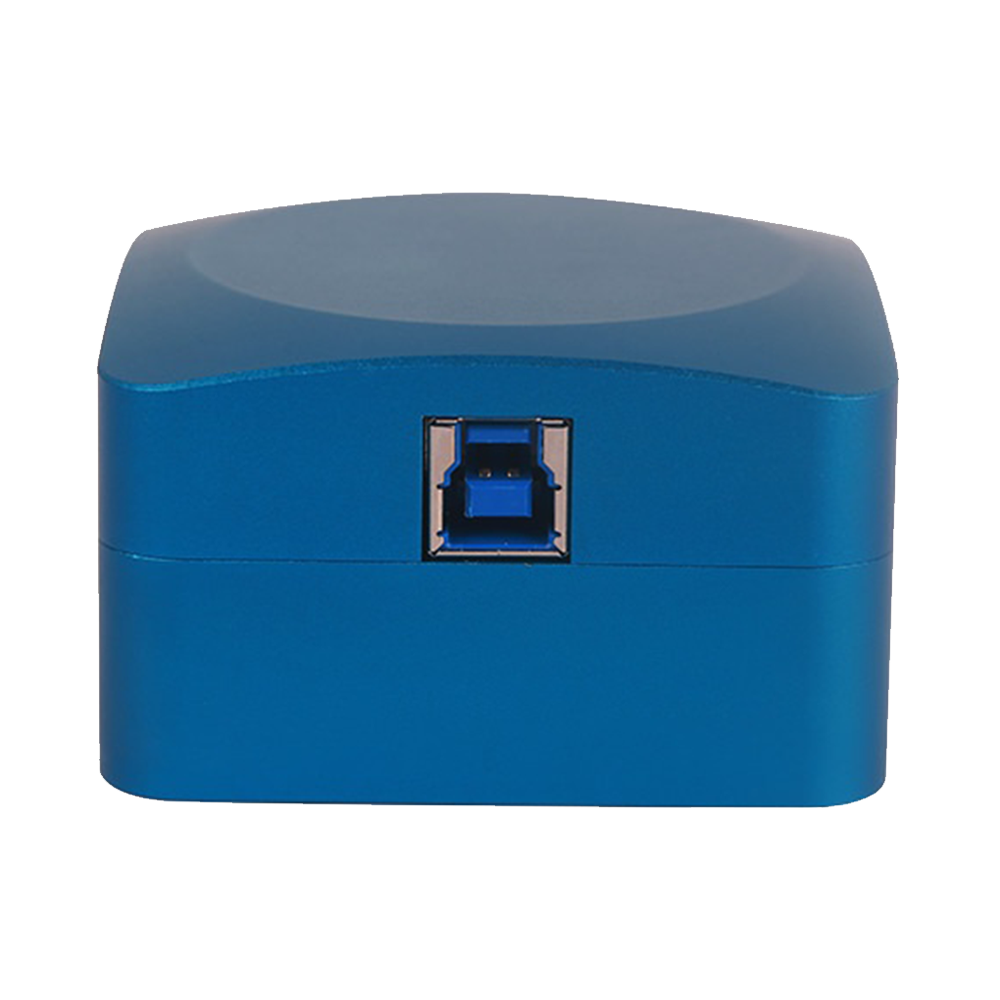

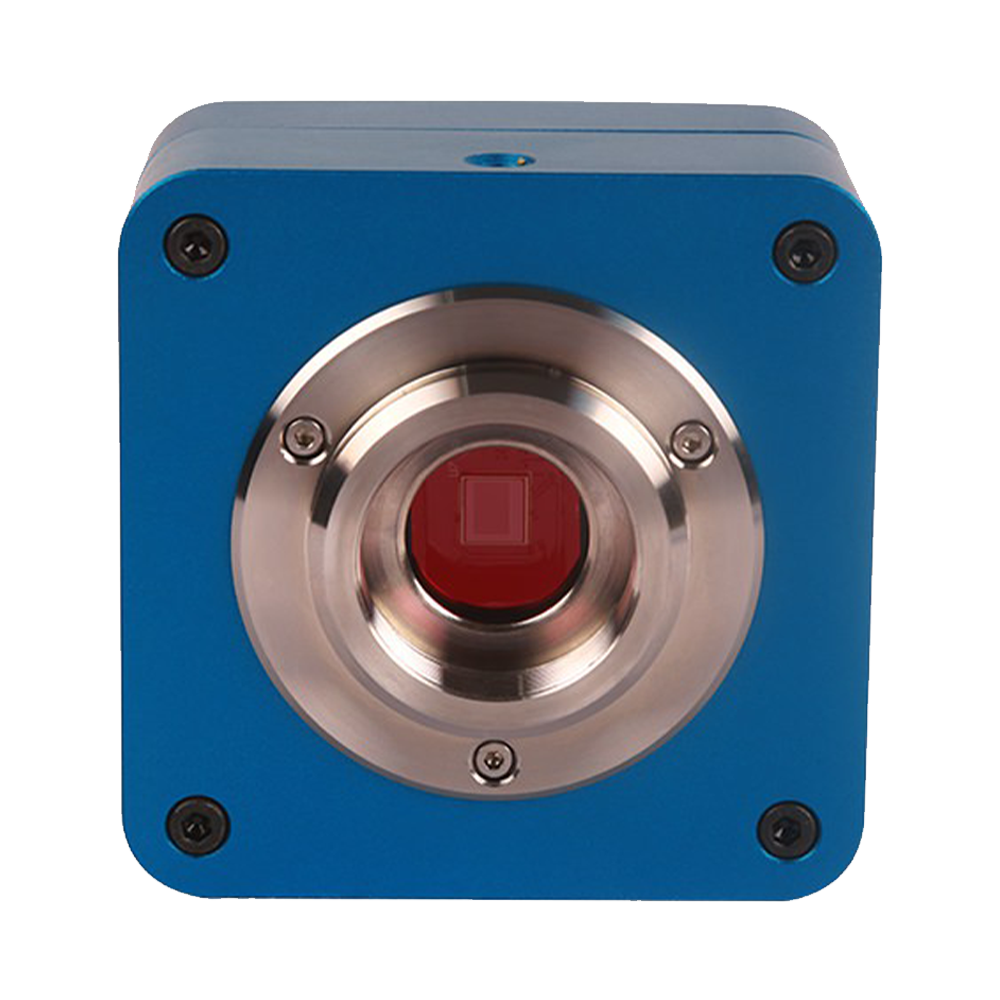

The E3ISPM series represents C-mount USB3.0 hardware ISP cameras featuring Sony Exmor/Exmor R/Exmor RS back-illuminated CMOS sensors, combining high sensitivity with low readout noise. The integrated 12-bit Ultra-Fine hardware ISP video stream engine completes demosaicing, auto exposure/gain, one-touch white balance, color/saturation/gamma/brightness/contrast processing and other real-time operations within the camera, significantly reducing host CPU utilization while improving transmission stability.
The cameras support real-time 8/12-bit switching and arbitrary ROI functionality, with resolution coverage from 1.5 MP to 45 MP. The USB3.0 high-speed link ensures smooth preview and acquisition performance. The housing features precision-machined zinc-aluminum alloy CNC construction for robust reliability and long-term stability. Bundled with ToupView/ToupLite software and cross-platform SDK support (Windows/Linux/macOS/Android) for seamless system integration and secondary development.
Typical applications include brightfield/darkfield/low-light and fluorescence microscopy, biomedical image analysis, semiconductor and materials inspection, industrial online inspection.
Product Features
- Back-illuminated CMOS sensors (Sony Exmor/Exmor R/Exmor RS, depending on model) with high sensitivity and low noise
- 12-bit Ultra-Fine hardware ISP: Demosaic, AE/AGC, AWB, one-touch white balance, color/saturation, gamma, brightness/contrast processing
- Parallel A/D architecture balancing low noise with low power consumption
- Bit depth and data: Real-time 8/12-bit switching with RAW/Bayer output support (depending on model)
- Resolution coverage from 1.5–45 MP (depending on model) meeting diverse requirements from educational to research/industrial scenarios
- Arbitrary ROI/windowing for flexible balance of resolution, frame rate and bandwidth
- USB3.0 (5 Gbit/s) high-speed transmission for stable preview and recording
- Zinc-aluminum alloy CNC housing with robust construction and excellent heat dissipation and shielding performance
- C-mount standard lens interface compatible with various microscopy and industrial optical systems
- Support for free-running, software/hardware trigger modes
- Bundled ToupView/ToupLite software with Windows/Linux/macOS/Android SDK, compatible with DirectShow/TWAIN
- Support for field firmware upgrades, compliant with CE/FCC/RoHS standards (depending on model)
Product Models
Select the E3ISPM Series that fits your application requirements
| Product Model | Effective Pixels | Sensor Size | Shutter Type | Frame Rate (FPS) | Sensor Type | Data Interface | Color | Actions |
|---|---|---|---|---|---|---|---|---|
| E3ISPM45000KPA | 45M (8176×5616) |
18.93 mm × 13.00 mm
1.4"
|
Rolling Shutter |
8.1 fps@8176×5616
30.0 fps@4088×2808
8.1 fps@7408×5556
33.0 fps@4088×2808
10.4 fps@8176×4320
34.7 fps@4096×2160
62.5 fps@2048×1080
86.5 fps@1344×720
|
IMX294 (C) | USB3.0 | Color | View Details |
| E3ISPM45000KPB | 45M (8176×5616) |
18.93 mm × 13.00 mm
1.4"
|
Rolling Shutter |
8.1 fps@8176×5616(C)
30.0 fps@4080×2808(M)
8.1 fps@7408×5556(C)
33.0 fps@3696×2778(M)
10.4 fps@8176×4320(C)
34.7 fps@4096×2160(M)
62.5 fps@2048×1080(M)
86.5 fps@1344×720(M)
|
IMX492 (C,RS) | USB3.0 | Color | View Details |
| E3ISPM32000KPA | 32M (5600×5600) |
12.96 mm × 12.96 mm
1.15"
|
Rolling Shutter |
8.1 fps@5600×5600
30.0 fps@2800×2800
30.0 fps@1400×1400
|
IMX294 (C) | USB3.0 | Color | View Details |
| E3ISPM25000KPA | 25M (4928×4928) |
5.519 mm × 5.519 mm
1/2.3"
|
Rolling Shutter |
12 fps@4928×4928
46 fps@2464×2464
100 fps@1648×1648
|
IMX511 (C) | USB3.0 | Color | View Details |
| E3ISPM21000KPA | 21M (5280×3954) |
17.4 mm × 13.0 mm
4/3"
|
Rolling Shutter |
17 fps@5280×3954
17 fps@3952×3952
56 fps@2640×1976
67 fps@1760×1316
192 fps@584×438
|
IMX269 (C) | USB3.0 | Color | View Details |
| E3ISPM20400KPA | 20.4M (4496×4496) |
12.32 mm × 12.32 mm
1.1"
|
Global Shutter |
17.5 fps@4496×4496
64.4 fps@2240×2240
64.4 fps@1120×1120
|
IMX541 (C,GS) | USB3.0 | Color | View Details |
| E3ISPM20000KPA | 20M (5440×3648) |
13.06 mm × 8.76 mm
1"
|
Rolling Shutter |
15 fps@5440×3648
50 fps@2736×1824
60 fps@1824×1216
|
IMX183 (C,RS) | USB3.0 | Color | View Details |
| E3ISPM20000KPD | 20M (5440×3648) |
13.06 mm × 8.76 mm
1"
|
Rolling Shutter |
15 fps@5440×3648
50 fps@2736×1824
60 fps@1824×1216
|
IMX283 (C,RS) | USB3.0 | Color | View Details |
| E3ISPM20000KPC | 20M (5440×3648) |
13.06 mm × 8.76 mm
1"
|
Rolling Shutter |
20 fps@5440×3648
48 fps@2736×1824
58 fps@1824×1216
|
IMX183 (C,RS) | USB3.0 | Color | View Details |
| E3ISPM18000KPA | 18M (4880×3720) |
5.86 mm × 4.46 mm
1/2.2"
|
Rolling Shutter |
17 fps@4880×3720
40 fps@2448×1836
50 fps@1728×1296
|
SONY Special (C) | USB3.0 | Color | View Details |
| E3ISPM15600KPA | 15.6M (3952×3952) |
13.0 mm × 13.0 mm
1.1"
|
Rolling Shutter |
17 fps@3952×3952
56 fps@1976×1976
67 fps@1316×1316
|
SONY Special (C) | USB3.0 | Color | View Details |
| E3ISPM12400KPA | 12.4M (4096×3000) |
11.22 mm × 8.22 mm
1/1.1"
|
Global Shutter |
28.2 fps@4096×3000
100.9 fps@2048×1500
100.9 fps@1024×750
|
IMX545 (C,GS) | USB3.0 | Color | View Details |
| E3ISPM12300KPA | 12.3M (4096×3000) |
14.13 mm × 10.35 mm
1.1"
|
Global Shutter |
23.4 fps@4096×3000
46.3 fps@2048×1500
|
IMX304 (C,GS) | USB3.0 | Color | View Details |
| E3ISPM12000KPA | 12M (4000×3000) |
7.40 mm × 5.55 mm
1/1.7"
|
Rolling Shutter |
25 fps@4000×3000
50 fps@2048×1080
|
IMX226 (C) | USB3.0 | Color | View Details |
| E3ISPM12000KPB | 12M (4056×3040) |
6.29 mm × 4.71 mm
1/2"
|
Rolling Shutter |
30 fps@4056×3040
60 fps@2028×1520
120 fps@1014×760
|
IMX577 (C) | USB3.0 | Color | View Details |
| E3ISPM12000KPC | 12M (3536×3536) |
7.07 mm × 7.07 mm
1/1.6"
|
Rolling Shutter |
27 fps@3536×3536
60 fps@1768×1768
|
IMX676 (C) | USB3.0 | Color | View Details |
| E3ISPM09000KPA | 9M (4096×2160) |
14.13 mm × 7.45 mm
1"
|
Global Shutter |
34 fps@4096×2160
60 fps@2048×1080
|
IMX305 (C,GS) | USB3.0 | Color | View Details |
| E3ISPM09000KPB | 9M (3008×3000) |
11.31 mm × 11.28 mm
1"
|
Rolling Shutter |
40 fps@3008×3000
123 fps@1488×1500
186 fps@992×998
|
IMX533 (C) | USB3.0 | Color | View Details |
| E3ISPM08300KPA | 8.3M (3840×2160) |
6.22 mm × 3.50 mm
1/2.5"
|
Rolling Shutter |
32 fps@3840×2160
65 fps@1920×1080
|
IMX274 (C) | USB3.0 | Color | View Details |
| E3ISPM08300KPB | 8.3M (3840×2160) |
7.68 mm × 4.32 mm
1/1.8"
|
Rolling Shutter |
35 fps@3840×2160
60 fps@1920×1080
|
IMX334 (C) | USB3.0 | Color | View Details |
| E3ISPM08300KPC | 8.3M (3840×2160) |
11.14 mm × 6.26 mm
1/1.2"
|
Rolling Shutter |
45 fps@3840×2160
60 fps@1920×1080
|
IMX485 (C) | USB3.0 | Color | View Details |
| E3ISPM08300KPD | 8.3M (3840×2160) |
11.14 mm × 6.26 mm
1/1.2"
|
Rolling Shutter |
45 fps@3840×2160
60 fps@1920×1080
|
IMX585 (C) | USB3.0 | Color | View Details |
| E3ISPM08300KPE | 8.3M (3840×2160) |
7.68 mm × 4.32 mm
1/1.8"
|
Rolling Shutter |
45 fps@3840×2160
60 fps@1920×1080
|
IMX678 (C) | USB3.0 | Color | View Details |
| E3ISPM08000KPA | 8M (2808×2808) |
13.00 mm × 13.00 mm
1.15"
|
Rolling Shutter |
30 fps@2808×2808(14-bit)
139 fps@1392×1392
139 fps@696×696
|
IMX294 (C) | USB3.0 | Color | View Details |
| E3ISPM06300KPA | 6.3M (3072×2048) |
7.37 mm × 4.92 mm
1/1.8"
|
Rolling Shutter |
30 fps@3072×2048
38 fps@1536×1024
|
IMX178 (C,RS) | USB3.0 | Color | View Details |
| E3ISPM06300KPB | 6.3M (3072×2048) |
7.37 mm × 4.92 mm
1/1.8"
|
Rolling Shutter |
59 fps@3072×2048
59 fps@1536×1024
|
IMX178 (C,RS) | USB3.0 | Color | View Details |
| E3ISPM05100KPA | 5.1M (2448×2048) |
6.71 mm × 5.61 mm
1/1.8"
|
Global Shutter |
63 fps@2448×2048
208.4 fps@1224×1024
|
IMX547 (C,GS) | USB3.0 | Color | View Details |
| E3ISPM05000KPA | 5M (2448×2048) |
8.45 mm × 7.07 mm
2/3"
|
Global Shutter |
35 fps@2448×2048
50 fps@1224×1024
|
IMX264 (C,GS) | USB3.0 | Color | View Details |
| E3ISPM03100KPA | 3.1M (2048×1536) |
7.07 mm × 5.30 mm
1/1.8"
|
Global Shutter |
53 fps@2048×1536
85 fps@1024×768
|
IMX265 (C,GS) | USB3.0 | Color | View Details |
| E3ISPM03100KPB | 3.1M (2048×1536) |
5.12 mm × 3.84 mm
1/2.8"
|
Rolling Shutter |
50 fps@2048×1536
50 fps@1920×1080
|
IMX123 (C) | USB3.0 | Color | View Details |
| E3ISPM02100KPA | 2.1M (1920×1080) |
11.14 mm × 6.26 mm
1/1.2"
|
Rolling Shutter |
96 fps@1920×1080
|
IMX482 (C) | USB3.0 | Color | View Details |
| E3ISPM02000KPA | 2M (1920×1080) |
7.2 mm × 4.05 mm
1/2"
|
Rolling Shutter |
125 fps@1920×1080
|
IMX385 (C) | USB3.0 | Color | View Details |
| E3ISPM01500KPA | 1.5M (1440×1080) |
4.968 mm × 3.726 mm
1/2.9"
|
Global Shutter |
164 fps@1440×1080
320 fps@720×540
|
IMX273 (C,GS) | USB3.0 | Color | View Details |
Frequently Asked Questions
Learn more about the professional features of E3ISPM series microscopy imaging cameras
- Real-Time Processing: Ultra-Fine™ HISP VP completes demosaicing, auto exposure, white balance, and color correction inside the camera
- High-Quality Output: Direct output of 8/12-bit high-quality images without post-processing
- Low CPU Usage: Dramatically reduces computer CPU load, improving overall system efficiency
- Zero-Latency Imaging: Reduces backend processing delays for true "instant capture"
Hardware ISP Integration: Unique in its class for integrating 12-bit ISP within the camera body for more stable performance.
Research-Grade Image Quality: Maintains professional imaging quality while effectively controlling costs, outstanding cost-performance ratio.
Complete Ecosystem: Provides ToupView/ToupLite software and open-source SDK, reducing secondary development costs.
In-Depth Product Introduction
Ultra-Fine™ HISP VP Hardware ISP Engine
Features our proprietary 12-bit hardware image signal processor that performs real-time demosaicing, auto exposure control, auto white balance, and color correction inside the camera. Compared to software ISP, processing speed is improved by more than 10× with latency reduced to microsecond levels, achieving true "what you see is what you get" at the microscope.
Sony Exmor Back-Illuminated CMOS Technology
Features the latest Sony Exmor back-illuminated CMOS sensors with quantum efficiency >70% and dark current <0.1 e⁻/pix/s. The back-illuminated structure significantly improves photoelectric conversion efficiency, particularly suitable for low-light and fluorescence imaging applications, delivering clear images even under extremely low illumination conditions.
USB 3.0 High-Speed Data Transfer
Utilizes USB 3.0 SuperSpeed interface with bandwidth up to 5 Gbps, maintaining real-time preview at over 10 fps even for 45-megapixel models. No additional power supply required, plug-and-play compatibility with various microscope systems.
Flexible Imaging Modes
Supports arbitrary ROI area selection, 2×2/3×3/4×4 pixel binning, and 8-bit/12-bit data depth switching. Exposure time adjustable from 0.1 ms to 15 s, meeting comprehensive requirements from high-speed dynamic observation to long-term accumulative exposure.
Complete Hardware and Software Ecosystem
Provides multi-platform support for Windows/Linux/macOS, bundled with ToupView professional acquisition software and ToupLite lightweight tools. Open SDK interfaces including C/C++, C#/VB.NET, DirectShow, and Twain facilitate system integration and secondary development. All-metal CNC housing design with no fans or mechanical moving parts ensures long-term stable operation.
Key Application Areas
E3ISPM series applications across various microscopy imaging fields
E3ISPM Series Core Advantages
12-Bit Hardware ISP
Ultra-Fine™ HISP VP real-time processing engine
Sony Exmor CMOS
Back-illuminated sensors, quantum efficiency >70%
USB 3.0 High-Speed Transfer
45 MP maintains 10+ fps preview
Flexible Imaging Modes
Arbitrary ROI + multiple pixel binning
Cross-Platform SDK
Windows/Linux/macOS full coverage
Industrial-Grade Design
All-metal CNC housing, fanless silent
Ultra-Low Dark Current
<0.1 e⁻/pix/s, suitable for long exposure
High Cost-Performance
Research-grade image quality, controlled costs
