AFDM412 Series
Product Introduction
The AFDM412 series supports 4K ultra-high-definition output (4K@30 fps), integrates 18× continuous optical zoom, provides HDMI/USB/Ethernet multi-interface output and local storage; built-in XCamView measurement and control, suitable for live demonstrations, educational training, and high-end inspection scenarios requiring high-resolution imaging.
Product Features
- 4K ultra-high-definition output (4K@30 fps) with rich image details
- 18× continuous optical zoom + auto/manual focus

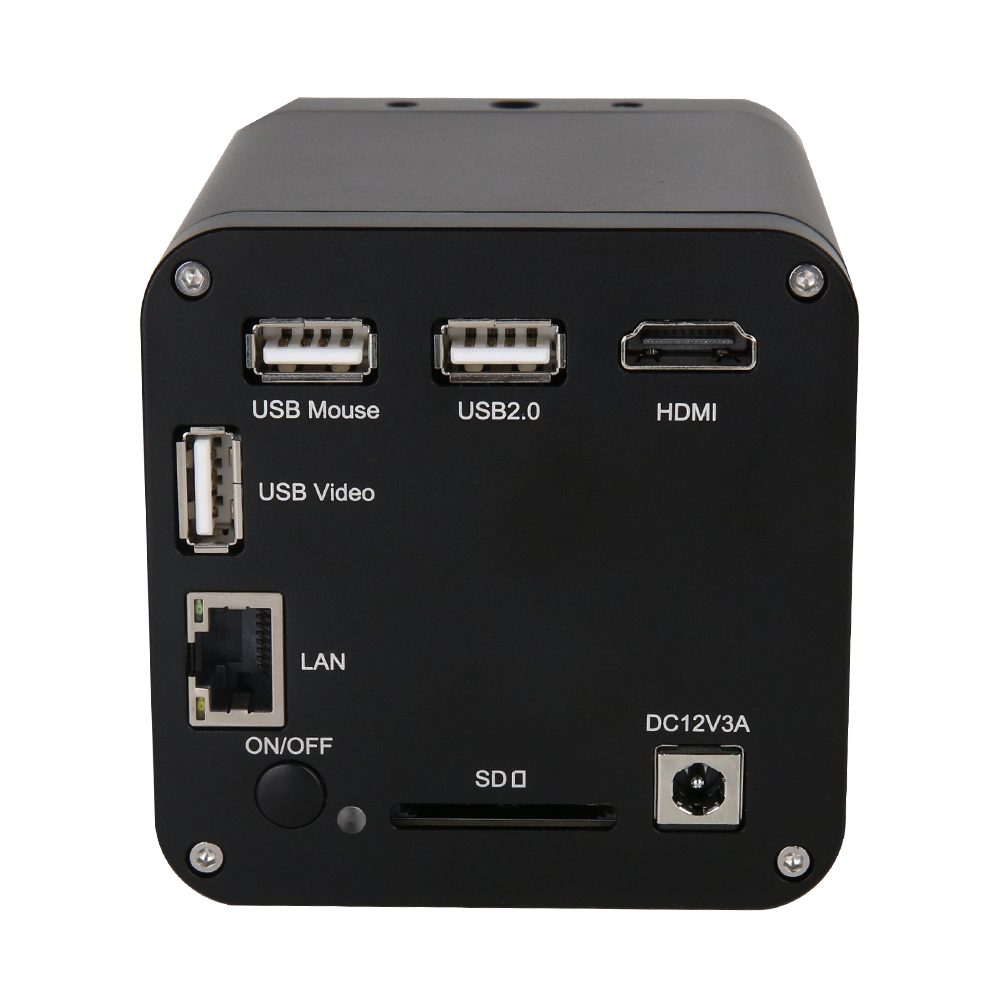

- USB/HDMI/Ethernet multi-interface output, HDMI 4K/1080P adaptive switching
- Built-in complete measurement and analysis software suite
- Supports depth-of-field synthesis, image stitching and other advanced features

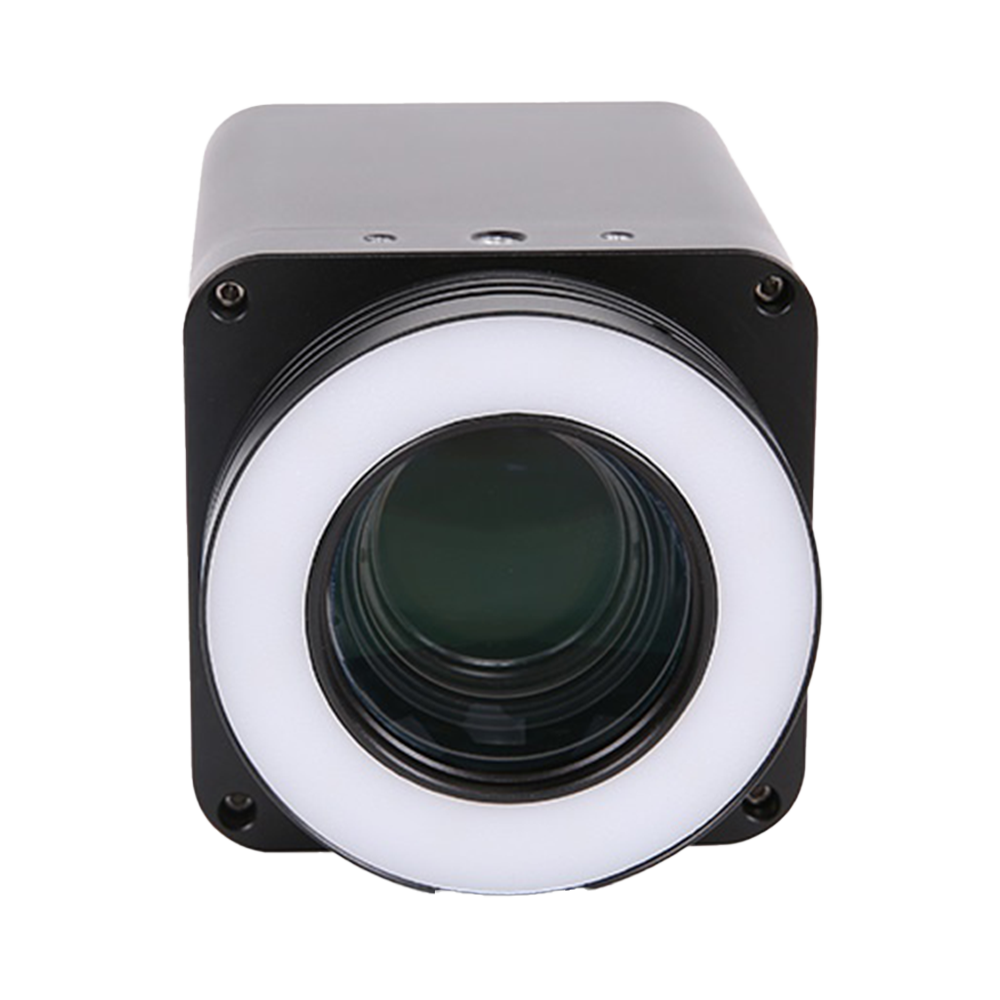

- Magnetic head-mounted LED ring light with adjustable brightness

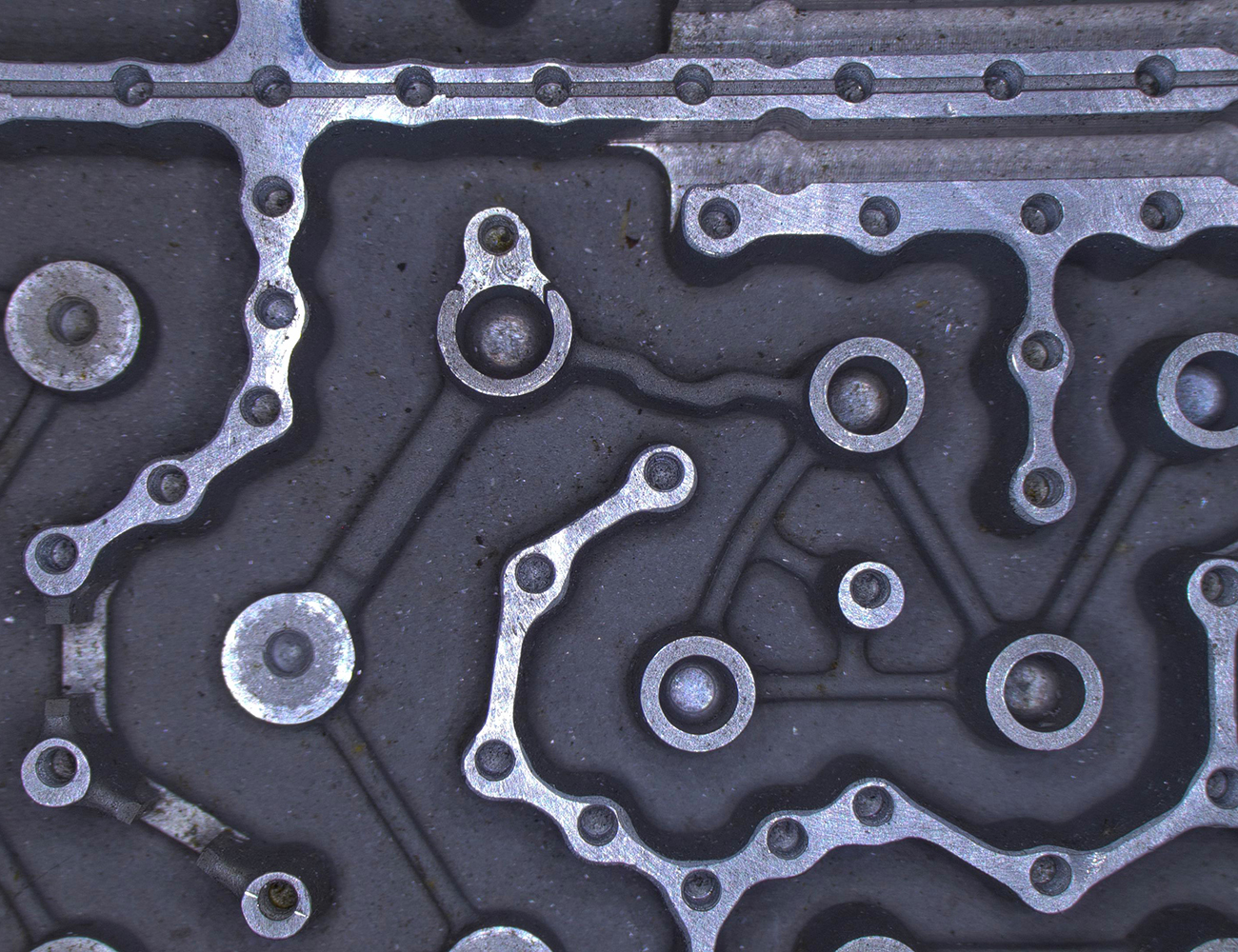

- Suitable for high-end inspection, live demonstrations, educational training and other scenarios

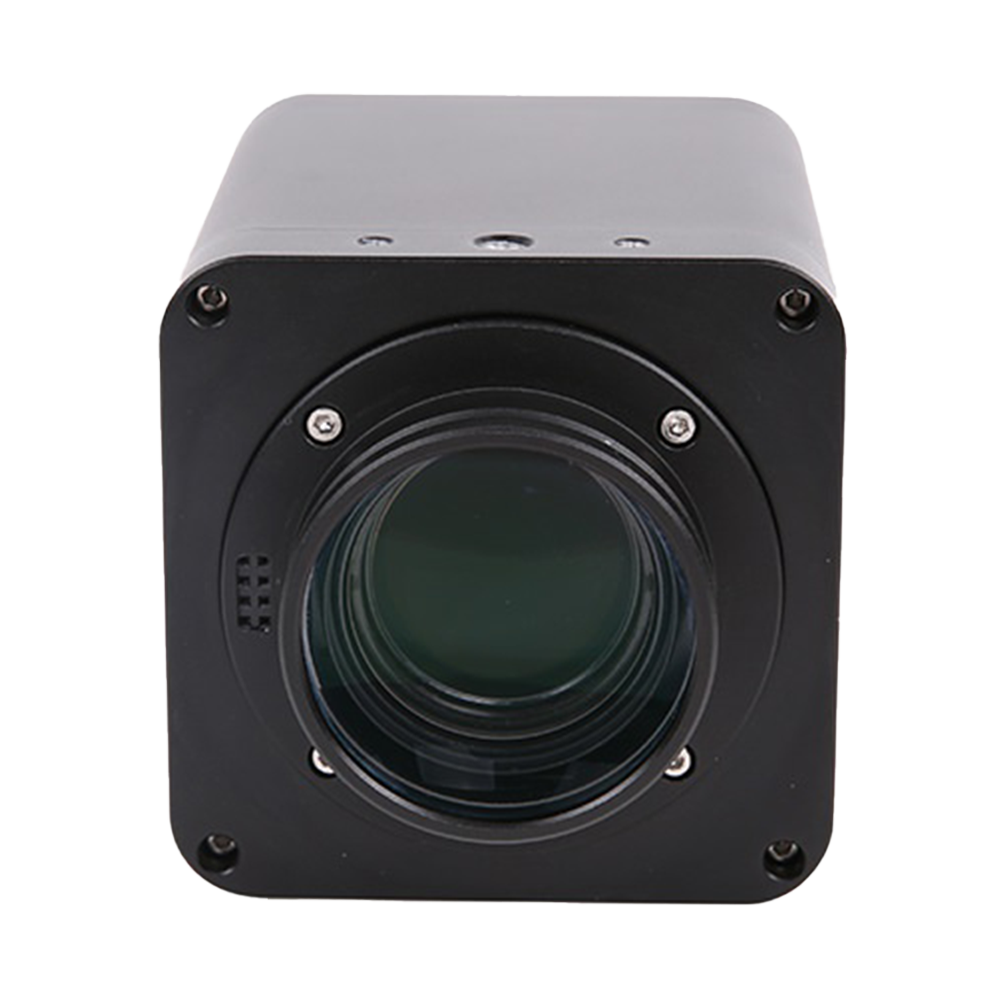

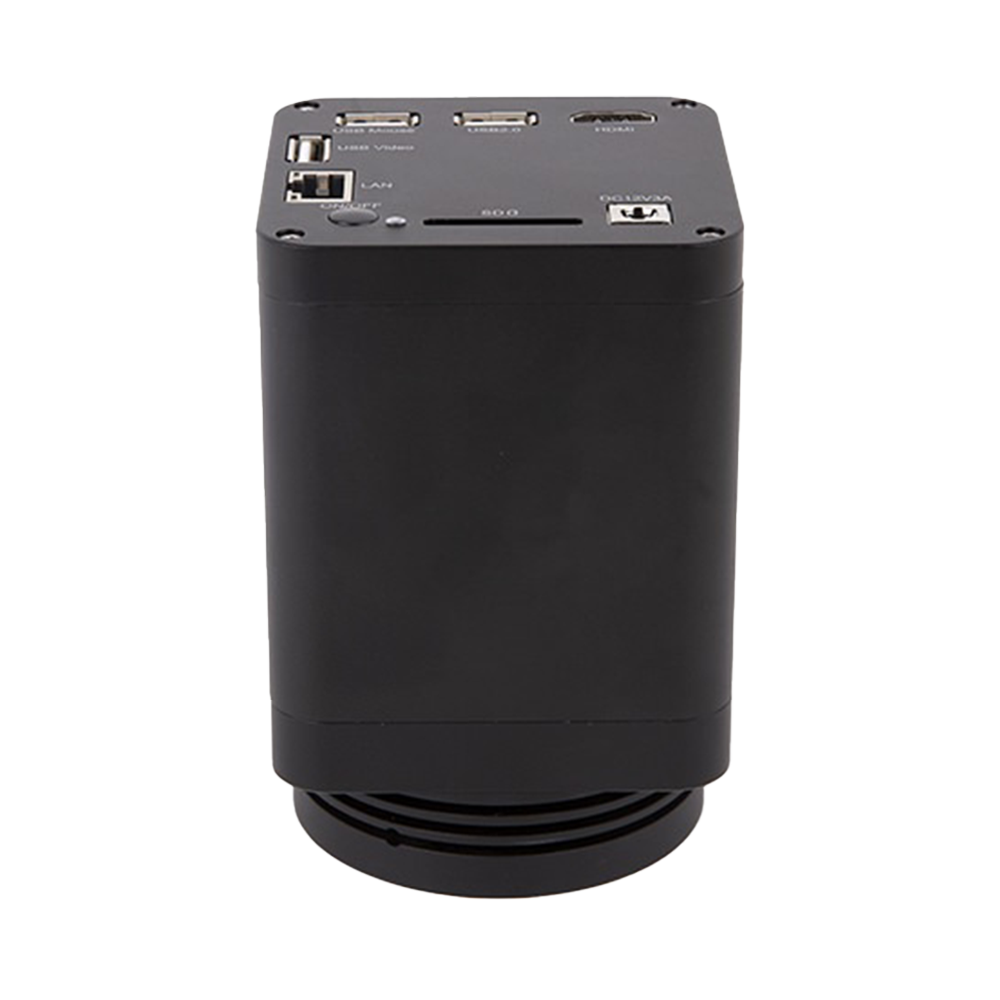

4K HDMI/USB2.0 Continuous Zoom Autofocus Digital Microscope
The AFDM412 series supports 4K ultra-high-definition output (4K@30 fps), integrates 18× continuous optical zoom, provides HDMI/USB/Ethernet multi-interface output and local storage; built-in XCamView measurement and control, suitable for live demonstrations, educational training, and high-end inspection scenarios requiring high-resolution imaging.
| Model | Sensor | Max Resolution & Frame Rate | Output Interface | Optical Zoom | Standard Working Distance | Lens Type | Features | Action |
|---|---|---|---|---|---|---|---|---|
| AFDM412 |
Sony IMX415LQR-C
1/2.8" (5.57×3.13 mm)
|
8MP (3840×2160)
30 fps@3840×2160
|
HDMI1.4 USB2.0 LAN Wi-Fi | 18× (0.0218X~0.392X) | 205-255 mm (standard 250 mm) | EMZO-18XA-250 integrated lens | 4K Ultra HD Autofocus 18× Zoom | View Details |
AFDM412 Auto-Focus Digital Microscope | Package Contents #

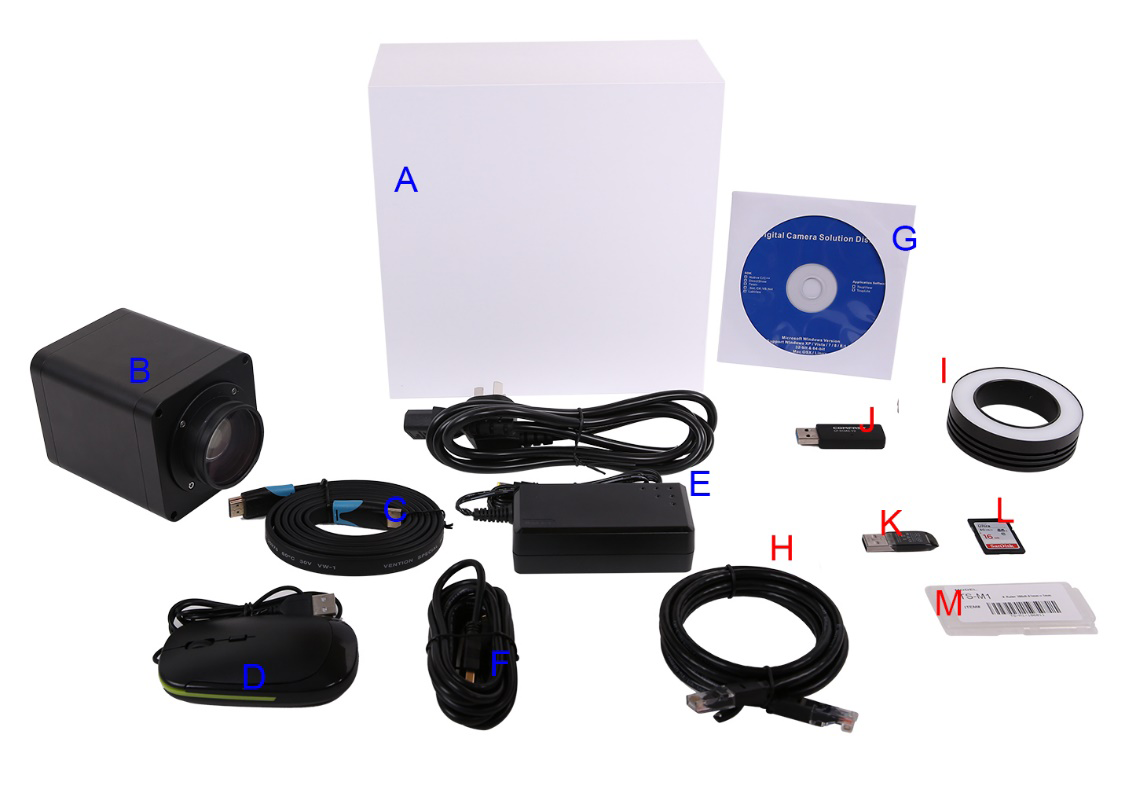

Standard Packing List
- A Camera box: 22.0 cm × 22.0 cm × 11.0 cm (1 pc, approx. 2.0 kg per box)
- B AFDM412 auto-focus camera ×1
- C HDMI cable ×1
- D USB mouse ×1
- E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A (HKA03612030-7K, includes CN/EU AC power cords, compliant with UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN 61000-4-2/3/4/5/6)
- F USB 2.0 Type-A to Type-A gold-plated cable (2.0 m)
- G Drivers and application media (CD / bundled USB flash drive)
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC or AALRL-200-7650)
- J Spare USB flash drive
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L SD card (16 GB)
- M Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
AFDM412 Auto-Focus Digital Microscope | Product Dimensions #

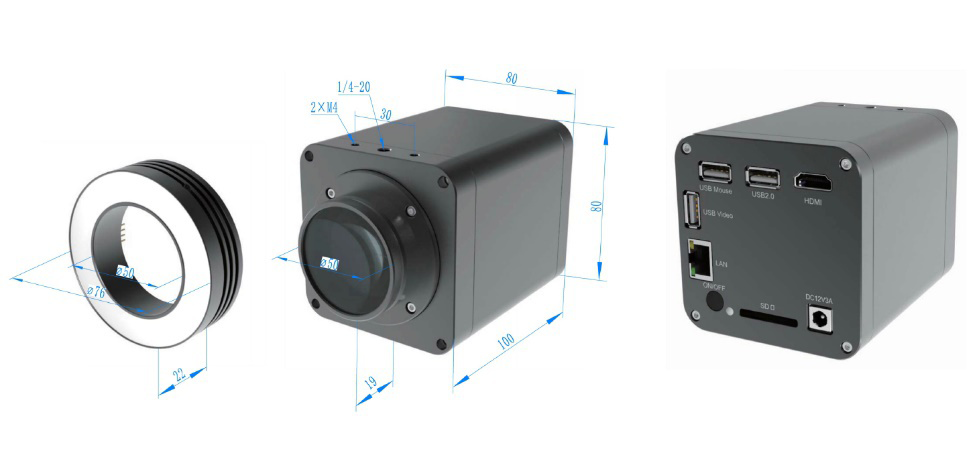

Enclosure dimensions and environmental indicators
Housing 80 × 80 × 122 mm, see Fig. 3-32
Confirm mounting hole positions and connector orientation with the dimension diagram before installation.
AFDM412 In-Depth Overview
AFDM412 adopts the Sony IMX415 back-illuminated CMOS sensor (1/2.8"), delivering 4K (3840×2160) output. HDMI, USB and network interfaces all provide 4K @ 30 fps streams. The platform integrates 18× motorized continuous zoom with auto/manual focus and embeds the XCamView control and measurement suite.
The standard measurement working distance is 250 mm (auto-focus range 205 to 255 mm). Within this distance the low-magnification field of view reaches 255 × 145 mm, while the high-magnification field covers 14.2 × 8.0 mm, balancing rapid positioning with detailed inspection.
The system supports HDMI 1.4 (automatic switching between 4K and 1080p), USB Video (UVC capture via ToupView) and Ethernet streaming (via ToupView). A USB 5G Wi-Fi adapter can be added for wireless image transmission. Image enhancement features include the Ultra-Fine color engine, 3D noise reduction, ROI white balance and localized dynamic range adjustments. Measurement calibration, geometric measurement with parameter export, and 4K H.264 recording at a 30 fps storage frame rate are also available.
AFDM412 Key Functions
Wide Low-Magnification View
Field of view 255 × 145 mm at low magnification and 14.2 × 8.0 mm at high magnification.
250 mm Standard Working Distance
Auto-focus range 205 to 255 mm accommodates a wide range of sample heights.
Auto and Manual Focus
Supports auto, single and manual focus while operating with 18× motorized zoom.
18× Continuous Zoom
Optical zoom range 0.0218×–0.392× with smooth motorized control.
Measurement and Data Export
Built-in calibration and geometric measurement tools with support for exporting measurement datasets.
Image Enhancement
Ultra-Fine color engine, 3D noise reduction, ROI white balance and localized dynamic range controls.
Network and Wireless Expansion
ToupView network transmission over LAN with optional USB 5G Wi-Fi adapter for wireless streaming.
Open SDK
Multi-platform, multi-language SDK for Windows/Linux/macOS/Android to simplify secondary development.
Recording and Storage
4K H.264 video recording (stored at 30 fps) with local saving and playback via SD card or USB drive.
Optional Ring Illumination
Supports DRL-5076A-NPC or AALRL-200-7650 ring lights with camera-side brightness control.
AFDM412 Core Advantages
Broader Low-Magnification Coverage
255 × 145 mm low-magnification field enables rapid positioning of large samples.
Stable Working Distance
Standard 250 mm (AF range 205–255 mm) keeps setup simple and operation intuitive.
Crisp Imaging
3D noise reduction, ROI white balance and localized dynamic range ensure consistent detail rendition.
Multi-Interface Output
HDMI 1.4/USB/LAN outputs with optional USB 5G Wi-Fi adapter for wireless expansion.
Accessible Measurement
Calibration, geometric measurement and parameter export cover daily inspection and archiving needs.
Ready for Development
Cross-platform SDK simplifies system integration and advanced customization.
