TPS Microscope Stands
Product Introduction
TPS stands are built from high-strength anodised aluminium and shipped with multiple bracket and base sizes that support 50 mm to 76 mm mounting diameters. Ideal for laboratory, industrial inspection, and research environments, the system offers stable support with coarse and fine focus control.
Product Features
- Multiple bracket sizes compatible with 50 mm to 76 mm mounting diameters
- Durable high-strength anodised aluminium construction
- Smooth coarse and fine focusing mechanisms
- Stable bases suited to long-term laboratory or industrial use
- CNC precision machining ensures structural accuracy and smooth travel
- Fine-focus resolution up to 0.002 mm with flexible base/bracket combinations
TPS Series High-Precision Microscope Stands
TPS stands are built from high-strength anodised aluminium and shipped with multiple bracket and base sizes that support 50 mm to 76 mm mounting diameters. Ideal for laboratory, industrial inspection, and research environments, the system offers stable support with coarse and fine focus control.

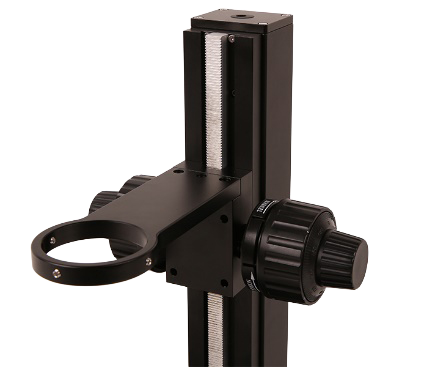

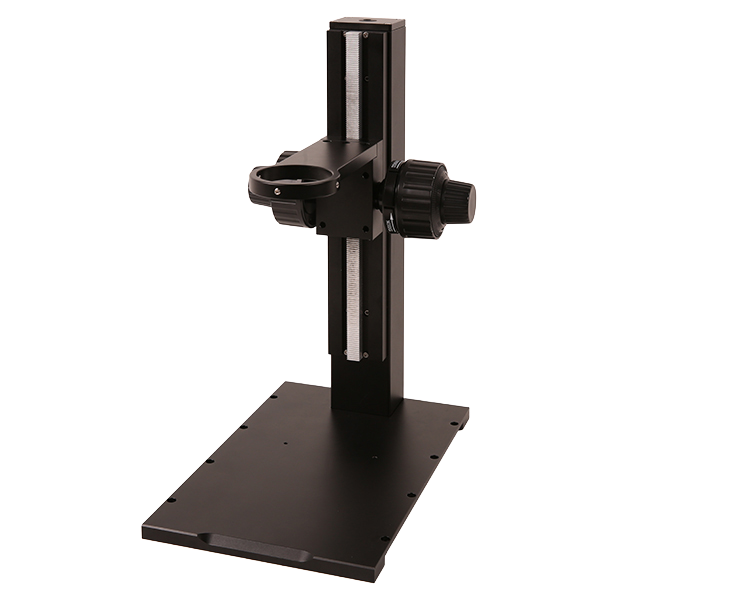

TPS-600B-CFA50
Precision coarse/fine stand with CFA50 bracket and 160×250×10 mm base; 250 mm travel; 0.002 mm fine-focus resolution for high-accuracy applications.

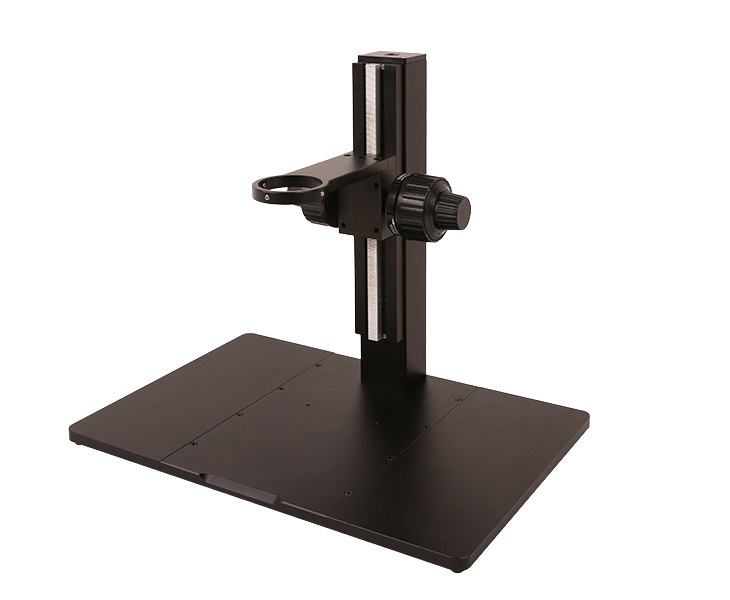

TPS-600-CFA50
Precision coarse/fine stand with CFA50 bracket and 380×250×10 mm base; 0.002 mm fine-focus resolution for large-range, high-precision adjustments.

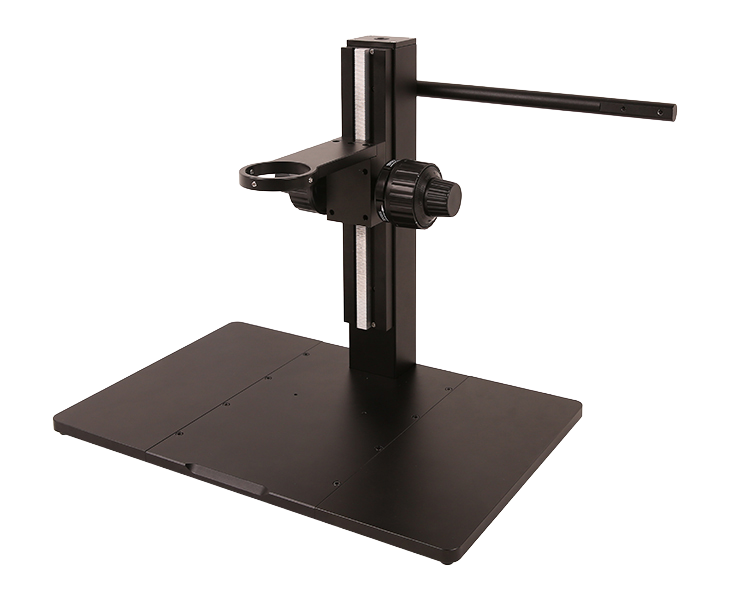

TPS-600-CFA50-G
Precision coarse/fine stand with stabilising cross-bar, CFA50 bracket, and 380×250×10 mm base; 0.002 mm fine-focus resolution for enhanced rigidity.

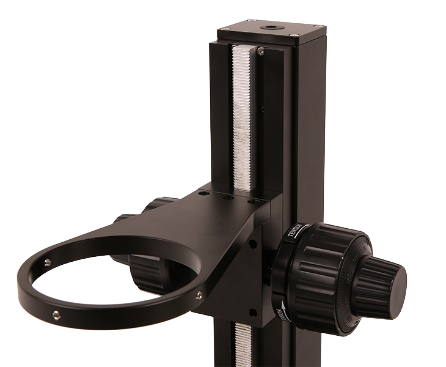

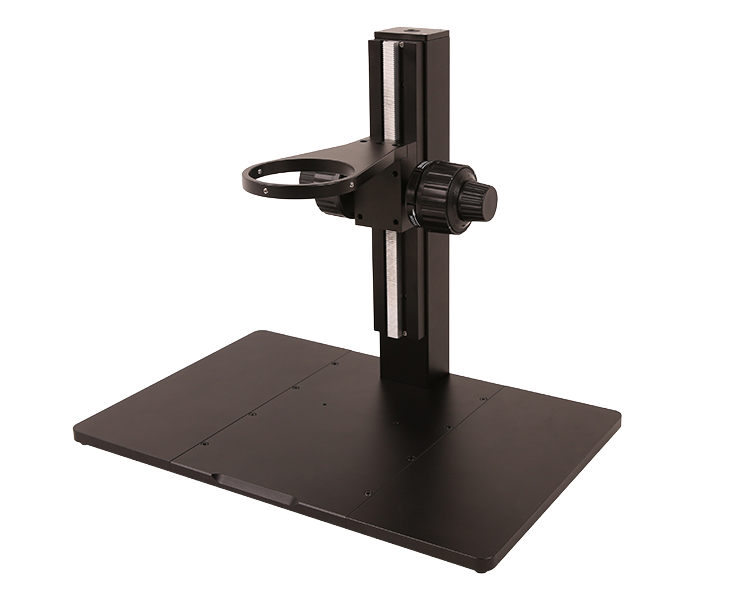

TPS-600-CFA76
Precision coarse/fine stand with CFA76 bracket and 380×250×10 mm base, supporting 76 mm optics with 0.002 mm fine-focus resolution.

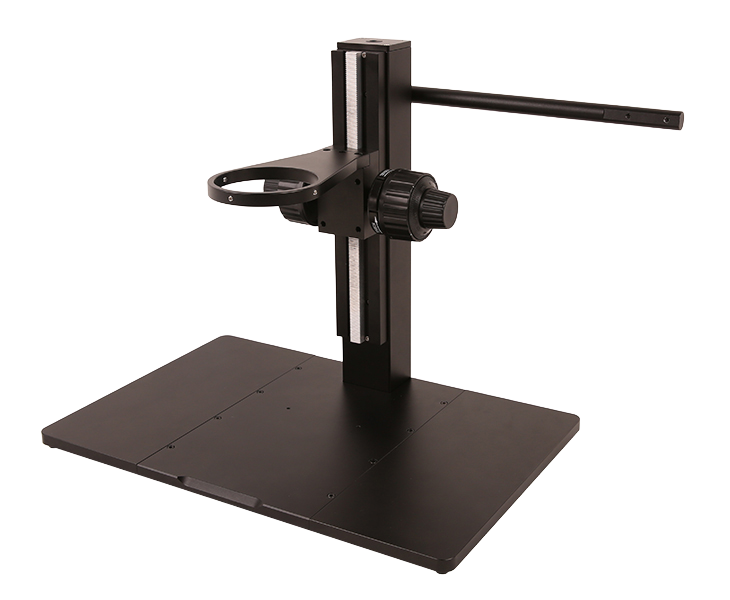

TPS-600-CFA76-G
Precision coarse/fine stand with cross-bar, CFA76 bracket, and 380×250×10 mm base for 76 mm optics; 0.002 mm fine-focus resolution.

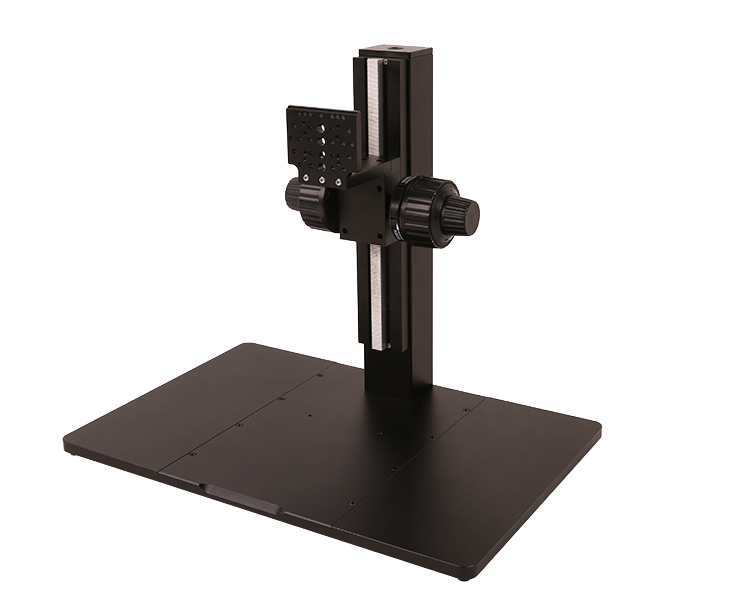

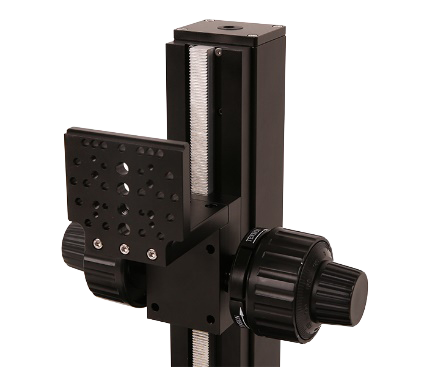

TPS-600-CFAMF
Precision coarse/fine stand with CFAMF multifunction bracket, 380×250×10 mm base, 133 mm centre distance, and 0.002 mm fine-focus resolution.

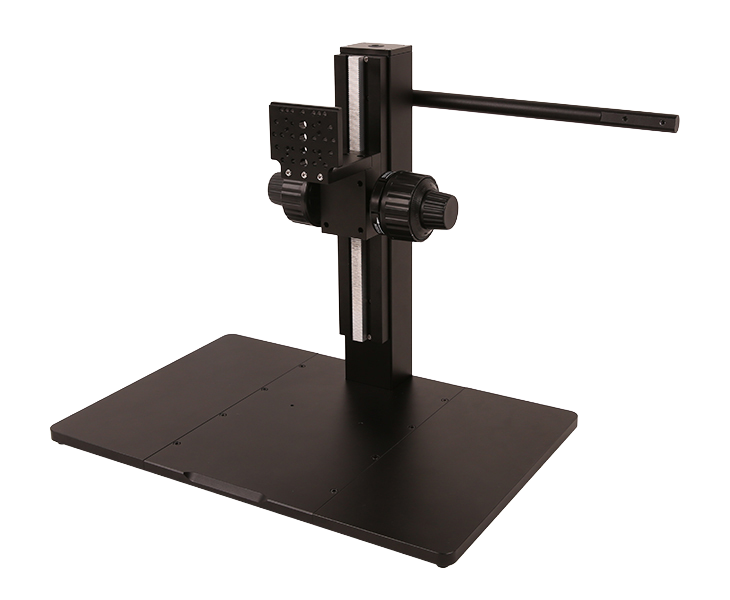

TPS-600-CFAMF-G
Precision coarse/fine stand with cross-bar and CFAMF multifunction bracket, 380×250×10 mm base, 133 mm centre distance, and 0.002 mm fine-focus resolution.

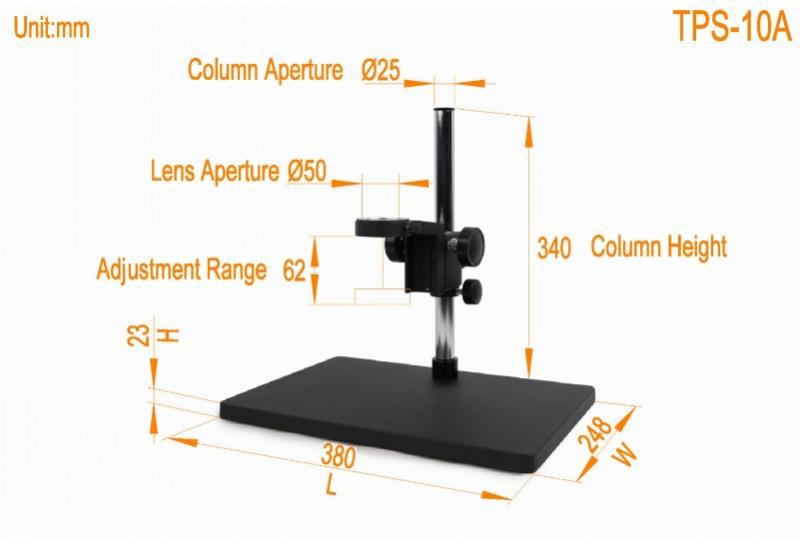

TPS-10A
Compact stand with A4 bracket and B10 base; 50 mm aperture; 62 mm travel; ideal for small labs and teaching setups.

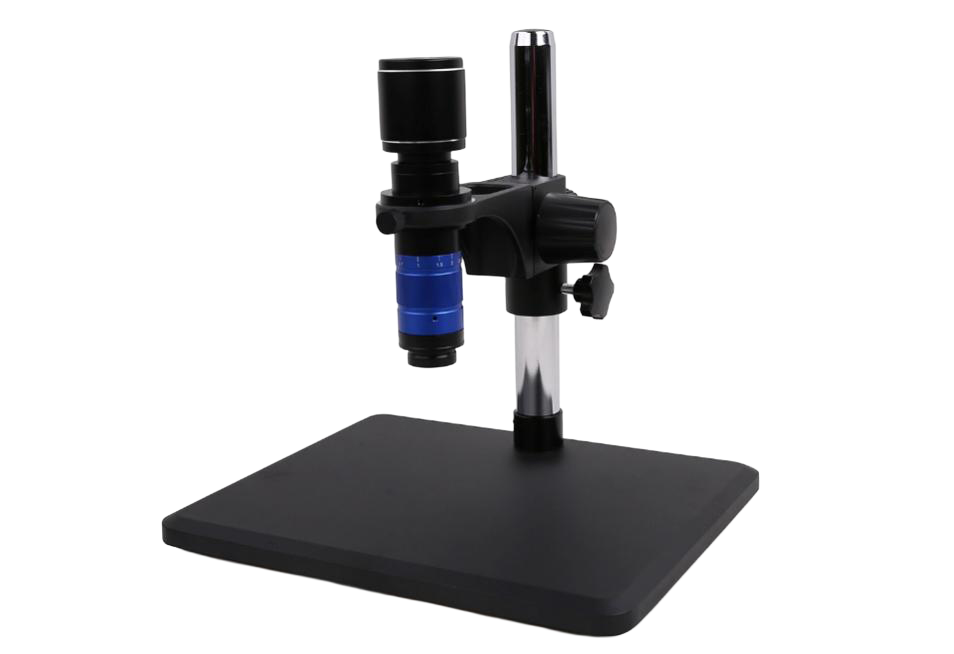

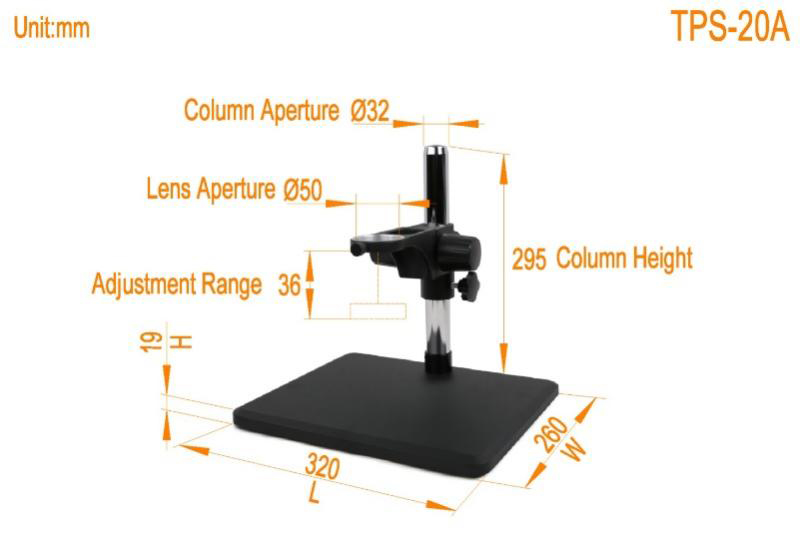

TPS-20A (Discontinued)
Mid-size stand with A5 bracket and B11A base; 50 mm aperture; 36 mm travel for routine inspection tasks.
TPS-20B
Mid-size stand with A5 bracket and B11B base; 50 mm aperture; 36 mm travel; base arranged laterally for additional workspace.

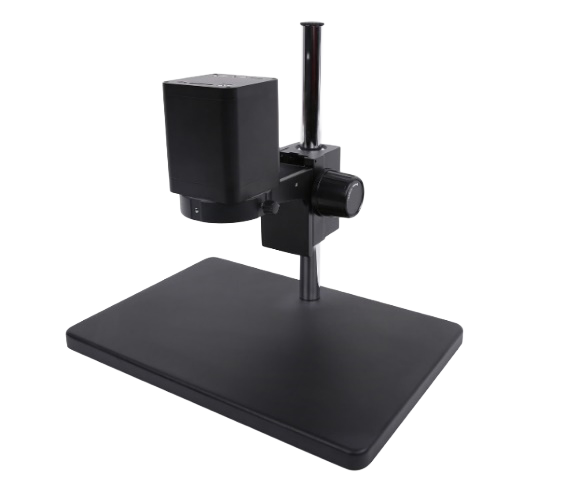

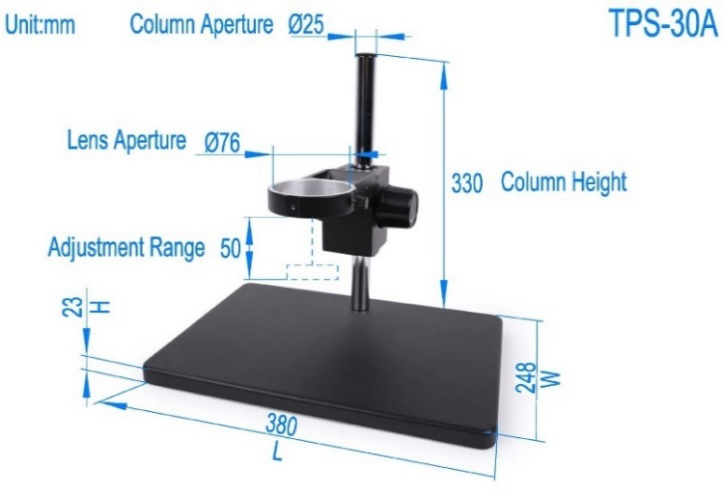

TPS-30A (Discontinued)
Large-field stand with A1 bracket and B10 base; 76 mm aperture; 50 mm travel for advanced imaging setups.

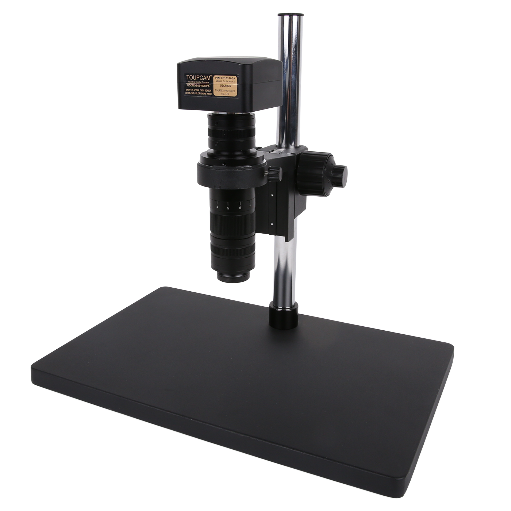

TPS-300A (Discontinued)
High-precision coarse/fine stand with CFA5025 bracket and B10 base; 50 mm aperture; 62 mm travel for precision measurements.

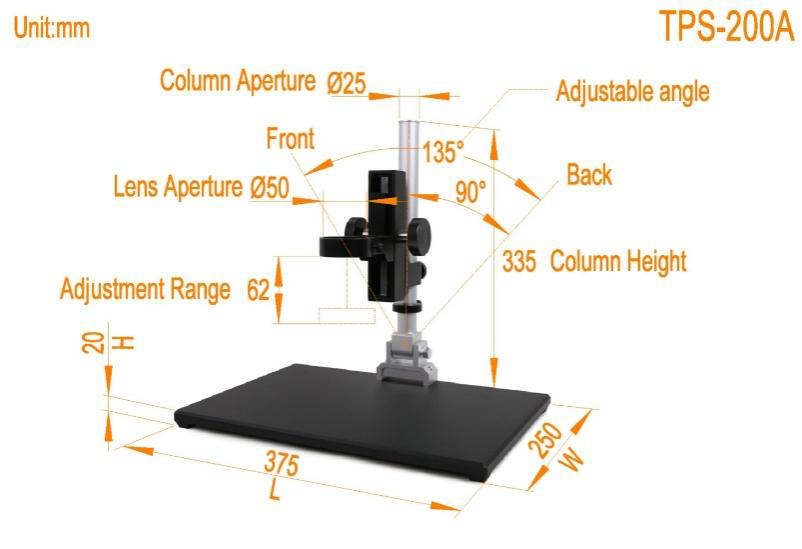

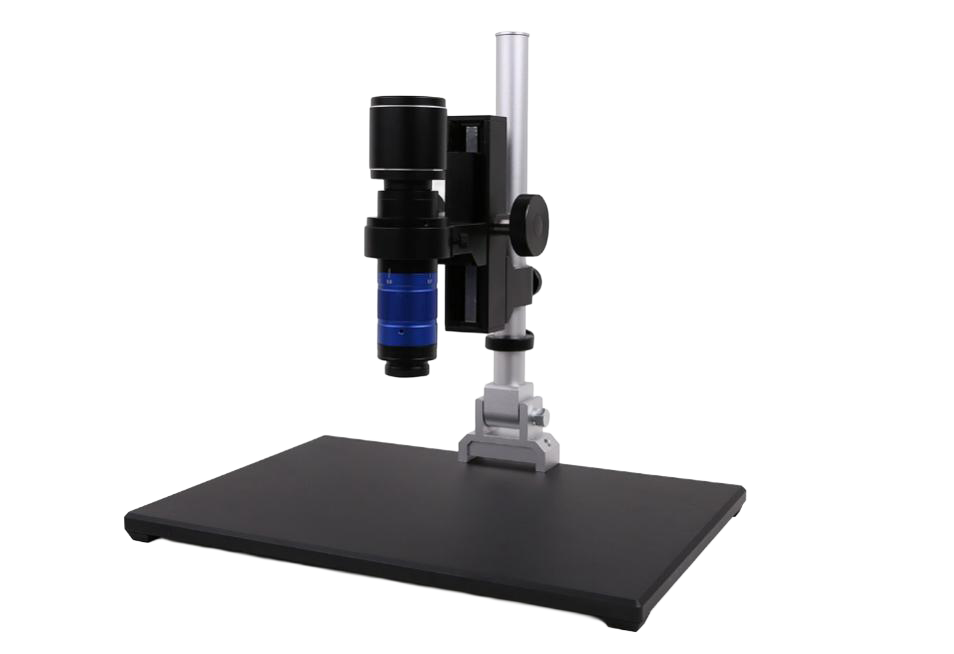

TPS-200A (Discontinued)
Large-base stand with A20 bracket and B20A base; 50 mm aperture; generous working envelope for stable operation.
TPS-200B
Large-base stand with A20 bracket and B20B base; 50 mm aperture; lateral base layout for additional workspace.

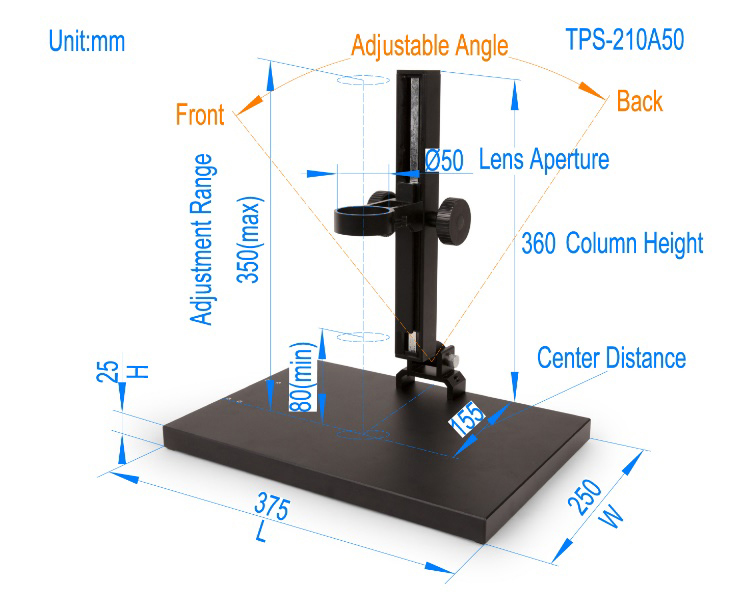

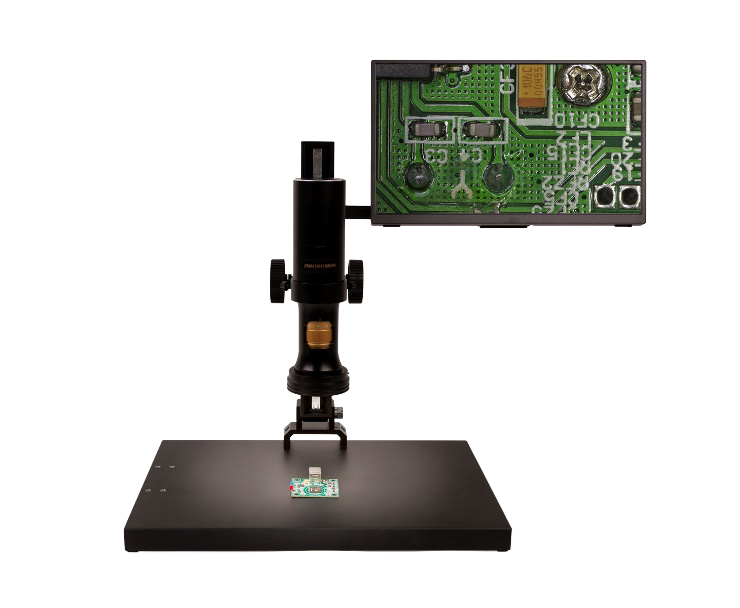

TPS-210A50
Coarse/fine stand with A50 bracket and B210 base; 50 mm aperture; precision focusing with 25 mm column diameter.

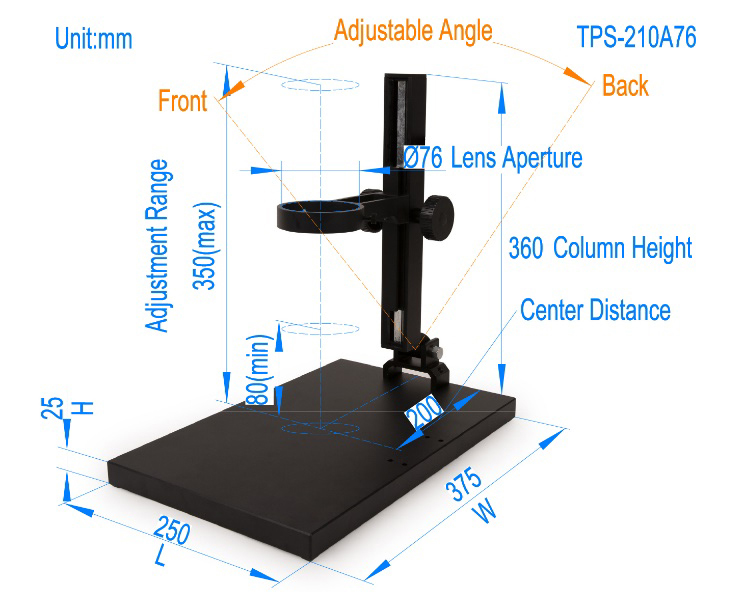

TPS-210A76
Coarse/fine stand with A76 bracket and B210 base; 76 mm aperture; precision focusing with 25 mm column diameter.

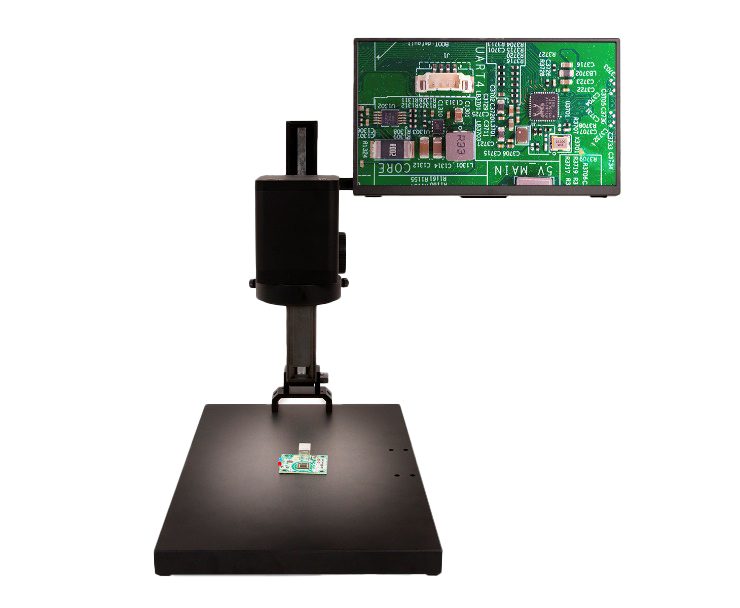

TPS-210A76-G
Coarse/fine stand with cross-bar, A76 bracket, and B210 base; 76 mm aperture; precision focusing with 25 mm column diameter.
Product Overview
Professional characteristics of laboratory/industrial microscope stand series
ToupTek's universal microscope stand series is designed specifically for laboratory research, industrial inspection, and educational microscope imaging scenarios. This product line includes the TPS-600 series, M-SD-HM series, and other models, supporting multi-angle adjustment, multi-height positioning, and coarse/fine focus adjustment to meet diverse requirements from standard microscopes to portable detection equipment. Featuring high-strength anodized aluminum alloy construction and CNC precision machining, ensuring stand stability, durability, and smooth operation.
Core Features
Extensive Model Coverage
TPS-600 series and M-SD-HM series, meeting diverse requirements
High-precision Structural Design
CNC precision machining, coarse/fine focusing system
High-strength Aluminum Alloy Material
Anodization treatment, stable, durable, and corrosion-resistant
Multi-interface Compatibility
Supports 33mm, 41mm, 50mm, 76mm mainstream interfaces
Performance Parameter Highlights
Interface Specifications
33-76 mm
Multi-specification compatibilityAdjustment Method
Coarse/Fine
Precision focusingBase Dimensions
380×250
mm (TPS-600)Installation Method
Diversified
Spiral/rack/clip-onIn-depth Product Introduction
Comprehensive Model Coverage System
ToupTek's microscope stand series provides complete product line coverage. The TPS-600 series is specifically designed for high-end industrial inspection and scientific research applications, supporting 50mm and 76mm aperture equipment with large, stable bases (380×250mm) and integrated precision coarse/fine adjustment systems, ensuring stability during high-resolution imaging. The TPS-10A to TPS-300A series offers multiple structural options from compact to large base designs, meeting different height and space installation requirements. The M-SD-HM1 to HM5 series employs portable lightweight design supporting spiral rod, rack and pinion, clip-on, and other installation methods, particularly suitable for portable microscopes, educational demonstrations, or field inspection applications.
Precision Manufacturing Process and Structural Design
Utilizing CNC precision machining technology ensures optimal dimensional accuracy and fitting tolerances for all moving components. All sliding and rotating parts are carefully designed and machined to achieve smooth, vibration-free adjustment experience, maintaining high stability even after extended use. The coarse/fine focusing system employs dual-level adjustment design where coarse adjustment provides large travel for rapid positioning while fine adjustment achieves micron-level precise focusing, particularly suitable for fine adjustments in high-magnification microscope imaging. Anti-vibration base design combined with high-density counterweight effectively absorbs external vibrations, ensuring clear and stable imaging.
High-strength Aluminum Alloy Material Technology
The entire construction utilizes high-strength aluminum alloy material with anodization surface treatment, providing not only excellent mechanical strength and rigidity but also outstanding corrosion resistance and wear resistance. The anodization layer thickness is uniform with high surface hardness, effectively resisting scratches and chemical corrosion from daily use. The metal framework structure is optimized through finite element analysis to minimize weight while ensuring strength. The anti-slip base employs special rubber material to increase friction coefficient with the table surface, combined with carefully designed center of gravity distribution, providing a stable support foundation.
Flexible Multi-scenario Adaptation Capability
The stand series design fully considers the requirements of different application scenarios. In biological research, stable support and precise focusing capabilities ensure quality of live cell observation and fluorescence imaging. In materials science, high rigidity structure meets stringent requirements for metallographic analysis and surface morphology detection. In industrial electronics and semiconductor inspection, anti-vibration design and precision adjustment mechanisms ensure accuracy of high-resolution defect detection. In educational environments, portable models provide flexible demonstration and experimental solutions that are simple to operate and safely reliable.
Human-centered Operation Design Philosophy
Every detail is carefully designed to enhance user experience. The focusing knobs feature ergonomic design with comfortable feel, reducing fatigue during extended operation. Scale markings are clear and easy to read, facilitating repeat positioning and recording. Quick locking mechanisms allow users to rapidly secure ideal positions once found, avoiding accidental movement. Cable management design maintains neat organization, preventing tangling that interferes with operation. Modular design philosophy enables flexible combination of different components to meet special application requirements. All fasteners use standard specifications for convenient maintenance and replacement, extending product service life.
Applications
Demonstration of microscope stand series applications in various imaging scenarios
Microscope Stand Series Core Advantages
Rich Model Selection
TPS/M-SD full series
CNC Precision Machining
High precision, stable and reliable
Aluminum Alloy Material
Anodized durability
Coarse/Fine System
Precision focus control
Multi-interface Compatibility
33-76mm specifications
Anti-vibration Design
Stable base structure
Portable Models
Lightweight design
Modular Design
Flexible combination configuration
