PUM Series
Product Introduction

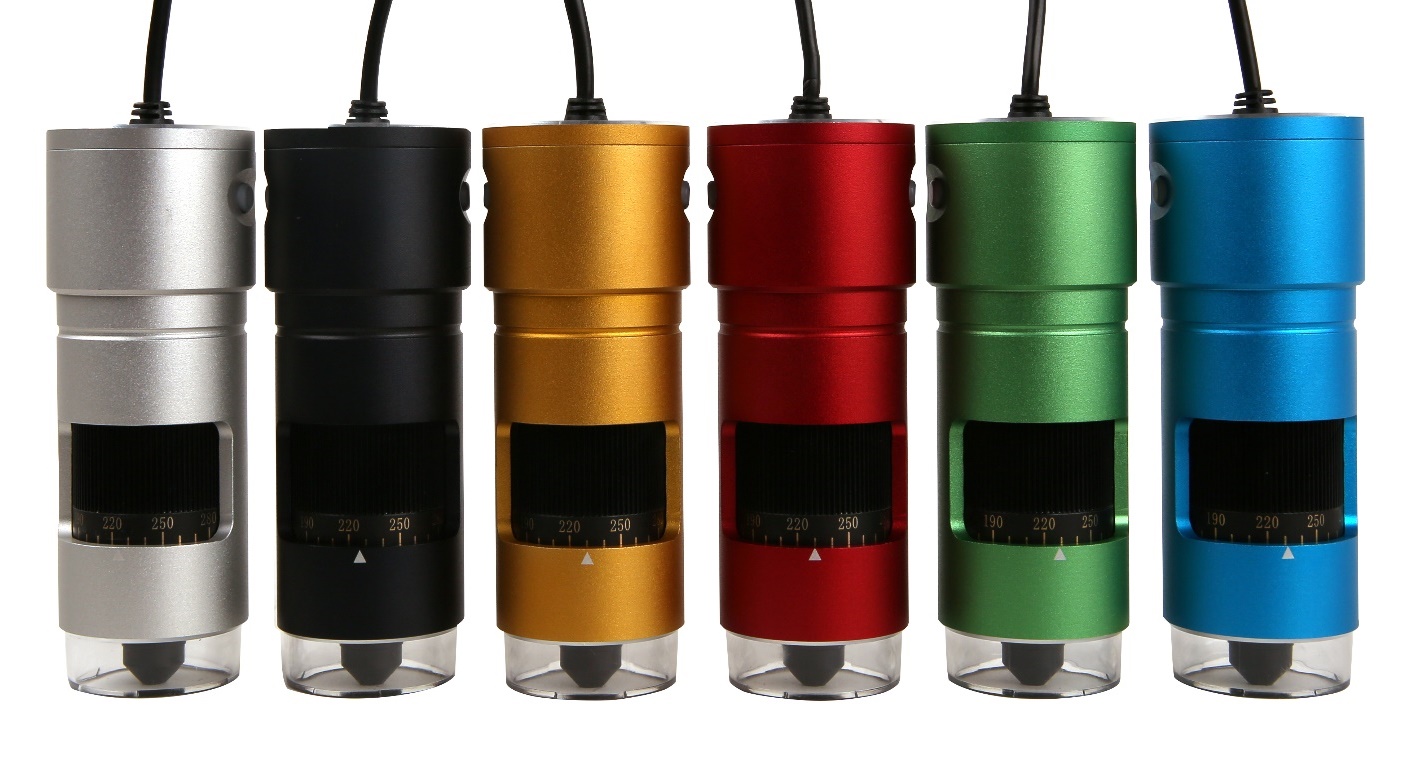

The PUM series USB microscope represents a digital microscope with moderate magnification and convenient operation. The magnification can be continuously adjusted linearly from 10× to 280× (display dependent), making it suitable for observing stamps, coins, insects, plants, small rocks, skin, gems, circuit boards, and other specimens. At high magnifications, it can also be used to observe traditional biological slides.
Furthermore, the built-in 2.0 MP CMOS camera can capture and save images and videos of observed samples to a computer. The microscope's LED illumination ensures clear and bright specimen viewing. The included metal stand (M-SD-HM5) ensures stability and accurate focusing when observing objects at high magnifications, providing practical convenience.
The PUM series portable USB microscope serves as an educational and entertaining tool for both students and adults, making it highly suitable for hobbyists, quality control inspectors, medical professionals, and researchers.
Product Features
- USB-powered portable digital microscope with magnification continuously adjustable from 10× to 280×
- Magnification adjustment achieved by varying the distance between PUM and the observation object
- Single distance corresponds to single magnification
- Magnification knob maintains linear relationship with magnification ratio
- Object distance 110→10mm corresponds to 10×→280× magnification (22" display)
- 5-element multi-coated anti-reflection imaging lens
- Built-in 2-megapixel digital camera for capturing photos and videos
- 8-LED ring illumination
- Uses included Windows software to capture images and videos with built-in measurement menu for specimen measurement
- Computer requirements: CD drive and USB2.0 port. UVC plug-and-play support for Windows 7/8/10/11, Vista, and XP (32/64-bit)
Portable USB Microscope
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|
| PUM01300KPA |
1.3M / Sony IMX307(C)
1/2.8" (4.41 × 2.48 mm)
|
2.9 µm × 2.9 µm | 1.3 MP (1520 × 856) |
38 fps @ 1520×856 38 fps @ 760×428 |
USB2.0 | Integrated HH153 lens | Computer storage | HH153 lens 10×–280× continuous magnification 8-LED ring illumination M-SD-HM5 metal stand Image/video capture and measurement |
| PUM02000KPA |
2.0M / Sony IMX290(C)
1/2.8" (5.56 × 3.13 mm)
|
2.9 µm × 2.9 µm | 2.0 MP (1920 × 1080) | 17 fps @ 1920×1080 | USB2.0 | Integrated HH153 lens | Computer storage | HH153 lens 10×–280× continuous magnification 8-LED ring illumination M-SD-HM5 metal stand 2.0 MP image/video capture |
| PUM02100KPA |
2.1M / Sony IMX307(C)
1/2.8" (5.56 × 3.13 mm)
|
2.9 µm × 2.9 µm | 2.1 MP (1920 × 1080) |
38 fps @ 1920×1080 38 fps @ 960×540 |
USB2.0 | Integrated HH153 lens | Computer storage | HH153 lens 10×–280× continuous magnification 8-LED ring illumination M-SD-HM5 metal stand High-frame-rate 1080P capture |
| PUM05100KPA |
5.1M / Sony IMX335(C)
1/2.8" (5.18 × 3.89 mm)
|
2.0 µm × 2.0 µm | 5.1 MP (2592 × 1944) |
26 fps @ 2592×1944 26 fps @ 1280×960 26 fps @ 640×480 |
USB2.0 | Integrated HH153 lens | Computer storage | HH153 lens 10×–280× continuous magnification 8-LED ring illumination M-SD-HM5 metal stand 5.1 MP high-resolution capture |
| PUM05100KPA-P |
5.1M / Sony IMX335(C)
1/2.8" (5.18 × 3.89 mm)
|
2.0 µm × 2.0 µm | 5.1 MP (2592 × 1944) |
26 fps @ 2592×1944 26 fps @ 1280×960 26 fps @ 640×480 |
USB2.0 | Integrated HH153 lens | Computer storage | Polarized model HH153 lens 10×–280× continuous magnification 8-LED ring illumination 5.1 MP high-resolution capture |
| PUM08300KPA |
8.3M / Sony IMX415(C)
1/2.8" (5.57 × 3.13 mm)
|
1.45 µm × 1.45 µm | 8.3 MP (3840 × 2160) |
30 fps @ 3840×2160 30 fps @ 1920×1080 30 fps @ 1280×720 30 fps @ 960×540 |
USB2.0 | Integrated HH153 lens | Computer storage | HH153 lens 10×–280× continuous magnification 8-LED ring illumination M-SD-HM5 metal stand 8.3 MP 4K capture |
| PUM08300KPA-P |
8.3M / Sony IMX415(C)
1/2.8" (5.57 × 3.13 mm)
|
1.45 µm × 1.45 µm | 8.3 MP (3840 × 2160) |
30 fps @ 3840×2160 30 fps @ 1920×1080 30 fps @ 1280×720 30 fps @ 960×540 |
USB2.0 | Integrated HH153 lens | Computer storage | Polarized model HH153 lens 10×–280× continuous magnification 8-LED ring illumination 8.3 MP 4K capture |
Detailed Features
ToupTek Photonics PUM Series portable USB microscopes combine HH153 multi-coated optics, a built-in CMOS digital camera, 8-LED ring illumination, and USB-powered plug-and-play operation in a compact handheld format. The system is designed for education, hobby observation, quality inspection, medical observation, research support, gemstone inspection, circuit board inspection, and biological slide observation.
The magnification can be adjusted continuously from 10× to 280× depending on the display. Object distance and magnification are directly related, while the included M-SD-HM5 metal stand helps maintain stable focus during high-magnification observation.
