IUC-AFU-EF Series

Product Introduction

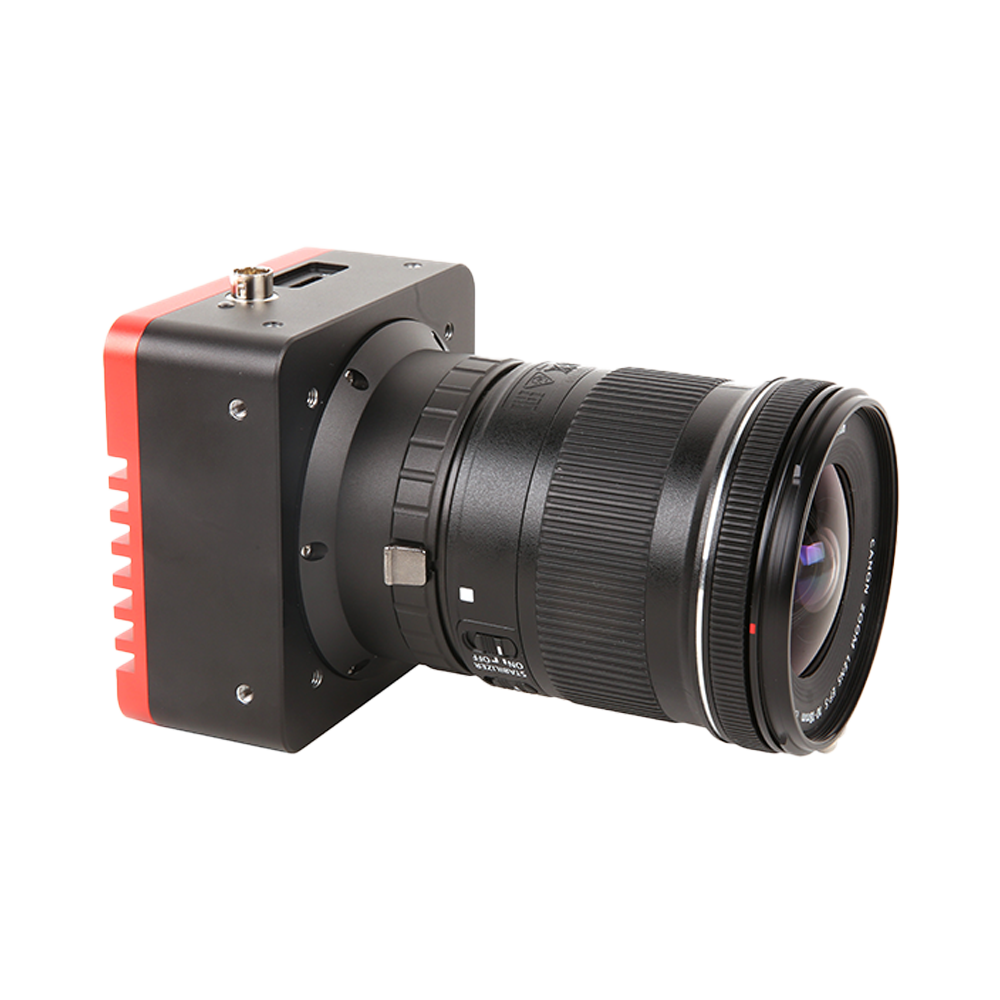

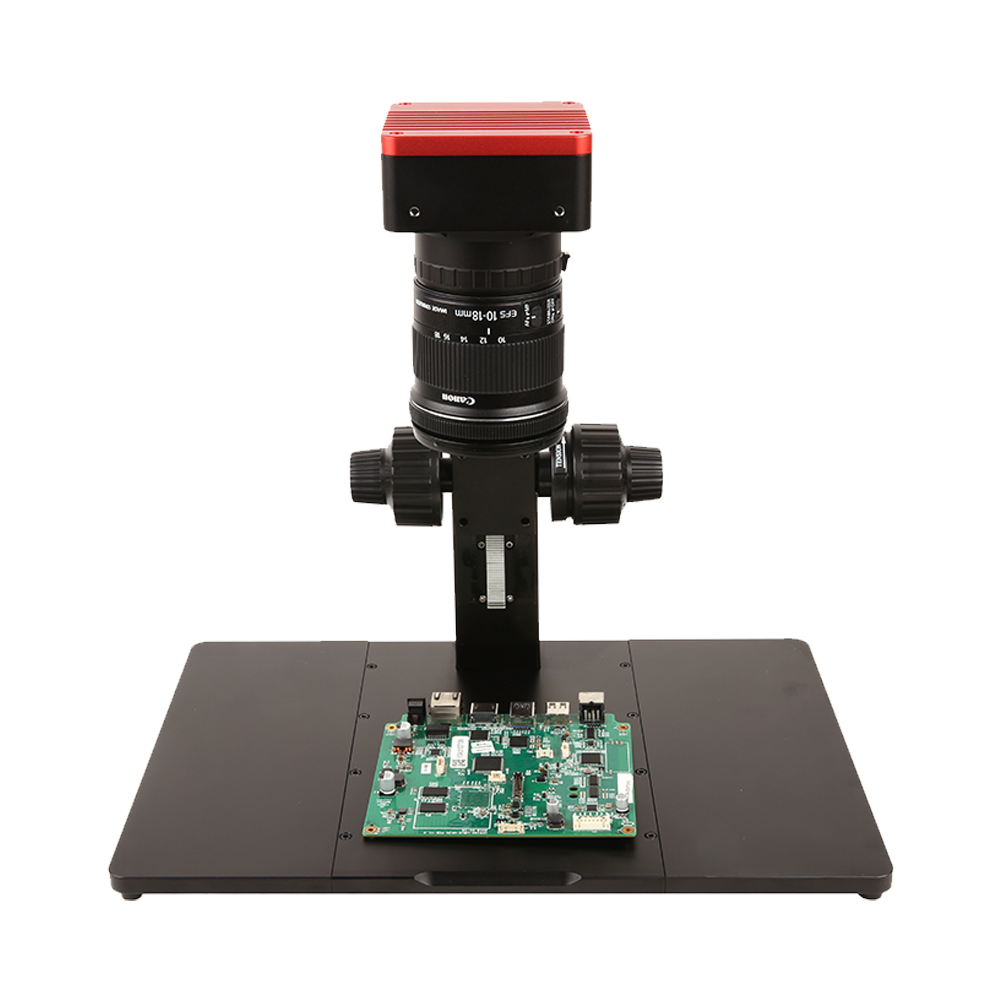

The IUC-AFU-EF series addresses high-resolution industrial and research scenarios requiring rapid, stable focusing, featuring APS-C and full frame (35 mm) large-format CMOS sensors with resolutions ranging from 26–60 MP. Equipped with electronic EF mount, the cameras directly control Canon EF/EF-S lens autofocus and electronic aperture, significantly simplifying system integration and enhancing focusing efficiency for multi-magnification and long working distance applications.

For connectivity, the series offers USB3.0 and 10GigE (model-dependent) high-speed data interfaces, supporting multi-bit depth output and internal buffering to meet high-bandwidth and long-distance acquisition requirements. The cameras support free-running, software/hardware triggering, and multi-camera synchronization, with optically isolated I/O for trigger/strobe control and programmable GPIO, facilitating coordination with light sources, motion platforms, and other peripherals.

Complete software ecosystem includes bundled ToupView and cross-platform SDK (Windows / Linux / macOS; C/C++/C#/Python, etc.), compatible with DirectShow / TWAIN, suitable for custom development and rapid deployment of integrated systems and OEM solutions.

Product Features

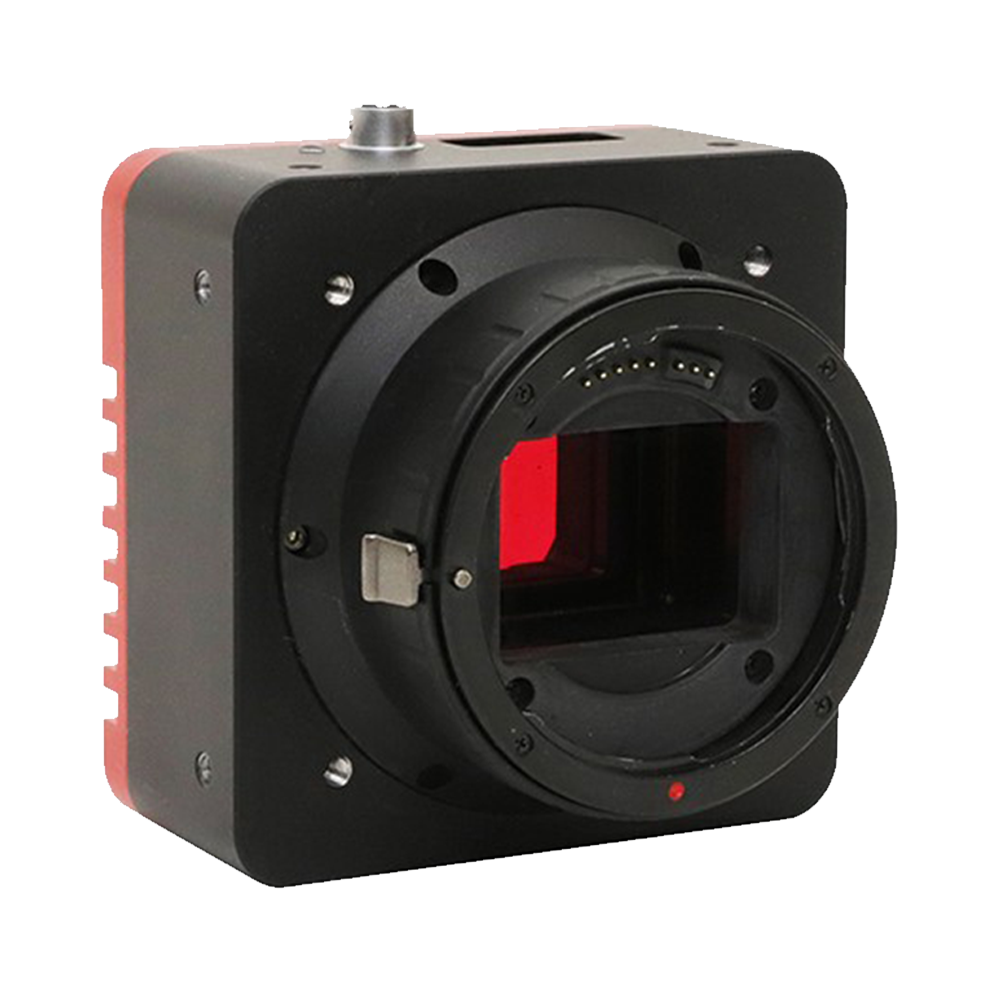

Electronic EF mount: Supports EF/EF-S lens autofocus and electronic aperture control, focal length/aperture status readback (lens/model-dependent)
Resolution coverage 26–60 MP, APS-C and full frame (35 mm) large-format sensors (model-dependent)
Sensor brands: Sony Exmor / Gpixel and other high-performance CMOS (model-dependent)
Shutter types: Rolling shutter (RS), select models offer global shutter (GS) (model-dependent)
Data interfaces: USB3.0 / 10GigE high-speed links, supporting long-distance and high-bandwidth acquisition (model-dependent)
Multi-bit depth output: 8 / 10 / 12 / 16-bit (model-dependent), enhancing weak signal detail and dynamic range
Internal buffer (model-dependent), ensuring data stability during high-resolution/high-speed acquisition

Trigger modes: Free-running, software trigger, external hardware trigger; supports multi-camera synchronization and strobe control
Industrial-grade I/O: Optically isolated input/output + programmable GPIO, facilitating timing coordination with peripherals
Image features: ROI, digital Binning (2×2/3×3/4×4, model-dependent), mirror/flip, Gamma/LUT, noise reduction, etc.
AF extensions: Supports AF lock and manual focus override (MF), meeting precision focusing and repeatable positioning requirements (model-dependent)
Form factors: Standard housing and board-level (OEM) options for embedded/system integration
Bundled software and SDK: ToupView; Windows / Linux / macOS SDK (C/C++/C#/Python), compatible with DirectShow / TWAIN
Supports field firmware upgrades; CE / FCC / RoHS certified (model-dependent)

Get Quote Product Manual

Product Models

Select the IUC-AFU-EF Series that fits your application requirements

Product Model	Effective Pixels	Sensor Size	Shutter Type	Frame Rate (FPS)	Sensor Type	Data Interface	Color	Actions
IUC26000KMA-AFU	26.0MP (6224×4168)	23.48 mm × 15.67 mm 1.8" (28.21 mm) APS-C	Rolling Shutter	14 fps@6224×4168 (16-bit) 37 fps@3104×2084 110 fps@2064×1388	Sony IMX571BLR	USB3.0	Monochrome	View Details
IUC26000KPA-AFU	26.0MP (6224×4168)	23.48 mm × 15.67 mm 1.8" (28.21 mm) APS-C	Rolling Shutter	14 fps@6224×4168 (16-bit) 37 fps@3104×2084 110 fps@2064×1388	Sony IMX571BQR	USB3.0	Color	View Details
IUC26000KMA-AF10G	26.0MP (6224×4168)	23.48 mm × 15.67 mm 1.8" (28.21 mm) APS-C	Rolling Shutter	45 fps@6224×4168 (16-bit) 37 fps@3104×2084 110 fps@2064×1388	Sony IMX571BLR	10GigE	Monochrome	View Details
IUC26000KPA-AF10G	26.0MP (6224×4168)	23.48 mm × 15.67 mm 1.8" (28.21 mm) APS-C	Rolling Shutter	45 fps@6224×4168 (16-bit) 37 fps@3104×2084 110 fps@2064×1388	Sony IMX571BQR	10GigE	Color	View Details
IUC60000KMA-AFU	60.0MP (9568×6380)	35.96 mm × 23.99 mm 2.7" (43.27 mm) Full Frame	Rolling Shutter	6.1 fps@9568×6380 (16-bit) 24.6 fps@4784×3190 55.8 fps@3184×2124 191.0 fps@1040×706	Sony IMX455ALK	USB3.0	Monochrome	View Details
IUC60000KPA-AFU	60.0MP (9568×6380)	35.96 mm × 23.99 mm 2.7" (43.27 mm) Full Frame	Rolling Shutter	6.1 fps@9568×6380 (16-bit) 24.6 fps@4784×3190 55.8 fps@3184×2124 191.0 fps@1040×706	Sony IMX455AQK	USB3.0	Color	View Details
IUC60000KMA-AF10G	60.0MP (9568×6380)	35.96 mm × 23.99 mm 2.7" (43.27 mm) Full Frame	Rolling Shutter	20 fps@9568×6380 (16-bit) 40 fps@4784×3190 57.52 fps@3184×2124 199.37 fps@1040×706	Sony IMX455ALK	10GigE	Monochrome	View Details
IUC60000KPA-AF10G	60.0MP (9568×6380)	35.96 mm × 23.99 mm 2.7" (43.27 mm) Full Frame	Rolling Shutter	20 fps@9568×6380 (16-bit) 40 fps@4784×3190 57.52 fps@3184×2124 199.37 fps@1040×706	Sony IMX455AQK	10GigE	Color	View Details

Product Overview

Professional features of the IUC-AFU-EF series industrial cameras

The IUC-AFU-EF series represents full-frame autofocus industrial cameras developed by Spectrum Instruments, covering resolutions from 26 to 60 megapixels. Specifically designed for scientific research detection, high-resolution industrial imaging, and dynamic scene capture applications, this series incorporates high-performance back-illuminated CMOS sensors including Sony IMX571 and IMX455. Supporting USB 3.0 high-speed interface and compatible with Canon EF mount lens autofocus functionality, the series provides comprehensive solutions for high-precision imaging and flexible optical applications.

Core Features

Full-Frame Large Sensor

APS-C/Full-frame, up to 60 MP

EF Mount Autofocus

Compatible with Canon EF lens system

Back-Illuminated CMOS

High quantum efficiency, low noise

Multi-Level Binning

1×1/2×2/3×3/9×9 flexible switching

Performance Highlights

Resolution Range

26-60 MP

Ultra-high megapixels

Maximum Frame Rate

191 fps

ROI mode

Exposure Range

150 µs-15 s

Flexible control

Sensor Size

1.8"-2.7"

Large sensor format

In-Depth Product Introduction

Full-Frame High-Megapixel Imaging Technology

The cameras utilize APS-C (1.8") and full-frame (2.7") sensors with maximum 60 MP output, ideal for high-precision detection and wide-area imaging applications. The 3.76 µm pixel size balances detail resolution with low-light sensitivity. With low dark current levels (minimum 0.04 mV@1/30s), the cameras are suitable for long-exposure and high-contrast detection scenarios. Support for 8-bit, 12-bit, and 16-bit output accommodates both scientific research and industrial analysis requirements.

Back-Illuminated CMOS Sensor Advantages

The IMX571 and IMX455 sensors feature high quantum efficiency and low noise characteristics, supporting high-quality imaging in low-light environments. The back-illuminated architecture significantly enhances photoelectric conversion efficiency, capturing more photons under identical lighting conditions and dramatically improving image signal-to-noise ratio. Maximum performance reaches 6.1 fps at 9568×6380 (16-bit full resolution) and can be enhanced to 191 fps at 1040×706 in ROI mode.

Intelligent Autofocus System

The EF mount lens autofocus system is ideal for detection tasks requiring frequent focal length and scene changes. Compatible with the Canon EF lens system, it provides fast and precise focusing performance. Supporting exposure times from 150 µs to 15 s, the cameras accommodate free-running, software trigger, and hardware trigger modes to adapt to diverse application requirements.

Multi-Level Pixel Binning and ROI Technology

The cameras support 1×1, 2×2, 3×3, and 9×9 binning modes plus ROI functionality, freely adjusting resolution and frame rate to balance sensitivity and speed requirements. USB 3.0 high-speed transmission enables single-cable power supply and data transfer, simplifying wiring complexity. With power consumption below 5 W and support for optically isolated I/O interfaces, system integration is straightforward and efficient.

Industrial-Grade Reliability and Cross-Platform Support

The all-metal construction, low power consumption design, and operating temperature range of -10°C to 50°C ensure stable long-term operation. Compatible with Windows, Linux, macOS, and Android platforms, the SDK supports mainstream development languages including C/C++, C#/VB.NET, Python, and Java. The CNC metal housing design guarantees stability and durability across various industrial environments.
