IUE Series
Product Introduction

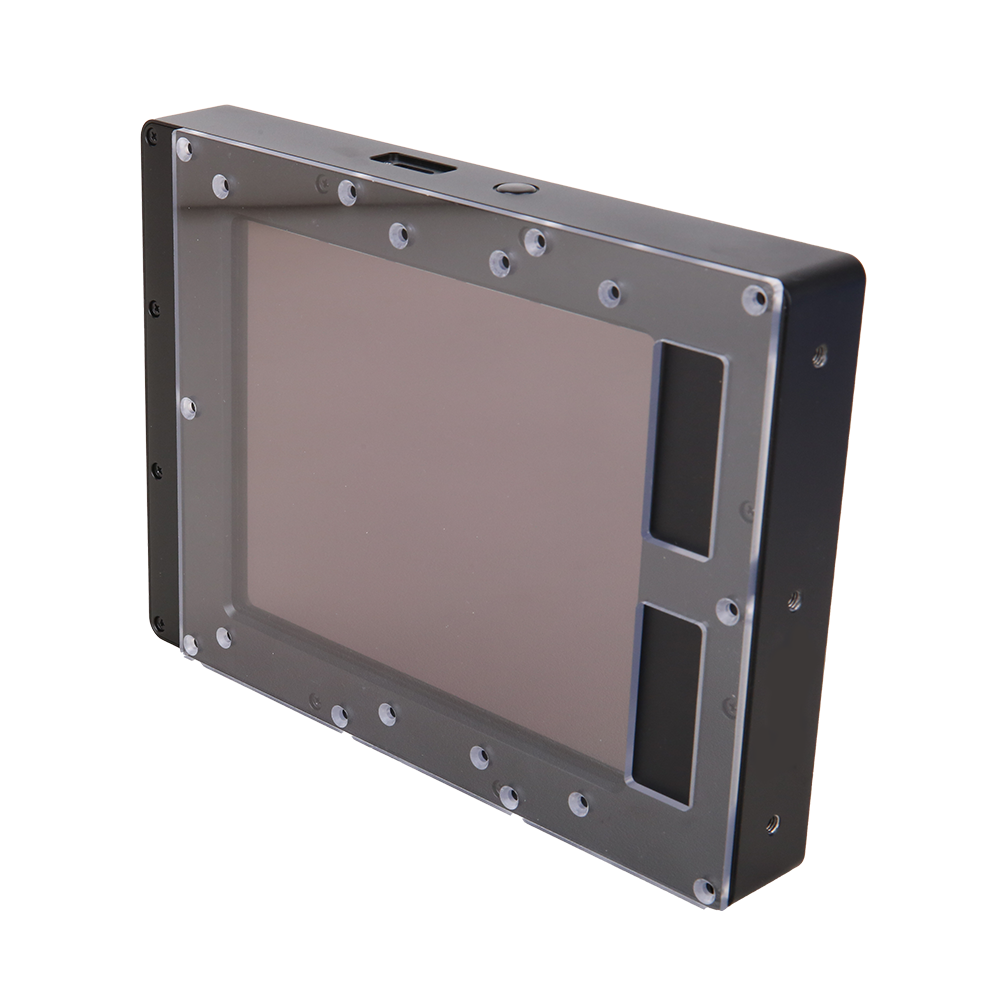

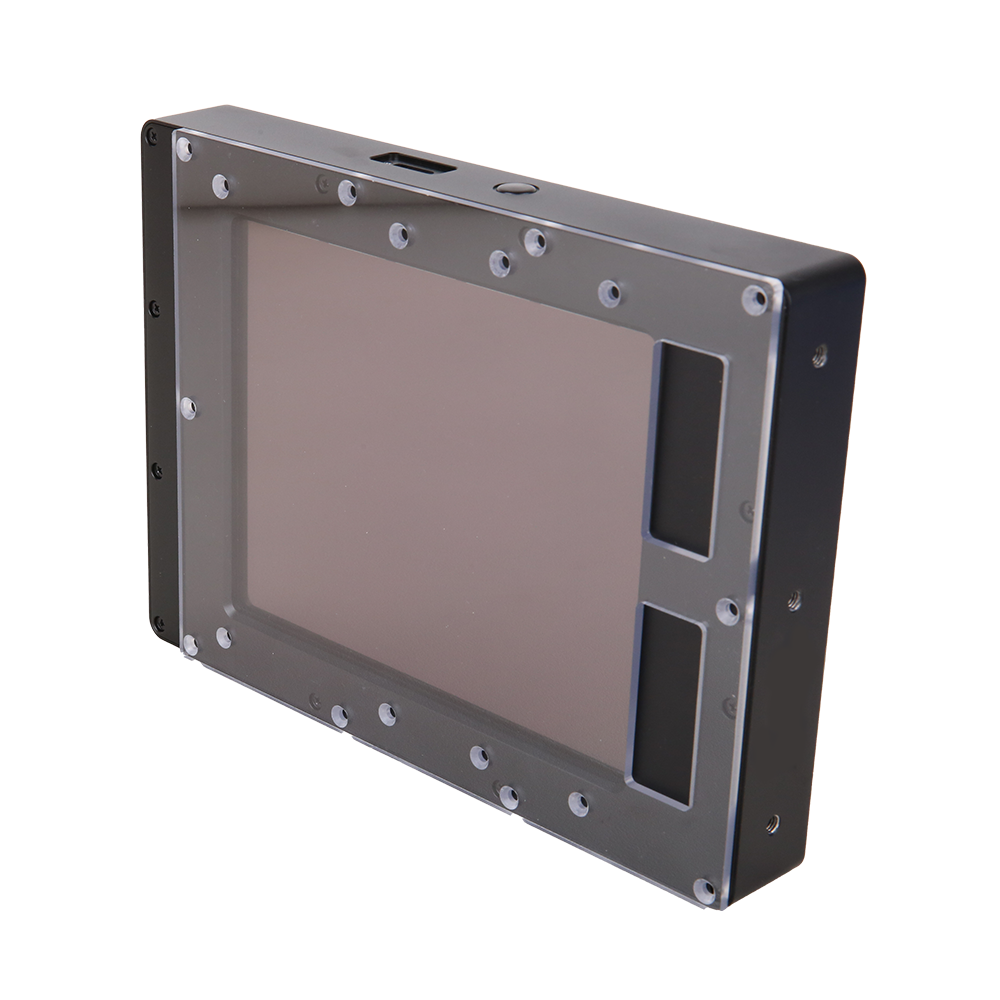

The IUE Series features a large-format flat panel detector with 96 µm × 96 µm pixels and approximately 1.8 MP resolution, specifically optimized for ultra-low-light applications such as protein detection and chemiluminescence. Capable of up to 120 fps at full resolution, it combines rolling shutter and hardware binning to provide flexible trade-offs between throughput, sensitivity, and resolution. The system employs USB3.0 high-speed connectivity and low dark current imaging architecture to deliver high-contrast images even under weak signal conditions.
The camera supports free-running and external trigger modes with comprehensive synchronization signals for seamless coordination with light sources, motion platforms, and host systems. It includes cross-platform SDK (Windows/Linux/macOS) and ToupView software for rapid integration and secondary development in both laboratory and production environments.
Product Features
- Large-format flat panel detector: approximately 1.8 MP resolution with 96 µm × 96 µm pixels
- Up to 120 fps at full resolution (model-dependent), supporting high-speed acquisition and large field-of-view coverage
- Rolling shutter for stable readout during continuous imaging
- Low dark current and low-light optimized design for weak signal imaging in chemiluminescence/protein detection applications
- USB3.0 high-speed data interface supporting stable real-time transmission
- Hardware binning: 1×1/2×2/3×3, enabling flexible trade-offs between sensitivity/resolution/frame rate
- ROI (Region of Interest) with dedicated auto-adjust ROI for precise focus on critical areas
- Auto/manual gain (0–32 dB, model-dependent) and auto/manual exposure (approximately 30 µs–33.5 s, model-dependent)
- LUT (Look-Up Table), Gamma, bandwidth control, and other image pipeline optimization functions
- Built-in image buffer (temporary storage) for enhanced data integrity during high-speed/burst acquisition
- Synchronization/status signals: Trigger Ready, Input, Exposure, Readout, Imaging, Strobe, GPO, etc.
- Event channels and user configuration storage for streamlined and repeatable experiments
- Acquisition modes: free-running, software trigger, external hardware trigger for easy synchronization with peripheral timing
- Software and development: cross-platform SDK (Windows/Linux/macOS) with ToupView for secondary development and system integration
Product Models
Select the IUE Series that fits your application requirements
| Product Model | Effective Pixels | Sensor Size | Shutter Type | Frame Rate (FPS) | Sensor Type | Data Interface | Color | Actions |
|---|---|---|---|---|---|---|---|---|
| IUE1800KMA | 1.8 MP (1200×1536) |
115.2 mm × 147.5 mm
11.7" (187.16 mm)
|
Rolling Shutter |
120 fps @ 1200×1536
|
CMOS Sensor | USB3.0 |
|
View Details |
包装清单 #
IUE 系列高灵敏度工业相机（USB3.0）标准配置与装箱信息
建议配套套件
- 相机整机 - 本系列相机
- I/O线缆 - 7 Pin线缆或延长线缆
- 线缆 - Micro USB3.0线缆
- 镜头（选配） - C接口镜头
IUE系列是图谱光电推出的大面阵USB3.0工业相机，采用高灵敏度平板探测器，覆盖180万像素配置，专为蛋白检测、化学发光及科研成像设计。该系列相机结合超大像素尺寸（96µm）与高帧率性能，支持长时间曝光与宽动态范围捕捉，适用于低光信号的高灵敏成像和实验室自动化系统。
核心特性
超大像元设计
96×96µm像元，超高灵敏度
高速长曝光兼容
120fps高速，15s长曝光
化学发光优化
专为弱光信号检测设计
多级增益调节
1-50×增益，优化信噪比
性能参数亮点
像元尺寸
96 µm
超大像元最高帧率
120 fps
@1200×1536曝光范围
10µs-15s
超宽范围增益范围
1-50×
灵活调节产品深度介绍
超大像元高灵敏度技术
96×96µm超大像元，显著提升弱光与化学发光信号捕捉能力，适合生物和化学检测。180万像素配置，优化了信号采集效率。暗电流2200e⁻/s@25℃，在保证高灵敏度的同时维持良好的信噪比。这种独特设计特别适合需要长时间积分的微弱光信号检测应用。
双模式成像能力
支持120fps@1200×1536帧率，同时提供10µs至15s曝光范围，满足动态采集和长曝光需求。这种灵活的曝光控制使得相机既能捕捉快速动态过程，又能进行长时间的化学发光信号积累。支持8bit/12bit输出，满足科学级图像分析的数据位深要求。
低光信号优化方案
支持1–50×增益调节，在低照度环境下实现信噪比优化。硬件Binning支持1×1、2×2、3×3像素合并，自由平衡分辨率、帧率与灵敏度。这种多级信号增强方案确保在各种弱光条件下都能获得清晰的图像，特别适合蛋白印迹、化学发光等生物医学应用。
实验室级系统集成

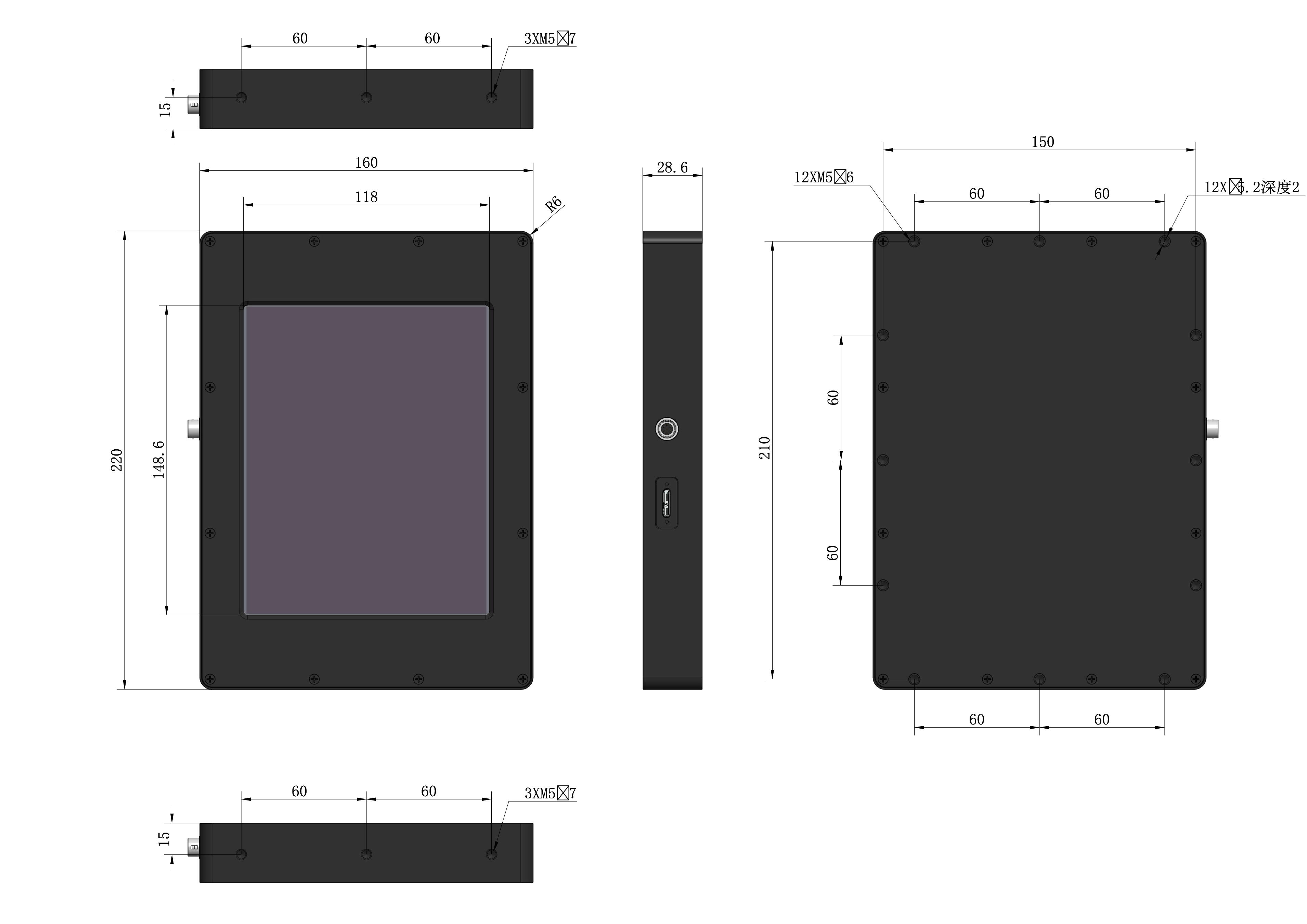

USB3.0接口（USB3.1 GEN1），单线供电，配备光耦隔离输入输出及可编程GPIO，便于系统集成。220×160×28.6mm结构设计，CE/FCC认证，确保在实验室环境下的长期稳定运行。全金属结构、低功耗与宽温度工作范围，适配科研平台和自动化检测设备。
全面的软件开发支持
兼容Windows、Linux、macOS、Android平台，SDK提供C/C++、C#/VB.NET、Python、Java、DirectShow、Twain等接口，适合科研及自动化开发。配套的图像采集和分析软件，支持实时预览、参数调节、图像保存等功能，大幅简化实验操作流程。
