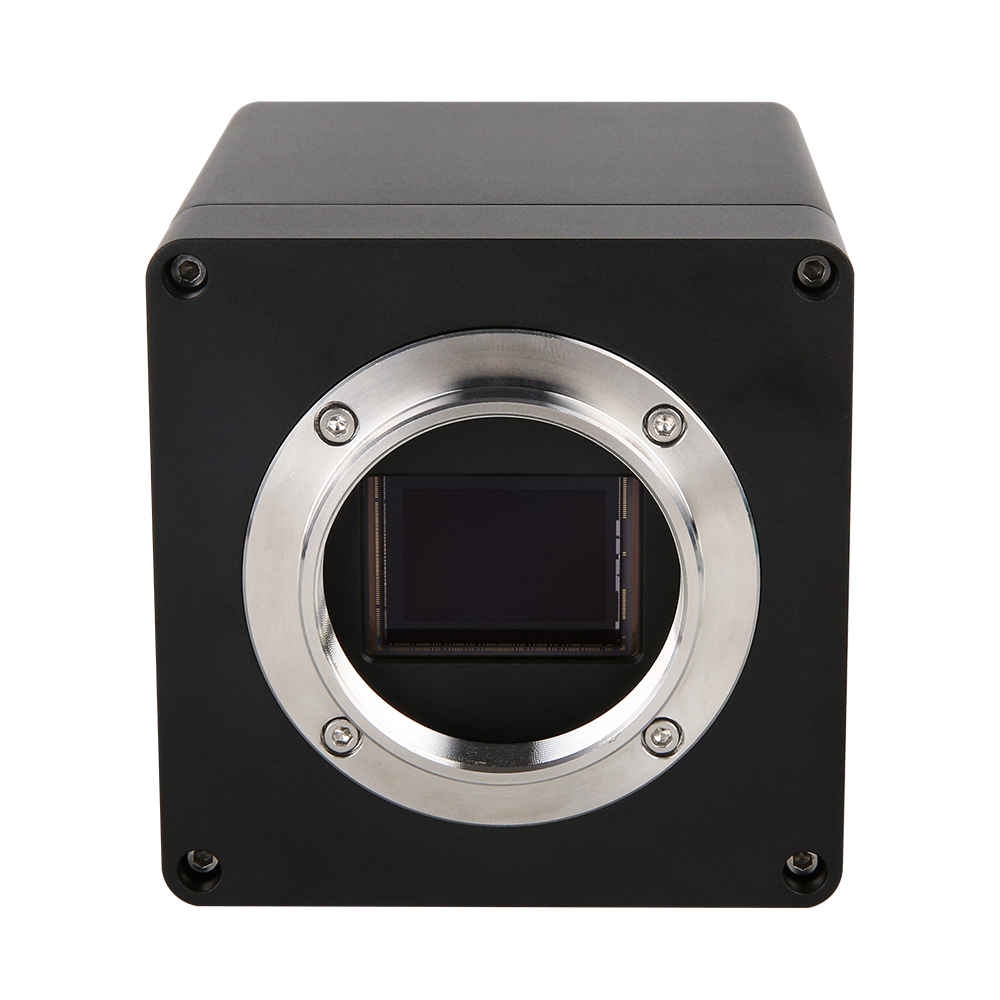

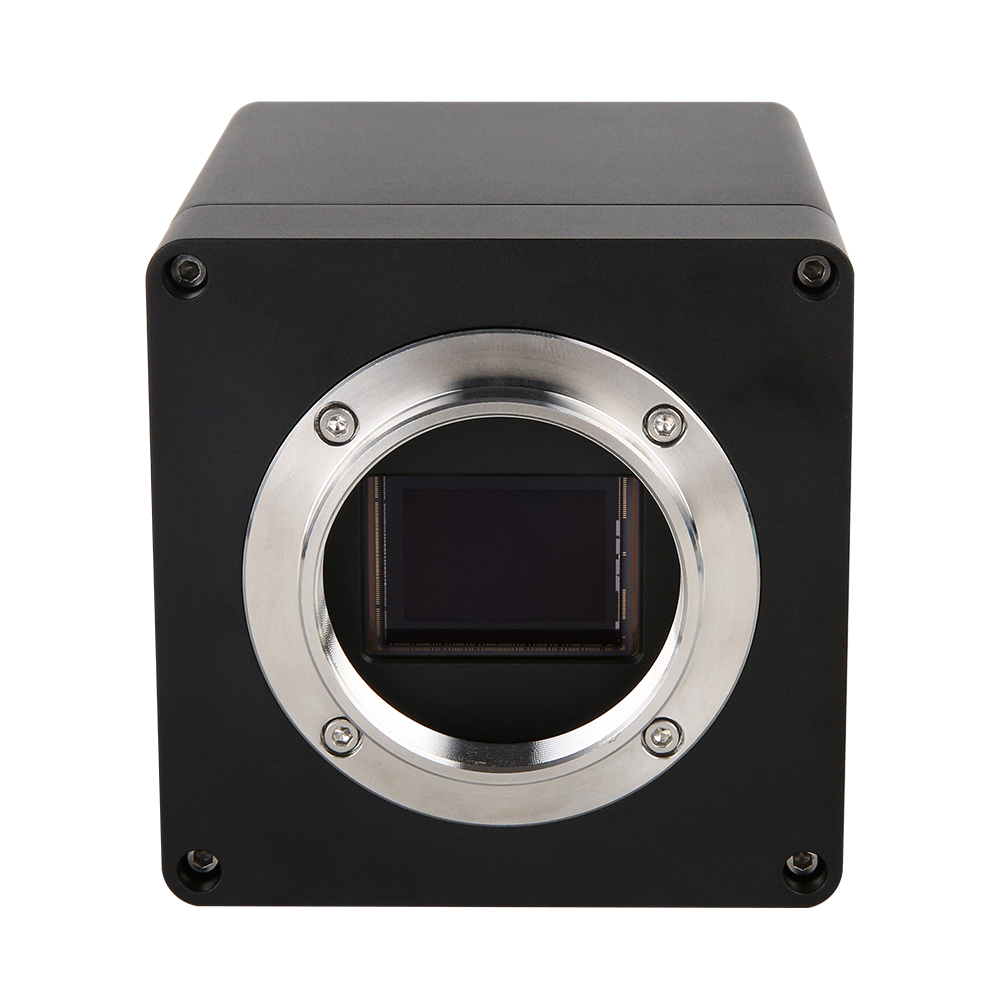

ITR3CMOS Series

Product Introduction

The ITR3CMOS series is designed for low-light and long-exposure scientific/industrial imaging, featuring Sony Exmor and other high-performance CMOS sensors with dual-stage thermoelectric (TEC) deep cooling architecture. It is optimized for fluorescence/chemiluminescence, spectral/UV detection, semiconductor and material analysis applications. The built-in anti-fogging optical structure and closed-loop temperature control can reduce sensor operating temperature by approximately 40 °C below ambient and stabilize to the set value within minutes (model dependent), ensuring low dark current and noise while maintaining quantum efficiency and imaging consistency.

The camera uses USB3.0 (5 Gbit/s) as the primary link, supporting 8/12/16-bit data output and long-term exposure (typically up to 3600 s, model dependent). It provides free-running, software/hardware triggering and multi-camera synchronization, with industrial-grade I/O for integration with external light sources/motion platforms/acquisition systems. Optional multi-interface versions (such as 10GigE/Camera Link, model dependent) are available to meet different cabling and bandwidth requirements. Includes ToupView software and cross-platform SDK (Windows / Linux / macOS / Android) for easy system integration and secondary development.

Product Features

High-sensitivity low-noise CMOS sensors (Sony Exmor and others, model dependent), covering visible to near-UV applications
Dual-stage TEC deep cooling: typical temperature difference ΔT ≈ 40 °C (below ambient), significantly reducing dark current
Closed-loop temperature control and temperature programming; temperature can stabilize to set value within short time (model dependent)
Anti-fogging/anti-condensation optical structure, maintaining window and sensor cleanliness during low-temperature and long-exposure conditions
Optional protective windows: IR-CUT / dual AR (model and application dependent)
Bit depth and dynamic range: 8 / 12 / 16-bit data output (model dependent), enhancing weak signal gradation
Long exposure capability: typically up to 3600 s (model dependent), suitable for extremely low-light imaging
Data and interfaces: USB3.0 high-speed link; optional 10GigE / Camera Link versions (model dependent)

Trigger modes: free-running, software trigger, external hardware trigger; supports multi-camera and peripheral timing synchronization
Image functions: ROI/windowing, digital binning, mirroring, Gamma/LUT, etc. (model dependent)
Industrial-grade I/O: optically isolated trigger/strobe output and programmable GPIO (model dependent)
Spectral/band adaptation: visible / NIR / UV (depending on sensor and window materials)
Electrical and reliability: low-noise power supply and anti-interference design, supporting long-term continuous stable operation
Supporting software: ToupView; provides Windows / Linux / macOS / Android SDK, compatible with common third-party interfaces
Application fields: fluorescence/chemiluminescence, spectral/UV detection, semiconductor and material analysis, low-light microscopy, etc.

Get Quote Product Manual

Product Models

ITR3CMOS | Dual-Stage TEC Deep Cooling (ΔT ≈ 40 °C) | Visible/UV | USB3.0 (Multiple Interface Options) | Industrial-Grade Synchronization and Stability

Model	Sensor / Size	Resolution	Pixel Size	Shutter	Frame Rate	Interface	Action
ITR3CMOS09000KMA-10G	Sony IMX533CLK-D 1" (15.95 mm) \| 11.28 mm × 11.28 mm	9MP (2992×3000)	3.76 µm × 3.76 µm	Rolling Shutter	40 fps@2992×3000 62 fps@1488×1500 186 fps@992×998	10GigE	View Details
ITR3CMOS45000KMA	Sony IMX492LLJ-C 4/3" (22.96 mm) \| 18.93 mm × 13.00 mm	45MP (8176×5616)	2.315 µm × 2.315 µm	Rolling Shutter	8.1 fps@8176×5616 30.0 fps@4080×2808 8.1 fps@7408×5556 33.0 fps@3696×2778 10.4 fps@8176×4320 34.7 fps@4096×2160 62.5 fps@2048×1080 86.5 fps@1360×720	USB3.0	View Details
ITR3CMOS26000KPA	Sony IMX571BQR-C 1.8" (28.23 mm) \| 23.48 mm × 15.67 mm	26MP (6224×4168)	3.76 µm × 3.76 µm	Rolling Shutter	14 fps@6224×4168 37 fps@3104×2084 110 fps@2064×1388	USB3.0	View Details
ITR3CMOS26000KMA	Sony IMX571BLR-J 1.8" (28.23 mm) \| 23.48 mm × 15.67 mm	26MP (6224×4168)	3.76 µm × 3.76 µm	Rolling Shutter	14 fps@6224×4168 37 fps@3104×2084 110 fps@2064×1388	USB3.0	View Details
ITR3CMOS21000KPA	Sony IMX269AQR 4/3" (21.78 mm) \| 17.4 mm × 13.1 mm	21MP (5280×3954)	3.3 µm × 3.3 µm	Rolling Shutter	17 fps@5280×3954 17 fps@3952×3952 56 fps@2640×1976 67 fps@1760×1316 192 fps@584×438	USB3.0	View Details
ITR3CMOS20000KPA	Sony IMX183CQK 1" (15.72 mm) \| 13.056 mm × 8.755 mm	20MP (5440×3648)	2.4 µm × 2.4 µm	Rolling Shutter	19.0 fps@5440×3648 48.8 fps@2736×1824 59.4 fps@1824×1216	USB3.0	View Details
ITR3CMOS20000KPA-G	Sony IMX183CQK 1" (15.72 mm) \| 13.056 mm × 8.755 mm	20MP (5440×3648)	2.4 µm × 2.4 µm	Rolling Shutter	4.5 fps@5440×3648 18.5 fps@2736×1824 41.7 fps@1824×1216	GigE	View Details
ITR3CMOS20000KMA	Sony IMX183CLK 1" (15.72 mm) \| 13.056 mm × 8.755 mm	20MP (5440×3648)	2.4 µm × 2.4 µm	Rolling Shutter	19.0 fps@5440×3648 48.8 fps@2736×1824 59.5 fps@1824×1216	USB3.0	View Details
ITR3CMOS20000KMA-G	Sony IMX183CLK 1" (15.72 mm) \| 13.056 mm × 8.755 mm	20MP (5440×3648)	2.4 µm × 2.4 µm	Rolling Shutter	4.5 fps@5440×3648 18.5 fps@2736×1824 41.7 fps@1824×1216	GigE	View Details
ITR3CMOS10300KPA	Sony IMX294CJK 4/3" (23.11 mm) \| 19.11 mm × 13 mm	10.3MP (4128×2808)	2.315 µm × 2.315 µm	Rolling Shutter	30.0 fps@4128×2808 38.5 fps@4096×2160 59.8 fps@2048×1080 87.2 fps@1360×720	USB3.0	View Details
ITR3CMOS10300KMA	Sony IMX492LLJ-C 4/3" (23.11 mm) \| 19.11 mm × 13 mm	10.3MP (4128×2808)	2.315 µm × 2.315 µm	Rolling Shutter	30.0 fps@4128×2808 38.5 fps@4096×2160 59.8 fps@2048×1080 87.2 fps@1360×720	USB3.0	View Details
ITR3CMOS09000KPA	Sony IMX533CQK-C 1" (15.95 mm) \| 11.28 mm × 11.28 mm	9MP (2992×3000)	3.76 µm × 3.76 µm	Rolling Shutter	40 fps@2992×3000 62 fps@1488×1500 186 fps@992×998	USB3.0	View Details
ITR3CMOS09000KMA	Sony IMX533CLK-D 1" (15.95 mm) \| 11.28 mm × 11.28 mm	9MP (2992×3000)	3.76 µm × 3.76 µm	Rolling Shutter	40 fps@2992×3000 62 fps@1488×1500 186 fps@992×998	USB3.0	View Details
ITR3CMOS08300KPA	Sony IMX585-AAQJ1-C 1/1.2" (12.78 mm) \| 11.14 mm × 6.26 mm	8.3MP (3840×2160)	2.9 µm × 2.9 µm	Rolling Shutter	45 fps@3840×2160 70 fps@1920×1080	USB3.0	View Details
ITR3CMOS07100KPA	Sony IMX428LQJ 1" (17.47 mm) \| 14.4 mm × 9.9 mm	7.1MP (3200×2200)	4.5 µm × 4.5 µm	Global Shutter	51.3 fps@3200×2200 133.8 fps@1584×1100	USB3.0	View Details
ITR3CMOS07100KPA-G	Sony IMX428LQJ 1" (17.47 mm) \| 14.4 mm × 9.9 mm	7.1MP (3200×2200)	4.5 µm × 4.5 µm	Global Shutter	16.4 fps@3200×2200 66 fps@1584×1100	GigE	View Details
ITR3CMOS07100KMA	Sony IMX428LLJ 1" (17.47 mm) \| 14.4 mm × 9.9 mm	7.1MP (3200×2200)	4.5 µm × 4.5 µm	Global Shutter	51.3 fps@3200×2200 133.8 fps@1584×1100	USB3.0	View Details
ITR3CMOS07100KMA-G	Sony IMX428LLJ 1" (17.47 mm) \| 14.4 mm × 9.9 mm	7.1MP (3200×2200)	4.5 µm × 4.5 µm	Global Shutter	16.4 fps@3200×2200 66 fps@1584×1100	GigE	View Details
ITR3CMOS01700KPA	Sony IMX432LQJ 1" (17.47 mm) \| 14.4 mm × 9.9 mm	1.7MP (1600×1100)	9.0 µm × 9.0 µm	Global Shutter	98.6 fps@1600×1100	USB3.0	View Details
ITR3CMOS01700KPA-G	Sony IMX432LQJ 1" (17.47 mm) \| 14.4 mm × 9.9 mm	1.7MP (1600×1100)	9.0 µm × 9.0 µm	Global Shutter	66 fps@1600×1100	GigE	View Details
ITR3CMOS01700KMA	Sony IMX432LLJ 1" (17.47 mm) \| 14.4 mm × 9.9 mm	1.7MP (1600×1100)	9.0 µm × 9.0 µm	Global Shutter	98.6 fps@1600×1100	USB3.0	View Details
ITR3CMOS01700KMA-G	Sony IMX432LLJ 1" (17.47 mm) \| 14.4 mm × 9.9 mm	1.7MP (1600×1100)	9.0 µm × 9.0 µm	Global Shutter	66 fps@1600×1100	GigE	View Details
ITR3CMOS01300KMA	GPixel GLUX9701BSI 1" (16.00 mm) \| 12.493 mm × 9.994 mm	1.3MP (1280×1024)	9.76 µm × 9.76 µm	Rolling Shutter	30 fps@1280×1024 30 fps@640×512	USB3.0	View Details
ITR3CMOS00500KMA	GPixel GLUX1605BSI 1" (16.00 mm) \| 12.8 mm × 9.6 mm	0.5MP (800×600)	16.0 µm × 16.0 µm	Rolling Shutter	60 fps@800×600 60 fps@400×300	USB3.0	View Details

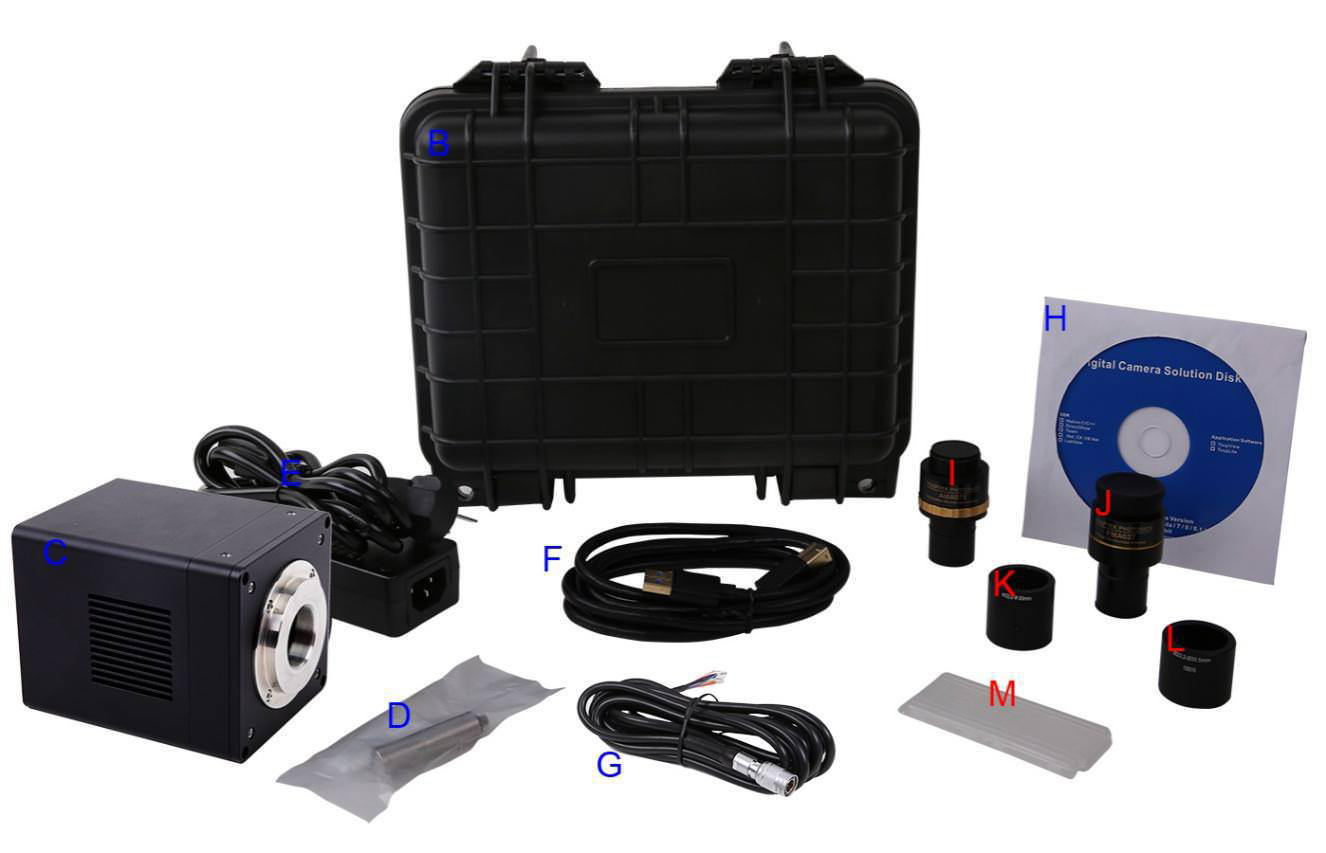

Packing List #

ITR3CMOS deep-cooled machine vision cameras (USB3 / GigE / 10GigE) standard kit

Standard packing list

Carton: L: 50 cm W: 30 cm H: 30 cm (20 pcs, 12–17 kg/carton)
3-A instrument safety case: L: 28 cm W: 23.0 cm H: 15.5 cm (1 pc, 2.8 kg/box); outer carton: L: 28.2 cm W: 25.2 cm H: 16.7 cm
ITR3CMOS series camera (USB3)
Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A
High-speed USB3.0 A-B cable (1.5 m)
I/O cable
Disc/storage media (drivers & software)

Refer to the in-box checklist for power and cables; use original accessories. Deep-cooled models require anti-condensation precautions.

USB3 deep-cooled packing list

Standard packing list

Carton: L: 50 cm W: 30 cm H: 30 cm (20 pcs, 12–17 kg/carton)
3-A instrument safety case: L: 28 cm W: 23.0 cm H: 15.5 cm (1 pc, 2.8 kg/box); outer carton: L: 28.2 cm W: 25.2 cm H: 16.7 cm
ITR3CMOS series camera (GigE)
Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A
GigE cable (shielded recommended)
I/O cable
Disc/storage media (drivers & software)

Refer to the in-box checklist for power and cables; use original accessories. Deep-cooled models require anti-condensation precautions.

GigE deep-cooled packing list (use this naming for image)

Standard packing list

Carton: L: 50 cm W: 30 cm H: 30 cm (20 pcs, 12–17 kg/carton)
3-A instrument safety case: L: 28 cm W: 23.0 cm H: 15.5 cm (1 pc, 2.8 kg/box); outer carton: L: 28.2 cm W: 25.2 cm H: 16.7 cm
ITR3CMOS series camera (10GigE)
Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A
10GigE cable (Cat6A/7, shielded recommended)
I/O cable
Disc/storage media (drivers & software)

Refer to the in-box checklist for power and cables; use original accessories. Deep-cooled models require anti-condensation precautions.

10GigE deep-cooled packing list (use this naming for image)

Click the interface buttons above to switch the list

Product Dimensions #

ITR3CMOS deep-cooled camera dimensions (USB3 / GigE / 10GigE)

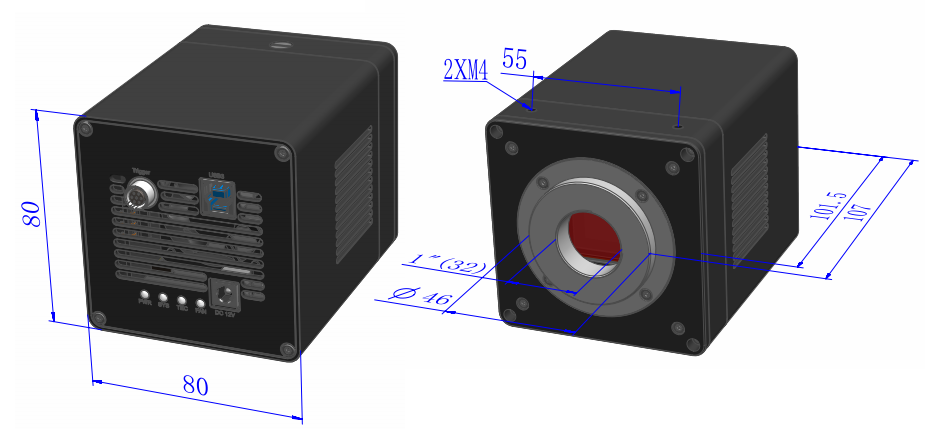

USB3 · USB3 interface (general)

Deep cooling Dimension drawing

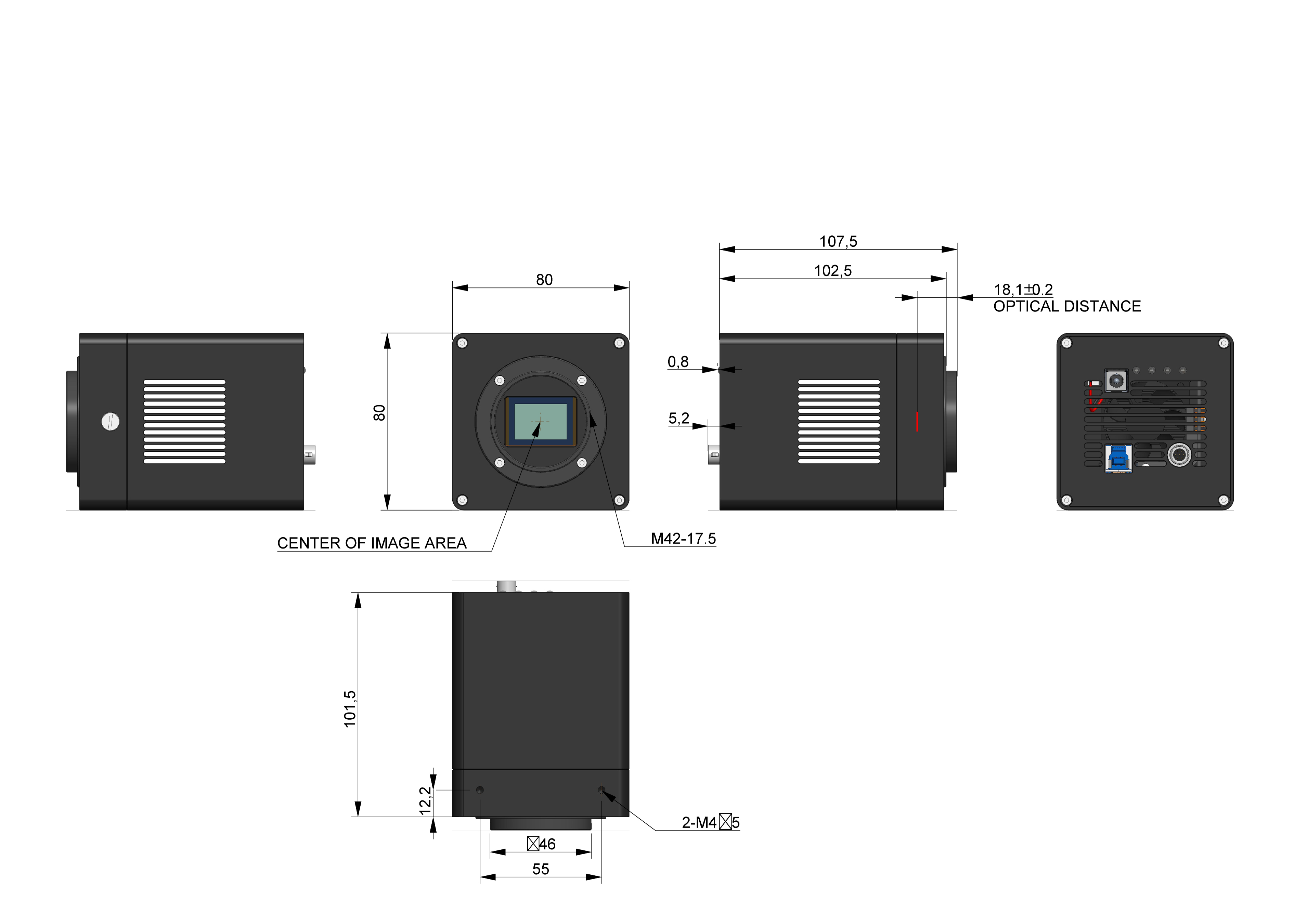

USB3 · USB3 interface (26000 series)

Deep cooling Dimension drawing

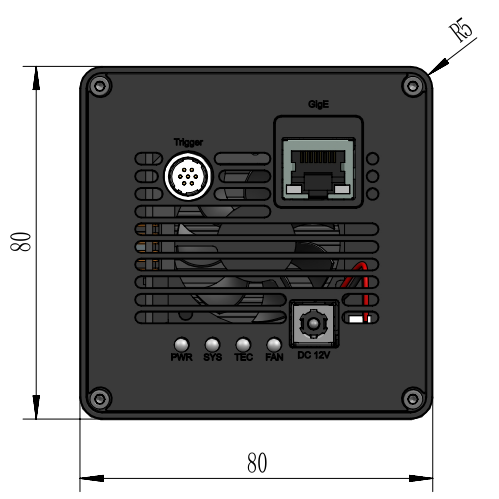

GigE · GigE interface

Deep cooling Dimension drawing

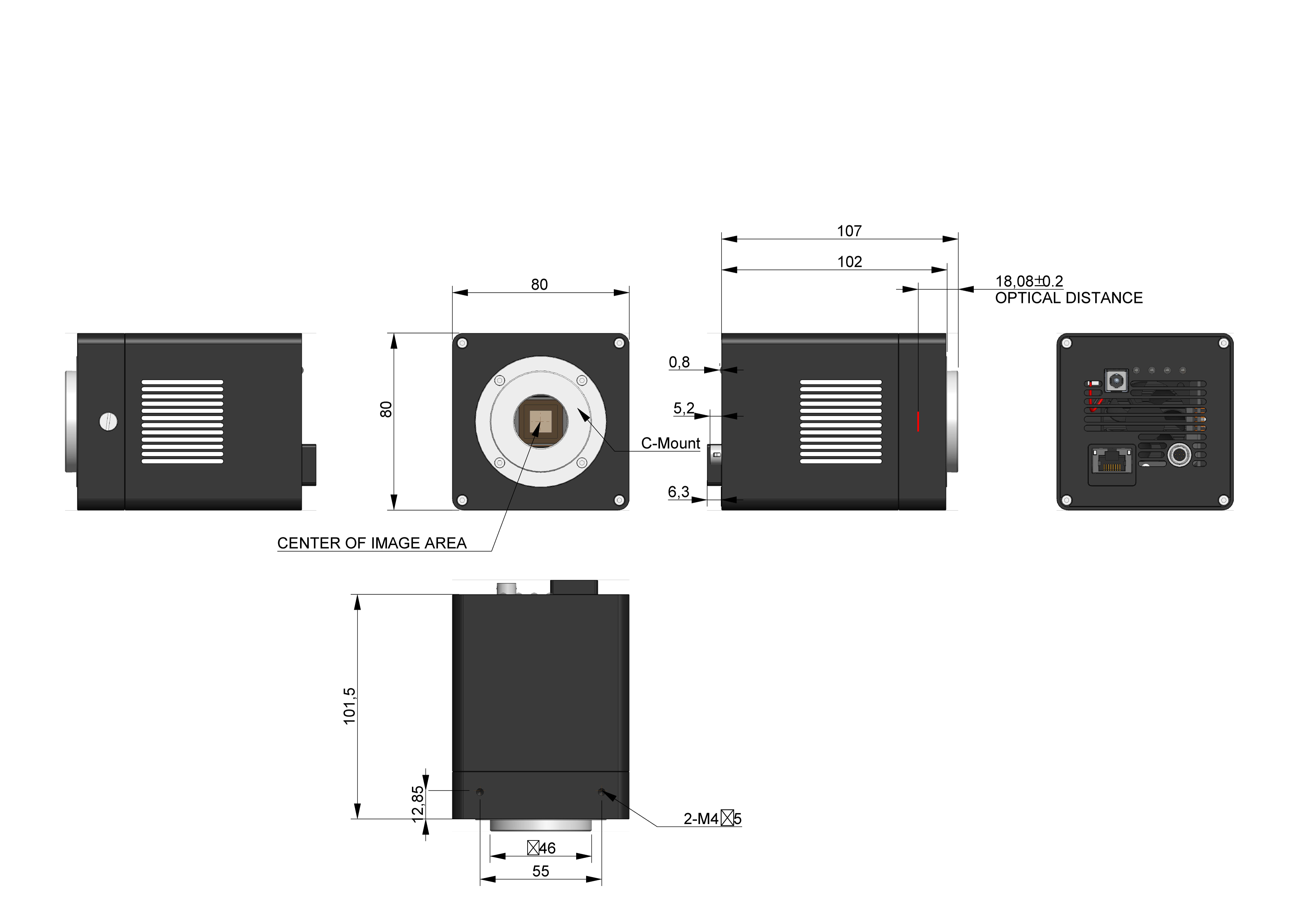

10GigE · 10GigE interface

Deep cooling Dimension drawing

Click the image to view full size

The ITR3CMOS series is TopLite's high-performance deep-cooled USB3.0 CMOS line, built on Sony backside-illuminated CMOS sensors with dual-stage TEC and low-noise electronics for long exposures, high sensitivity, and research-grade imaging. It delivers high quantum efficiency (QE), ultra-low dark current, and wide dynamic range for astronomy, spectroscopy, and scientific imaging.

Key features

Two-stage TEC cooling

35–45 °C below ambient, ultra-low dark current

Back-illuminated CMOS

Sony sensors with high quantum efficiency

Ultra-low noise

Read noise down to 1 e⁻

Long exposures

Supports hours-long deep-sky imaging

Performance highlights

Cooling capacity

-45 °C

Relative to ambient

Dark current

<0.003

e⁻/pixel/sec @ -20 °C

Dynamic range

75 dB

Scientific imaging

Resolution

2-20 MP

Multiple resolutions

In-Depth Product Overview

Advanced two-stage TEC cooling

Utilizes two-stage semiconductor TEC cooling to lower the sensor 35–45 °C below ambient, dramatically suppressing dark current. At -20 °C, typical dark current is under 0.003 e⁻/pixel/sec, enabling hours-long exposures without noticeable thermal noise. Precise temperature control and anti-condensation design ensure stable operation across environments.

High-performance BSI sensors

Equipped with Sony back-illuminated CMOS sensors offering very high quantum efficiency and ultra-low read noise. The BSI architecture places the photodiode above circuitry to maximize photon collection, delivering high SNR even in low light. Optimized electronics and multi-gain modes reduce read noise down to 1 e⁻, preserving fine detail. Pixel sizes from 2.4 µm to 4.63 µm balance resolution and sensitivity.

Scientific-grade imaging quality

Supports 8-bit/12-bit/16-bit output with up to 75 dB dynamic range and SNR up to 50 dB to meet rigorous research needs. Exposure spans from 50 µs to several hours, capturing fast events and long deep-sky integrations. Large onboard DDR plus USB3.0 high speed ensures lossless transfer of high-resolution frames, protecting scientific data integrity.

Industrial-grade reliability

CNC aluminum housing with efficient thermal design ensures stability during long runs. Anti-condensation window prevents moisture at low temps. USB3.0 single-cable power simplifies integration; optional 12 V auxiliary input provides steadier cooling. Operating range -10 to 50 °C with low power suits unattended long-term observation.

Comprehensive software ecosystem

SDK support across Windows, Linux, and macOS with C/C++ and Python enables quick integration into research systems. Companion software offers full camera control, acquisition, processing, and analysis. Standardized interfaces allow easy embedding into telescopes, spectrometers, microscopes, and other scientific instruments for reliable imaging solutions.
