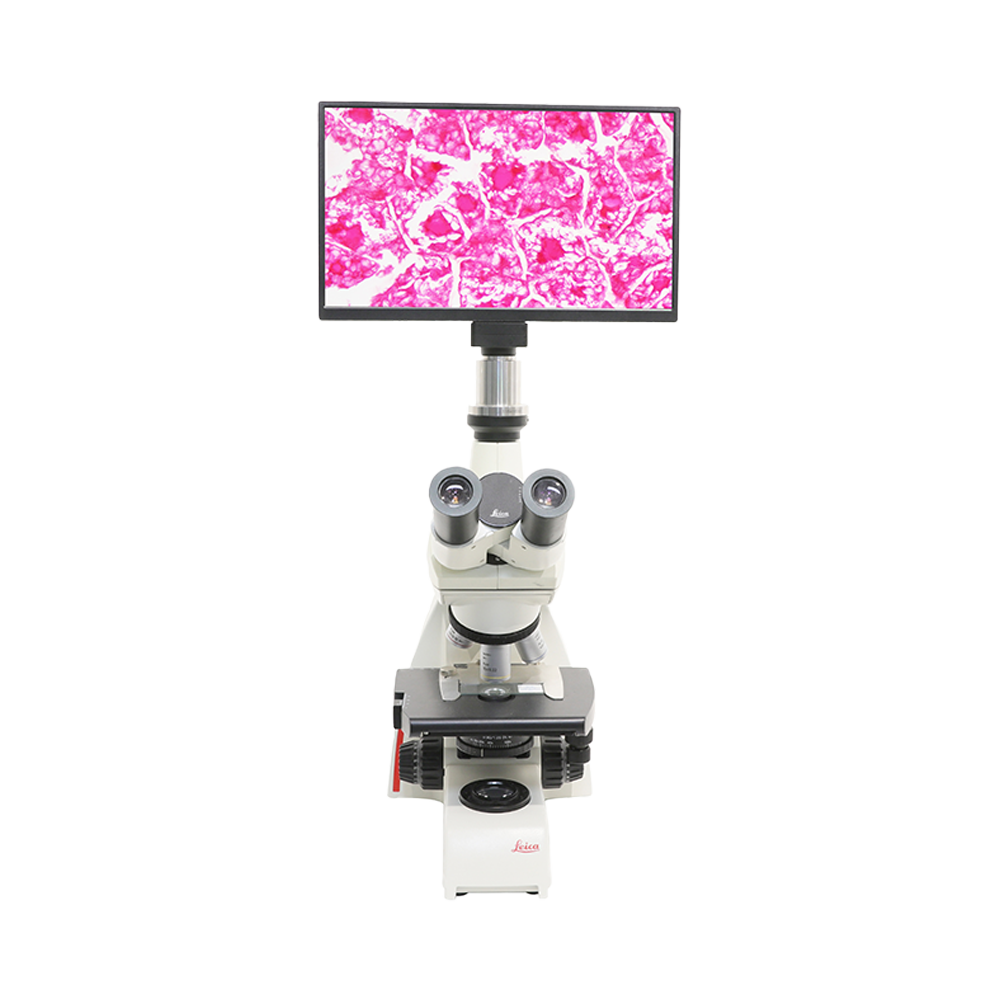

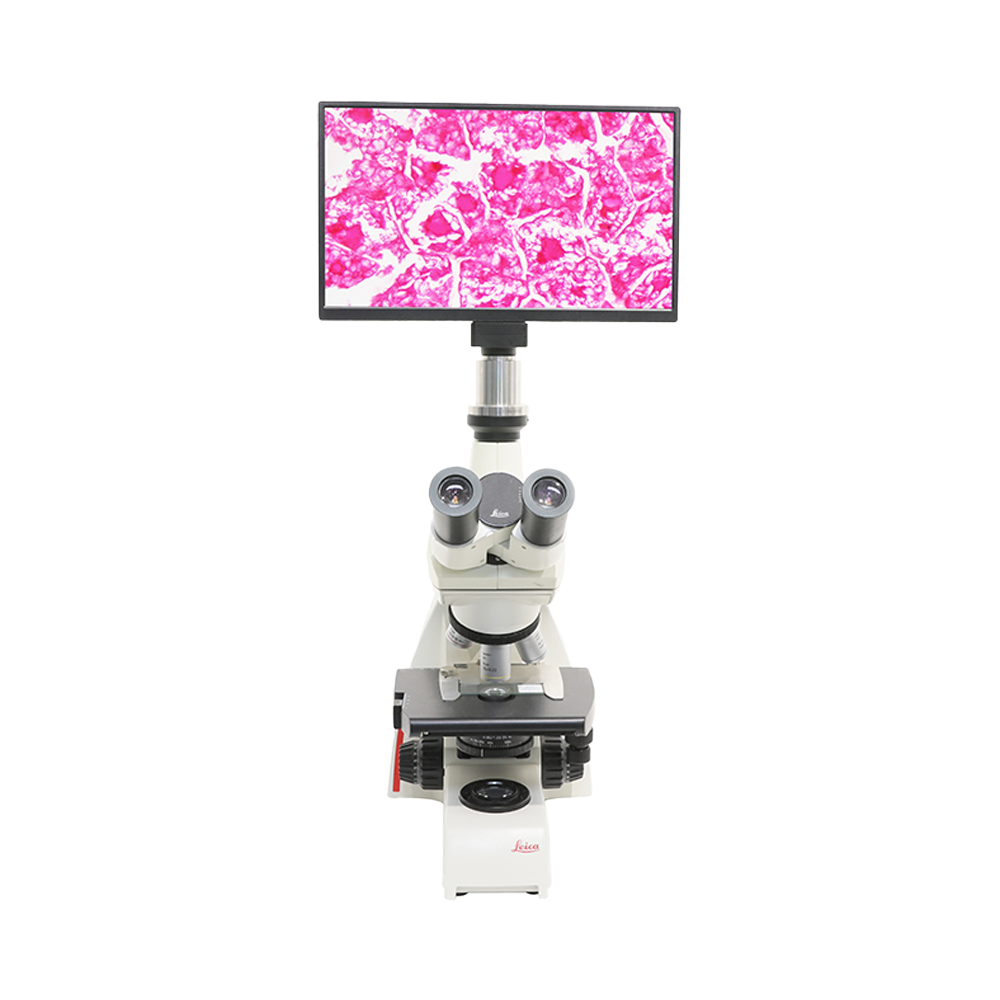

AIOCAMTOP4K-Serie

Product Introduction

AIOCAMTOP4K ist ein All-in-One-Gerät, das eine 4K-Auflösung CMOS-Kamera mit einem 13,3-Zoll-Display integriert. Es ermöglicht die direkte Video- und Bilderfassung für Stereo- oder biologische Mikroskope ohne Computer und kann über Wi-Fi-Netzwerk ein interaktives mikroskopisches Lehrsystem bilden, was den Unterricht für Lehrkräfte und das Lernen für Studierende erleichtert.

Product Features

  • Kamera und Display in einem Gerät integriert, keine Verkabelung erforderlich, einfache Installation
  • Sony Starvis 2 rückbeleuchteter CMOS-Sensor
  • Unterstützt HDMI1.4-Schnittstelle für externen Monitor mit synchroner Ausgabe, automatische 4K/1080P HDMI-Umschaltung
  • Unterstützt USB2.0-Schnittstelle für synchrone Echtzeit-Videoausgabe
  • USB-Speicherstick für Video- oder Bildaufnahmen mit lokaler Vorschau und Wiedergabe
  • Unterstützt mehrsprachige Menüs, global anwendbar, kompatibel mit Windows/macOS/Linux/Android/iOS und anderen Mainstream-Systemen (einige Funktionen plattformabhängig)
  • Leistungsstarke ISP-Funktionen mit deutlicher Schärfung und 3D-Rauschunterdrückung, präziserer ROI-Weißabgleich
  • Integrierte XCamView-Software mit umfangreichen Bildverarbeitungs- und Messfunktionen, unterstützt automatische Kantenerkennung und automatische Messung
  • Integrierte XCamView-Software mit umfangreichen Bildverarbeitungs- und Messfunktionen, unterstützt automatische Kantenerkennung und automatische Messung
  • iOS/Android-Mobile-Apps, kostenloser Download im App Store
Get Quote Product Manual

Integriertes kostengünstiges 4K All-in-One-Gerät mit Display

Model Sensor/Size Effective Pixels Output Resolution Frame Rate (fps) Output Interface Lens Mount Storage Support Featured Functions
AIOCAMTOP4K8MPC
Sony IMX678(C)
1/1.8" (7.68×4.32mm)
 2.0μm × 2.0μm 8MP (3840×2160) HDMI: 30fps@3840×2160; USB2.0: 30fps@3840×2160; Wi-Fi: 30fps@3840×2160 HDMI1.4 USB2.0 Wi-Fi C-Mount-Anschluss USB-Stick Integriertes 13,3-Zoll-Display HDMI1.4 4K/1080P adaptive Ausgabe USB2.0-Echtzeitausgabe USB-Stick lokale Vorschau und Wiedergabe Wi-Fi AP/STA-Modus (USB-Adapter erforderlich) Sprachsteuerung für Foto/Video/Einfrierung ROI-Weißabgleich, 3D-Rauschunterdrückung, Schärfung Integrierte XCamView-Messung/automatische Kantenerkennung/automatische Messung

Application Scenarios

Sonnenblumenstängel-Querschnitt
Sonnenblumenstängel-Querschnitt
Sonnenblumenstängel-Querschnitt
Sonnenblumenstängel-Querschnitt
Dreijähriger Lindenstamm-Querschnitt
Dreijähriger Lindenstamm-Querschnitt

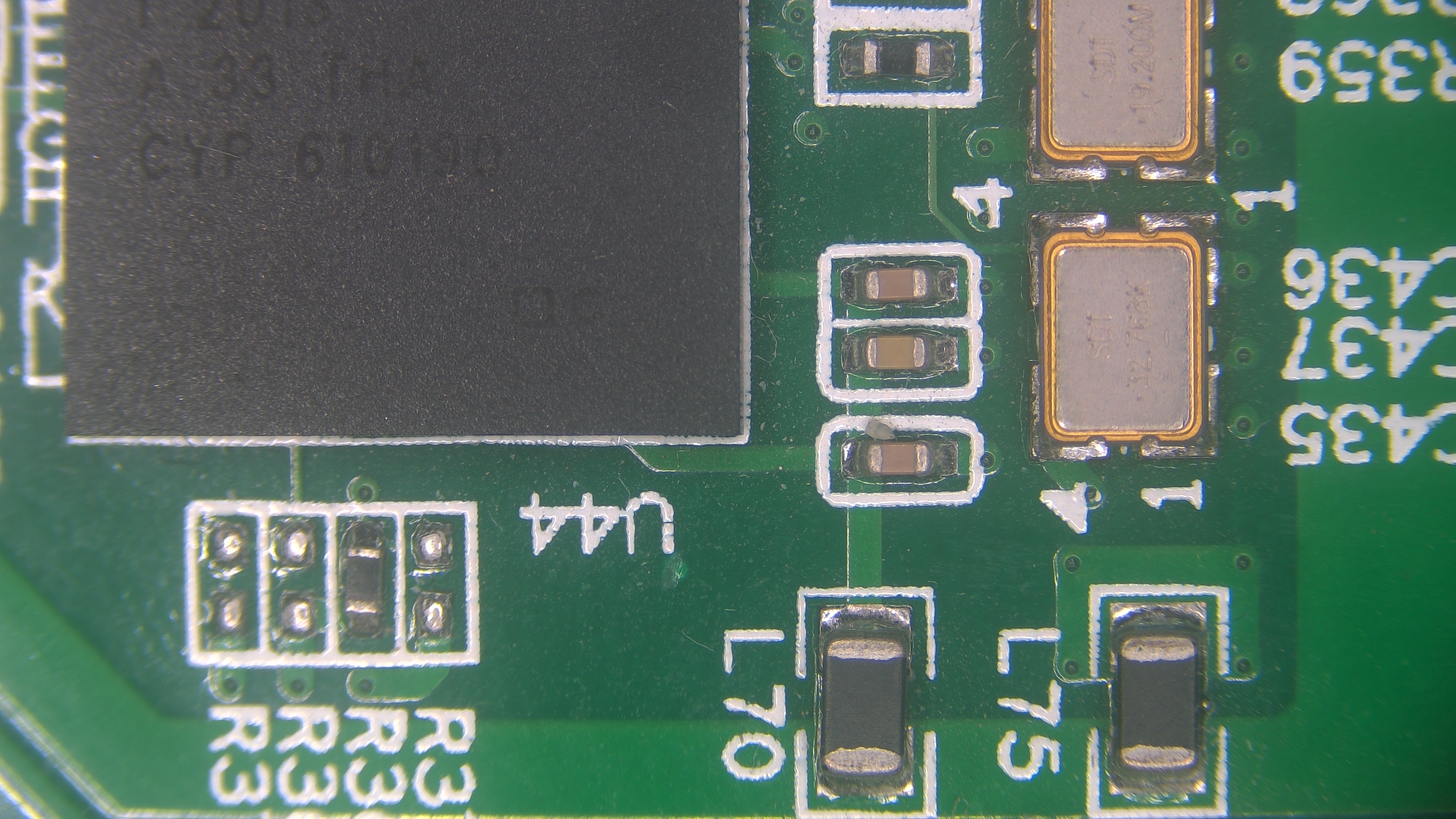

Leiterplatte
Leiterplatte

AIOCAMTOP4K Series All-in-One Multi-Interface Cameras — Product Introduction

The Tupu Optoelectronics AIOCAMTOP4K Series cameras integrate 4K resolution CMOS cameras with 13.3-inch high-definition display screens into unified systems. Through built-in XCamView software, these units directly complete observation, photography, video recording, and measurement functions without requiring external computers, enabling ultra-high-definition imaging and data acquisition on stereo and biological microscopy platforms.

The cameras support HDMI, USB Video, and Wi-Fi multi-interface output capabilities, enabling simultaneous display on HDMI large screens while connecting to computers via USB or establishing networks through Wi-Fi (AP/STA) modes. This functionality facilitates rapid deployment of interactive microscopy teaching environments and multi-terminal collaboration systems, making these cameras suitable for research, educational, and industrial inspection applications.

Technical Overview

  • All-in-One Design with Immediate Operation: The camera and 13.3-inch display screen are integrated into a single unit operable via USB mouse. The system supports USB drive local storage and playback capabilities with simplified deployment and reduced cabling requirements.
  • High-Performance Sensor Components: Features Sony Starvis 2 back-illuminated CMOS sensors (such as IMX678, 1/1.8″ format, 2.0 µm pixel size) delivering high sensitivity and low noise performance characteristics optimized for low-light and high-detail microscopy observation requirements.
  • Stable 4K Output Capabilities: HDMI 1.4 supports adaptive switching between 3840×2160 @ 30 fps and 1920×1080 @ 30 fps resolution modes. Wi-Fi and USB Video interfaces achieve synchronized 4K 30 fps output for large screen demonstrations and recording applications.
  • Multi-Interface Collaborative Output: HDMI provides direct monitor connectivity while USB Video enables computer connections. Wi-Fi supports both AP and STA modes for convenient single-unit demonstrations or multi-unit networked scenarios with seamless switching capabilities.
  • Comprehensive Imaging and Measurement Tools: Built-in XCamView software supports ROI white balance, sharpening, 3D noise reduction, Gamma correction, saturation/contrast adjustment and 50/60 Hz anti-flicker functionality. Additional features include calibration/measurement tools, automatic edge detection, graphic overlay capabilities, browsing and comparison functions, with H.264/H.265 video recording support.
  • Cross-Platform Compatibility: Computer platforms provide ToupView and ToupLite software compatibility (Windows, macOS, Linux) while mobile platforms offer ToupView App support (iOS, Android) with standard SDK availability for secondary development applications.

Product Advantages

1
Plug-and-Play Operation Without Computer Requirements

All-in-one screen and camera design with built-in XCamView software enables direct USB mouse control with USB drive-based image and video storage and playback capabilities.

2
4K Ultra-High-Definition with Stable Frame Rates

HDMI 1.4 output supports 3840×2160 and 1920×1080 @ 30 fps while Wi-Fi and USB Video provide synchronized 4K 30 fps capabilities for teaching and demonstration applications.

3
Multi-Interface and Network Collaboration

Flexible switching between HDMI, USB Video, and Wi-Fi (AP/STA) modes enables expandable multi-station interactive teaching and remote observation capabilities.

4
Intelligent Imaging with Voice Control

ROI white balance, 3D noise reduction, Gamma/sharpening/saturation/contrast adjustments with 50/60 Hz anti-flicker functionality. USB audio control module support enables voice-activated photography, recording, and freeze operations.

5 Broad Application Range

Suitable for microscopy education, laboratory research, industrial quality control, interactive demonstration, and video documentation across multiple application scenarios.

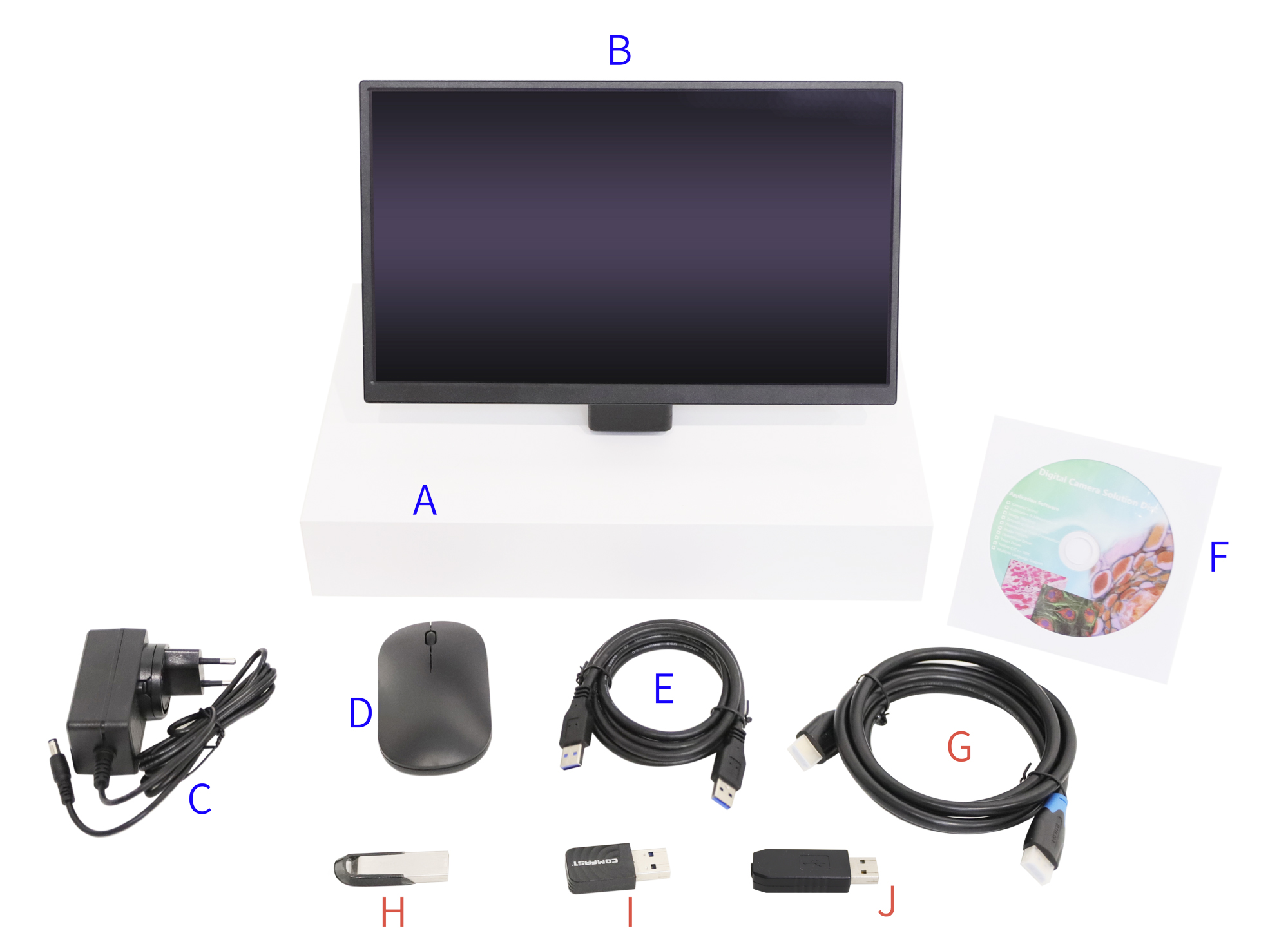

AIOCAMTOP4K All-in-One Camera with Display | Package List #

Standard Items in the Box

  • A Camera packaging box: 35.6 cm × 24.9 cm × 7.5 cm (1 pc, approx. 1.68 kg/box)
  • B AIOCAMTOP4K all-in-one camera ×1
  • C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 2 A
    US version: POWER-12V2A (MX24Z1-1202000) + US plug
    EU version: POWER-12V2A (MX24Z1-1202000) + EU plug
  • D USB wireless mouse ×1
  • E High-speed USB 2.0 A↔A gold-plated data cable (2.0 m)
  • F Driver and application CD (Ø12 cm)

Optional Accessories

  • G HDMI 2.0 cable
  • H USB flash drive
  • I USB wireless network adapter (required for Wi-Fi mode; appearance varies by model)
  • J Voice control module (Chinese or English)
AIOCAMTOP4K packaging overview
AIOCAMTOP4K packaging overview

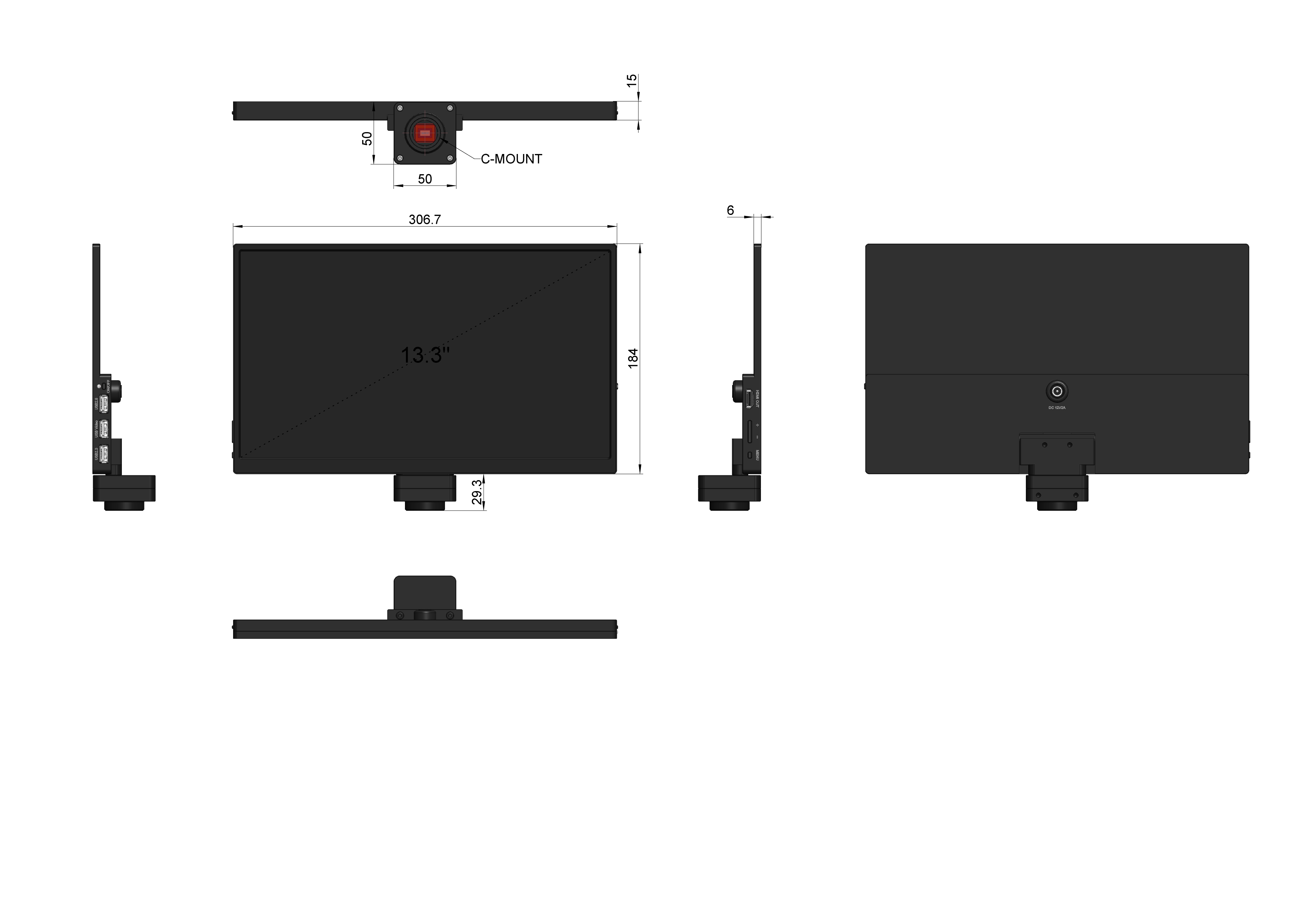

AIOCAMTOP4K All-in-One Camera with Display | Product Dimensions #

Chassis layout and interface locations

AIOCAMTOP4K dimensions
AIOCAMTOP4K dimensions

Refer to the manual for detailed drawings

  • Packaging box: 35.6 cm × 24.9 cm × 7.5 cm
  • Shipping weight: approx. 1.68 kg (with packaging)
  • Power supply: DC 12 V / 2 A

Please confirm the mounting holes and interface orientation against the dimension drawing before installation.

AIOCAMTOP4K Series All-in-One Multi-Interface Camera — Product Overview

ToupTek Photonics AIOCAMTOP4K Series cameras integrate a 4K CMOS imaging module with a 13.3-inch high-definition display. With the built-in XCamView, users can observe, capture images, record video, and measure without a computer, delivering ultra-high-definition imaging on stereo or biological microscopes.

The camera supports HDMI, USB Video, and Wi-Fi outputs, enabling synchronous display on HDMI monitors, PC connectivity via USB, or AP/STA Wi-Fi networking. It quickly builds interactive microscopy classrooms and multi-terminal collaboration environments for research, teaching, and industrial inspection.

In-Depth Overview

  • Integrated Design, Ready to Use: Camera and 13.3-inch display are integrated into a single unit for USB-mouse control; supports USB flash drives for local storage and playback, simplifying deployment and reducing cabling.
  • High-Performance Sensor: Uses a Sony Starvis 2 back-illuminated CMOS sensor (such as IMX678, 1/1.8″, 2.0 µm pixels) for high sensitivity and low noise, ideal for low-light and detail-rich microscopy.
  • Stable 4K Output: HDMI 1.4 supports 3840×2160 @ 30 fps / 1920×1080 @ 30 fps auto switching; Wi-Fi and USB Video deliver up to 4K 30 fps for large-screen presentation and recording.
  • Multi-Interface Collaboration: HDMI connects directly to a monitor, USB Video links to a computer, and Wi-Fi supports AP/STA modes for flexible single-station demonstrations or multi-camera networks.
  • Powerful Imaging and Measurement Tools: Built-in XCamView supports ROI white balance, sharpening, 3D noise reduction, gamma, saturation/contrast, plus 50/60 Hz anti-flicker; offers calibration/measurement, auto edge detection, overlays, gallery browsing, and comparison tools with H.264 recording.
  • Cross-Platform Compatibility: Desktop software includes ToupView / ToupLite (Windows / macOS / Linux), while the ToupView App supports iOS / Android with SDK access for secondary development.

Product Advantages

1
Plug-and-Play Without a Computer

Integrated screen and camera with XCamView allow direct control via USB mouse; save and replay images or video straight to a USB drive.

2
4K Ultra HD with Stable Frame Rates

HDMI 1.4 outputs 3840×2160 / 1920×1080 @ 30 fps, and Wi-Fi plus USB Video sustain 4K 30 fps for teaching and demonstrations.

3
Multi-Interface Networking

HDMI + USB Video + Wi-Fi (AP/STA) switching supports expanded multi-camera interactive teaching and remote observation.

4
Smart Imaging with Voice Control

ROI white balance, 3D noise reduction, gamma/sharpness/saturation/contrast, and 50/60 Hz anti-flicker; optional USB voice-control module enables voice-triggered capture, recording, and freeze.

5 Broad Application Coverage

Suitable for microscopy teaching, laboratory research, industrial quality inspection, interactive demonstrations, and video documentation.
