Multispectral Machine Vision Lenses
Product Introduction
Professional machine vision lenses covering short-wave infrared (SWIR), ultraviolet (UV) and other spectral ranges to meet diverse application requirements.
Product Features
- Multispectral coverage: Visible light, SWIR, UV
- High-resolution design supporting high-pixel sensors
- Excellent optical performance
- Industrial-grade quality, stable and reliable
- Standard C-mount with strong compatibility
Intelligent Lens Selection Tool
Based on your application requirements, quickly match the most suitable multispectral lens
Please fill in your application requirements
Recommended Lens Solutions
Please fill in the form on the left, and the system will recommend the most suitable lens models based on your requirements
Our recommendation algorithm is based on thousands of successful application cases
Professional Machine Vision Lenses Covering Short-Wave Infrared (SWIR), Ultraviolet (UV) and Other Spectral Ranges
Professional machine vision lenses covering short-wave infrared (SWIR), ultraviolet (UV) and other spectral ranges to meet diverse application requirements.

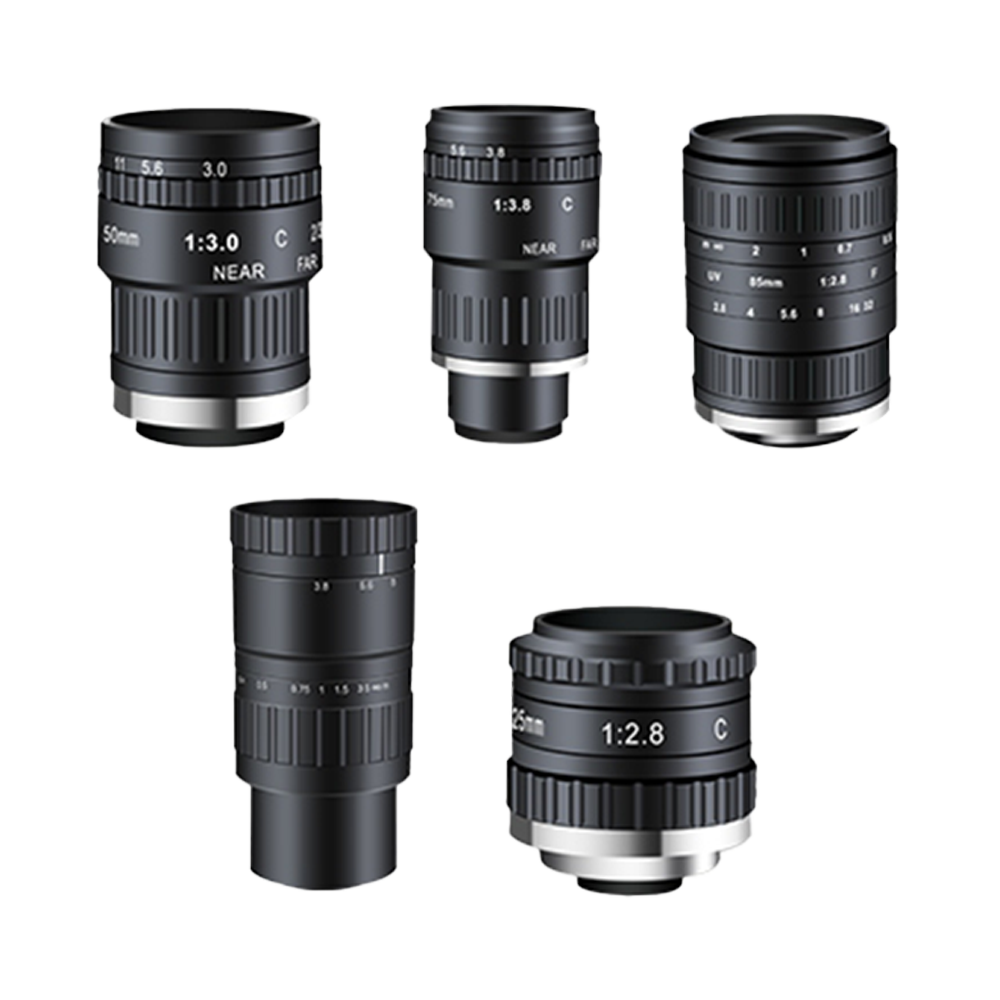

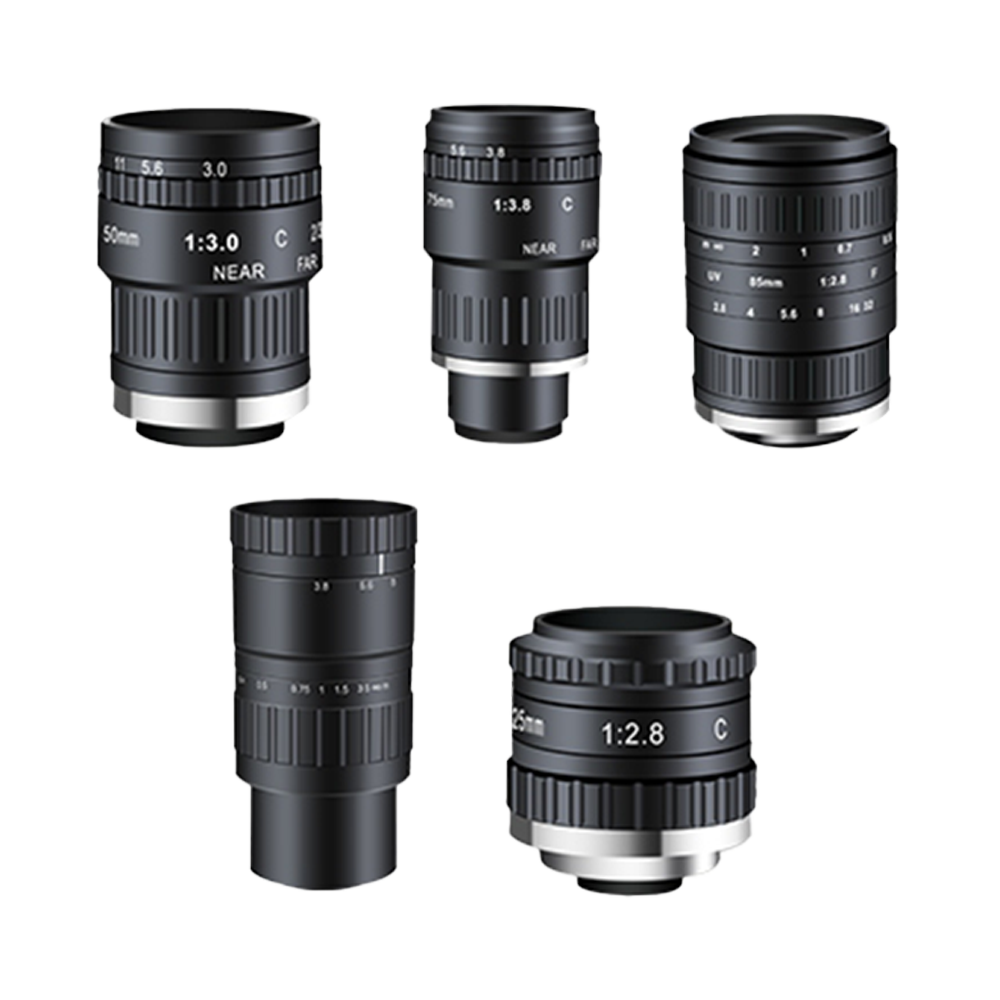

UV Series Lenses
Application Fields: UV detection, Fluorescence excitation, Material analysis
| Model | Wavelength (nm) |
Image Circle | Resolution (lp/mm) |
Focal Length (mm) |
F/# (F-Number) |
Optical Distortion | Working Distance | Filter Thread | Lens Mount | Download |
|---|---|---|---|---|---|---|---|---|---|---|
| TPL-2528UV | 200-1000nm | 2/3 inch | 100 lp/mm | 25 mm | F2.8-F32 | 0.40% | 0.2m-∞ | M30.5×0.5 | C | Manual |
| TPL-5030UV | 200-1000nm | 2/3 inch | 100 lp/mm | 50 mm | F3-F32 | 0.10% | 0.3m-∞ | M34×0.5 | C | Manual |
| TPL-7538UV | 200-1000nm | 2/3 inch | 100 lp/mm | 75 mm | F3.8-F32 | -0.10% | 0.5m-∞ | M34×0.5 | C | Manual |
| TPL-8528UV | 200-1000nm | 25 mm | 65 lp/mm | 85 mm | F2.8-F32 | 0.70% | —— | M55×0.75 | F | Manual |
| TPL-NV7838UV | 200-1000nm | 1 inch | 100 lp/mm | 78 mm | F3.8-F32 | -0.05% | 0.4m-∞ | M30.5×0.5 | C | Manual |
| TPL-7838UV | 200-1000nm | 35 mm | 78 mm | 3.8 | 0.10% | 0.22m-∞ | M52×0.75 | F | Manual |
2/3-inch SWIR Series
Application Fields: Semiconductor inspection, Food inspection, Material analysis
| Model | Wavelength (nm) |
Resolution (lp/mm) |
Focal Length (mm) |
F/# (F-Number) |
Optical Distortion | Field of View | Working Distance | Filter Thread | Lens Mount | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | V | ||||||||||
| TPL-0814SWIR-S | 900-1700nm | 60 lp/mm | 8.5 mm | F1.4-F16 | -1.20% | 61° | 54.8° | 42.8° | 0.2m-∞ | M35.5×0.5 | C | Manual |
| TPL-1214SWIR-S | 900-1700nm | 40 lp/mm | 12.5 mm | F1.4-F22 | -0.40% | 46.8° | 38.2° | 29.2° | 0.2m-∞ | M35.5×0.5 | C | Manual |
| TPL-1614SWIR-S | 900-1700nm | 40 lp/mm | 16.3 mm | F1.4-F22 | -0.40% | 36.6° | 29.6° | 22.4° | 0.2m-∞ | M35.5×0.5 | C | Manual |
| TPL-2514SWIR-S | 900-1700nm | 60 lp/mm | 25.9 mm | F1.4-F16 | -0.50% | 23.6° | 19° | 14.4° | 0.2m-∞ | M35.5×0.5 | C | Manual |

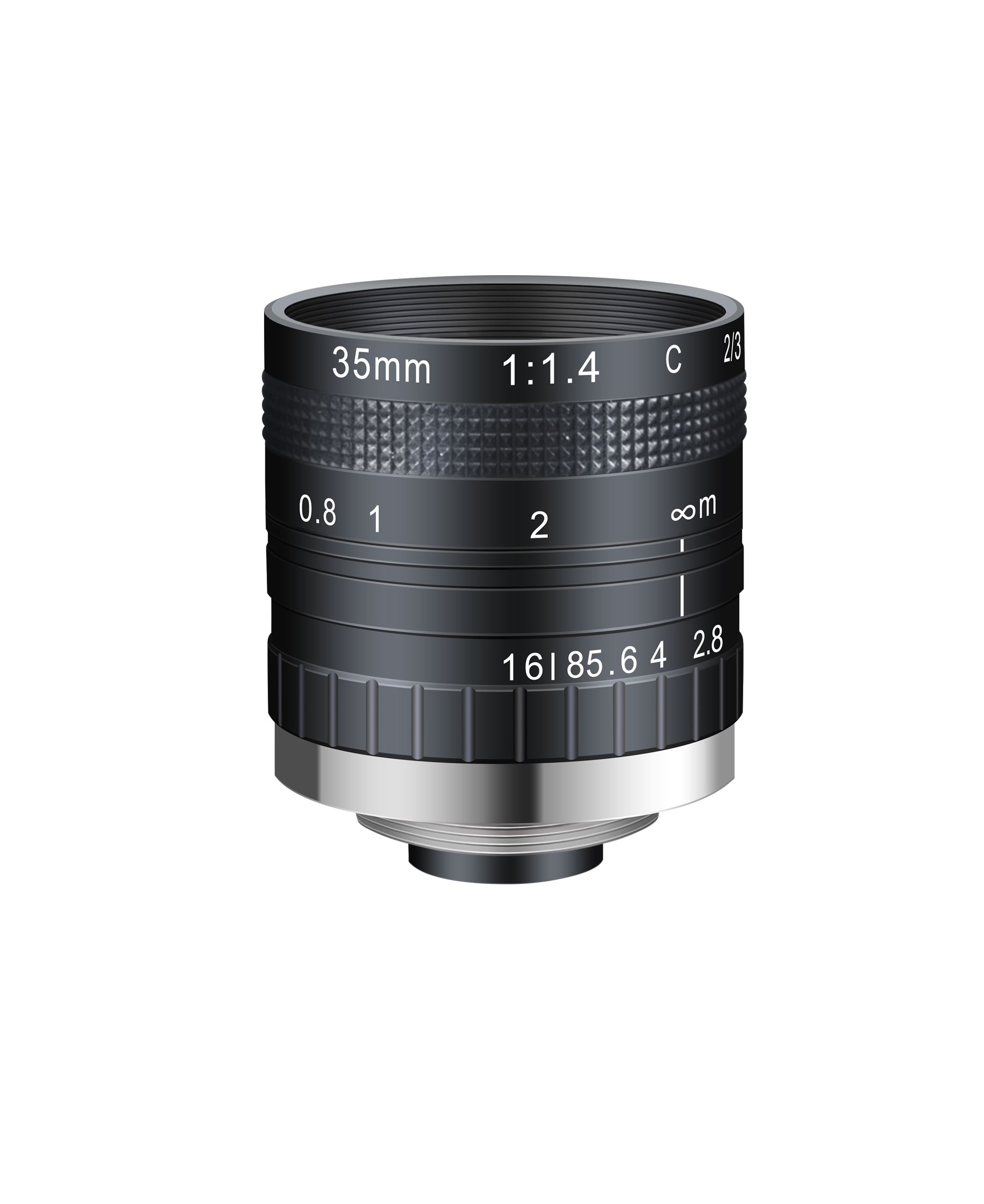

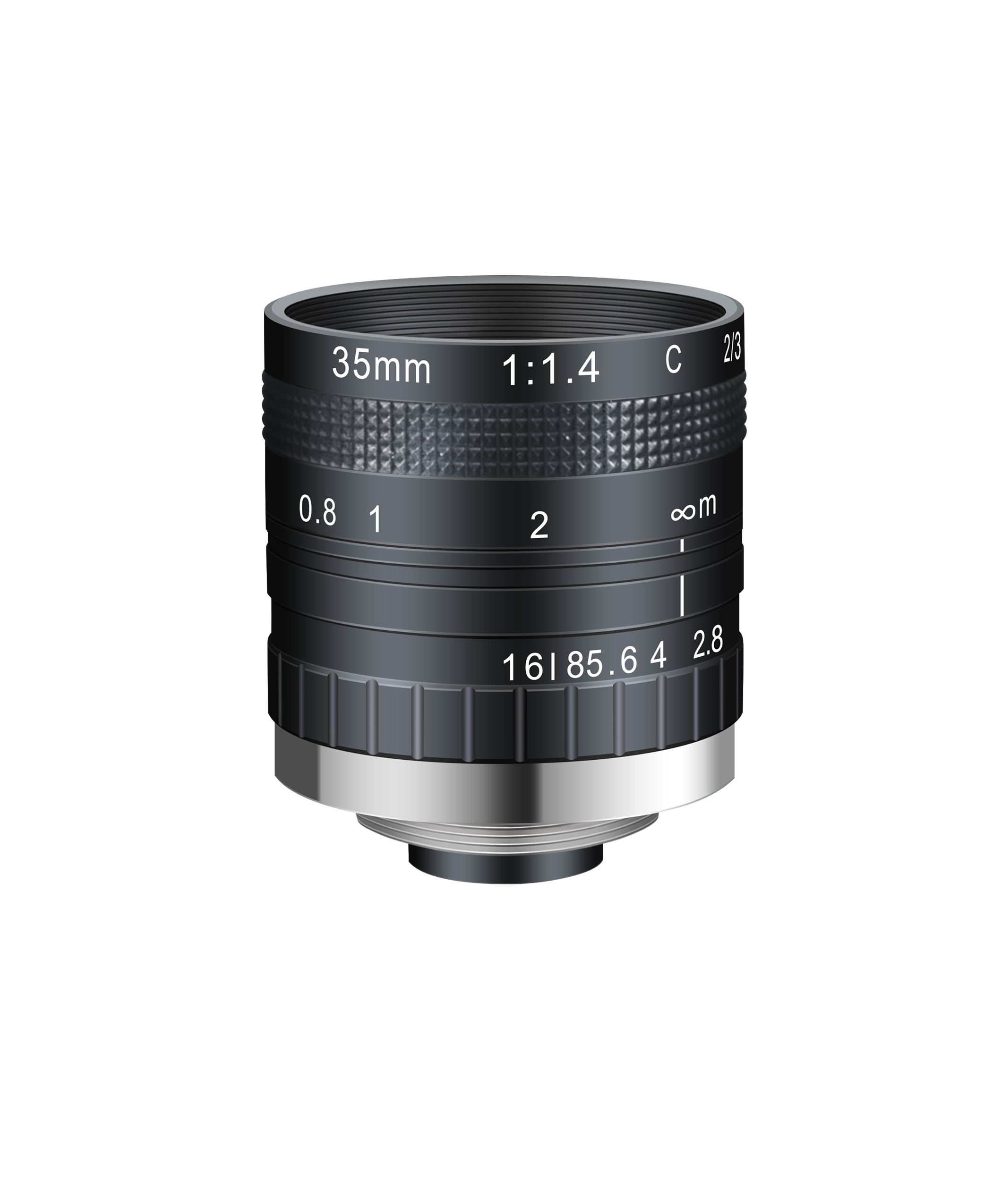

| TPL-3514SWIR-S | 900-1700nm | 60 lp/mm | 35 mm | F1.4-F16 | -0.05% | 17.4° | 14° | 10.6° | 0.15m-∞ | M35.5×0.5 | C | Manual |
| TPL-5014SWIR-S | 900-1700nm | 60 lp/mm | 50 mm | F2.0-F32 | -0.10% | 12.36° | 9.92° | 7.45° | 0.4m-∞ | M35.5×0.5 | C | Manual |
1-inch SWIR Series
Application Fields: High-resolution SWIR imaging, Precision inspection
| Model | Wavelength (nm) |
Resolution (lp/mm) |
Focal Length (mm) |
F/# (F-Number) |
Optical Distortion | Field of View | Working Distance | Filter Thread | Lens Mount | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | V | ||||||||||

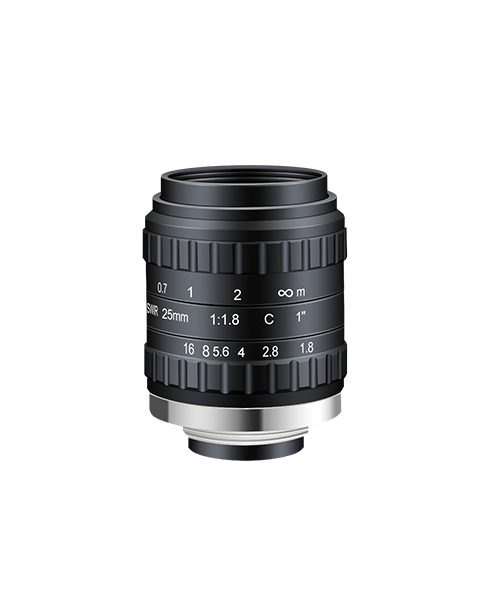

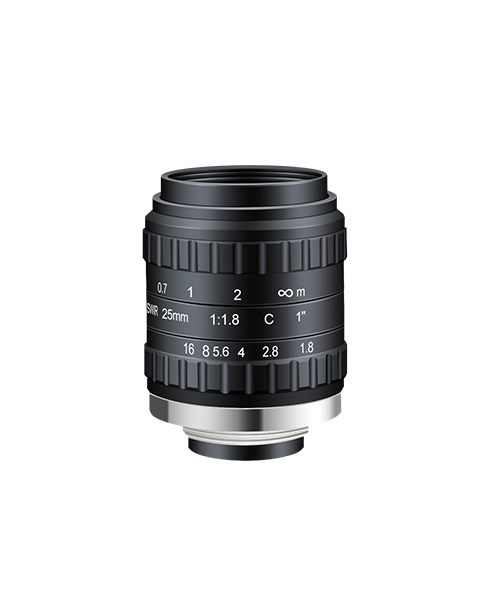

| TPL-2518SWIR | 900-1700nm | 100 lp/mm | 25 mm | F1.8-F16 | -0.50% | 35.49° | 28.5° | 21.74° | 0.3m-∞ | M30.5×0.5 | C | Manual |
| TPL-3514SWIR | 900-1700nm | 50 lp/mm | 35 mm | F1.4-F16 | 0.08% | 25.75° | 20.57° | 15.62° | 0.3m-∞ | M37×0.75 | C | Manual |
| TPL-5014SWIR | 900-1700nm | 50 lp/mm | 50 mm | F1.4-F16 | 0.05% | 18.18° | 14.48° | 10.97° | 0.5m-∞ | M46×0.75 | C | Manual |
| TPL-NV2514SWIR | 900-1700nm | 40 lp/mm | 25 mm | F1.4-F22 | -0.15% | 36° | 27.8° | 21° | 0.3m-∞ | M40.5×0.5 | C | Manual |
28mm SWIR Series
Application Fields: Long-distance SWIR detection, Security surveillance
| Model | Wavelength (nm) |
Resolution (lp/mm) |
Focal Length (mm) |
F/# (F-Number) |
Optical Distortion | Field of View | Working Distance | Filter Thread | Lens Mount | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | V | ||||||||||

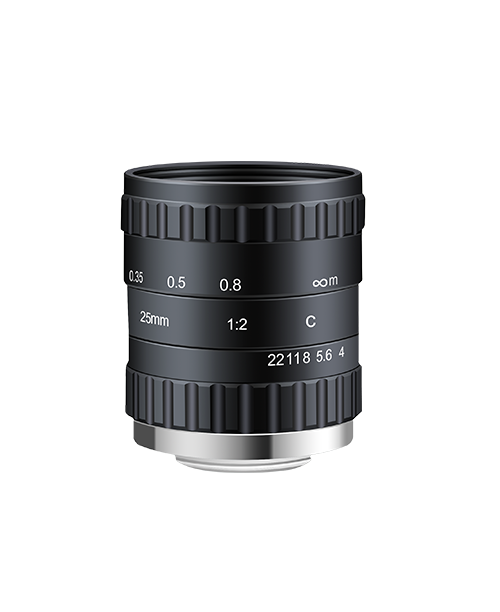

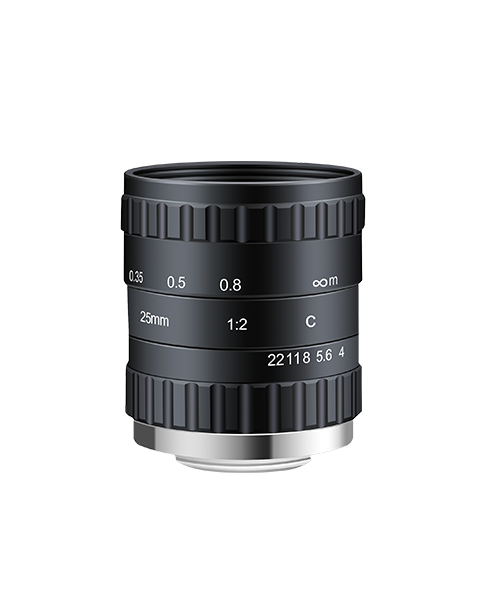

| TPL-NV2520SWIR | 900-1700nm | 40 lp/mm | 25 mm | F2.0-F22 | -2.30% | 56.2° | 48.2° | 32.4° | 0.25m-∞ | M40.5×0.75 | C | Manual |
| TPL-NV5014SWIR | 900-1700nm | 90 lp/mm | 50 mm | F1.4 | -0.22% | 27.26° | 22.02° | 16.62° | 0.3m-∞ | M49×0.75 | M42×1(17.5) | Manual |
4/3-inch SWIR Series
Application Fields: Large field-of-view SWIR imaging, Industrial inspection
| Model | Wavelength (nm) |
Resolution (lp/mm) |
Focal Length (mm) |
F/# (F-Number) |
Optical Distortion | Field of View | Working Distance | Filter Thread | Lens Mount | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | V | ||||||||||
| TPL-NV3514SWIR | 900-1700nm | 60 lp/mm | 35 mm | F1.4-F16 | -0.40% | 31.2° | 25.4° | 18.7° | 0.3m-∞ | M46×0.75 | M42×1(T) | Manual |

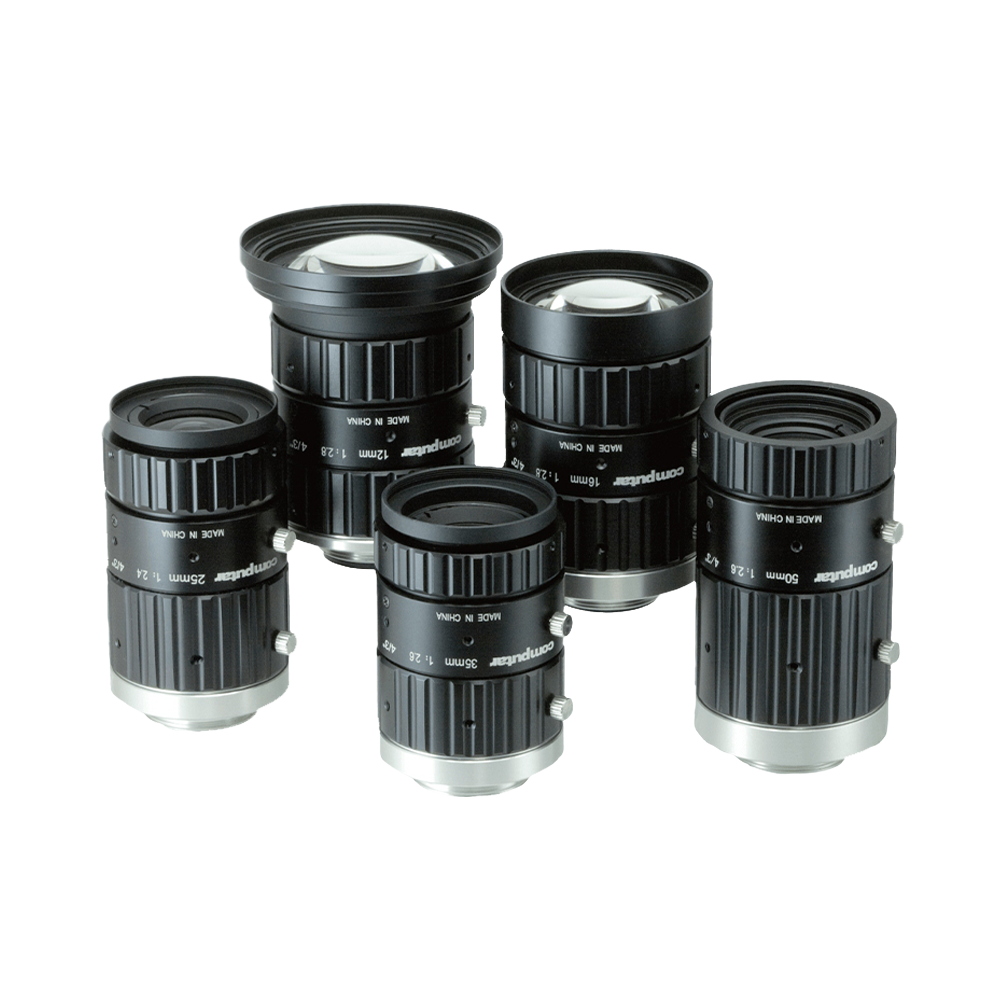

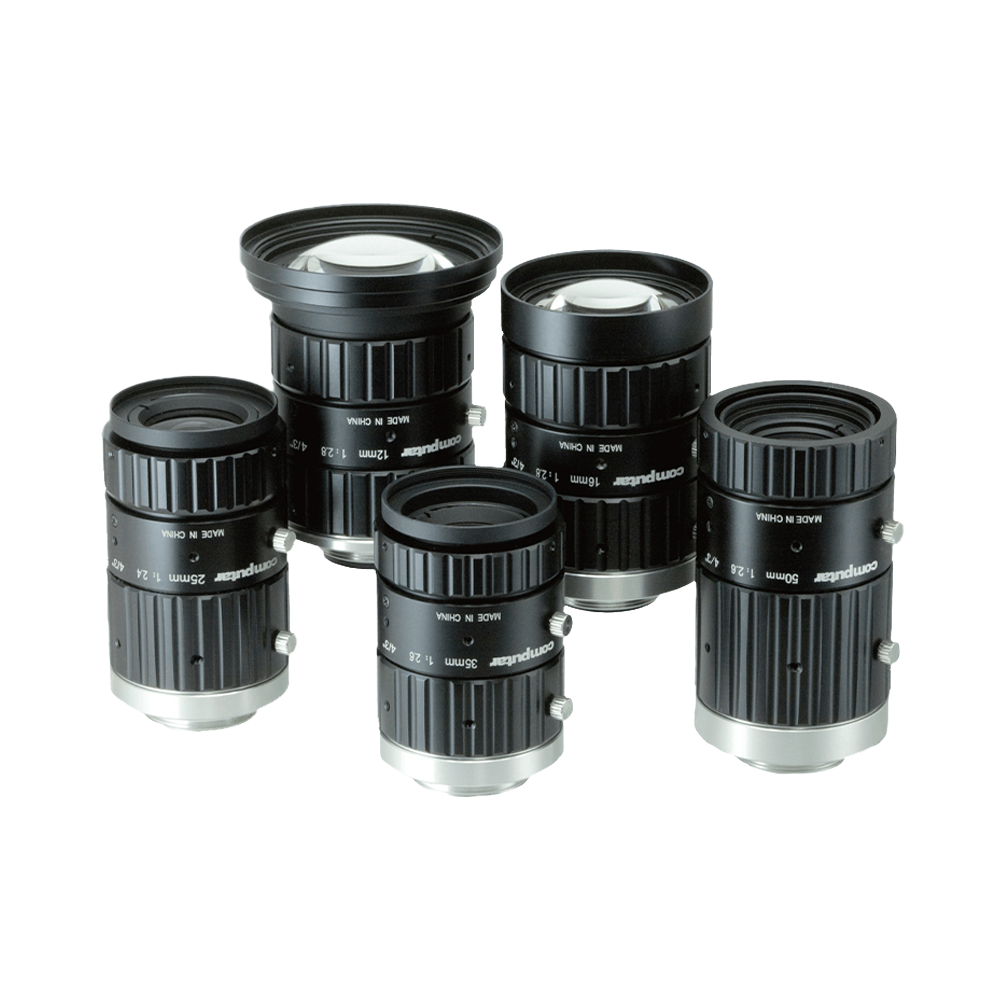

Computar SWIR Series
Application Fields: High-end SWIR applications, Precision inspection
| Model | Wavelength (nm) |
Resolution (lp/mm) |
Focal Length (mm) |
F/# (F-Number) |
Optical Distortion | Field of View | Working Distance | Filter Thread | Lens Mount | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | V | ||||||||||
| H0514-VSW (1/2") | 400-1700nm | — | 5 mm | F1.4-F16C | -0.48% | 77.8° | 65.5° | 54.5° | 0.1m-0.9m | M43 P=0.75mm | C | Manual |
| M0814-VSW | 400-1700nm | — | 8 mm | F1.4-F16C | -0.10% | 53.0° | 42.5° | 34.5° | 0.1m-Inf. | M30.5 P=0.5mm | C | Manual |
| M1214-VSW | 400-1700nm | — | 12 mm | F1.4-F16C | -0.10% | 37.8° | 30.0° | 24.1° | 0.15m-Inf. | M30.5 P=0.5mm | C | Manual |
| M1614-VSW | 400-1700nm | — | 16 mm | F1.4-F16C | -0.10% | 28.8° | 22.7° | 18.2° | 0.3m-Inf | M30.5 P=0.5mm | C | Manual |
| M2514-VSW | 400-1700nm | — | 25 mm | F1.4-F16C | -0.30% | 18.6° | 14.6° | 11.7° | 0.3m-Inf | M30.5 P=0.5mm | C | Manual |
| M3514-VSW | 400-1700nm | — | 35 mm | F1.4-F16C | -0.80% | 13.7° | 10.7° | 8.6° | 0.3m-Inf | M30.5 P=0.5mm | C | Manual |
| M5018-VSW | 400-1700nm | — | 50 mm | F1.8-F16C | -0.30% | 9.8° | 7.6° | 6.1° | 0.5m-Inf | M30.5 P=0.5mm | C | Manual |
| M0818-APVSW | 400-1700nm | — | 8 mm | F1.8-F16 | 0.40% | 53.2° | 42.7° | 34.7° | 0.1m-Inf. | M46 P=0.75mm | C | Manual |
| M1218-APVSW | 400-1700nm | — | 12 mm | F1.8-F16 | 0.00% | 37.9° | 30.0° | 24.2° | 0.1m-Inf. | M37.5 P=0.5mm | C | Manual |
| M1618-APVSW | 400-1700nm | — | 16 mm | F1.8-F16 | 0.00% | 28.8° | 22.7° | 18.2° | 0.1m-Inf | M37.5 P=0.5mm | C | Manual |
| M2518-APVSW | 400-1700nm | — | 25 mm | F1.8-F16 | 0.00% | 18.6° | 14.6° | 11.7° | 0.1m-Inf | M37.5 P=0.5mm | C | Manual |
Product Features Description
- Multispectral coverage: Visible light, SWIR, UV
- High-resolution design supporting high-pixel sensors
- Excellent optical performance
- Industrial-grade quality, stable and reliable
- Standard C-mount with strong compatibility
Spectral Range Description:
Tupu Optoelectronics multispectral machine vision lens series covers the complete spectral range from ultraviolet to short-wave infrared, providing professional solutions for various spectral imaging applications.
