CamPI Series

Product Introduction

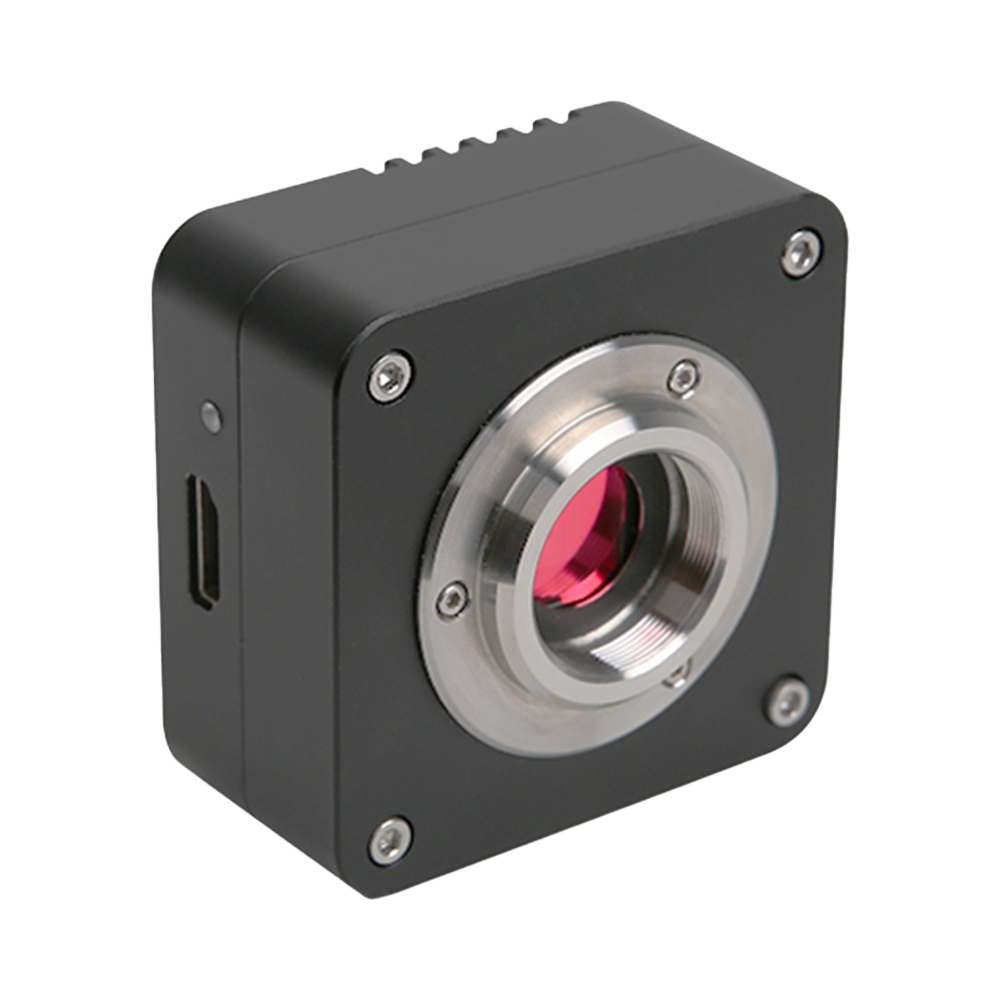

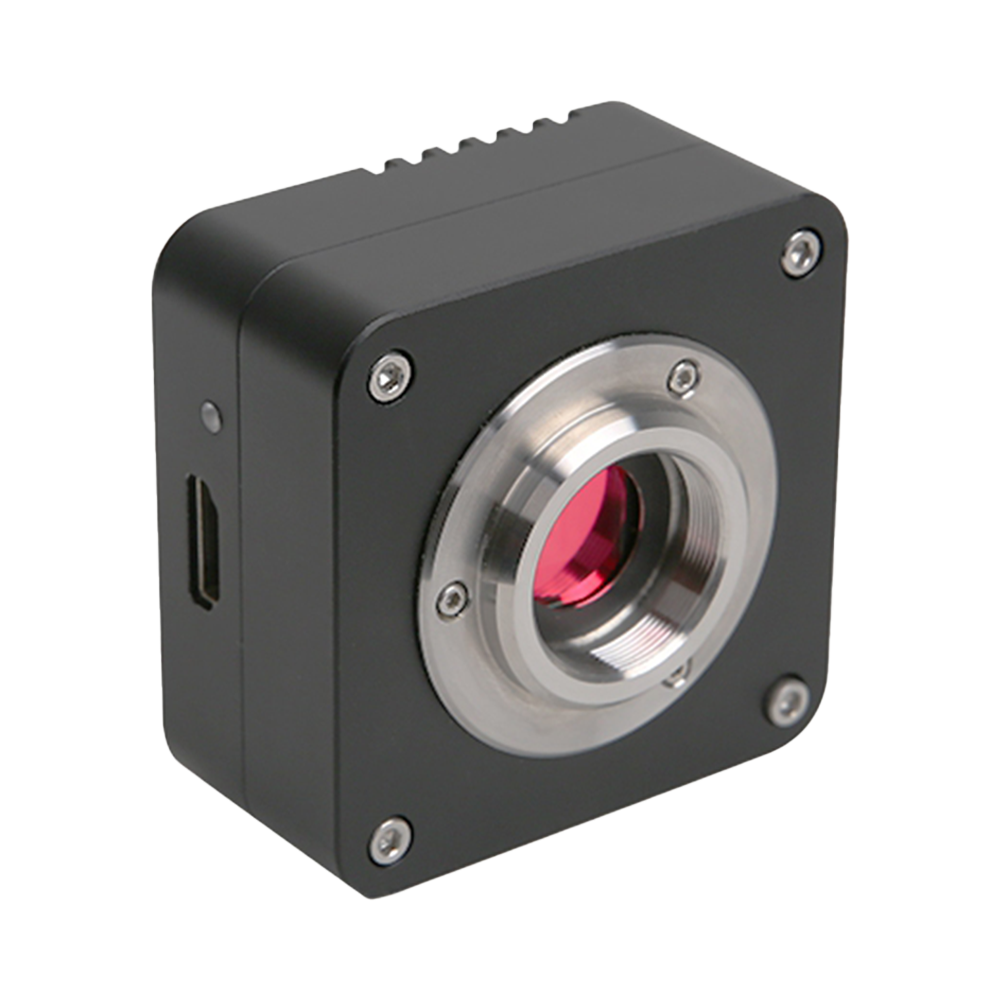

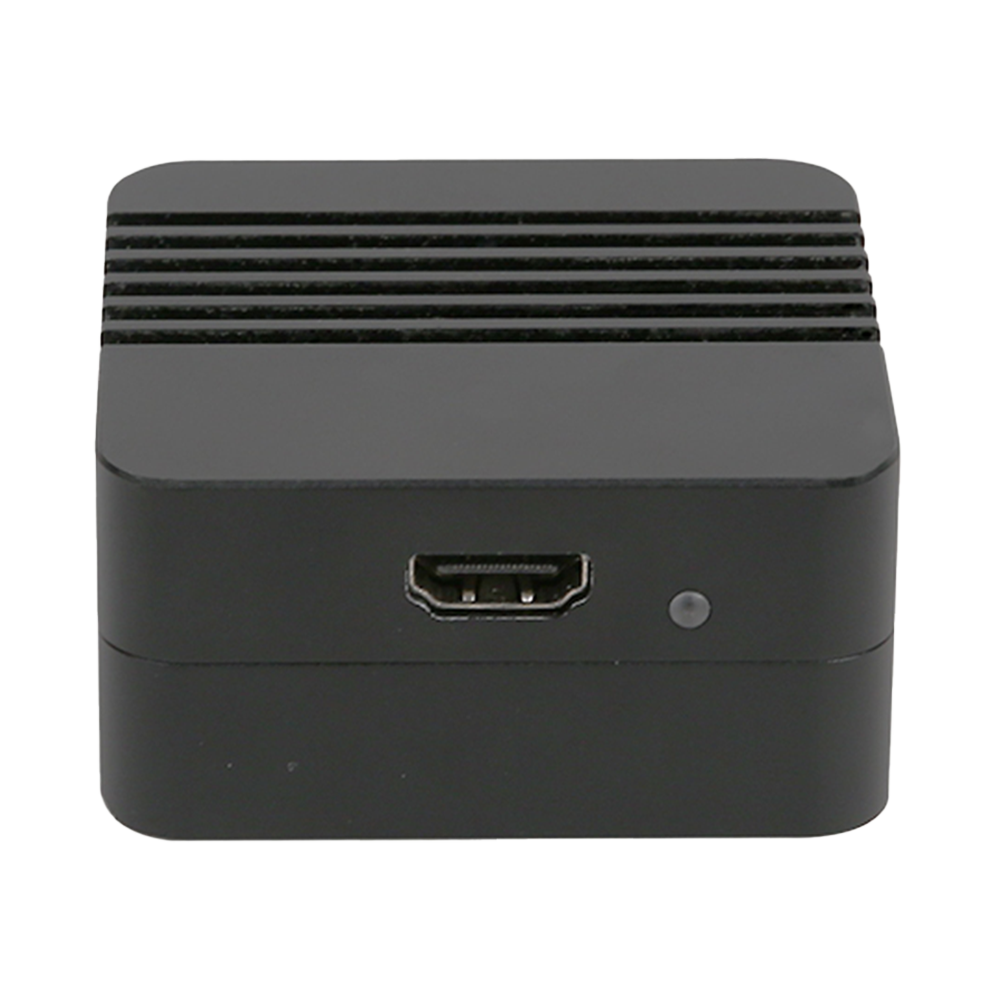

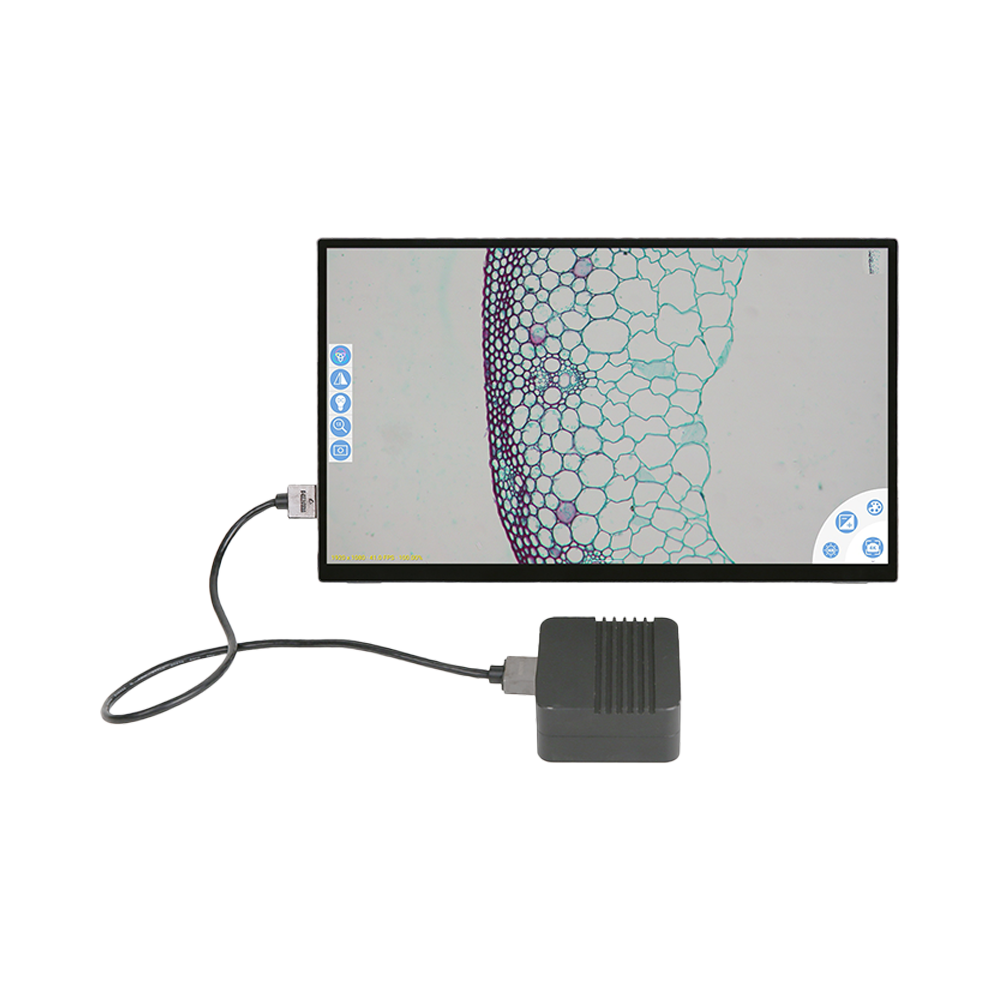

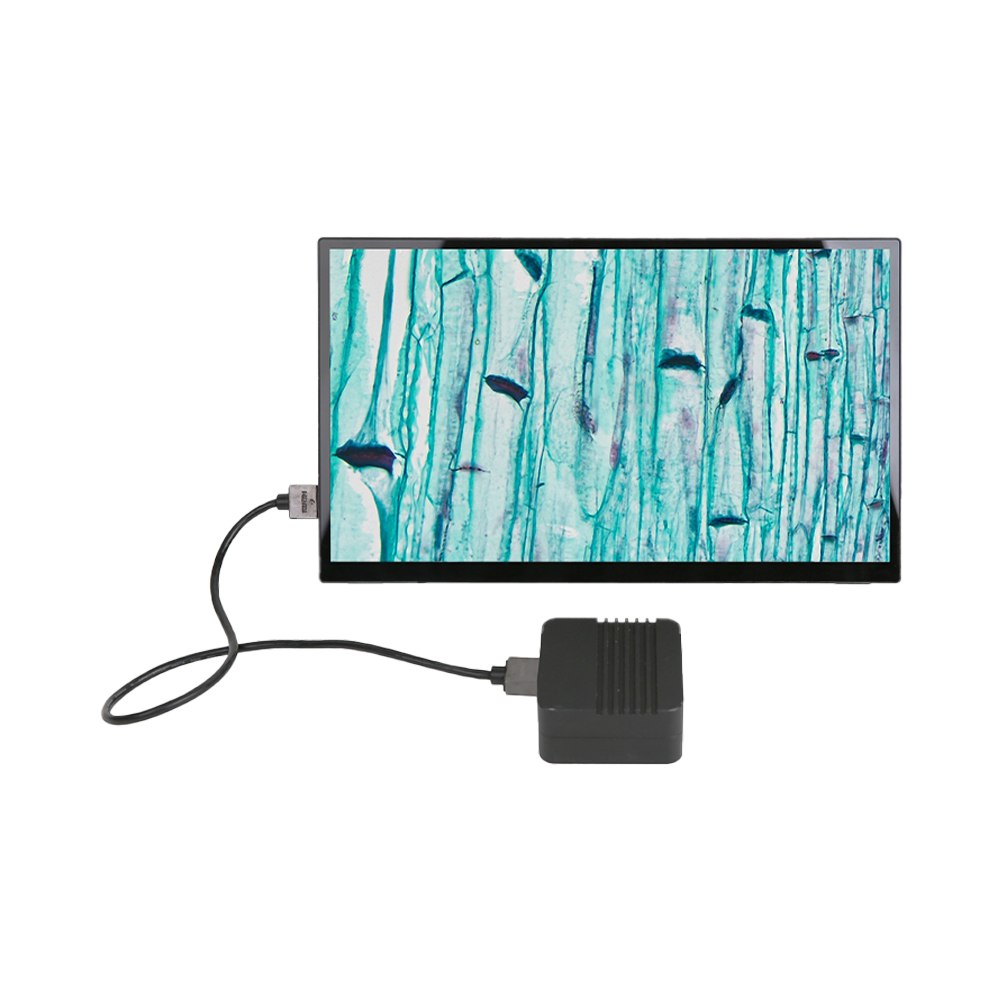

CamPI is an SoC camera intelligent control platform launched by ToupTek that integrates powerful computing capabilities with camera control functions. The HCMOS series cameras developed by ToupTek can connect to the CamPI intelligent control platform with just a standard HDMI cable, enabling camera control, display, photography, video recording, and measurement functions.

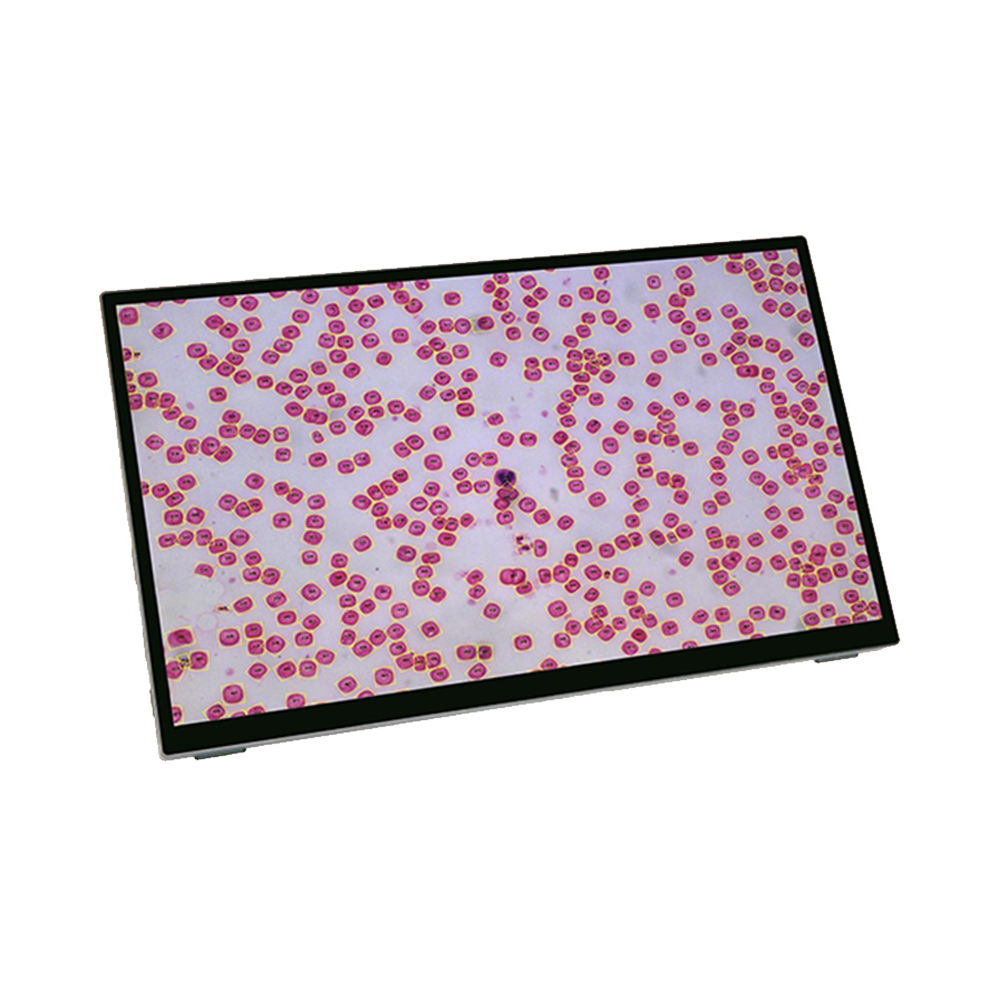

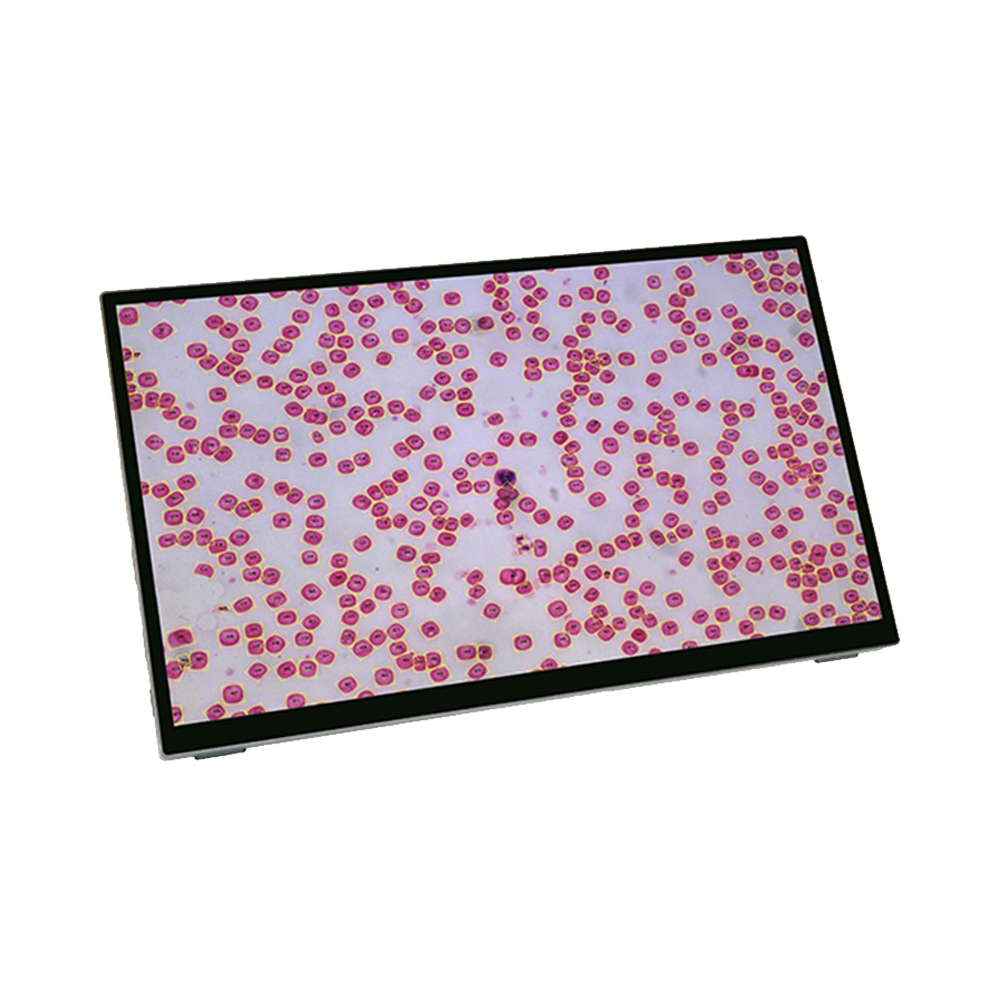

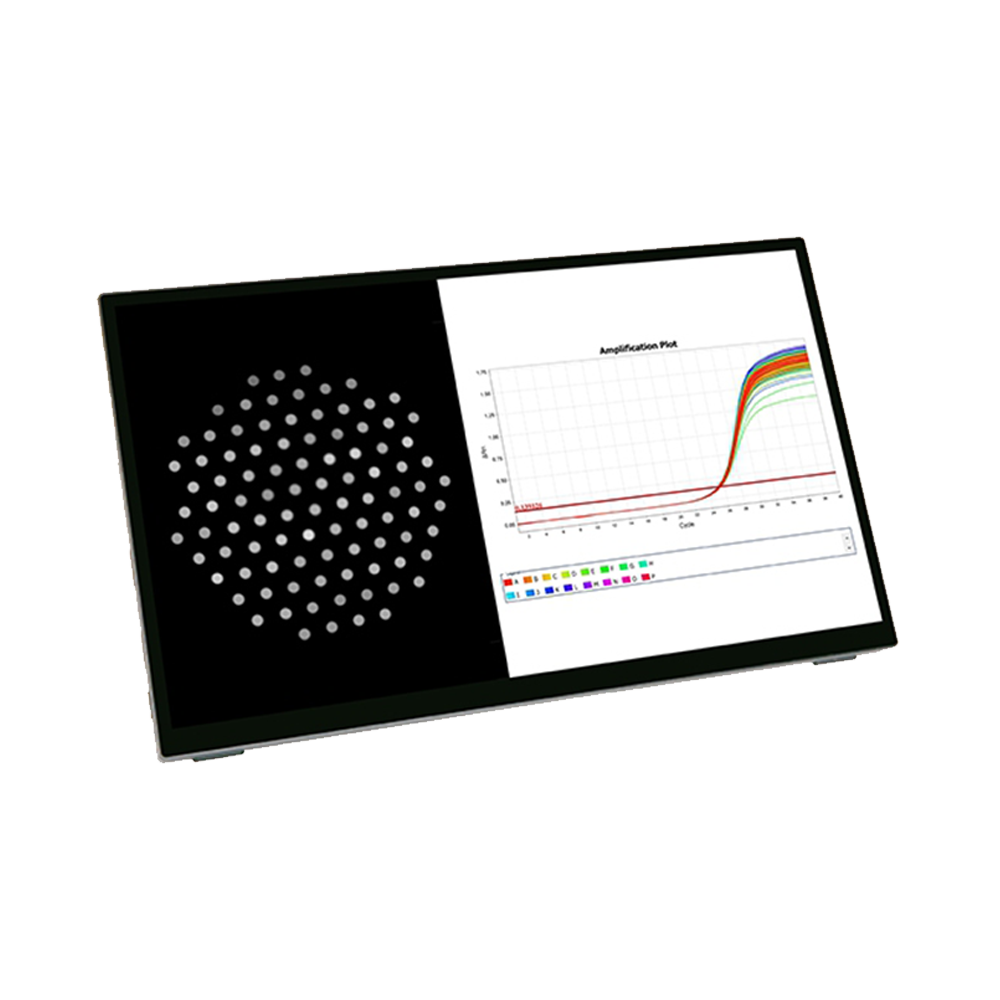

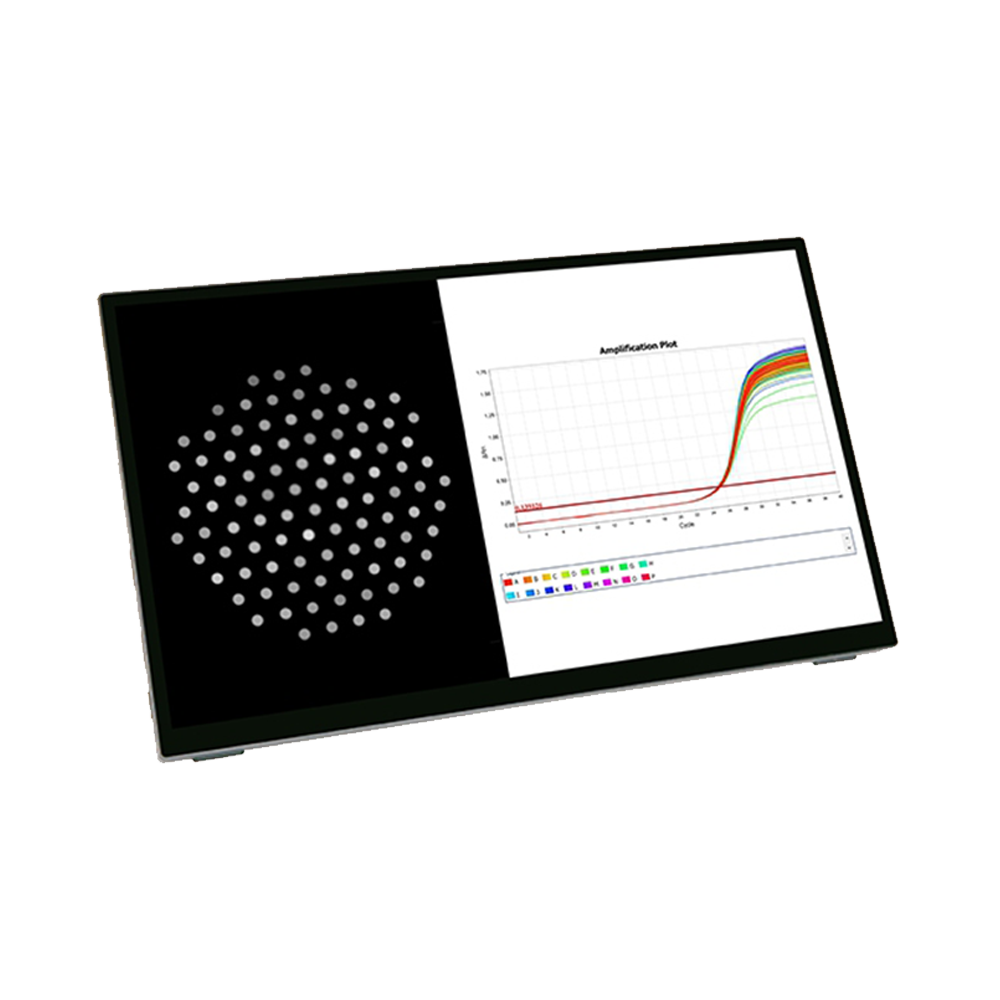

The CamPI camera intelligent control platform can be equipped with multi-touch TFT-LCD displays of various sizes and resolutions, freeing users from dependence on keyboards and mice during use. Through finger touch operation, users can control HCMOS cameras or other peripherals.

The CamPI camera intelligent control platform features different sizes and resolutions of multi-touch TFT-LCD displays, eliminating the need for keyboards and mice during operation. Users can control HCMOS cameras or other peripherals through intuitive finger touch operations.

Product Features

Modular high expandability: Core board and interface board are independently designed, focusing on core camera functions while offering high expandability and embeddability characteristics

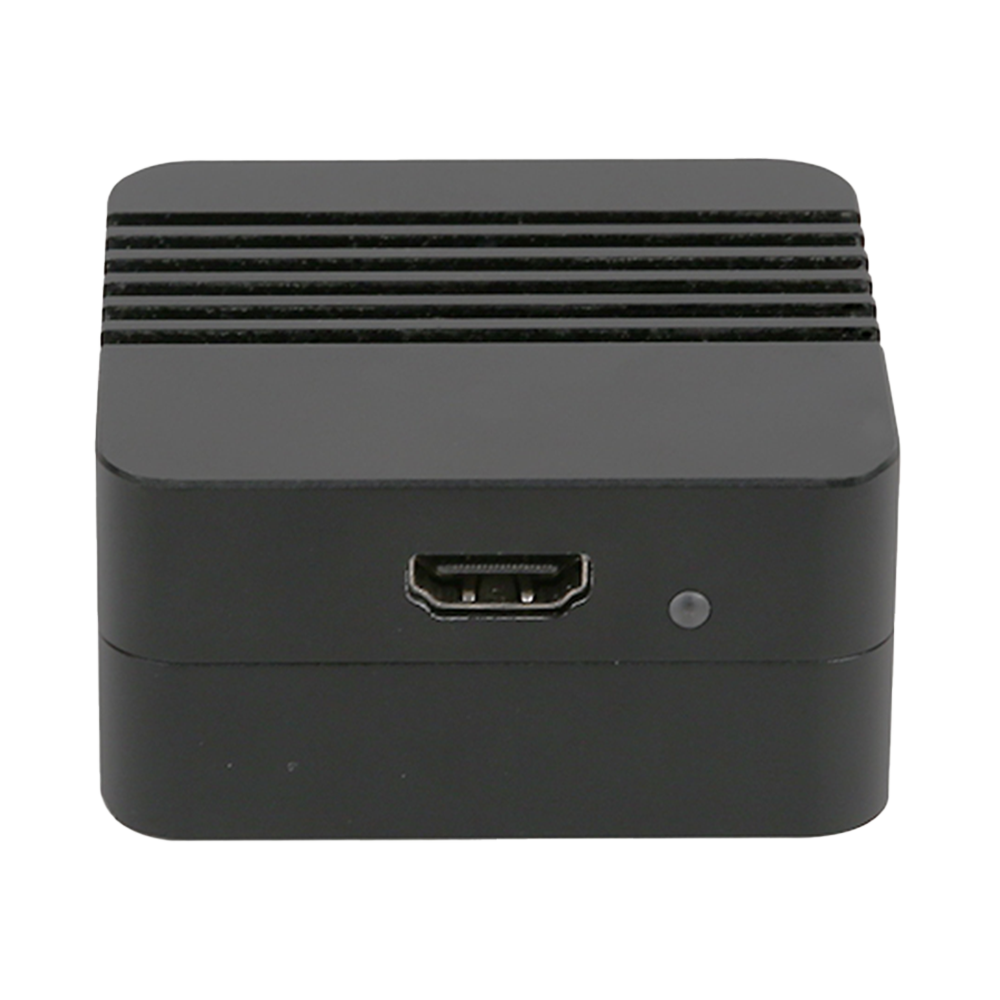

Convenient image transmission: Only a single HDMI cable connection to HCMOS series cameras is needed to perfectly achieve camera control, image and video data transmission, viewing and processing, eliminating hardware compatibility and camera driver issues, seamlessly integrating with cameras to provide users with worry-free mobile image acquisition solutions
Open product development: Users can develop and run their own image processing applications through the provided SDK, implement field industrial control through standard user interfaces and interfaces, process image and video data according to preferences and requirements, and ultimately submit scientific analysis reports, completely freeing themselves from camera hardware issues and image or video data collection problems to focus on problem-oriented image processing and analysis, rapidly developing their own target devices

Portable product use/integration: Compact size ensures portability in product use and integration
Versatile product applications: Can be applied to various scenarios such as microscope observation, biological image analysis, industrial inspection, and various intelligent image analysis equipment, meeting different development needs

Get Quote Product Manual

Product Models

Select the CamPI Series that fits your application requirements

Product Model	Processor	Display	Memory/Storage	AI Performance	System Version	Main Interfaces	Compatible Cameras	Actions
CamPI2K133A	RK3399 (Dual-core Cortex-A72 + Quad-core Cortex-A53, 64-bit, 2 GHz)	13.3-inch FHD (1920×1080) multi-touch TFT-LCD	2 GB LPDDR3 / 32 GB eMMC, supports SD card expansion	N/A	Android 10.0	Dual HDMI 2.0 input, USB-A 3.0×2, USB-C (DP), USB-A 2.0×1, SD card slot, Gigabit Ethernet port, 2.5 mm shutter release interface, 12 V DC5525 power input	HCMOS series cameras (via HDMI direct connection)	View Details
CamPI4K133A	RK3588 (Quad-core Cortex-A76 + Quad-core Cortex-A55, 64-bit, high-performance SoC)	13.3-inch 4K (3840×2160) multi-touch TFT-LCD	2 GB LPDDR3 / 32 GB eMMC, supports SD card expansion	6 TOPS	Android 12.0	Dual HDMI 2.0 input, USB-A 3.0×2, USB-C (DP), USB-A 2.0×1, SD card slot, Gigabit Ethernet port, 2.5 mm shutter release interface, 12 V DC5525 power input	HCMOS series cameras (via HDMI direct connection)	View Details

Product Overview

Professional features of the CamPI series intelligent camera platform

The CamPI series is an intelligent camera platform developed by Spectrum Instruments that integrates camera control, image processing, display, and analysis into a unified system. Featuring high-performance SoC processors and multi-touch TFT-LCD displays, it eliminates the dependency on traditional PCs, mice, and keyboards. Through a single standard HDMI cable, it seamlessly connects with HCMOS series cameras to achieve real-time image display, capture, recording, measurement, and analysis. The platform adapts to various industrial, scientific research, and testing equipment, facilitating mobile and intelligent image solution deployment.

Core Features

Integrated Intelligent Platform

Complete functionality without PC dependency

Plug-and-Play Connectivity

Single HDMI cable for all connections

High-Performance SoC Processor

RK3399/RK3588 with 6 TOPS computing power

4K Touch Display

13.3-inch multi-touch screen

Performance Highlights

AI Computing Power

6 TOPS

RK3588 processor

Display Specification

13.3-inch touchscreen

Multi-Language Support

8 Languages

International interface

Dual Camera Support

2×HDMI

Simultaneous connection

In-Depth Product Introduction

Revolutionary Integrated Design Philosophy

The CamPI series breaks through the traditional imaging system paradigm that requires multiple devices including PCs, monitors, mice, and keyboards. It highly integrates camera control, data processing, display, and storage functions into a single platform. This integrated design not only dramatically simplifies system complexity but also provides unprecedented portability and ease of use. The intuitive interface with touch operation support allows users to complete complex imaging tasks as easily as using a smartphone, truly achieving an independent PC-free imaging experience.

Powerful SoC Processor Platform

Equipped with RK3399 (dual-core A72 + quad-core A53) or RK3588 (quad-core A76 + quad-core A55) high-performance processors, the RK3588 version provides up to 6 TOPS of AI computing power. This robust computational capability ensures smooth 4K video decoding and real-time image processing while reserving ample performance headroom for future AI applications. Configured with 2 GB LPDDR3 memory and 32 GB eMMC storage with SD card expansion support, it meets the storage requirements for large-capacity image data.

Simplified Connection Solution

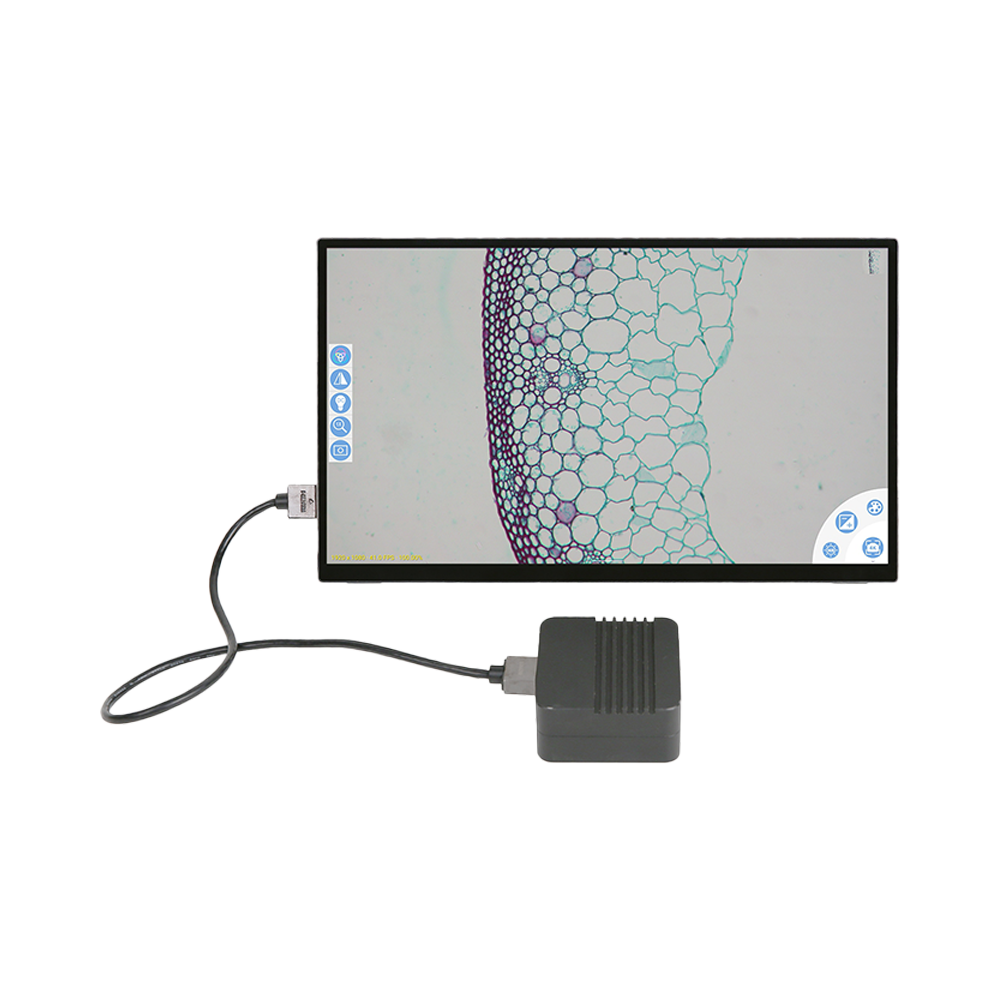

A single standard HDMI cable completes all connections with HCMOS series cameras, including video signal transmission, camera control, and power supply. This plug-and-play design completely eliminates traditional system issues such as driver installation and compatibility problems. The dual HDMI input design allows simultaneous connection of two cameras, enabling stereo imaging or comparative analysis. Rich peripheral interfaces include USB 3.0/2.0, USB-C (DP), Gigabit Ethernet, and more, providing ample flexibility for system expansion.

Exceptional Display and Interactive Experience

Features a 13.3-inch FHD or 4K capacitive touchscreen with 100% sRGB color gamut coverage, 400 cd/m² brightness, and 1500:1 contrast ratio, ensuring image display accuracy and detail representation. Multi-touch support enables intuitive operations such as zooming, measuring, and parameter adjustment. The built-in CamView software provides comprehensive camera control functions including exposure, gain, white balance, and color adjustment, supporting various shooting modes such as single shot, continuous shooting, time-lapse, and scheduled capture, plus 4K video recording capability.

Future-Oriented Open Platform

Provides a complete SDK development package supporting users in developing custom image processing and industrial control applications. The open architecture based on Android system enables developers to rapidly integrate professional algorithms and functional modules. Supports 5G/2.4G Wi-Fi and wired network connections for convenient remote control and data transmission. Multi-language interface support (Chinese/English/German/French/Japanese/Korean/Spanish/Italian) ensures global applicability, making CamPI a truly international intelligent imaging platform.
