Universal Microscope and Telescope Adapters
Product Introduction
Fits microscopes or telescopes with 23.2 mm or 31.75 mm eyepiece ports, offers adjustable-focus and fixed designs, and connects easily to C-mount cameras to support microscopy and astronomy imaging.
Product Features
- Supports standard 23.2 mm and 31.75 mm eyepiece ports
- Offers multiple adjustable-focus and fixed configurations
- Simple installation with sharp imaging
- Multiple magnification options
- Precision optical design with low distortion
Universal C-Mount Adapter Series
Adapts to microscopes/telescopes with 23.2 mm or 31.75 mm eyepiece ports, offering adjustable focus and fixed structures. Easily connects C-mount cameras to meet microscopy and astronomical imaging needs. Supports multiple magnification options with precision optical design ensuring low distortion and high-quality imaging.
Adjustable Focus 23.2 mm Microscope Eyepiece Tube to C-Mount Adapter
0.37X, 0.50X and 0.75X adjustable focus series, supports manual focusing and parfocal adjustment with microscope objectives and eyepieces
| Product Image | Model | Specifications |
|---|---|---|
|
|

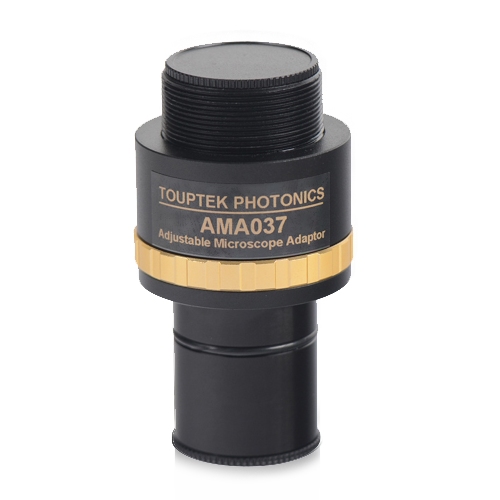

AMA037 |
Image size at 18 mm field is 18×0.37 Matches 1/4"~1/3" sensor sizes 0.37× magnification Manual focusing Parfocal adjustable with microscope objectives and eyepieces C-mount on top, 23.2 mm diameter microscope eyepiece interface on bottom |
|

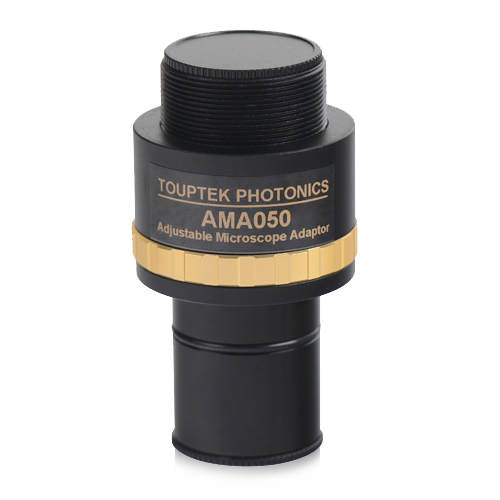

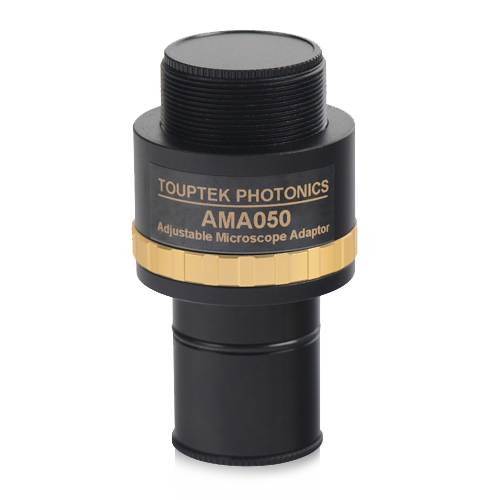

AMA050 |
Image size at 18 mm field is 18×0.50 Matches 1/2"~2/3" sensor sizes 0.50× magnification Manual focusing Parfocal adjustable with microscope objectives and eyepieces C-mount on top, 23.2 mm diameter microscope eyepiece interface on bottom |
|

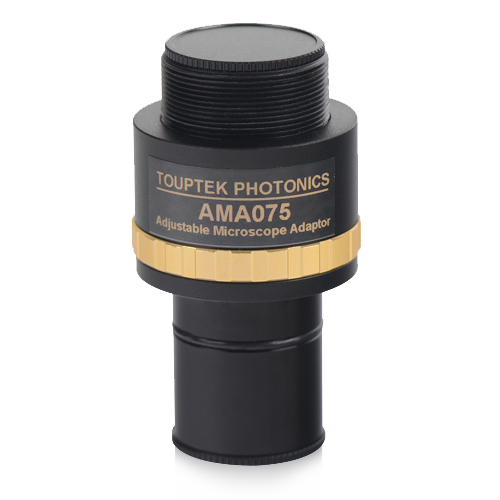

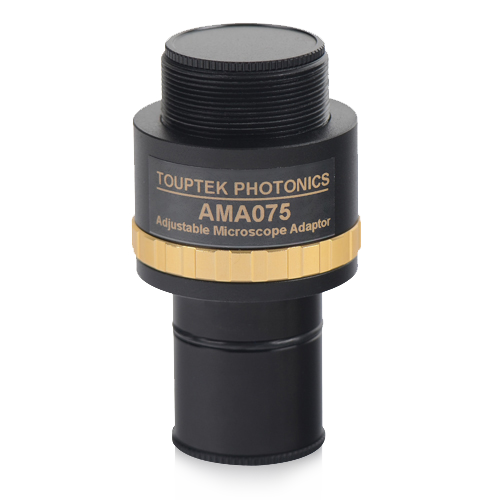

AMA075 |
Image size at 18 mm field is 18×0.75 Matches 1/1.8"~1" sensor sizes 0.75× magnification Manual focusing Parfocal adjustable with microscope objectives and eyepieces C-mount on top, 23.2 mm diameter microscope eyepiece interface on bottom |
|

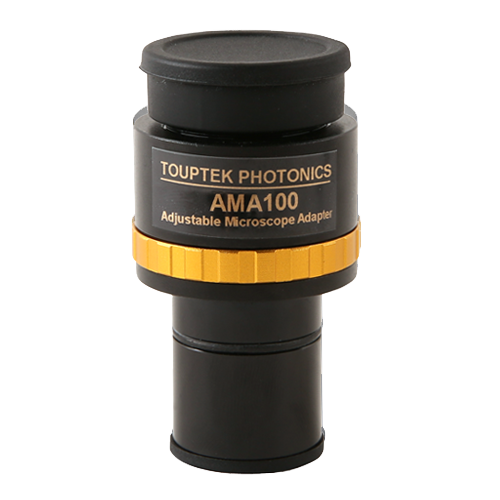

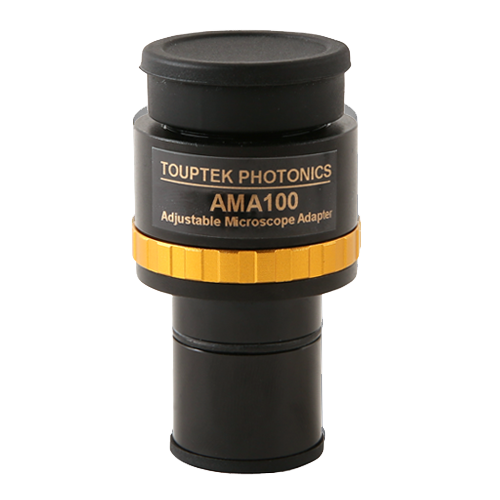

AMA100 |
Image size at 18 mm field is 18×1.00 mm Matches 1"~1.1" sensor sizes 1× magnification Manual focusing Parfocal with eyepiece 23.2 mm diameter eyepiece tube to C-mount |
Fixed Microscope 23.2 mm Eyepiece Tube to C-Mount Adapter
0.37X, 0.50X and 0.75X fixed structure, compact design suitable for space-limited applications
| Product Image | Model | Specifications |
|---|---|---|
|
|

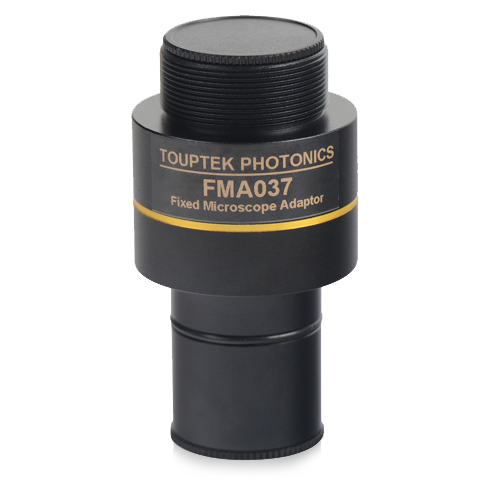

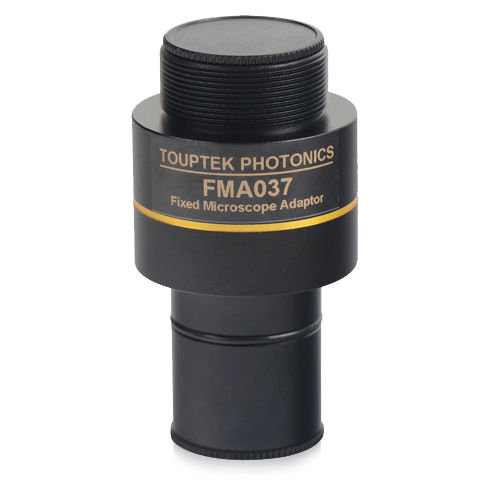

FMA037 |
Image size at 18 mm field is 18×0.37 Matches 1/4"~1/3" sensor sizes 0.37× magnification C-mount on top, 23.2 mm diameter microscope eyepiece interface on bottom |
|

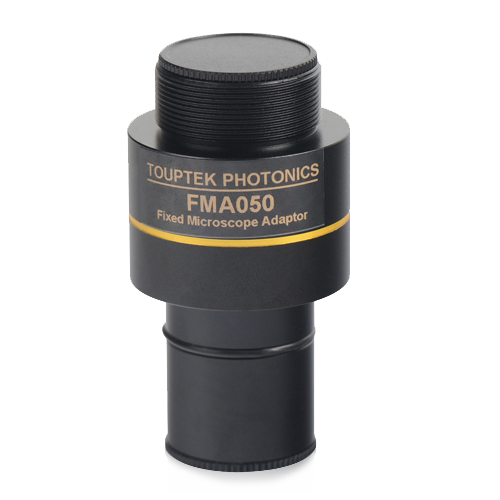

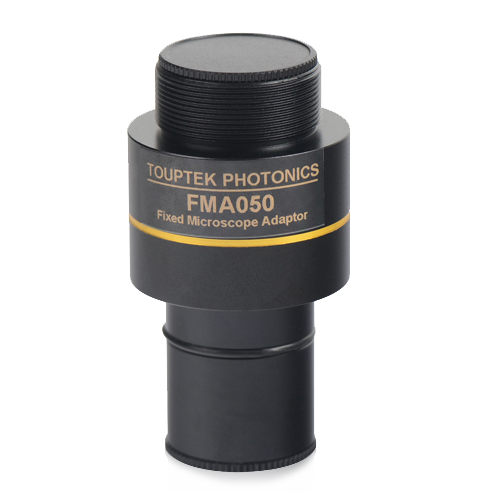

FMA050 |
Image size at 18 mm field is 18×0.50 Matches 1/2"~2/3" sensor sizes 0.50× magnification C-mount on top, 23.2 mm diameter microscope eyepiece interface on bottom |
|

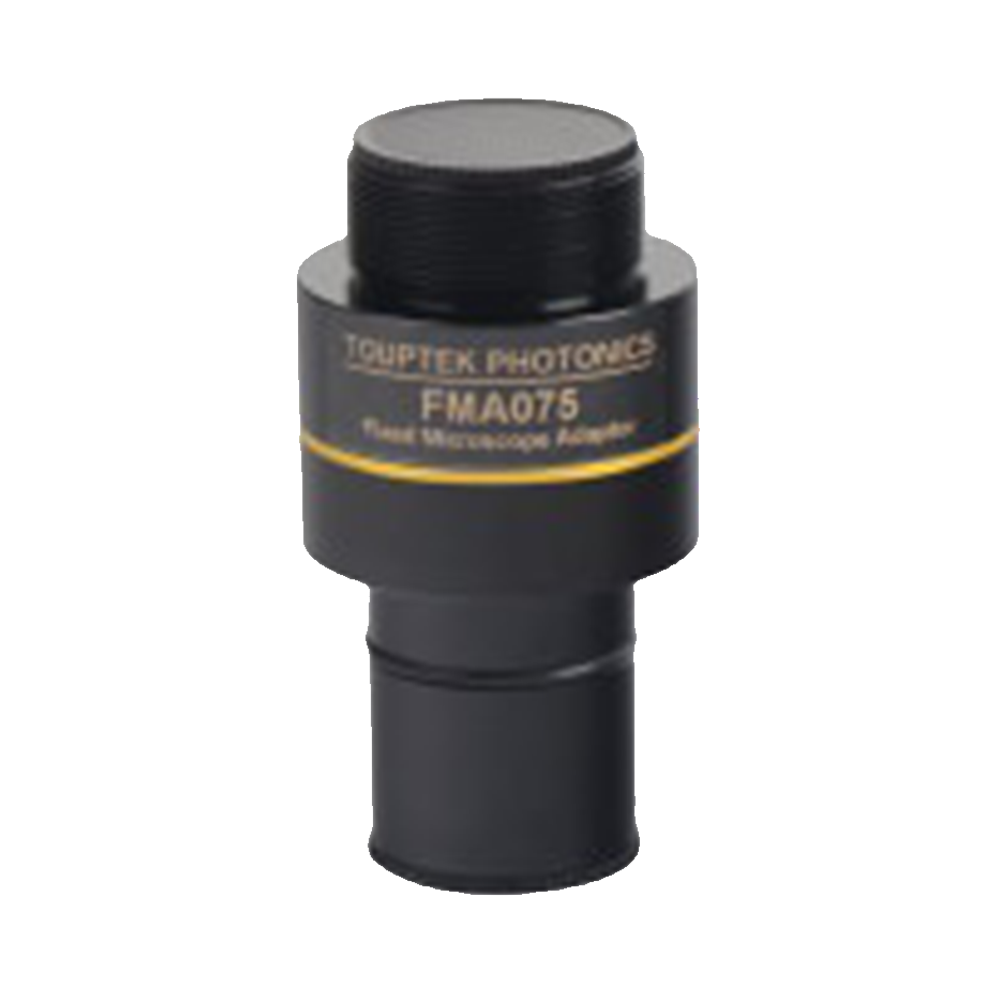

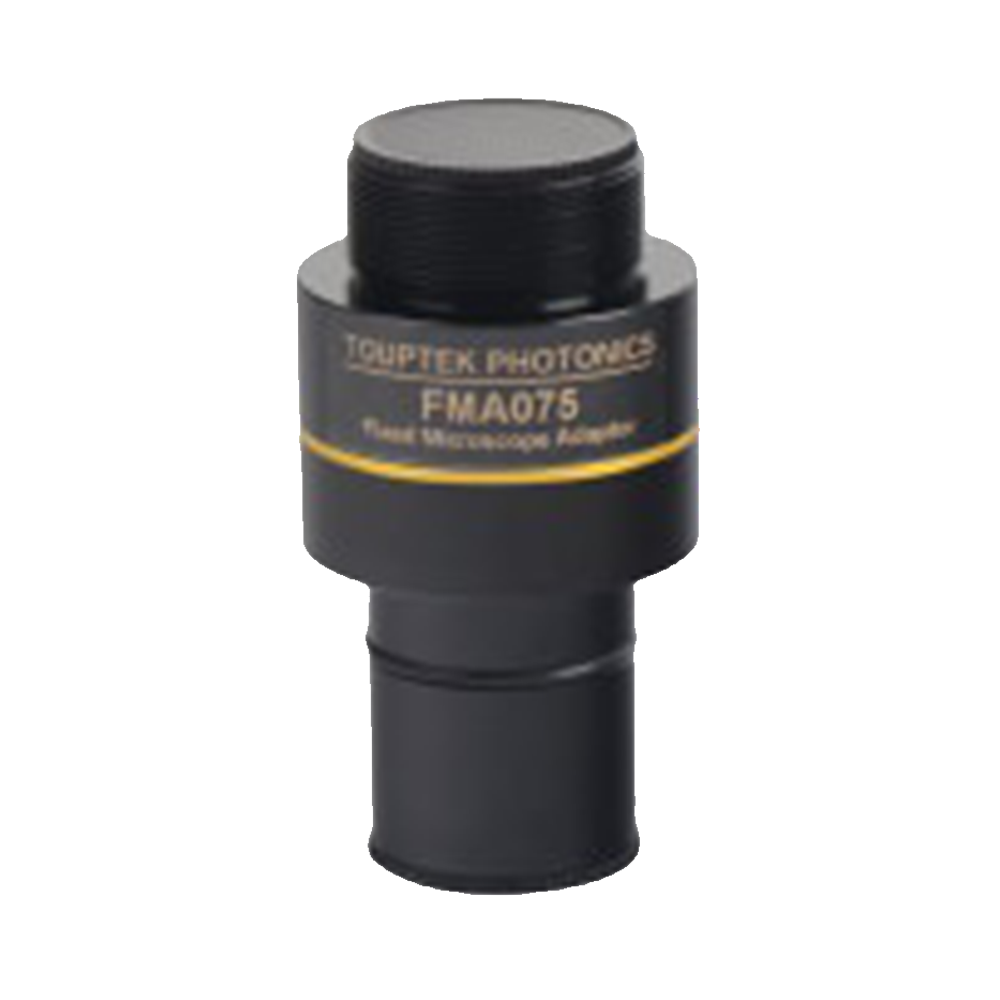

FMA075 |
Image size at 18 mm field is 18×0.75 Matches 1/1.8"~1" sensor sizes 0.75× magnification C-mount on top, 23.2 mm diameter microscope eyepiece interface on bottom |
|

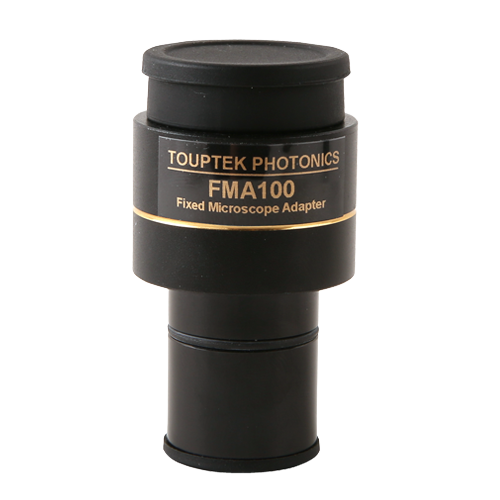

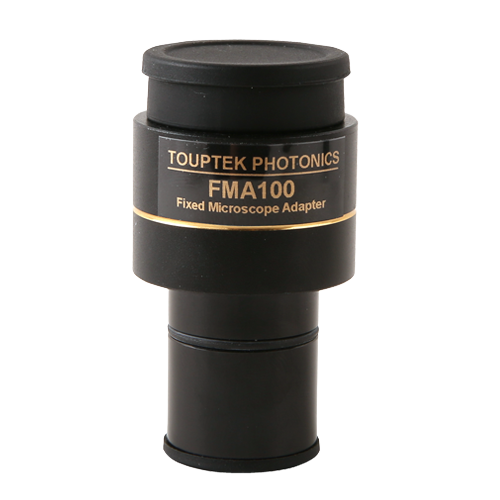

FMA100 |
Image size at 18 mm field is 18×1.00 mm Matches 1" sensor sizes 1.00× magnification 23.2 mm diameter eyepiece tube to C-mount |
Adjustable Focus Telescope 31.75 mm Eyepiece Tube to C-Mount Adapter
0.37X, 0.50X and 0.75X adjustable focus series, specifically designed for astronomical observation
| Product Image | Model | Specifications |
|---|---|---|
|
|

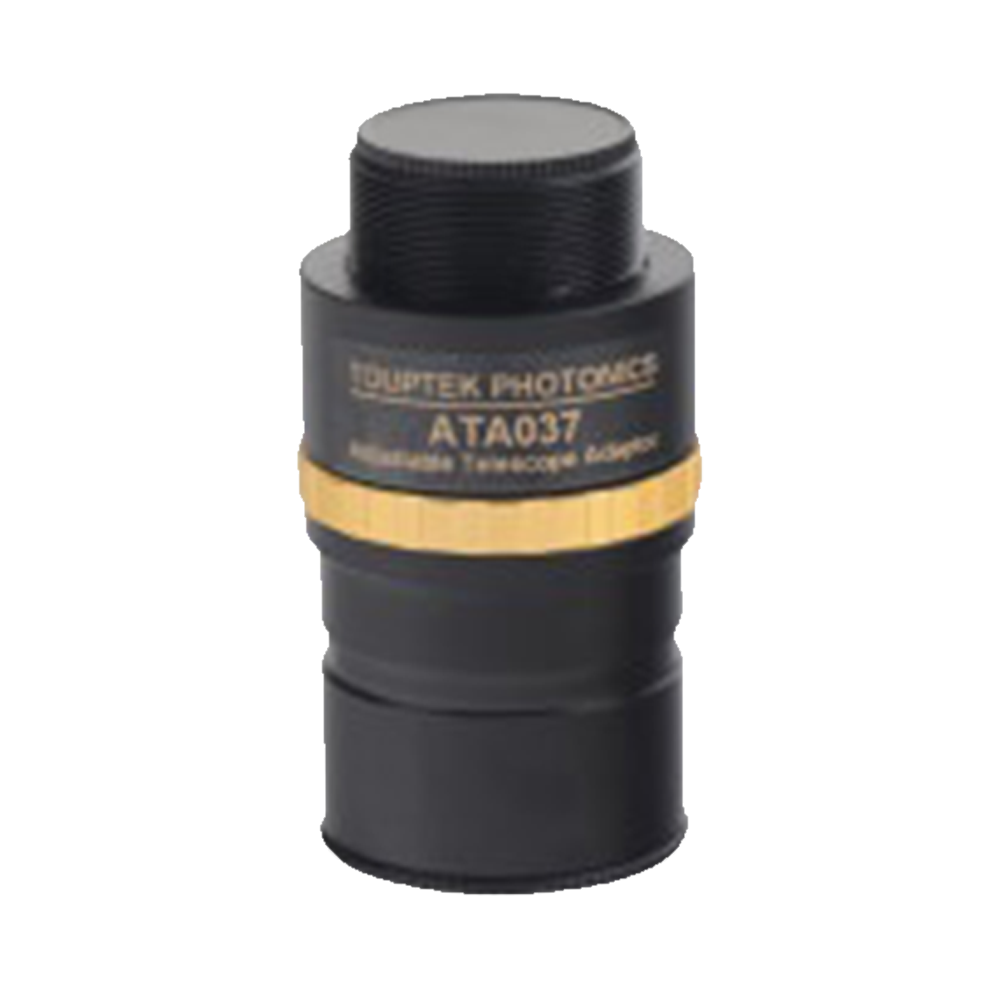

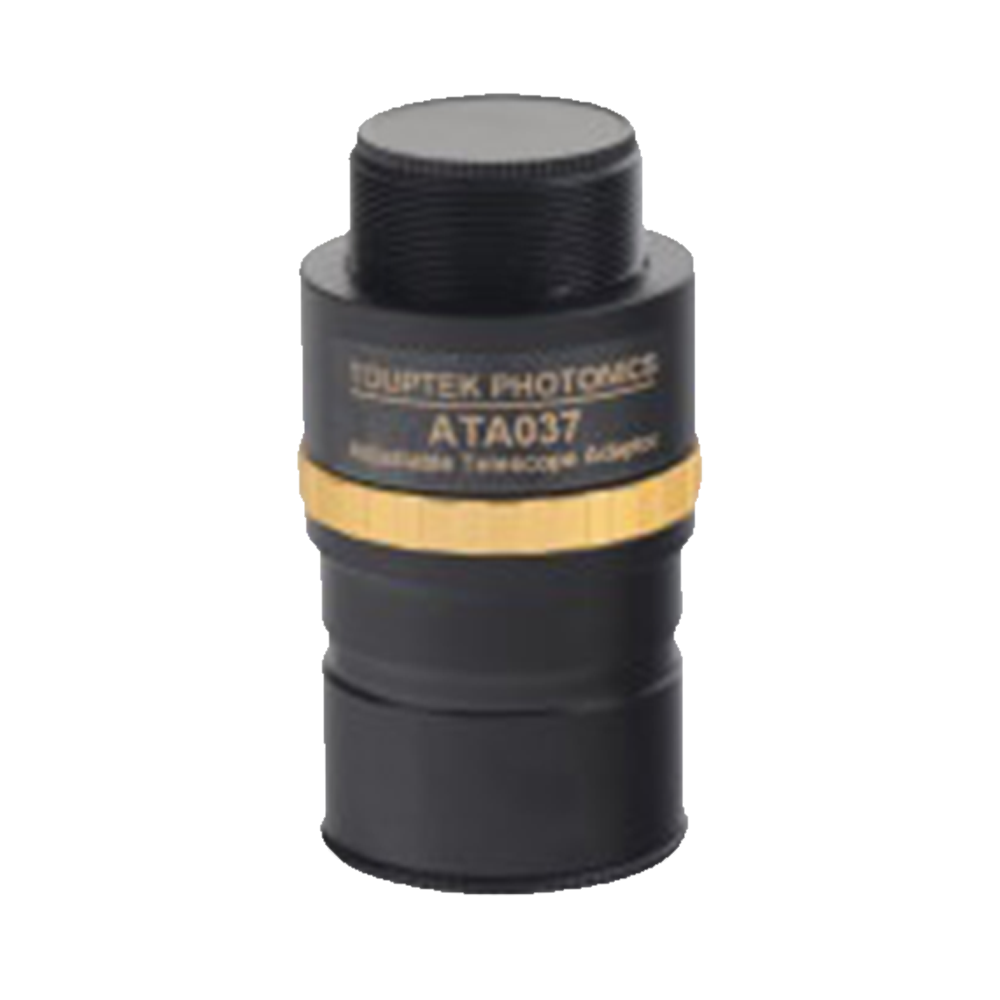

ATA037 |
Matches 1/4"~1/3" sensor sizes 0.37× magnification Manual focusing Parfocal adjustable with microscope eyepiece C-mount on top, 31.75 mm diameter microscope eyepiece interface on bottom |
|

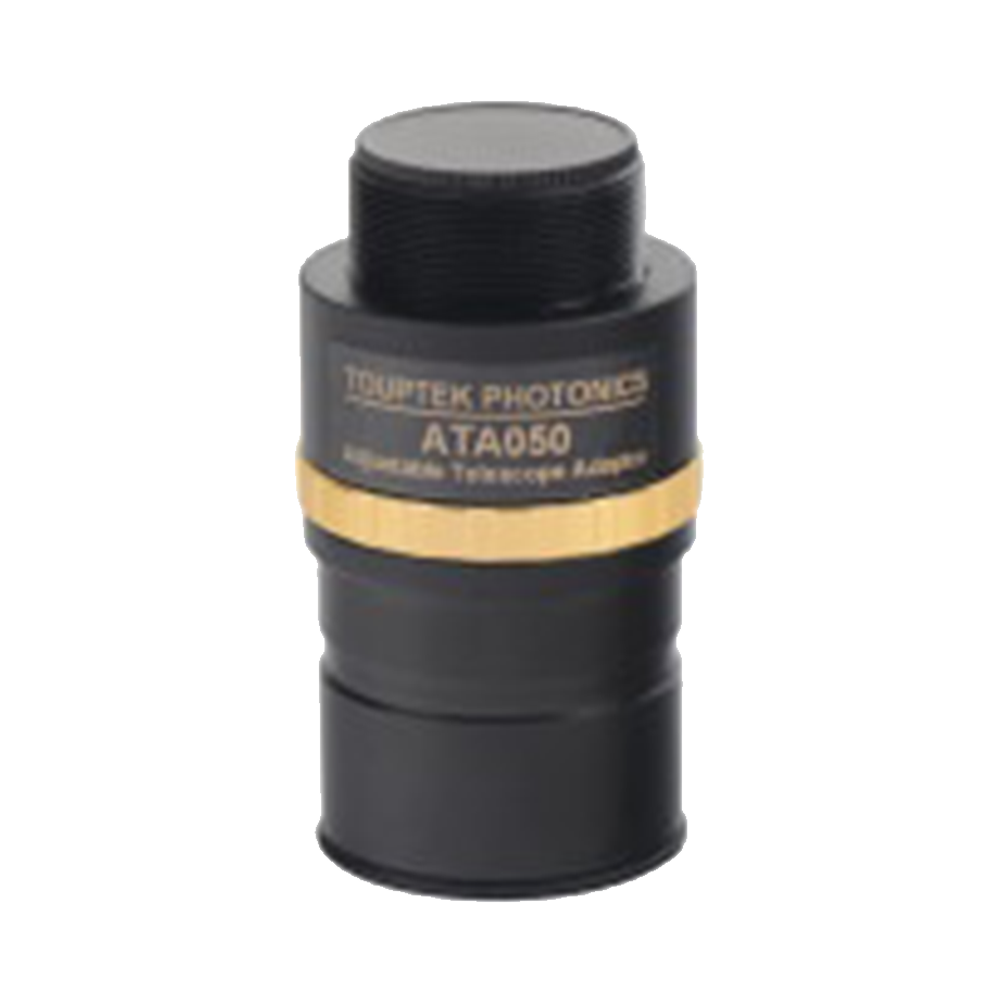

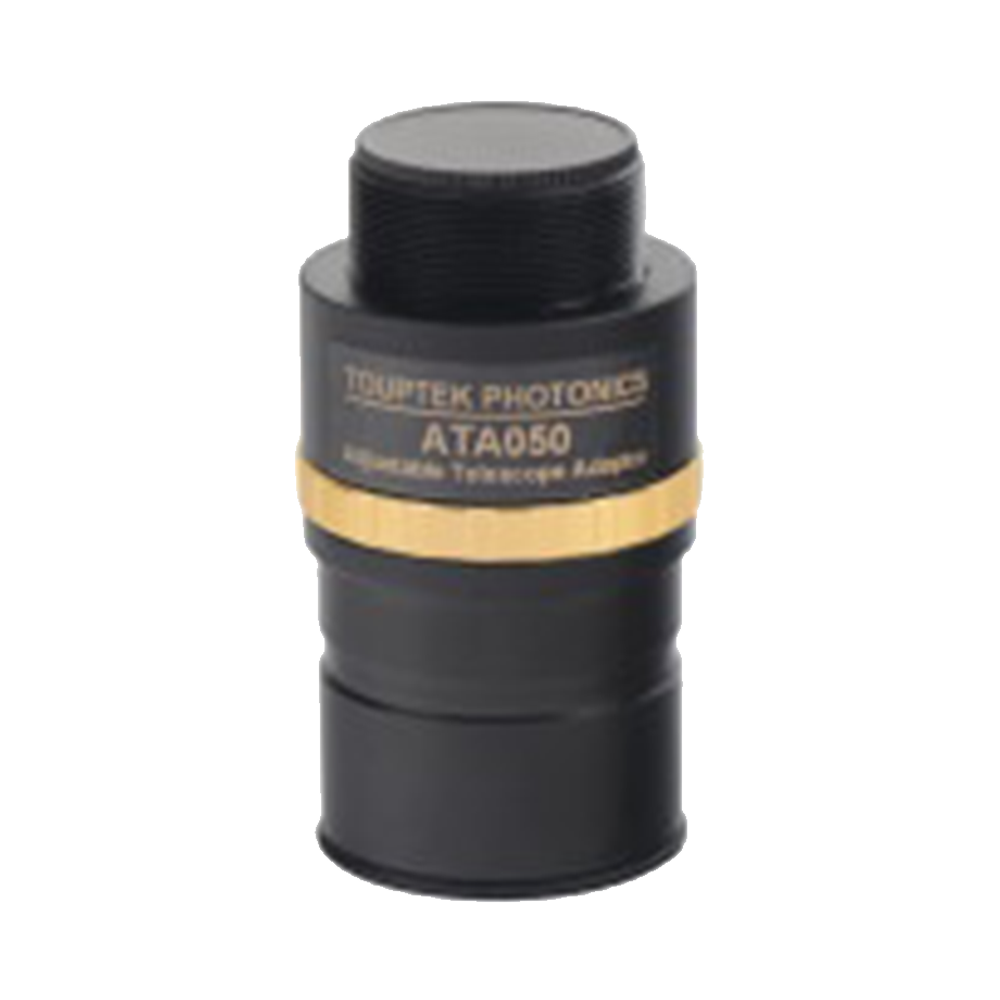

ATA050 |
Matches 1/2"~2/3" sensor sizes 0.50× magnification Manual focusing Parfocal adjustable with microscope eyepiece C-mount on top, 31.75 mm diameter microscope eyepiece interface on bottom |
|

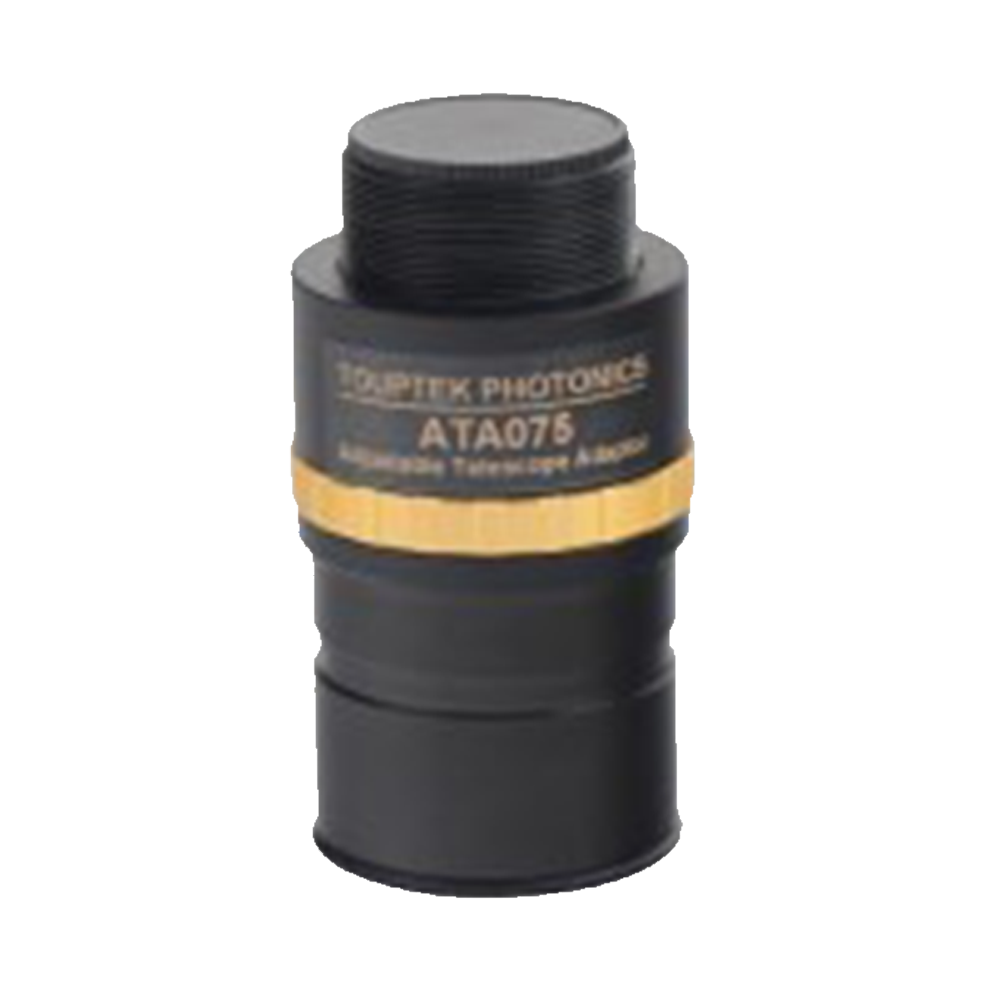

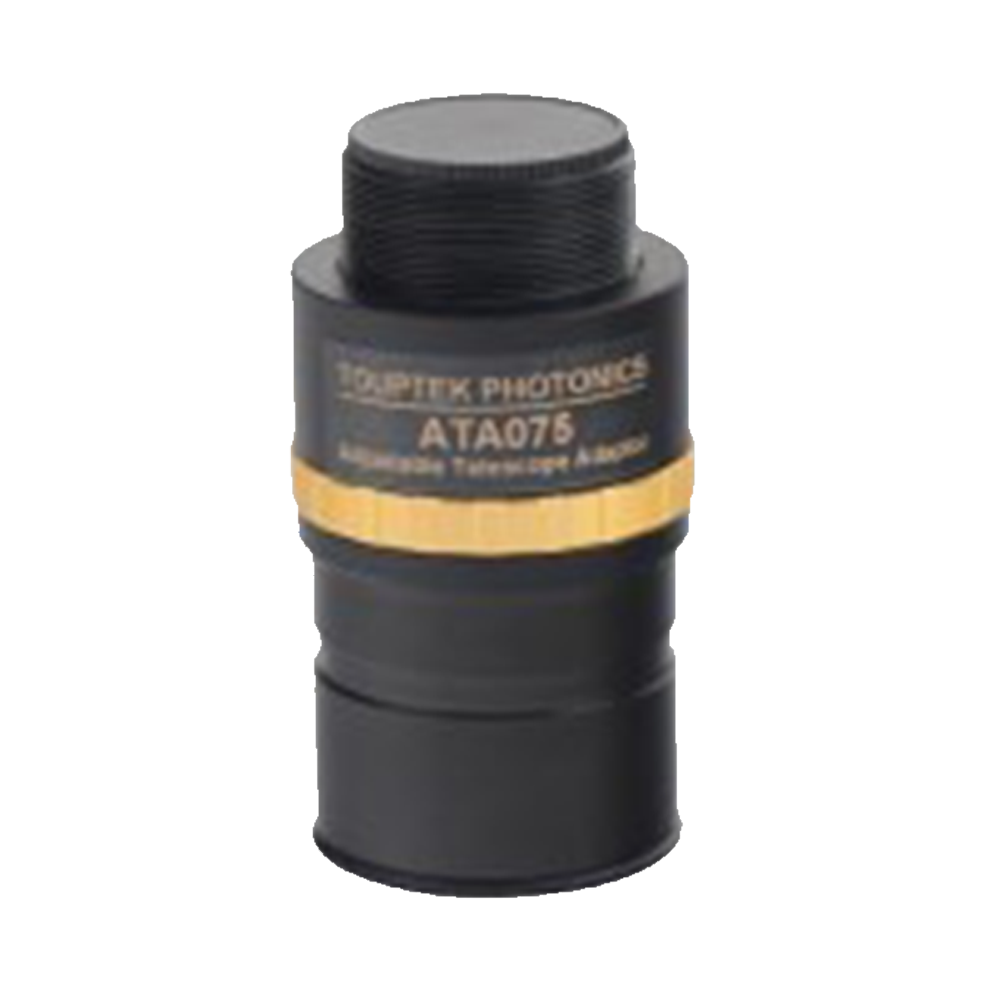

ATA075 |
Matches 1/1.8"~1" sensor sizes 0.75× magnification Manual focusing Parfocal adjustable with microscope eyepiece C-mount on top, 31.75 mm diameter microscope eyepiece interface on bottom |
|
ATA100 |
Matches 1/1.8"~1.25" sensor sizes 1.00× magnification Manual focusing Parfocal adjustable with telescope eyepiece C-mount on top, 31.75 mm diameter telescope eyepiece interface on bottom |
Fixed Telescope 31.75 mm Eyepiece Tube to C-Mount Adapter
0.37X, 0.50X and 0.75X fixed structure, compact design specifically for astronomical imaging
| Product Image | Model | Specifications |
|---|---|---|
|
|

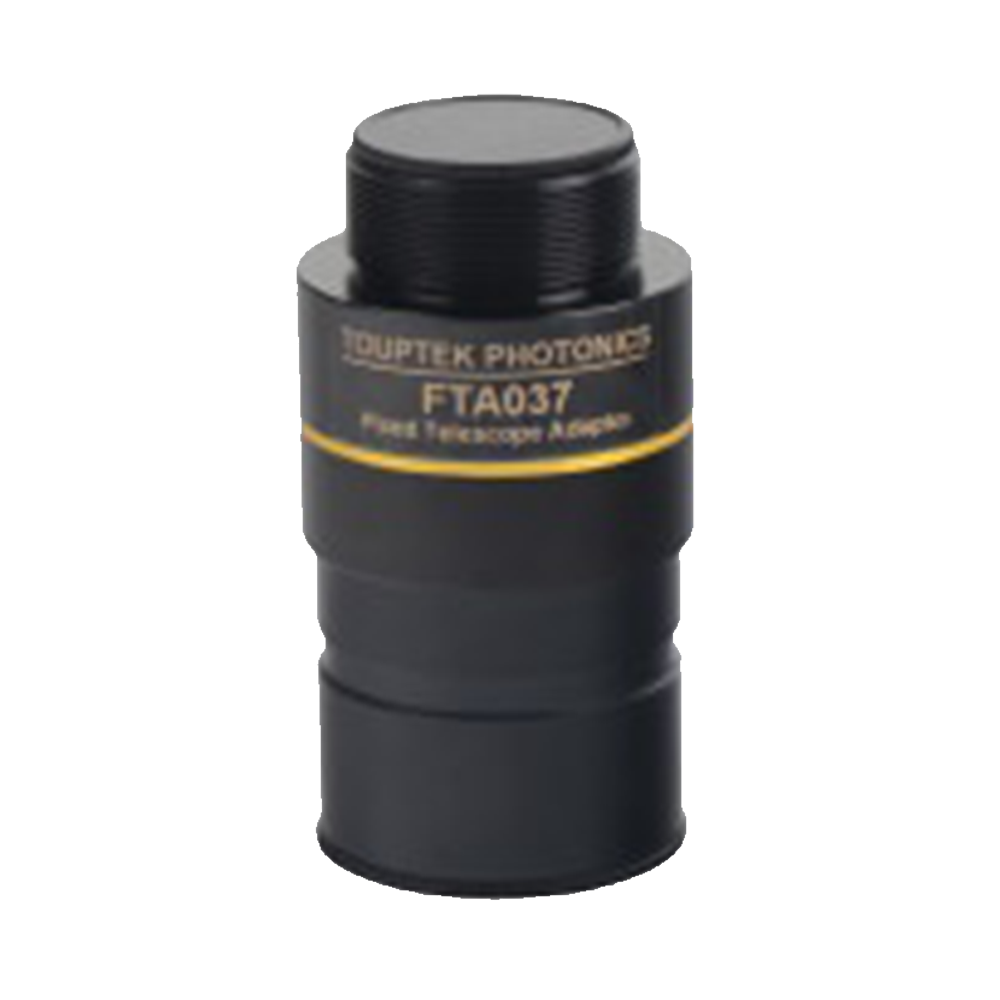

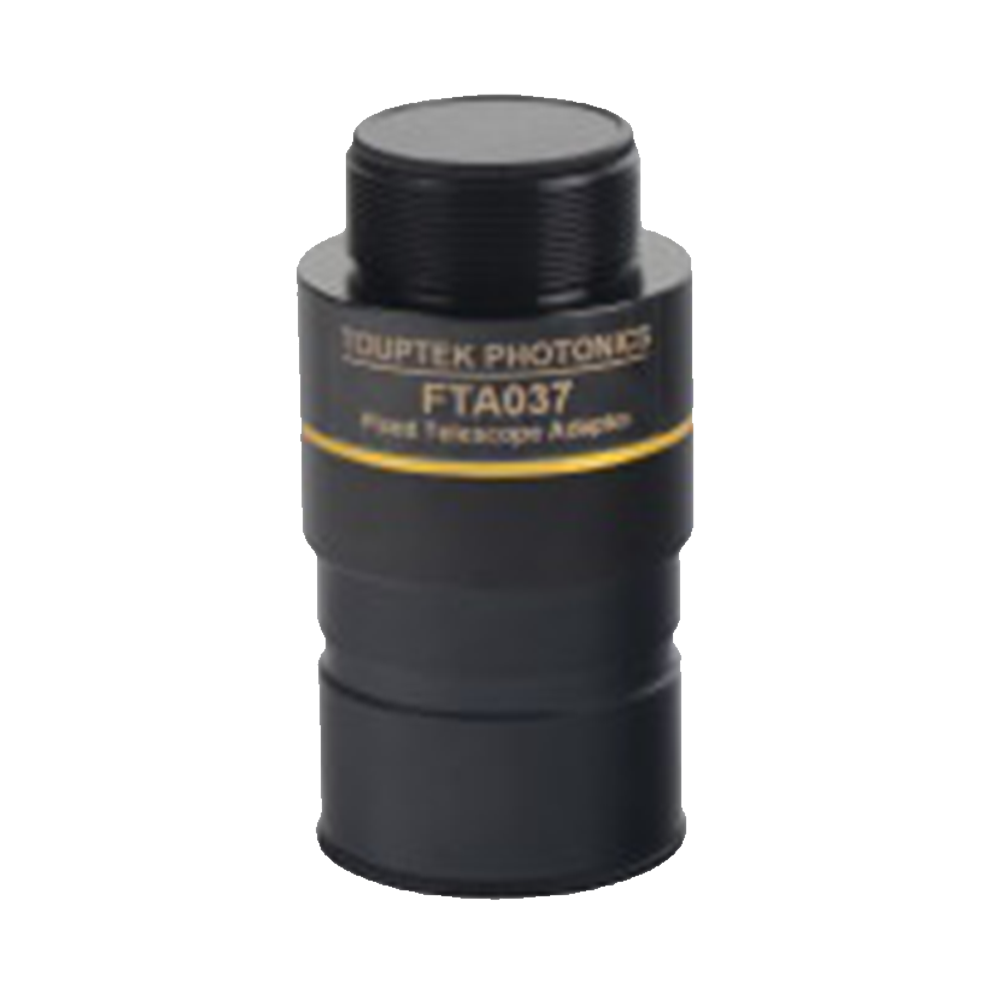

FTA037 |
Matches 1/4"~1/3" sensor sizes 0.37× magnification C-mount on top, 31.75 mm diameter telescope eyepiece interface on bottom |
|

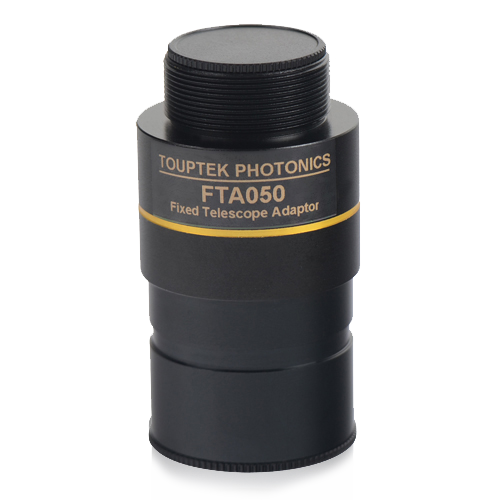

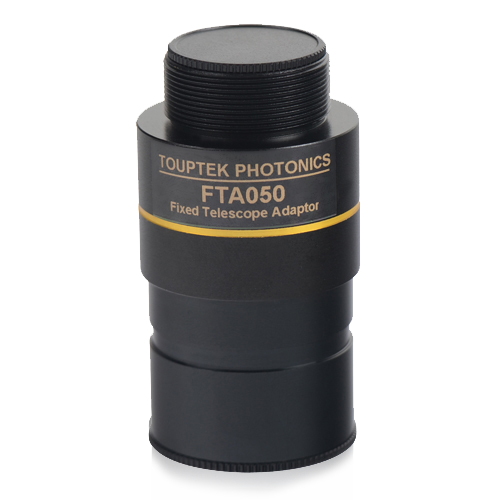

FTA050 |
Matches 1/2"~2/3" sensor sizes 0.50× magnification C-mount on top, 31.75 mm diameter telescope eyepiece interface on bottom |
|

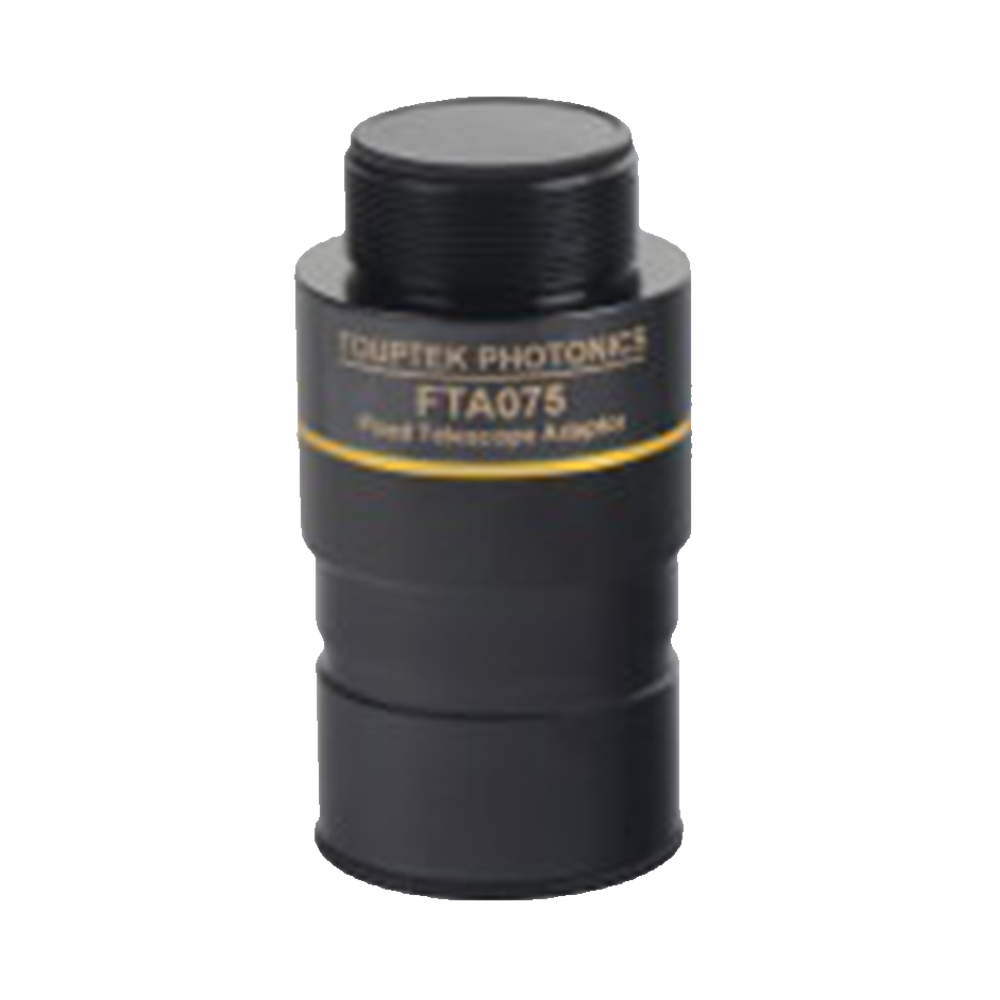

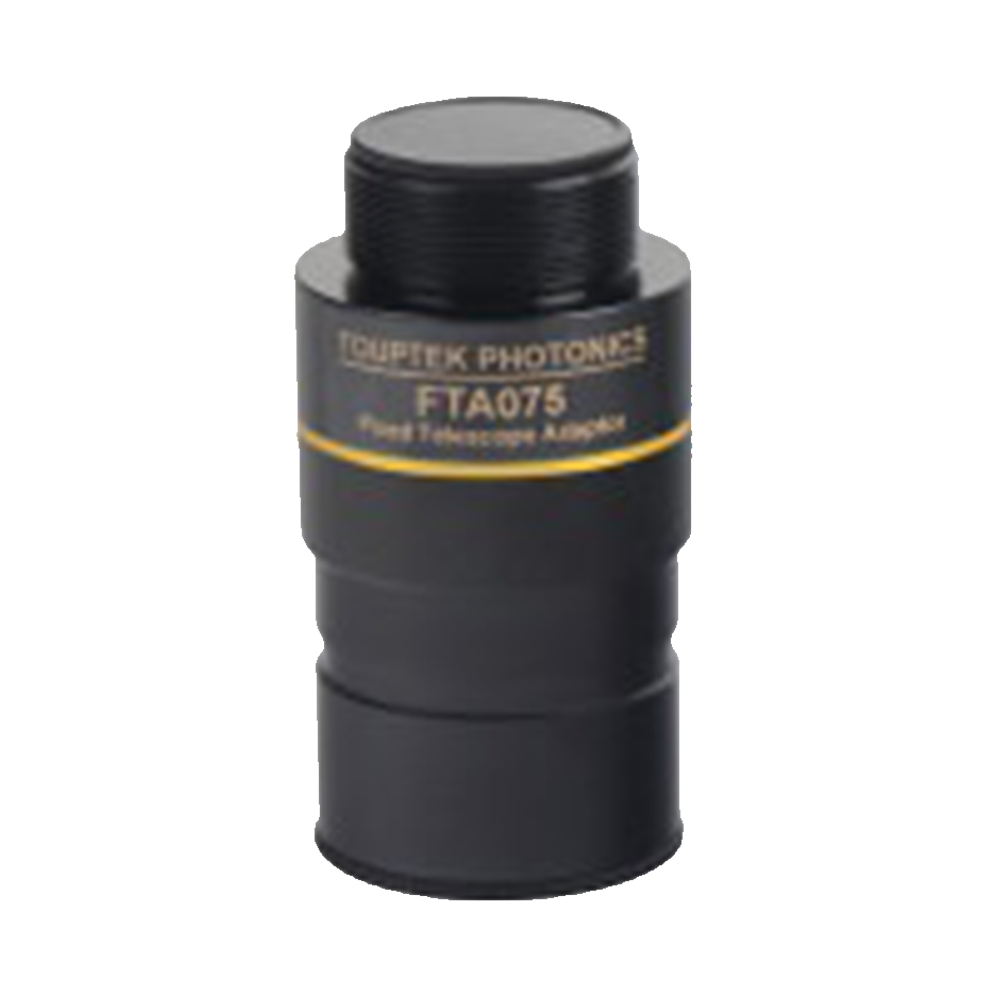

FTA075 |
Matches 1/1.8"~1" sensor sizes 0.75× magnification C-mount on top, 31.75 mm diameter telescope eyepiece interface on bottom |
|

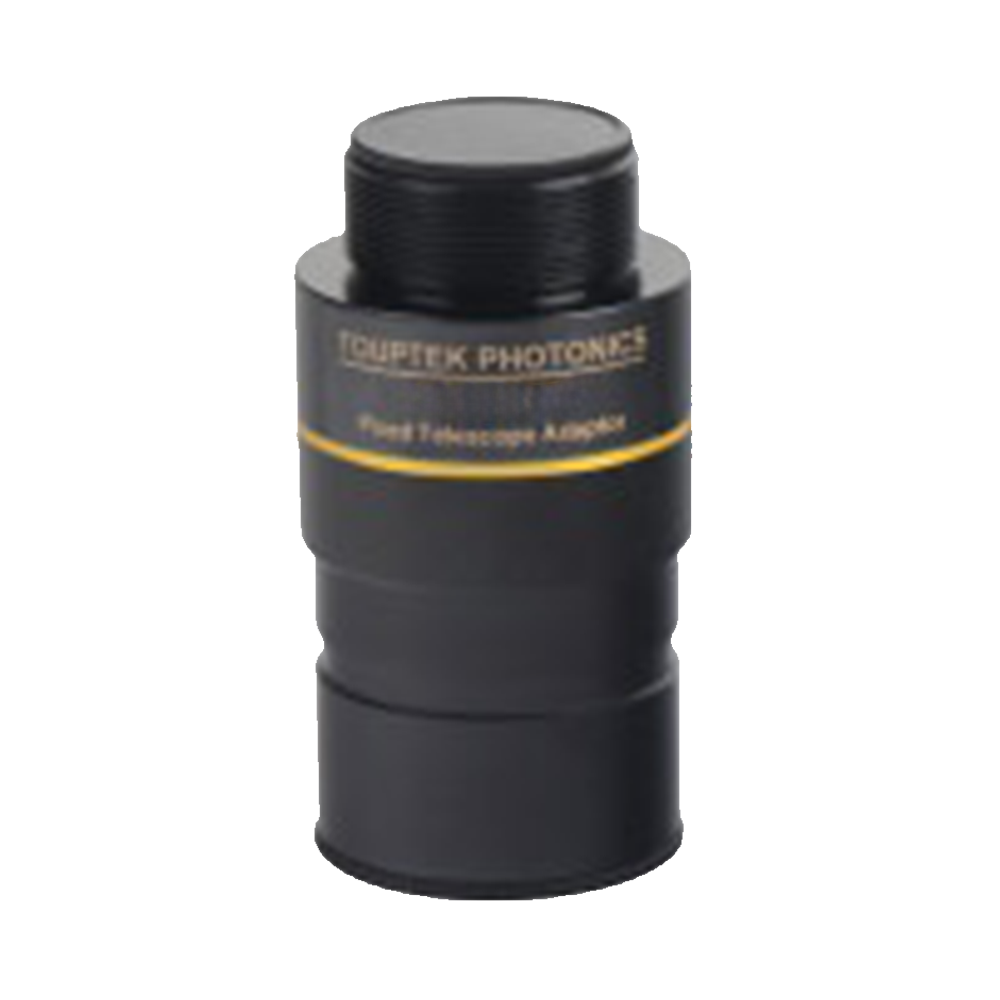

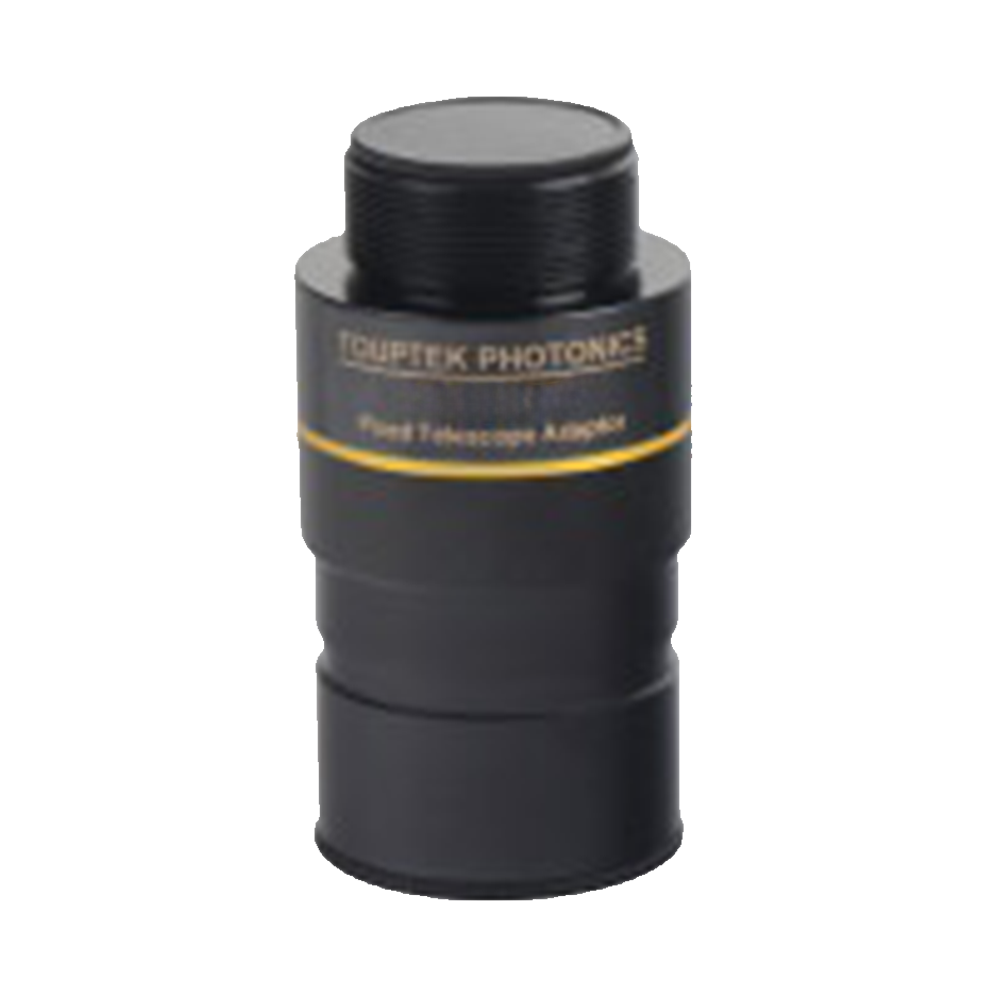

FTA100 |
Matches 1/1.8"~1.25" sensor sizes 1.00× magnification C-mount on top, 31.75 mm diameter telescope eyepiece interface on bottom |
To achieve field matching with microscopes, Topograph Photoelectric specifically designs sensor sizes slightly smaller than the field size of the intermediate image after scaling through the adapter. We match the most suitable adapter for different camera models. Precision optical design ensures imaging quality, with low distortion characteristics meeting professional-grade application requirements.
