ECMOS Series
Product Introduction
The ECMOS series features compact C-mount USB2.0 microscopy cameras equipped with Sony Exmor/Exmor R/Exmor RS back-illuminated CMOS sensors (model dependent), delivering high sensitivity and low readout noise performance even under low-light conditions. Through 480 Mbit/s USB2.0 connectivity, these cameras offer plug-and-play operation with excellent compatibility, making them ideal for educational applications, routine scientific documentation, and general microscopy imaging.
The built-in Ultra-Fine color processing engine performs real-time demosaicing, auto exposure/gain control, one-click white balance, and color/gamma/contrast adjustments directly in the camera, reducing host system load while improving preview stability. Resolution coverage spans approximately 1.2–8.3 MP with support for 8/12-bit output (model dependent) and ROI/windowing capabilities, providing flexible balance between resolution, frame rate, and bandwidth. The metal CNC construction (aluminum/zinc-aluminum alloy) ensures durability, while the included ToupView/ToupLite software and cross-platform SDK (Windows/Linux/macOS/Android) facilitate system integration and secondary development.
Product Features
- Sensor: Sony Exmor / Exmor R / Exmor RS back-illuminated CMOS (model dependent) with high sensitivity and low noise
- Resolution coverage of approximately 1.2–8.3 MP (model dependent), meeting general microscopy imaging requirements

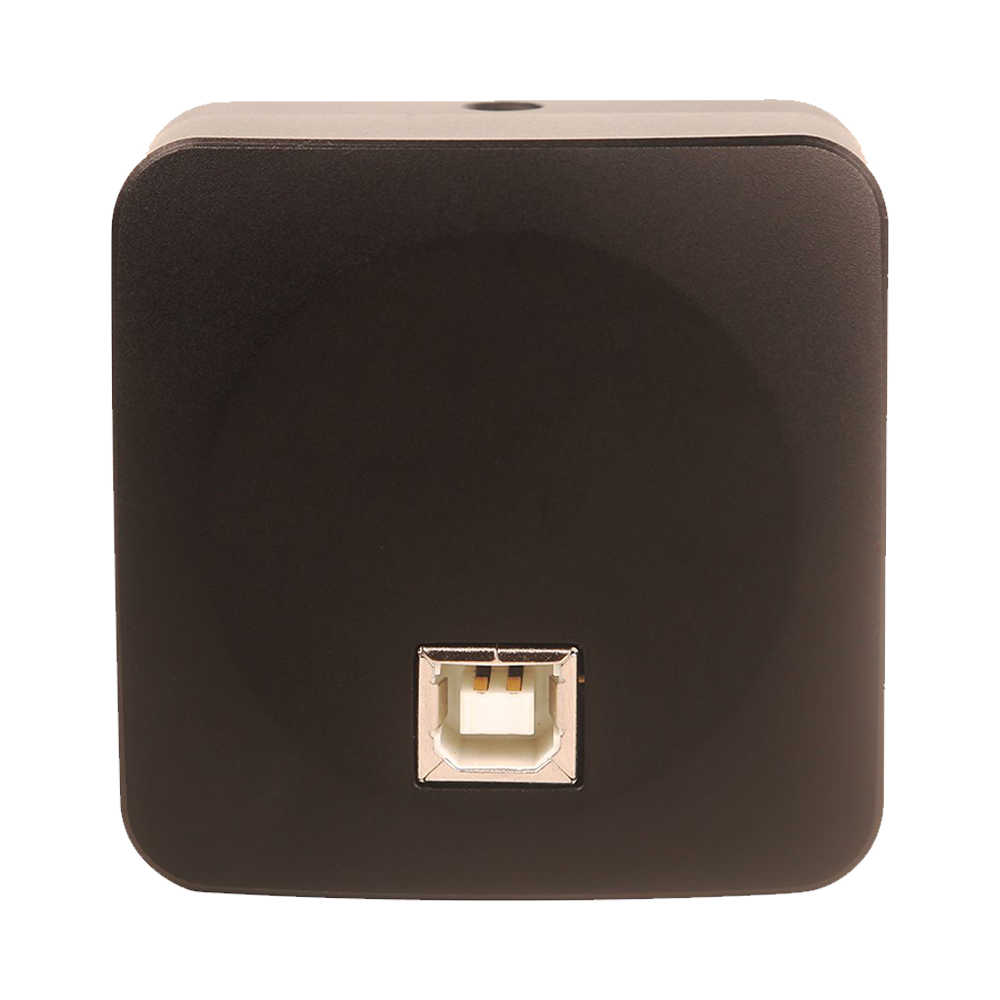

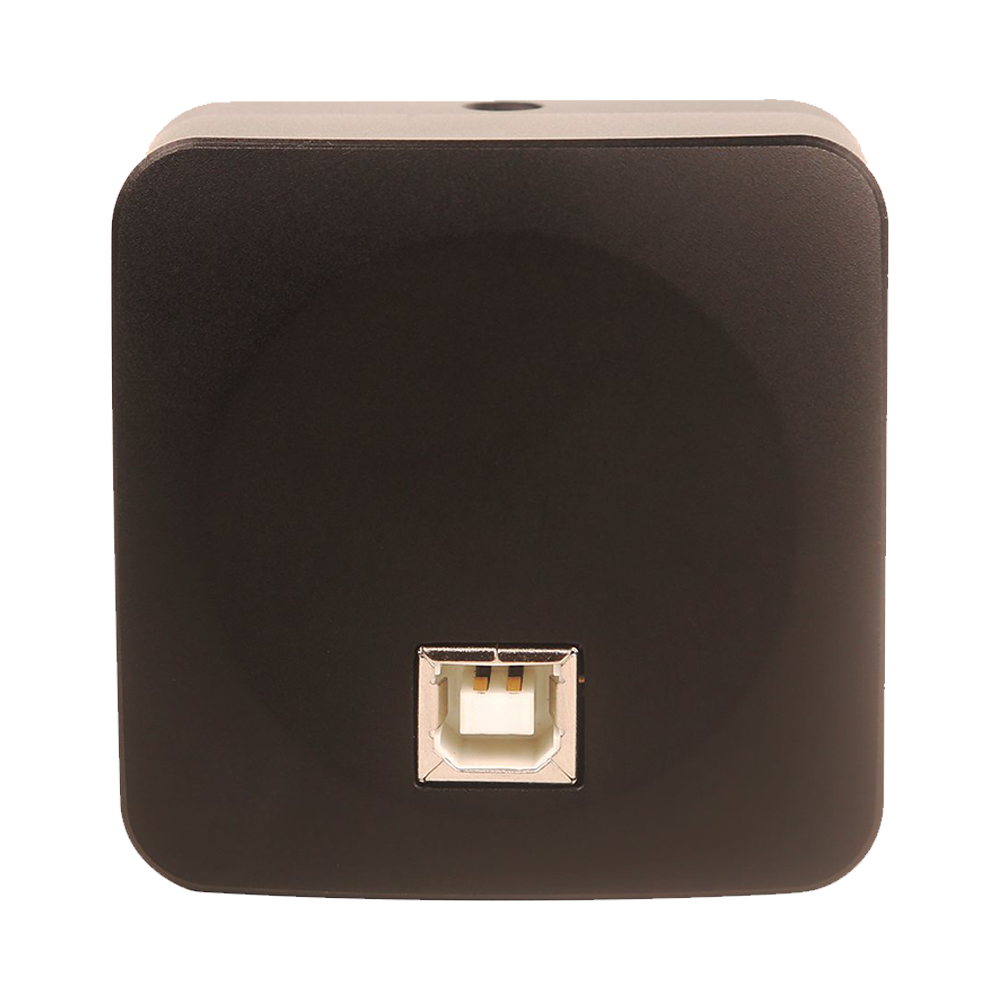

- Interface: USB2.0 (480 Mbit/s) plug-and-play with excellent compatibility and simplified cabling
- Column-parallel A/D architecture balancing low noise and low power consumption
- Ultra-Fine color engine: Demosaic, AE/AGC, AWB, one-click white balance, color/gamma/brightness/contrast, LUT
- Bit depth and data: 8 / 12-bit (model dependent) with RAW/Bayer output support
- Image functions: Arbitrary ROI/windowing for flexible resolution/frame rate/bandwidth balance

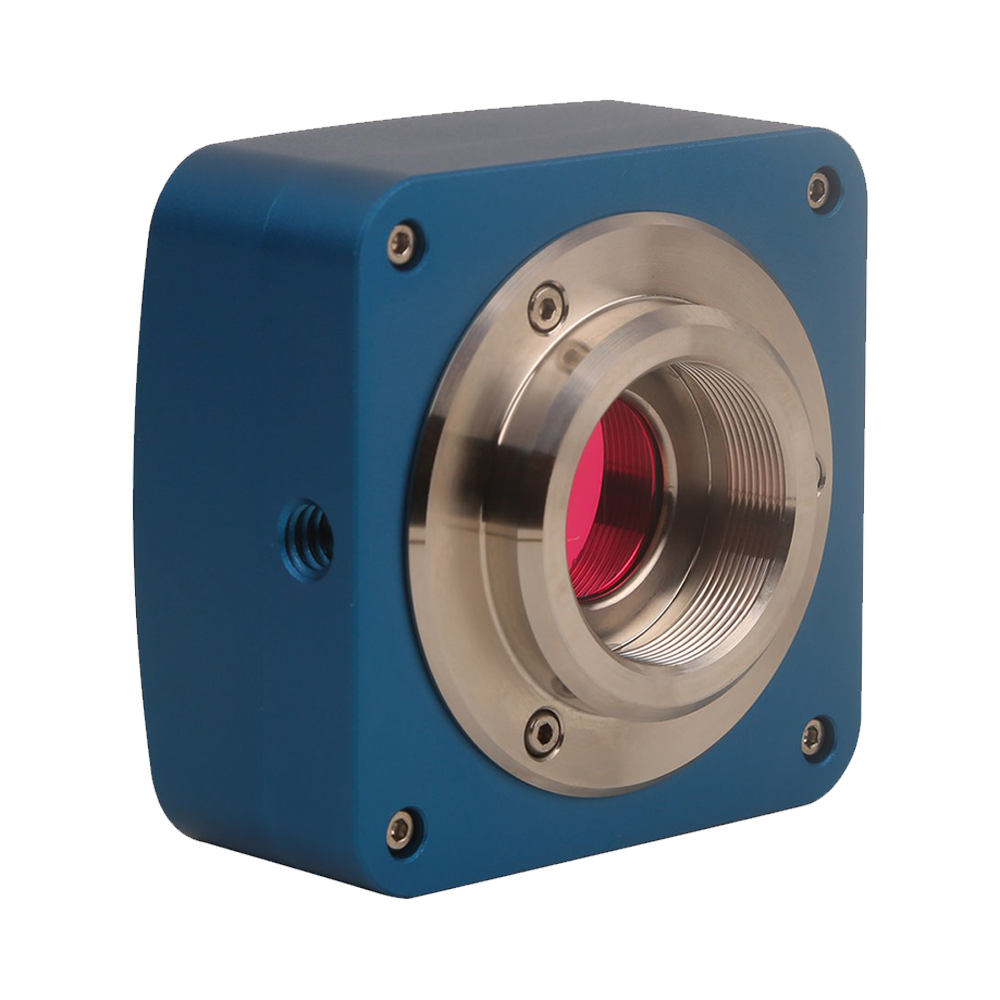

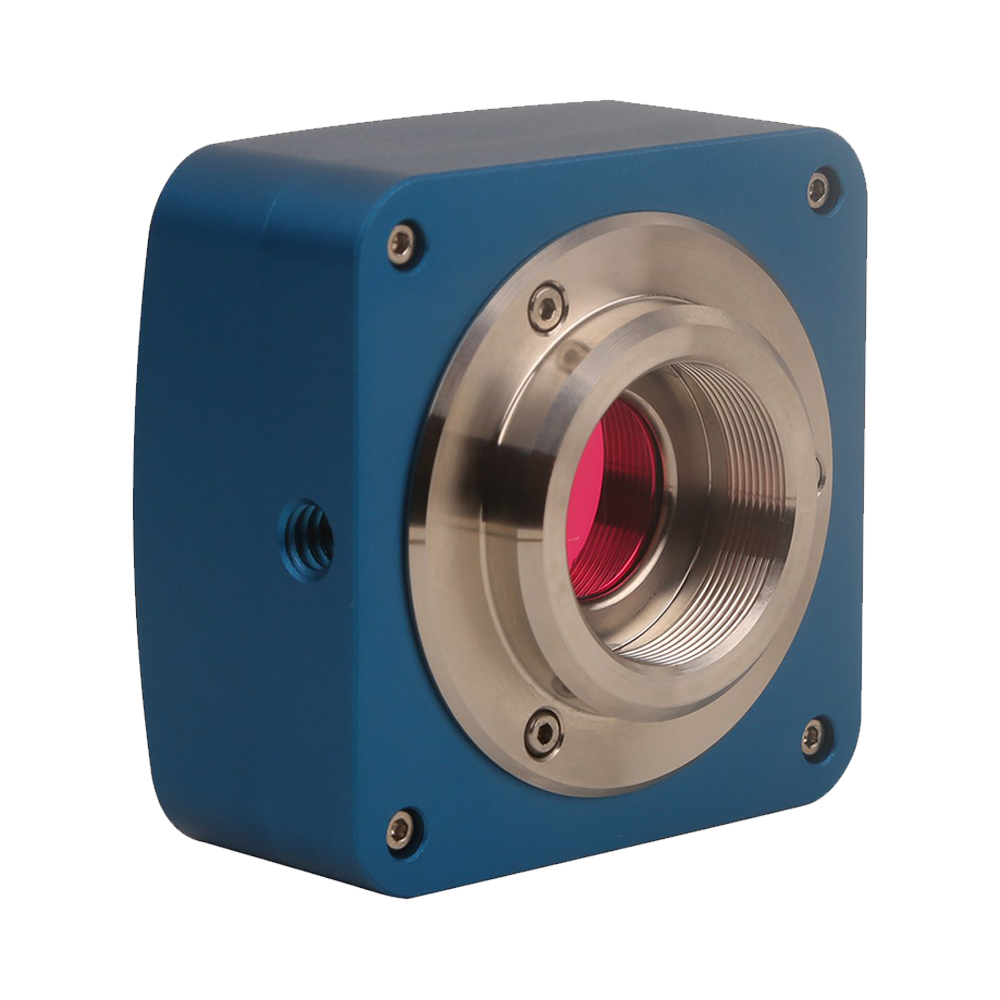

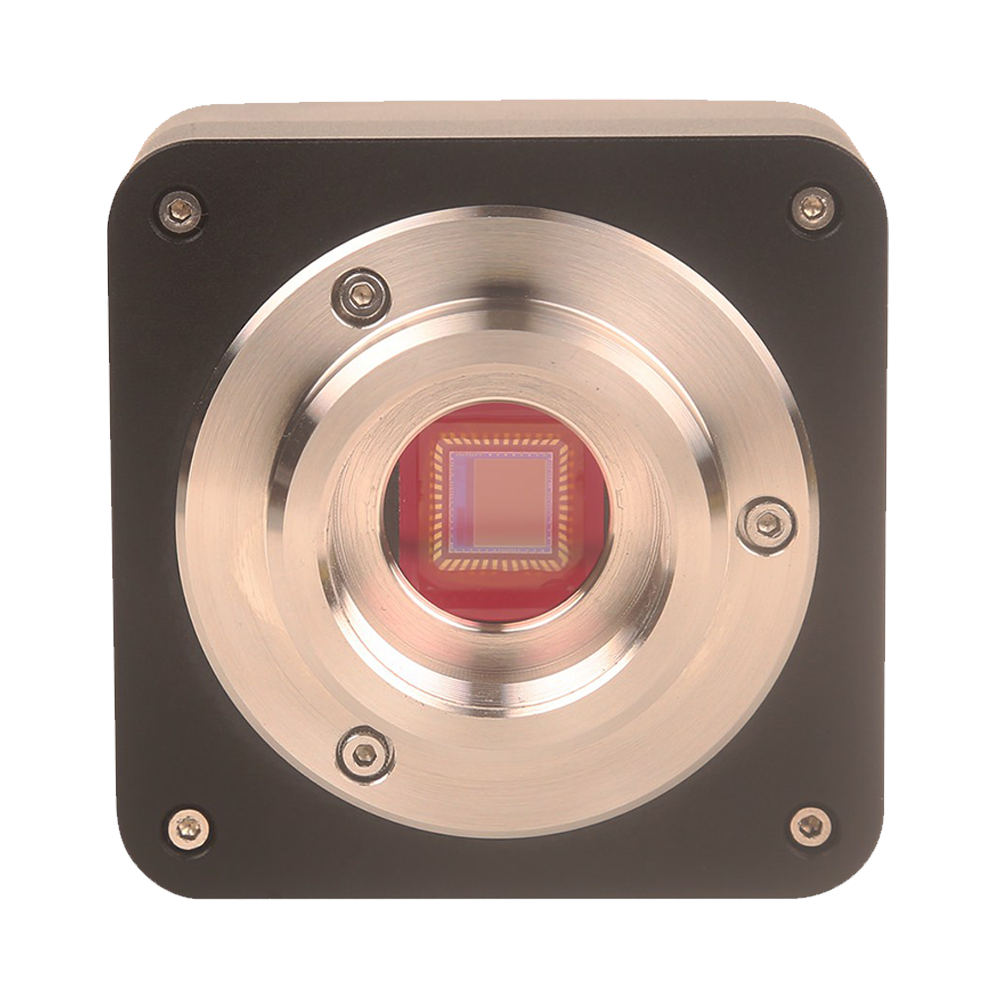

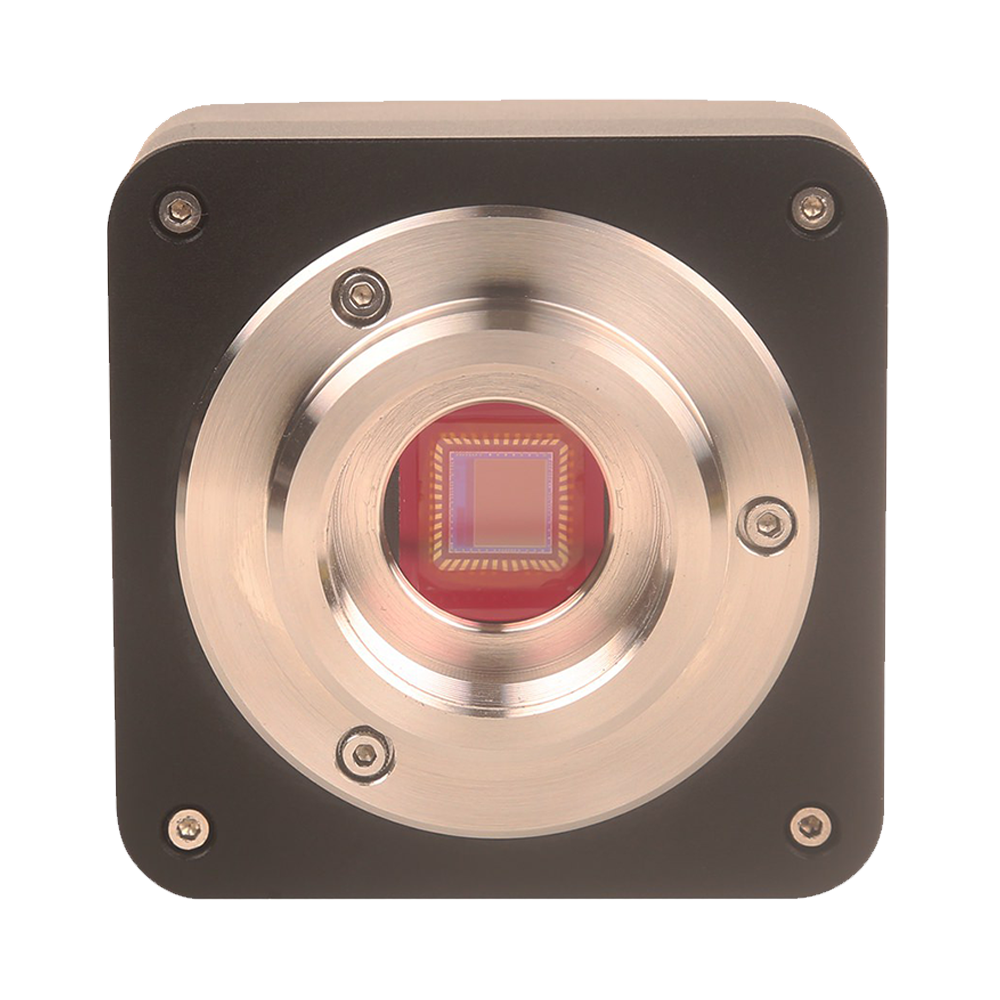

- Lens interface: Standard C-mount compatible with various microscopy/industrial optical systems

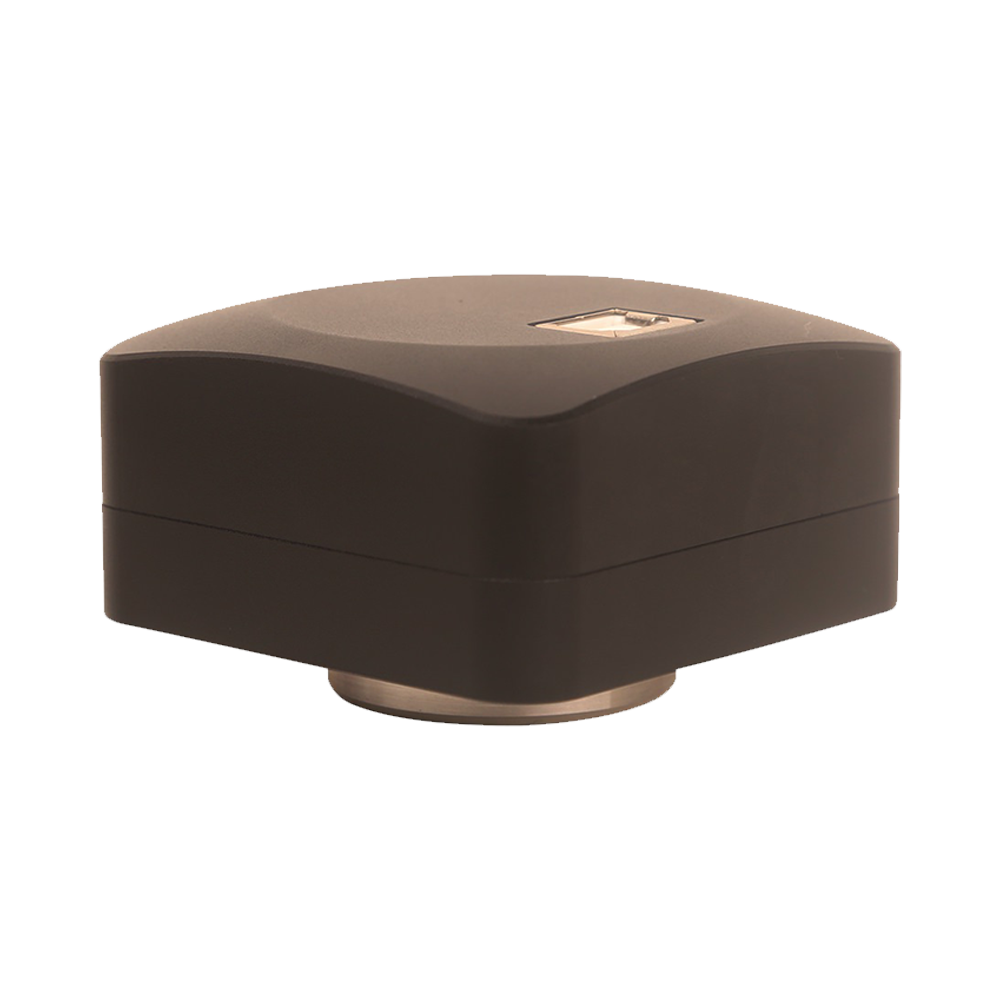

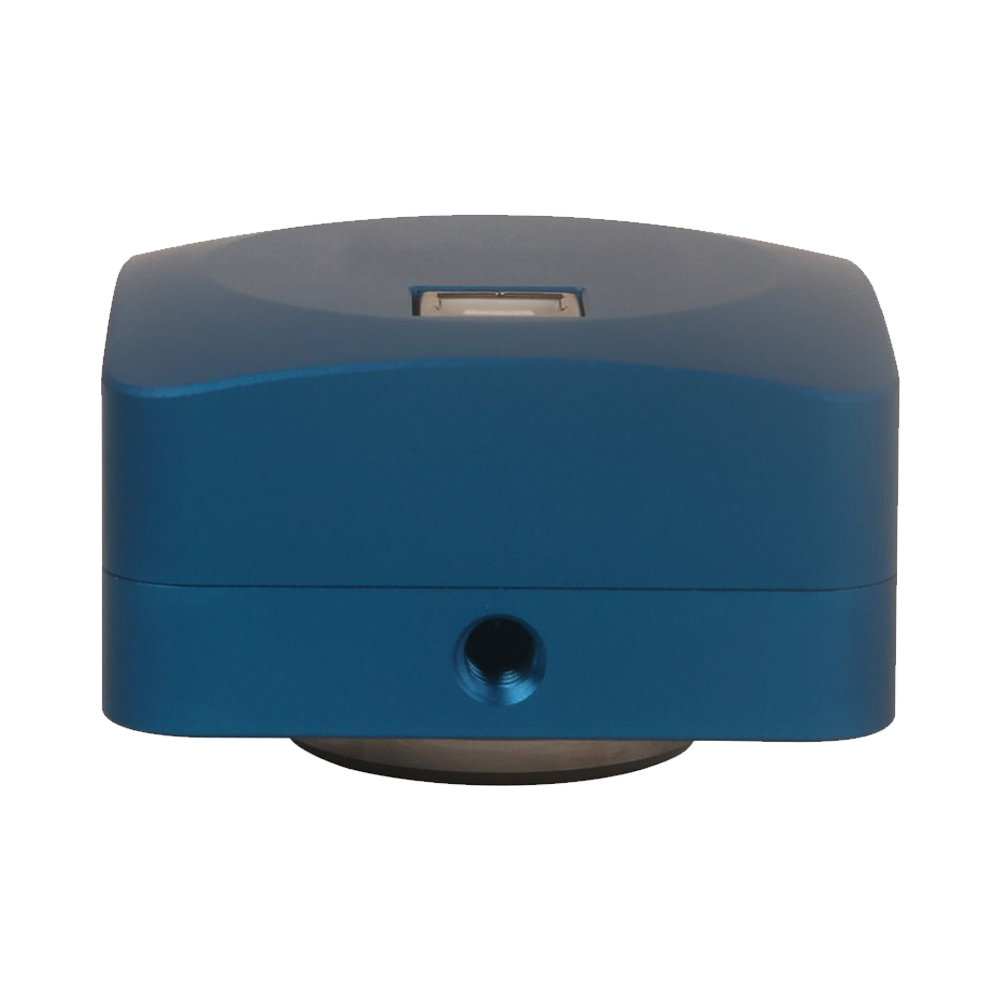

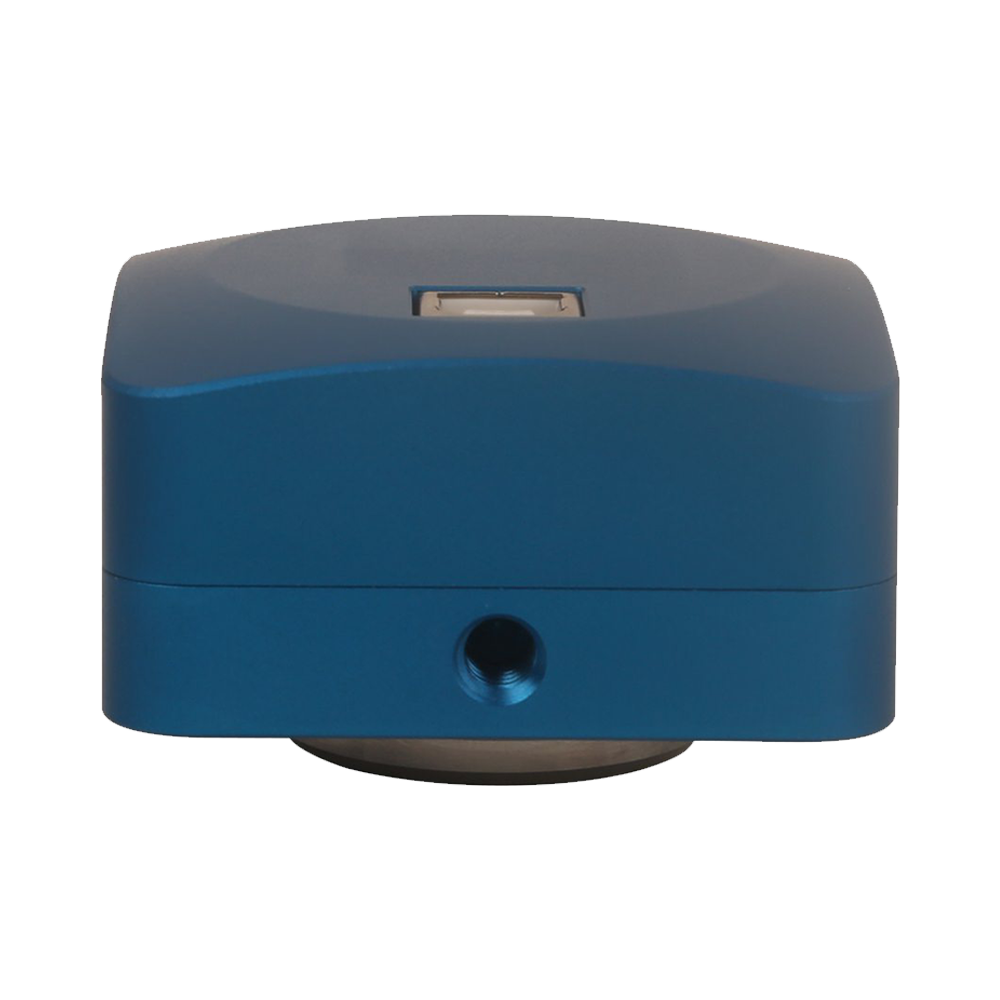

- Construction: Aluminum/zinc-aluminum alloy CNC housing for durability and heat dissipation with electromagnetic shielding
- Power supply: USB bus powered (model dependent) with low power consumption for stable long-term operation
- Software and ecosystem: Includes ToupView/ToupLite; provides Windows / Linux / macOS / Android SDK (compatible with DirectShow / TWAIN)
- Typical applications: Brightfield, darkfield, low-light/fluorescence microscopy, educational documentation, and general experimental imaging
Product Models
Select the ECMOS Series that fits your application requirements
| Product Model | Effective Pixels | Sensor Size | Shutter Type | Frame Rate (FPS) | Sensor Type | Data Interface | Color | Actions |
|---|---|---|---|---|---|---|---|---|
| ECMOS08300KPA | 8.3M (3840×2160) |
6.22mm × 3.50mm
1/2.5" (7.48mm)
|
Rolling Shutter |
4 fps@3840×2160
16 fps@1920×1080
|
IMX274(C) | USB2.0 | Color | View Details |
| ECMOS06600KPA | 6.6M (3072×2160) |
4.98mm × 3.50mm
1/2.9" (6.16mm)
|
Rolling Shutter |
5 fps@3072×2160
6 fps@2592×1944
6 fps@3072×1728
7 fps@2160×2160
|
IMX326(C) | USB2.0 | Color | View Details |
| ECMOS05300KPA | 5.3M (3072×1728) |
7.37mm × 4.15mm
1/1.9" (8.45mm)
|
Rolling Shutter |
5.5 fps@3072×1728
35 fps@1280×720
|
IMX178(C) | USB2.0 | Color | View Details |
| ECMOS05000KPA | 5.0M (2592×1944) |
5.18mm × 3.89mm
1/2.8" (6.47mm)
|
Rolling Shutter |
6.4 fps@2592×1944
26.7 fps@1296×972
|
IMX335(C) | USB2.0 | Color | View Details |
| ECMOS03100KPA | 3.1M (2048×1536) |
5.12mm × 3.84mm
1/2.8" (6.4mm)
|
Rolling Shutter |
11.5 fps@2048×1536
18.3 fps@1920×1080
18.1 fps@1600×1200
29.5 fps@1024×768
|
IMX123(C) | USB2.0 | Color | View Details |
| ECMOS02000KPA | 2.0M (1920×1080) |
5.56mm × 3.13mm
1/2.8" (6.35mm)
|
Rolling Shutter |
17 fps@1920×1080
|
IMX290(C) | USB2.0 | Color | View Details |
| ECMOS01200KPA | 1.2M (1280×960) |
4.80mm × 3.60mm
1/3" (6.0mm)
|
Rolling Shutter |
27 fps@1280×960
54 fps@640×480
|
IMX224(C) | USB2.0 | Color | View Details |
Product Overview
Professional features of ECMOS series high-sensitivity microscopy imaging cameras
The ECMOS series is a high-sensitivity USB 2.0 microscopy imaging camera series launched by Tucsen, equipped with Sony Exmor series back-illuminated CMOS sensors featuring ultra-high sensitivity and low-noise microscopy imaging capabilities. With standard C-mount interface compatibility for various microscopes, it covers a wide range of imaging requirements from ordinary bright field to low-light and fluorescence applications.
Core Features
Sony Back-Illuminated Sensors
Exmor series sensors with dual-layer noise reduction technology, excellent for low-light imaging
USB 2.0 Stable Transfer
Smooth HD video streaming with real-time preview without delay
Column-Parallel A/D Conversion
Ultra-low noise and low power consumption with outstanding image clarity
Robust and Durable Design
Zinc-aluminum alloy CNC housing with natural heat dissipation and no mechanical vibration
Performance Parameter Highlights
Resolution Range
1.2 - 8.3 MP
Pixel optionsFrame Rate Performance
Tens of fps
Higher in ROI modePixel Size
1.62 - 3.75 µm
Sensitivity and clarity balanceExposure Range
0.105 ms - 15 s
Fine controlIn-Depth Product Introduction
Sony Exmor Back-Illuminated Sensor Technology
Features Sony Exmor/Exmor R/Exmor RS series back-illuminated CMOS sensors with the photosensitive layer positioned above the circuit layer, significantly improving photoelectric conversion efficiency. Combined with dual-layer noise reduction technology, clear, low-noise images can be obtained even under extremely low illumination conditions, particularly suitable for fluorescence microscopy and other low-light applications, with sensitivity improved by over 200% compared to traditional sensors.
Column-Parallel A/D Conversion Architecture
Innovative column-parallel A/D conversion technology equips each pixel column with an independent analog-to-digital converter, achieving true parallel readout. This architecture not only significantly reduces readout noise (typical value <2e⁻) but also dramatically lowers power consumption, enabling the camera to maintain stable low-temperature operation even during extended use, ensuring consistent image quality.
Ultra-Fine Color Processing Engine
The proprietary Ultra-Fine color engine employs advanced color science algorithms with precise color matrix transformation and adaptive white balance technology to ensure accurate reproduction of true sample colors under different light source conditions. For applications requiring extremely high color accuracy such as biological tissues and pathological sections, the Ultra-Fine engine provides professional-grade color performance.
Flexible Imaging Control Functions
Supports real-time 8/12-bit depth switching, with 8-bit mode suitable for routine observation and storage, and 12-bit mode providing 4096 gray levels to meet quantitative analysis requirements. Arbitrary ROI functionality allows users to select regions of interest, dramatically improving frame rates while maintaining high resolution. Wide exposure time range (0.105 ms - 15 s) ensures complete coverage from high-speed dynamics to long-term accumulative exposure.
Industrial-Grade All-Metal Housing
Features an integrated housing precision-machined from zinc-aluminum alloy CNC, combining lightweight and high-strength characteristics. Unique heat dissipation fin design achieves completely passive cooling without fans, completely eliminating the impact of mechanical vibration on imaging. USB 2.0 interface is plug-and-play with single-cable power design simplifying system integration. Comprehensive multi-platform SDK support allows the camera to easily integrate into various application systems.
Applications
ECMOS series applications across various microscopy imaging fields
ECMOS Series Core Advantages
Ultra-High Sensitivity
Sony back-illuminated + dual-layer noise reduction
Ultra-Low Noise
Column-parallel A/D conversion technology
Precise Colors
Ultra-Fine color engine
USB 2.0 Interface
Plug-and-play single-cable power
Rich Model Range
1.2 - 8.3 megapixels
Metal Housing
Zinc-aluminum alloy natural heat dissipation
Flexible Control
8/12-bit switching + arbitrary ROI
Economical and Efficient
High performance with low cost barrier
