SCMOS Series
Product Introduction
The SCMOS series represents a 23.2 mm standard eyepiece tube direct-insertion microscopy camera (S = Simple & Compact) with built-in reducer that proportionally reduces objective lens imaging to achieve better field-of-view to sensor matching, reducing vignetting while enhancing effective field utilization. Through 23.2→30 / 23.2→30.75 mm adapter sleeves, compatibility extends to additional educational and stereo microscopes, enabling rapid digital conversion of monocular and binocular microscopes.
The camera utilizes USB2.0 data connectivity with UVC (USB Video Class) driver-free protocol for plug-and-play compatibility with third-party software. Built-in hardware ISP and MJPEG high-efficiency compression achieve higher frame rates and stable transmission under 480 Mbit/s bandwidth (5MP/8MP typically reaching 30 fps, 12MP typically achieving ~15 fps, model and settings dependent). Supports automatic/manual exposure and white balance, ROI metering/windowing, and color and gamma/contrast parameter adjustment. Included ToupView/ToupLite software and cross-platform SDK facilitate rapid deployment and secondary development for educational demonstrations, experimental documentation, and general microscopy imaging.
Product Features
- 23.2 mm eyepiece tube direct insertion design with built-in reducer for improved field-to-sensor matching and reduced vignetting (optical path/model dependent)
- Compatible with 23.2→30 / 23.2→30.75 mm adapter sleeves for additional microscope and stereo microscope compatibility
- Sensor: Sony / Aptina (onsemi) and other CMOS sensors (model dependent) with high sensitivity and low noise
- Resolution coverage approximately 1.3–12 MP, meeting educational and general microscopy documentation requirements
- USB2.0 (480 Mbit/s) data link with UVC protocol compliance, supporting third-party software plug-and-play
- MJPEG high-efficiency compression with dedicated decoding links: 5MP/8MP typically 30 fps; 12MP typically ~15 fps (model/settings dependent)
- Built-in hardware ISP: demosaicing, AE/AGC, AWB/ROI white balance, color correction, gamma, brightness/contrast/saturation, bad pixel correction, image flipping
- Supports histogram, flat field correction (FPN/PRNU), dark field correction, video ROI
- Onboard buffer design adjacent to sensor improves USB2.0 transmission stability and reduces frame loss risk
- Software and ecosystem: includes ToupView/ToupLite; provides Windows / Linux / macOS / Android multi-platform SDK (compatible with DirectShow / TWAIN)
- Typical applications: educational demonstrations, classroom broadcasting, experimental documentation, general education/stereo microscopy observation and general microscopy imaging
Product Models
Select the SCMOS Series that fits your application requirements
| Product Model | Effective Pixels | Sensor Size | Shutter Type | Frame Rate (FPS) | Sensor Type | Data Interface | Color | Actions |
|---|---|---|---|---|---|---|---|---|
| SCMOS12000KPA | 12MP (3840×3040) |
5.95mm × 4.71mm
1/2.3" (TBD)
|
Electronic Rolling Shutter |
20 fps@3840×3040
20 fps@1920×1520
20 fps@960×760
|
IMX577 (C) | USB2.0 | Color | View Details |
| SCMOS00921KPA | 0.92MP (1280×720) |
3.888mm × 2.208mm
1/4" (TBD)
|
Electronic Rolling Shutter |
30 fps@1280×720
30 fps@640×360
|
OV9732 (C) | USB2.0 | Color | View Details |
| SCMOS08300KPA | 8.3MP (3840×2160) |
6.22mm × 3.50mm
1/2.5" (TBD)
|
Electronic Rolling Shutter |
30 fps@3840×2160
30 fps@1920×1080
30 fps@1280×720
30 fps@960×540
|
IMX274 (C) | USB2.0 | Color | View Details |
| SCMOS05100KPA | 5.1MP (2592×1944) |
5.70mm × 4.28mm
1/2.5" (TBD)
|
Electronic Rolling Shutter |
30 fps@2592×1944
30 fps@1280×960
30 fps@640×480
|
AR0521 (C) | USB2.0 | Color | View Details |
| SCMOS05100KPB | 5.1MP (2592×1944) |
5.18mm × 3.89mm
1/2.8" (TBD)
|
Electronic Rolling Shutter |
26 fps@2592×1944
26 fps@1280×960
26 fps@640×480
|
IMX335 (C) | USB2.0 | Color | View Details |
| SCMOS03100KPA | 3.1MP (2048×1536) |
5.73mm × 4.3mm
1/2.5" (TBD)
|
Electronic Rolling Shutter |
30 fps@2048×1536
30 fps@1024×768
|
Aptina (C) | USB2.0 | Color | View Details |
| SCMOS02100KPA | 2.1MP (1920×1080) |
5.73mm × 4.3mm
1/2.8" (TBD)
|
Electronic Rolling Shutter |
38 fps@1920×1080
38 fps@1024×768
|
IMX307 (C) | USB2.0 | Color | View Details |
| SCMOS08300KPB | 8.3MP (3840×2160) |
5.57mm × 3.13mm
1/2.8" (TBD)
|
Electronic Rolling Shutter |
30 fps@3840×2160
30 fps@1920×1080
30 fps@1280×720
30 fps@960×540
|
IMX415 (C) | USB2.0 | Color | View Details |
| SCMOS02100KPB | 2.1MP (1920×1080) |
5.18mm × 2.92mm
1/3" (TBD)
|
Electronic Rolling Shutter |
30 fps@1920×1080
30 fps@960×540
|
SC2332 (C) | USB2.0 | Color | View Details |
| SCMOS01301KPA | 1.3MP (1520×856) |
5.18mm × 2.92mm
1/3" (TBD)
|
Electronic Rolling Shutter |
30 fps@1520×856
30 fps@760×428
|
Special (C) | USB2.0 | Color | View Details |
| SCMOS05000KPA | 5.0MP (2592×1944) |
5.70mm × 4.28mm
1/2.5" (TBD)
|
Electronic Rolling Shutter |
2 fps@2592×1944
3 fps@2048×1536
5 fps@1600×1200
7.5 fps@1280×1024
|
Aptina (C) | USB2.0 | Color | View Details |
| SCMOS05000KPB | 5.0MP (2592×1944) |
5.18mm × 3.89mm
1/2.7" (TBD)
|
Electronic Rolling Shutter |
20 fps@2592×1944
20 fps@2048×1536
20 fps@1600×1200
30 fps@800×600
|
SC5033 (C) | USB2.0 | Color | View Details |
| SCMOS03000KPA | 3.0MP (2048×1536) |
4.51mm × 3.38mm
1/2.7" (TBD)
|
Electronic Rolling Shutter |
3 fps@2048×1536
5 fps@1600×1200
7.5 fps@1280×1024
|
Aptina (C) | USB2.0 | Color | View Details |
| SCMOS03000KPB | 3.0MP (2048×1536) |
4.10mm × 3.07mm
1/3" (TBD)
|
Electronic Rolling Shutter |
20 fps@2048×1536
20 fps@1600×1200
30 fps@800×600
|
SmartSens (C) | USB2.0 | Color | View Details |
| SCMOS02000KPA | 2.0MP (1600×1200) |
4.48mm × 3.36mm
1/3.2" (TBD)
|
Electronic Rolling Shutter |
5 fps@1600×1200
7.5 fps@1280×1024
20 fps@800×600
22 fps@640×480
|
Aptina (C) | USB2.0 | Color | View Details |
| SCMOS02000KPB | 2.0MP (1920×1080) |
5.76mm × 3.24mm
1/2.7" (TBD)
|
Electronic Rolling Shutter |
25 fps@1920×1080
30 fps@1280×1024
30 fps@1280×720
|
OV2710 (C) | USB2.0 | Color | View Details |
| SCMOS01300KPA | 1.3MP (1280×1024) |
4.60mm × 3.70mm
1/3" (TBD)
|
Electronic Rolling Shutter |
7.5 fps@1280×1024
12.5 fps@1024×768
12.5 fps@800×600
|
Aptina (C) | USB2.0 | Color | View Details |
| SCMOS00920KPA | 0.92MP (1280×720) |
5.80mm × 3.28mm
1/2.7" (TBD)
|
Electronic Rolling Shutter |
25 fps@1280×720
25 fps@640×480
|
BG0703 (C) | USB2.0 | Color | View Details |
| SCMOS00350KPA | 0.35MP (640×480) |
3.58mm × 2.69mm
1/4" (TBD)
|
Electronic Rolling Shutter |
30 fps@640×480
|
Aptina (C) | USB2.0 | Color | View Details |
Product Overview
Professional features of SCMOS series microscopy imaging cameras
The SCMOS series is a structurally simple, cost-effective USB 2.0 CMOS microscopy imaging camera launched by Tucsen, featuring a 23.2 mm standard microscope eyepiece tube interface that can be directly inserted into microscopes to capture intermediate images. This series is specifically designed for education, entry-level research, and routine microscopy observation, balancing ease of use with economic efficiency, suitable for rapid digital conversion of various student or stereo microscopes.
Core Features
23.2 mm Standard Interface
Direct insertion into microscope eyepiece tubes without additional adapters
Sony/Aptina Sensors
1.3 to 12 megapixels with clear and detailed imaging
USB 2.0 High-Speed Transfer
MJPEG compression technology for smooth video without frame drops
Hardware ISP Processing
Hardware noise reduction, color correction, and gamma adjustment
Performance Parameter Highlights
Resolution Range
1.3 - 12 MP
Pixel optionsFrame Rate Performance
Up to 30 fps
5 MP/8 MP resolutionInterface Diameter
23.2 mm
Standard eyepiece tubeCost Performance
Economical
Educational research preferredIn-Depth Product Introduction

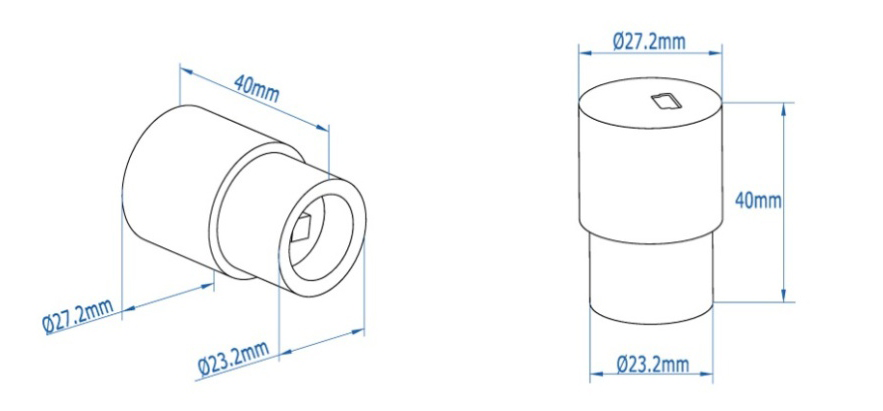

Convenient Standard Eyepiece Tube Interface Design
Features a 23.2 mm standard microscope eyepiece tube interface design that can be directly inserted into microscope eyepiece tubes to capture clear images without additional adapters. Supports common 23.2→30 mm and 23.2→30.5 mm adapter rings, compatible with most educational microscopes, stereo microscopes, and other microscopy systems on the market. This design greatly simplifies the installation process, allowing users to complete digital upgrade of traditional microscopes within minutes, particularly suitable for bulk conversion and rapid deployment in school laboratories.
High-Quality CMOS Sensor Technology
Features Sony or Aptina high-quality CMOS sensors covering a wide range from 1.3 to 12 megapixels with clear and detailed imaging to meet different resolution requirements. Pixel sizes range from 1.45 µm to 3.0 µm, ensuring high resolution while considering light sensitivity. Even entry-level products can provide professional-grade imaging quality, ensuring that teaching demonstrations and routine research observation image requirements are fully satisfied.
Optimized USB 2.0 Transfer Technology
Uses MJPEG compression technology combined with hardware buffer design to achieve excellent transfer performance under USB 2.0 bandwidth limitations. 5 MP/8 MP resolution can achieve smooth 30 fps frame rates, and 12 MP resolution can also reach 15 fps, ensuring smooth video without frame drops. This optimized design allows good imaging experience even with older computer systems, reducing system upgrade costs, particularly suitable for bulk procurement needs of educational institutions.
Built-in Hardware ISP Image Optimization
Built-in ISP chip supports hardware noise reduction, color correction, gamma adjustment, and other functions, significantly improving color reproduction and detail performance. Supports auto/manual exposure switching, ROI area exposure and white balance, brightness/contrast/saturation real-time adjustment. Typical exposure range supports 0.1 ms to 2000 ms (some models 650 ms/1000 ms), adapting to different brightness environments. Integration of these professional functions enables entry-level products to provide high-quality imaging effects.
High-Reliability Structural Design
Features CNC aluminum alloy one-piece housing design with compact and stable construction. Natural heat dissipation design with no fans or mechanical vibration effectively prevents noise and vibration interference from traditional air cooling systems, ensuring imaging stability. Single-cable USB 2.0 power design is plug-and-play without requiring additional power supplies. This high-reliability design enables the camera to operate stably for extended periods, particularly suitable for teaching demonstrations and routine laboratory use, greatly reducing maintenance costs.
Applications
SCMOS series applications across various microscopy imaging fields
SCMOS Series Core Advantages
High Cost-Performance
Economical positioning
Plug-and-Play
23.2 mm standard interface
Educational Preferred
Bulk deployment solution
Hardware ISP
Professional image processing
Smooth Imaging
MJPEG optimized transfer
Wide Compatibility
Supports multiple adapter rings
Open SDK
Multi-platform support
Stable and Reliable
Fanless design
