LED Lighting System
Product Introduction
LED lighting solutions engineered for the TZM continuous zoom objectives, delivering uniform and stable illumination.
Product Features
- Adjustable brightness with uniform lighting
- Purpose-built adapters
- Long-life, low-power LED technology
- Multiple illumination modes
- Easy installation and configuration
Dedicated LED Illumination System
LED lighting solutions engineered for the TZM continuous zoom objectives, delivering uniform and stable illumination.
TZM0756 LED Lighting

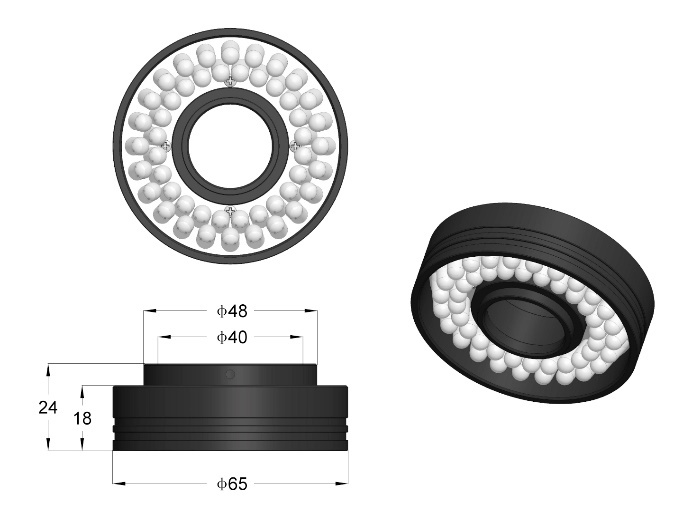

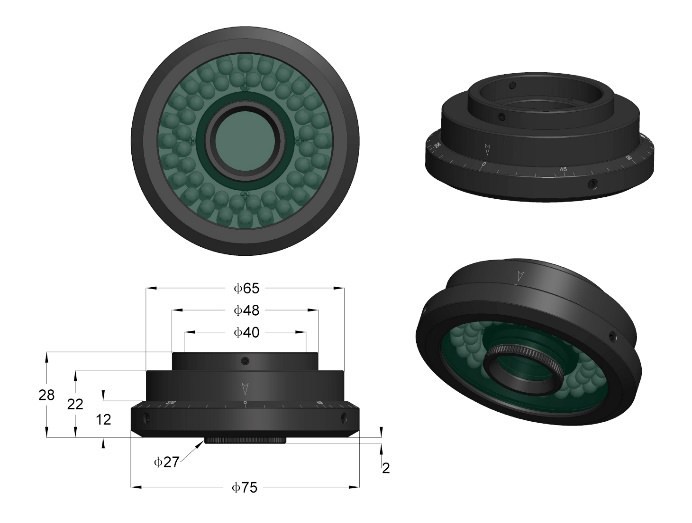

LED illumination tailored for continuous zoom monocular objectivesDesigned for TZM0756, TZM0745A, TZM0480, TZM0460, TZM0440, TZM0660, TZM0640, and TZM0880 zoom monocular objectives, offering ring, polarised, coaxial, and transmitted-light options for uniform illumination across industrial and research scenarios.
Compatible Models: TZM0756, TZM0745A, TZM0880, TZM0660, TZM0640, TZM0480, TZM0460, TZM0440
Supported Lighting Types: DRL-65 / DRL-85 ring LED, DRPL-65 polarised LED ring, CL coaxial illuminator, SL coaxial spot light, TL transmitted illumination
Package

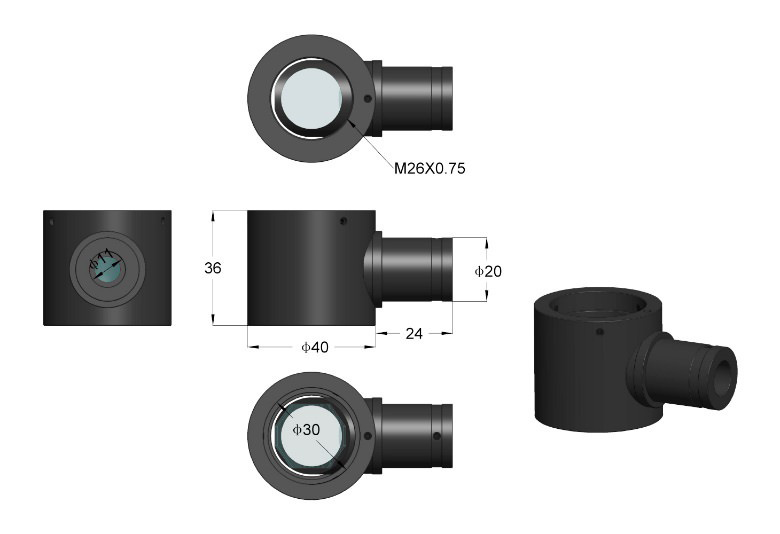

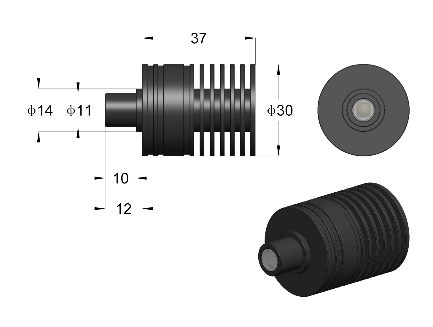

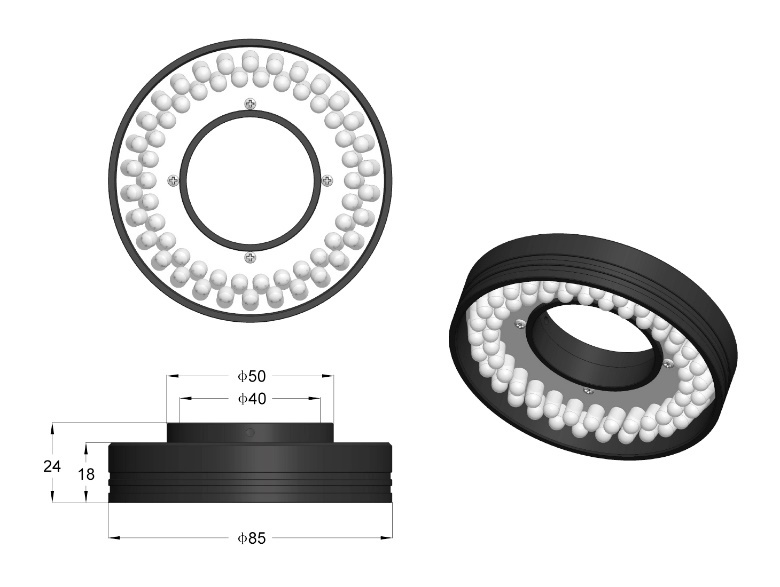

Contents: TZM0756DRL-65 / 85: LED ring light + power adapter; TZM0756DRPL-65: Polarised LED ring light + power adapter; TZM0756CL: Coaxial adapter + coaxial spot light + power adapter

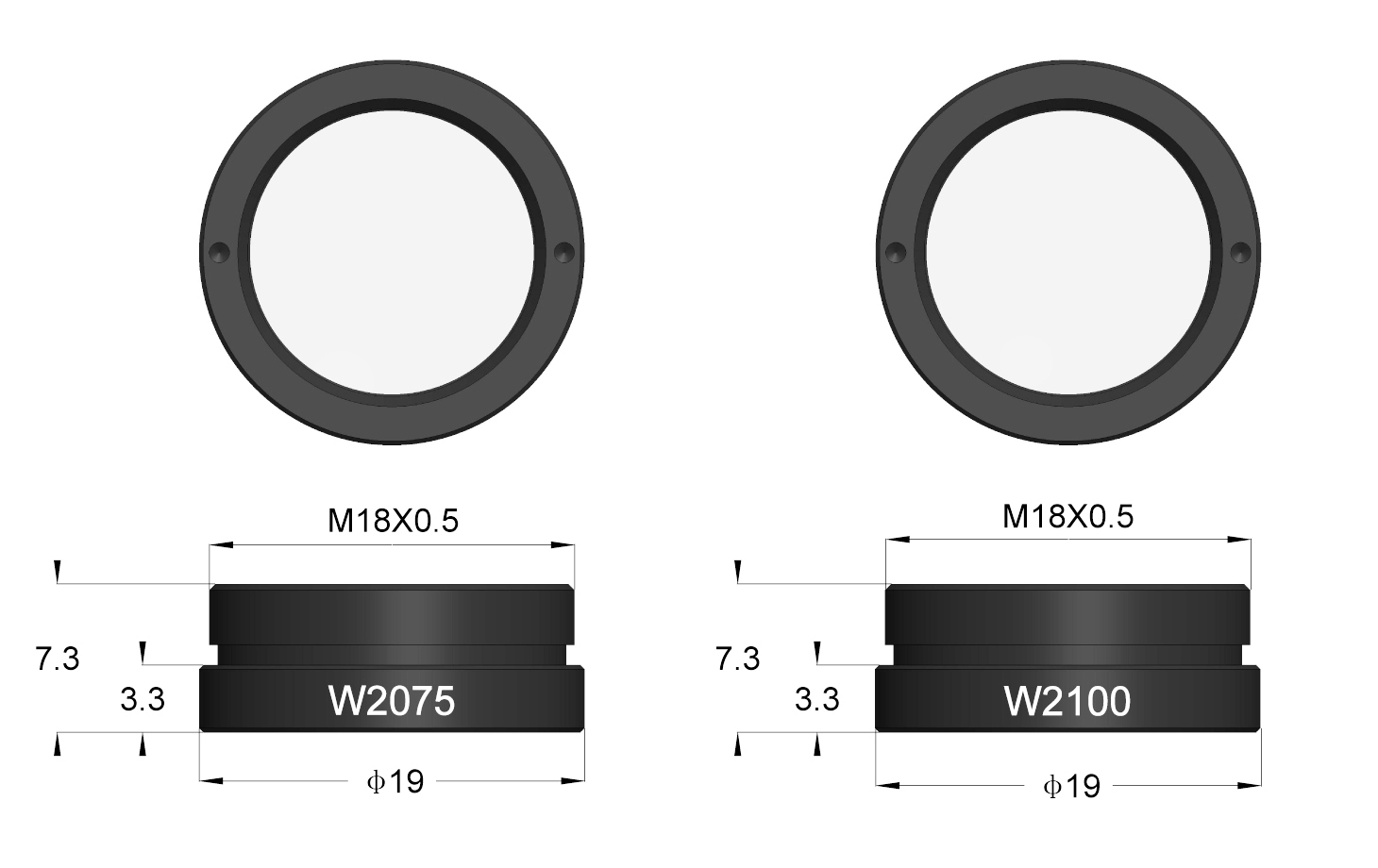

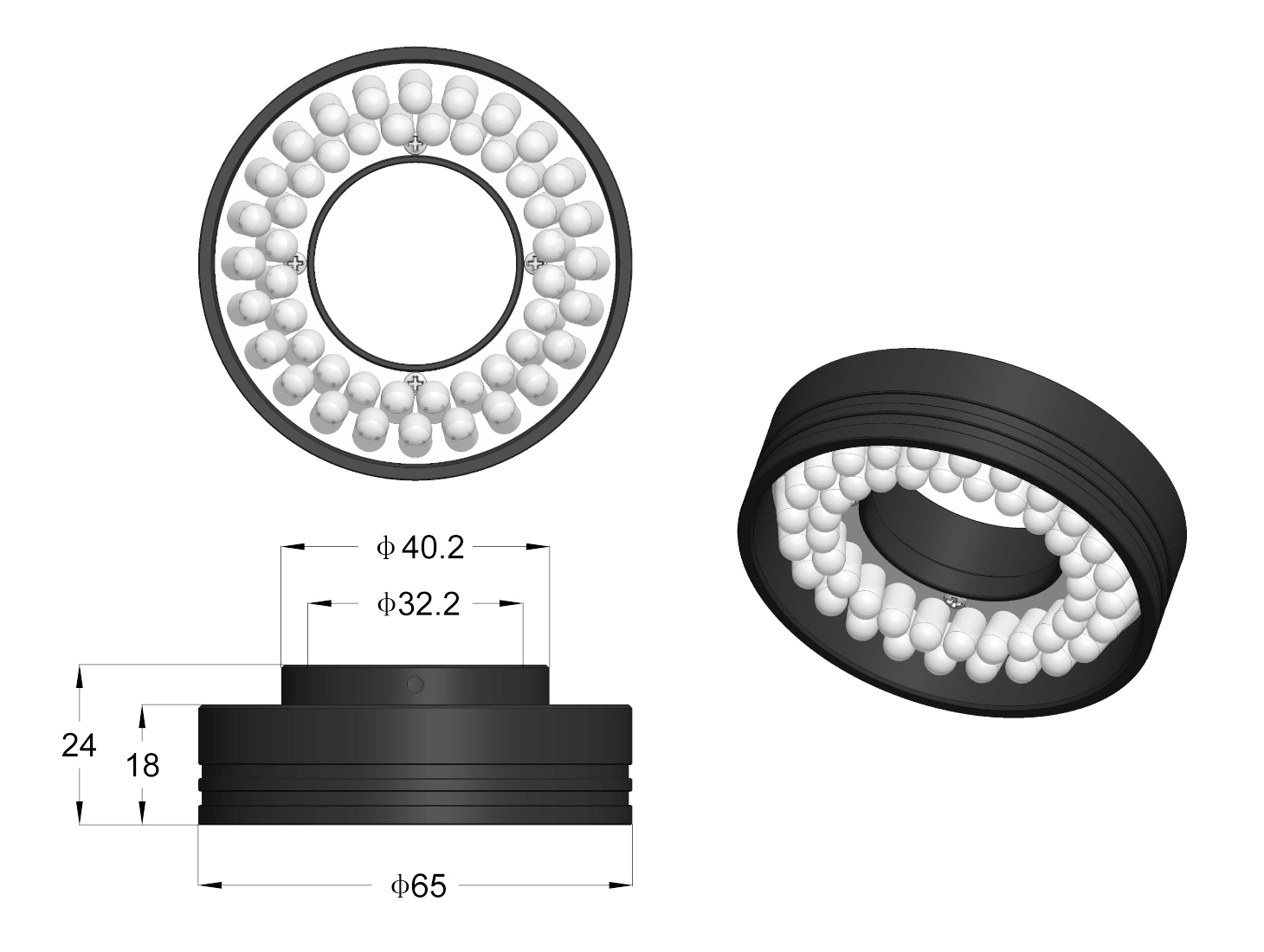

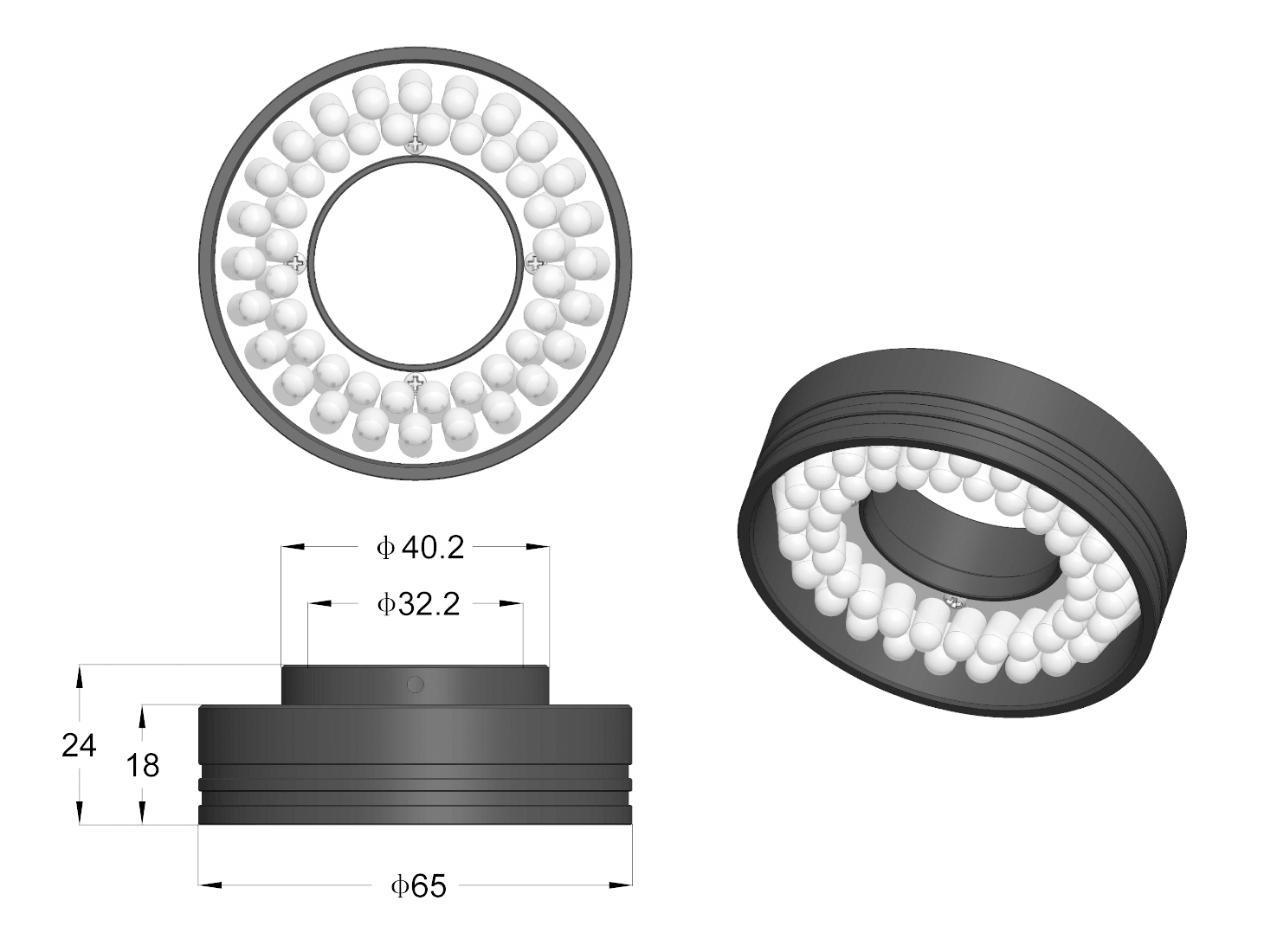

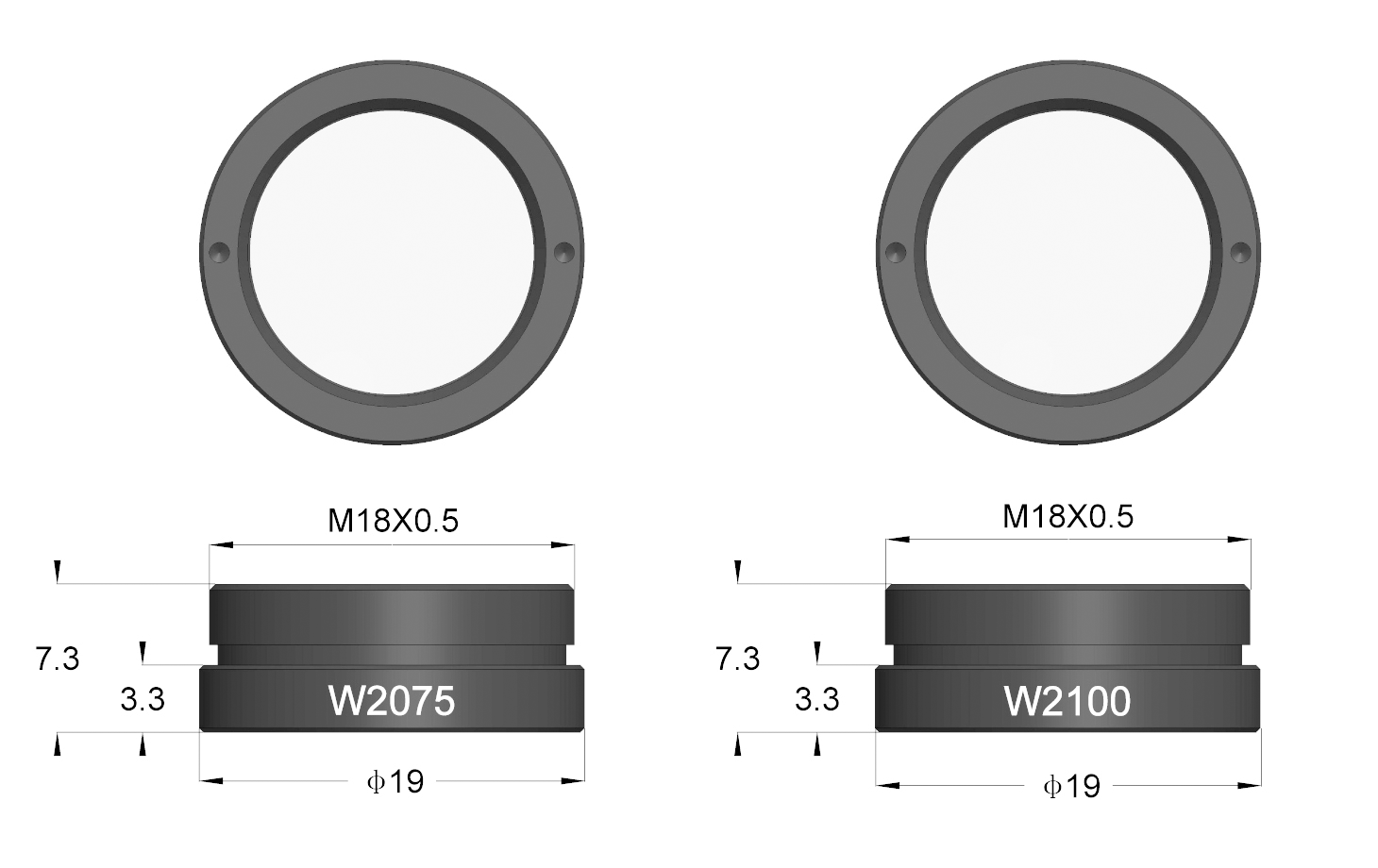

TZM0745B LED Lighting
LED lighting for continuous zoom monocular objectivesCustom-designed for the TZM0745B monocular zoom objective, delivering efficient ring illumination with simple installation.
Compatible Models: TZM0480 and related models
Supported Lighting Types: Ring LED, Transmitted illumination

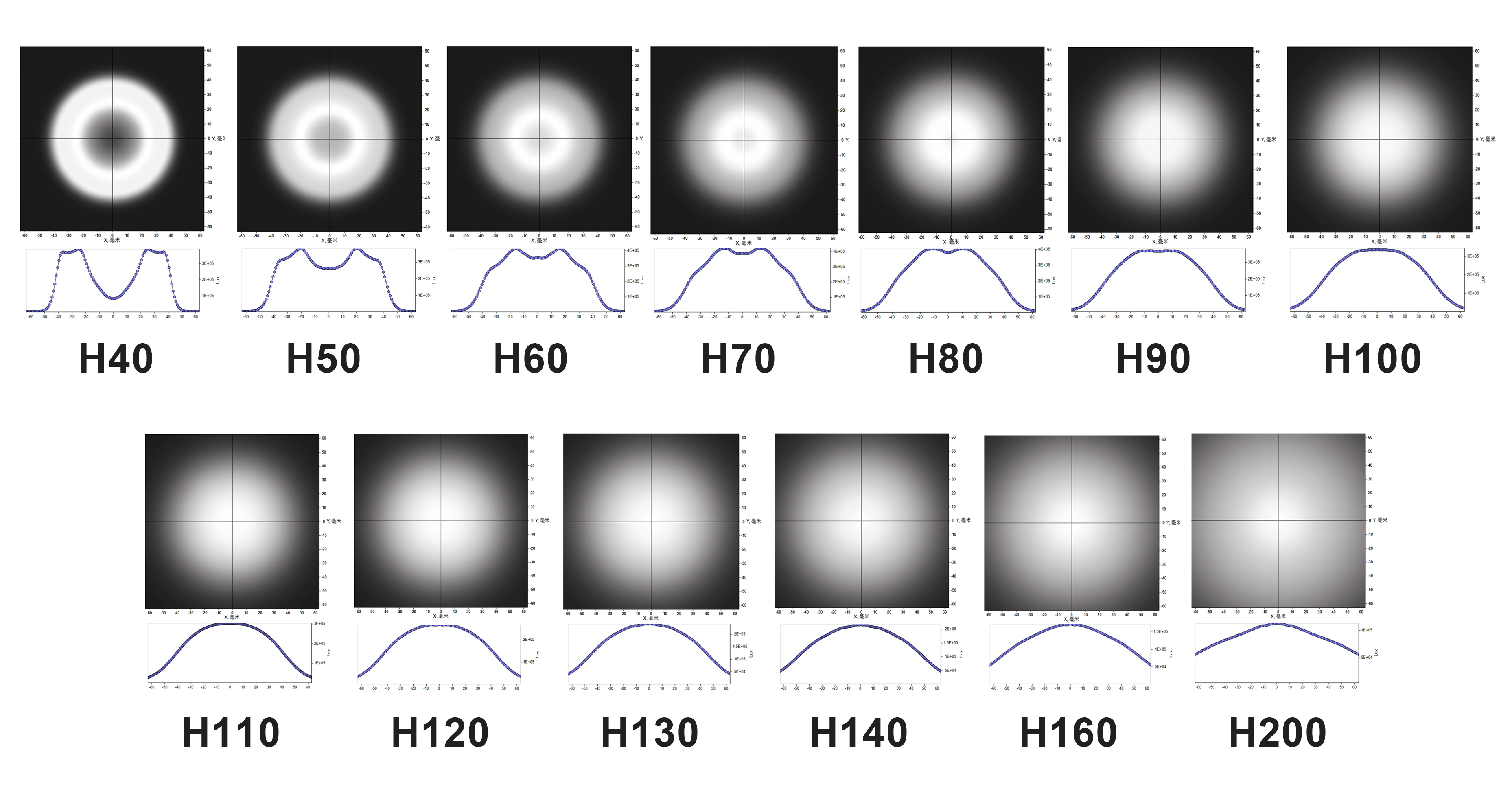

Technical Parameters
| Product Model | Lighting Type | Outer Diameter | Inner Diameter | Input Power | Brightness Control | Compatible Objectives | Lifetime |
|---|---|---|---|---|---|---|---|

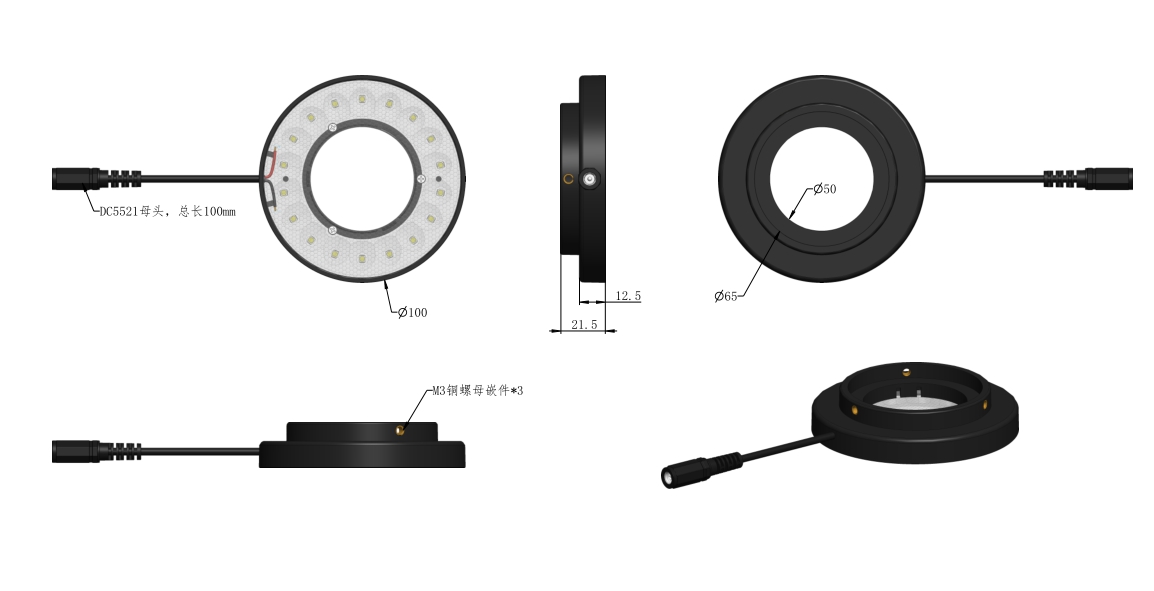

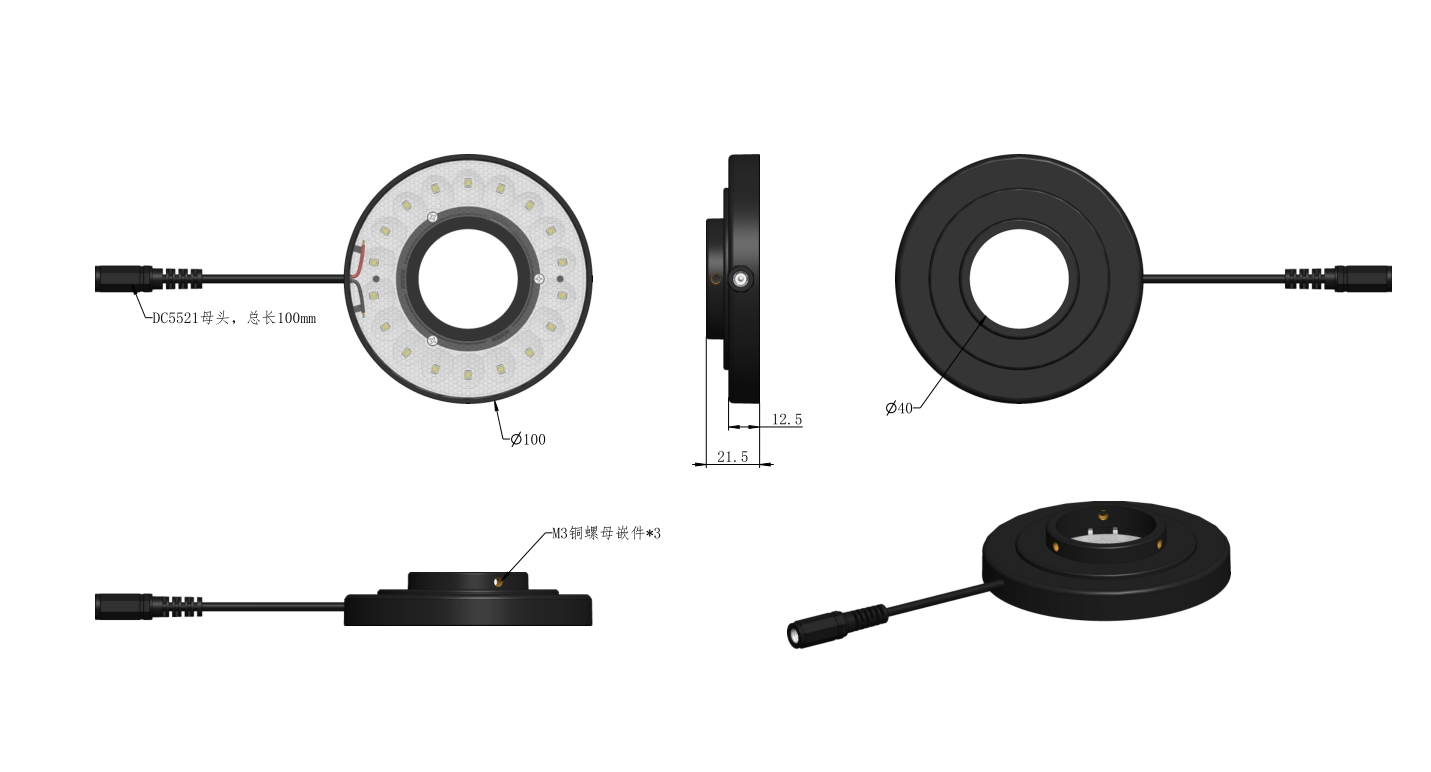

| DRL-10040 | Ring LED | 100 mm | 40 mm | DC12V 1A | PWM Stepless | TZM0756/TZM0480 etc. | >50,000h |
| DRL-10065 | Ring LED | 100 mm | 65 mm | DC12V 1A | PWM Stepless | TZM0756/TZM0480 etc. | >50,000h |
| CL Coaxial Light | Coaxial Illumination | — | — | DC12V 1A | PWM Stepless | TZM Series | >50,000h |

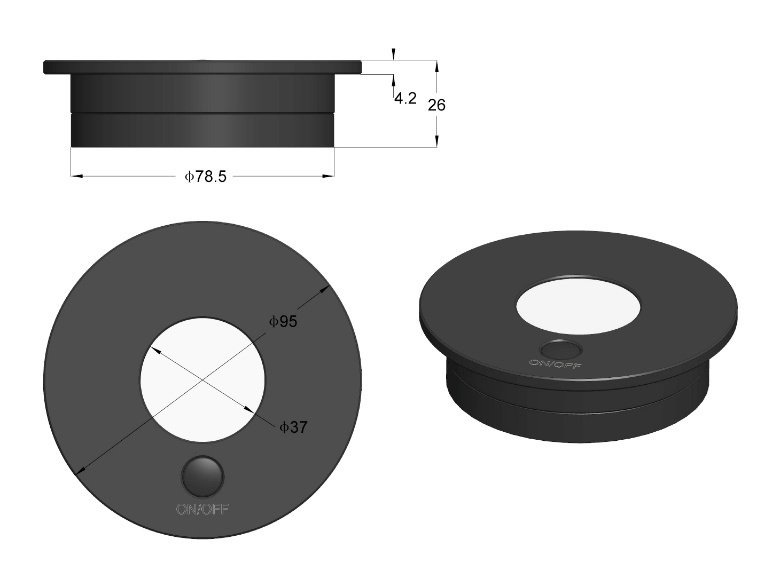

| TL Transmitted Light | Transmitted Light | — | — | DC12V 1A | PWM Stepless | TZM Series | >50,000h |
| DRPL-65 | Polarized Ring LED | 65 mm | — | DC12V 1A | PWM Stepless | TZM0756 etc. | >50,000h |
Frequently Asked Questions
Tupu Optics LED lighting systems feature efficient heat dissipation structures and constant
current drivers, supporting 24/7 continuous operation with a theoretical lifetime exceeding
50,000 hours. Additional air or water cooling is generally not required under normal
operating conditions.
Compatible with TZM0756, TZM0745A, TZM0480, TZM0460, TZM0440, TZM0660, TZM0640, TZM0880 and
other continuous zoom monocular objectives, as well as common stereo microscopes (such as
Olympus, Nikon, etc.).
All LED lighting systems support PWM stepless dimming, adjustable through controllers or
external control units. The series also provides multiple illumination modes including ring
light, polarized light, coaxial light, and transmitted light for switching.
Yes, supported. Selected models can integrate with automatic exposure systems or achieve
intelligent synchronous control between cameras and lighting through SDK implementation,
enhancing imaging efficiency and automation levels.
Yes, we support custom development of multi-channel, special-structure, and
special-wavelength (such as UV, near-infrared) LED lighting systems. Please contact us to
discuss your specific requirements.
Selection Guidelines and Purchase Guide
- Select based on objective model: Prioritize selection based on your continuous zoom objective (such as TZM0756, TZM0480, etc.) to choose ring LED lighting with matching outer and inner diameters.
- Consider specimen characteristics: For reflective materials (metal/glass, etc.), recommend coaxial or polarized lighting; for surface structure/edge detection, recommend angle-adjustable LED or combined illumination.
- Confirm brightness and control methods: For high dynamic range or low-light requirements, recommend models supporting PWM stepless dimming and external intelligent controllers.
- Automation and intelligence requirements: For systems requiring camera or software integration, confirm lighting interface and SDK support during selection.
- Special scenario customization: For non-standard sizes, multi-wavelength, or other special requirements, contact us for custom development.
Unsure about selection? Please contact us through online
customer service or our consultation hotline. We will provide professional selection
guidance and custom solutions!
