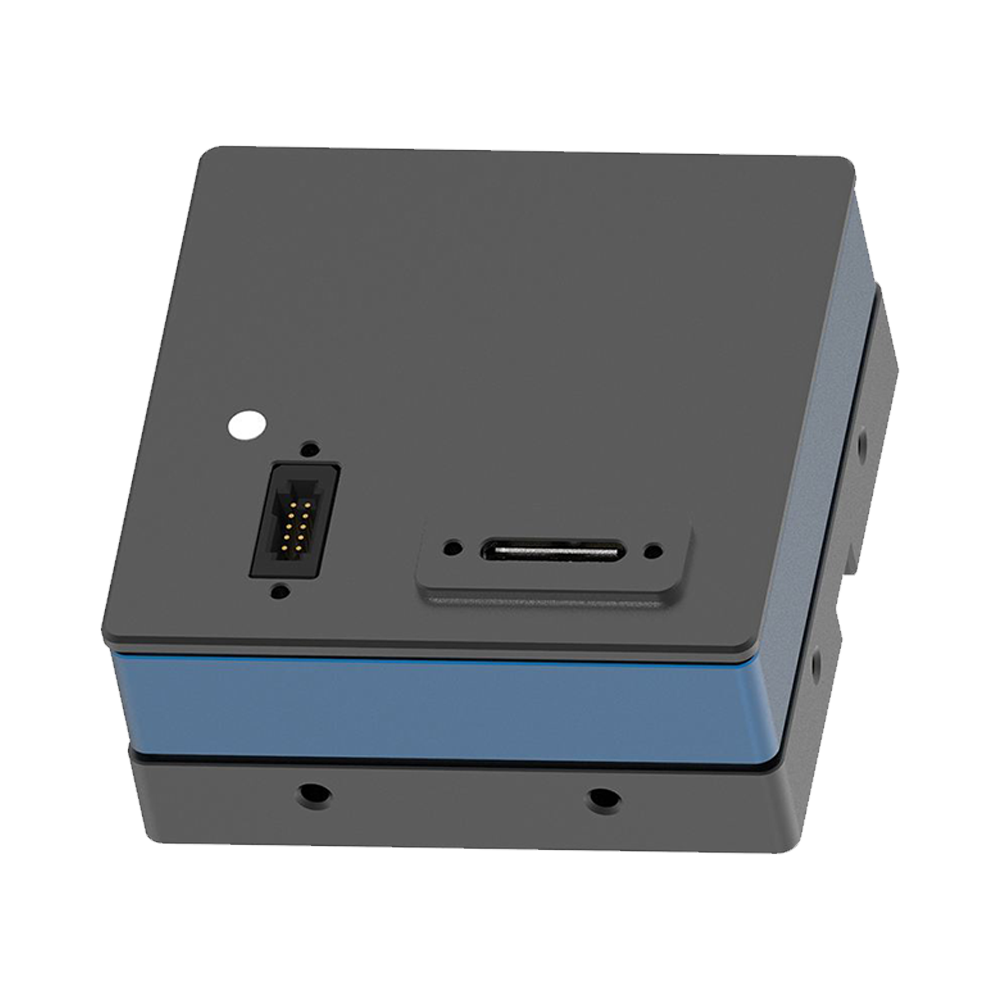

IUD Series

Product Introduction

The IUD series features onsemi high-performance global shutter CMOS sensors, offering 16 MP and 25 MP resolutions with corresponding 1.8″ and 2.04″ large formats. The cameras deliver excellent near-infrared (NIR) response and capture blur-free images in high-speed motion scenarios. Utilizing USB 3.0 high-speed connectivity for stable transmission, the series supports an ultra-wide exposure range from 1 µs to 60 s, hardware binning, 2 digital inputs, and 3 digital outputs for coordination with external triggers, light sources, and motion platforms.

The compact body design with optimized power consumption enables operation through single USB 3.0 power supply (model-dependent), making it suitable for space-constrained equipment integration. Complete with multi-platform SDK (Windows / Linux / macOS / Android) and ToupView, the series serves industrial inspection, scientific imaging, machine vision, OCT ophthalmic imaging, and NIR industrial detection applications.

Product Features

onsemi global shutter CMOS (model-dependent), enhanced NIR response, eliminating motion blur and jello effect
Resolution: 16 MP / 25 MP; Sensor format: 1.8″ / 2.04″ (model-dependent)
Exposure range 1 µs–60 s; auto/manual exposure with 0–32 dB manual gain
USB 3.0 (5 Gbit/s) high-speed interface, single cable power (bus-powered, no external power required, model-dependent)
I/O: 2× digital inputs + 3× digital outputs, supporting external triggering and strobe synchronization
Hardware binning, ROI, bandwidth control, balancing high frame rates with long-distance transmission stability
Image processing: In-pixel CDS, defect pixel correction, LUT, Gamma, noise reduction (model-dependent)

Built-in image buffer and event channels, ensuring data integrity during high-speed/burst acquisition
Synchronization and status outputs: Trigger Ready / Input / Exposure / Readout / Strobe / GPO, etc.
Acquisition modes: Free-running, software trigger, external hardware trigger, facilitating peripheral timing coordination
Multi-platform ecosystem: Windows / Linux / macOS / Android SDK, supporting C/C++/C#/Python; compatible with ToupView
Compact body with low power design, suitable for tight space installations; industrial-grade reliability for harsh environments (model-dependent)
Typical applications: High-speed inspection, OCT ophthalmic imaging, NIR industrial detection, scientific and machine vision
CE / FCC / RoHS certified (model-dependent)

Get Quote Product Manual

Product Models

Select the IUD Series that fits your application requirements

Product Model	Effective Pixels	Sensor Size	Shutter Type	Frame Rate (FPS)	Sensor Type	Data Interface	Color	Actions
IUD16000KMA	16.0MP (4096×4096)	18.43 mm × 18.43 mm 1.6" (26.06 mm)	Global Shutter	22.5 fps@4096×4096	PYTHON 16K	USB3.0	Monochrome (NIR)	View Details
IUD25000KMA	25.0MP (5120×5120)	23.04 mm × 23.04 mm 2" (32.58 mm)	Global Shutter	14.8 fps@5120×5120 14.8 fps@2560×2560 14.8 fps@1664×1664	PYTHON 25K	USB3.0	Monochrome (NIR)	View Details

Package List #

Standard configuration and packing details for IUD Series large-format NIR industrial cameras (USB 3.0)

Recommended Accessories

Camera body – IUD Series model
I/O cable – 10-pin cable or extension
Signal cable – Micro USB 3.0 cable
Power supply – 12 V / 3 A adapter
Lens (optional) – M42 or F-mount lens

Note: IUD Series cameras are purpose-built for near-infrared imaging with large-format sensors and require external 12 V power.

Standard package list; refer to the packing slip for final accessories

Product Dimensions #

Dimensions overview for IUD Series large-format NIR industrial cameras

IUD Series (camera)

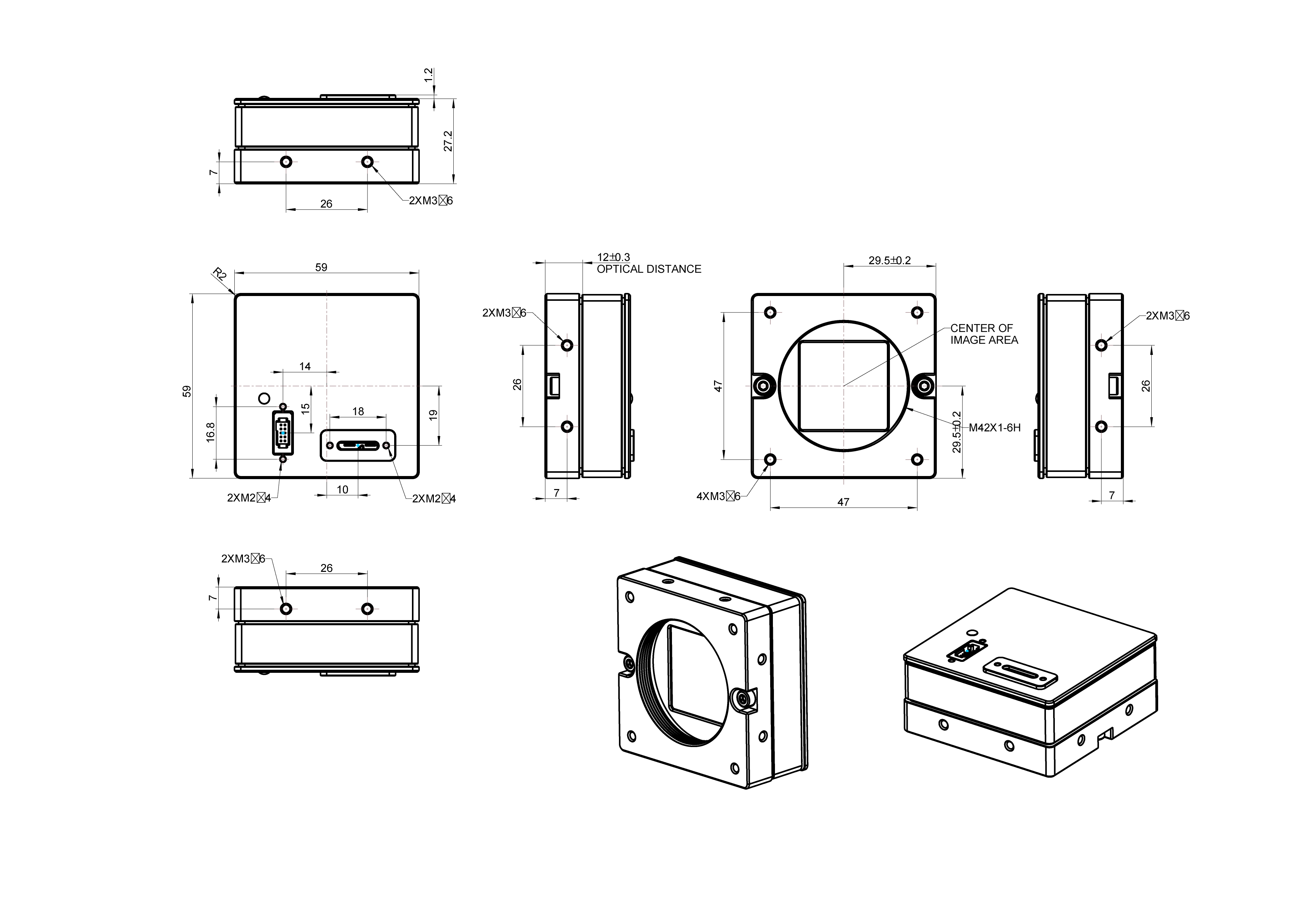

Chassis dimensions Dimension drawing

Large-format NIR imaging design

Click the image to view an enlarged diagram

The IUD Series is Tupu Photonics' high-resolution global-shutter USB 3.0 industrial camera family for precision inspection, near-infrared imaging, and scientific research. With premium CMOS sensors such as PYTHON 16K and PYTHON 25K, the lineup delivers enhanced NIR response, large sensor formats, high pixel counts, and low noise. It captures fine detail in fast motion and low-light scenes, while the compact metal enclosure, low power draw, and flexible interfaces simplify integration into industrial automation and laboratory workflows.

Key Features

High-resolution large format

16 MP / 25 MP with 1.8" / 2.04" sensors

Global shutter imaging

Smear-free capture for fast motion

Near-infrared enhancement

High QE in the NIR spectrum

Hardware binning

1×1 / 2×2 / 3×3 modes

Performance Highlights

Resolution

16 / 25 MP

Square sensor format

Exposure range

1 µs–60 s

Extensive adaptability

Dynamic range

59 dB

Handles high-contrast scenes

Compact chassis

59×59×27 mm

Metal housing

In-depth Product Overview

High-resolution large-format imaging

Available in 16 MP and 25 MP variants, the 1.8" and 2.04" CMOS sensors with 4.5 µm pixels deliver rich detail and sensitivity. Dynamic range reaches 59 dB with a 41 dB SNR on the 25 MP model, while dark current stays as low as 3.9 e⁻/s at 20 °C, enabling long-exposure inspection tasks.

Global shutter with NIR enhancement

Global shutter capture eliminates motion blur, and dedicated NIR optimization improves quantum efficiency in near-infrared wavelengths. Exposure spans 1 µs to 60 s, while frame rates reach 22.5 fps (16 MP) and 14.8 fps (25 MP), supporting both dynamic and static applications.

Flexible hardware binning

Hardware binning options—1×1, 2×2, and 3×3—balance resolution and sensitivity. Output formats include 8-bit and 12-bit data, and gain can be adjusted from 1× to 50× to match varied imaging scenarios.

Industrial integration capabilities

Two non-isolated inputs and three non-isolated outputs support coordination with industrial control systems. USB 3.0 (USB 3.1 Gen 1) provides single-cable power and data, backed by ToupView software and full SDKs. The 59×59×27.2 mm metal body keeps power consumption low and operates from -10 to 50 °C for continuous operation.

Cross-platform development support

SDKs for Windows, Linux, macOS, and Android include APIs for C/C++, C#/VB.NET, Python, and more, delivering rapid integration. Combined with extensive digital I/O and the cross-platform SDK suite, the IUD Series accelerates deployment in automation and research systems.
