AFDM511-Serie
Product Introduction
TAFDM41X ist ein Touch-All-in-One-System mit kontinuierlichem Zoom und Autofokus-Mikroskopfunktion, das 4K Ultra-HD-Ausgabe (4K @ 30 fps) unterstützt. Es verfügt über einen integrierten 13,3-Zoll 1080P Touchscreen mit interaktiver Bedienung (umschaltbar zwischen Touch- und Mausbedienung) und kombiniert motorisierten kontinuierlichen optischen Zoom mit Auto-/Manuellfokus. Das System eignet sich für Vor-Ort-Demonstrationen, Schulungen und High-End-Prüfungen, die eine intuitive Bedienung erfordern.
Product Features
- 4K Ultra-HD-Ausgabe (4K @ 30 fps) mit detailreichen Bildern
- Touch-/Maus-Doppelschnittstelle umschaltbar, unterstützt 13,3-Zoll 1080P Touchscreen-All-in-One-Interaktion
- Motorisierter kontinuierlicher optischer Zoom + Auto-/Manuellfokus (TAFDM411: 20-fach; TAFDM412: 18-fach)
- USB/HDMI/Ethernet-Mehrfachschnittstellenausgabe, HDMI 4K/1080P adaptive Umschaltung
- Integriertes XCamView Messanalyse-Paket, unterstützt lokale Bilderfassung/Videoaufzeichnung und Wiedergabe
- Unterstützt Tiefenschärfensynthese, Bild-Stitching und weitere erweiterte Funktionen (wenn aktiviert)
- Magnetische LED-Ringbeleuchtung am Kopf, Helligkeit von Kamera gesteuert
- Geeignet für High-End-Prüfung, Vor-Ort-Demonstrationen, Schulungen und weitere Szenarien
4K HDMI/USB/NETWORK/Touchscreen Digitalmikroskop mit kontinuierlichem Zoom und Autofokus (Touchscreen-All-in-One)
TAFDM41X ist ein Touch-All-in-One-System mit kontinuierlichem Zoom und Autofokus-Mikroskopfunktion, das 4K Ultra-HD-Ausgabe (4K @ 30 fps) unterstützt. Es verfügt über einen integrierten 13,3-Zoll 1080P Touchscreen mit interaktiver Bedienung (umschaltbar zwischen Touch- und Mausbedienung) und kombiniert motorisierten kontinuierlichen optischen Zoom mit Auto-/Manuellfokus. Das System eignet sich für Vor-Ort-Demonstrationen, Schulungen und High-End-Prüfungen, die eine intuitive Bedienung erfordern.
| Model | Sensor | Max Resolution & Frame Rate | Output Interface | Optical Zoom | Standard Working Distance | Lens Type | Features | Action |
|---|---|---|---|---|---|---|---|---|
| AFDM511A |
Sony IMX415LQR-C
1/2.8" (5.57×3.13mm)
|
8MP (3840×2160)
HDMI/USB/Netzwerk: 30 fps @ 38...
|
HDMI2.0 USB3.0 LAN Wi-Fi | 18-fach (0,0218× – 0,392×) | 205 – 255 mm (Standard 250 mm) | EMZO-20XA integriertes Objektiv | 4K Ultra HD Autofocus 18× Zoom | View Details |
AFDM511 Auto-Focus Digital Microscope | Package Contents #
Standard Packing List
- A Camera box: 22.0 cm × 22.0 cm × 11.0 cm (1 pc, approx. 2.0 kg per box)
- B AFDM511 series auto-focus camera ×1
- C HDMI cable ×1
- D USB mouse ×1
- E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A (HKA03612030-7K, includes CN/EU AC power cords, compliant with UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN 61000-4-2/3/4/5/6)
- F High-speed USB 3.0 Type-A to Type-A gold-plated cable (1.5 m)
- G Drivers and application media (CD / bundled USB flash drive)
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC or AALRL-200-7650)
- J Spare USB flash drive
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L SD card (16 GB)
- M USB audio control module
- N Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
AFDM511 Auto-Focus Digital Microscope | Product Dimensions #
Enclosure dimensions and environmental indicators
Housing 80 × 80 × 122 mm, see Fig. 3-18
Confirm mounting hole positions and connector orientation with the dimension diagram before installation.
AFDM511 In-Depth Overview
The AFDM511 series integrates a Sony IMX415 STARVIS back-illuminated CMOS sensor (1/2.8") with native 4K (3840×2160) resolution. HDMI 2.0 delivers low-latency 4K @ 60 fps display (typical latency about 40 ms). A 20× motorized continuous zoom lens and auto/manual focus are built in, together with the XCamView control and measurement software.

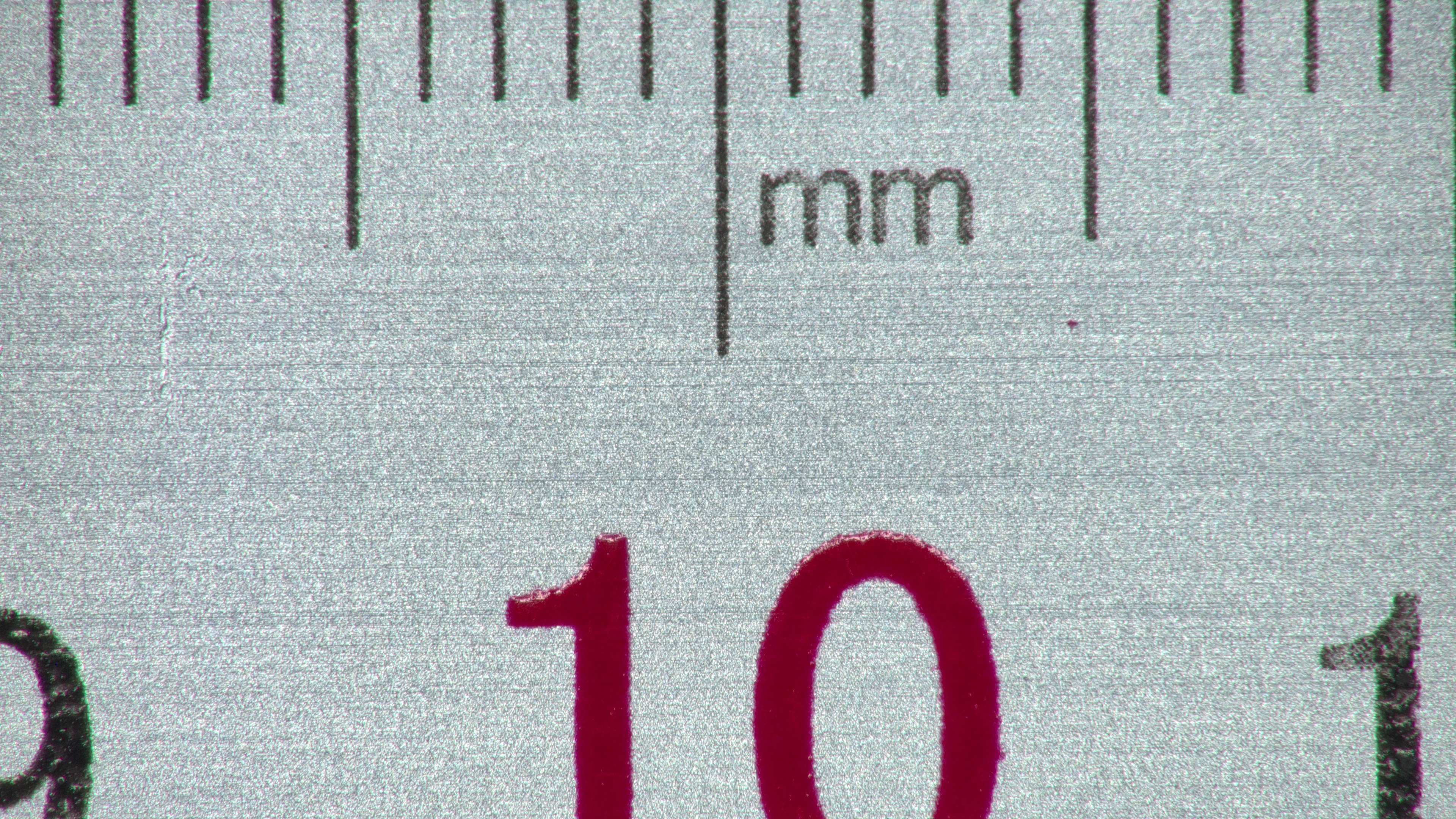

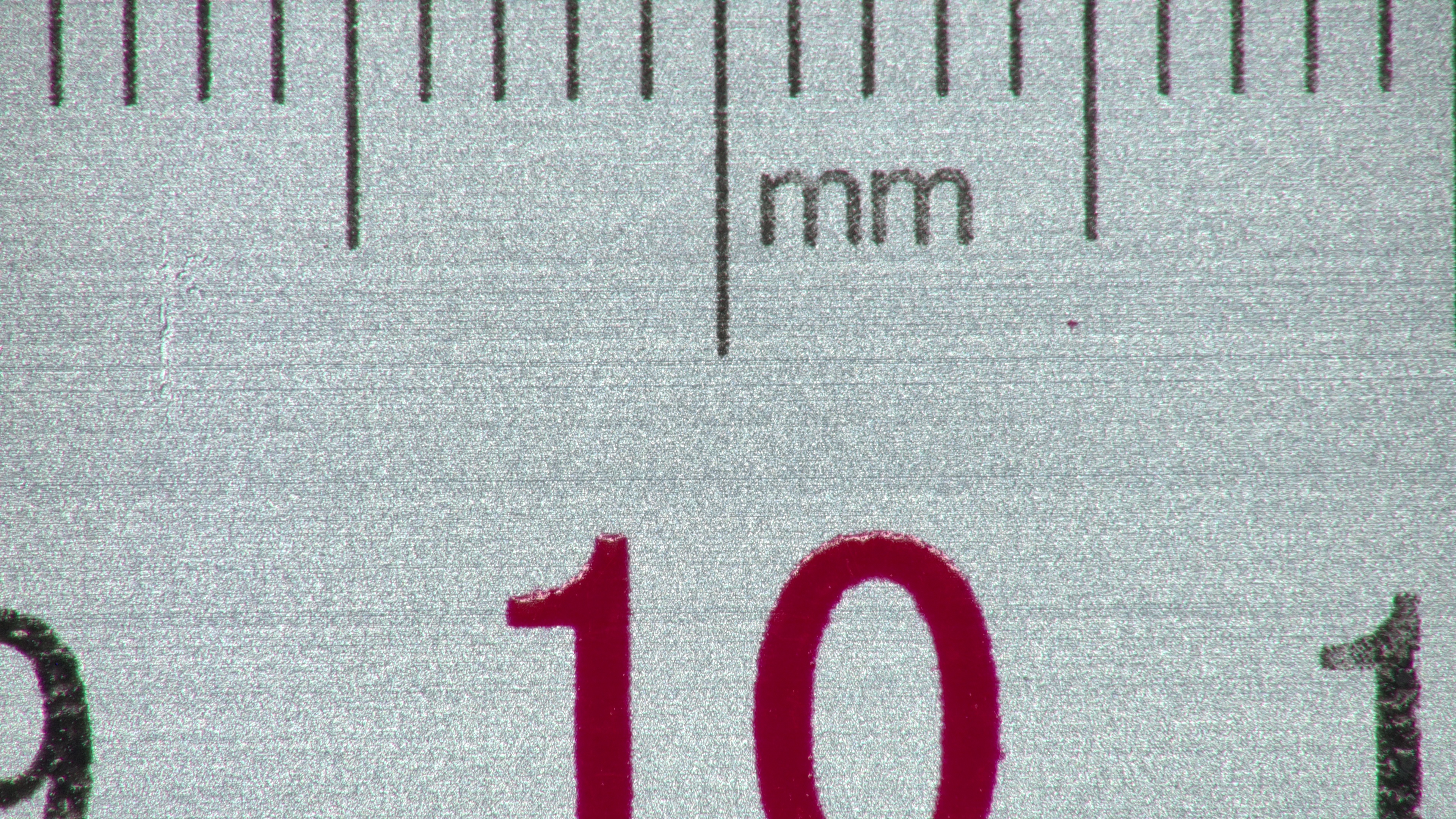

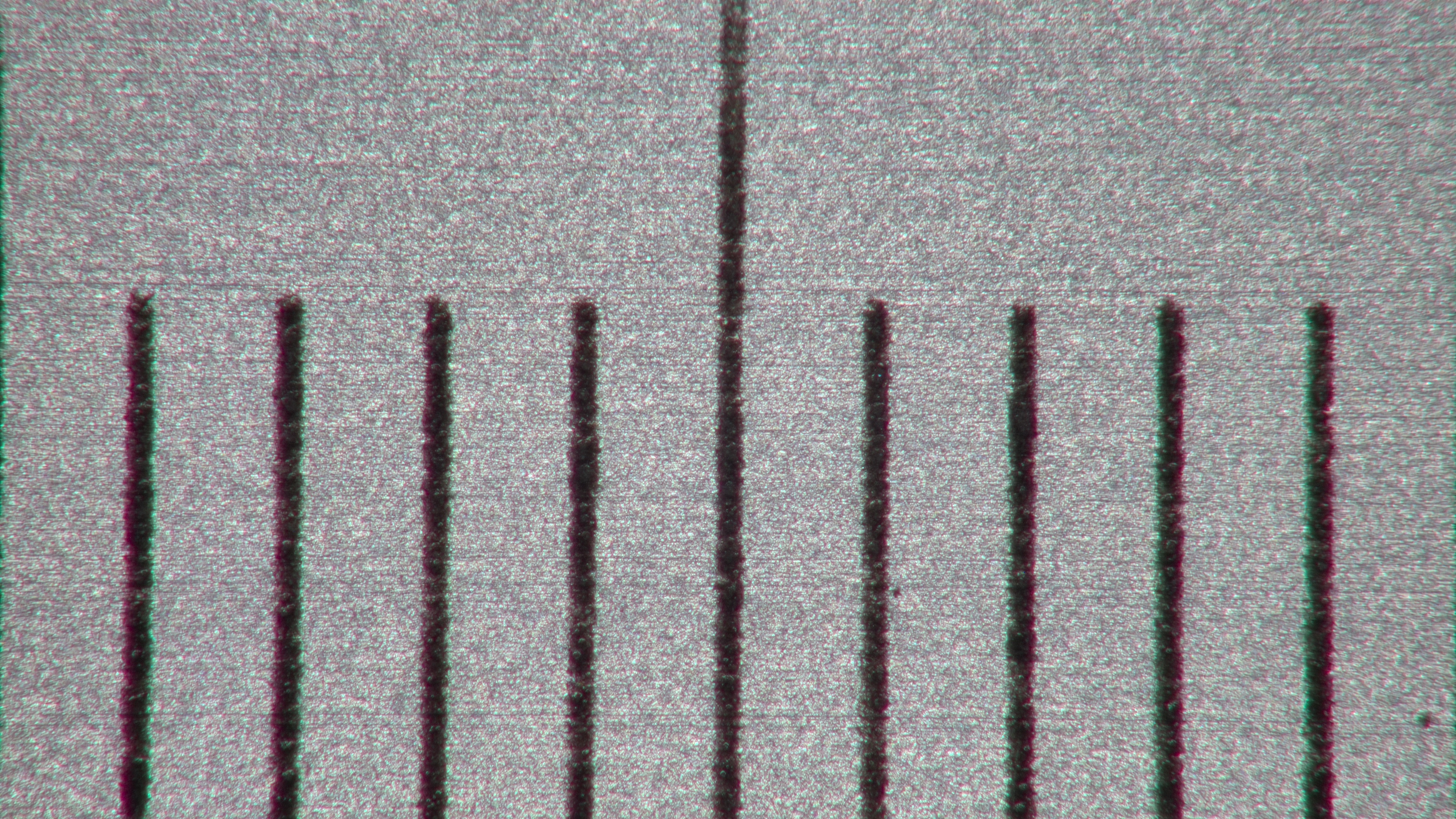

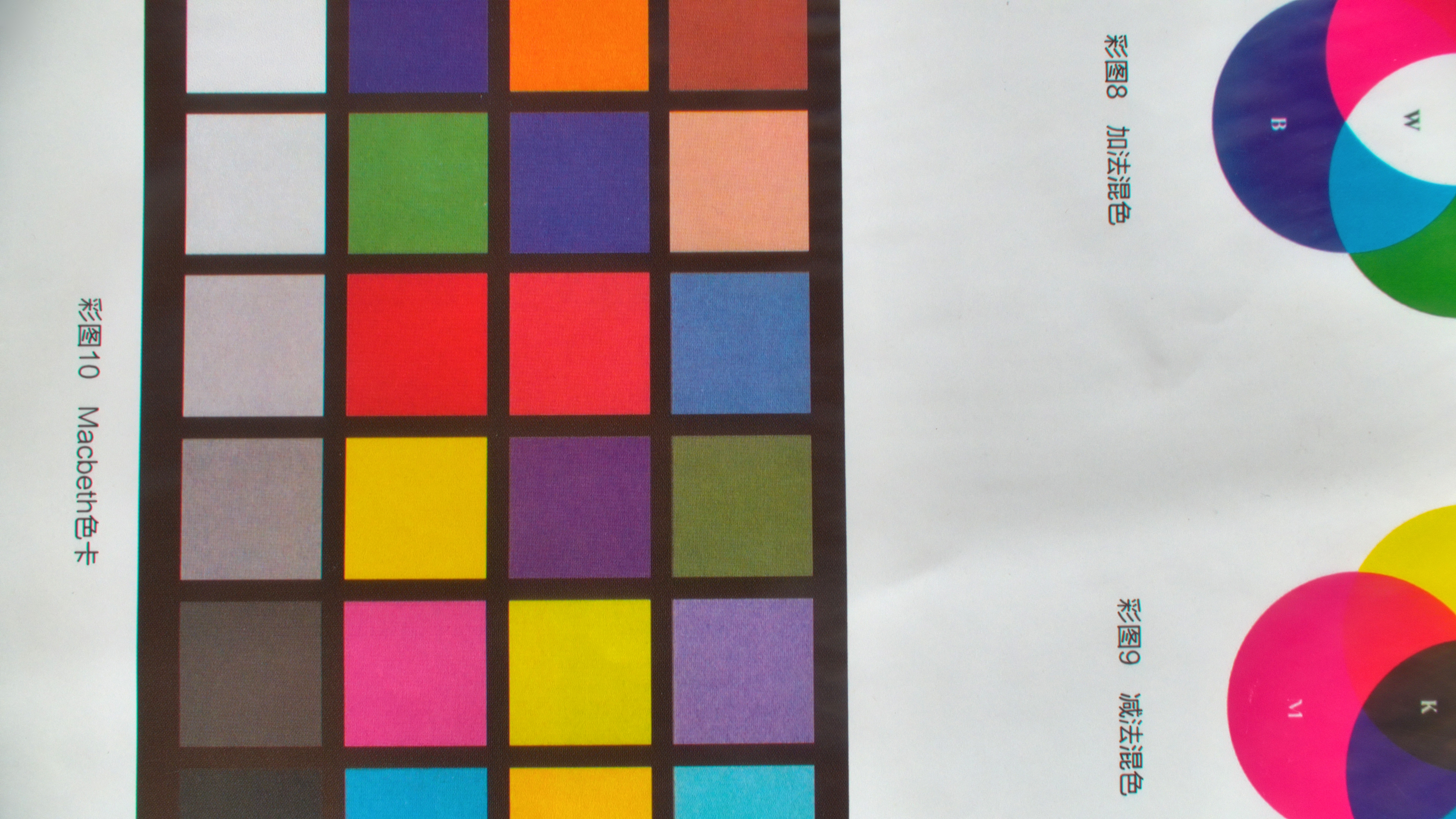

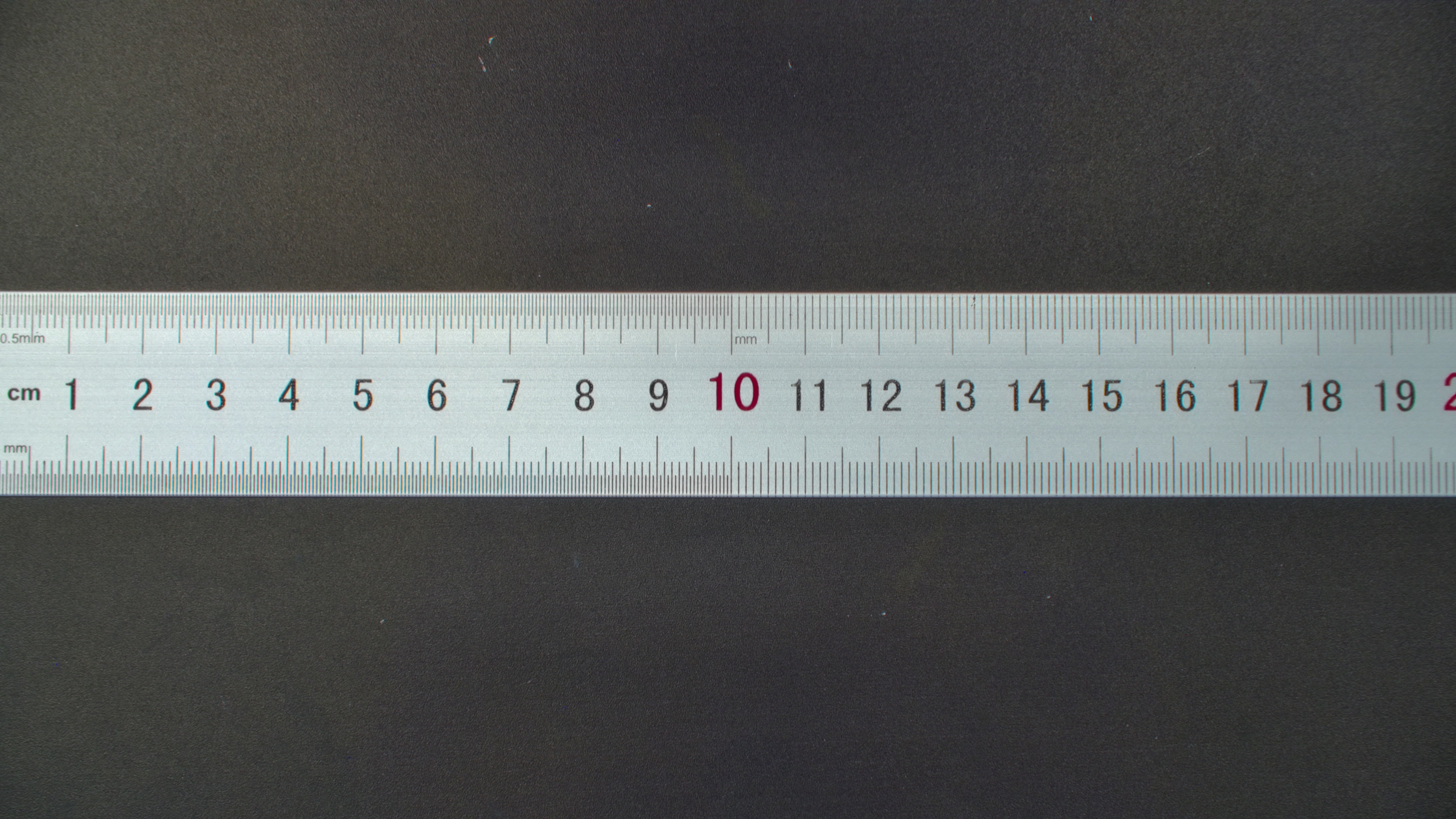

AFDM511 provides a standard working distance of 192 mm (effective auto-focus range approximately 150 to 195 mm). Within this range, the field of view spans 200 × 112.5 mm at low magnification and 10 × 5.6 mm at high magnification, covering rapid positioning and detailed inspection. Output interfaces include HDMI 2.0, USB 3.0 (USB Video captured via ToupView) and Ethernet (ToupView network transmission), with optional USB 5G Wi-Fi adapters for wireless streaming.
Feature highlights include real-time depth-of-field fusion, real-time image stitching, RAW capture, H.264 recording (4K storage frame rate up to 60 fps), automatic upload of captured images, and USB audio control module voice commands (capture/record/freeze), enabling efficient workflows across inspection, teaching and automation scenarios.
AFDM511 Key Functions
4K Low-Latency Display (HDMI)
HDMI 2.0 4K @ 60 fps with typical latency around 40 ms for smooth real-time operation.

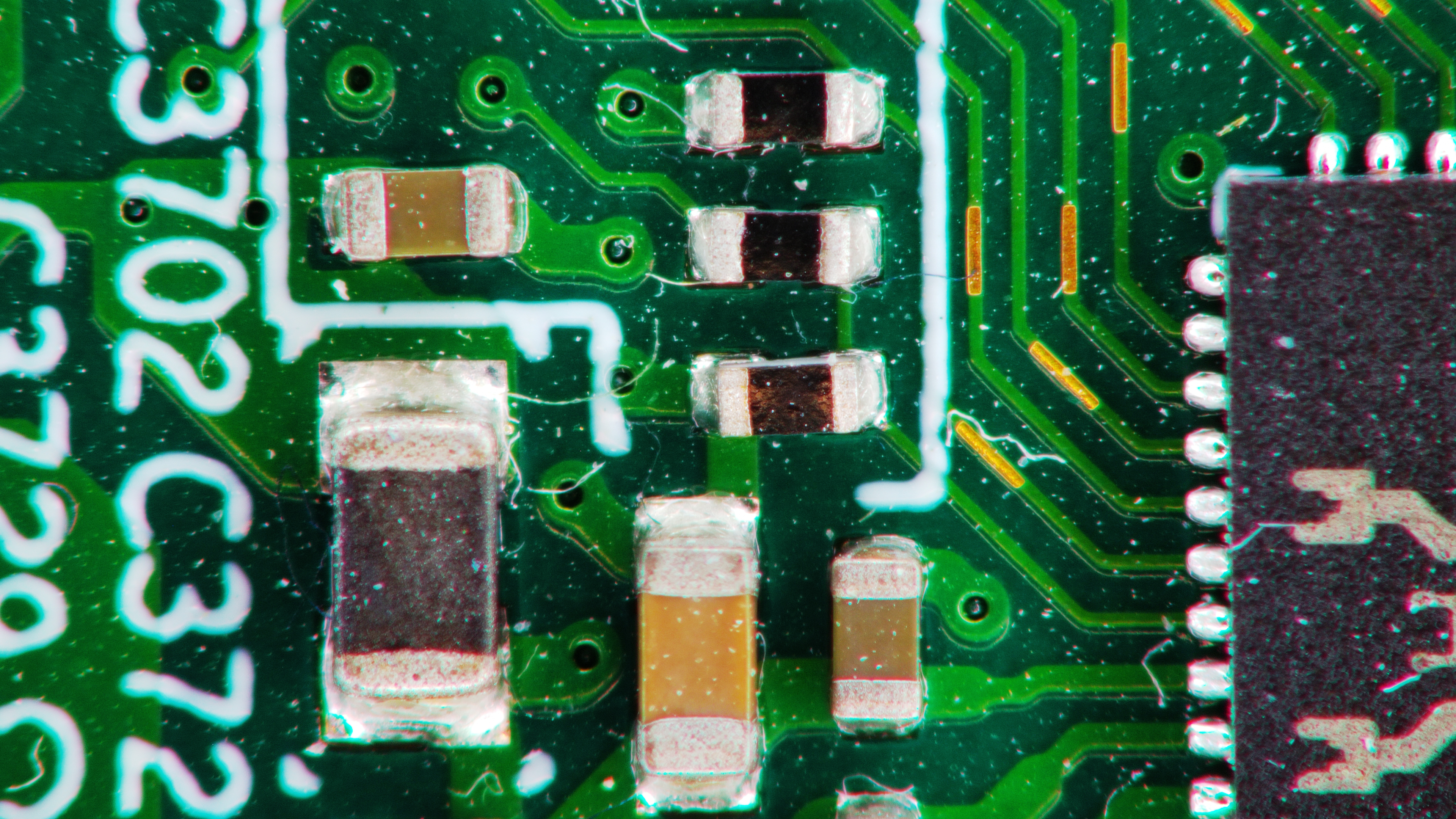

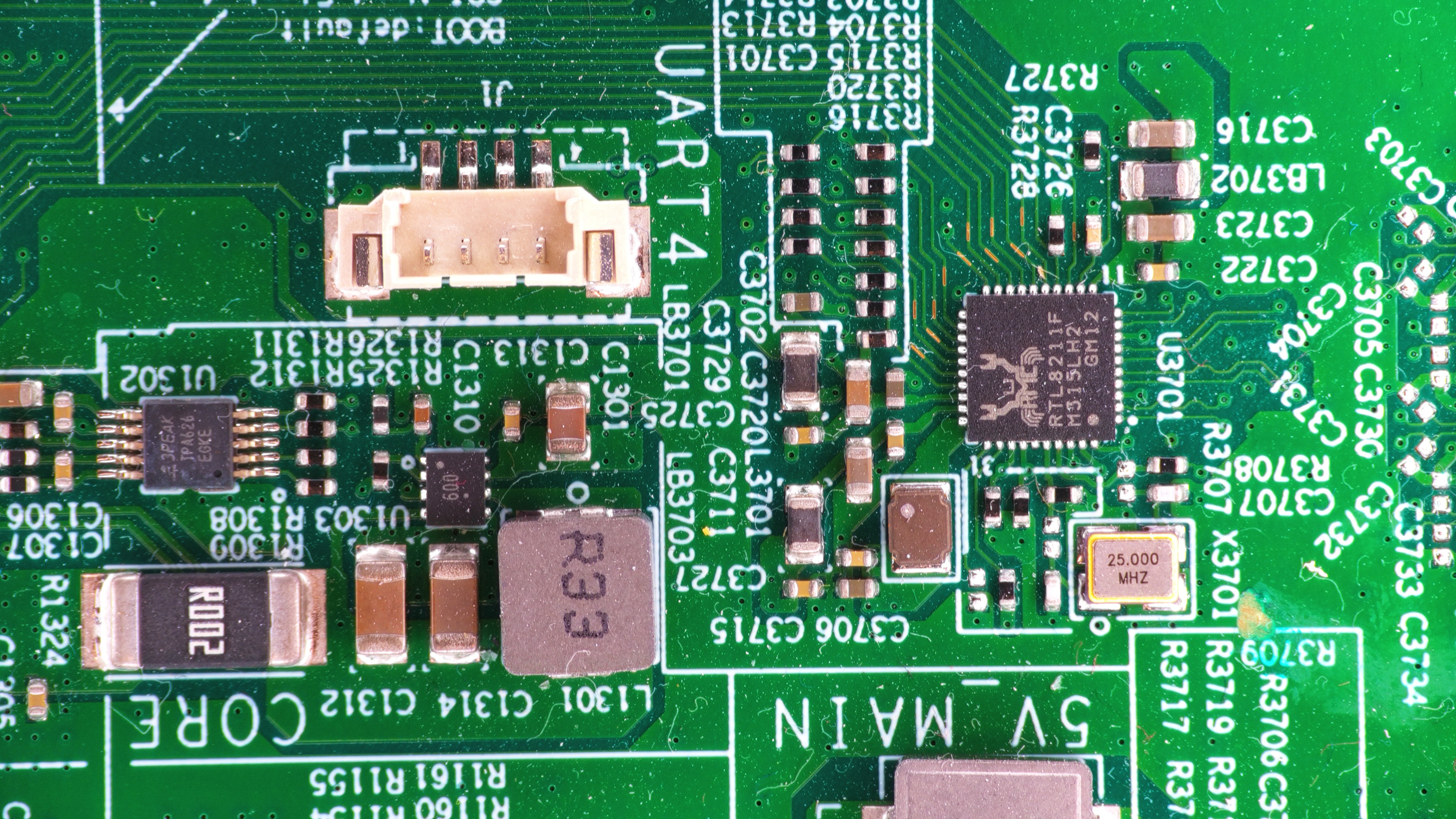

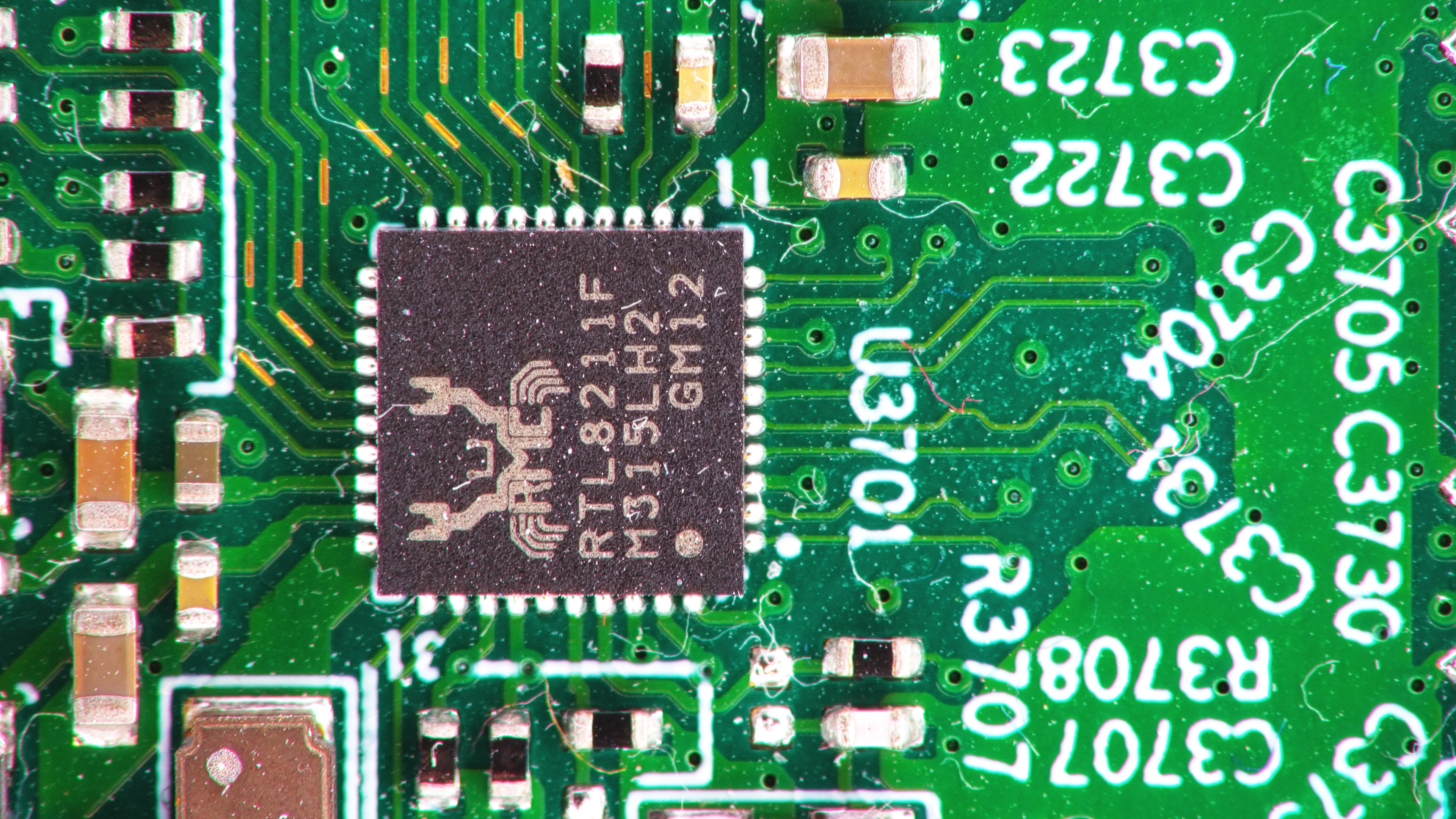

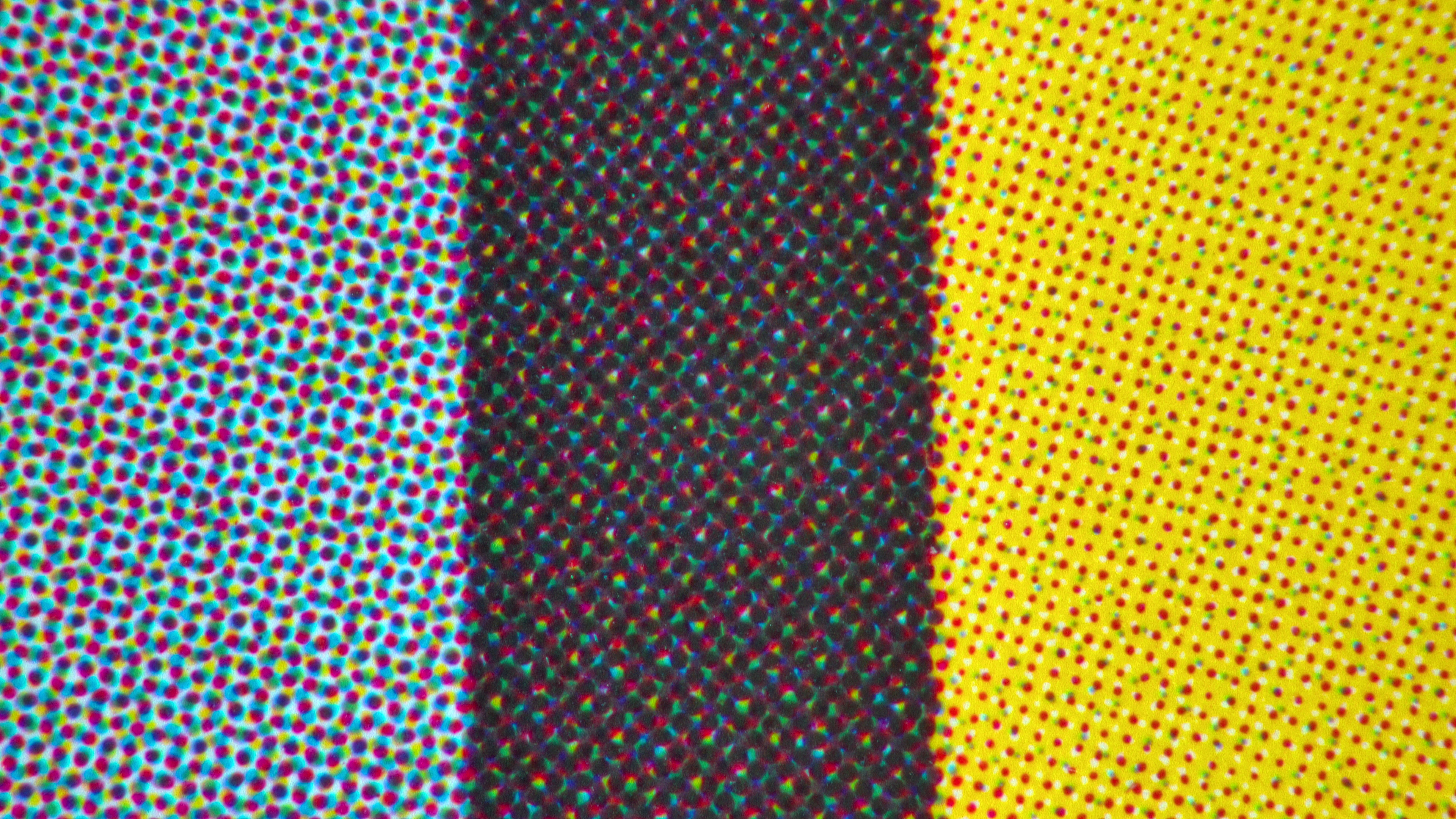

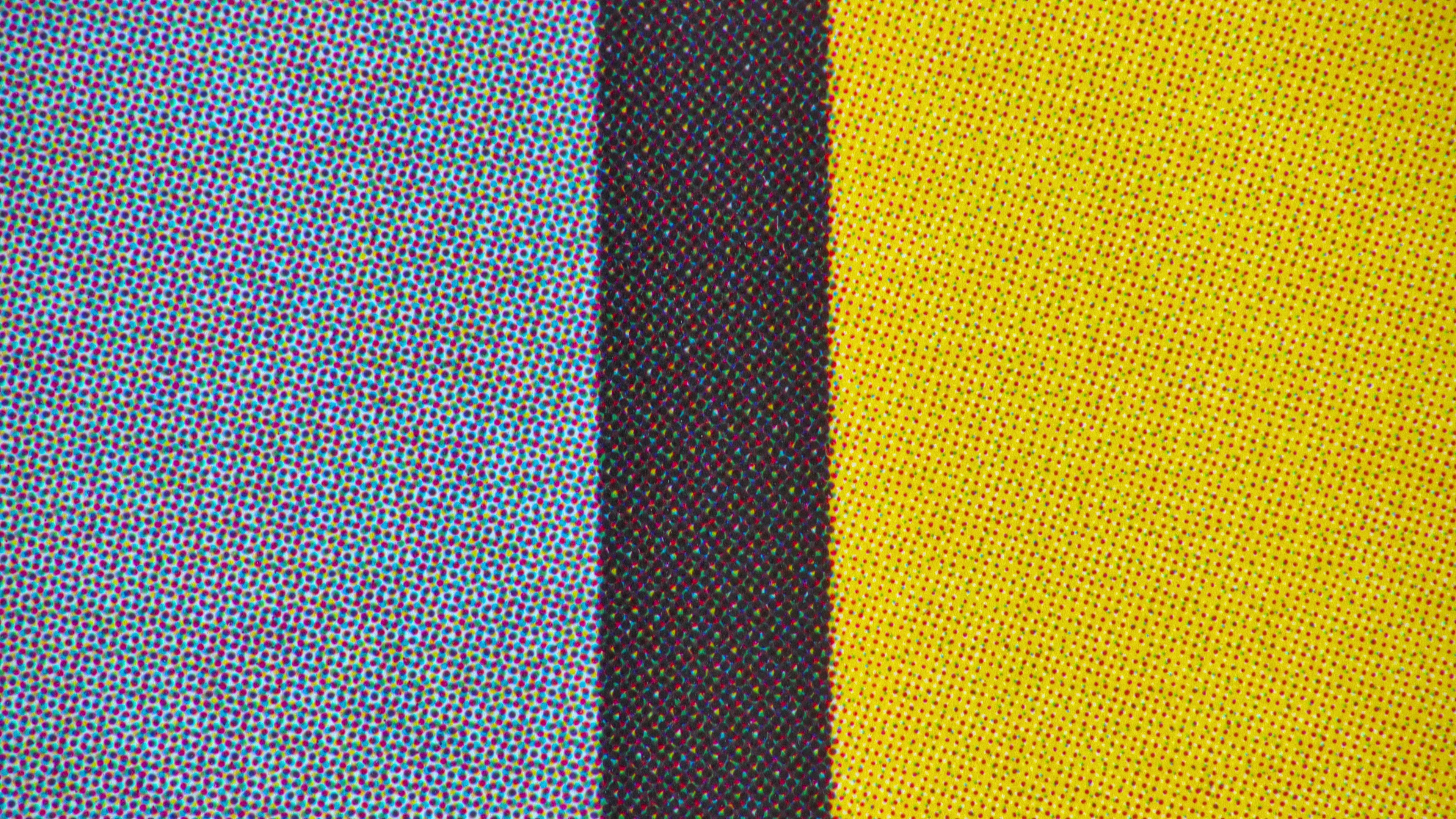

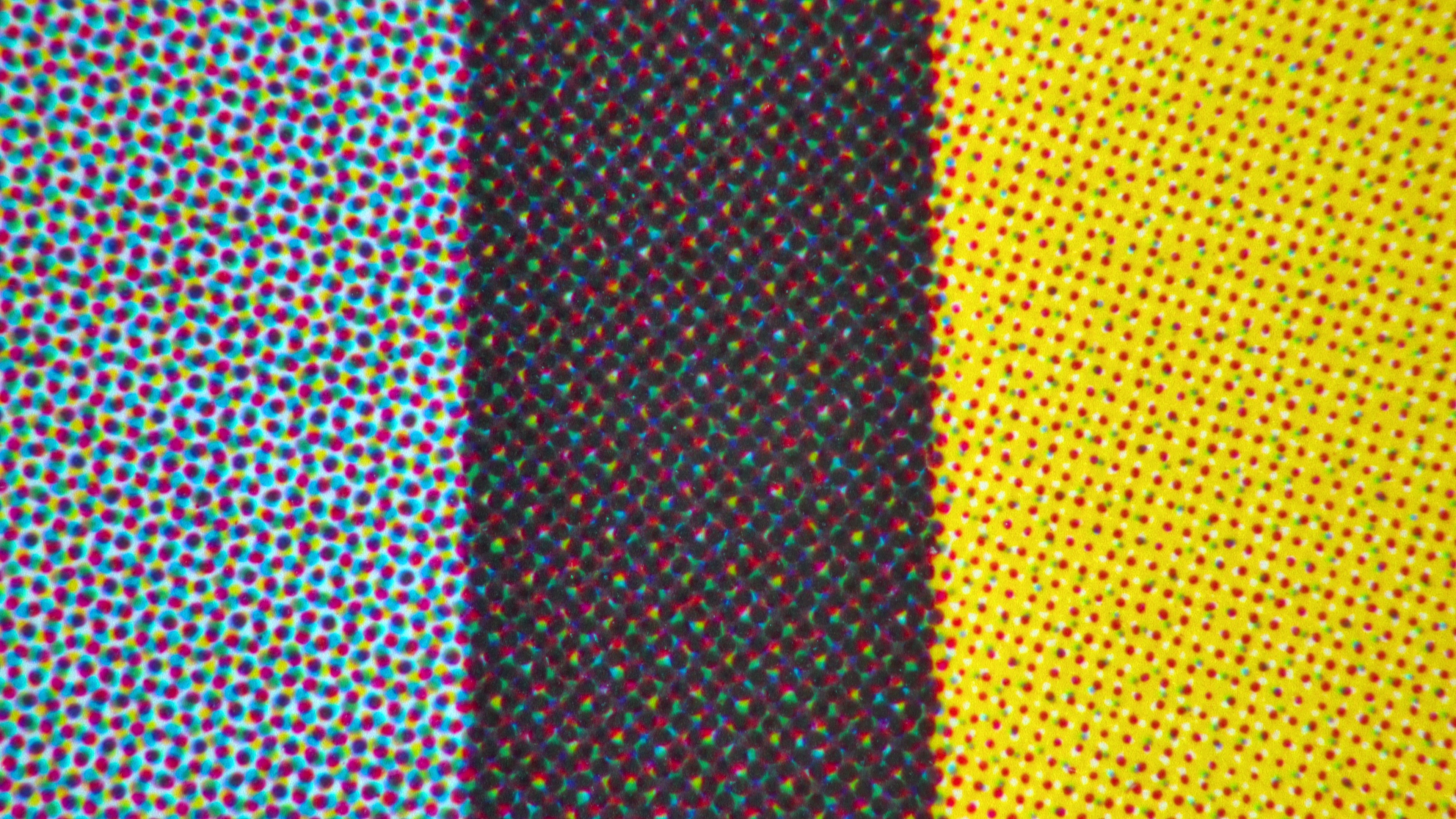

20× Motorized Zoom
0.028×–0.56× continuous optical zoom with auto/manual focus and focus-plus-depth fusion modes.
STARVIS Sensor
Sony IMX415 (1/2.8", 8 MP) delivers sharp imaging with excellent signal-to-noise performance.
Voice Control (USB audio module)
Supports capture, record and freeze commands through the USB audio control module.
Real-Time Depth Fusion
Real-time video depth-of-field fusion plus multi-image depth stacking to enhance clarity.
Real-Time Image Stitching
Live processing with seamless stitching to generate larger high-quality fields of view.
Measurement and Calibration
Built-in measurement toolbar with calibration data (1–20×) for geometric measurement and data export.
Open SDK
Multi-platform SDK for Windows/Linux/macOS/Android (C/C++, C#/VB.NET, Python, Java, etc.).
Recording and Upload
Supports H.264 4K recording with automatic upload of captured files and local SD/USB playback.
Multi-Interface and Wireless Expansion
HDMI/USB 3.0/LAN outputs with optional 5G Wi-Fi adapter for wireless streaming via ToupView.
AFDM511 Core Advantages
Low-Latency Monitoring
HDMI 4K @ 60 fps with ~40 ms latency for responsive operation.
Wide Magnification Coverage
20× motorized zoom with auto/manual focus balances quick positioning and detailed observation.
Advanced Imaging
Real-time depth fusion, live stitching, 3D noise reduction and ROI white balance keep images clear.
Versatile Connectivity
HDMI/USB/LAN integration with wireless expansion and automatic file upload support.
Effortless Measurement
Built-in calibration and measurement tools deliver ready-to-use geometric measurement and data export.
Easy Integration
Cross-platform, multi-language SDK simplifies integration with existing systems.
