DRL-10040/DRL-10065
Product Introduction
High-brightness LED ring light source compatible with continuous zoom microscopes and stereo microscopes, providing uniform illumination at 80–130 mm working distances, suitable for PCB inspection and electronic component analysis.
Product Features
- 18 high-brightness LEDs with uniform light diffusion lens array provide shadow-free uniform illumination
- Supports 80–130 mm working distance range with uniformity above 80%
- Includes dimmer controller and multi-country power adapters
- Compatible with various microscope stands and lens interfaces
- Suitable for electronic inspection, industrial quality control, and educational experiments
LED Ring Light Source
High-brightness LED ring light source compatible with continuous zoom microscopes and stereo microscopes, providing uniform illumination at 80–130 mm working distances, suitable for PCB inspection and electronic component analysis.
| Model | Outer Diameter | Mount Diameter | Light Configuration | Power Specifications | Illumination Range | Special Features |
|---|---|---|---|---|---|---|

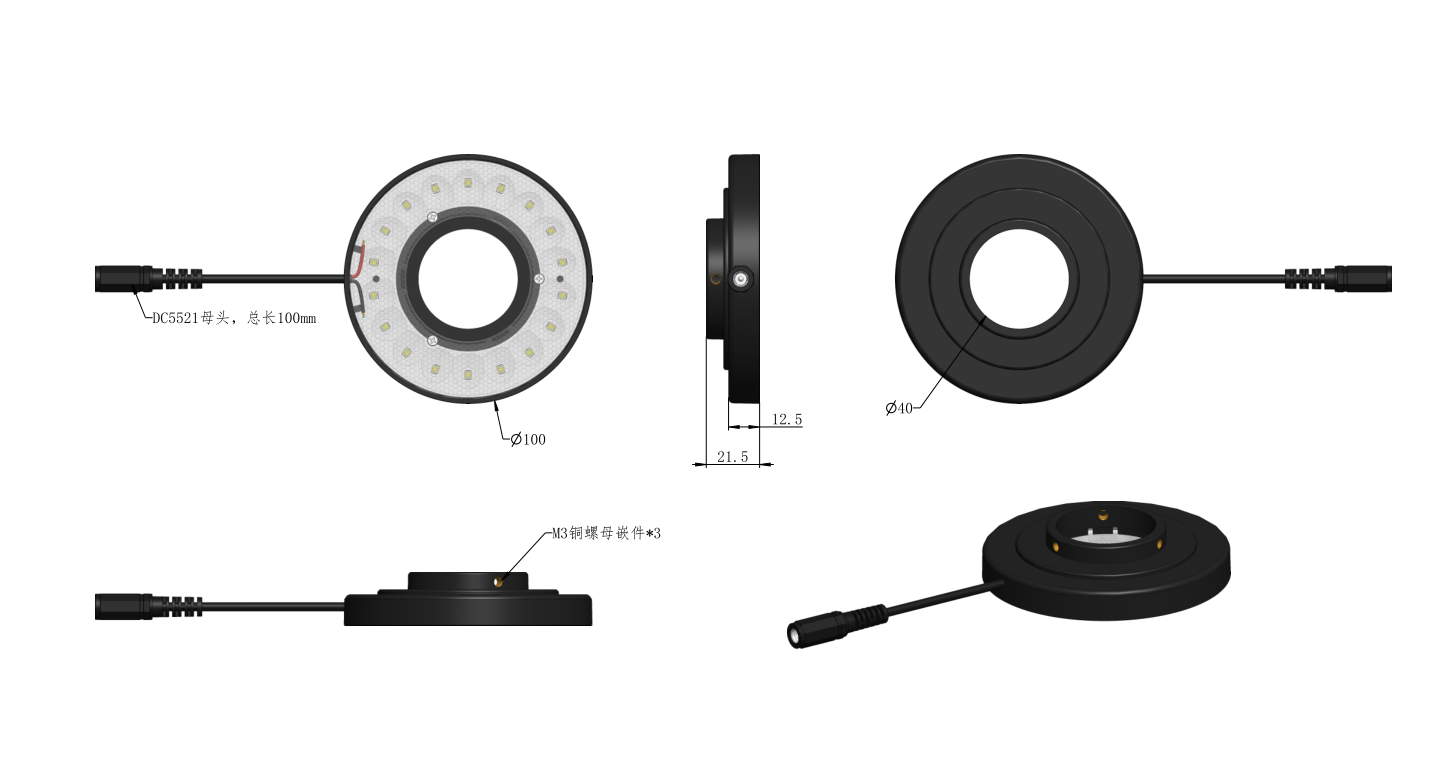

| DRL-10040 | 100 mm | 40 mm | 18 high-brightness LEDs + uniform diffusion lens | 12 V/1A | 80–130 mm | Uniform Light Lens Array 80%+ Uniformity Multi-Country Power Adapters |

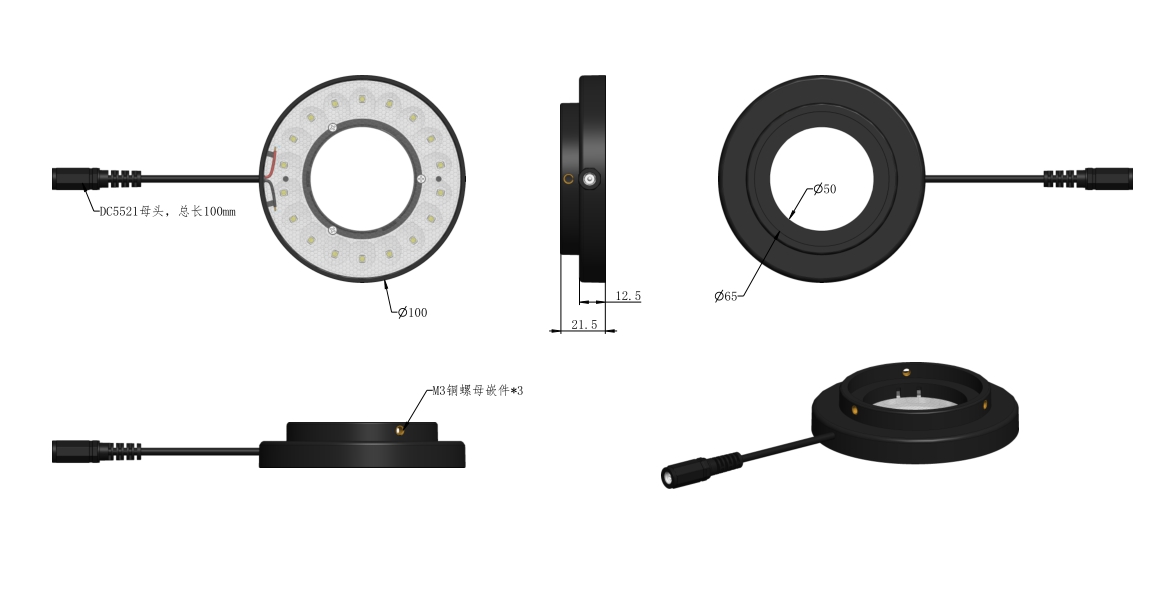

| DRL-10065 | 100 mm | 65 mm | 18 high-brightness LEDs + uniform diffusion lens | 12 V/1A | 80–130 mm | Uniform Light Lens Array 80%+ Uniformity Multi-Country Power Adapters |
Product Features
18 high-brightness LEDs with uniform light diffusion lens array provide shadow-free uniform illumination
Supports 80–130 mm working distance range with uniformity above 80%
Includes dimmer controller and multi-country power adapters
Compatible with various microscope stands and lens interfaces
Suitable for electronic inspection, industrial quality control, and educational experiments
In-Depth Introduction
The DRL-10040/DRL-10065 series LED ring lights serve as a professional microscopic imaging illumination solution, specifically designed for PCB inspection, electronic component analysis, solder joint observation, and industrial quality control applications requiring high-precision observation, delivering exceptional illumination performance and flexible system compatibility.
Technical Features
- Integrated High-Performance Illumination System: The DRL series integrates 18 high-brightness LEDs with professional diffusion lens array, providing wide-range, uniform shadow-free illumination with dedicated dimmer controller for precise brightness adjustment

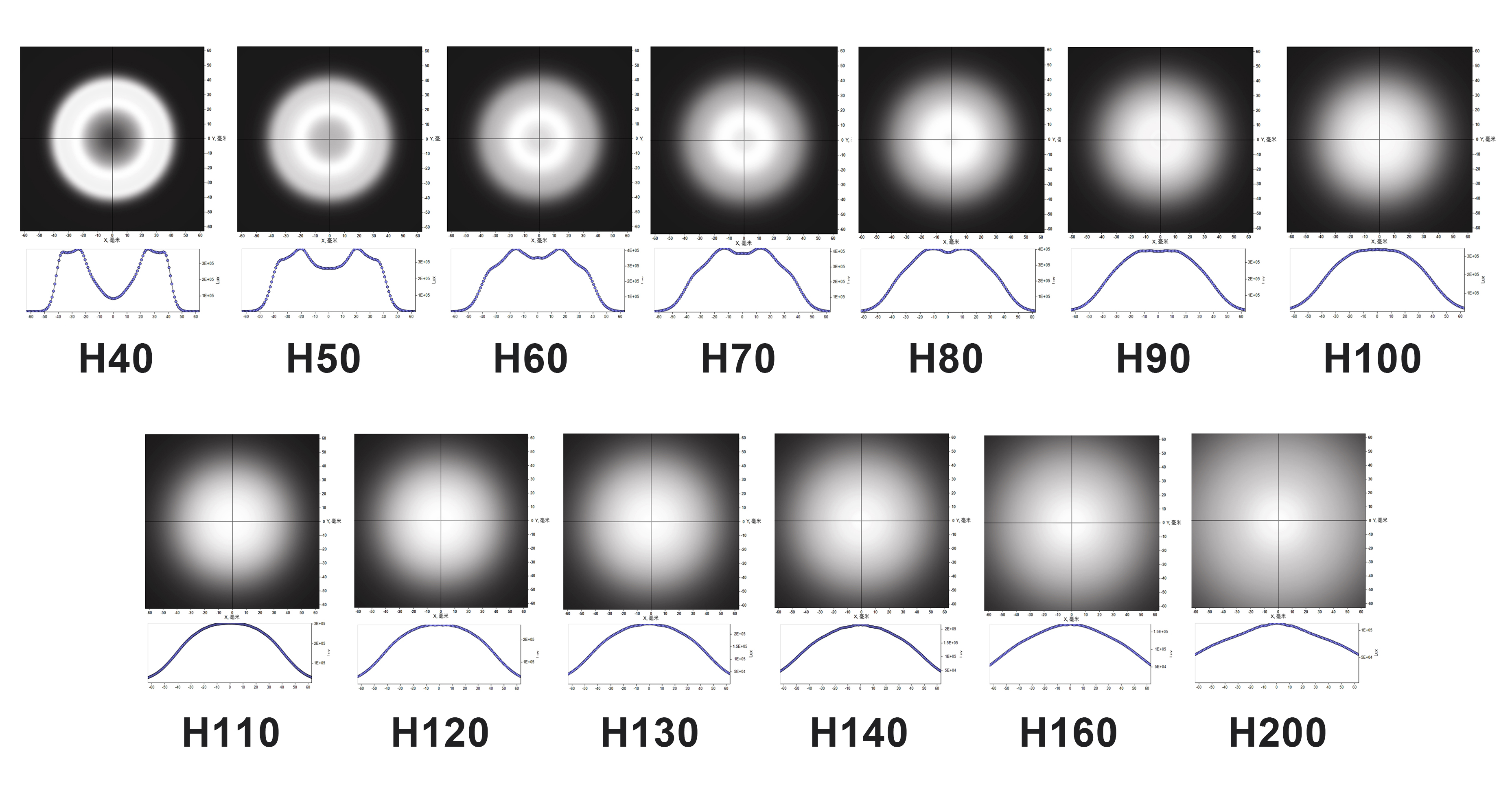

- Professional Optical Performance: Achieves illumination uniformity of over 80 % within 80–130 mm working distance range, with optical design that reduces reflections and shadows to enhance surface inspection visibility and detail rendering
- Flexible Compatibility and Expandability: Features both 40 mm and 65 mm mounting interfaces, compatible with monocular continuous zoom microscopes, stereo microscopes, and industrial inspection stands, with support for coaxial or polarized light sources
- User-Friendly Design and Rapid Deployment: Includes dimmer controller and multi-regional standard power adapters for plug-and-play operation, with lightweight structure supporting quick installation and replacement for convenient mobility and flexible deployment
Core Advantages
-
1
High-Brightness Uniform Illumination 18 high-brightness LEDs with diffusion lens array provide shadow-free professional lighting
-
2
Exceptional Illumination Performance Illumination uniformity ≥80 % at 80–130 mm working distance ensures consistent brightness across entire field
-
3
Multi-Interface Compatibility Supports both 40 mm and 65 mm mounting interfaces for various microscopes and inspection stands
-
4
Plug-and-Play Design Includes dimmer controller and universal power supply for rapid deployment and convenient operation
-
5

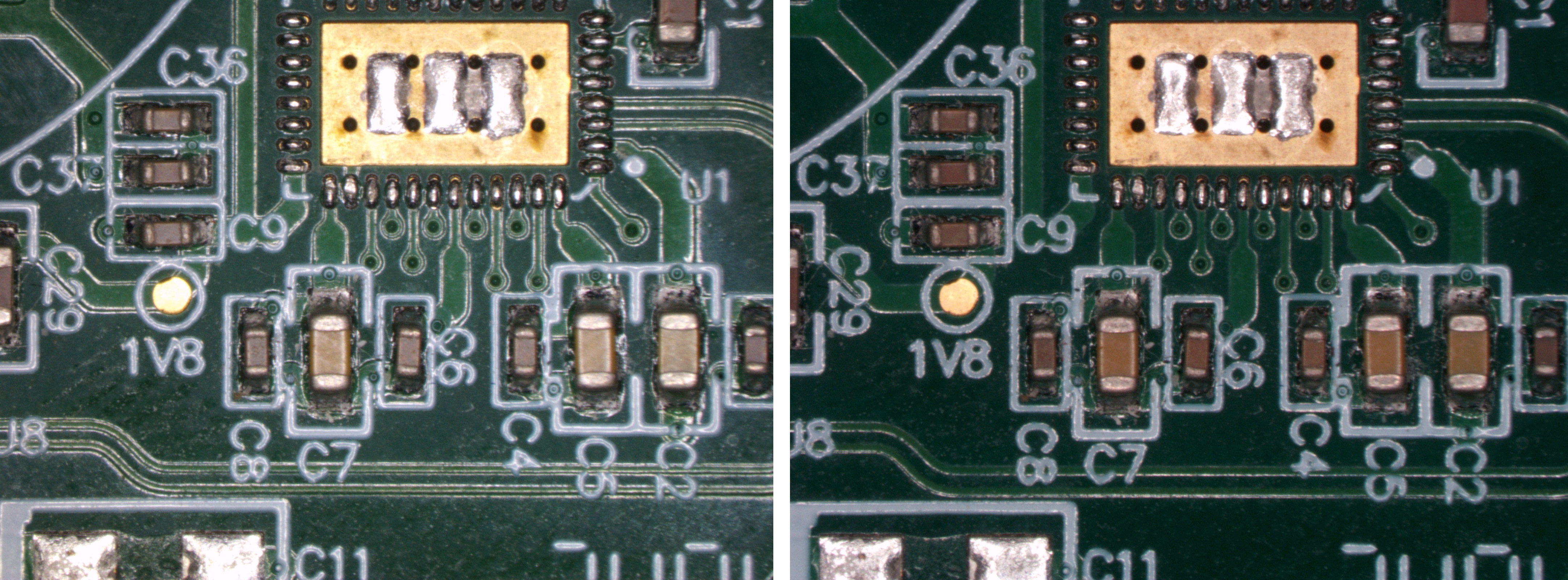

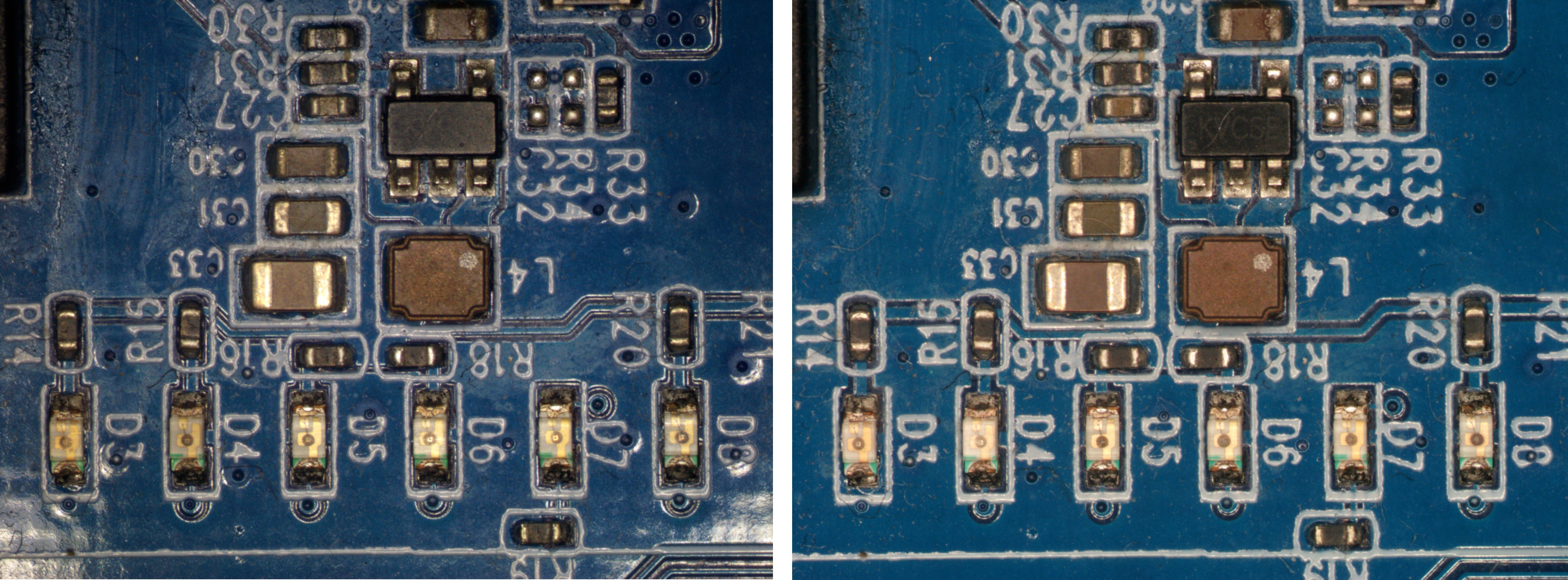

Wide Application Range Suitable for PCB inspection, electronic component analysis, solder joint observation, and industrial quality control environments
