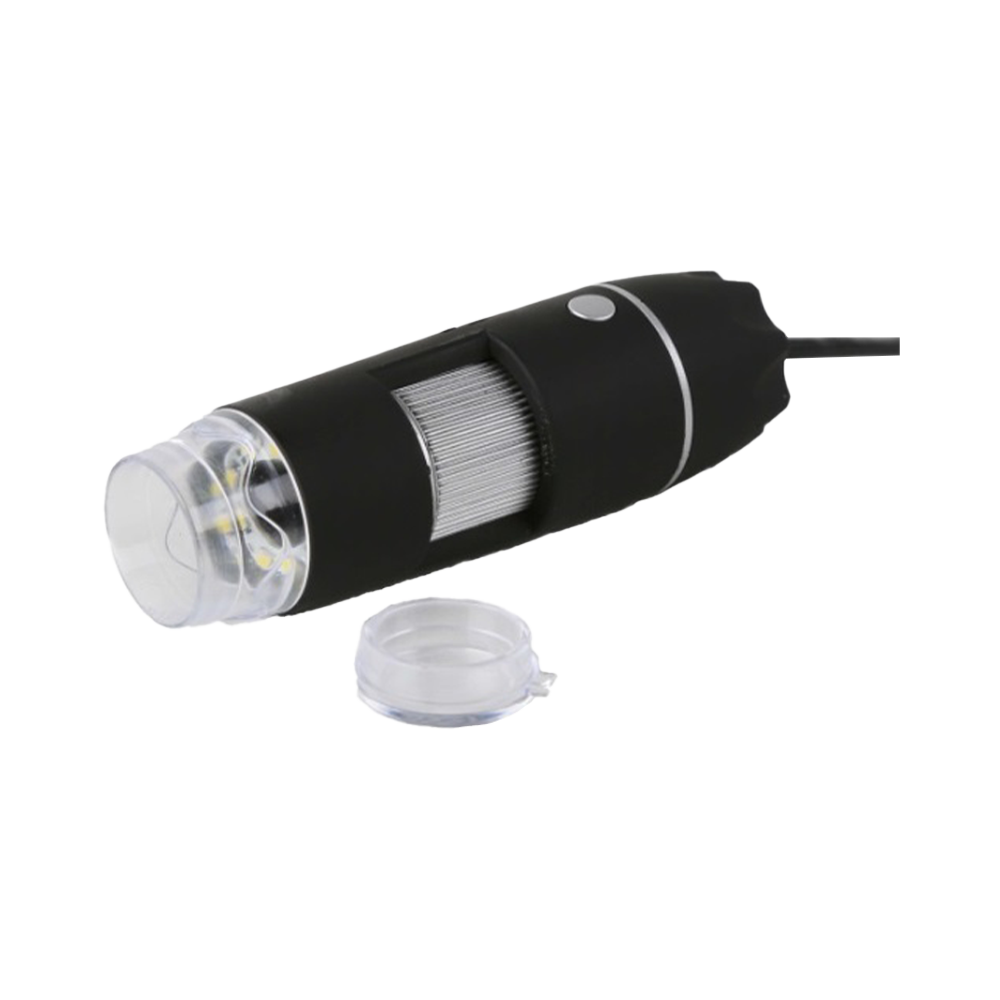

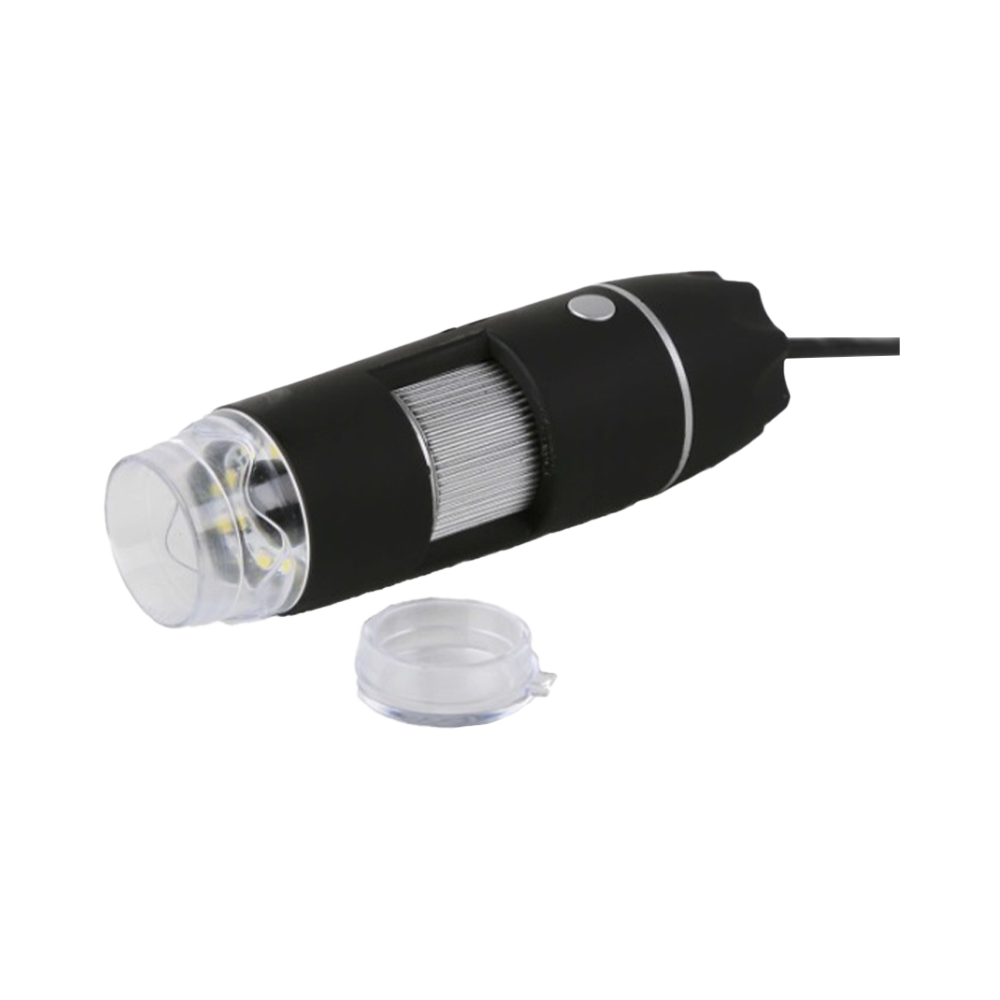

HCAM Series

Product Introduction

The HCAM digital microscope represents a digital microscope with moderate magnification and convenient operation. The magnification ranges from 10× to 200× (display dependent, non-continuous, non-linear), making it suitable for observing stamps, coins, insects, plants, small rocks, skin, gems, circuit boards, and other specimens. At high magnifications, it can also be used to observe traditional biological slides.

Furthermore, the built-in 0.35MP, 1.3MP, or 2.0 MP CMOS camera can capture and save images and videos of observed samples to a computer. The microscope's LED illumination ensures clear and bright specimen viewing. The included metal stand ensures stability and accurate focusing when observing objects at high magnifications, providing practical convenience.

ToupTek portable digital microscopes serve as educational and entertaining tools for both students and adults, making them highly suitable for hobbyists, quality control inspectors, medical professionals, and researchers.

The HCAM series portable USB interface microscopes are divided into two major categories: KPA and KPB.

Product Features

  • USB-powered portable digital microscope with magnification adjustable from 10× to 200× (non-linear)
  • Built-in 0.35MP, 1.3-megapixel, or 2-megapixel digital camera (KPA) for capturing photos and videos
  • Built-in 0.35MP to 5-megapixel digital camera (KPB) for capturing photos and videos
  • 8-LED ring illumination
  • Uses included Windows software to capture images and videos with built-in measurement menu for specimen measurement
  • Computer requirements: CD/DVD drive and USB2.0 port. UVC plug-and-play support for Windows 7/8/10, Vista, and XP (32/64-bit)
Get Quote Product Manual

Portable USB2.0 Digital Microscope

Model Sensor/Size Effective Pixels Output Resolution Frame Rate (fps) Output Interface Lens Mount Storage Support Featured Functions
HCAM200A
Sony IMX323(C)
1/2.9" (6.3×3.6mm)
 2.8 µm × 2.8 µm 2MP (1920×1080) 30 fps@1920×1080 USB2.0 Integrated lens body Computer storage Portable lightweight design Built-in LED illumination USB2.0 powered 2MP high-definition imaging Multi-platform SDK support

HCAM Series Integrated Continuous Zoom Microscopy Imaging System — Product Overview

TuPu Optics HCAM Series Integrated Microscopy Imaging System incorporates continuous zoom optical assembly, high-resolution digital camera (supporting HDMI/USB/Wi-Fi multi-interface output), and replaceable LED illumination systems into a unified platform, providing plug-and-play high-definition imaging and measurement solutions for electronics and semiconductor inspection, materials analysis, biological research, educational training, and industrial online inspection.

This series supports 4K, 1080P, USB, and Wi-Fi imaging output options, featuring 0.7×–5.6× continuous zoom optical lens. Users can begin operation immediately without additional assembly or calibration requirements.

Detailed Features

1
Integrated High-Performance System

Integrates continuous zoom microscope lens, high-sensitivity digital camera module, and ring/coaxial illumination systems, enabling rapid deployment without separate configuration requirements.

Rear panel supports HDMI, USB, and Wi-Fi output, meeting laboratory local display, PC acquisition, and wireless network collaboration needs.

2
Professional Optical Performance

Features 0.7×–5.6× continuous zoom optical system with working distance of 37.5–160 mm (depending on auxiliary objective lens), accommodating both wide field and high magnification application scenarios.

High numerical aperture (NA) and multi-layer coated lens design provide high resolution, low distortion, and excellent depth of field performance.

3
Flexible Illumination and Expandability

Standard configuration includes adjustable LED ring light source, which can be replaced with coaxial or polarized light sources as needed, suitable for high-reflectivity or complex-textured samples.

Compatible with standard C-Mount interface, auxiliary objectives, and multiple adapter types, supporting system expansion and upgrades.

4
Efficient Setup and Easy Operation

Provides HDMI 1.4 video output, USB 3.0 data transmission, and Wi-Fi wireless connectivity, featuring plug-and-play operation suitable for multi-terminal collaboration and remote demonstration.

Built-in control interface supports brightness adjustment, photography, video recording, and real-time measurement, streamlining educational and research operational workflows.

Core Advantages

1
Multi-Interface High-Definition Output

Supports 4K, 1080P, USB, and Wi-Fi, meeting real-time display, acquisition, and sharing requirements.

2
Highly Integrated Design

Unified optical assembly, camera, and illumination modules reduce user setup and calibration costs.

3
Broad Applicability

Suitable for electronics, semiconductors, biological sciences, materials, and industrial inspection across multiple scenarios.

4
Exceptional Imaging Quality

Wide field of view, high resolution, expandable magnification, and superior depth of field control.

5
Simple Operation and High Efficiency

Ready-to-use operation supporting multiple light sources and software control, enhancing education, research, and inspection efficiency.
