TAFDM41X Series
Product Introduction

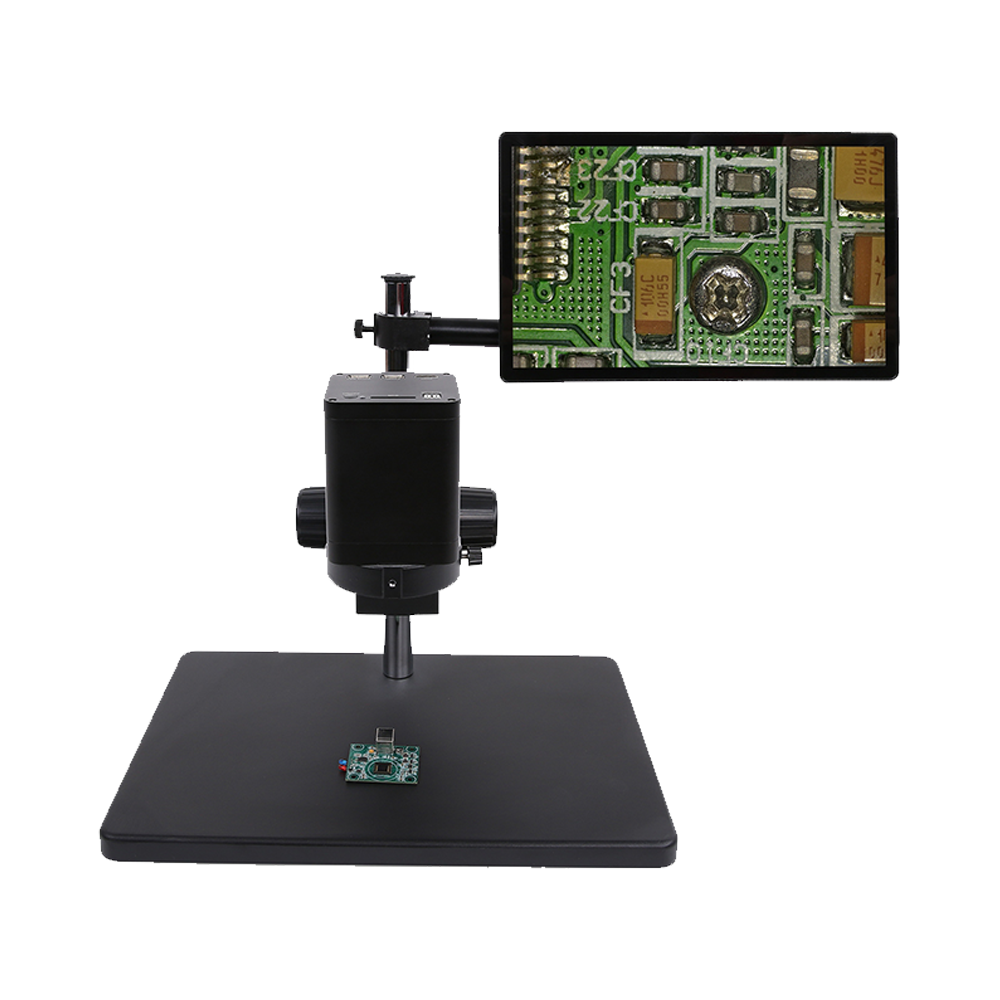

TAFDM41X is an integrated touchscreen continuous zoom autofocus microscope system supporting 4K ultra-high-definition output (4K@30 fps), featuring a built-in 13.3-inch 1080P touchscreen interface (switchable between touch and mouse modes), integrated motorized continuous optical zoom and auto/manual focus, suitable for live demonstrations, educational training, and high-end inspection scenarios requiring intuitive operation.
Product Features
- 4K ultra-high-definition output (4K@30 fps) with rich image details
- Switchable touch/mouse dual interface with 13.3-inch 1080P integrated touchscreen interaction
- Motorized continuous optical zoom + auto/manual focus (TAFDM411: 20×; TAFDM412: 18×)

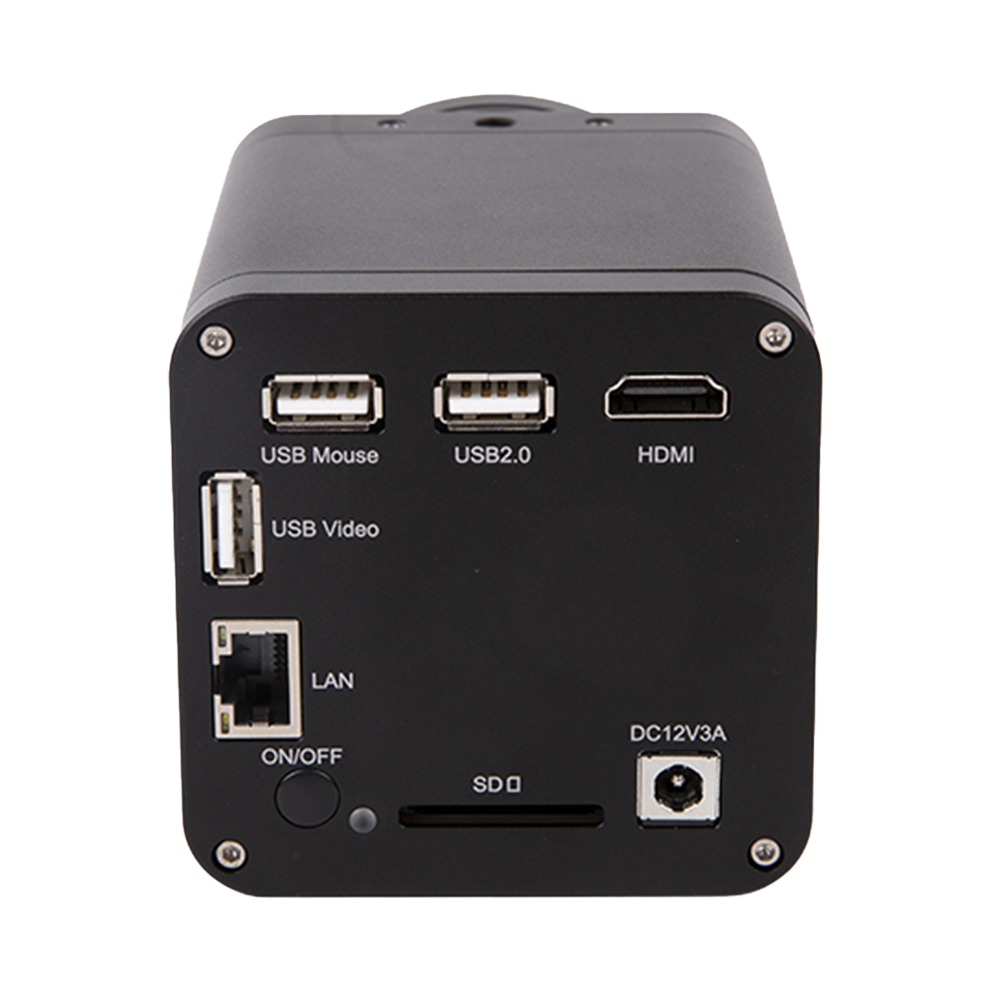

- USB/HDMI/Ethernet multi-interface output, HDMI 4K/1080P adaptive switching
- Built-in XCamView measurement and analysis suite, supports local capture/recording and playback
- Supports depth-of-field synthesis, image stitching and other advanced features (if enabled)
- Magnetic head-mounted LED ring light controlled by camera
- Suitable for high-end inspection, live demonstrations, educational training and other scenarios
4K HDMI/USB/NETWORK/Touchscreen Continuous Zoom Autofocus Digital Microscope (Integrated Touchscreen)
TAFDM41X is an integrated touchscreen continuous zoom autofocus microscope system supporting 4K ultra-high-definition output (4K@30 fps), featuring a built-in 13.3-inch 1080P touchscreen interface (switchable between touch and mouse modes), integrated motorized continuous optical zoom and auto/manual focus, suitable for live demonstrations, educational training, and high-end inspection scenarios requiring intuitive operation.
| Model | Sensor | Max Resolution & Frame Rate | Output Interface | Optical Zoom | Standard Working Distance | Lens Type | Features | Action |
|---|---|---|---|---|---|---|---|---|
| TAFDM412 |
Sony IMX415LQR-C
1/2.8" (5.57×3.13 mm)
|
8MP (3840×2160)
30 fps@3840×2160
|
HDMI1.4 USB Video Ethernet Wi-Fi 13.3-inch touchscreen | 18× (0.0218X~0.392X) | 205~255 mm (standard 250 mm) | EMZO-18XA-250 lens | Touchscreen 4K Ultra HD Autofocus 18× Zoom | View Details |
| TAFDM411 |
Sony IMX415LQR-C
1/2.8" (5.57×3.13 mm)
|
8MP (3840×2160)
30 fps@3840×2160
|
HDMI1.4 USB Video Ethernet Wi-Fi 13.3-inch touchscreen | 20× (0.028X~0.56X) | 150~195 mm (standard 192 mm) | EMZO-20XA lens | Touchscreen 4K Ultra HD Autofocus 20× Zoom | View Details |
TAFDM41X Camera Series | Packing List #
Standard Packing List
- A Camera box size: 33 cm × 21.5 cm × 6.8 cm
- B 1080p touchscreen ×1
- C TAFDM41X series camera ×1
- D Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 3 A; US HKA03612030-7K (UL/CE/FCC, with US AC cord), EU HKA03612030-7K (UL/CE/FCC, with EU AC cord); EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
- E USB Type-A to Type-C cable 0.5 m (for close screen placement)
- F USB Type-A to Type-C cable 1.5 m (for distant screen placement)
- G HDMI cable 0.5 m (for close screen placement)
- H HDMI cable 1.5 m (for distant screen placement)
- I USB2.0 Type-A male to Type-A male cable 1.5 m
- J CD (driver and applications, Ø12 cm)
Optional Accessories
- K Mouse
- L SD card (16 GB+, Class 10)
- M 32 GB USB drive
- N LED ring light (DRL-5076A-NPC) or AALRL-200-7650
- O Ethernet cable
- P USB wireless network adapter (required for WiFi mode; appearance varies by model)
- Q Micrometer: 106011/TS-M1 (X=0.01 mm/100Div.), 106012/TS-M2 (X,Y=0.01 mm/100Div.), 106013/TS-M7 (X=0.01 mm/100Div., 0.10 mm/100Div.)
TAFDM41X Product Deep Dive
The TAFDM41X series is an all-in-one touchscreen motorized zoom autofocus digital microscope. It integrates a 13.3-inch 1080p touchscreen with touch/mouse dual UI control. Powered by the Sony IMX415LQR-C sensor (1/2.8"), it delivers 4K (3840×2160) output with HDMI/USB/Network all reaching 4K @ 30 fps.
TAFDM411 ships with the EMZO-20XA lens for 20× motorized continuous zoom (0.028X–0.56X), a standard working distance of 192 mm (150–195 mm AF range), 200×112.5 mm FOV at low mag, and 10×5.6 mm at high mag. TAFDM412 uses the EMZO-18XA-250 lens for 18× motorized continuous zoom (0.021X–0.39X), a 250 mm working distance (205–255 mm AF range), 255×145 mm FOV at low mag, and 14.2×8 mm at high mag.
XCamView is built in, allowing direct control of camera panels, measurement toolbar, image adjustment toolbar, and autofocus panel on the touchscreen. It supports HDMI 1.4 (4K/1080p auto switch), USB Video (UVC), and Ethernet; a 5G WiFi adapter via USB enables wireless transmission (AP/STA modes). The system offers robust ISP tools such as sharpening, 3D noise reduction, and ROI white balance, plus SD card/USB local storage with H.264/H.265 video (recording at 30 fps).
TAFDM41X Key Features
Integrated Touch Control
13.3-inch 1080p touch display with touch/mouse dual UI for intuitive control.
Motorized Continuous Zoom
TAFDM411: 20× zoom (0.028X–0.56X); TAFDM412: 18× zoom (0.021X–0.39X).
Auto/Manual Focus
Auto focus, single-shot focus, and manual focus modes with customizable AF area.
Wide FOV Observation
TAFDM411: 200×112.5 mm at low mag; TAFDM412: 255×145 mm at low mag for quick targeting.
Built-In Measurement
Supports calibration, geometric measurements, and CSV export.
Multi-Interface Output
HDMI/USB Video/LAN/WiFi connectivity, ready for multi-camera networking.
ISP Image Processing
Sharpening, 3D noise reduction, ROI white balance, Ultra-Fine color engine, local dynamic range tuning.
Local Capture & Playback
SD card/USB storage for image capture, video recording (H.264/H.265), and on-device playback.
Multi-Language UI
Supports English/Simplified Chinese/Traditional Chinese/Korean/Thai/French/German/Japanese/Italian.
LED Illumination Control
Magnetic LED ring light with camera-controlled brightness for convenience.
TAFDM41X Core Advantages
All-in-One Touch Design
Built-in 13.3-inch touchscreen, plug-and-play without external monitors.
Flexible Dual UI
Switch between touch and mouse interfaces to suit any workflow.
4K Real-Time Output
Sony 1/2.8\" 4K Starvis CMOS for high SNR and crisp image quality.
Wireless Expansion
Supports 5G WiFi adapter with AP/STA modes for wireless deployment.
Multi-Camera Networking
Network multiple cameras over LAN/WiFi with unicast/multicast options.
Cross-Platform Software
Full support across Windows/Linux/macOS/iOS/Android.
Typical Applications
Industrial Inspection
PCB inspection, electronic component checks, solder joint analysis
Medical Observation
Pathology slides, cell culture, tissue sample review
Teaching & Research
Microscopy teaching, experiment data capture, academic studies
Automation Systems
Machine vision integration, inline quality control, smart manufacturing
