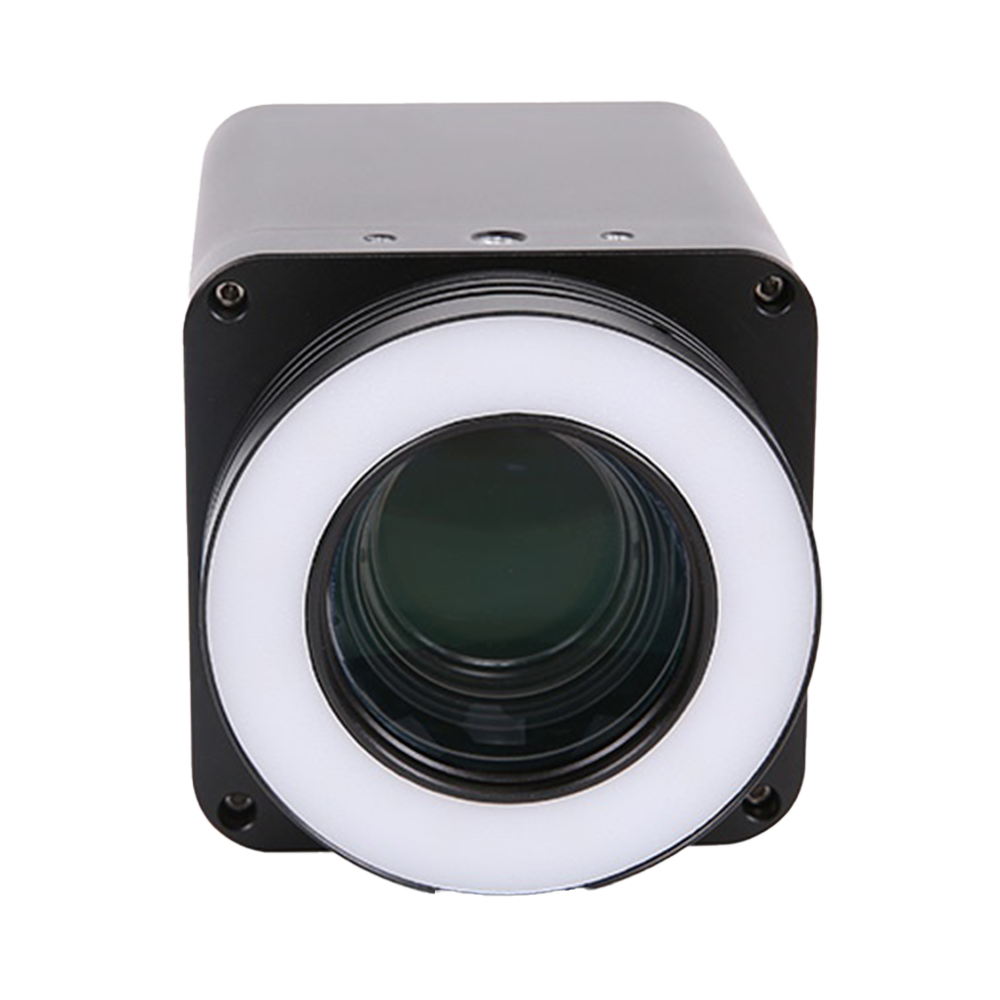

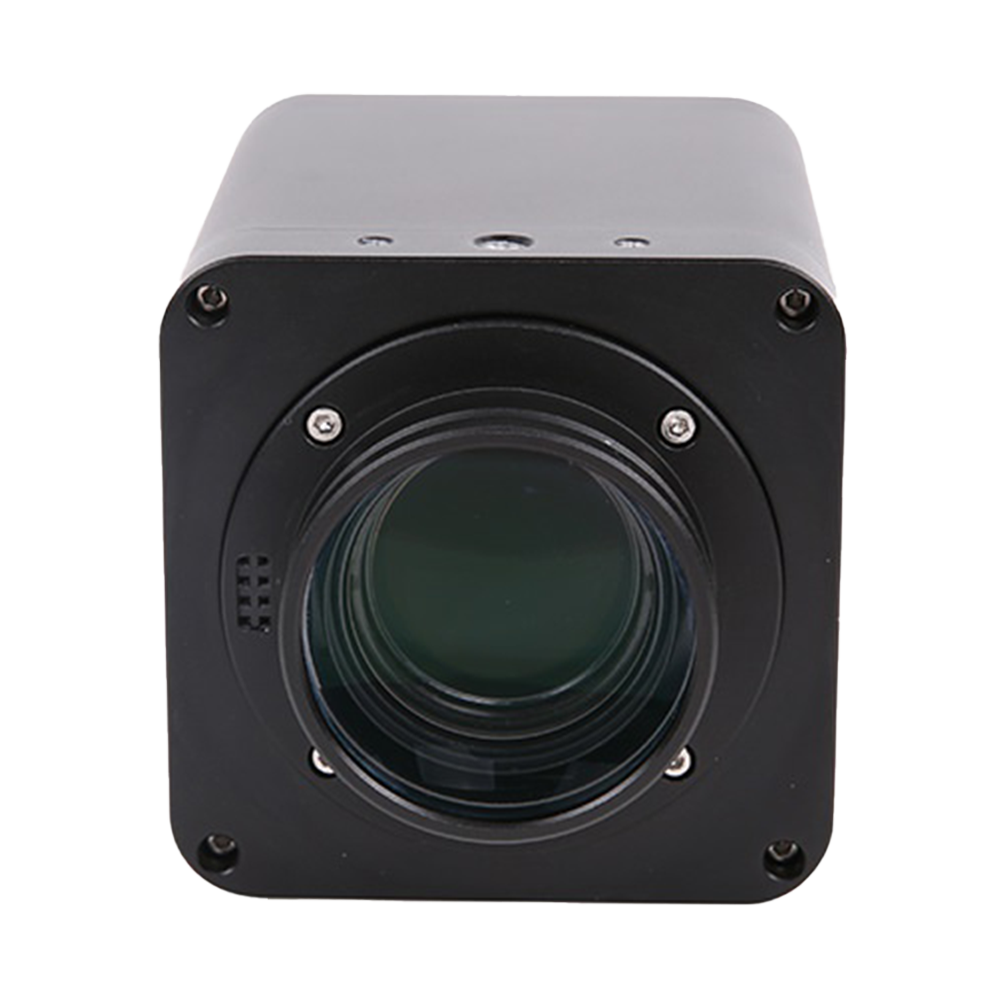

AFDM-Serie
Product Introduction
Die AFDM512-Serie verwendet hochleistungsfähige Sony IMX415 CMOS-Sensoren mit HDMI2.0-Unterstützung für 4K/60 fps Ausgabe bei niedriger Latenz von ≈ 40 ms. Das System integriert 18-fachen kontinuierlichen optischen Zoom mit Autofokus und bietet HDMI-, USB3.0- und Ethernet-Schnittstellen (unterstützt externes 5G Wi-Fi über USB) für Mehrfachausgabe. Die Serie eignet sich für hochpräzise industrielle Prüfungen, Echtzeitüberwachung und automatisierte Produktionslinien sowie andere Anwendungen mit höchsten Anforderungen an Geschwindigkeit und Präzision.
Product Features
- 4K60 Ultra-HD-Ausgabe, HDMI niedrige Latenz ≈ 40 ms, erfüllt Echtzeitanzeigeanforderungen
- Sony IMX415 CMOS, 8,3 MP hohe Auflösung, naturgetreue Farbwiedergabe
- 18-facher kontinuierlicher optischer Zoom + Autofokus, deckt Mehrfachvergrößerungen ab
- Mehrfachschnittstellenausgabe: HDMI 2.0 (4K60) / USB3.0 / Ethernet (externes 5G Wi-Fi möglich)
- Integrierte XCamView-Messsoftware, unterstützt Echtzeitmessung und Bildanalyse
- Unterstützt SD-Karte / USB-Stick lokale Speicherung, schneller Datenexport
- Magnetische oder externe LED-Ringbeleuchtung am Kopf, programmierbare Helligkeit
- Geeignet für Halbleiterprüfung, PCB-Analyse, Präzisionsmontage und andere High-End-Anwendungen
- Integrierte oder externe LED-Ring- und Koaxialbeleuchtung mit programmierbarer Helligkeit für vielfältige Probenausleuchtungen
- Mehrsprachige Menüs für weltweiten Einsatz, kompatibel mit Windows/macOS/Linux/Android/iOS (Funktionsumfang je nach Plattform)
- Breite Einsatzfelder: industrielle Inspektion, Elektronikfertigung, Materialanalyse, Life Sciences, medizinische Ausbildung, automatisierte Produktionslinien u. a.
4K60 HDMI/USB3.0/NETWORK Digitalmikroskop mit kontinuierlichem Zoom und Autofokus
Die AFDM512-Serie verwendet hochleistungsfähige Sony IMX415 CMOS-Sensoren mit HDMI2.0-Unterstützung für 4K/60 fps Ausgabe bei niedriger Latenz von ≈ 40 ms. Das System integriert 18-fachen kontinuierlichen optischen Zoom mit Autofokus und bietet HDMI-, USB3.0- und Ethernet-Schnittstellen (unterstützt externes 5G Wi-Fi über USB) für Mehrfachausgabe. Die Serie eignet sich für hochpräzise industrielle Prüfungen, Echtzeitüberwachung und automatisierte Produktionslinien sowie andere Anwendungen mit höchsten Anforderungen an Geschwindigkeit und Präzision.
| Model | Output Interfaces | Max Resolution & Frame Rate | Optical Zoom | Standard Working Distance | Sensor | Lens Type | Feature Tags | Actions |
|---|---|---|---|---|---|---|---|---|
| AFDM512A | HDMI2.0 USB3.0 LAN Wi-Fi |
8MP (3840×2160)
60fps@3840
|
18-fach (0,021× – 0,39×) | 205 – 255 mm (Standard 250 mm) |
Sony IMX415LQR-C
1/2.8" (5.57×3.13mm)
|
EMZO-18XA-250 integriertes Objektiv | 4K Ultra-HD Autofocus | View Details |
| AFDM512B | HDMI2.0 USB3.0 LAN Wi-Fi |
8MP (3840×2160)
60fps@3840
|
18-fach (0,0085× – 0,1529×) | 400 – 670 mm (Standard 640 mm) |
Sony IMX415LQR-C
1/2.8" (5.57×3.13mm)
|
EMZO-18XA-640 integriertes Objektiv | 4K Ultra-HD Ultra-Long Working Distance Autofocus | View Details |
| AFDM511A | HDMI2.0 USB3.0 LAN Wi-Fi |
8MP (3840×2160)
HDMI/USB/Netzwerk: 30 fps @ 38...
|
18-fach (0,0218× – 0,392×) | 205 – 255 mm (Standard 250 mm) |
Sony IMX415LQR-C
1/2.8" (5.57×3.13mm)
|
EMZO-20XA integriertes Objektiv | 4K Ultra-HD 18× Zoom Autofocus | View Details |
| TAFDM412 | HDMI1.4 USB Video LAN Wi-Fi 13,3-Zoll-Touchscreen |
8MP (3840×2160)
30fps@3840
|
18-fach (0,021× – 0,39×) | 205 – 255 mm (Standard 250 mm) |
Sony IMX415LQR-C
1/2.8" (5.57×3.13mm)
|
EMZO-18XA-250 integriertes Objektiv | Touchscreen Version 4K Ultra-HD Autofocus | View Details |
| TAFDM411 | HDMI1.4 USB Video LAN Wi-Fi 13,3-Zoll-Touchscreen |
8MP (3840×2160)
30fps@3840
|
18-fach (0,0218× – 0,392×) | 150–195 mm (Standard 192 mm) |
Sony IMX415LQR-C
1/2.8" (5.57×3.13mm)
|
EMZO-20XA-Objektiv | Touchscreen Version 4K Ultra-HD 18× Zoom Autofocus | View Details |
| AFDM412 | HDMI1.4 USB2.0 LAN Wi-Fi |
8MP (3840×2160)
30fps@3840
|
20-fach (0,028× – 0,56×) | 150 – 195 mm (Standard 192 mm) |
Sony IMX415LQR-C
1/2.8" (5.57×3.13 mm)
|
EMZO-20XA integriertes Objektiv | 4K Ultra-HD Autofocus | View Details |
| AFDM411 | HDMI1.4 USB2.0 LAN Wi-Fi |
8MP (3840×2160)
30fps@3840
|
18-fach (0,0218× – 0,392×) | 205 – 255 mm (Standard 250 mm) |
Sony IMX415LQR-C
1/2.8" (5.57×3.13mm)
|
EMZO-20XA integriertes Objektiv | 4K Ultra-HD 18× Zoom Autofocus | View Details |
| AFDM101 (eingestellt) | HDMI1.4 USB2.0 |
2MP (1920×1080)
60fps@1920
|
18-fach (0,0218× – 0,392×) | 205 – 255 mm (Standard 250 mm) |
Sony IMX462LQR-C
1/2.8" (5.57×3.13mm)
|
EMZO-20XA integriertes Objektiv | 18× Zoom Autofocus | View Details |
AFDM Series Auto-Focus Microscopes | Package Contents #
Select a model to view the standard packing list and optional accessories
Standard Packing List

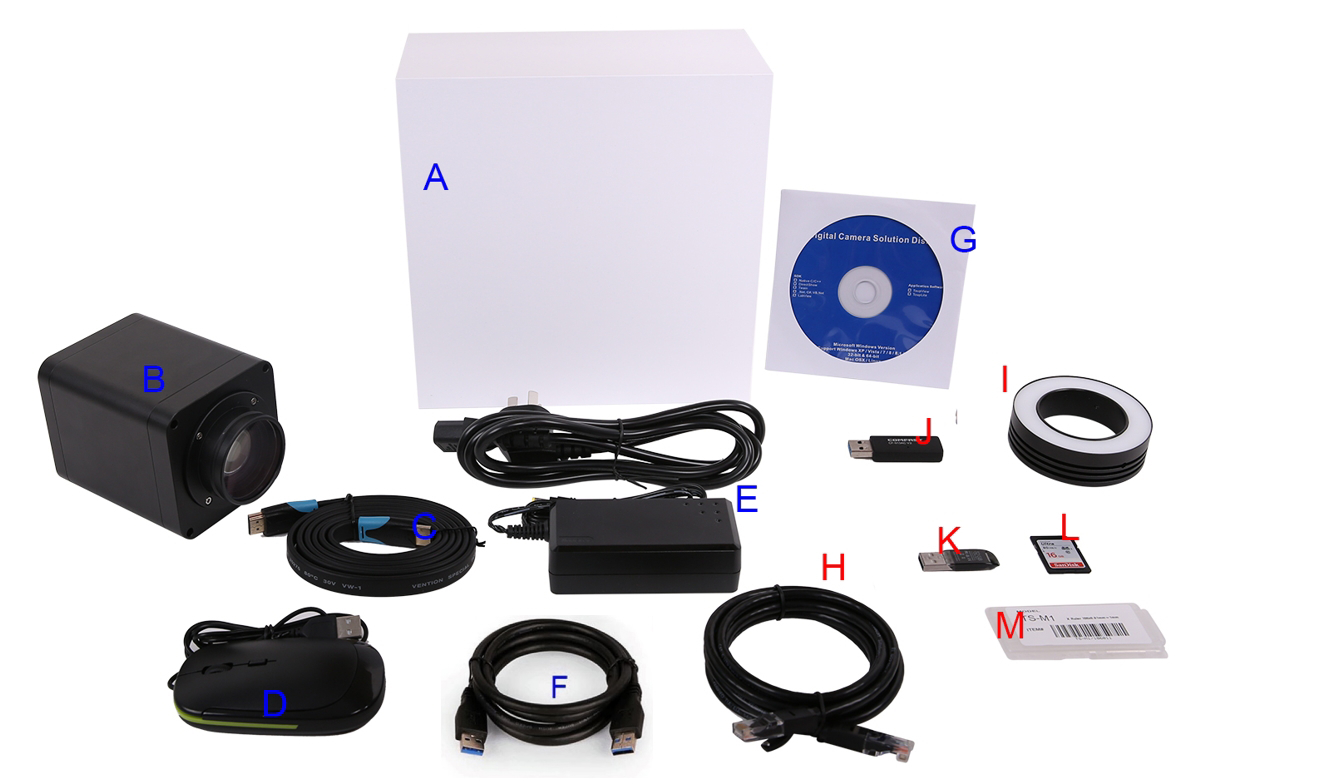

- A Camera box: 22.0 cm × 22.0 cm × 11.0 cm (1 pc, approx. 2.0 kg per box)
- B AFDM412 auto-focus camera ×1
- C HDMI cable ×1
- D USB mouse ×1
- E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A (HKA03612030-7K, supplied with CN/EU AC power cords, compliant with UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN 61000-4-2/3/4/5/6)
- F USB 2.0 Type-A to Type-A gold-plated cable (2.0 m)
- G Drivers and application media (CD / bundled USB drive)
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC or AALRL-200-7650)
- J Spare USB drive
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L SD card (16 GB)
- M Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7

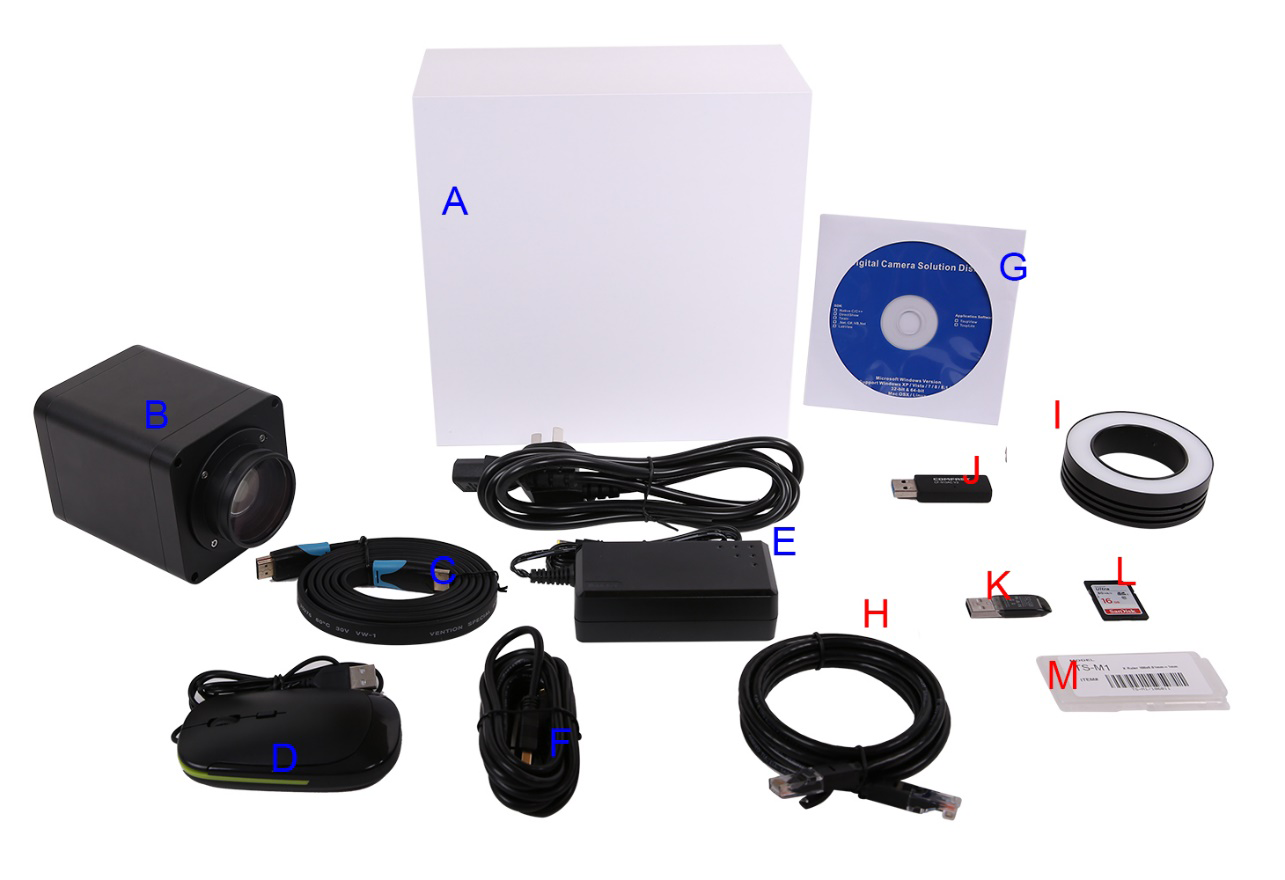

Standard Packing List
- A Camera box: 22.0 cm × 22.0 cm × 11.0 cm (1 pc, approx. 2.0 kg per box)
- B AFDM511 series auto-focus camera ×1
- C HDMI cable ×1
- D USB mouse ×1
- E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A (HKA03612030-7K, supplied with CN/EU AC power cords, compliant with UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN 61000-4-2/3/4/5/6)
- F High-speed USB 3.0 Type-A to Type-A gold-plated cable (1.5 m)
- G Drivers and application media (CD / bundled USB drive)
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC or AALRL-200-7650)
- J Spare USB drive
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L SD card (16 GB)
- M USB audio control module
- N Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
Standard Packing List
- A Camera box: 22.0 cm × 22.0 cm × 11.0 cm (1 pc, approx. 2.0 kg per box)
- B AFDM512 series auto-focus camera ×1
- C HDMI cable ×1
- D USB mouse ×1
- E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A (HKA03612030-7K, supplied with CN/EU AC power cords, compliant with UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN 61000-4-2/3/4/5/6)
- F High-speed USB 3.0 Type-A to Type-A gold-plated cable (1.5 m)
- G Drivers and application media (CD / bundled USB drive)
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC or AALRL-200-7650)
- J Spare USB drive
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L SD card (16 GB)
- M USB audio control module
- N Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
AFDM Series Auto-Focus Microscopes | Product Dimensions #
Core enclosure dimensions and shipping information

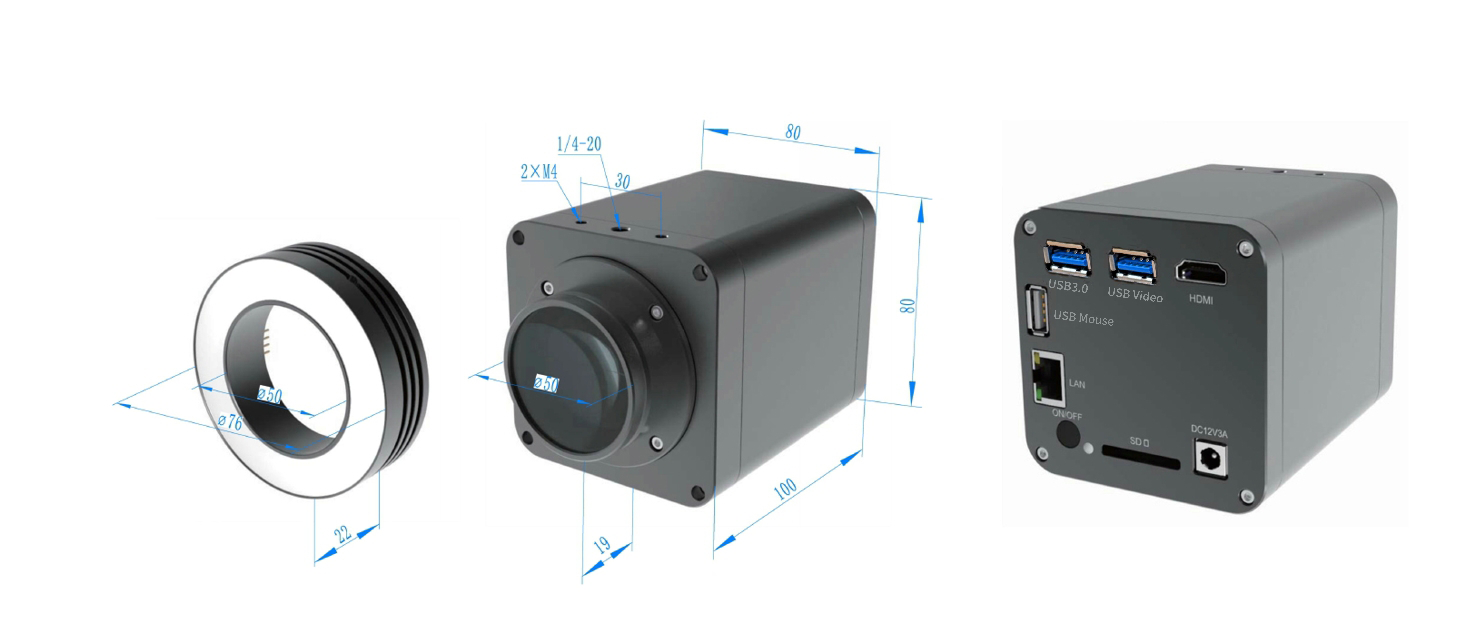

Housing 80 × 80 × 122 mm, see Fig. 3-32

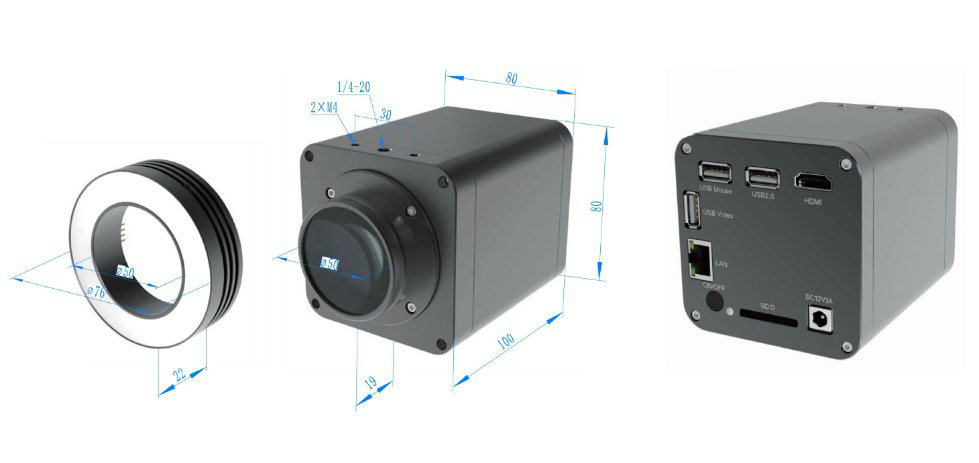

Housing 80 × 80 × 122 mm, see Fig. 3-18
Housing 80 × 80 × 122 mm, see Fig. 3-34
Before installation, confirm the mounting holes and connector orientation using the dimension diagram, and reserve routing space for lighting and control cables if needed.
Product In-Depth Introduction
The AFDM Series Auto-Focus Continuous Zoom Digital Microscopes represent a high-end digital imaging solution specifically designed by Topu Photonics for users in industrial, research, medical, and educational sectors. This series integrates high-sensitivity Sony CMOS sensors, high-precision motorized zoom lenses, auto-focus modules, intelligent local control systems, and multi-platform output interfaces, comprehensively meeting diverse user needs from macro observation to micro analysis.
The AFDM Series supports 18-20× optical continuous zoom, covering everything from low-magnification wide fields to high-magnification detail observation. With built-in or external high-brightness LED ring lights and flexible adjustable illumination modes, the products significantly enhance sample surface details and contrast. Multiple standard working distances and lens modules are available, adapting to complex application environments including PCB/semiconductor, metal materials, biomedical, and automated production lines. The unique linkage control between auto-focus and motorized zoom provides solid support for efficient measurement, batch inspection, and real-time analysis.
The intelligent local system integrates rich functions including image measurement, photography, video recording, depth of field synthesis, and image stitching, supporting SD card/USB local storage and USB/HDMI/Ethernet/Wi-Fi multi-platform synchronized output. Selected models support 13.3-inch HD touchscreen all-in-one operation, suitable for on-site teaching, demonstrations, field engineering work, and direct factory production line deployment. The entire series supports multilingual operation interfaces and mainstream operating systems, truly achieving "plug-and-play, what you see is what you get."
Main Functions
Auto-Focus/Manual Focus
Supports one-touch auto-focus, real-time focus lock and fine-tuning, simple operation, efficient and precise.
Motorized Continuous Optical Zoom (18×/20×)
Achieves stepless zoom from ultra-wide field to high-magnification microscopic details, smooth magnification switching, meeting various sample and inspection requirements.
Multi-Platform Multi-Interface Output
Supports 4K HDMI, USB3.0, Ethernet, Wi-Fi and multiple output methods, compatible with monitors, computers, mobile terminals, adapting to various application scenarios.
High-Resolution Imaging & High Frame Rate Output
Adopts Sony Starvis high-performance CMOS sensor, supporting up to 8MP (4K@60 fps), clear and detailed image quality with true color reproduction.
Local Intelligent Operating System
Built-in XCamView/ToupView system supports local real-time measurement, photography, video recording, depth of field synthesis, image stitching, custom image parameters and multiple functions, can be used independently without external computer.
Multiple Working Distances & Lens Options
Multiple standard working distances and lens combinations meet inspection and observation requirements for different height spaces and sample sizes.
Powerful Storage & Data Export
Supports SD card/USB local storage, one-touch data export and local playback, convenient for on-site data management and subsequent analysis.
Comprehensive Illumination Solutions
Built-in or external high-brightness LED ring light, optional coaxial light source, programmable brightness control, adapting to diverse sample surface characteristics.
Multi-Language/Multi-System Compatibility
Supports multilingual menus including Chinese and English, compatible with Windows, Mac, Linux, Android, iOS and other mainstream platforms.
Touchscreen Operation (Selected Models)
TAFDM Series supports 13.3-inch HD touchscreen all-in-one unit, supports touch/mouse dual operation modes, suitable for on-site teaching, demonstrations and mobile office work.
Core Advantages
Highly Integrated
Imaging, zoom, focus, illumination, and intelligent operation in one unit, highly integrated system with compact and reliable structure.
All-Scenario Adaptation
Supports multiple magnifications, interfaces, and working distances, meeting professional requirements in research, industry, medical, and education sectors.
Ultimate Image Quality & Smooth Operation
4K resolution, up to 60 fps frame rate, Sony Starvis sensor, ensuring detailed images without delay.
Convenient & Easy to Use
No complex training required, supports plug-and-play and multi-platform control with user-friendly interface design.
High Expandability
Flexible combination of different cameras, lenses, and illumination modules, convenient for subsequent upgrades and customization.
Stable & Reliable
Industrial-grade quality design, adapts to harsh environments, widely used in batch inspection, online quality control, research documentation and other scenarios.
High Cost-Performance Ratio
High integration, low maintenance costs, wide application range, significantly improving work efficiency and data quality for enterprises and laboratories.
Need Technical Support?
Our professional team is ready to provide product selection, technical consultation and after-sales service
