U3CMOS Series
Product Introduction

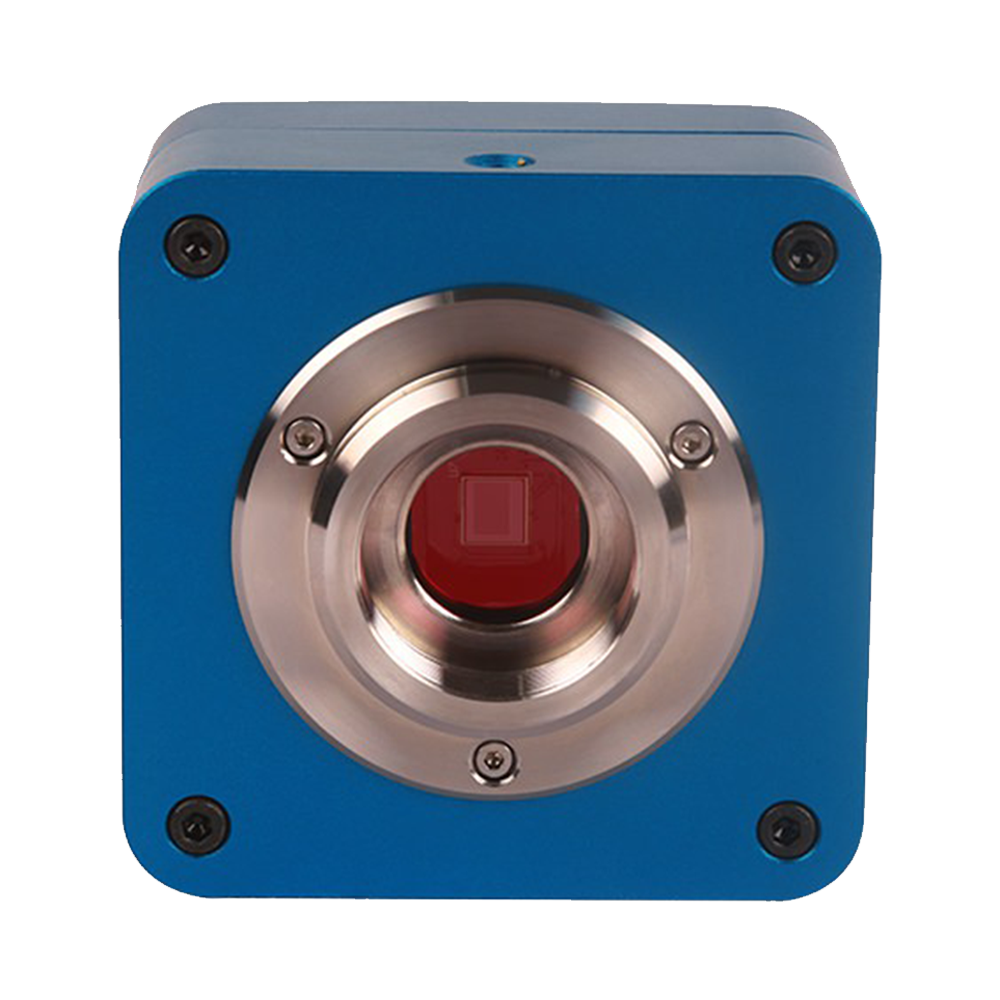

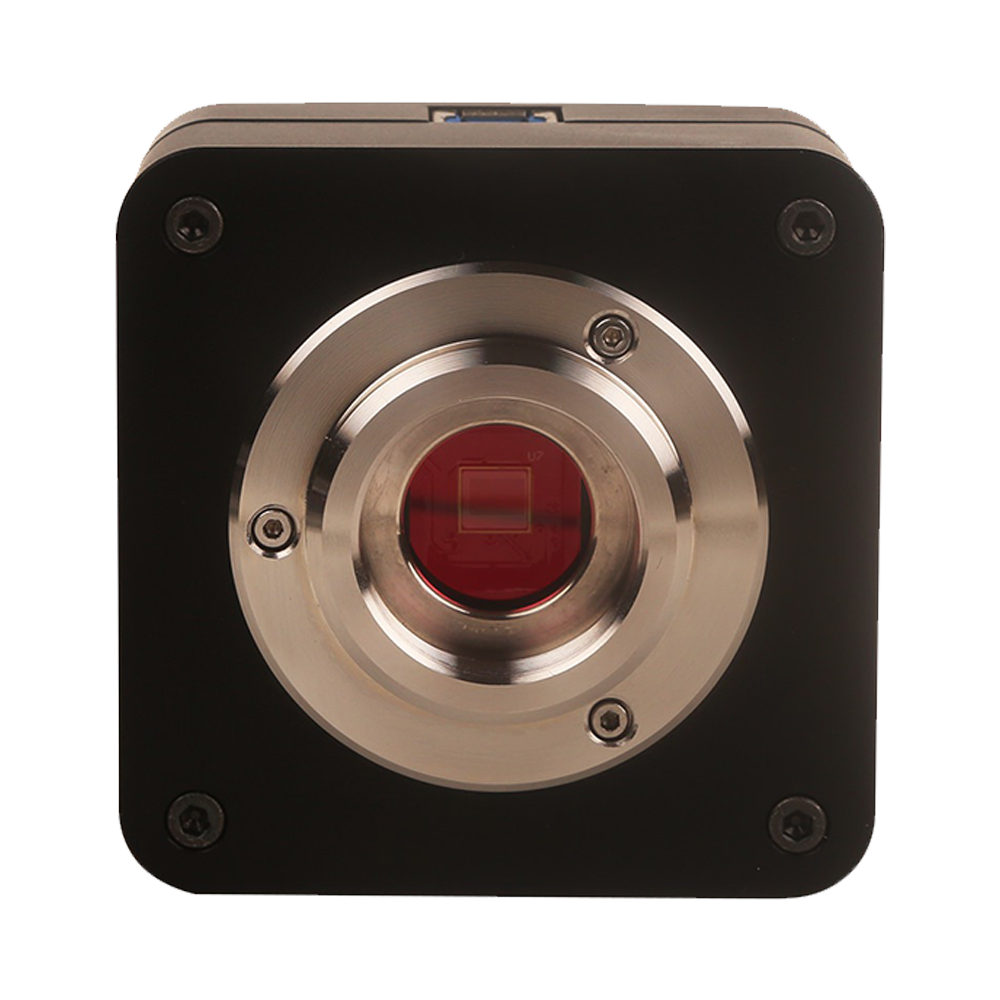

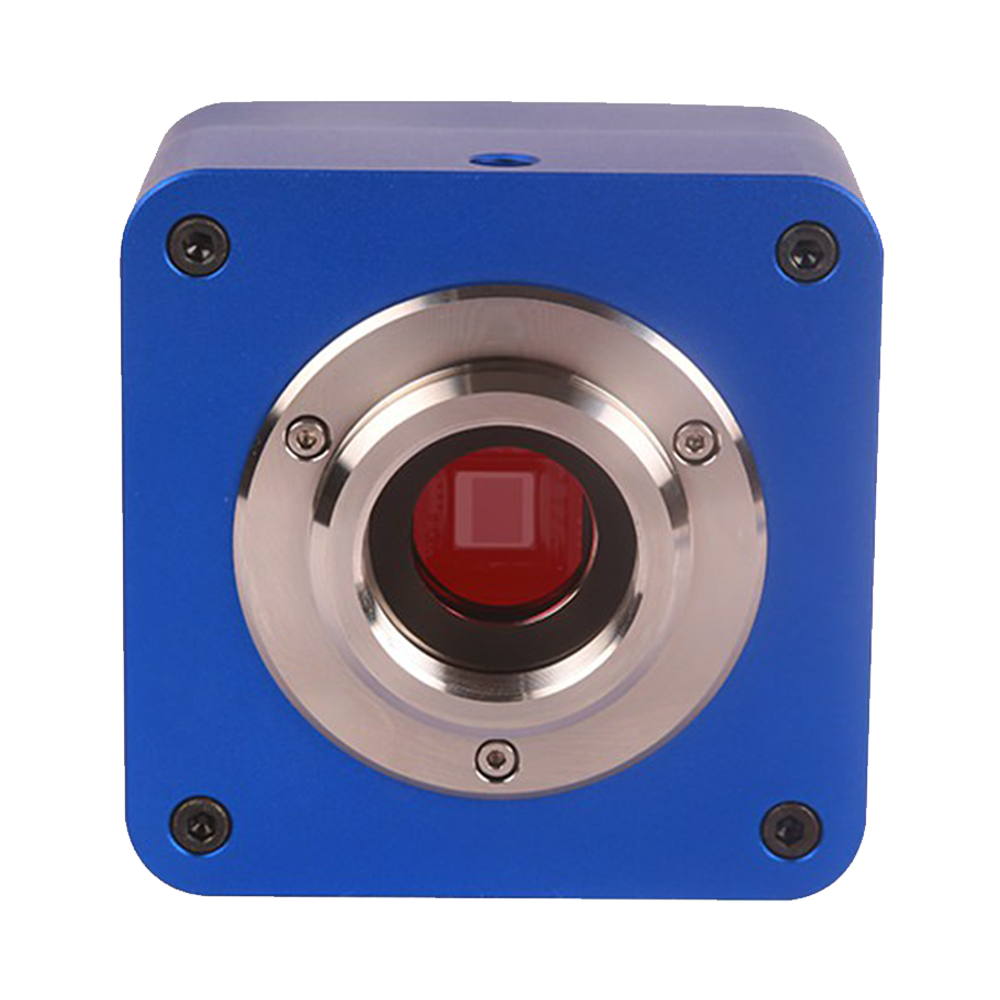

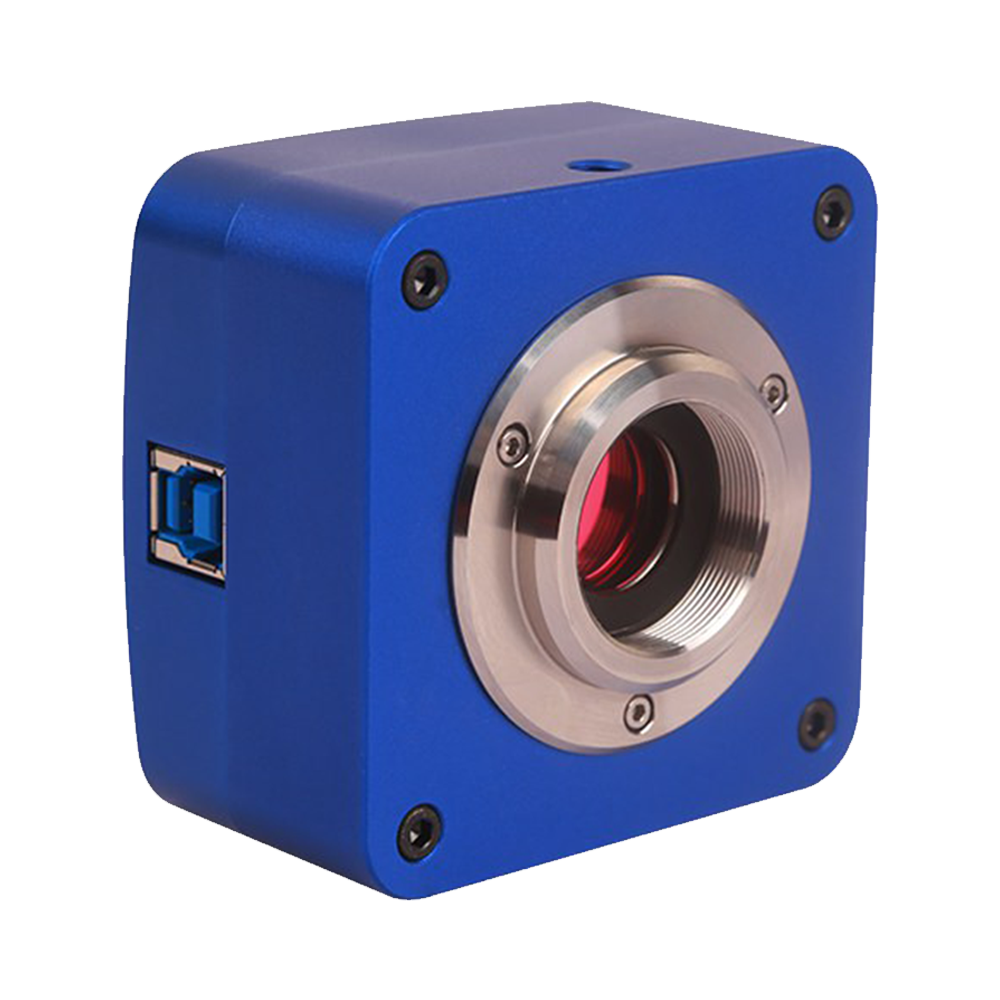

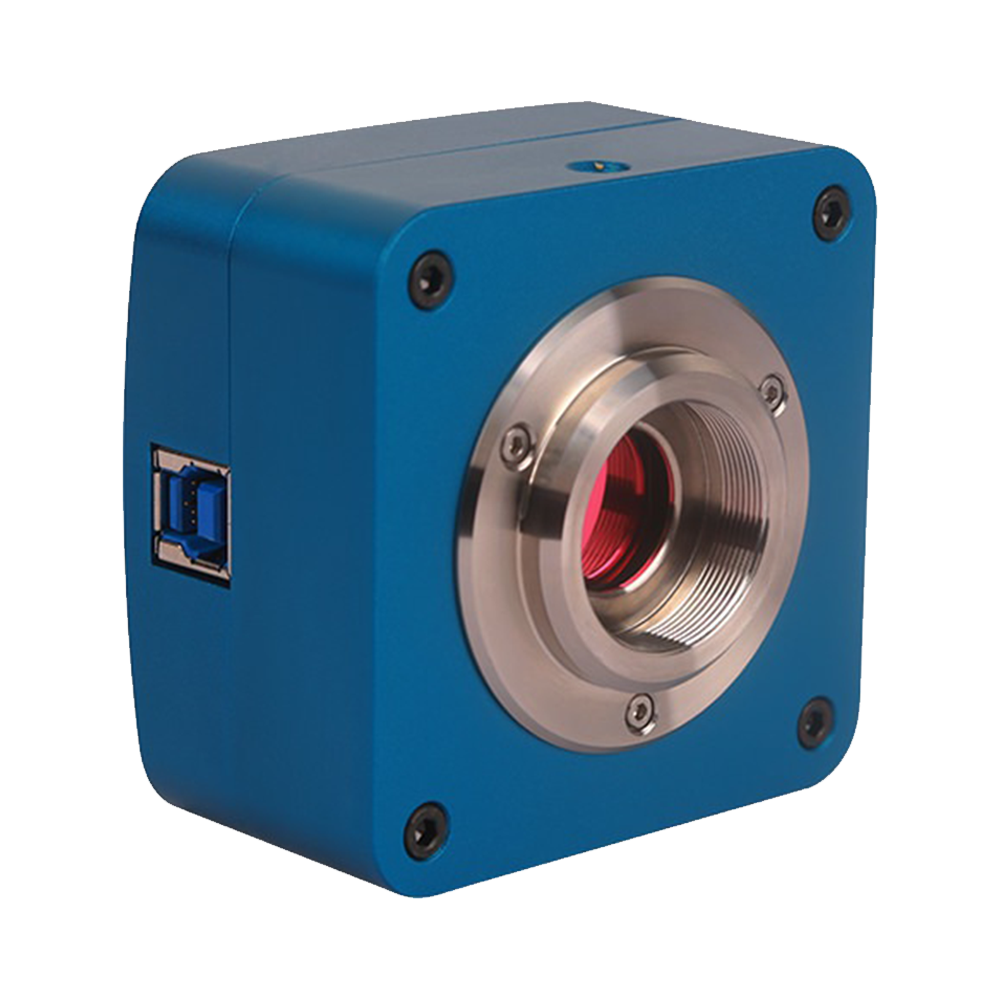

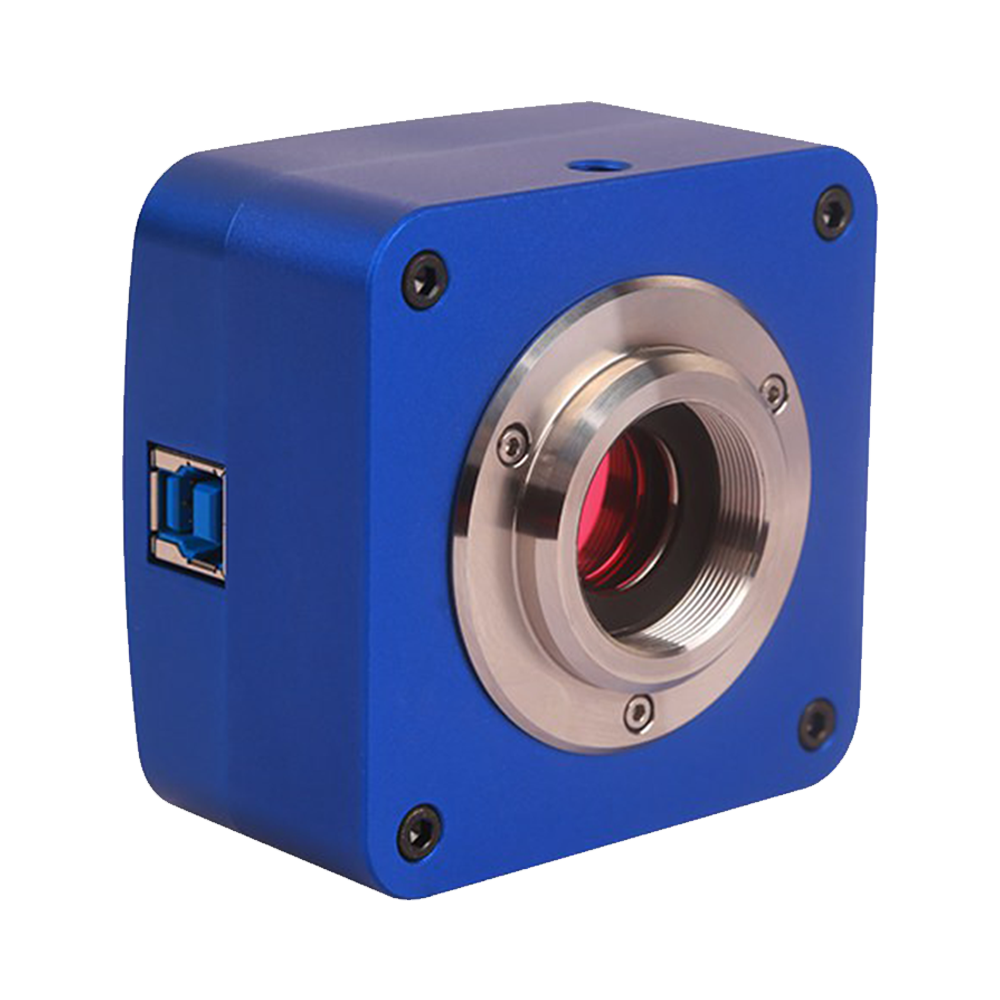

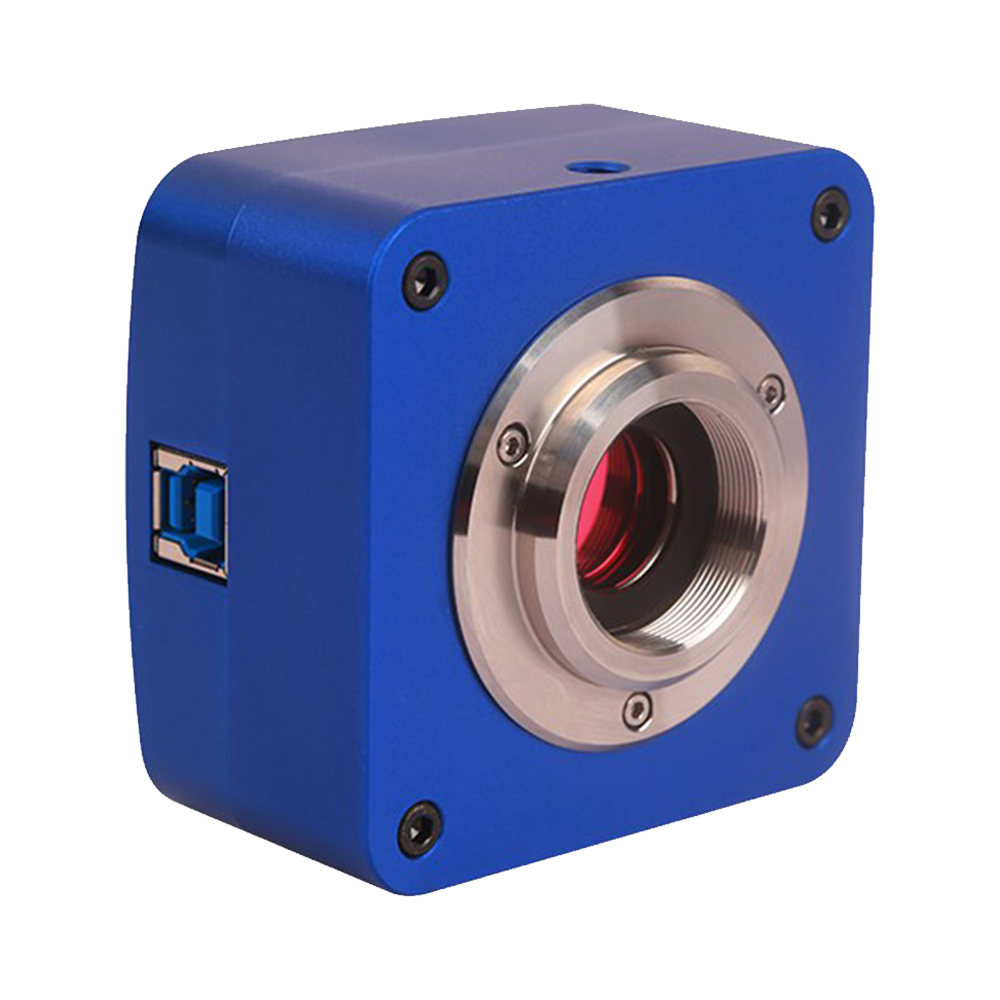

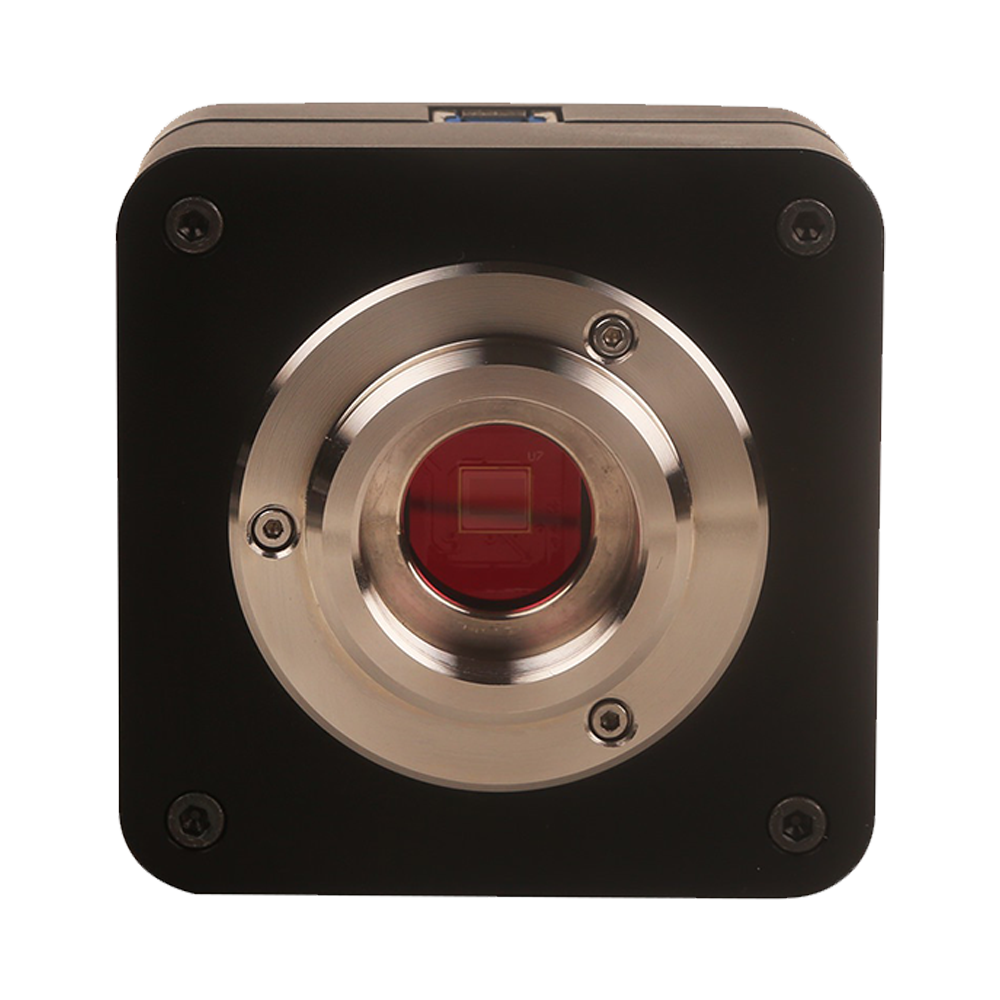

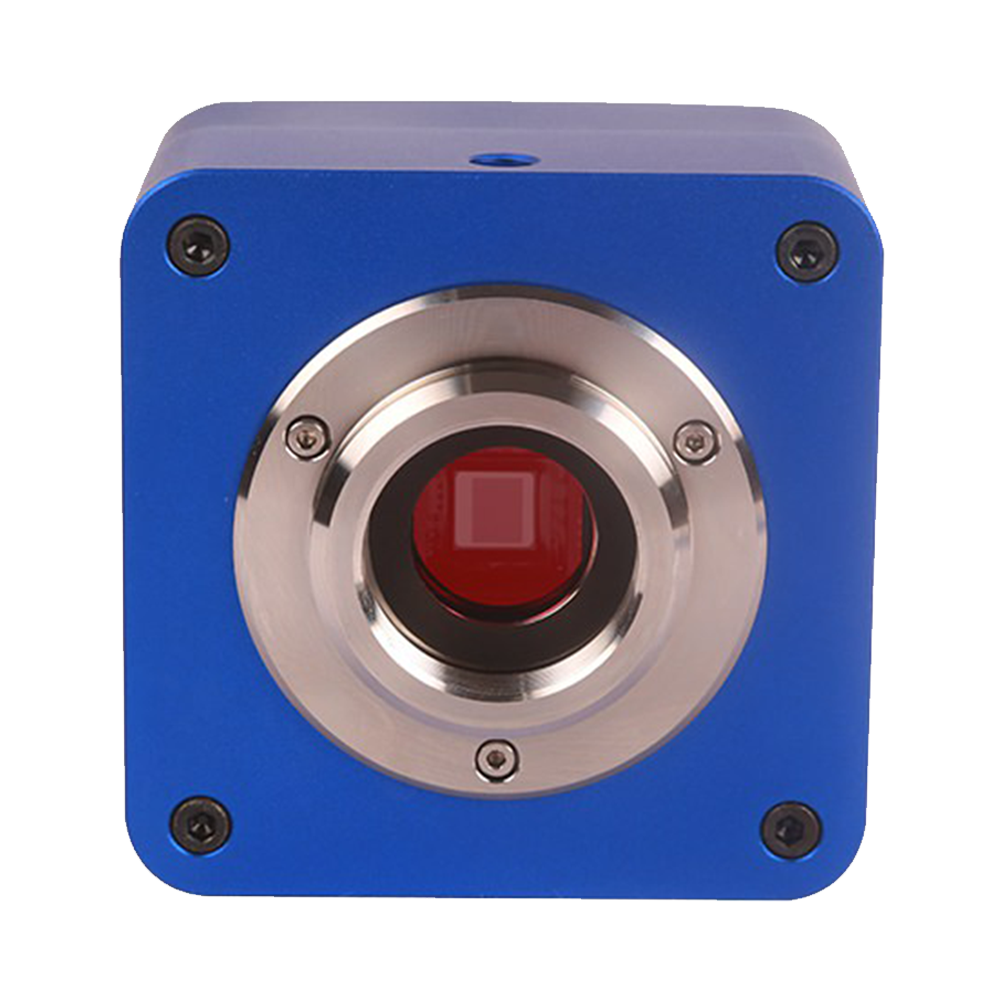

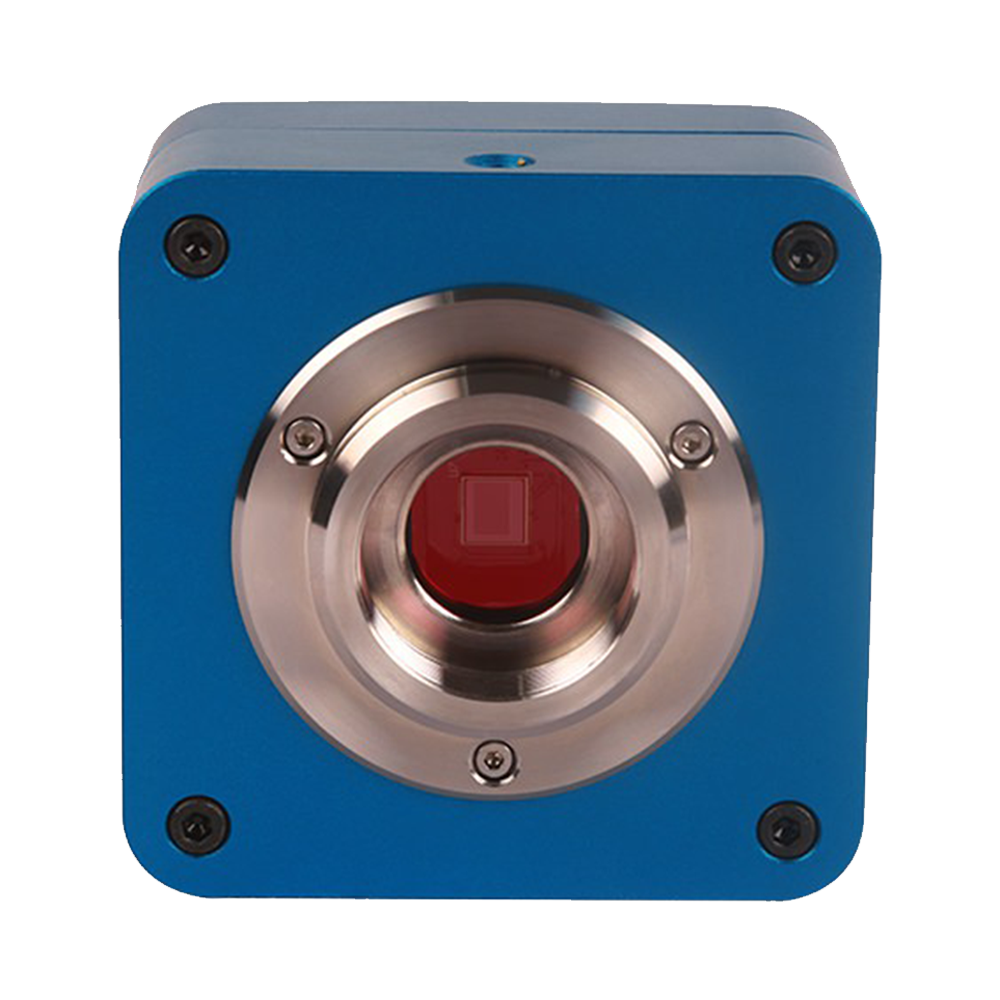

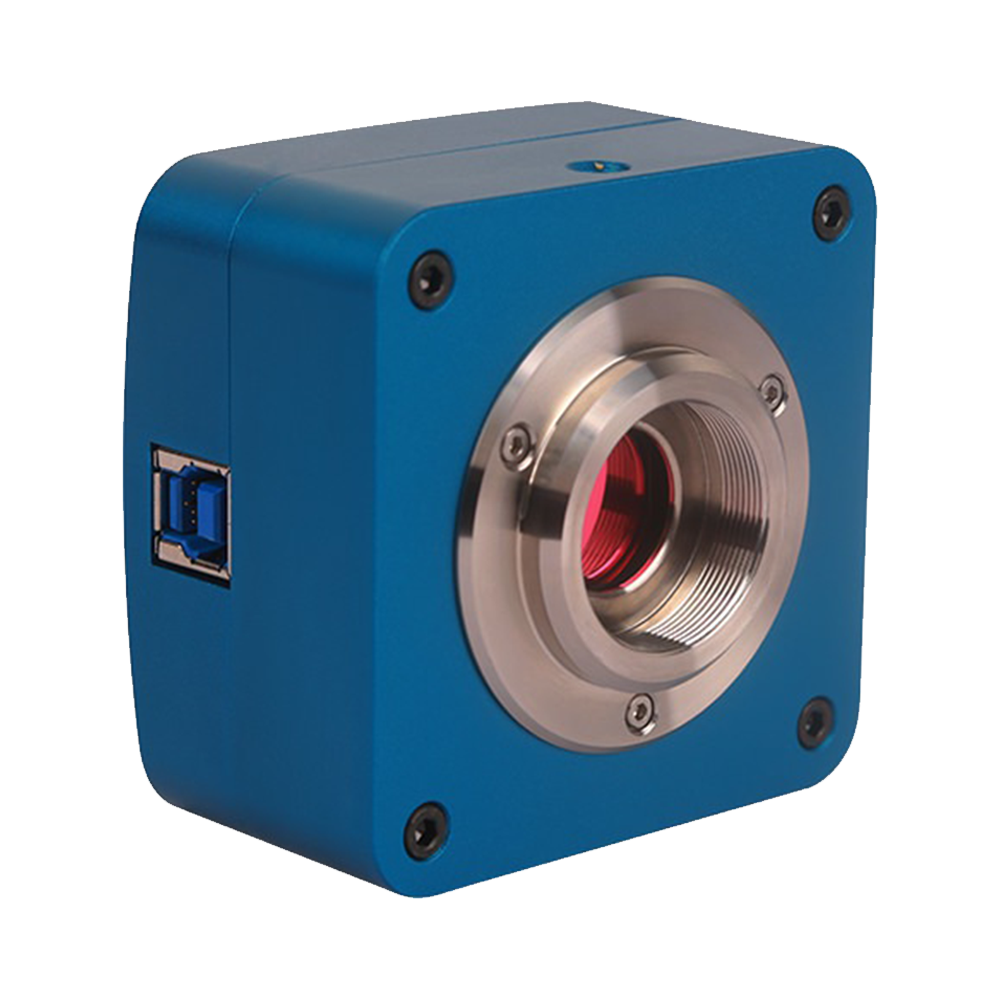

The U3CMOS series represents C-mount USB3.0 CMOS cameras featuring Aptina (onsemi) high-sensitivity, low-noise image sensors designed for laboratory research and industrial inspection applications. Through 5 Gbit/s USB3.0 high-speed links, these cameras achieve high frame rate and stable image/video output. Resolution coverage spans 3.1–18 MP with aluminum alloy CNC precision construction for durability and long-term deployment capability.
The built-in Ultra-Fine color processing engine completes demosaicing, auto exposure/gain, one-touch white balance, and color/gamma/contrast processing within the camera, delivering more natural color presentation while reducing host CPU utilization. Products include ToupView/ToupLite software and cross-platform SDK support (Windows/Linux/macOS/Android) for seamless system integration and secondary development.
Product Features
- Sensors: Aptina (onsemi) high-performance CMOS (depending on model) with high sensitivity and low noise

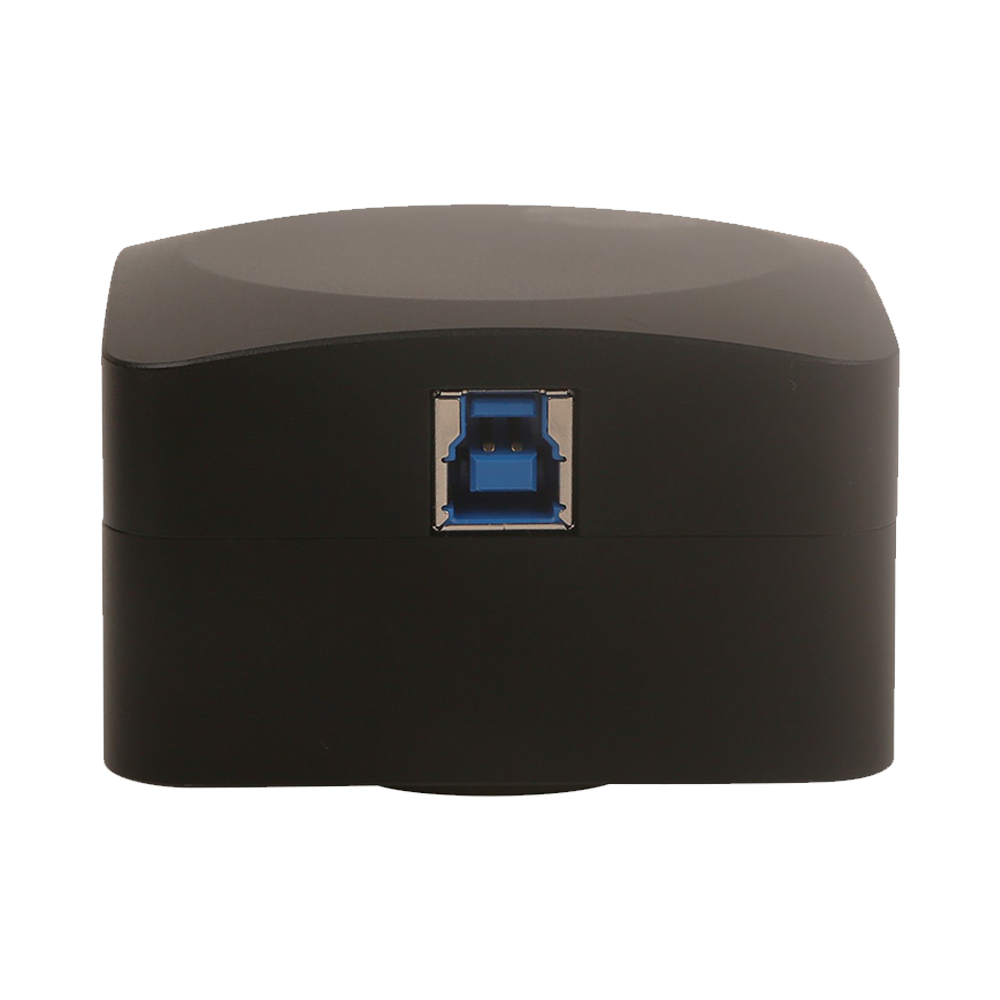

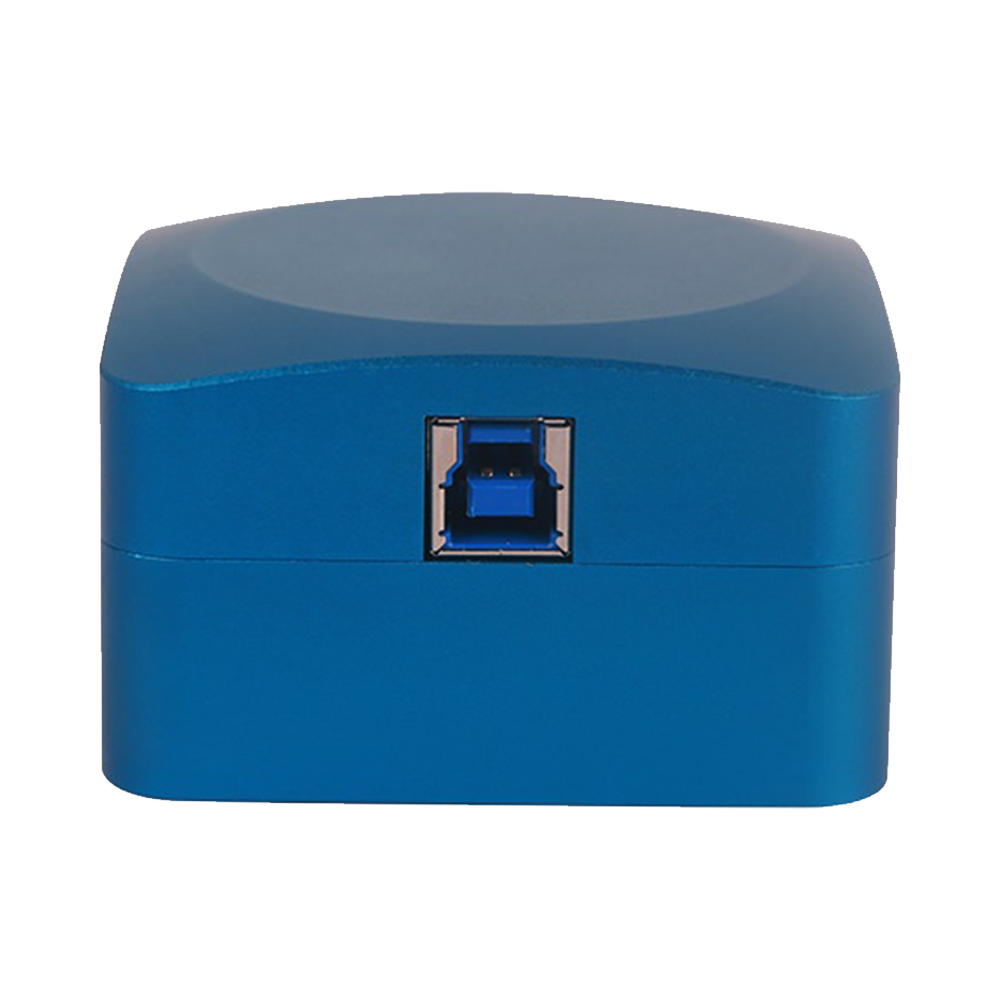

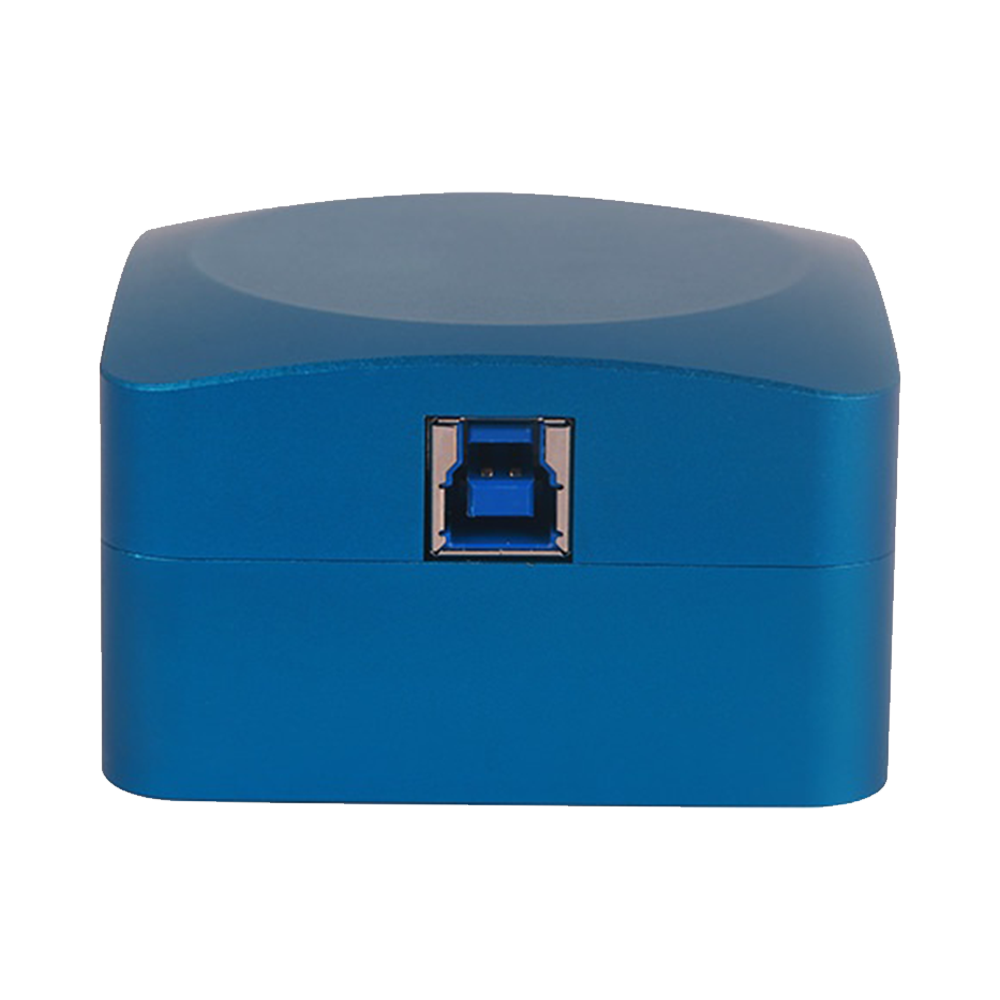

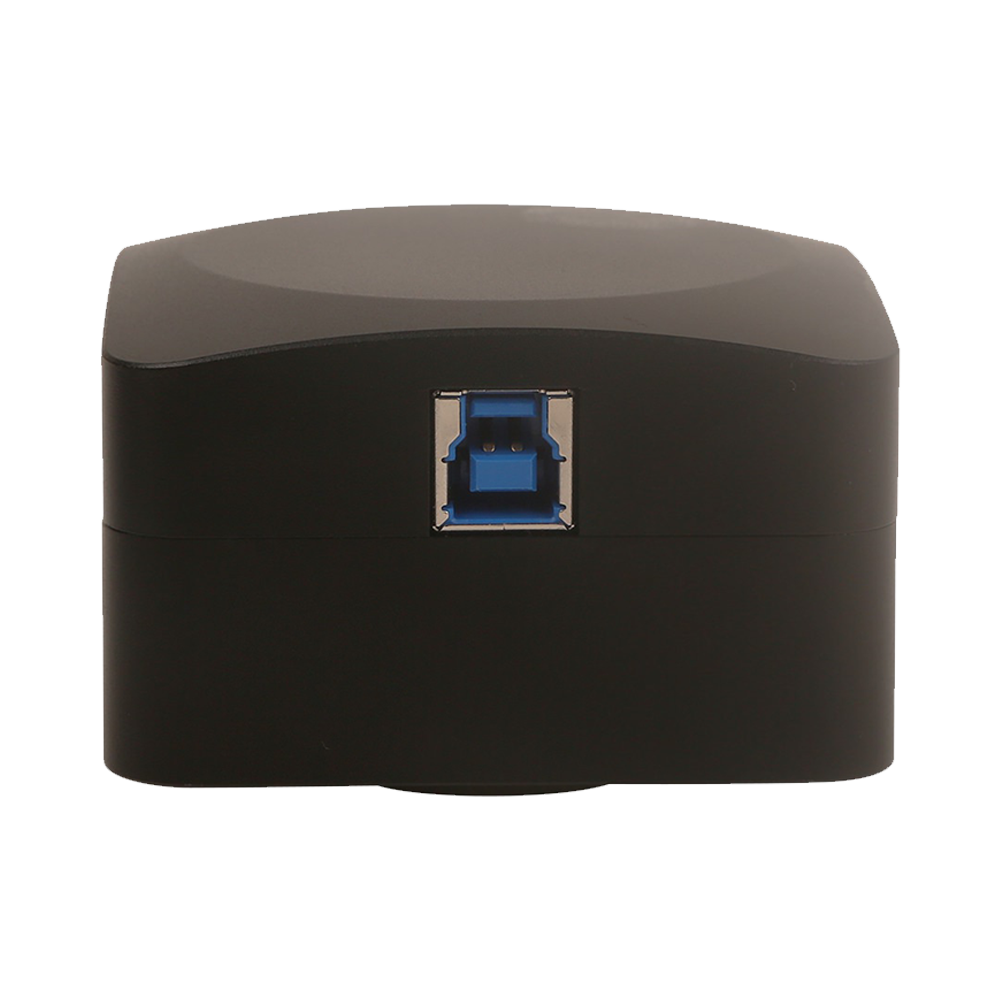

- Interface: USB3.0 high-speed transmission (5 Gbit/s) for stable real-time preview and acquisition
- Resolution: 3.1–18 MP (depending on model) meeting microscopy and industrial general imaging requirements
- Ultra-Fine color engine: Demosaic, AE/AGC, AWB, one-touch white balance, color/gamma/brightness/contrast, LUT
- Bit depth and data: Support for 8/12-bit (depending on model) with RAW/Bayer output capability
- Image functions: Arbitrary ROI/windowing, mirror flip (depending on model)
- Construction: Aluminum alloy CNC integrated housing with excellent heat dissipation and anti-interference performance
- Software and ecosystem: Bundled ToupView/ToupLite with Windows/Linux/macOS/Android SDK (compatible with DirectShow/TWAIN)
Product Models
Select the U3CMOS Series that fits your application requirements
| Product Model | Effective Pixels | Sensor Size | Shutter Type | Frame Rate (FPS) | Sensor Type | Data Interface | Color | Actions |
|---|---|---|---|---|---|---|---|---|
| U3CMOS18000KPA | 18M (4912×3684) |
6.14 mm × 4.61 mm
1/2.3"
|
Rolling Shutter |
5.6 fps@4912×3684
18.1 fps@2456×1842
32.2 fps@1228×922
|
AR1820 (C) | USB3.0 | Color | View Details |
| U3CMOS16000KPA | 16M (4632×3488) |
6.18 mm × 4.66 mm
1/2.33"
|
Rolling Shutter |
6.0 fps@4632×3488
15.0 fps@2320×1740
26.0 fps@1536×1160
|
MN34120 (C) | USB3.0 | Color | View Details |
| U3CMOS16000KPB | 16M (4648×3506) |
17.60 mm × 13.30 mm
4/3"
|
Rolling Shutter |
6.0 fps@4648×3506
15.0 fps@2304×1750
30.0 fps@1536×1168
|
MN34230PLJ (C) | USB3.0 | Color | View Details |
| U3CMOS16000KMB | 16M (4640×3506) |
17.60 mm × 13.30 mm
4/3"
|
Rolling Shutter |
22 fps@4640×3506
36 fps@3840×2160
43 fps@2304×1750
43 fps@1920×1080
49 fps@1536×1168
|
MN34230ALJ (M) | USB3.0 | Monochrome | View Details |
| U3CMOS14000KPA | 14M (4096×3286) |
5.73 mm × 4.60 mm
1/2.3"
|
Rolling Shutter |
6.2 fps@4096×3286
20.8 fps@2048×1644
53.3 fps@1024×822
|
MT9F002 (C) | USB3.0 | Color | View Details |
| U3CMOS12000KPA | 12M (3840×3040) |
5.95 mm × 4.71 mm
1/2.1"
|
Rolling Shutter |
8.5 fps@3840×3040
49 fps@1920×1516
137 fps@960×758
|
IMX577 (C) | USB3.0 | Color | View Details |
| U3CMOS10000KPA | 10M (3664×2748) |
5.68 mm × 4.26 mm
1/2.3"
|
Rolling Shutter |
8.5 fps@3664×2748
49 fps@1832×1374
137 fps@912×686
|
IMX577 (C) | USB3.0 | Color | View Details |
| U3CMOS10000KMA | 10M (3584×2746) |
5.98 mm × 4.58 mm
1/2.3"
|
Rolling Shutter |
7.2 fps@3584×2746
24.5 fps@1792×1372
|
MT9J003 (M) | USB3.0 | Monochrome | View Details |
| U3CMOS08500KPA | 8.5M (3328×2548) |
5.16 mm × 3.95 mm
1/2.4"
|
Rolling Shutter |
10 fps@3328×2548
56 fps@1664×1272
|
Special (C) | USB3.0 | Color | View Details |
| U3CMOS05100KPA | 5.1M (2592×1944) |
5.70 mm × 4.28 mm
1/2.5"
|
Rolling Shutter |
15.5 fps@2592×1944
49.5 fps@1296×972
97.5 fps@648×486
|
AR0521 (C) | USB3.0 | Color | View Details |
| U3CMOS04100KPA | 4.1M (2688×1536) |
7.795 mm × 4.408 mm
1/1.8"
|
Rolling Shutter |
20 fps@2688×1536
30 fps@2048×1536
40 fps@1536×1536
100 fps@1344×768
|
IMX347 (C) | USB3.0 | Color | View Details |
| U3CMOS03100KPA | 3.1M (2048×1534) |
4.51 mm × 3.38 mm
1/3"
|
Rolling Shutter |
27.3 fps@2048×1534
53.3 fps@1024×770
|
AR0330 (C) | USB3.0 | Color | View Details |
Frequently Asked Questions
Learn more about the professional features of U3CMOS series microscopy imaging cameras
- USB 3.0 High-Speed Interface: 5 Gbps bandwidth, 18 MP still achieves >20 fps real-time frame rate
- Full-Frame High-Speed Imaging: 16 MP @ 22 fps, 4K resolution @ 36 fps
- High-Speed ROI Mode: Local regions can reach >49 fps
- Large Buffer Design: Ensures stable data transmission without frame drops
High Speed and High Resolution Combined: Maintains >20 fps at 16 MP for real-time observation.
Plug-and-Play: Ready-to-use ToupView software with measurement, annotation, and fluorescence pseudo-color functions.
High Cost-Performance: Provides research-grade image quality at more competitive costs.
In-Depth Product Introduction
USB 3.0 SuperSpeed High-Speed Transfer
Uses USB 3.0 interface technology providing 5 Gbps ultra-high bandwidth, a 10× improvement in transfer speed compared to USB 2.0. Even at 18 megapixel full resolution, maintains smooth preview above 20 fps. Large buffer design ensures stable data transmission, completely eliminating stuttering and frame drop phenomena.
Aptina/Sony Back-Illuminated Sensors
Features carefully selected Aptina MN34/AR series and Sony back-illuminated CMOS chips with 3.8 µm large pixel design balancing high sensitivity and low dark current. Back-illuminated structure improves quantum efficiency to over 70%, wide dynamic range ensures both bright and dark details are clearly presented, particularly suitable for demanding microscopy imaging requirements.
Ultra-Fine Intelligent Color Processing
Proprietary Ultra-Fine color engine integrates hardware-level color correction with 3A algorithms (Auto Exposure AE/Auto White Balance AWB/Auto Gain Control AGC). Real-time optimization of image contrast, saturation, and color accuracy ensures consistent imaging effects under different light sources including LED and halogen lamps.
Flexible ROI and Binning Functions
Supports arbitrary Region of Interest (ROI) selection for free image cropping to achieve higher frame rates. Provides 2×2/3×3/4×4 hardware pixel binning to improve sensitivity and frame rates while maintaining large field of view. 8-bit/12-bit depth dynamic switching meets different application dynamic range requirements.
Robust and Reliable Integrated Design
Features aerospace-grade aluminum alloy CNC one-piece molded housing combined with optimized heat dissipation fins for fanless passive cooling. Zero mechanical vibration design ensures long-term stable imaging, particularly suitable for microscopy observation. Comprehensive cross-platform SDK supports Windows/Linux/macOS, providing multiple interfaces including C/C++, C#, and DirectShow for easy system integration.
Applications
U3CMOS series applications across various microscopy imaging fields
U3CMOS Series Core Advantages
USB 3.0 High Speed
5 Gbps bandwidth, 20+ fps real-time preview
Back-Illuminated CMOS
Aptina/Sony high-quality sensors
Ultra-Fine Engine
Hardware-level color optimization
Flexible ROI
Arbitrary regions + pixel binning
Multiple Resolutions
3.1 - 18 megapixel options
Metal Housing
Aluminum alloy CNC one-piece molding
Complete SDK
Multi-platform multi-language support
High Cost-Performance
Research-grade quality economical choice
