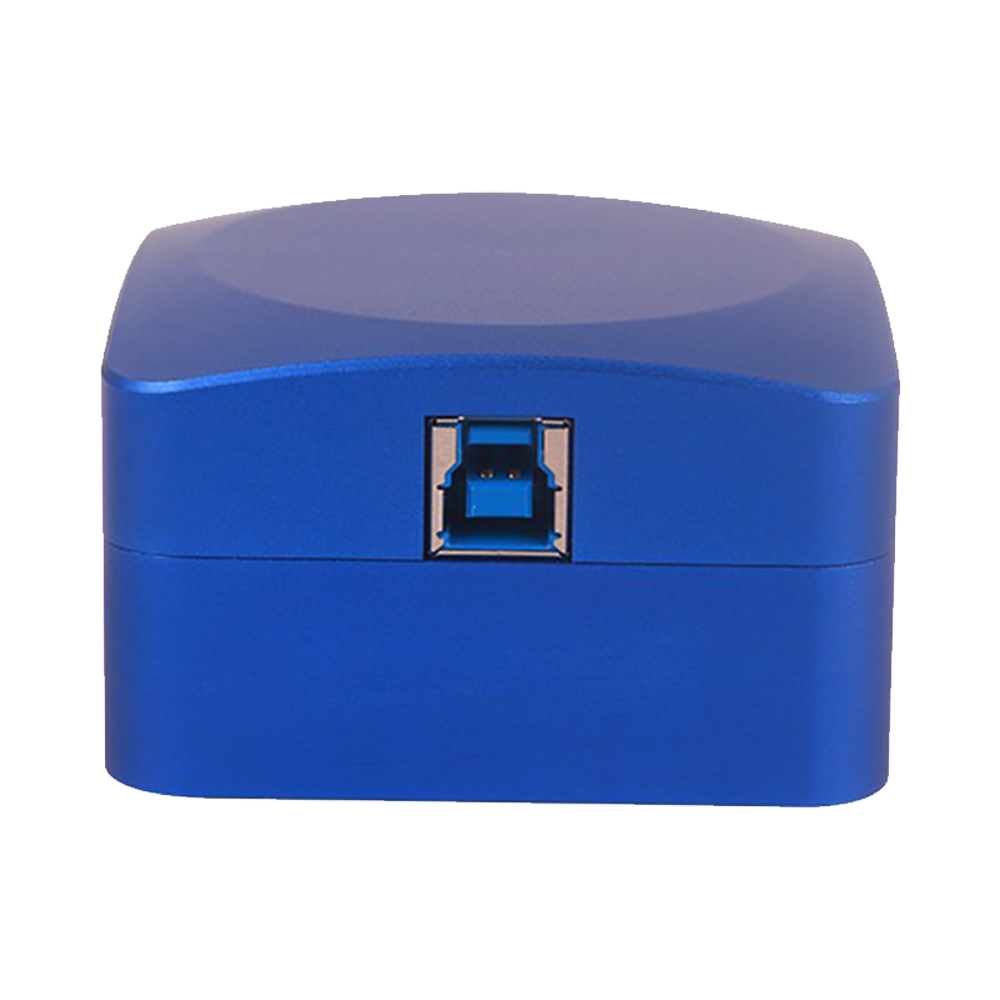

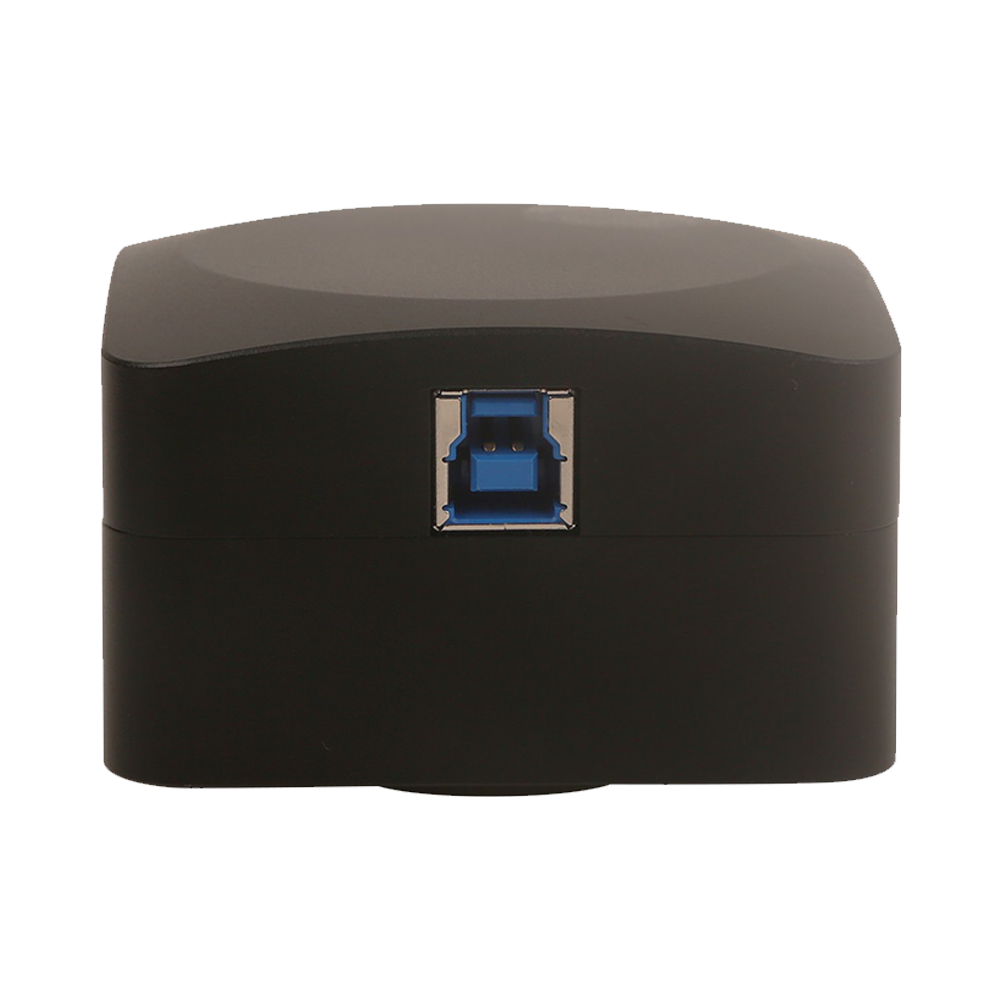

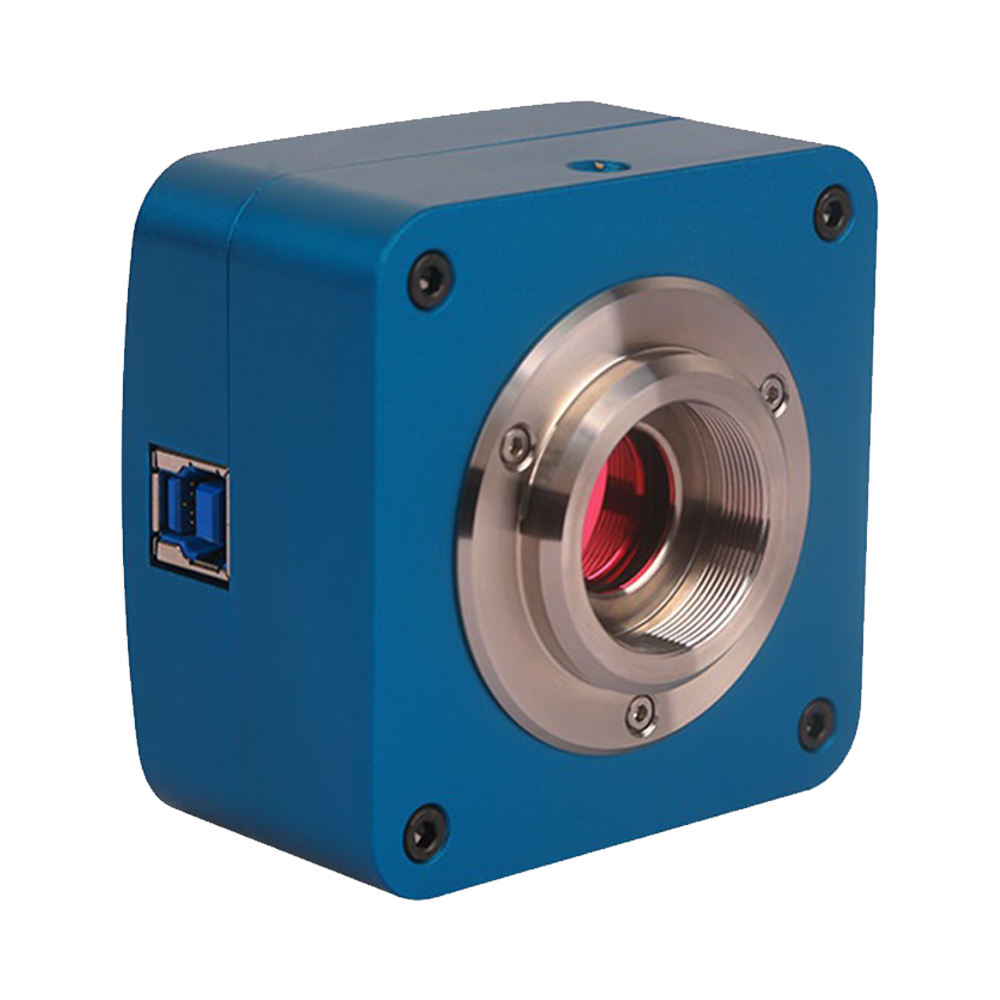

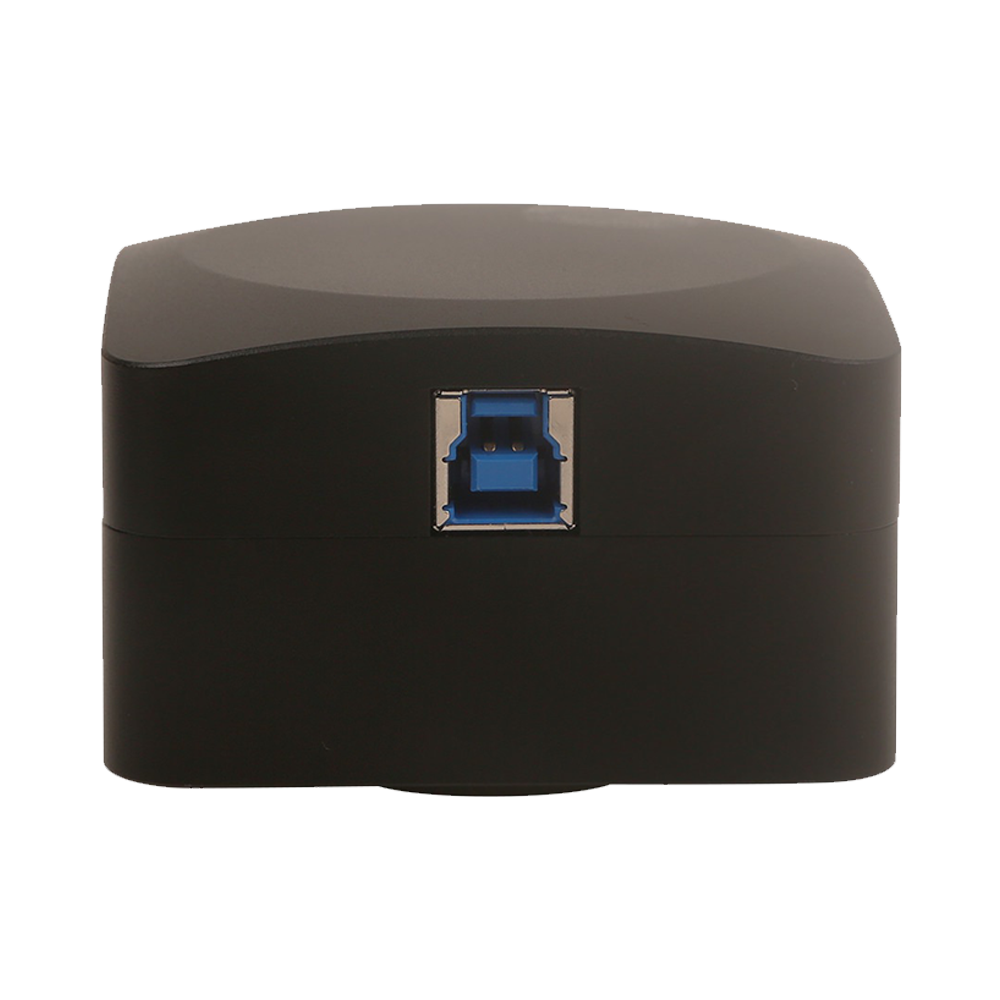

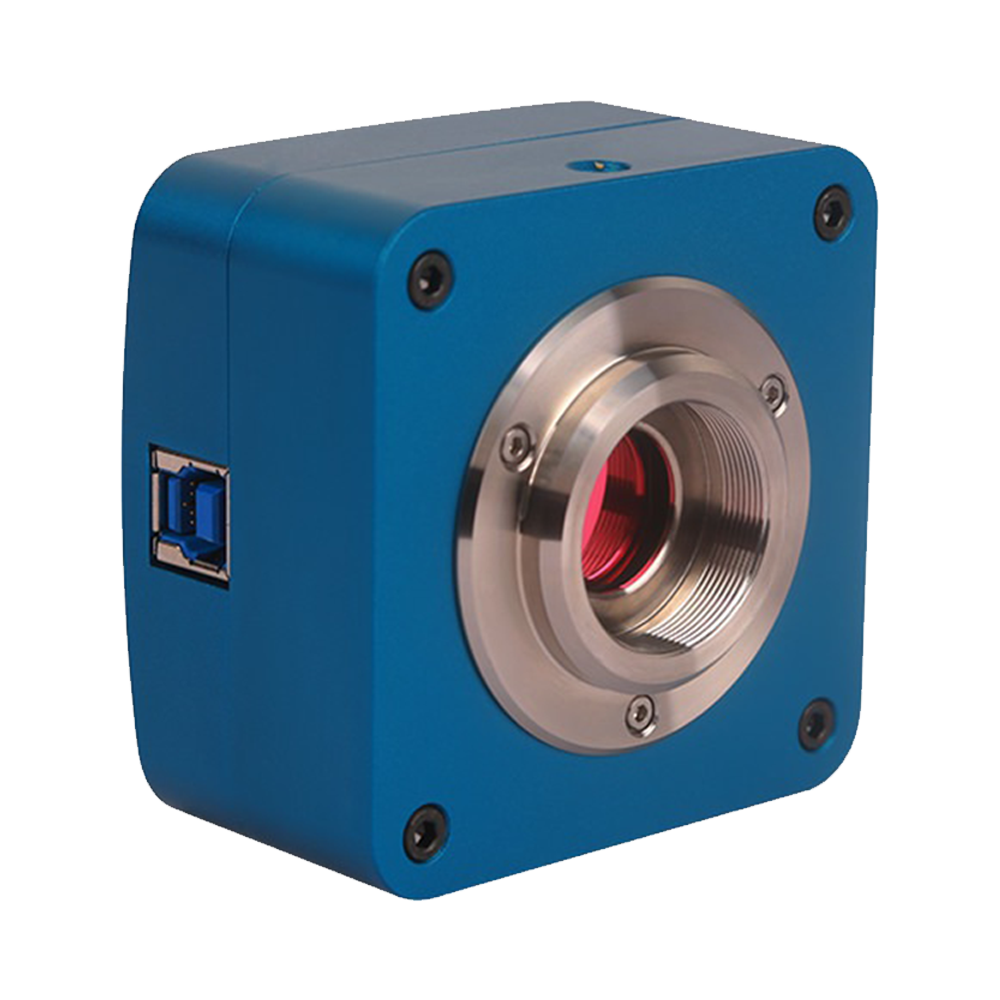

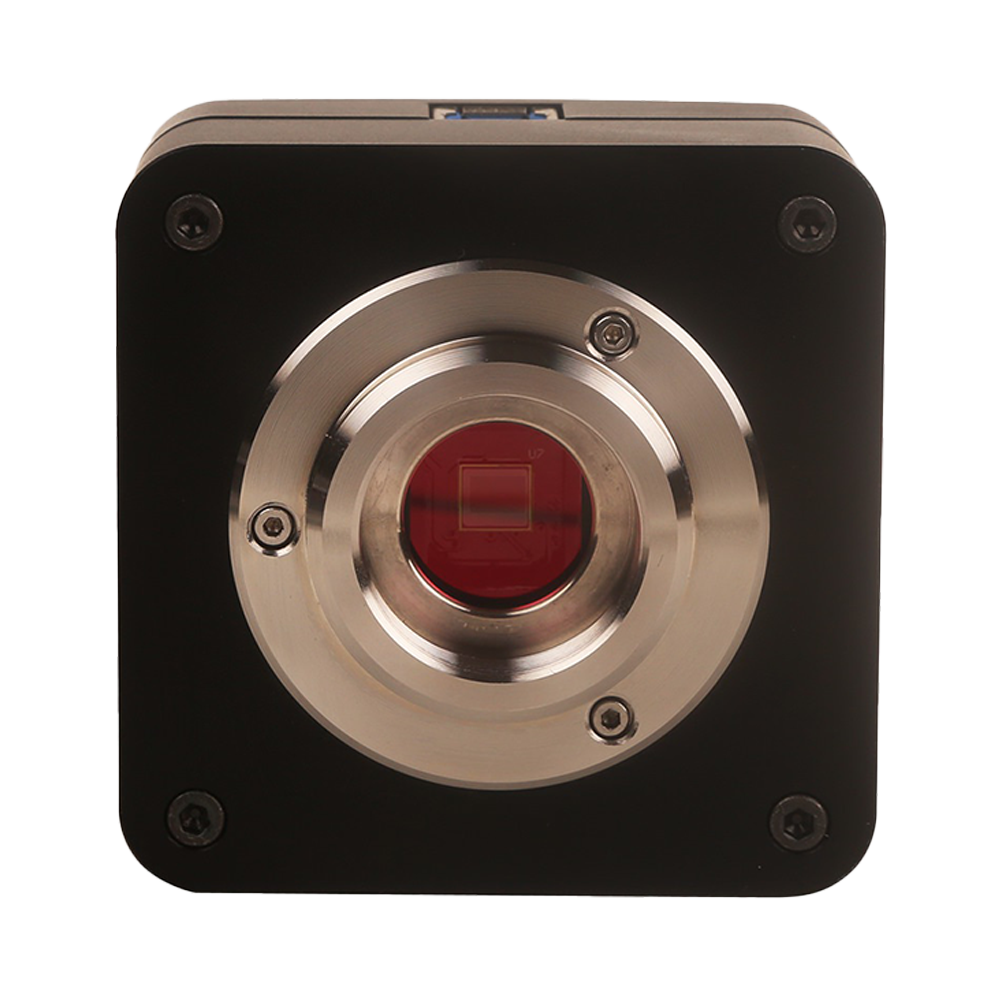

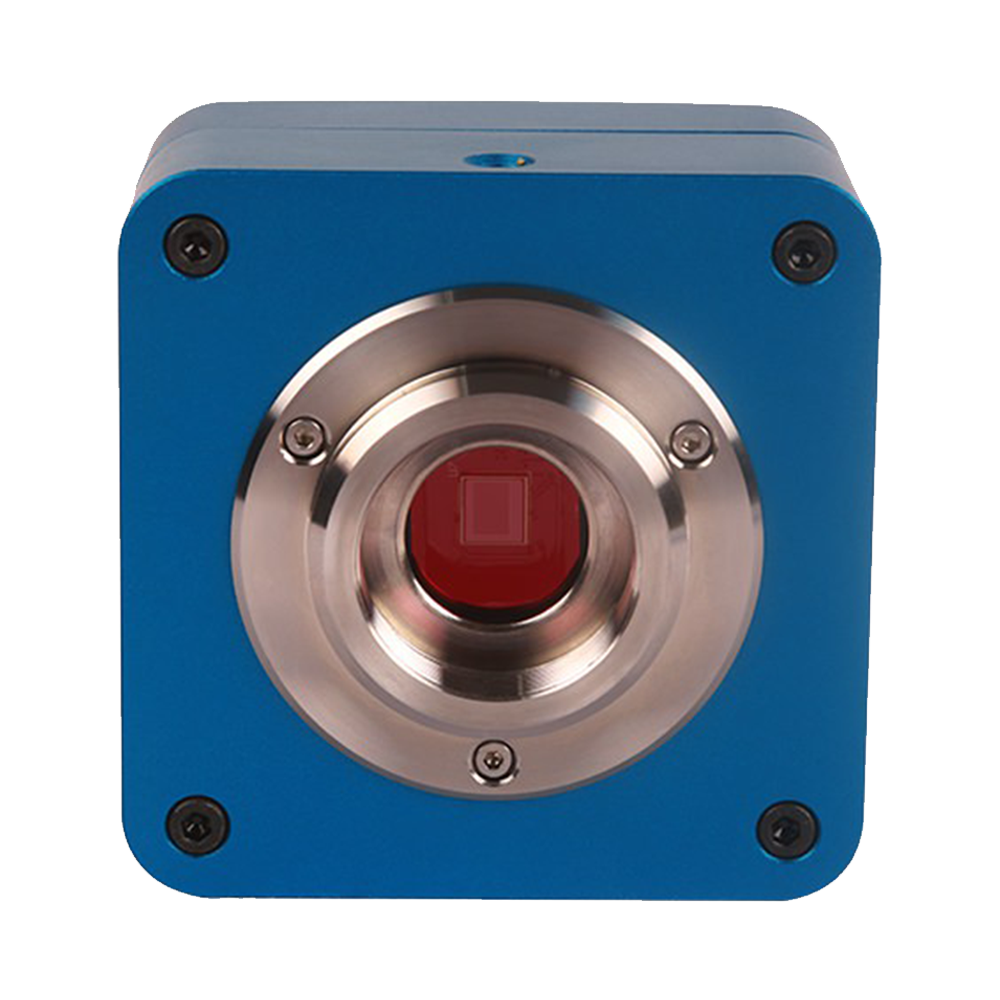

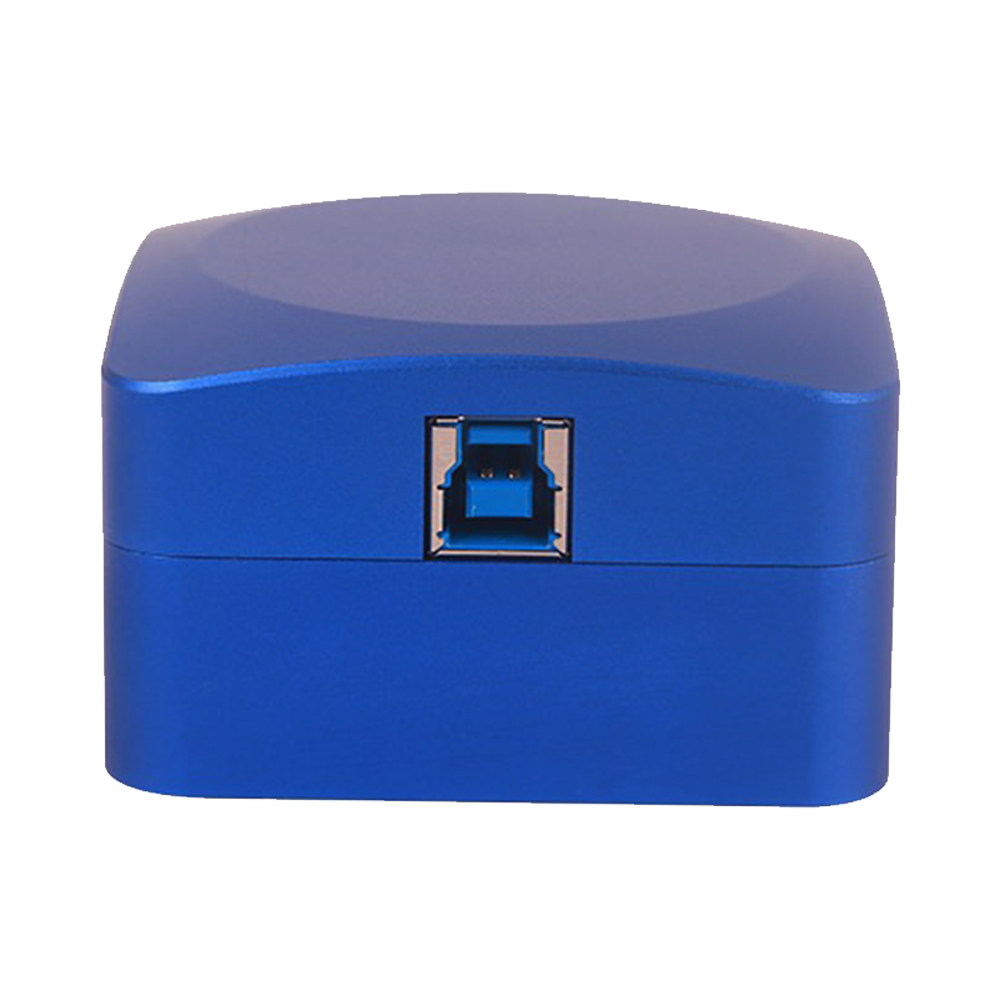

U3CCD Series

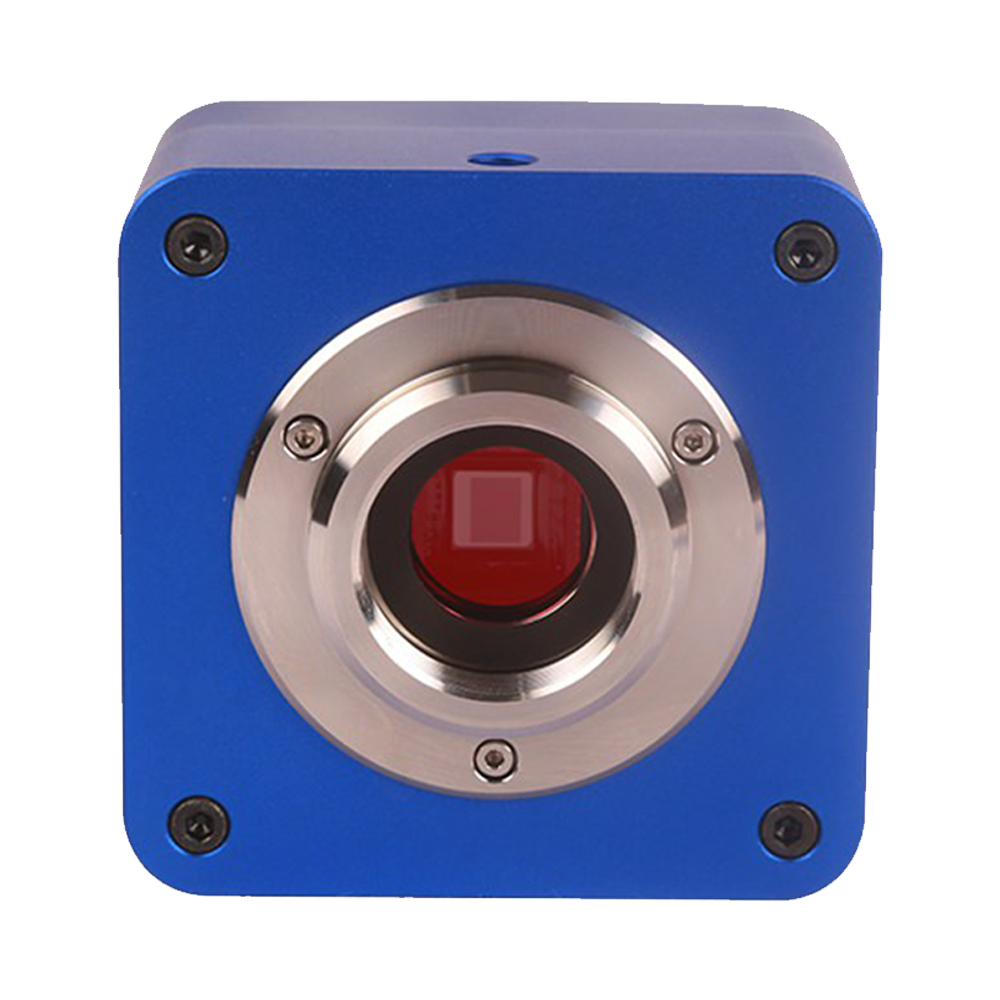

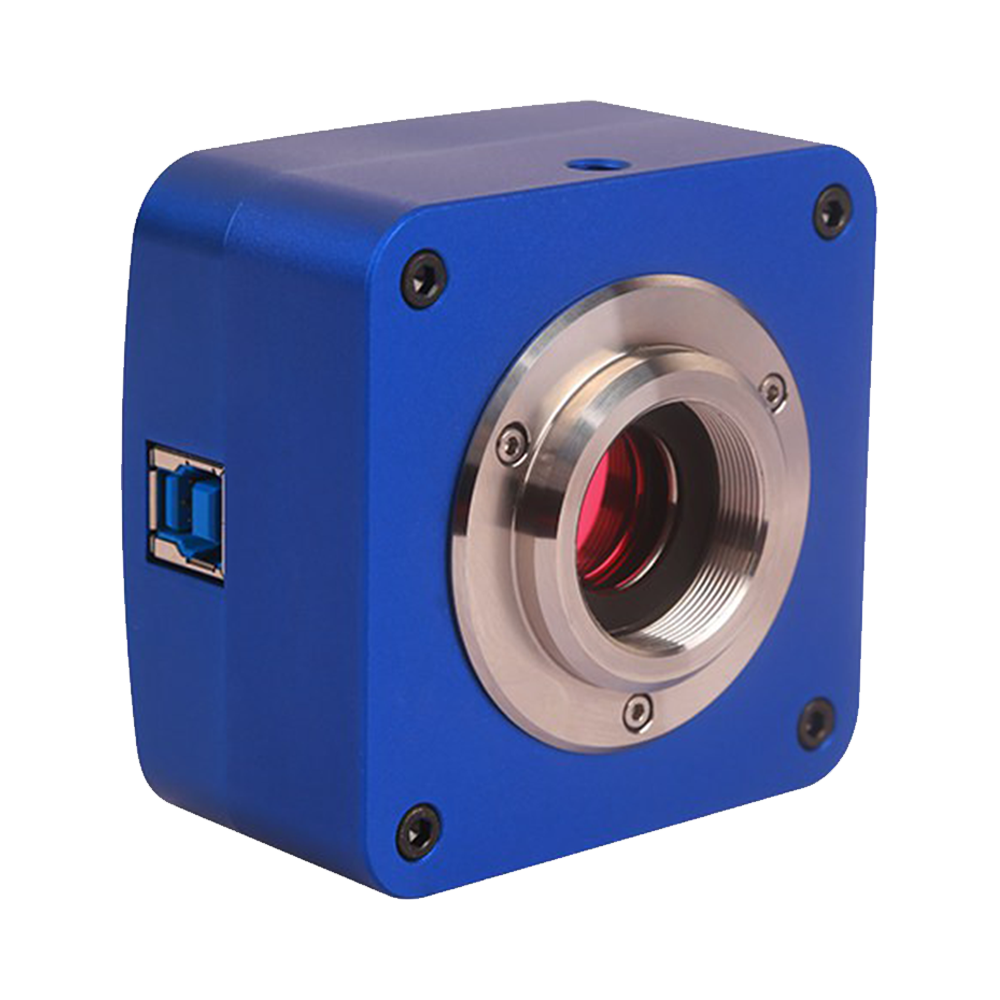

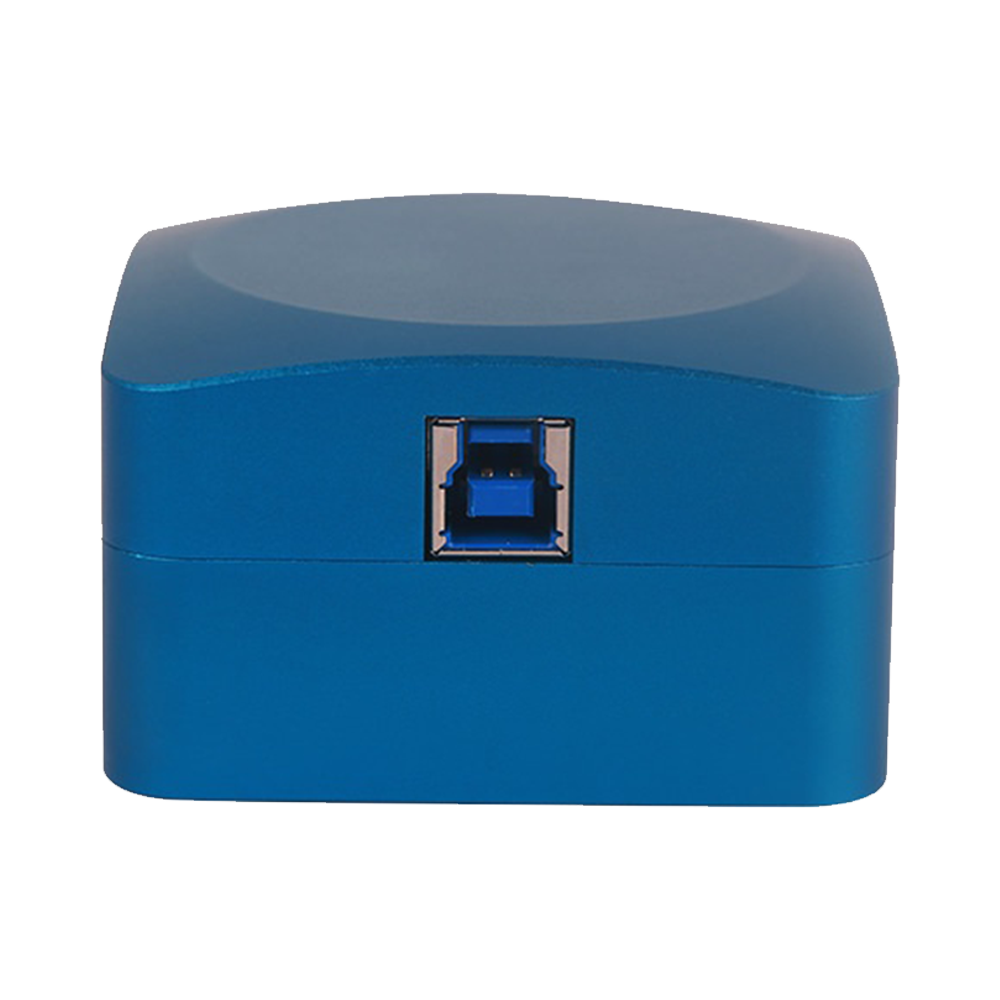

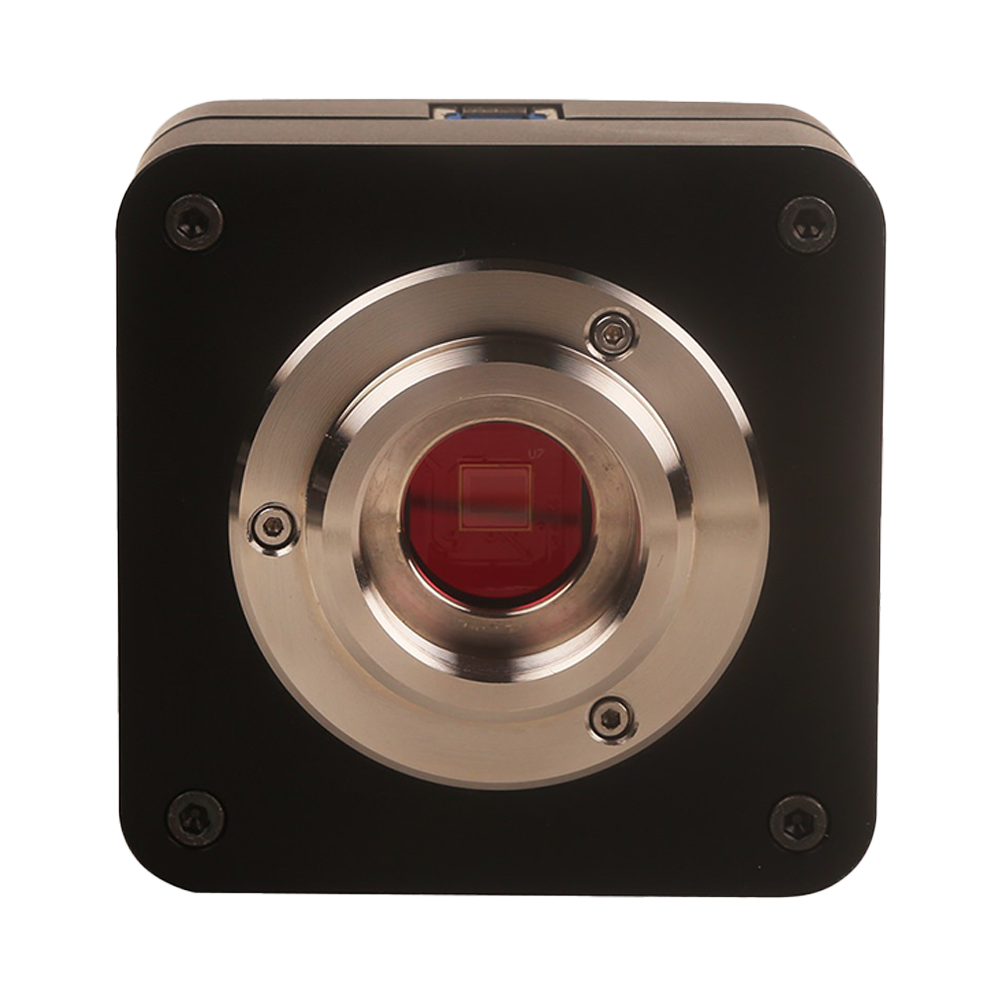

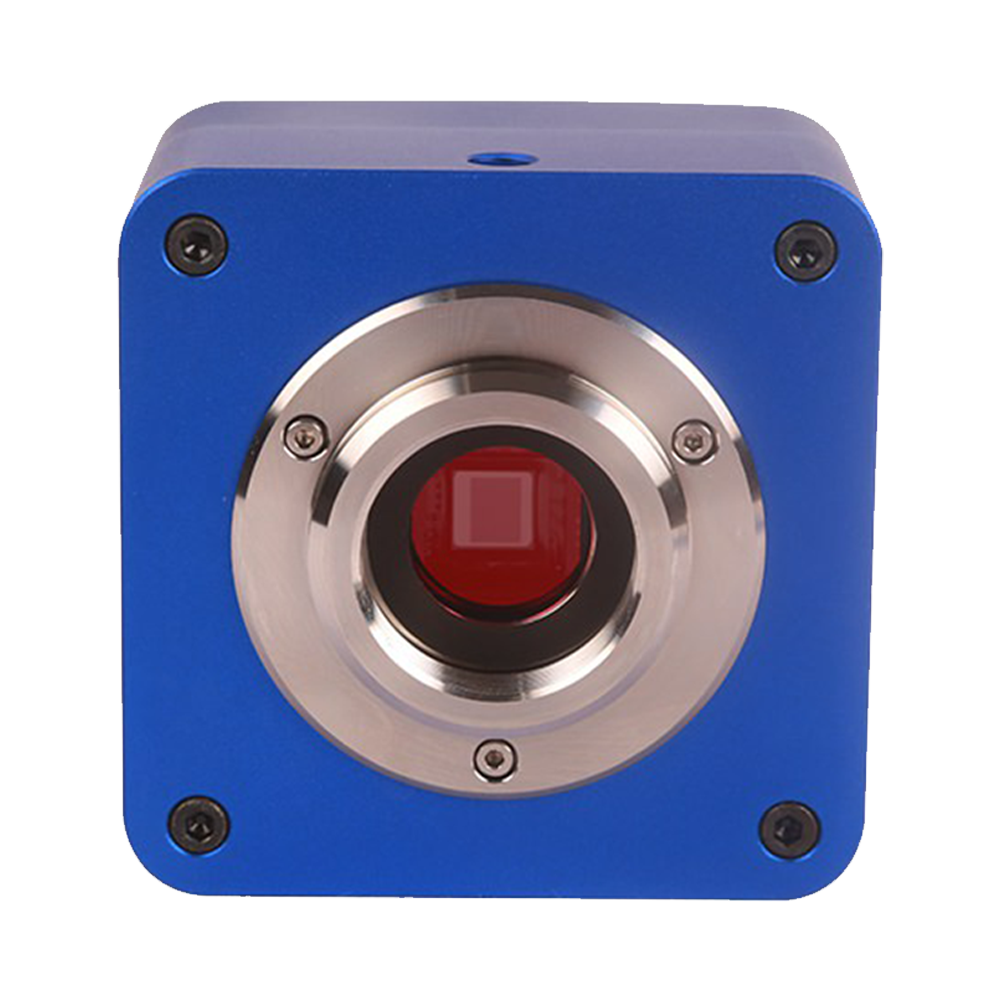

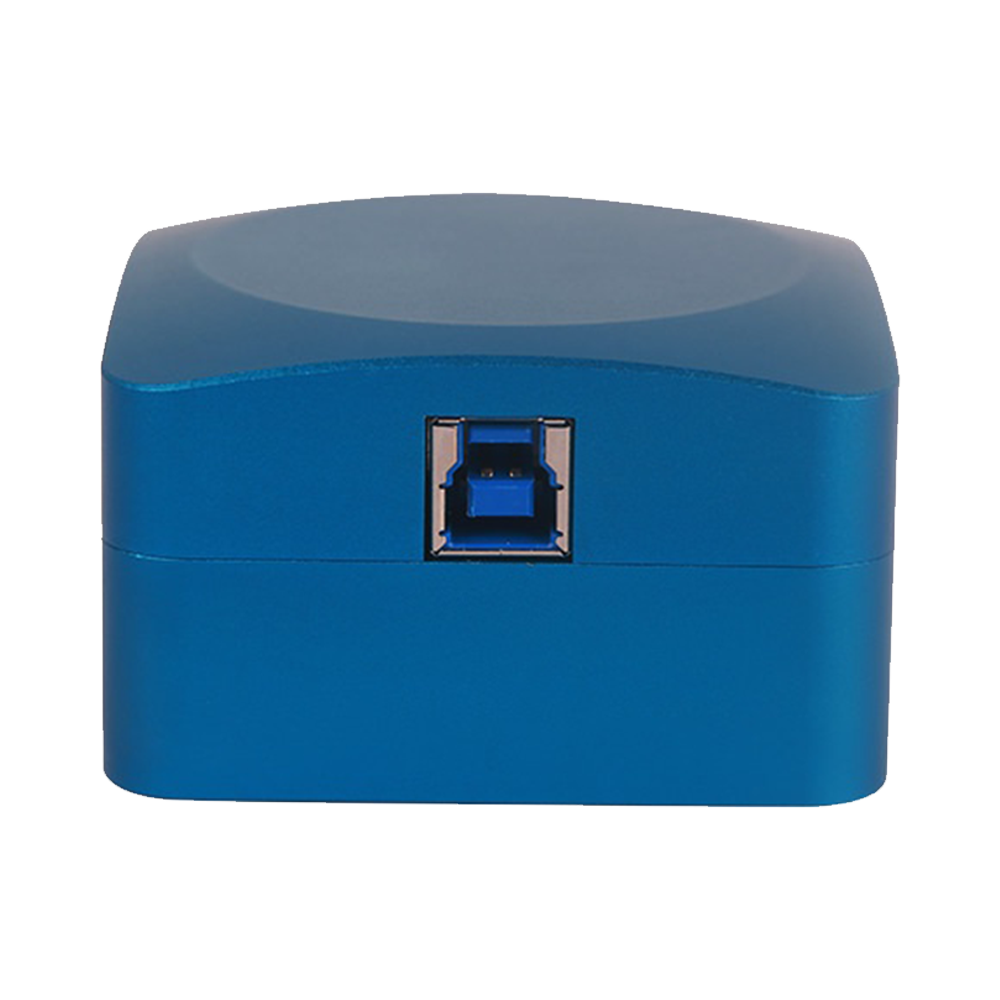

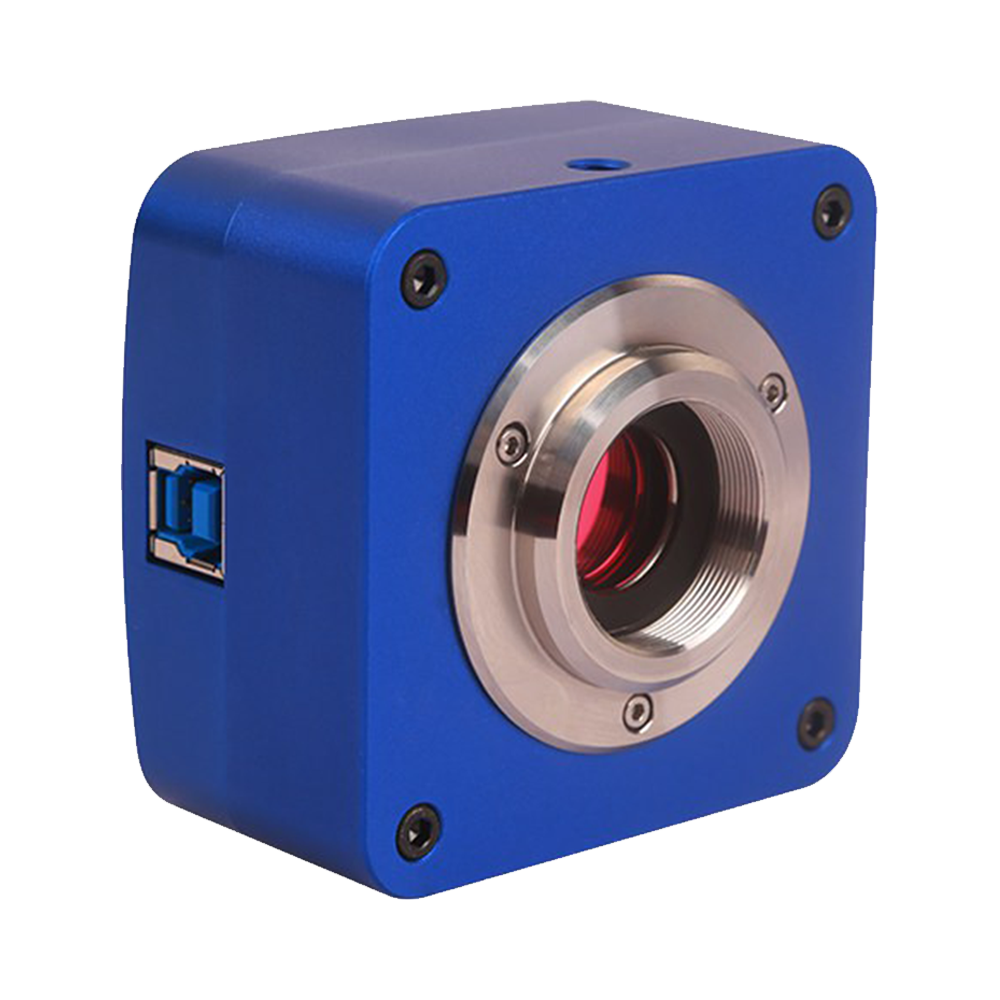

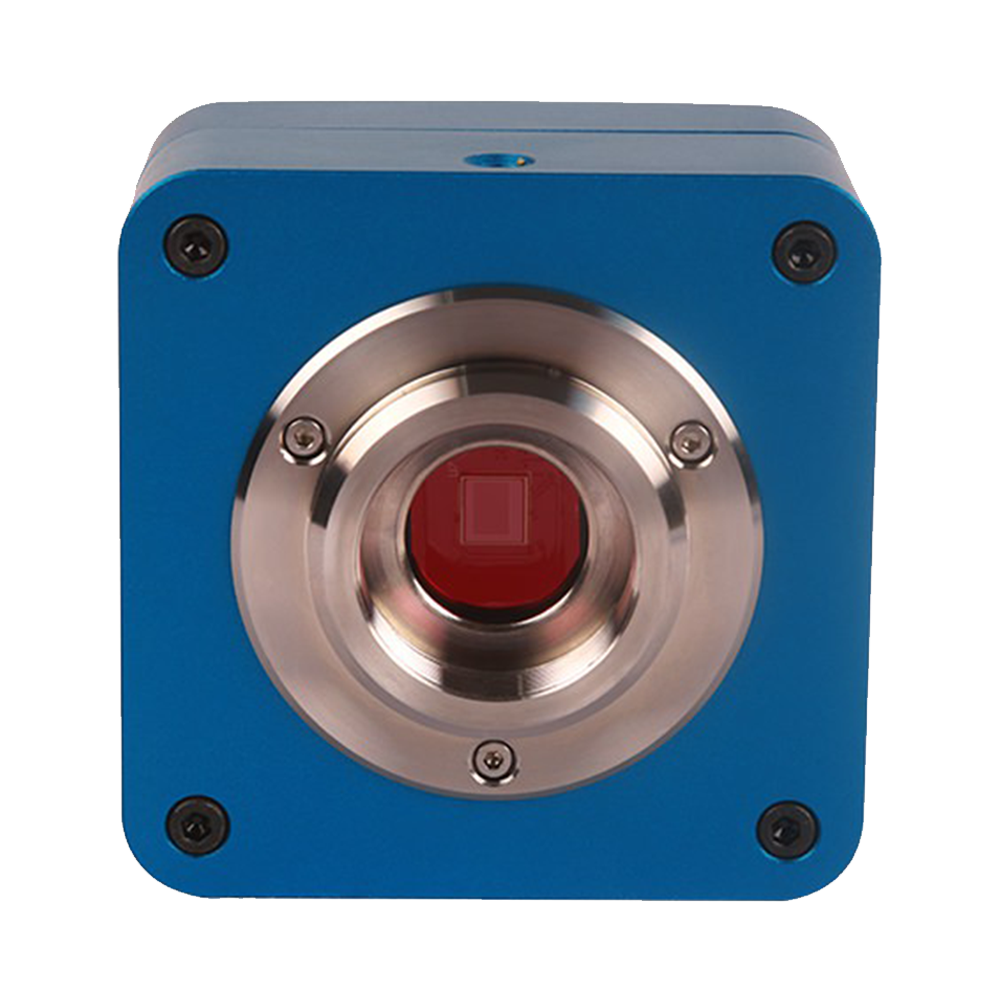

Product Introduction
The U3CCD series features C-mount USB3.0 CCD microscopy cameras equipped with Sony ExView HAD CCD sensors (model-dependent), delivering higher quantum efficiency and lower readout noise across visible to near-infrared wavelengths, particularly suited for low-light/fluorescence and other high-sensitivity applications. All models utilize 5 Gbit/s USB3.0 high-speed links for stable and smooth image transmission. FPGA-level timing control supports long exposures (typically up to 3600 s, model-dependent), enabling capture of extremely weak signals. The aluminum alloy CNC housing includes ToupView software and provides cross-platform SDK support (Windows/Linux/macOS/Android) to meet system integration and secondary development requirements for scientific research and industrial applications.
Product Features
- Sensor: Sony ExView HAD CCD (model-dependent), enhanced near-infrared response and high low-light sensitivity
- Resolution coverage approximately 2.8–12 MP (model-dependent), compatible with various microscopy/imaging tasks
- CCD global exposure imaging (Global Exposure), suppressing motion distortion and rolling shutter effects
- Long exposure capability: FPGA precision timing control, maximum typical duration up to 3600 s (model-dependent)
- Data interface: USB3.0 (5 Gbit/s) high-speed transmission, stable preview and acquisition
- Low-noise imaging chain: Low readout noise, optimized dark current suppression (model-dependent)
- Trigger and synchronization: Free-running, software trigger, external hardware trigger; flash/IO linkage (model-dependent)
- Image functions: ROI/windowing, digital binning, mirror flip, Gamma/LUT (model-dependent)
- Bit depth and data: Support 8/12/16-bit output (model-dependent), enhancing weak signal layers and dynamic range
- Structure: Integrated aluminum alloy CNC housing, C-mount standard lens interface, durable and easy to integrate
- Software and ecosystem: Includes ToupView; provides Windows / Linux / macOS / Android SDK (compatible with DirectShow / TWAIN)
- Typical applications: Brightfield/darkfield, low-light and fluorescence microscopy, materials/semiconductor inspection, general scientific recording, etc.
Product Models
Select the U3CCD Series that fits your application requirements
| Product Model | Effective Pixels | Sensor Size | Shutter Type | Frame Rate (FPS) | Sensor Type | Data Interface | Color | Actions |
|---|---|---|---|---|---|---|---|---|
| U3CCD12000KPA (Discontinued) | 12MP (4248×2836) |
13.15 mm × 8.77 mm
0.99" (15.81 mm)
|
Rolling Shutter |
3.6 fps@4248×2836
3.6 fps@2124×1418
|
ICX834AQG CCD (C) | USB3.0 |
|
View Details |
| U3CCD12000KMA | 12MP (4248×2836) |
13.15 mm × 8.77 mm
0.99" (15.81 mm)
|
Rolling Shutter |
3.6 fps@4248×2836
3.6 fps@2124×1418
|
ICX834ALG CCD (M) | USB3.0 |
|
View Details |
| U3CCD09000KPA | 9MP (3388×2712) |
12.47 mm × 9.98 mm
1" (15.97 mm)
|
Rolling Shutter |
4.4 fps@3388×2712
4.4 fps@1694×1356
|
ICX814AQG CCD (C) | USB3.0 |
|
View Details |
| U3CCD09000KMA | 9MP (3388×2712) |
12.47 mm × 9.98 mm
1" (15.97 mm)
|
Rolling Shutter |
4.4 fps@3388×2712
4.4 fps@1694×1356
|
ICX814ALG CCD (M) | USB3.0 |
|
View Details |
| U3CCD06000KPA | 6MP (2748×2200) |
12.48 mm × 9.99 mm
1" (15.99 mm)
|
Rolling Shutter |
7.5 fps@2748×2200
14 fps@2748×1092
|
ICX694AQG CCD (C) | USB3.0 |
|
View Details |
| U3CCD06000KMA | 6MP (2748×2200) |
12.48 mm × 9.99 mm
1" (15.99 mm)
|
Rolling Shutter |
7.5 fps@2748×2200
14 fps@2748×1092
|
ICX694ALG CCD (M) | USB3.0 |
|
View Details |
| U3CCD02800KPA | 2.8MP (1938×1460) |
8.81 mm × 6.63 mm
0.69" (11.03 mm)
|
Rolling Shutter |
15 fps@1938×1460
17 fps@1610×1212
18 fps@1930×1092
|
ICX674AQG CCD (C) | USB3.0 |
|
View Details |
| U3CCD02800KMA | 2.8MP (1938×1460) |
8.81 mm × 6.63 mm
0.69" (11.03 mm)
|
Rolling Shutter |
15 fps@1938×1460
17 fps@1610×1212
18 fps@1930×1092
|
ICX674ALG CCD (M) | USB3.0 |
|
View Details |
| U3CCD01400KPB | 1.4MP (1376×1040) |
8.88 mm × 6.70 mm
0.7" (11.12 mm)
|
Rolling Shutter |
25 fps@1376×1040
|
ICX825AQA CCD (C) | USB3.0 |
|
View Details |
| U3CCD01400KMB | 1.4MP (1376×1040) |
8.88 mm × 6.70 mm
0.7" (11.12 mm)
|
Rolling Shutter |
25 fps@1376×1040
|
ICX825ALA CCD (M) | USB3.0 |
|
View Details |
Packing List #
Standard kit and packaging for the U3CCD USB3.0 Sony ExView HAD CCD camera series
Standard Items
- Shipping carton: L 52 cm × W 32 cm × H 32 cm (20 pcs, 12–17 kg per carton)
- Inner box: L 15 cm × W 15 cm × H 10 cm (0.70–0.75 kg per box)
- U3CCD series camera (1 pc)
- High-speed USB3.0 Type-A male to Type-B male gold-plated cable (2.0 m)
- Software CD (drivers and applications, Ø 12 cm)
Optional Accessories
- Adjustable eyepiece adapters
Dia. 23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075, 108004/AMA100
Dia. 31.75 mm eyepiece to C-mount: 108008/ATA037, 108009/ATA050, 108010/ATA075, 108011/ATA100 - Fixed eyepiece adapters
Dia. 23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075, 108008/FMA100
Dia. 31.75 mm eyepiece to C-mount: 108011/FTA037, 108012/FTA050, 108013/FTA075, 108014/FTA100 - 108015 (Dia. 23.2 mm to 30.0 mm ring) – adapter ring for 30 mm eyepiece tubes
- 108016 (Dia. 23.2 mm to 30.5 mm ring) – adapter ring for 30.5 mm eyepiece tubes
- 108017 (Dia. 23.2 mm to 31.75 mm ring) – adapter ring for 31.75 mm eyepiece tubes
- Calibration reticles
106011/TS-M1 (X = 0.01 mm / 100 divisions)
106012/TS-M2 (X, Y = 0.01 mm / 100 divisions)
106013/TS-M7 (X = 0.01 mm / 100 divisions; 0.10 mm / 100 divisions)

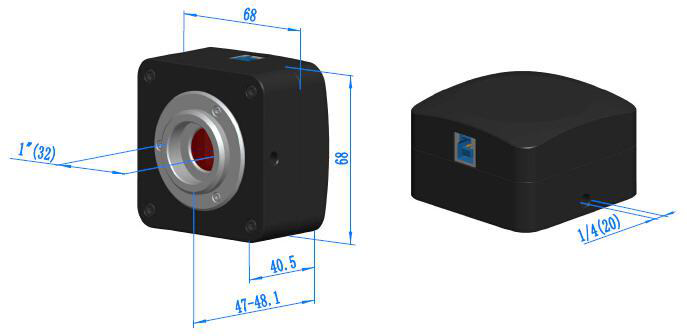

Product Dimensions #
Mechanical outline for U3CCD Sony ExView HAD CCD cameras
The U3CCD series is ToupTek’s ultra-high-performance USB3.0 scientific CCD camera family, built around Sony ExView HAD CCD sensors with resolutions ranging from 2.8 MP to 12 MP. ExView technology converts otherwise unused near-infrared photons into image signals, extending spectral response from the visible band into the near-infrared and significantly boosting sensitivity. Combined with the high-speed USB3.0 interface and a professional software ecosystem, U3CCD cameras deliver outstanding image quality and integration flexibility for demanding research workflows.
Key Features
Sony ExView HAD CCD
Extends spectral response into the near-infrared to enhance low-light sensitivity.
USB3.0 High-Speed Transfer
5 Gbps bandwidth enables smooth, real-time high-resolution streaming.
FPGA-Based Exposure Control
Supports exposures up to 1 hour for stable weak-fluorescence capture.
Ultra-Fine Color Engine
Hardware color processing preserves accurate microscopy detail.
Performance Highlights
Resolution Range
2.8–12 MP
Multiple sensor optionsSpectral Response
380–1000 nm
Visible to near-infraredExposure Time
0.06 ms–1000 s
Wide control rangeData Depth
8 / 14 bit
High dynamic rangeIn-Depth Technical Overview
Revolutionary ExView HAD CCD Technology
U3CCD cameras feature Sony ExView HAD CCD sensors—among the most advanced CCD platforms available. ExView semiconductor processing extends spectral response from the visible band into the near-infrared (approximately 380–1000 nm), dramatically improving quantum efficiency in the NIR. The technology boosts sensitivity in dark-field and low-light scenes while deep photoelectric conversion suppresses noise, making the cameras ideal for research tasks that rely on low-light or near-infrared imaging.
USB3.0 SuperSpeed Data Transfer
The USB3.0 SuperSpeed interface provides up to 5 Gbps bandwidth—ten times faster than USB2.0. The high-speed pipeline keeps video capture and live preview smooth even at maximum resolution, eliminating the transfer bottlenecks common in legacy CCD cameras. The interface remains backward compatible with USB2.0 for older systems, while single-cable power and data simplify setup.
FPGA-Controlled Long Exposure
An integrated FPGA delivers precise exposure control across an ultra-wide range from 0.06 ms to 1000 s, with selected models supporting exposures up to 1 hour. This accuracy is critical for weak fluorescence imaging, astronomy, and bioluminescence studies. FPGA timing maintains stability during long integrations, preventing drift and preserving delicate signal details.
Professional Ultra-Fine Color Processing
The hardware Ultra-Fine color engine employs advanced algorithms to deliver faithful color reproduction for microscopy images. Output modes include 8-bit and 14-bit data, with 14-bit providing 16,384 gray levels to expand dynamic range for quantitative research. The color pipeline maintains accuracy across both visible and near-infrared bands, enabling multispectral imaging workflows.
Scientific-Grade Reliability Design
A monolithic CNC-machined aluminum alloy enclosure ensures mechanical strength and efficient heat dissipation. The fanless passive cooling architecture removes vibrational noise, which is essential for high-magnification microscopy and long exposures. With no moving parts, the camera offers exceptional reliability for long-term deployment in rigorous research environments.
Applications
Representative microscopy applications for the U3CCD ExView HAD series.
U3CCD Series Advantages
Broad Spectral Response
Visible through near-infrared.
ExView Technology
Powered by Sony HAD CCD sensors.
Extended Exposure
Up to 1 hour integration.
USB3.0 Performance
5 Gbps bandwidth.
FPGA Timing
Precise exposure sequencing.
14-bit Depth
High dynamic range.
High Sensitivity
Outstanding low-light performance.
Research-Grade Quality
Professional imaging standard.
