WEUCAM-Serie
Product Introduction
Die WEUCAM-Serie HDMI-Kameras können über USB/LAN/Wi-Fi-Netzwerk mit intelligenten Geräten und Computern verbunden werden, um Videos und Bilder von Stereo- oder biologischen Mikroskopen aufzunehmen. Sie können auch zu interaktiven Mikroskopie-Lehrsystemen vernetzt werden, was den Unterricht für Lehrkräfte und das Lernen für Studierende erleichtert.
Product Features
- Sony Exmor rückbeleuchteter großformatiger CMOS-Sensor, geringeres Rauschen, bessere Lichtempfindlichkeit
- USB/LAN/Wi-Fi Multi-Interface-Ausgabe, Wi-Fi mit 11AC-Chip für höhere Übertragungsbandbreite
- Leistungsstarke ISP und andere relevante Verarbeitungsfunktionen, Echtzeit-Videoübertragung bis zu 30 fps / 4M
- ToupView/ToupLite Software, komfortablere PC-Bedienung, geeignet für biologische und Stereo-Beobachtungen
- iOS/Android-Mobile-Apps, kostenloser Download im App Store
WEUCAM-Serie
Integriert USB-, LAN- und Wi-Fi-Ausgabe in einem Gerät, flexible Verbindung, erfüllt verschiedene Anforderungen für Netzwerk-, Fern- und lokale Bildgebungsszenarien.
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| WEUCAM4MPA |
Sony IMX347(C)
1/1.8" (7.8×4.38mm)
|
2.9μm × 2.9μm | 4MP (2688×1512) | USB: 30fps@2688×1512; LAN/Wi-Fi: 30fps@2688×1512 | USB2.0 LAN Wi-Fi 802.11ac | C-Mount-Anschluss | Kein lokaler Speicher | Drei-Schnittstellen-Ausgabe Flexible Verbindungsmöglichkeiten Hohe Auflösung AP/STA-Modus Netzwerk-Bandbreitenregelung |
WEUCAM Wi-Fi + Ethernet Camera | Packing List #
Standard Items in the Box
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, approx. 1.57 kg per box)
- B WEUCAM series camera ×1
- C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A (GS12U12-P1I / GS12E12-P1I)
- D USB mouse ×1
- E HDMI 2.0 cable ×1
- F High-speed USB 2.0 A↔A gold-plated data cable (2.0 m)
- G Driver and application disc (Ø12 cm)
Optional Accessories
- H SD card (≥16 GB, Class 10)
- I Adjustable eyepiece adapters 108001/AMA037, 108002/AMA050, 108003/AMA075
- J Fixed eyepiece adapters 108005/FMA037, 108006/FMA050, 108007/FMA075
- K 30 mm eyepiece conversion ring 108015
- L 30.5 mm eyepiece conversion ring 108016
- M Micrometer 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
- N USB flash drive (backup media)
- O USB Wi-Fi adapter (required for Wi-Fi/AP mode)
WEUCAM Wi-Fi + Ethernet Camera | Dimensions #

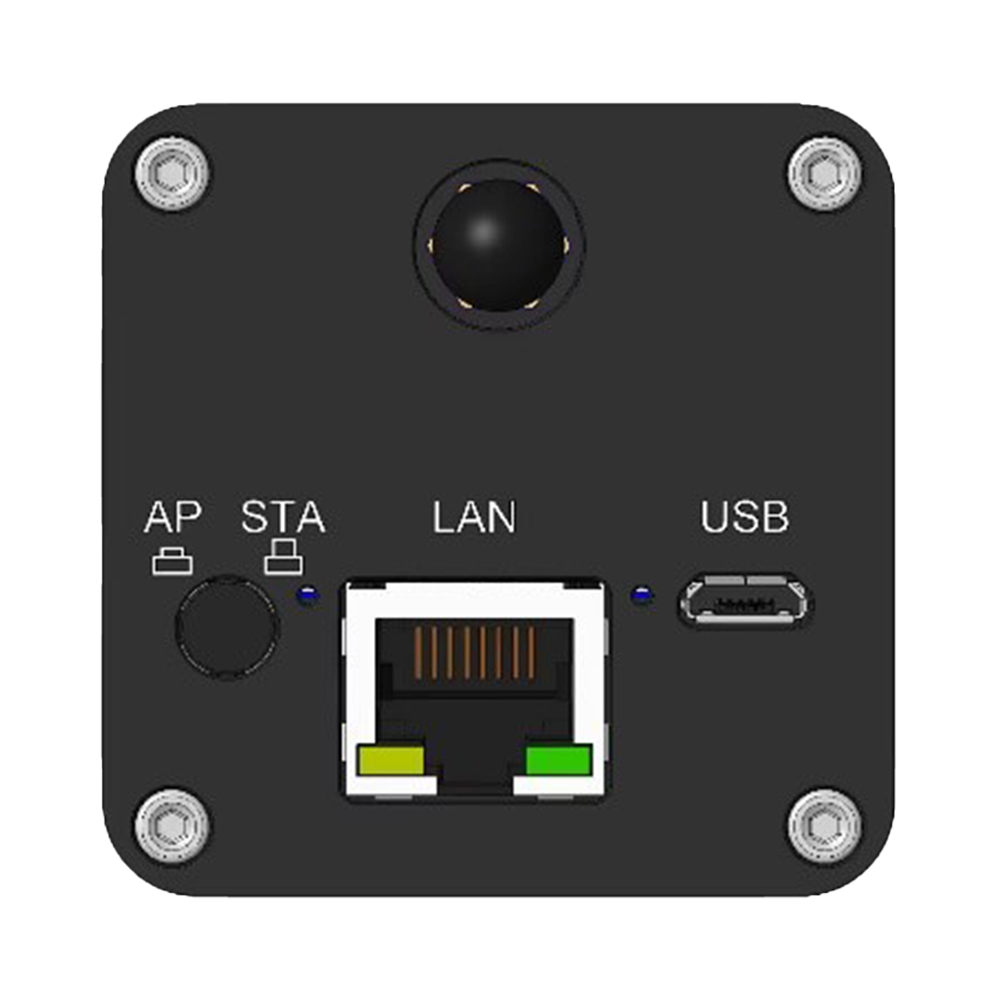

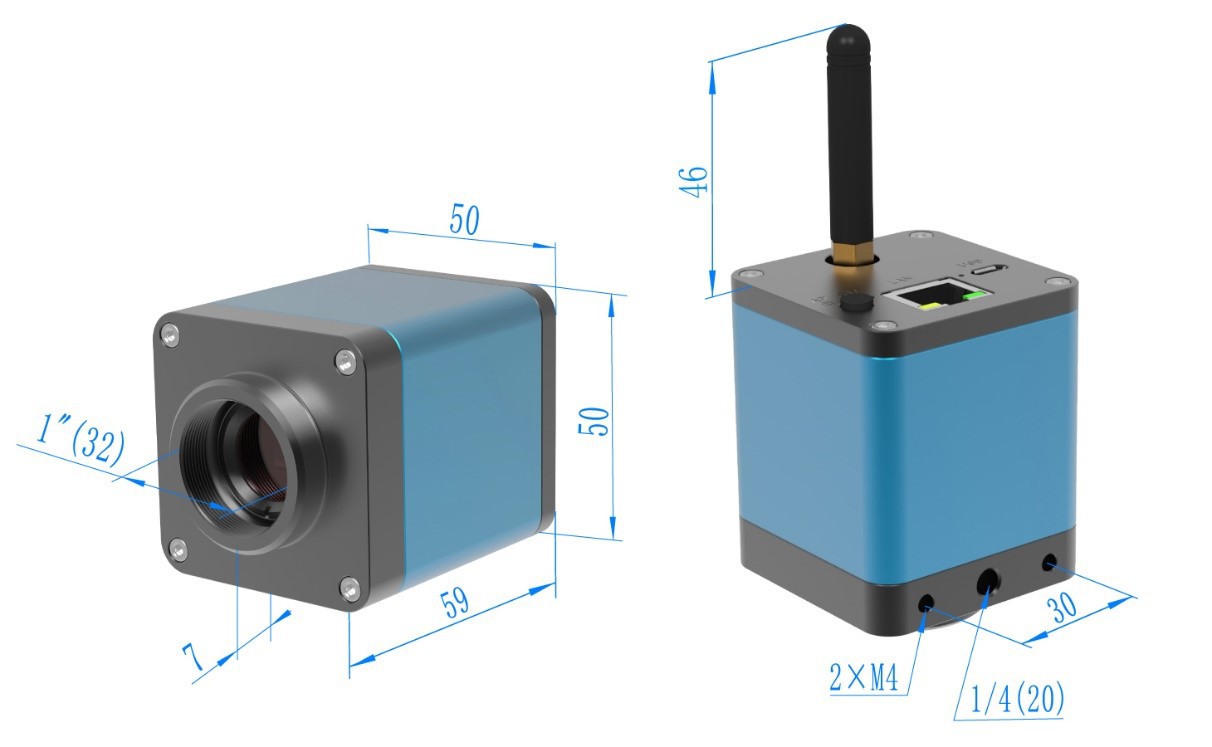

Exterior dimensions and interface layout
Refer to manual Figure 4-15
Confirm the mount holes and interface orientation with the dimension drawing before installation.
WEUCAM Wi-Fi + Ethernet Microscope Camera — Product Overview
Tupu Optoelectronics WEUCAM series delivers Wi-Fi, Ethernet, and USB 3.0 connectivity in a single microscope camera for multi-terminal collaboration across teaching, research, and inspection tasks.
Built on a Sony Exmor back-illuminated CMOS sensor, it supports HDMI, Wi-Fi, LAN, and USB output, integrates robust ISP processing, and includes XCamView software for standalone operation.
Technical Highlights
- Comprehensive interface support: Simultaneous USB, LAN, Wi-Fi (AP/STA, USB adapter required), and HDMI output meets diverse collaboration needs.
- High-performance imaging with real-time processing: An integrated ISP engine delivers low-noise video, color optimization, and real-time image processing tailored to research and teaching.
- Cross-platform compatibility: Works with ToupView/ToupLite on Windows and macOS, plus iOS/Android mobile apps for convenient handheld access.
- Teaching interaction support: Connect through LAN or Wi-Fi to allow multiple devices to join simultaneously, enabling classroom projection, lab demonstrations, and remote instruction.
- Durable, long-term design: A high-quality enclosure and stable hardware platform ensure reliability for labs and industrial environments.
Core Advantages
-
1
Multi-interface collaboration, rapid setup USB, LAN, and Wi-Fi outputs support standalone use or shared teaching networks.
-
2
High image quality with low noise Sony Exmor back-illuminated sensors and the ISP maintain high sensitivity and wide dynamic range.
-
3
Cross-platform support Compatible with desktop and mobile devices for flexible teaching and research environments.
-
4
Built for teaching and research Multi-terminal sharing suits classroom interaction, scientific imaging, and industrial inspection.
-
5
Extensive application coverage Ideal for "USB/LAN/Wi-Fi microscope cameras," "C-mount CMOS cameras," "interactive teaching imaging systems," and "Sony Exmor CMOS solutions."
