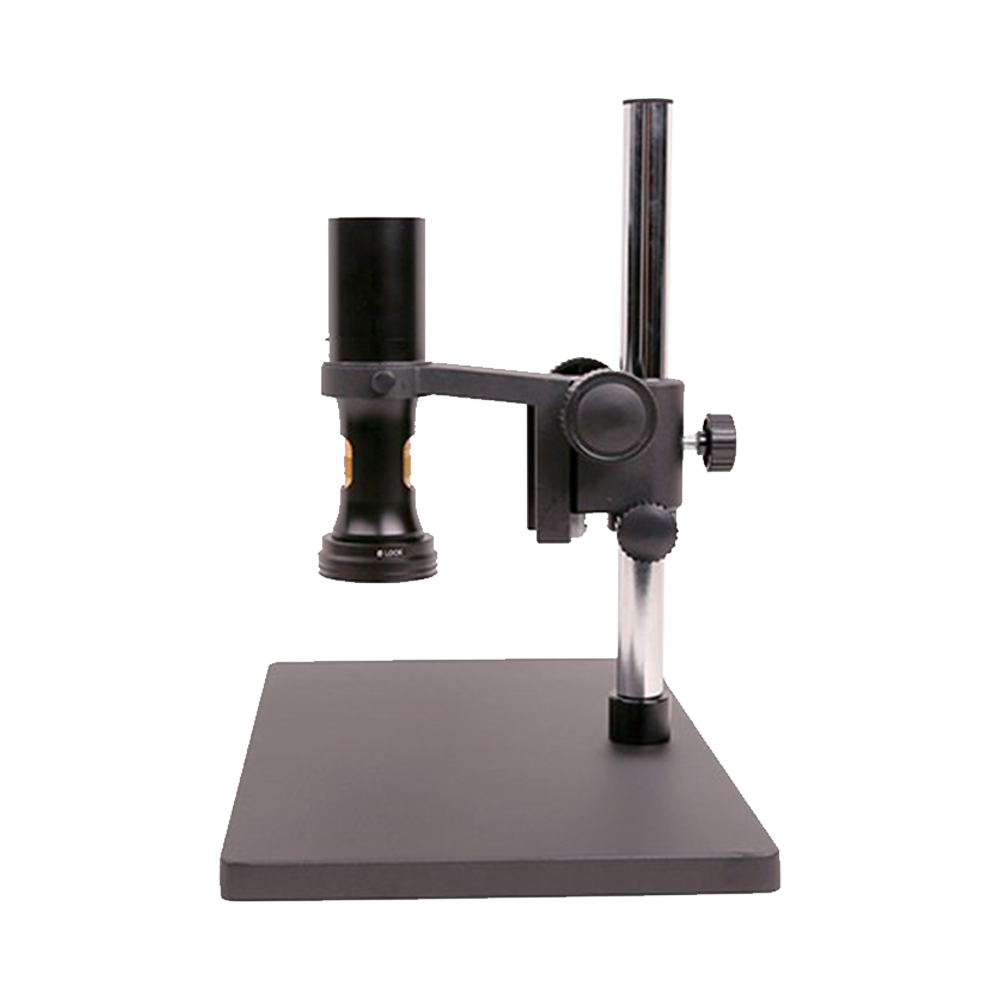

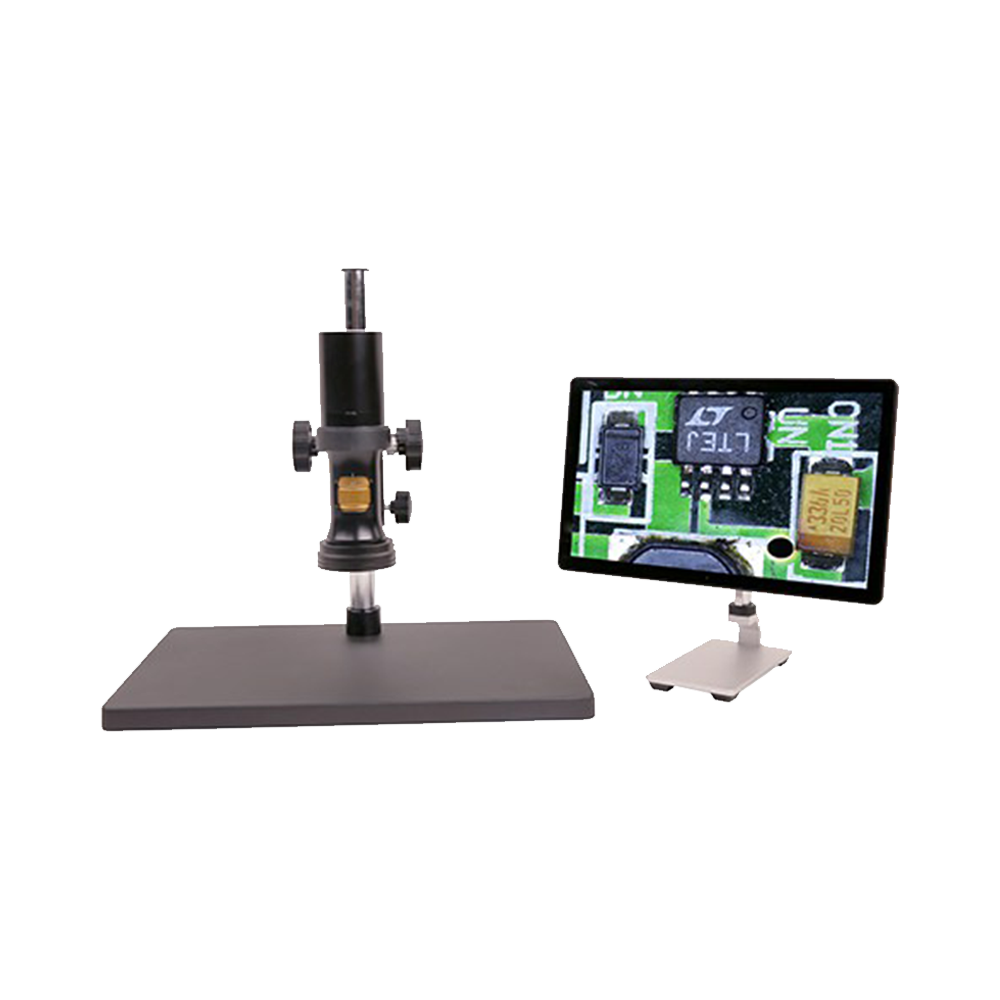

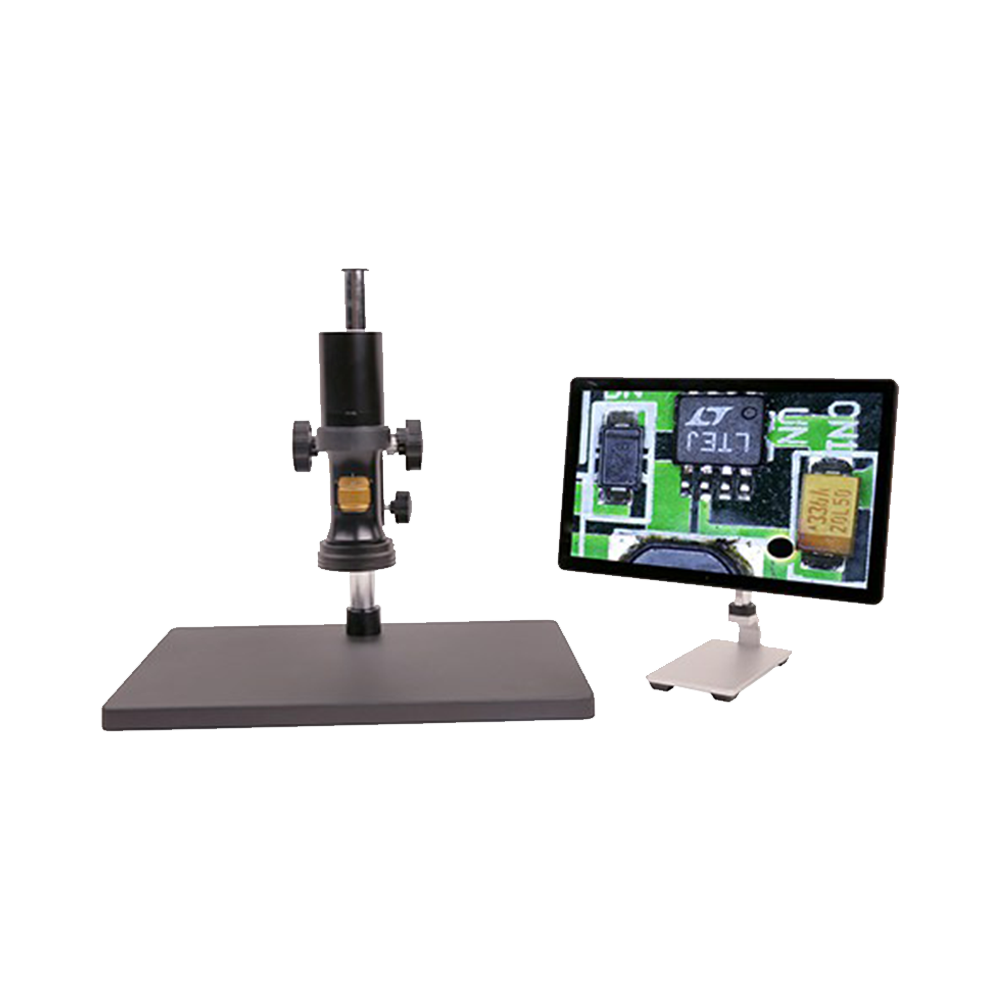

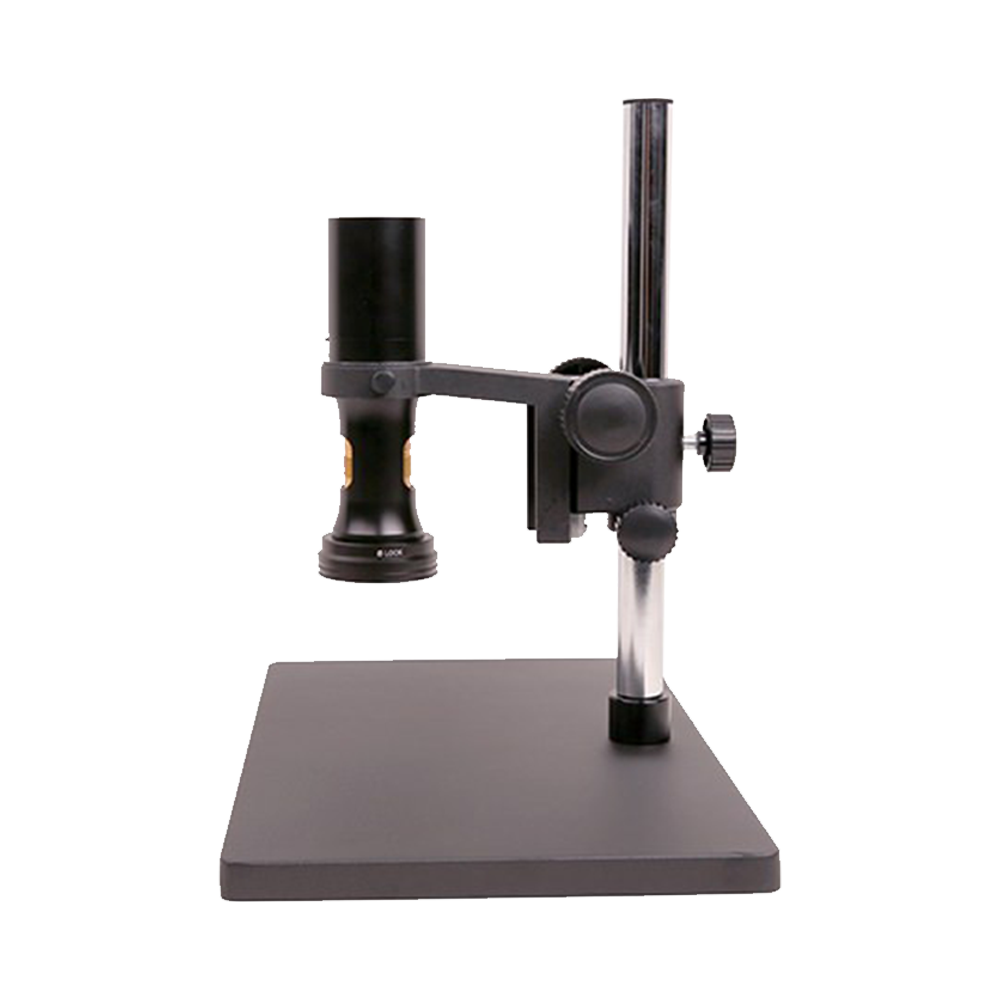

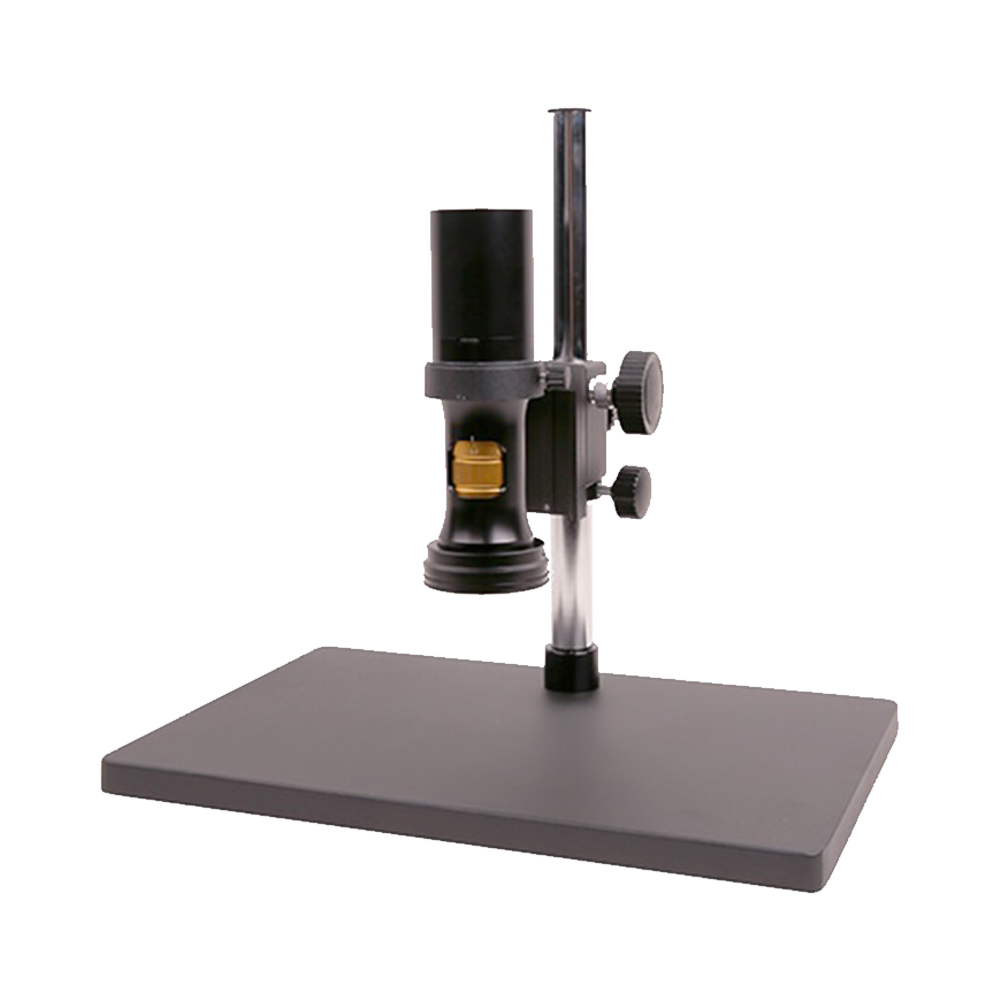

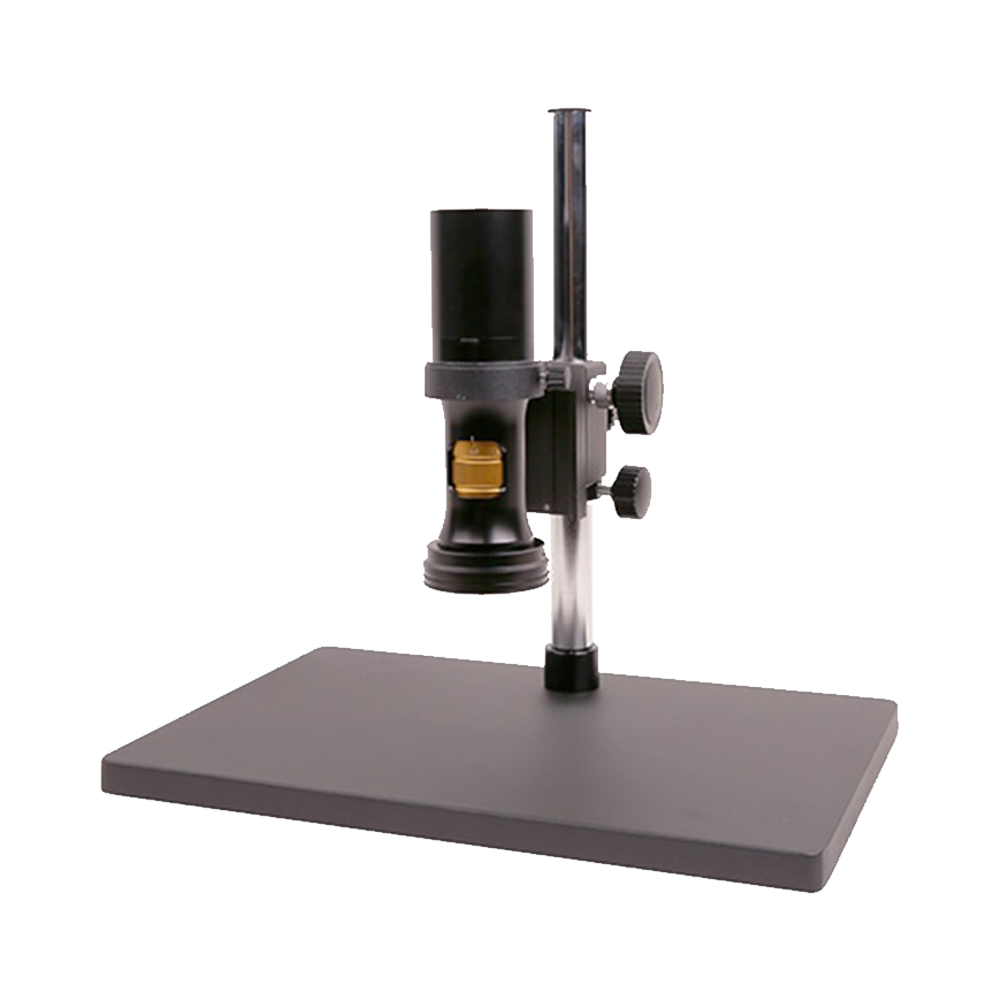

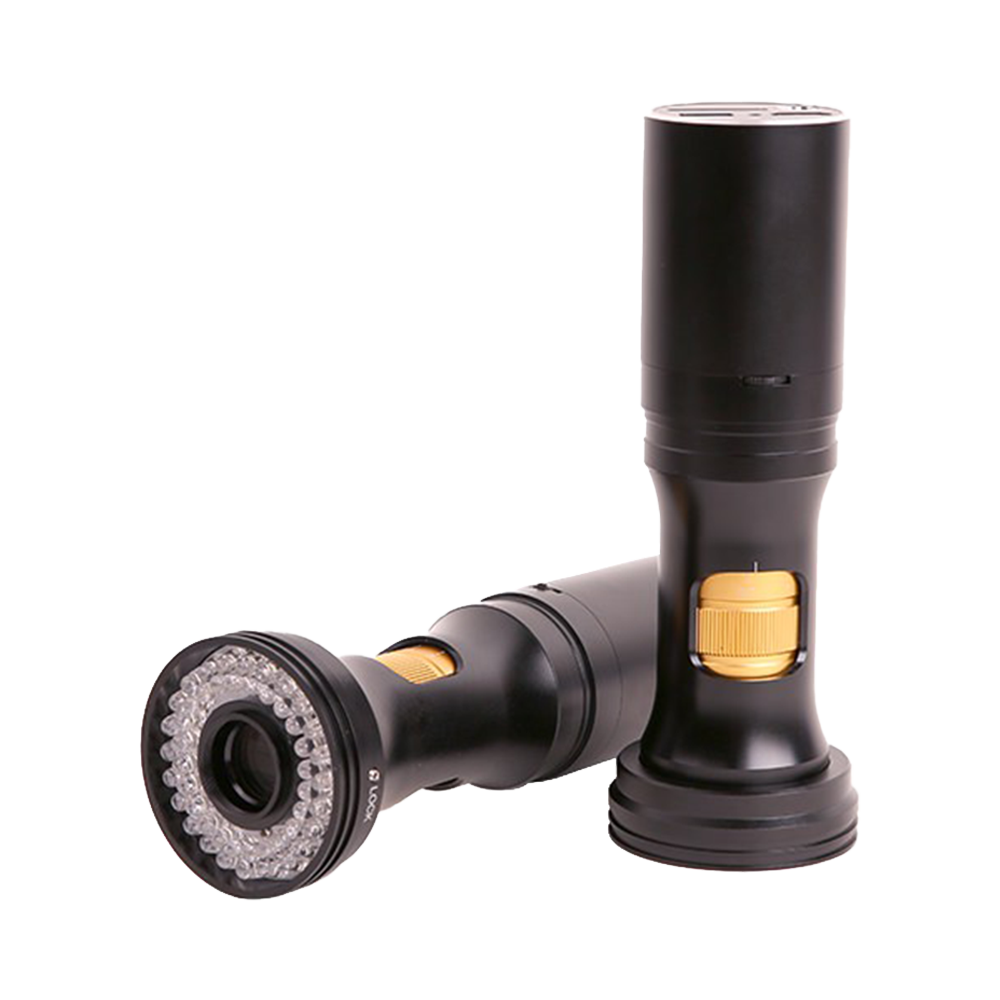

ZM Series

Product Introduction

The ZM series continuous zoom digital microscopy all-in-one systems integrate the ZM0480 and ZM0756 main platforms, designed for modern industrial inspection, biological imaging, electronic manufacturing, and scientific education. This series employs high-sensitivity Sony CMOS sensors, supporting 4K/1080P HDMI, USB2.0, and Wi-Fi multiple output methods, featuring 8× /20× continuous zoom optical systems with standard 50 mm mechanical interfaces, flexibly adapting to various stands and auxiliary objectives.

The ZM series features an integrated compact design with fully modular integration of optical bodies, imaging cameras, and wireless LED ring/coaxial/polarized illumination, eliminating wiring requirements and enabling quick installation, greatly enhancing imaging efficiency and user experience. The entire series supports SD card local storage or PC real-time acquisition, with built-in rich measurement tools and multi-language menus, compatible with Windows, macOS, Linux, Android, iOS, and other multi-platform software. Through efficient ISP image processing, intelligent noise reduction, and multi-level white balance, it ensures image detail and color reproduction accuracy, achieving high-definition imaging applications for industrial, scientific research, laboratory, and educational scenarios.

Applicable fields include but are not limited to: PCB and semiconductor inspection, LED/LCD display examination, precision mechanical manufacturing, biological slide observation, material analysis, and scientific research education.

Product Features

  • 20× or 8× continuous zoom optical system, supporting multiple WD/NA/resolution options
  • HDMI plug-and-play, USB direct connection, Wi-Fi wireless multiple interface options
  • High-sensitivity Sony IMX series CMOS, 4K/8MP/5.1MP/2MP multiple specifications
  • Rich built-in measurement, calibration, annotation, and crosshair assistance functions
  • Integrated wireless LED ring/polarized/coaxial illumination with unified power supply and no external cables
  • SD card/computer multiple storage methods, H265 video encoding for high efficiency and space saving
  • Multi-language interface, compatible with Windows/macOS/Linux/Android/iOS and other multi-platform systems
  • Compact integrated structure with standard 50 mm interface, adaptable to various industrial/educational stands
Get Quote Product Manual

ZM Series Configuration Recommendation Calculator

Match the most suitable ZM series microscopy imaging system based on your application requirements

Enter Your Requirements

Select your primary magnification range
Higher resolution provides more detail
Distance from objective to sample, typically 30-200 mm

Recommended Configuration

Please enter your requirement parameters

The system will recommend the most suitable ZM series configuration

Integrated Design | Multi-Platform Interface | HD High Frame Rate | Continuous Zoom Optical System | Wireless Smart Illumination

Model Sensor/Size Effective Pixels Output Resolution Frame Rate (fps) Output Interface Lens Mount Storage Support Featured Functions
ZM0756H4K8MPA
Sony IMX415(C)
1/2.8" (5.57×3.13 mm)
 1.45 μm × 1.45 μm 8MP (3840×2160) HDMI: 30 fps@3840×2160; 30 fps@1080P HDMI TZM0756-W100-TV050 continuous zoom body SD card Continuous zoom 0.7×-5.6× Image measurement Video recording MP4 (H264/H265) Multiple measurement tools Multi-language support ISP functionality Image assistance functions Wireless LED illumination More compact design
ZM0480H4K8MPA
Sony IMX415(C)
1/2.8" (5.57×3.13 mm)
 1.45 μm × 1.45 μm 8MP (3840×2160) HDMI: 30 fps@3840×2160; 30 fps@1080P HDMI TZM0480-W3100-TV3050 continuous zoom body SD card Continuous zoom 0.4×-8.0× Image measurement Video recording MP4 (H264/H265) Multiple measurement tools Multi-language support ISP functionality Image assistance functions Wireless LED illumination
ZM0756H1080PA
Sony IMX307(C)
1/2.8" (5.57×3.13 mm)
 2.9 μm × 2.9 μm 2MP (1920×1080) HDMI: 60 fps@1920×1080 HDMI TZM0756-W100-TV050 continuous zoom body SD card Continuous zoom 0.7×-5.6× 8× zoom range Direct HDMI output 60 fps Image measurement functionality Video recording MP4 Multi-language support Wireless LED illumination XCamView professional software Compact optical design
ZM0756U830A
Sony IMX415(C)
1/2.8" (5.57×3.13 mm)
 1.45 μm × 1.45 μm 8.3MP (3840×2160) 30 fps@3840×2160; 30 fps@1920×1080; 30 fps@1280×720; 30 fps@960×540 USB2.0 TZM0756-W100-TV050 continuous zoom body Computer storage Continuous zoom 0.7×-5.6× 8× zoom range 8.3MP high resolution USB2.0 interface power supply Wireless LED illumination Ultra-Fine color engine Multi-platform SDK support Compact optical design
ZM0756U510A
Sony IMX335(C)
1/2.8" (5.18×3.89 mm)
 2.0 μm × 2.0 μm 5.1MP (2592×1944) 26 fps@2592×1944; 26 fps@1280×960; 26 fps@640×480 USB2.0 TZM0756-W100-TV050 continuous zoom body Computer storage Continuous zoom 0.7×-5.6× 8× zoom range 5.1MP high resolution USB2.0 interface power supply Wireless LED illumination Ultra-Fine color engine Multi-platform SDK support Compact optical design
ZM0756WU1080PA
Sony IMX307(C)
1/2.8" (5.57×3.13 mm)
 2.9 μm × 2.9 μm 2MP (1920×1080) USB: 50 fps@1920×1080 (MJPEG); Wi-Fi: 50 fps@1920×1080 (H264) Wi-Fi USB TZM0756-W100-TV050 continuous zoom body Computer storage / Mobile device storage Continuous zoom 0.7×-5.6× 8× zoom range Wi-Fi AP mode wireless transmission USB wired transmission Mobile device support Multi-platform software support Ultra-Fine color engine 3D noise reduction technology Local dynamic range adjustment Wireless LED illumination
ZM0480H1080PA
Sony IMX307(C)
1/2.8" (5.57×3.13 mm)
 2.9 μm × 2.9 μm 2MP (1920×1080) HDMI: 60 fps@1920×1080 HDMI TZM0480-W3100-TV3050 continuous zoom body SD card Continuous zoom 0.4×-8.0× Image measurement Video recording MP4 (H264/H265) Multiple measurement tools Multi-language support ISP functionality Image assistance functions Wireless LED illumination
ZM0480U830A
Sony IMX415(C)
1/2.8" (5.57×3.13 mm)
 1.45 μm × 1.45 μm 8.3MP (3840×2160) 30 fps@3840×2160; 30 fps@1920×1080; 30 fps@1280×720; 30 fps@960×540 USB2.0 TZM0480-W3100-TV3050 continuous zoom body Computer storage Continuous zoom 0.4×-8.0× Image measurement Video recording Multi-platform SDK support Ultra-Fine hardware color processing Wireless LED illumination
ZM0480U510A
Sony IMX335(C)
1/2.8" (5.18×3.89 mm)
 2.0 μm × 2.0 μm 5.1MP (2592×1944) 26 fps@2592×1944; 26 fps@1280×960; 26 fps@640×480 USB2.0 TZM0480-W3100-TV3050 continuous zoom body Computer storage Continuous zoom 0.4×-8.0× Image measurement Video recording Multi-platform SDK support Ultra-Fine hardware color processing Wireless LED illumination
ZM0480WU1080PA
Sony IMX307(C)
1/2.8" (5.57×3.13 mm)
 2.9 μm × 2.9 μm 2MP (1920×1080) USB: 50 fps@1920×1080 (MJPEG); Wi-Fi: 50 fps@1920×1080 (H264) Wi-Fi USB TZM0480-W3100-TV3050 continuous zoom body Computer storage / Mobile device storage Continuous zoom 0.4×-8.0× Wi-Fi AP mode wireless transmission USB wired transmission Mobile device support Multi-platform software support Ultra-Fine color engine 3D noise reduction technology Local dynamic range adjustment Wireless LED illumination

In-depth Introduction

The ZM Series Integrated Continuous Zoom Microscopy Imaging System integrates high-performance continuous zoom optical body, high-definition digital imaging camera (HDMI/USB/Wi-Fi multi-interface), and replaceable LED ring/coaxial light sources into one unit, specifically designed for electronic component inspection, semiconductor analysis, LED and LCD display inspection, biological research, and industrial inline inspection professional applications.

This series covers 4K, 1080P, USB, and Wi-Fi multi-interface imaging solutions, utilizing 0.7X–5.6X continuous zoom optical lenses. Without complex selection and installation requirements, imaging, observation, and measurement can be rapidly initiated upon startup.

Technical Features

  • Integrated Imaging Solution: Highly integrated optical zoom body with camera module and light source module, supporting HDMI, USB, and Wi-Fi multi-interface for high-resolution imaging, real-time display, and remote acquisition requirements
  • Professional-Grade Optical Performance: Utilizes 0.7X–5.6X continuous zoom system with working distance of 37.5–160 mm, numerical aperture (NA) up to 0.182, ensuring clear details and excellent depth of field performance
  • Diverse Illumination and Interface Support: Standard wireless LED ring light source with polarized/coaxial light source replacement support, rear panel supporting HDMI 1.4 video output, USB direct connection, and Wi-Fi wireless transmission
  • Plug-and-Play with Wide Compatibility: Compatible with standard C-Mount industrial cameras and microscopy objectives, supporting various auxiliary objectives and adapters, with software and hardware linked brightness control

Core Advantages

  • 1
    Multi-Interface High-Definition Imaging Comprehensive coverage of 4K, 1080P, USB, Wi-Fi supporting real-time output and remote acquisition
  • 2
    High Integration Design Integrated optical lens, camera, and light source reducing additional procurement and debugging costs
  • 3
    Flexible Application Scenarios Suitable for electronics, semiconductors, optoelectronic devices, biology, and industrial quality inspection environments
  • 4
    Excellent Optical Performance Wide field of view, high resolution, expandable magnification, and outstanding depth of field control
  • 5
    High Usability Ready to use upon startup, supporting software control and multiple light source options, improving experimental and production efficiency

Package List #

Standard configurations and packaging details

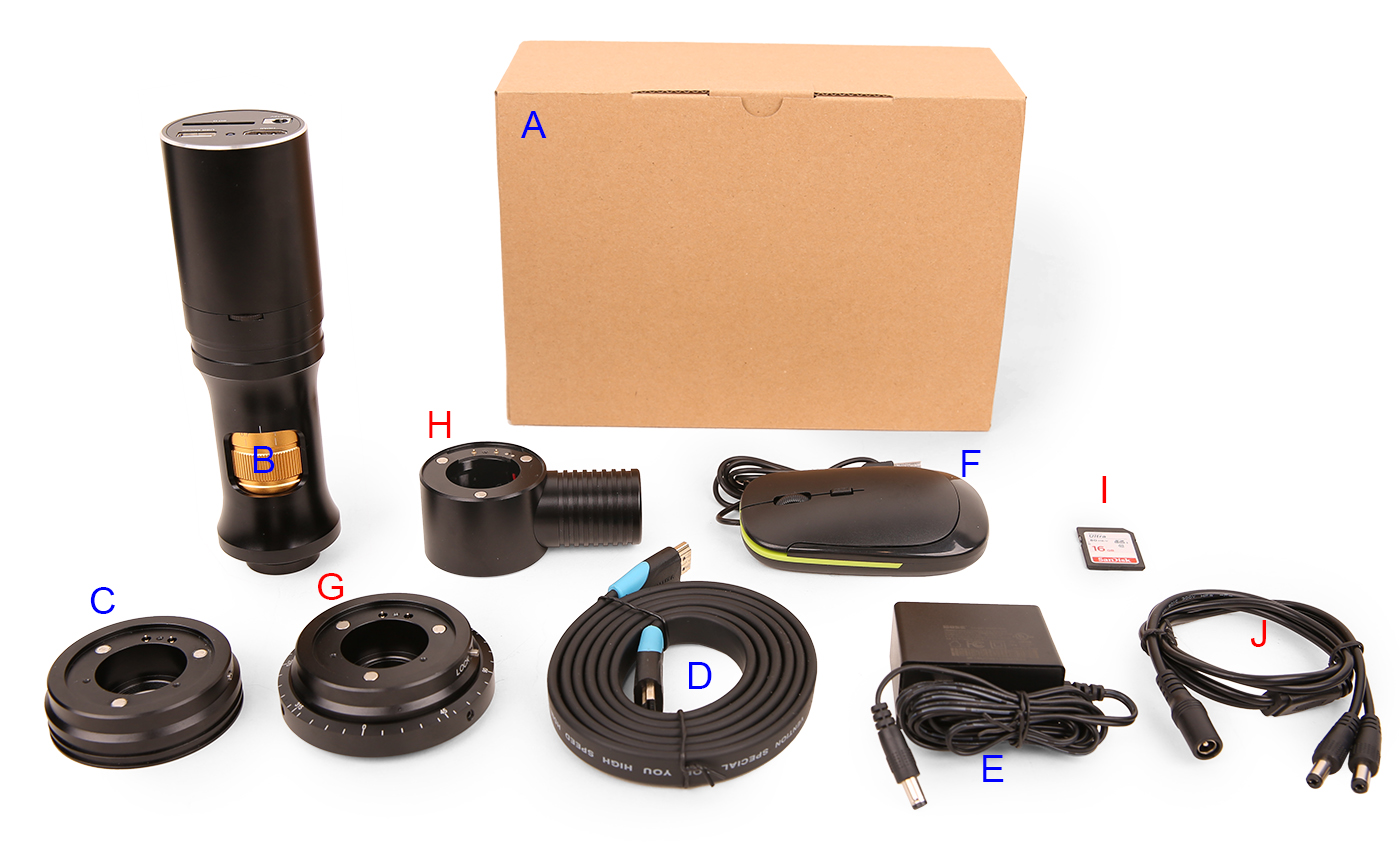

  • A Camera packaging box: 17.5 cm × 17.5 cm × 8.5 cm (1 pc; approx. 0.85 kg/box)
  • B Motorized zoom HDMI digital microscope all-in-one ×1 (ZM0756H4K8MPA)
  • C Wireless LED ring light ×1 (ZM0756DRL-NPC)
  • D HDMI cable ×1
  • E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A
    US version: POWER-U-12V1A (MSA-C1000IC12.0-12W-US), certifications: UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
    EU version: POWER-E-12V1A (MSA-C10001C12.0-12W-DE), certifications: UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
  • F USB mouse / USB wireless mouse ×1

Optional Accessories

  • G Wireless LED polarized ring light (ZM0756DRPL-NPC)
  • H Wireless LED coaxial illuminator (ZM0756CL-NPC)
  • I SD card (4 GB or 8 GB)
  • J Dual power splitter cable
  • K Additional auxiliary objectives (not shown)
ZM0756H4K8MPA packaging overview
ZM0756H4K8MPA packaging overview (images for reference only; see physical kit for details)
  • A Camera packaging box: 17.5 cm × 17.5 cm × 8.5 cm (1 pc; approx. 0.85 kg/box)
  • B Motorized zoom HDMI digital microscope all-in-one ×1 (ZM0756H1080PA)
  • C Wireless LED ring light ×1 (ZM0756DRL-NPC)
  • D HDMI cable ×1
  • E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A
    US version: POWER-U-12V1A (MSA-C1000IC12.0-12W-US), certifications: UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
    EU version: POWER-E-12V1A (MSA-C10001C12.0-12W-DE), certifications: UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
  • F USB mouse / USB wireless mouse ×1

Optional Accessories

  • G Wireless LED polarized ring light (ZM0756DRPL-NPC)
  • H Wireless LED coaxial illuminator (ZM0756CL-NPC)
  • I SD card (4 GB or 8 GB)
  • J Dual power splitter cable
  • K Additional auxiliary objectives (not shown)
ZM0756H1080PA packaging overview
ZM0756H1080PA packaging overview (images for reference only; see physical kit for details)

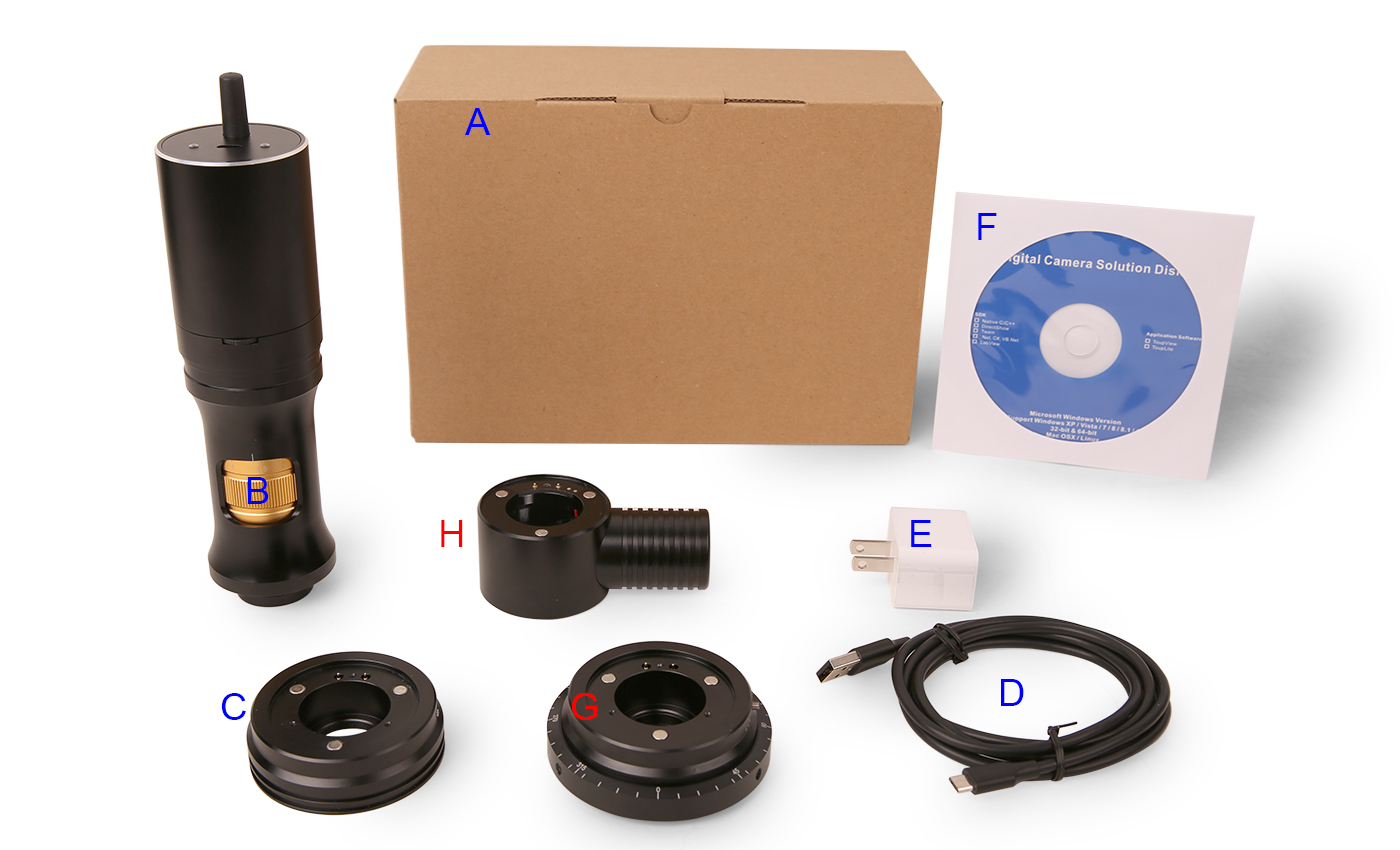

  • A Camera packaging box: 17.5 cm × 17.5 cm × 8.5 cm (1 pc; approx. 0.85 kg/box)
  • B Motorized zoom digital all-in-one ×1 (ZM0480WU1080PA)
  • C Wireless LED ring light ×1 (ZM0756DRL-NPC)
  • D Micro-USB data cable (1.5 m) ×1
  • E Power adapter: input AC 100–240 V 50/60 Hz; output DC 5 V 1 A
    US version: POWER-U-5V1A (SK12G-0500100U), certifications: UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
    EU version: POWER-E-5V1A (SK12G-0500100V), certifications: UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
  • F Driver and software CD (Ø12 cm) ×1

Optional Accessories

  • G Wireless LED polarized ring light (ZM0756DRPL-NPC)
  • H Wireless LED coaxial illuminator (ZM0756CL-NPC)
  • I Additional auxiliary objectives (not shown)
ZM0480WU1080PA packaging overview
ZM0480WU1080PA packaging overview (images for reference only; see physical kit for details)
Use the buttons above to switch between package lists for each model.

Product Dimensions #

Physical dimensions and chassis diagrams for each model

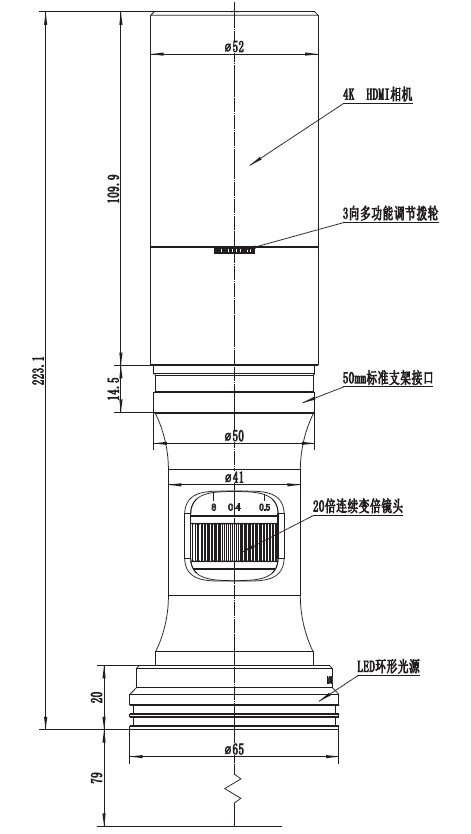

ZM0756H4K8MPA dimension diagram
ZM0756H4K8MPA dimension diagram
Chassis dimensions

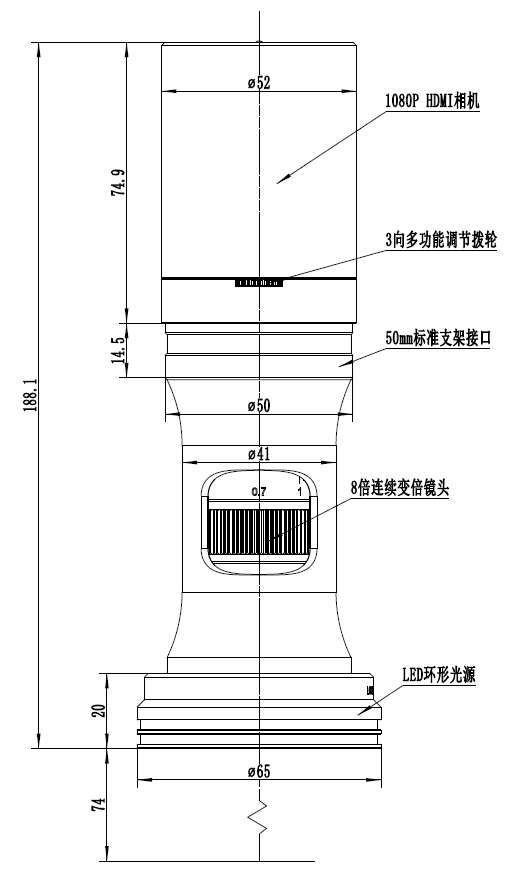

ZM0756H1080PA dimension diagram
ZM0756H1080PA dimension diagram
Chassis dimensions

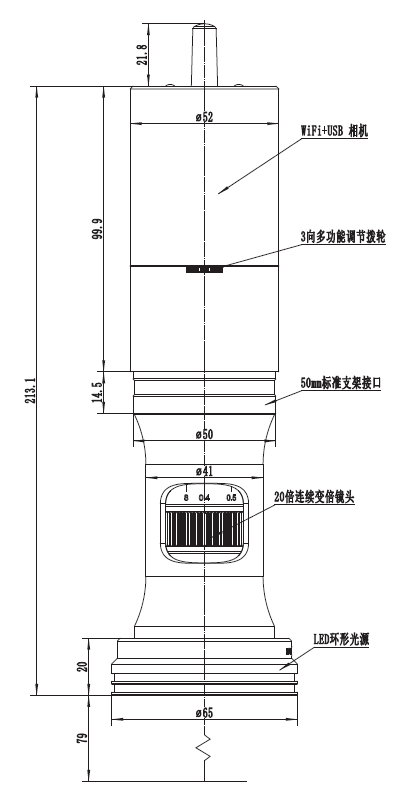

ZM0480WU1080PA dimension diagram
ZM0480WU1080PA dimension diagram
Chassis dimensions

Confirm mounting holes, accessory compatibility, and interface orientation against the dimension drawings before installation; image paths above are placeholders and should be replaced with the final filenames.

In-Depth Overview

The ZM Series integrated motorized zoom imaging systems bring together high-performance continuous zoom optics, high-definition digital cameras (HDMI/USB/Wi-Fi interfaces), and swappable LED ring or coaxial lighting, engineered for electronic component inspection, semiconductor analysis, LED/LCD display testing, biological research, and in-line industrial QA.

Each system supports 4K, 1080p, USB, and Wi-Fi imaging workflows and employs a 0.7×–5.6× continuous zoom objective, allowing rapid imaging, observation, and measurement without complex configuration.

Technical Features

  • Integrated Imaging Solution: Combines the motorized zoom optics, camera module, and lighting module with HDMI, USB, and Wi-Fi interfaces to balance high-resolution imaging, live display, and remote acquisition.
  • Professional Optical Performance: Employs a 0.7×–5.6× continuous zoom system with a 37.5–160 mm working distance and NA up to 0.182 for crisp detail and outstanding depth of field.
  • Versatile Lighting and Connectivity: Ships with a wireless LED ring light, supports polarized or coaxial replacements, and outputs via rear-panel HDMI 1.4, USB direct link, and Wi-Fi.
  • Ready Out of the Box: Compatible with standard C-Mount industrial cameras and microscope objectives, supporting auxiliary optics and adapters with coordinated software/hardware brightness control.

Core Advantages

  • 1
    High-Definition Imaging Across Interfaces 4K, 1080p, USB, and Wi-Fi coverage supports real-time output and remote acquisition.
  • 2
    Highly Integrated Design Integrates optics, camera, and lighting to reduce procurement and setup overhead.
  • 3
    Flexible Application Scenarios Suitable for electronics, semiconductor, optoelectronic, life science, and industrial inspection environments.
  • 4
    Outstanding Optical Performance Delivers wide fields of view, high resolution, expandable magnification, and excellent depth control.
  • 5
    Highly User-Friendly Ready to use at power-on, with software control and multiple lighting options that elevate efficiency in labs and production.
