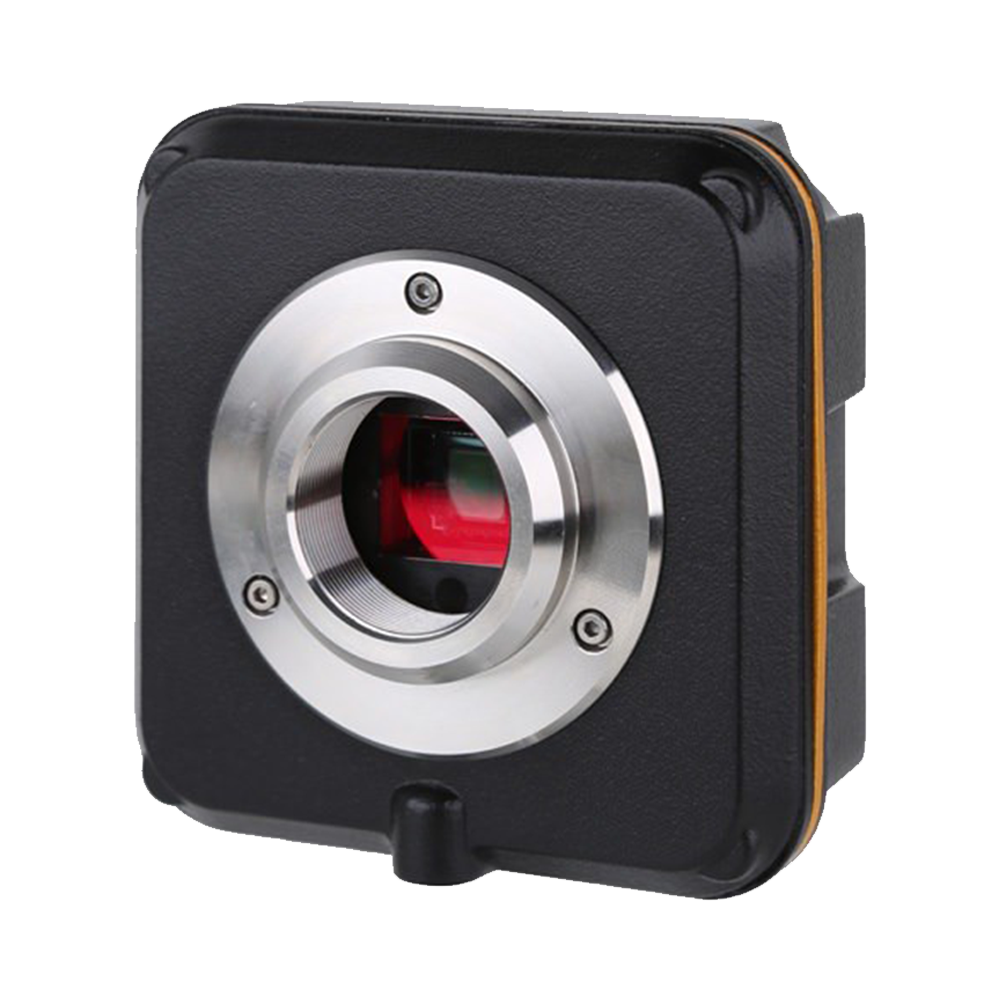

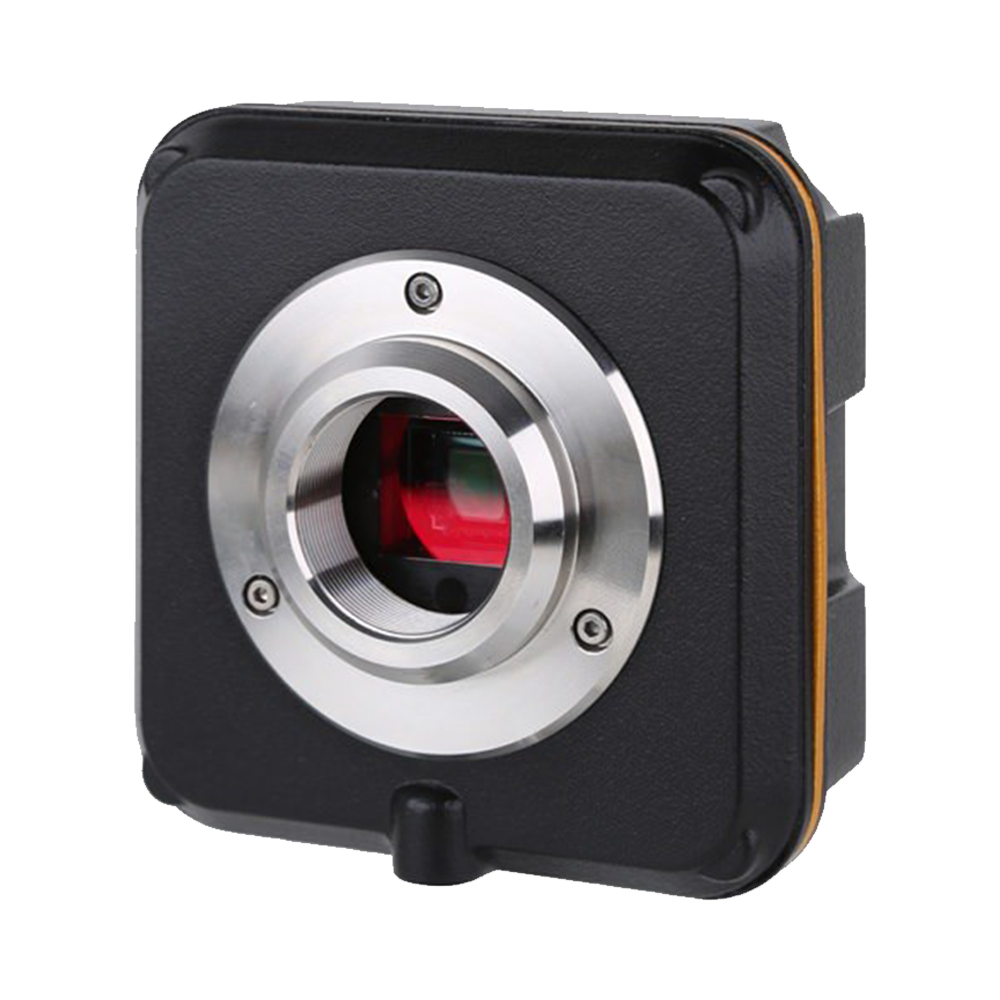

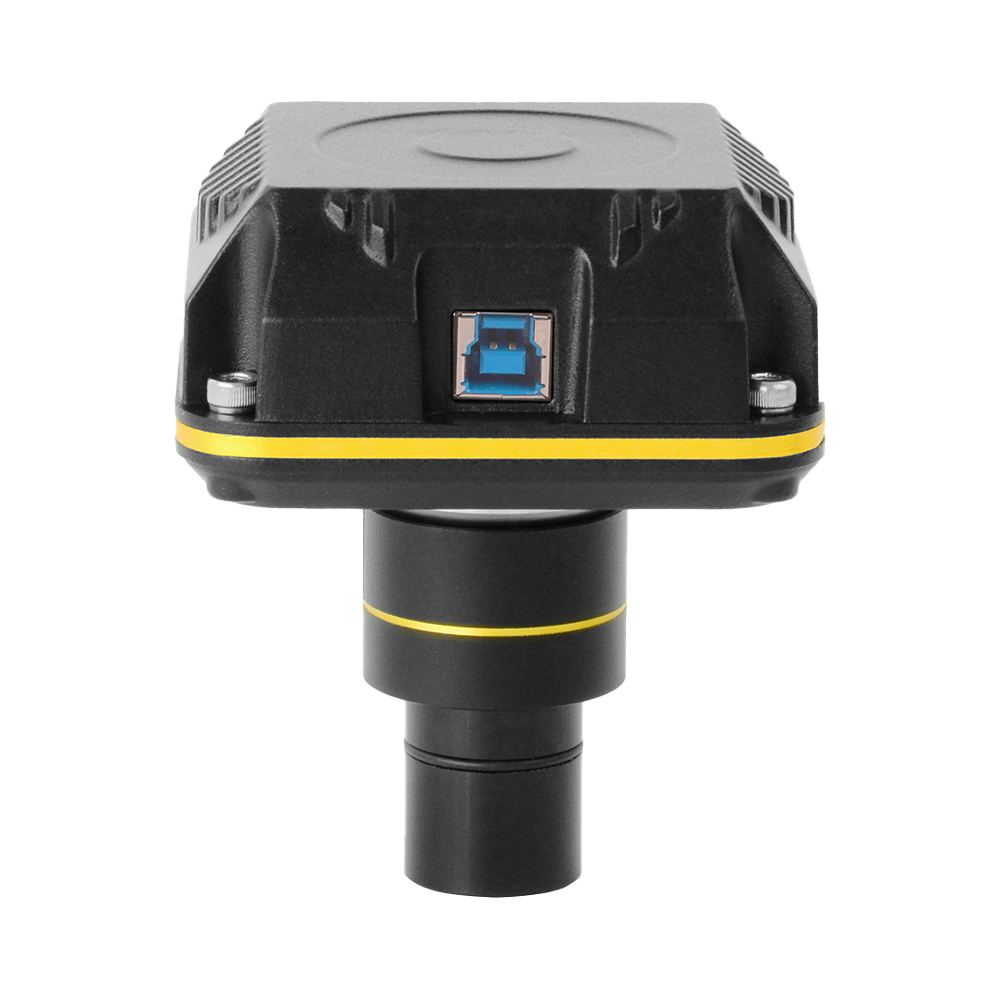

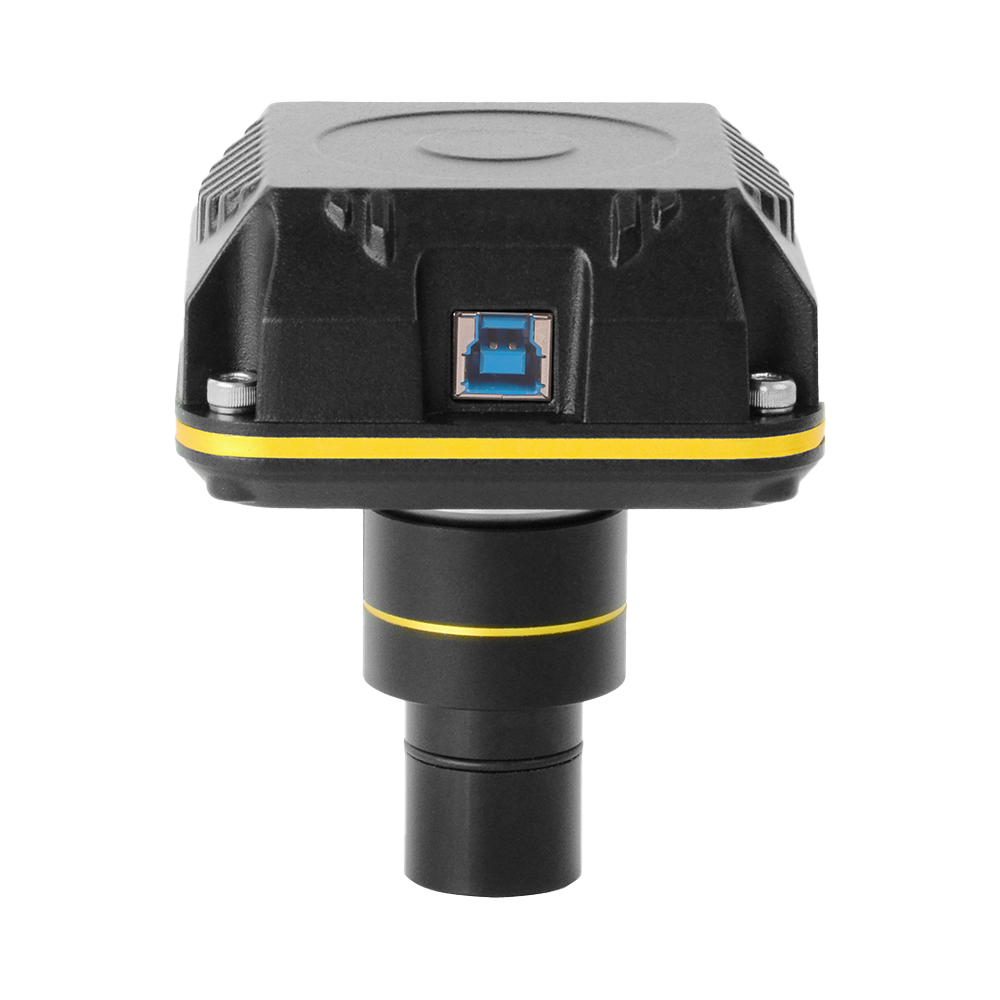

L3CMOS Series

Product Introduction

The L3CMOS series features C-mount USB3.0 microscopy cameras equipped with Aptina (onsemi) high-sensitivity CMOS sensors and onboard buffer architecture. Under 5 Gbit/s USB3.0 bandwidth, these cameras achieve more stable high frame rate transmission while reducing frame loss and jitter caused by burst data. Resolution coverage spans approximately 2.2–12 MP, suitable for educational, routine scientific research, and general microscopy documentation applications.

The built-in Ultra-Fine color processing engine performs demosaicing, auto exposure/gain control, one-click white balance, and color/gamma/contrast processing on the camera side, reducing host CPU usage while delivering natural and consistent color presentation. The housing features metal (aluminum alloy) CNC precision construction for durability and reliability, while included ToupView/ToupLite software and cross-platform SDK support (Windows/Linux/macOS/Android) facilitate system integration and secondary development.

Product Features

  • Sensor: Aptina (onsemi) high-performance CMOS sensors (model dependent) with high sensitivity and low noise
  • Resolution range: approximately 2.2–14 MP, covering common microscopy documentation requirements
  • Data interface: USB3.0 (5 Gbit/s) high-speed link for smoother real-time preview and acquisition
  • Onboard buffer design adjacent to sensor: improves transmission stability and data integrity at high frame rates
  • Ultra-Fine color engine: Demosaic, AE/AGC, AWB/one-click white balance, color correction, gamma, brightness/contrast/saturation, LUT
  • Bit depth and data: supports 8/12-bit (model dependent) with RAW/Bayer output capability
  • Image functions: arbitrary ROI/windowing with digital binning support (2×2/3×3/4×4, model dependent) and image flipping
  • Lens interface: Standard C-mount interface compatible with various microscopy/industrial optical systems
  • Construction and power: Aluminum alloy CNC housing with USB bus power for simplified cabling and easy deployment (model dependent)
  • Software and ecosystem: includes ToupView/ToupLite; provides Windows/Linux/macOS/Android SDK (compatible with DirectShow/TWAIN)
  • Typical applications: brightfield/darkfield/low-light microscopy, educational demonstrations and documentation, material/biological sample routine observation
Get Quote Product Manual

Product Models

Select the L3CMOS Series that fits your application requirements

Product Model Effective Pixels Sensor Size Shutter Type Frame Rate (FPS) Sensor Type Data Interface Color Actions
L3CMOS14000KPA 14M (4096×3286)
5.73mm × 4.60mm 0.46" (7.35 mm)
Rolling Shutter
6.2 fps@4096×3286 20.8 fps@2048×1644 53.3 fps@1024×822
MT9F002(C) USB3.0 Color View Details
L3CMOS12000KPA 12M (3840×3040)
5.95mm × 4.71mm 0.47" (7.59 mm)
Rolling Shutter
8.5 fps@3840×3040 49 fps@1920×1516 137 fps@960×758
IMX577(C) USB3.0 Color View Details
L3CMOS10000KPA 10M (3664×2748)
5.68mm × 4.26mm 0.44" (7.1 mm)
Rolling Shutter
8.5 fps@3664×2748 49 fps@1832×1374 137 fps@912×686
IMX577(C) USB3.0 Color View Details
L3CMOS08500KPA 8.5M (3328×2548)
5.16mm × 3.95mm 0.41" (6.5 mm)
Rolling Shutter
10 fps@3328×2548 56 fps@1664×1272
Special(C) USB3.0 Color View Details
L3CMOS05100KPA 5.1M (2592×1944)
5.70mm × 4.28mm 0.45" (7.13 mm)
Rolling Shutter
15.5 fps@2592×1944 49.5 fps@1296×972 97.5 fps@648×486
AR0521(C) USB3.0 Color View Details
L3CMOS03100KPA 3.1M (2048×1534)
4.51mm × 3.37mm 0.35" (5.63 mm)
Rolling Shutter
27.3 fps@2048×1534 53.3 fps@1024×770
AR0330(C) USB3.0 Color View Details

Packing List #

Standard accessories and packing details for the L3CMOS large-pixel USB3.0 CMOS cameras

Standard contents
  1. Carton dimensions: L: 40 cm W: 36 cm H: 36 cm (16 pcs, approx. 12–17 kg/carton)
  2. Inner box dimensions: L: 16.4 cm W: 16.4 cm H: 9.6 cm (0.72–0.8 kg/box)
  3. L3CMOS camera body
  4. High-speed USB3.0 A-to-B gold-plated cable (2.0 m)
  5. CD (drivers and software, Ø12 cm)
Optional accessories

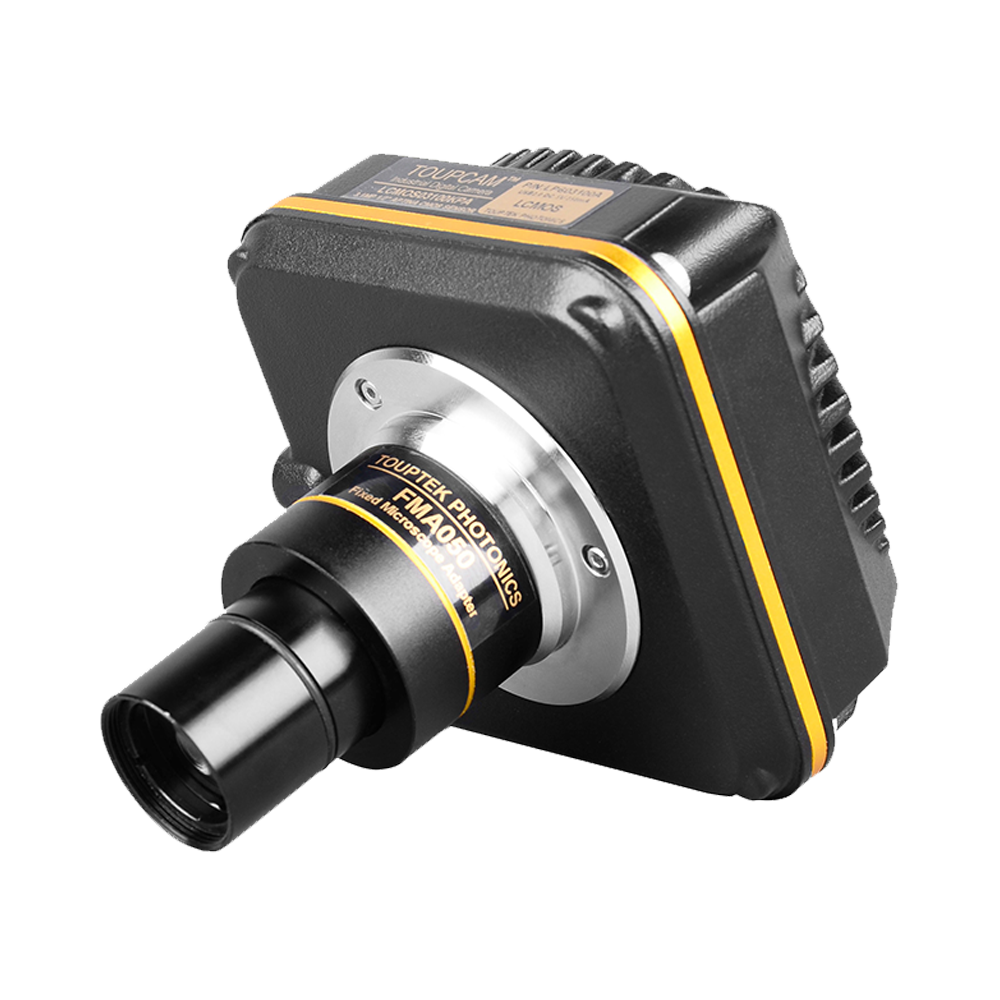

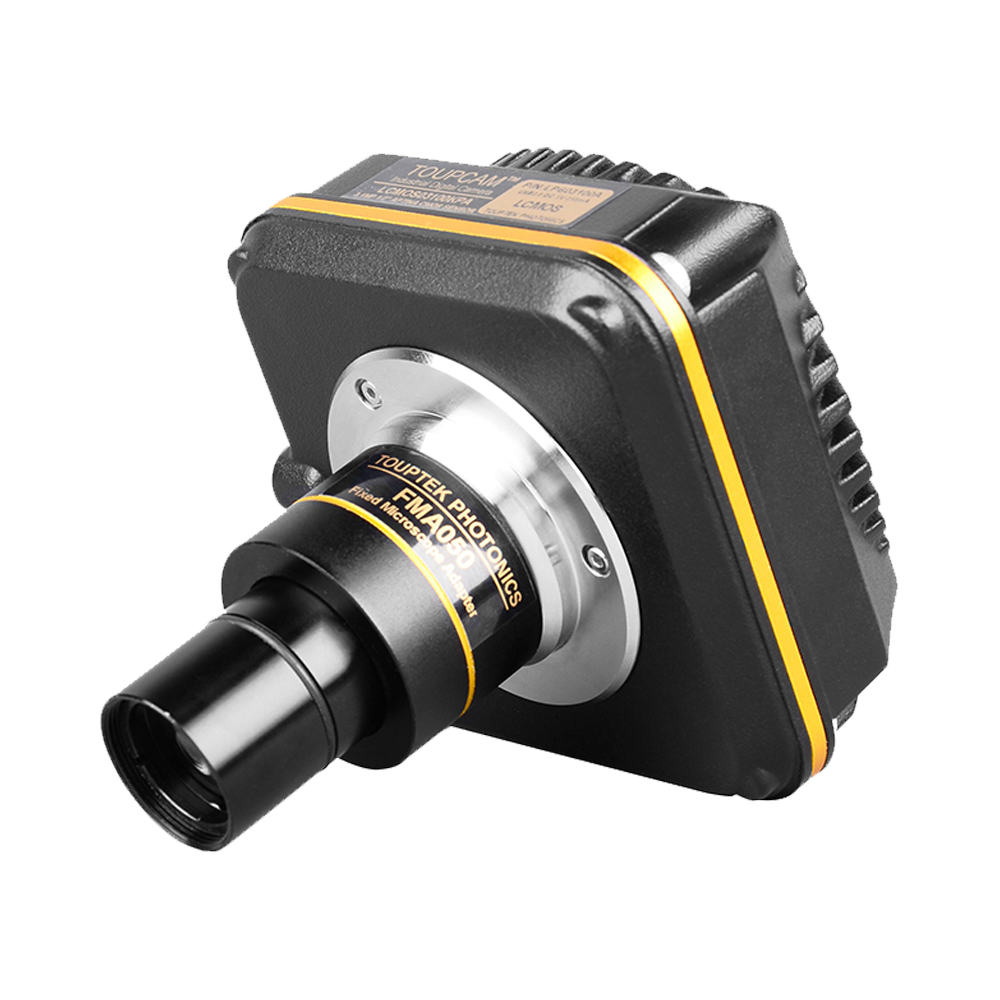

  1. Adjustable eyepiece adapters
    Dia. 23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075
    Dia. 31.75 mm eyepiece to C-mount: 108008/ATA037, 108009/ATA050, 108010/ATA075
  2. Fixed eyepiece adapters
    Dia. 23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075
    Dia. 31.75 mm eyepiece to C-mount: 108011/FTA037, 108012/FTA050, 108013/FTA075
Note: For items F and G, choose the adapter that matches your camera and microscope or telescope.
Standard list shown; refer to the included packing list for exact contents.

Product Dimensions #

Outline drawings for the L3CMOS large-pixel USB3.0 CMOS cameras

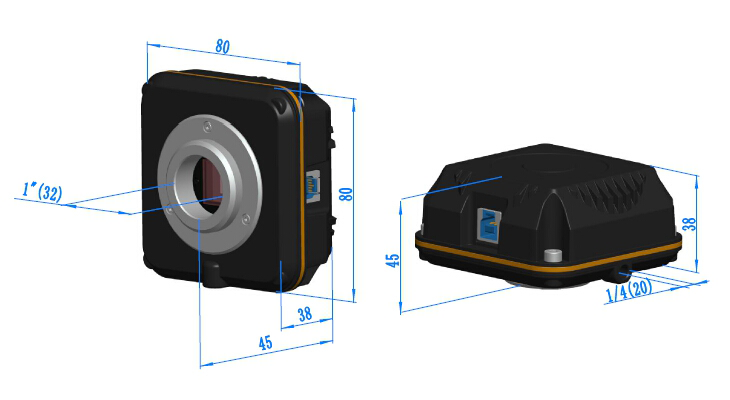

L3CMOS series outline dimensions
L3CMOS Series
Standard size Outline drawing
Outline dimensions for the L3CMOS series
Click an image to view full size

The L3CMOS series, developed by ToupTek Photonics, delivers ultra-high sensitivity and high-speed USB3.0 microscope imaging. Aptina CMOS sensors provide resolutions from 2.2 MP to 12 MP, paired with a standard C-mount and the USB3.0 data interface for real-time, high-resolution imaging. The solid CNC-machined aluminium body enhances durability and heat dissipation for stable long-term operation.

Key Features

High-performance Aptina sensor

High sensitivity, low noise, and wide dynamic range imaging

Large onboard buffer

Synchronous data transfer and stable high-frame-rate output

High-speed USB3.0 interface

5 Gbps bandwidth for fast, stable video streaming

Ultra-Fine color engine

Accurately reproduces color and reveals fine detail

Performance Highlights

Resolution options

2.2–12 MP

Selectable resolution
Frame rate performance

Up to 50 fps

Higher with ROI cropping
Pixel size

1.4–2.2 µm

Delivers fine detail and sensitivity
Exposure range

0.05–2000 ms

Precisely adjustable

In-Depth Product Overview

Ultra-sensitive Aptina CMOS sensors

采用High-performance Aptina CMOS sensor，确保超High sensitivity, low noise, and wide dynamic range imagingperformance。先进的传感器架构特别优化了光电转换效率，即使在极低光照条件下也能捕捉清晰图像。Pixel size从1.4μm到2.2μm的范围设计，既能满足高分辨率精细成像需求，也能提供出色的低光灵敏度performance。

Large onboard buffer technology

内置Large onboard buffer芯片，实现Synchronous data transfer and stable high-frame-rate output。缓存技术有效避免图像数据丢失或卡顿，确保在高速连续拍摄时的数据完整性。即使在处理大量图像数据时，也能保持流畅的实时预览和稳定的图像采集，特别适合需要长时间连续观察的动态过程记录。

USB3.0 ultra-high-speed data transfer

配备High-speed USB3.0 interface，提供高达5Gbps的数据传输带宽，确保视频实时传输快速稳定。相比USB2.0interface，传输速度提升10倍以上，充分发挥高分辨率传感器的性能优势。部分型号在全分辨率下可达50fps的High frame rate，通过ROI裁剪模式可实现更高的Frame rate performance，满足高速动态过程的精确捕捉需求。

精准的Ultra-Fine color engine

Advanced Ultra-Fine image processing reproduces vivid, accurate color while revealing fine detail. The engine improves contrast and clarity so delicate sample structures remain visible—ideal for pathology, materials analysis, and other color-critical applications.

Industrial-grade rugged construction

The CNC-milled aluminium housing delivers structural strength and efficient passive cooling with no moving parts—eliminating vibration and reducing noise. Consistent thermal management keeps the sensor within its optimal range for reliable long-term imaging, while the metal enclosure offers strong electromagnetic shielding.

Applications

Application examples of the L3CMOS series in microscope imaging

Application scenarios

Live-cell imaging
Live-cell imaging

Observe cell division and dynamics in real time
荧光成像
Fluorescent protein imaging

Highly sensitive detection of GFP/RFP and other fluorophores
Histology imaging
Histology imaging

High-resolution digitization of pathology slides
Materials analysis
Materials surface analysis

High-precision inspection of microstructures and defects
半导体检测
Semiconductor defect inspection

Automatic identification of wafer surface defects
Teaching and research
Teaching and research

Ideal configuration for university laboratories

Key Advantages of the L3CMOS Series

Ultra-high sensitivity

Powered by Aptina CMOS sensors

USB3.0 high speed

5 Gbps data throughput

Large buffer

Delivers stable high-frame-rate output

Accurate color reproduction

Ultra-Fine color engine

High frame rate

Up to 50 fps full-resolution imaging

Aluminium alloy body

CNC one-piece design

Cross-platform SDK

Rapid integration

Extensive model range

2.2–12 MP options
