OCAM Series

Product Introduction

Multiple resolutions available, compatible with HDMI/USB output, suitable for high-definition real-time imaging, teaching research and industrial inspection, with high frame rate and stable performance.

Product Features

  • HDMI camera using Sony Starvis back-illuminated CMOS sensor
  • Supports USB voice control module for real-time voice command control of camera shooting, recording, freezing and other operations
  • Supports barcode scanner capture function
  • Built-in XCamView software for camera control, providing rich measurement, grid line management, and custom template functions
  • Provides automatic edge detection, automatic parallel line distance measurement, automatic rectangle measurement and other automatic measurement functions
  • Provides USB drive storage function, supports local preview and playback, image-to-image and image-to-video comparison functions
  • Powerful ISP functionality providing shadow enhancement, sharpening and 3D noise reduction functions
  • Supports quick switching between biological microscope and stereo microscope default effects for convenient multi-scenario use
Get Quote Product Manual

OCAM Series

All-in-one HDMI multi-interface camera

Model Sensor/Size Effective Pixels Output Resolution Frame Rate (fps) Output Interface Auto Focus Lens Mount Storage Support Featured Functions
OCAM4K8MPA
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
 2.0 μm × 2.0 μm 8MP HDMI: 30 fps@3840×2160 HDMI1.4 USB2.0 C-mount USB drive 4K HDMI output
OCAM1080P2MPA
Sony IMX385(C)
1/2" (7.2×4.05 mm)
 3.75 μm × 3.75 μm 2MP HDMI: 60 fps@1920×1080 HDMI1.4 USB2.0 C-mount USB drive 1080P HDMI output High frame rate
OCAM4K8MPB
Sony IMX415(C)
1/2.8" (5.57×3.13 mm)
 1.45 μm × 1.45 μm 8MP HDMI: 30 fps@3840×2160 HDMI1.4 USB2.0 C-mount USB drive 4K HDMI output
OCAM1080P2MPB
Sony IMX462(C)
1/2.8" (5.57×3.13 mm)
 2.9 μm × 2.9 μm 2MP HDMI: 60 fps@1920×1080 HDMI1.4 USB2.0 C-mount USB drive 1080P HDMI output High frame rate

Application Scenarios

Fibrous connective tissue.Sec
Fibrous connective tissue.Sec
Paramecium WM
Paramecium WM

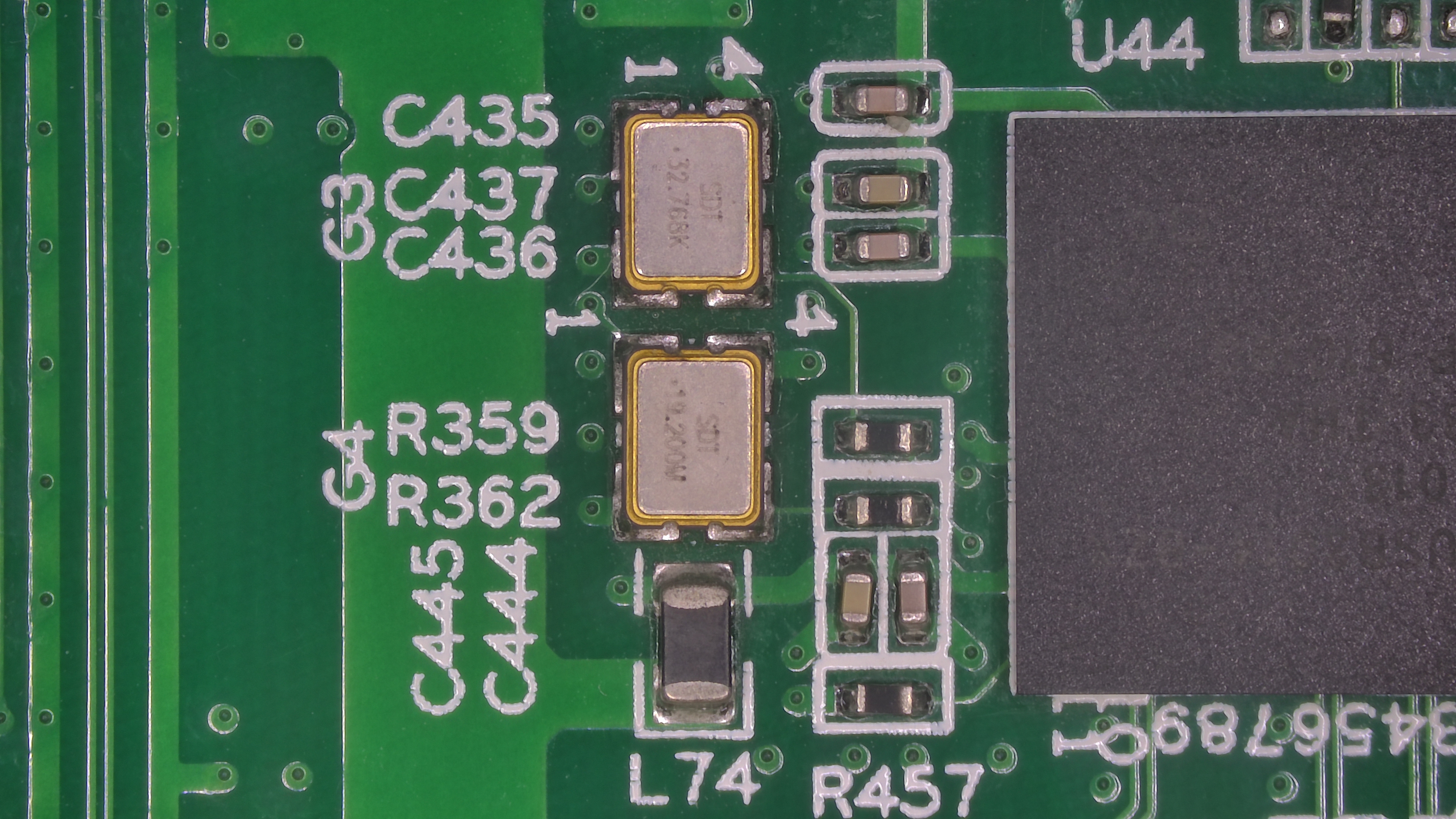

Circuit board
Circuit board
Sunflower.L.S
Sunflower.L.S

OCAM Multi-Interface Camera | Packing List #

Standard Packing List

  • A Camera box dimensions: 18.4 cm × 17.4 cm × 8.1 cm
  • B OCAM series HDMI camera ×1 (choose one of four models)
  • C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12W-US), EU POWER-E-12V1A (MSA-C10001C12.0-12W-DE)
  • D USB mouse
  • E HDMI 2.0 cable

Optional Accessories

  • F USB drive
  • G Adjustable eyepiece tube adapters
    Dia.23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on camera and microscope).
  • H Fixed eyepiece tube adapters
    Dia.23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: Confirm camera model and interface before choosing G or H; engineers can assist.
  • I 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
  • J 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
  • K Micrometer: 106011/TS-M1 (X=0.01 mm/100 Div.); 106012/TS-M2 (X,Y=0.01 mm/100 Div.); 106013/TS-M7 (X=0.01 mm/100 Div., 0.10 mm/100 Div.)

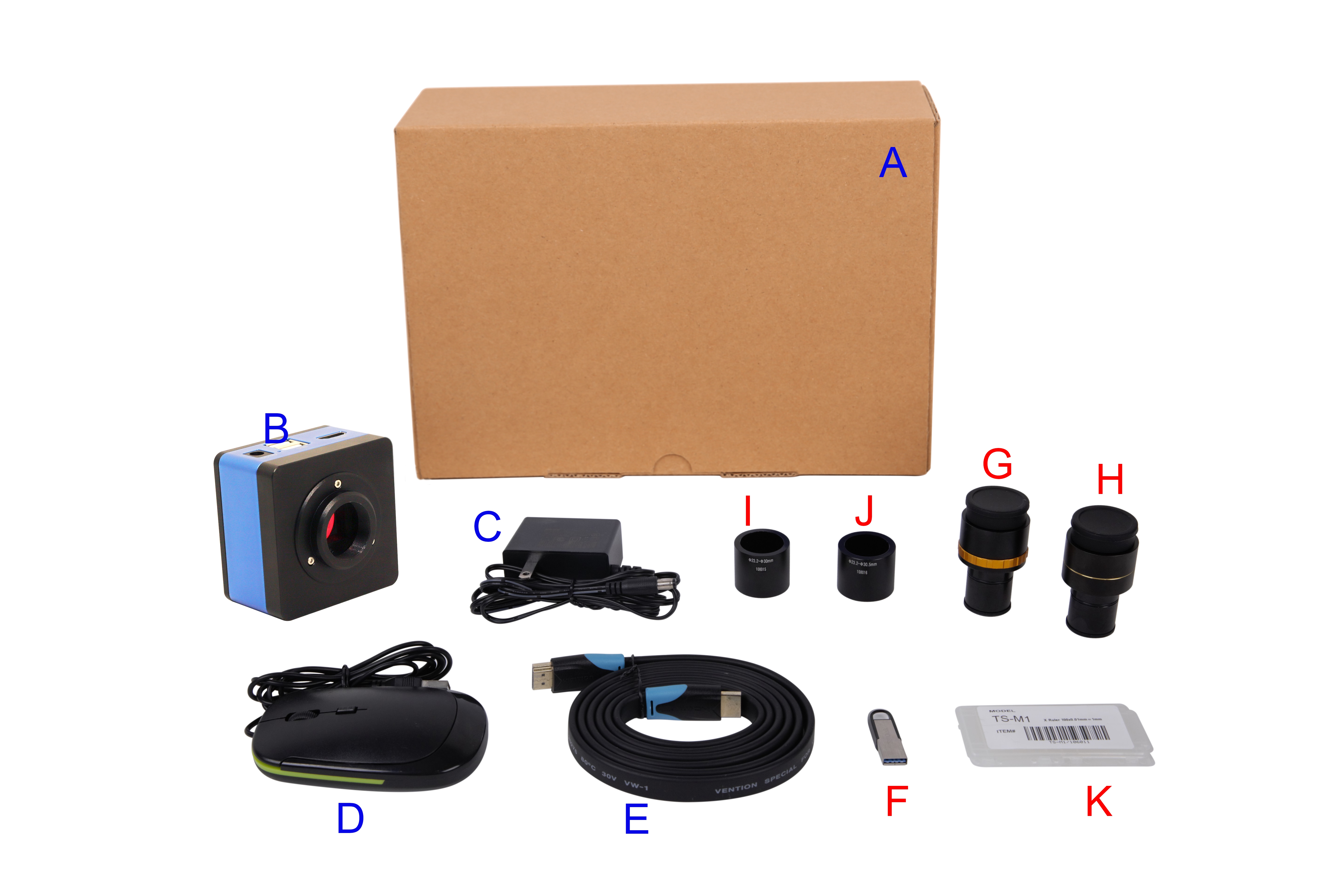

OCAM packaging overview
OCAM packaging overview (Fig. 3-125)

OCAM Multi-Interface Camera | Dimensions #

Body dimensions and mounting reference

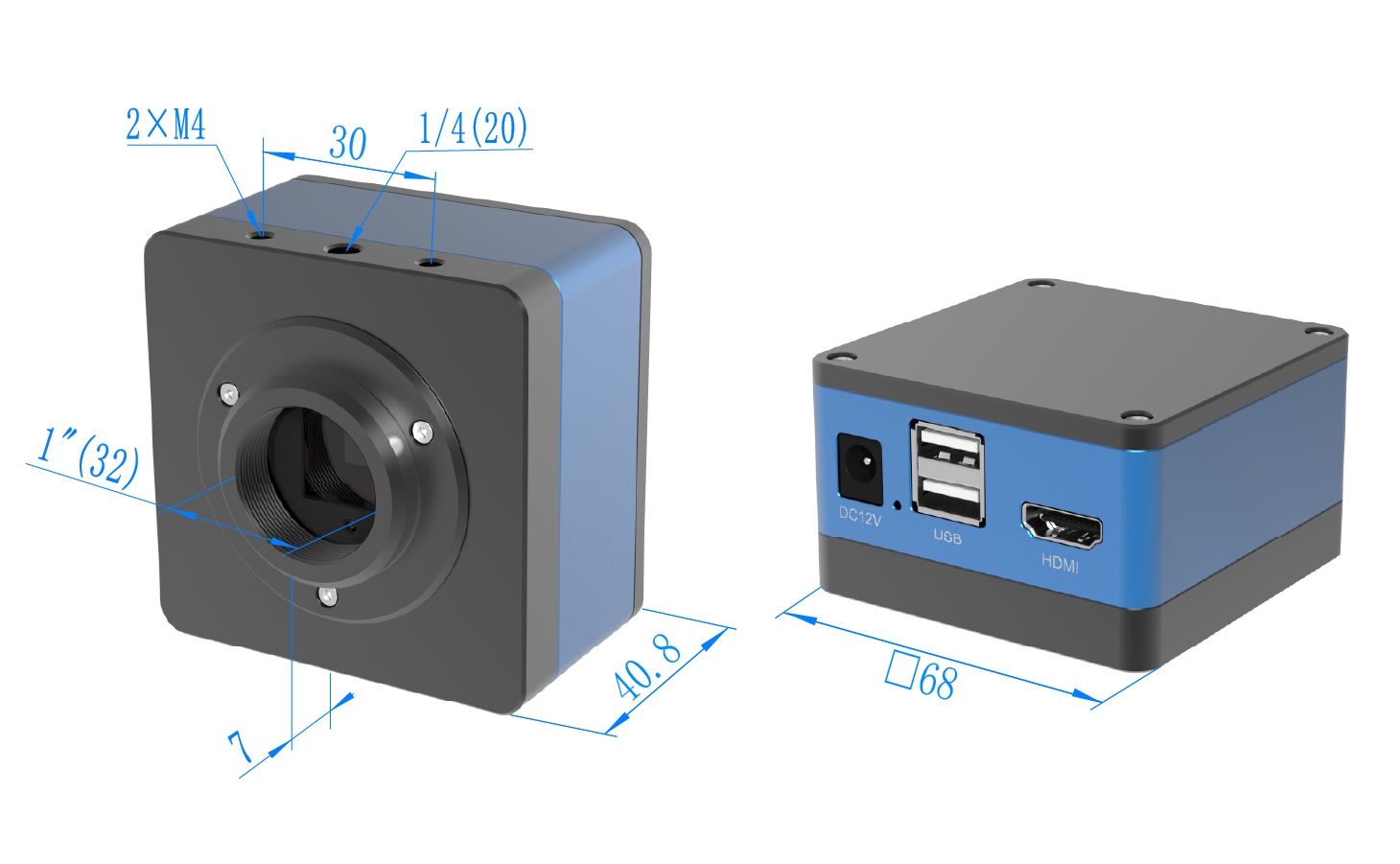

OCAM dimensions
OCAM dimensions

See manual Figure 3-124

  • Package: 18.4 cm × 17.4 cm × 8.1 cm
  • Power: DC 12 V / 1 A (POWER-U/E adapters)
  • Interfaces: USB 3.0 / HDMI 2.0 / LAN / WiFi (AP/STA)

Confirm mount holes and interface orientation with the dimension drawing before installation.

OCAM Series Multi-Interface HDMI Microscope Camera — Product Overview

The ToupTek Photonics OCAM series HDMI camera is a standalone multi-interface microscope camera for image and video capture on stereo and biological microscopes.

It uses a Sony Starvis back-illuminated high-sensitivity CMOS sensor and the embedded XCamView control software, supporting image measurement, grid management, template setup, and automated measurement for teaching, research, and industrial inspection needs.

In-Depth Details

  • High-performance imaging with multi-interface support:
    Built-in Sony Starvis back-illuminated CMOS with HDMI output for low-noise, high-resolution imaging.
  • Convenient interaction:
    Supports a USB audio control module for voice-triggered capture, recording, and freeze; barcode scanner capture is also supported for efficiency.
  • Smart image processing:
    XCamView supports auto edge detection, automatic parallel/rectangle measurement, shadow enhancement, sharpening, and 3D noise reduction.
  • Convenient data management:
    Supports USB drive storage with on-device preview/playback, and comparison between images or images and video.
  • Versatile scene compatibility:
    Quickly switch default imaging profiles for biological vs. stereo microscopes to suit different observation and teaching setups.

Product Advantages

1
Plug-and-play, no PC required

Use directly via HDMI output to simplify microscopy setup.

2
Smart interaction and automated measurement

Supports voice control, barcode capture, and multiple auto-measurement features to boost efficiency.

3
High-sensitivity, low-noise imaging

Sony Starvis sensor delivers strong performance in low-light conditions.

4
Flexible storage and playback

Supports USB saving, preview, and comparison, convenient for teaching and analysis.
