AFDM411-Serie
Product Introduction
AFDM101 ist ein Einstiegs-Digitalmikroskop mit Autofokus, das 1080P @ 60 fps HDMI-Ausgabe unterstützt und 20-fach motorisierten kontinuierlichen Zoom sowie Autofokusfunktion integriert. Mit einem Standard-Arbeitsabstand von 192 mm deckt das Sichtfeld einen Bereich von 200×112,5 mm bis 10×5,6 mm ab. Das System verfügt über integrierte XFCamView-Messsoftware und unterstützt SD-Kartenspeicherung, geeignet für grundlegende Lehranwendungen und Routinebeobachtungen.
Product Features
- 1080P @ 60 fps HDMI hochauflösende Ausgabe
- Touch-/Maus-Doppelschnittstelle umschaltbar, unterstützt 13,3-Zoll 1080P Touchscreen-All-in-One-Interaktion
- Standard-Arbeitsabstand 192 mm, Autofokus im Bereich von 150 – 195 mm
- Niedrige Vergrößerung 200×112,5 mm Positionierung, hohe Vergrößerung 10×5,6 mm mikroskopische Beobachtung
- SD-Karte lokale Speicherung von Bildern und Videos
- Integrierte XFCamView Mess- und Steuerungssoftware
- Magnetische LED-Ringbeleuchtung am Kopf
- Mehrsprachige Benutzeroberfläche
4K HDMI/USB2.0 Digitalmikroskop mit kontinuierlichem Zoom und Autofokus
AFDM101 ist ein Einstiegs-Digitalmikroskop mit Autofokus, das 1080P @ 60 fps HDMI-Ausgabe unterstützt und 20-fach motorisierten kontinuierlichen Zoom sowie Autofokusfunktion integriert. Mit einem Standard-Arbeitsabstand von 192 mm deckt das Sichtfeld einen Bereich von 200×112,5 mm bis 10×5,6 mm ab. Das System verfügt über integrierte XFCamView-Messsoftware und unterstützt SD-Kartenspeicherung, geeignet für grundlegende Lehranwendungen und Routinebeobachtungen.
| Model | Sensor | Max Resolution & Frame Rate | Output Interface | Optical Zoom | Standard Working Distance | Lens Type | Features | Action |
|---|---|---|---|---|---|---|---|---|
| AFDM411 |
Sony IMX415LQR-C
1/2.8" (5.57×3.13mm)
|
8MP (3840×2160)
30fps@3840×2160
|
HDMI1.4 USB2.0 LAN Wi-Fi | 18-fach (0,0218× – 0,392×) | 205 – 255 mm (Standard 250 mm) | EMZO-20XA integriertes Objektiv | 4K Ultra HD Autofocus 18× Zoom | View Details |

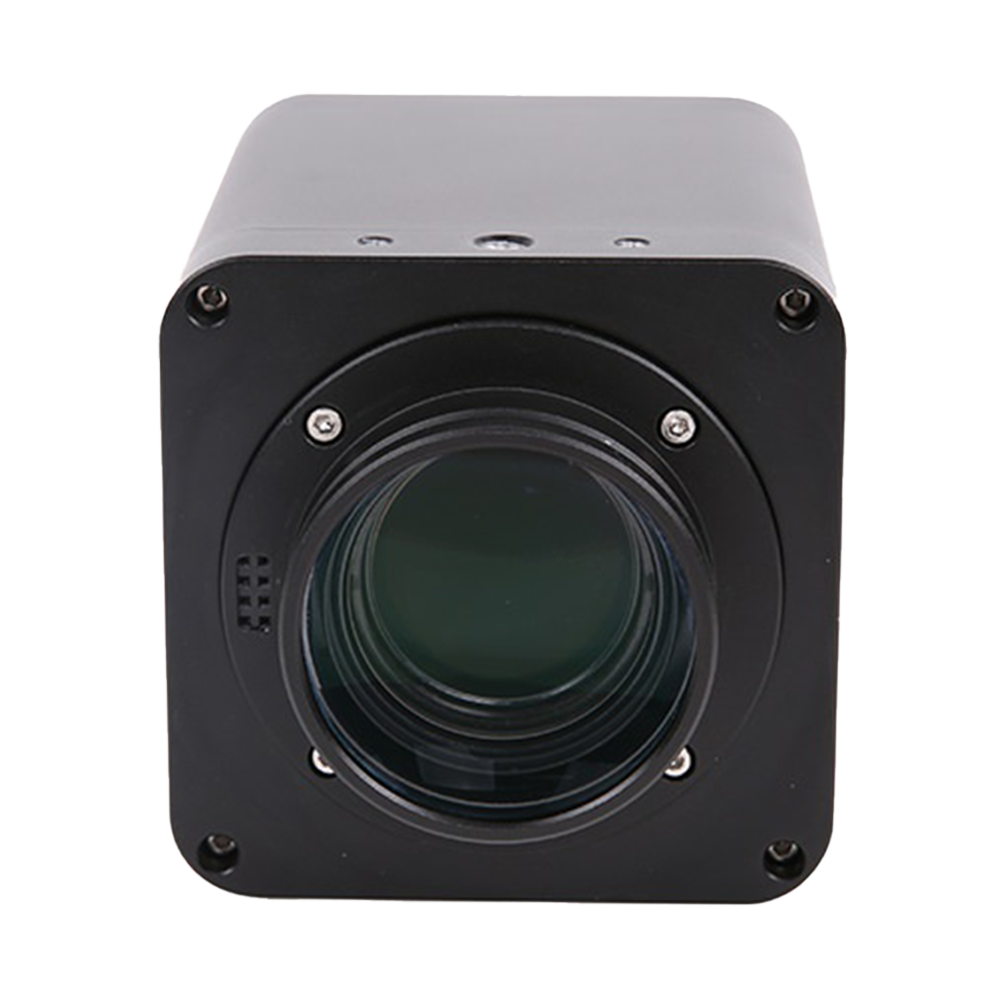

AFDM411 Auto-Focus Digital Microscope | Package Contents #

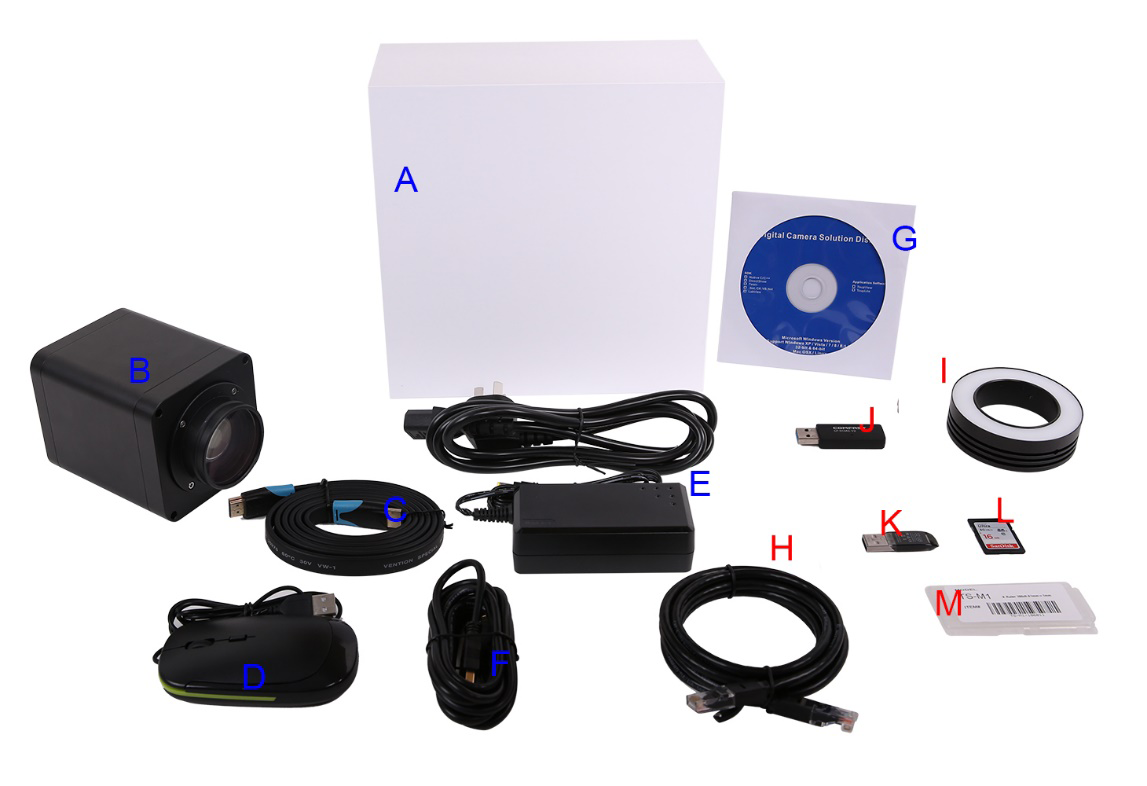

Standard Packing List
- A Camera box: 22.0 cm × 22.0 cm × 11.0 cm (1 pc, approx. 2.0 kg per box)
- B AFDM411 auto-focus camera ×1
- C HDMI cable ×1
- D USB mouse ×1
- E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A (HKA03612030-7K, includes CN/EU AC power cords, compliant with UL/CE/FCC)
- F USB 2.0 Type-A to Type-A gold-plated cable (2.0 m)
- G Drivers and application media (CD / bundled USB flash drive)
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC)
- J Spare USB flash drive
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L SD card (16 GB)
- M Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
AFDM411 Auto-Focus Digital Microscope | Product Dimensions #
Enclosure dimensions and environmental indicators
Housing 80 × 80 × 122 mm, see Fig. 3-46
Confirm mounting hole positions and connector orientation with the dimension diagram before installation.
AFDM411 In-Depth Overview
The AFDM411 series is built for industrial inspection as well as research and teaching scenarios. It integrates a Sony IMX415 1/2.8" 4K STARVIS CMOS sensor (8 MP) with an 18× motorized continuous zoom lens and auto-focus module. HDMI (4K/1080p), USB Video (USB 2.0) and Gigabit Ethernet outputs/control are supported, and the XCamView on-device interface with measurement tools is included.
The standard measurement working distance is 192 mm (auto-focus range 150 to 195 mm). Field of view reaches 200 × 112.5 mm at low magnification and 10 × 5.6 mm at high magnification, meeting needs from wide-area positioning to fine detail observation.
Through XCamView you can adjust exposure, gain, white balance (including ROI), sharpening, 3D noise reduction and localized dynamic range, while managing auto/single/manual focus and motorized zoom control. The system records 4K (3840×2160) 30 fps H.264/H.265 video and captures images directly to SD cards or USB drives for reliable on-site documentation and follow-up analysis.
AFDM411 Key Functions
Auto-Focus and Zoom Control
Supports auto, single and manual focus with motorized continuous zoom for fast imaging and magnification switching across different samples.
18× Motorized Continuous Zoom
Optical magnification range 0.028×–0.56× with fields of view from 200 × 112.5 mm to 10 × 5.6 mm.
4K Imaging and On-Device Storage
HDMI output up to 4K/30 fps; SD/USB recording supports 4K 30 fps (H.264/H.265).
Multi-Interface Output and Control

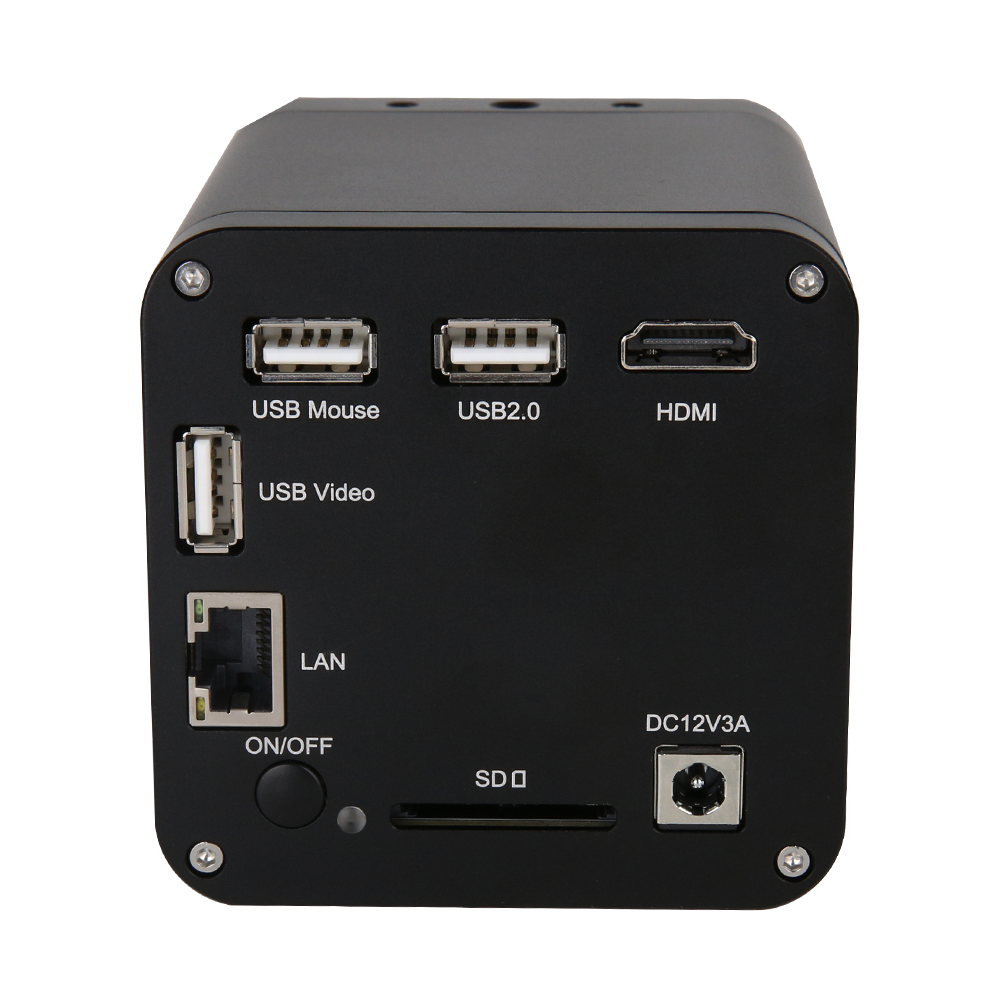

HDMI (4K/1080p), USB Video (USB 2.0) and LAN connectivity simplify links to monitors, computers or networks.
Integrated XCamView
Built-in camera control panel, measurement toolbar and comprehensive control tools remove the need for an external computer.
Image Enhancement and Color Tools
Sharpening, 3D noise reduction, localized dynamic range and ROI white balance deliver clear, stable imagery.
LED Ring Light Control
Adjust ring light brightness directly on the camera for tidy cabling and illumination tailored to magnification and materials.
Multi-Platform Software
SDKs available for Windows/macOS/Linux/Android, plus iOS/Android apps (auto focus and light control not supported in mobile apps).
AFDM411 Core Advantages
Plug-and-Play
Integrated on-device UI and measurement functions; connect to a monitor and begin work with minimal setup.
Industrial Environment Readiness
Operating temperature -10 to +50 °C and humidity 30 to 80 % RH provide stability for most production conditions.
Modular Expansion
Optional lens and illumination modules adapt to varied processes and sample dimensions.
Broad Applicability
Ideal for electronics manufacturing, mechanical machining, materials analysis and academic research scenarios.
