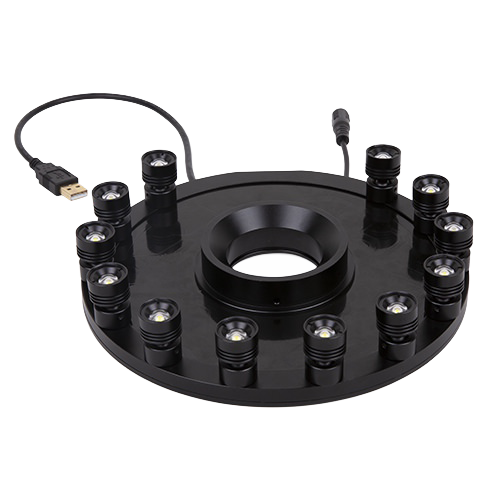

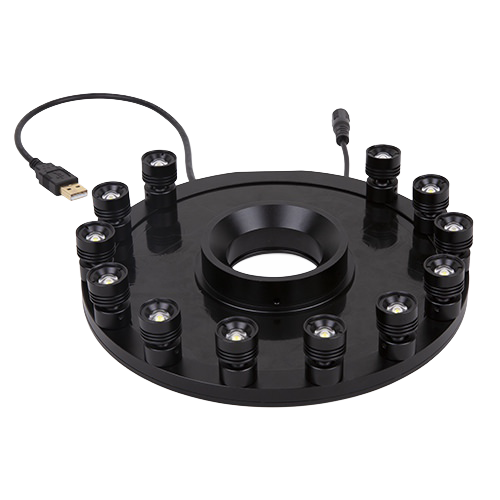

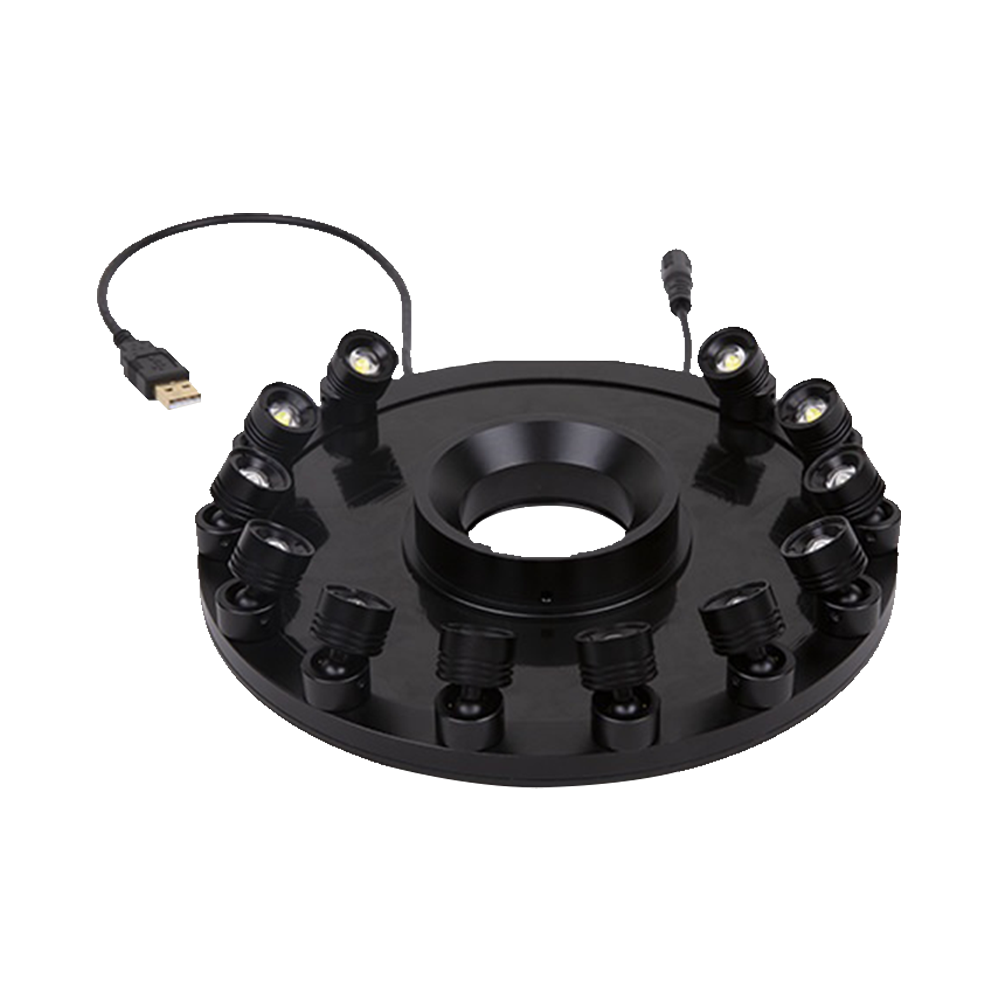

AALRL-200-7650 Series
Product Introduction
Professional-grade adjustable angle LED ring light source supporting ±30° angle adjustment and individual LED control, compatible with TPS-30A and AFDM series, meeting illumination requirements for large samples and reflective surfaces.
Product Features
- 12 pieces of 1W high-brightness white LEDs with ±30° angle adjustment
- Individual LED switch control with USB brightness adjustment
- Compatible with TPS-30A and AFDM series continuous zoom lenses
- Large field diameter of 300 mm with uniform illumination and no blind spots
- Suitable for semiconductor, PCB, and high-reflectivity surface inspection
Adjustable Angle LED Ring Light Source
Professional-grade adjustable angle LED ring light source supporting ±30° angle adjustment and individual LED control, compatible with TPS-30A and AFDM series, meeting illumination requirements for large samples and reflective surfaces.

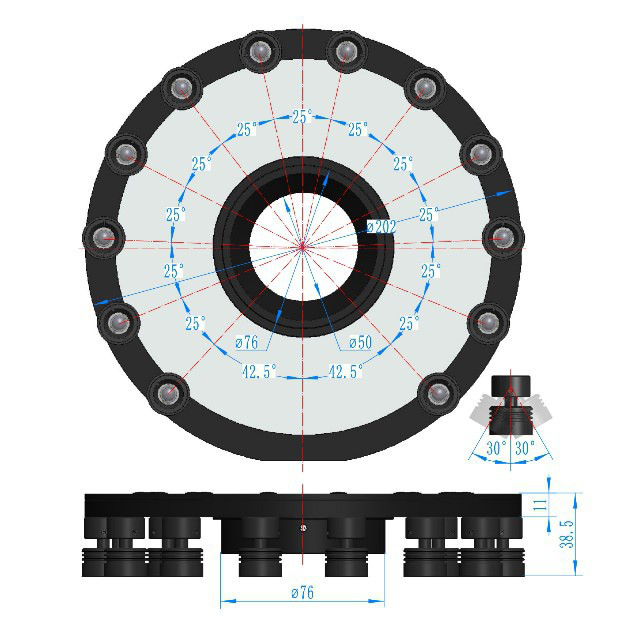

| Model | Outer Diameter | Mount Diameter | Light Configuration | Power Specifications | Illumination Range | Special Features |
|---|---|---|---|---|---|---|
| AALRL-200-7650 | 202 mm | 76 mm stand, 50 mm center hole | 12 pieces of 1W white LEDs | 12 V/2A | 300 mm diameter | Adjustable Angle ±30° Independent Switch Control USB Brightness Control |
Product Features
12 pieces of 1W high-brightness white LEDs with ±30° angle adjustment
Individual LED switch control with USB brightness adjustment
Compatible with TPS-30A and AFDM series continuous zoom lenses
Large field diameter of 300 mm with uniform illumination and no blind spots
Suitable for semiconductor, PCB, and high-reflectivity surface inspection
In-Depth Introduction

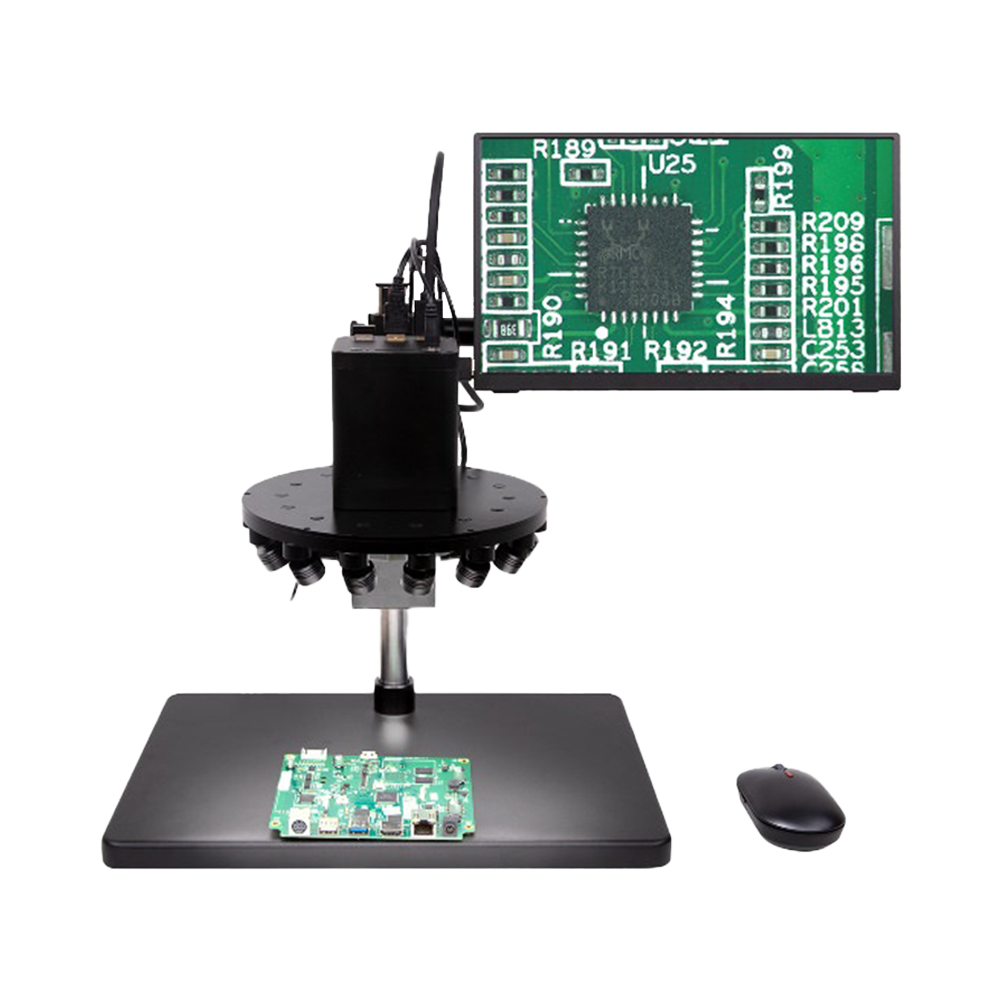

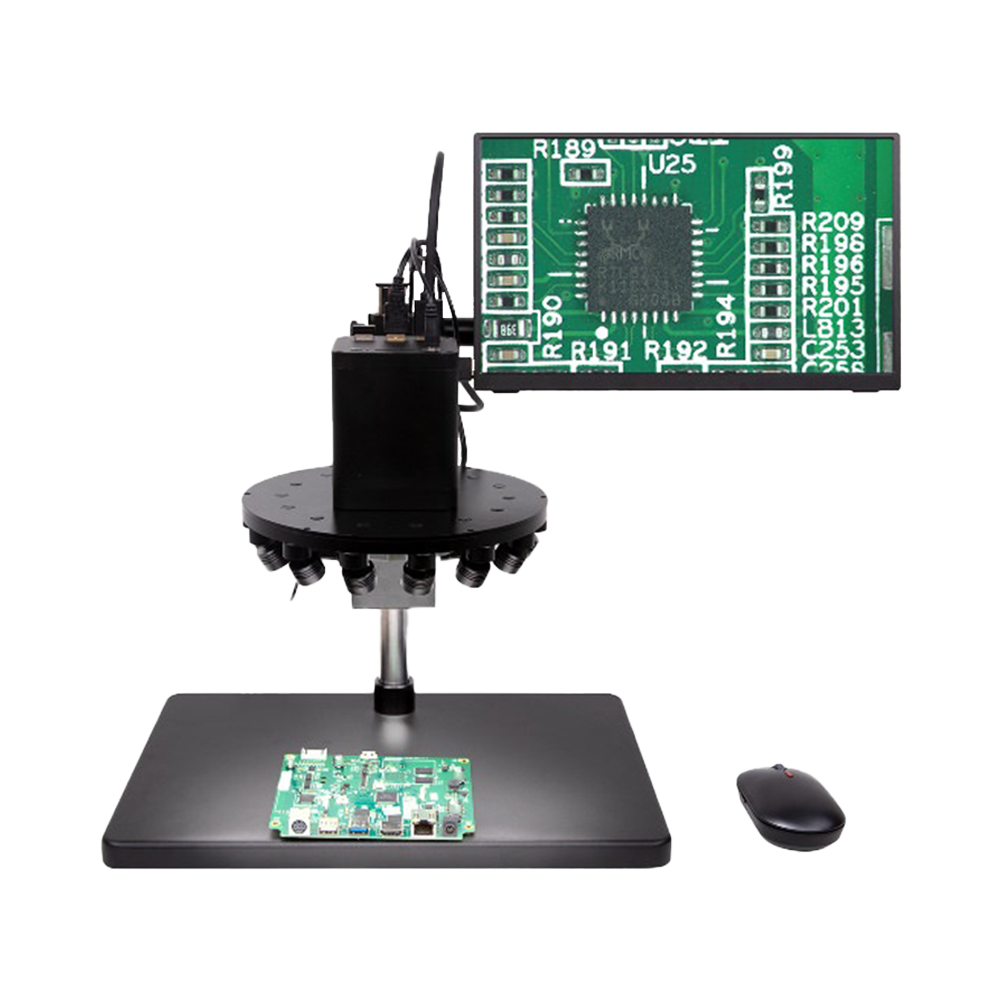

The AALRL-200-7650 series light source serves as an integrated professional lighting solution, specifically designed for semiconductor inspection, PCB quality control, and microscopic imaging of highly reflective or complex textured samples in high-precision industrial applications, providing independently adjustable multi-angle illumination capabilities and wide-area lighting coverage.
Technical Features

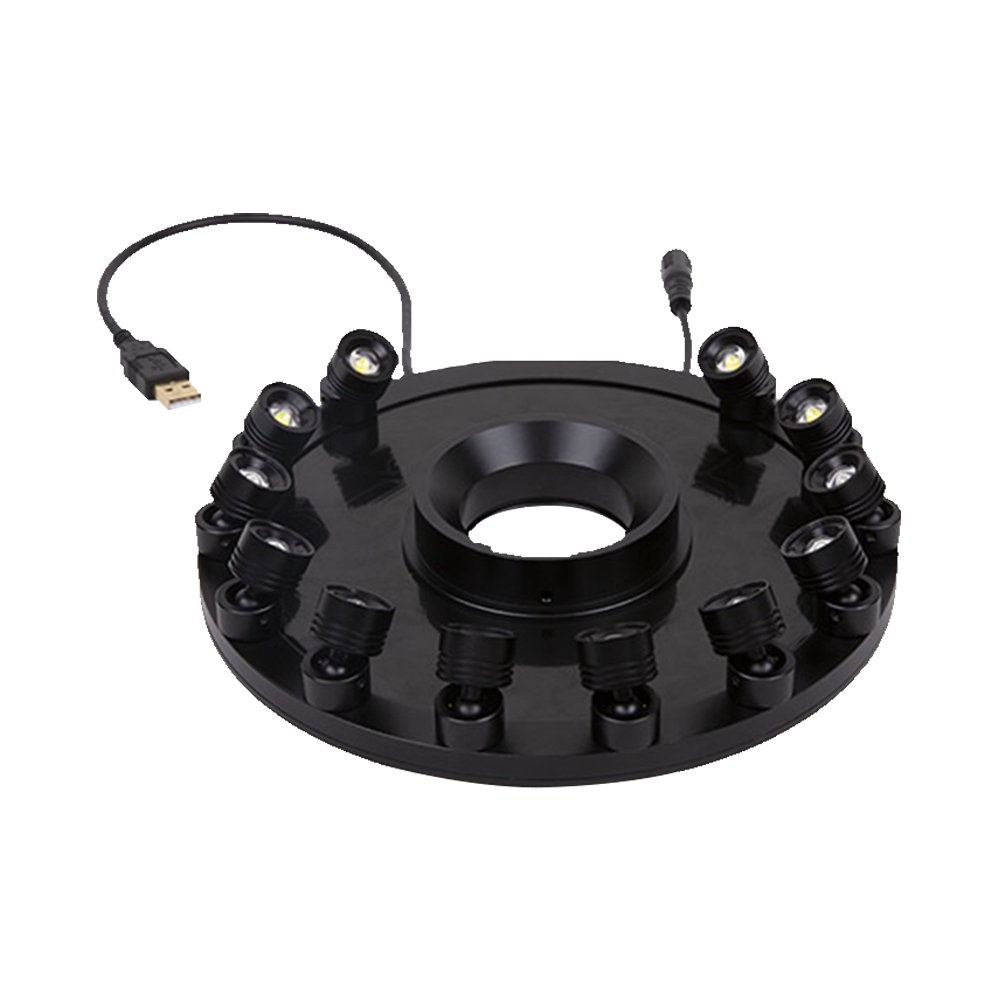

- Integrated Professional Lighting Design: The AALRL series features 12×1W high-brightness white LEDs, each with independent on/off control and angle adjustment (±30°), supporting USB brightness control and compatibility with AFDM continuous zoom systems and TPS-30A/A1 holders
- Wide-Area Uniform Illumination Performance: Covers a large field of view with 300 mm diameter illumination range, featuring optimized optical structure that reduces local reflections and shadows while enhancing image detail rendering and contrast

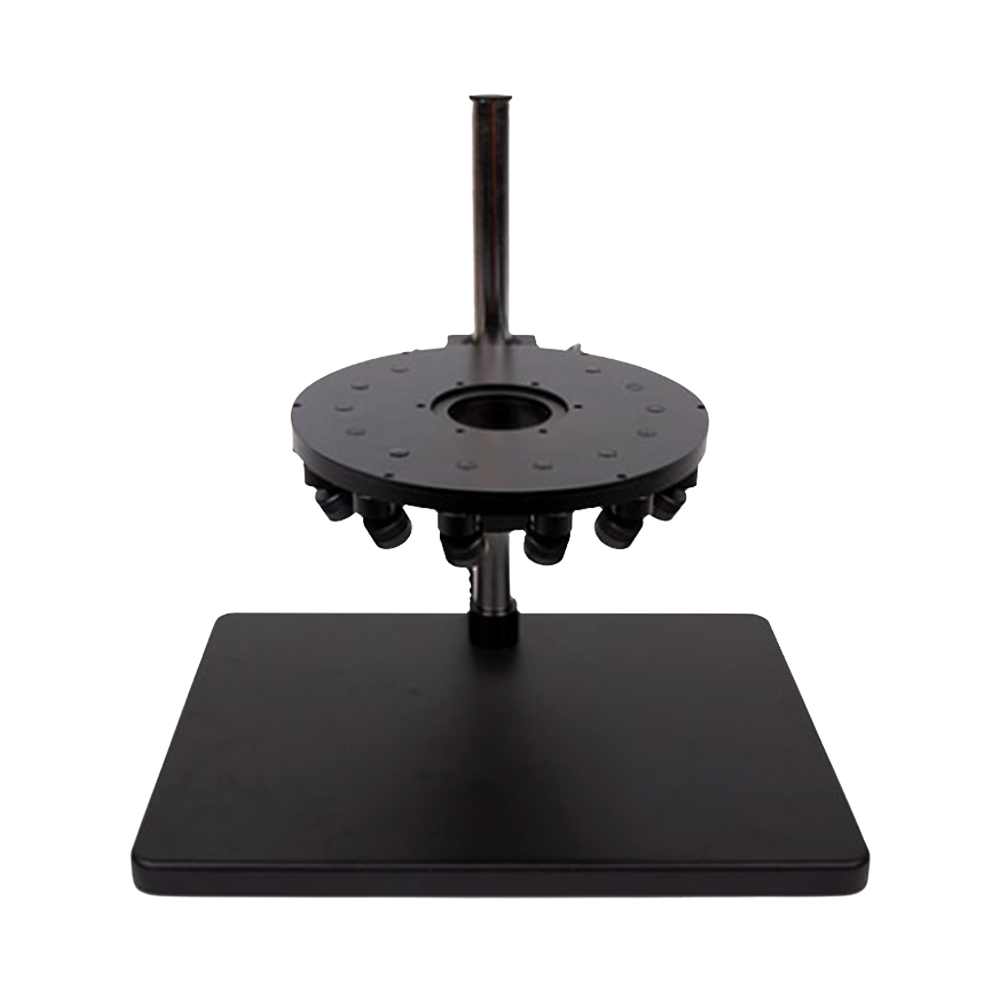

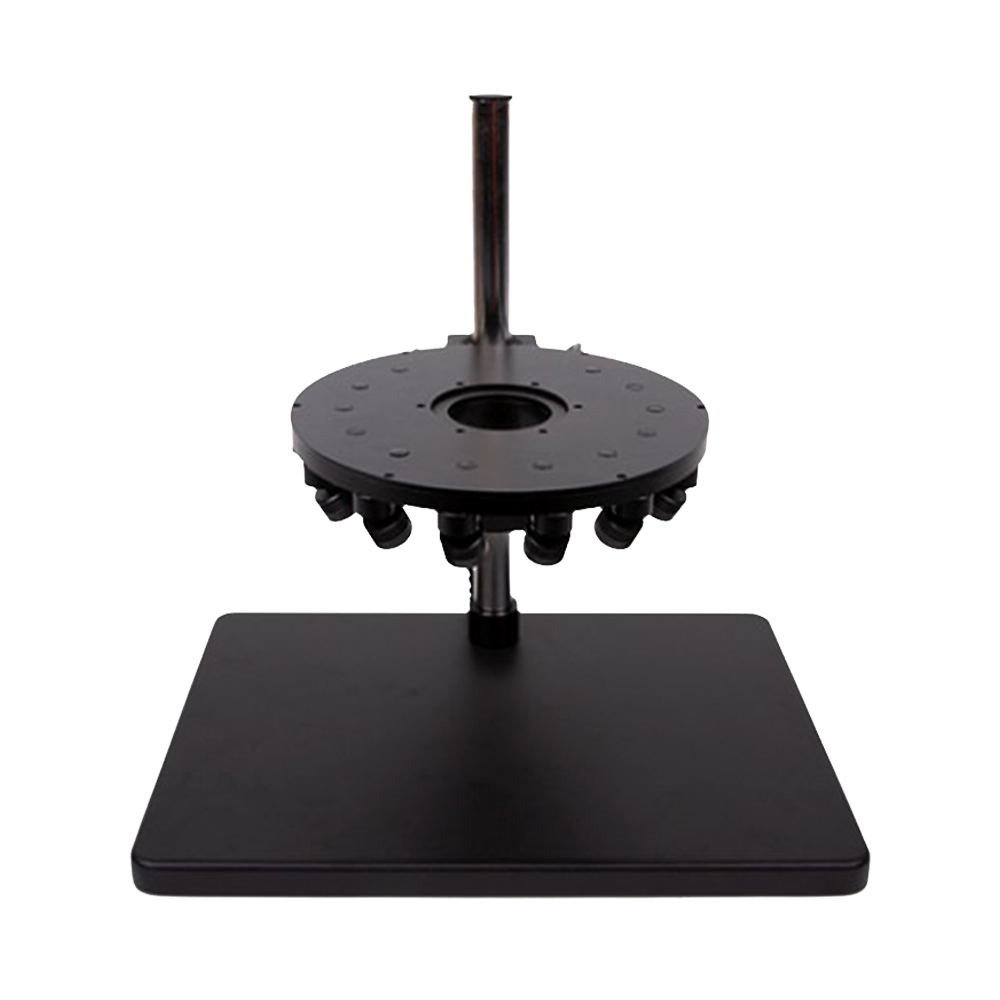

- Flexible Installation and High Compatibility: Features 76 mm outer diameter bracket with 50 mm center mounting hole for quick integration with various microscopes, industrial cameras, and inspection brackets, compatible with other lighting modules
- User-Friendly and Efficient Operation: Includes dimmer controller and multi-regional standard power adapters for out-of-the-box operation, robust construction with appropriate weight for continuous long-term operation and multi-scenario deployment
Core Advantages
-
1
Adjustable Angle Illumination 12 LEDs with independent brightness and angle adjustment (±30°) for precise light field control
-
2
Wide-Area Illumination Coverage Supports 300 mm diameter large field of view for large samples and industrial inspection requirements
-
3
High Compatibility Compatible with 76 mm bracket and 50 mm mounting hole, works with AFDM and TPS series
-
4
Plug-and-Play Design Equipped with USB control, dimmer, and universal power supply for quick deployment
-
5
Industrial-Grade Applications Suitable for semiconductor inspection, PCB quality control, and microscopic imaging of highly reflective or complex textured samples
