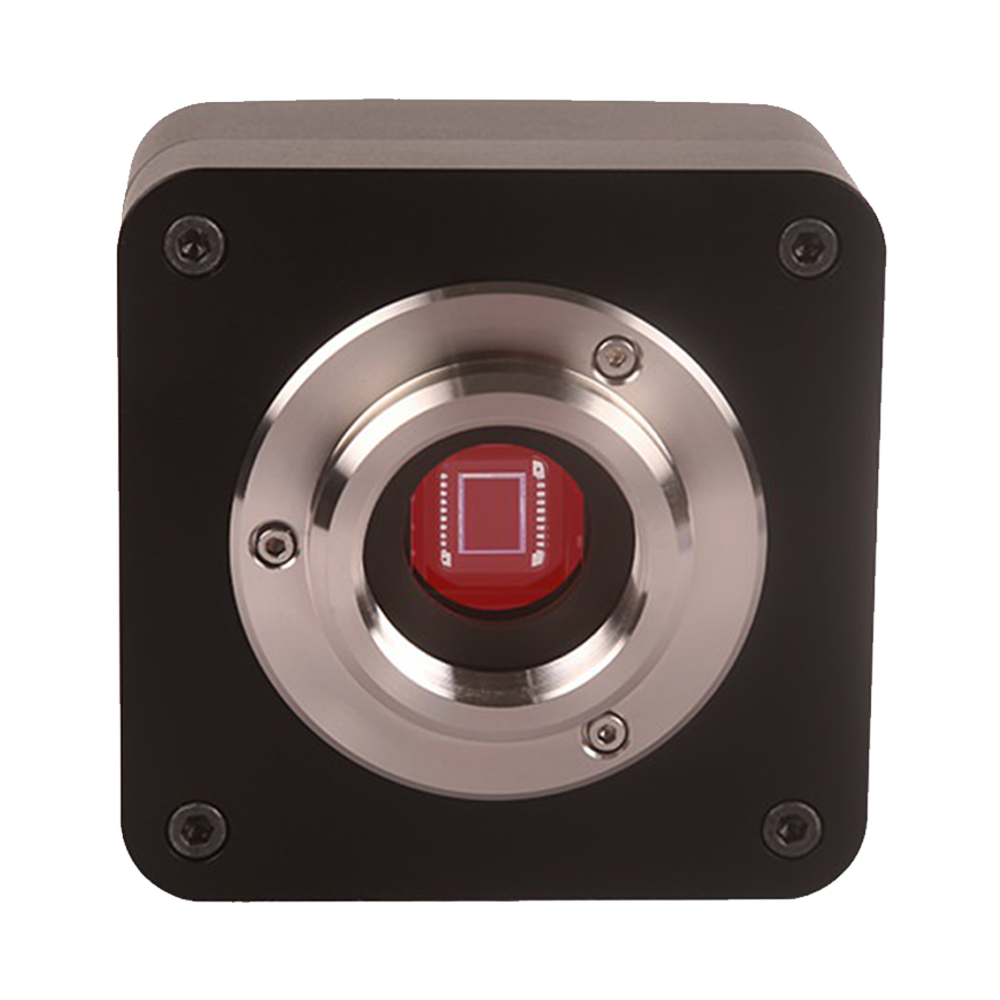

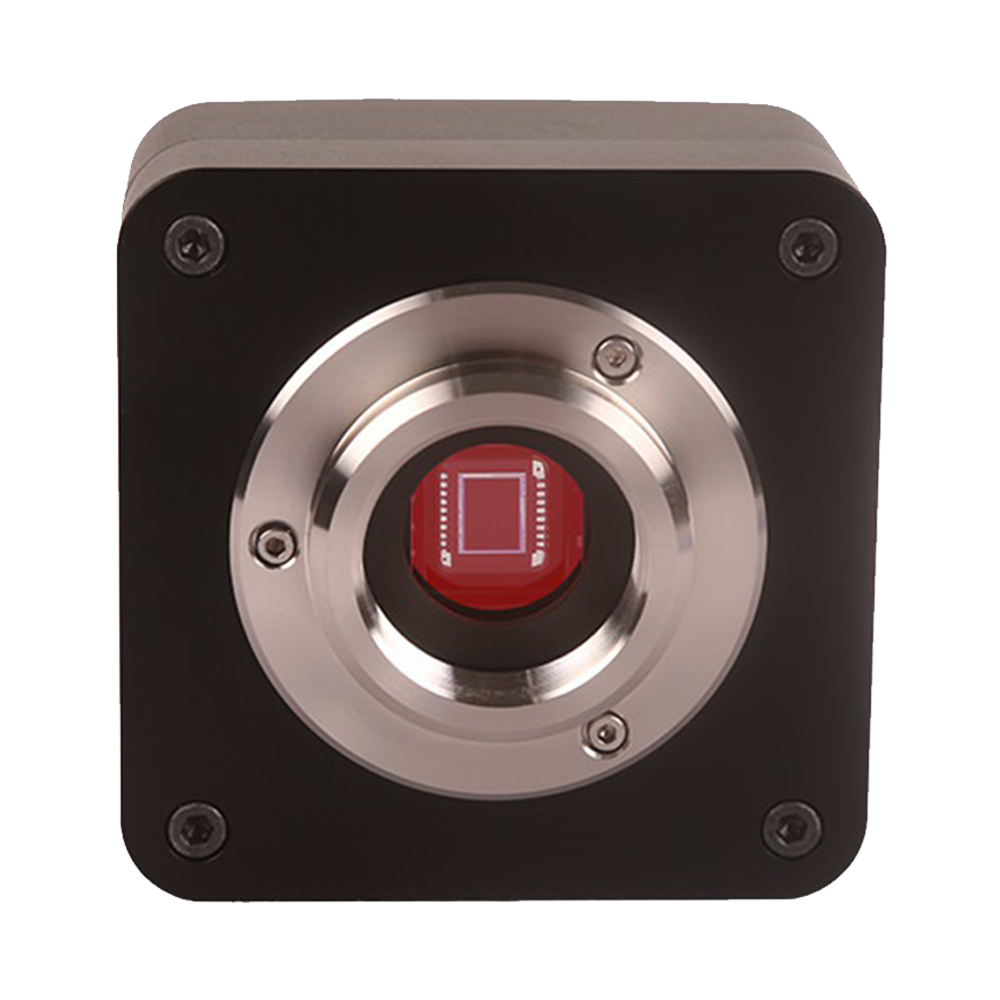

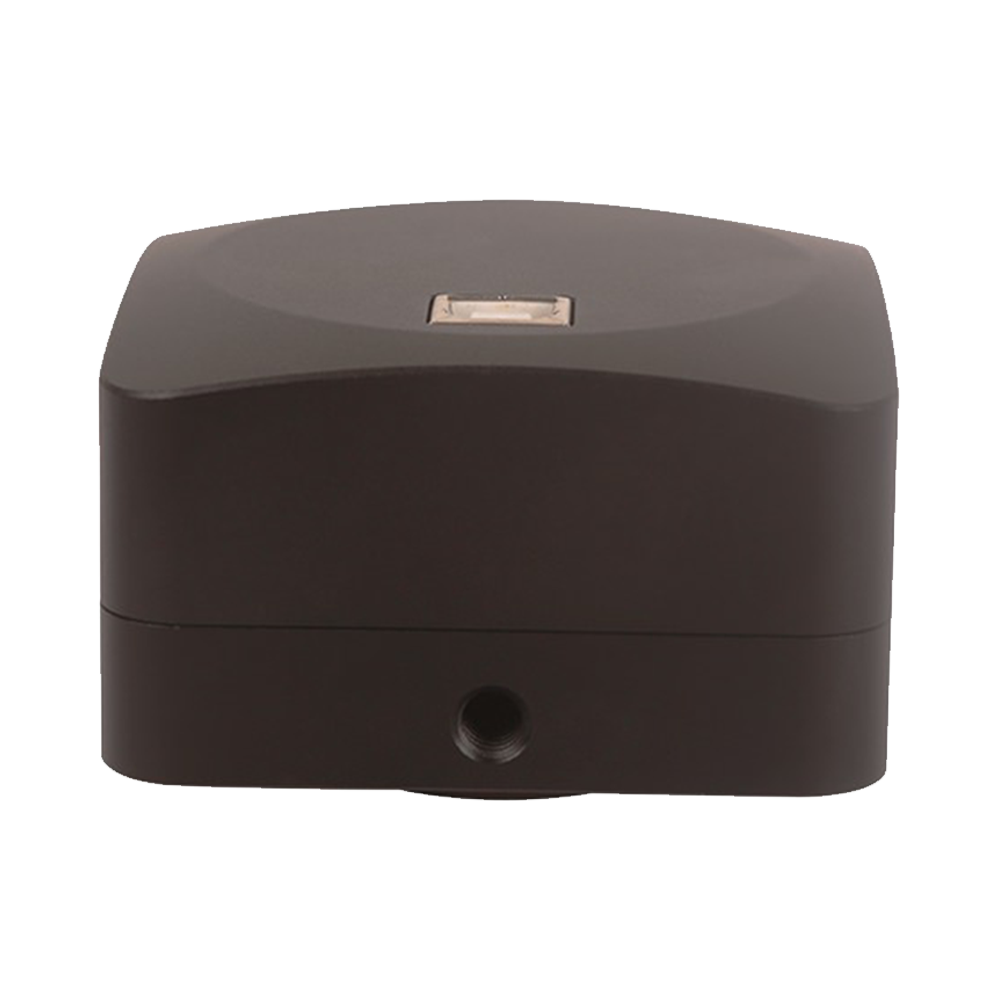

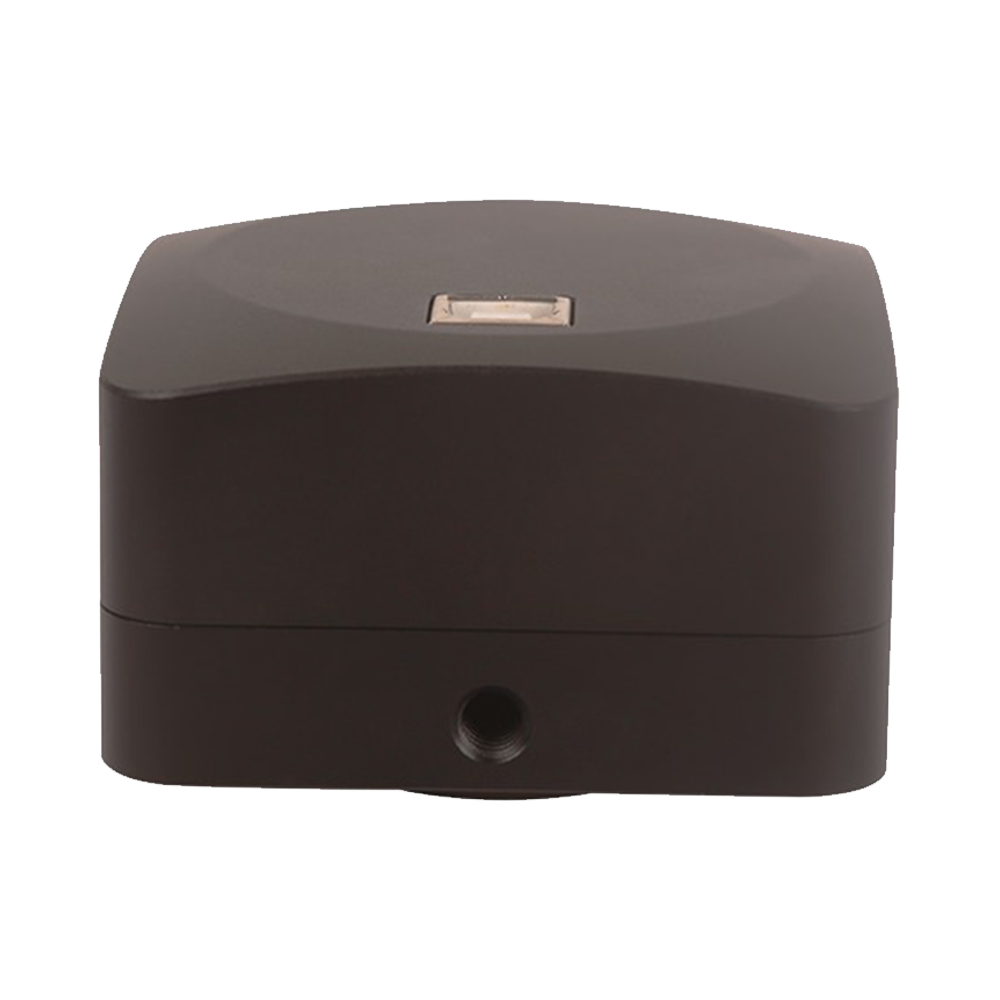

EXCCD Series
Product Introduction
The EXCCD series features C-mount USB2.0 microscopy CCD cameras utilizing Sony ExView HAD CCD sensors (model-dependent) that convert more near-infrared light into effective signals, extending sensitivity from visible light to near-infrared wavelengths while reducing readout noise, making them suitable for low-light and fluorescence applications requiring high sensitivity. The cameras employ FPGA precision timing control supporting long exposures up to approximately 3600 s, facilitating capture of extremely weak signals. Stable data transmission is achieved through USB2.0 connectivity, with included ToupView software and cross-platform SDK support (Windows/Linux/macOS/Android) for convenient system integration and secondary development.
Product Features
- Sensor: Sony ExView HAD CCD (model-dependent), enhanced near-infrared response for more sensitive low-light imaging
- C-mount standard lens interface for easy integration with microscopy/industrial optical systems
- FPGA precision control supporting long exposures up to approximately 3600 s, suitable for weak fluorescence/low-illumination imaging
- CCD global exposure imaging (Global Exposure), suppressing motion distortion and rolling shutter effects
- USB2.0 data link (480 Mbit/s), plug-and-play with stable transmission
- Ultra-Fine color engine: color correction, white balance, Gamma/contrast/brightness optimization (model-dependent)
- Integrated aluminum alloy CNC housing, robust and durable with enhanced heat dissipation and electromagnetic shielding
- Software and ecosystem: includes ToupView; provides multi-platform SDK for Windows/Linux/macOS/Android (compatible with DirectShow/TWAIN)
- Typical applications: brightfield/darkfield, low-light and fluorescence microscopy, materials/semiconductor inspection, scientific recording, etc.
Product Models
Select the EXCCD Series that fits your application requirements
| Product Model | Effective Pixels | Sensor Size | Shutter Type | Frame Rate (FPS) | Sensor Type | Data Interface | Color | Actions |
|---|---|---|---|---|---|---|---|---|
| EXCCD01400KPA | 1.4MP (1360×1024) |
8.77 mm × 6.60 mm
0.69" (10.98 mm)
|
Rolling Shutter |
15 fps@1360×1024
|
ICX285AQ CCD (C) | USB2.0 |
|
View Details |
| EXCCD01400KMA | 1.4MP (1360×1024) |
8.77 mm × 6.60 mm
0.69" (10.98 mm)
|
Rolling Shutter |
15 fps@1360×1024
|
ICX285AL CCD (M) | USB2.0 |
|
View Details |
| EXCCD00440KMA | 0.44MP (748×578) |
6.43 mm × 4.80 mm
0.5" (8.02 mm)
|
Rolling Shutter |
46 fps@748×578
|
ICX829AL CCD (M) | USB2.0 |
|
View Details |
| EXCCD00300KMA | 0.3MP (640×480) |
3.58 mm × 2.69 mm
0.28" (4.48 mm)
|
Rolling Shutter |
72 fps@640×480
|
ICX618AL CCD (M) | USB2.0 |
|
View Details |
Package Contents #
Standard kit and packaging for EXCCD C-mount USB2.0 CCD cameras
Standard Items
- Shipping carton: L 52 cm × W 32 cm × H 33 cm (20 pcs, 12–17 kg per carton)
- Inner box: L 15 cm × W 15 cm × H 10 cm (0.67–0.80 kg per box)
- EXCCD camera (1 pc)
- High-speed USB2.0 Type-A male to Type-B male gold-plated cable (2.0 m)
- Software CD (drivers and application, Ø 12 cm)
Optional Accessories
- Adjustable eyepiece adapters
Dia. 23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075
Dia. 31.75 mm eyepiece to C-mount: 108008/ATA037, 108009/ATA050, 108010/ATA075 - Fixed eyepiece adapters
Dia. 23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075
Dia. 31.75 mm eyepiece to C-mount: 108011/FTA037, 108012/FTA050, 108013/FTA075 - 108015 (Dia. 23.2 mm to 30.0 mm ring) – adapter ring for 30 mm eyepiece tubes
- 108016 (Dia. 23.2 mm to 30.5 mm ring) – adapter ring for 30.5 mm eyepiece tubes
- 108017 (Dia. 23.2 mm to 31.75 mm ring) – adapter ring for 31.75 mm eyepiece tubes
- Calibration reticles
106011/TS-M1 (X = 0.01 mm / 100 divisions)
106012/TS-M2 (X, Y = 0.01 mm / 100 divisions)
106013/TS-M7 (X = 0.01 mm / 100 divisions; 0.10 mm / 100 divisions)
Product Dimensions #

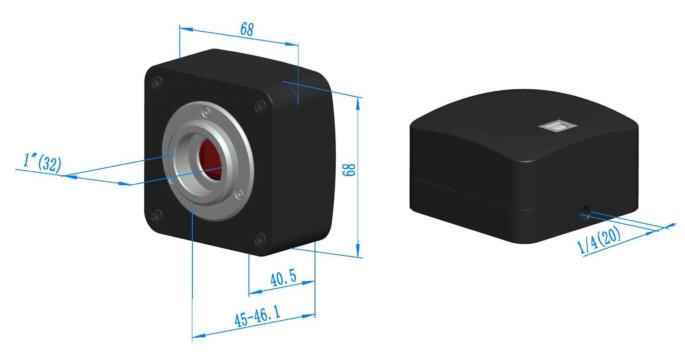

Mechanical outline for EXCCD C-mount USB2.0 CCD cameras
EXCCD cameras are ToupTek’s advanced USB2.0 CCD solutions. Powered by Sony ExView HAD sensors, they deliver excellent low-light performance while the dedicated buffer and optimized USB2.0 pipeline secure stable real-time transmission. The series covers 0.3 MP to 1.4 MP and adopts a standard C-mount, making it suitable for microscopy, astronomy, and inspection workflows that demand precise color and low noise.
Key Features
Sony ExView HAD CCD
High quantum efficiency across visible to near-infrared wavelengths.
Buffered USB2.0 Interface
Optimized transfer algorithms maintain smooth video and capture.
FPGA Exposure Control
Supports exposures from 0.06 ms to 1 hour for weak-signal imaging.
Ultra-Fine Color Engine
Hardware-level color processing preserves subtle tonal differences.
Performance Highlights
Resolution
0.3–1.4 MP
Multiple CCD optionsSpectral Response
380–1000 nm
Visible to near-infraredFrame Rate
Up to 72 fps
640 × 480 resolutionExposure Range
0.06 ms – 1 h
Precision hardware timingIn-Depth Technology Overview
Sony ExView HAD CCD Technology
ExView HAD sensors extend quantum efficiency from visible to near-infrared wavelengths (approximately 380–1000 nm), dramatically improving low-light performance. Optimized photodiode structures reduce noise from stray light, making EXCCD cameras ideal for fluorescence, darkfield, and astronomy applications that demand heightened sensitivity.
Optimized USB2.0 Data Pipeline
A dedicated buffer and tuned USB2.0 protocol maintain stable streaming even at high resolutions. Typical models deliver around 15 fps at 1360 × 1024 and up to 72 fps at 640 × 480, providing responsive live view and capture. The single-cable design supplies both power and data, simplifying mobile and laboratory setups.
FPGA-Based Long Exposure Control
Integrated FPGA timing supports exposures from 0.06 ms to 1 hour. Hardware-level control keeps long exposures stable, minimizing drift and accumulated noise. This capability is crucial for capturing extremely weak fluorescence, luminescence, or other faint signals that require extended integration.
Ultra-Fine Color Processing
The Ultra-Fine color engine handles tone, saturation, and gamma correction in hardware. Output is available in 8-bit or 12-bit formats, with 12-bit delivering 4096 grayscale levels for wider dynamic range. ROI white balance and manual Temp/Tint adjustment help adapt to diverse illumination environments.
Robust Fanless Mechanical Design
CNC-machined aluminum housings provide excellent rigidity and passive heat dissipation. The fanless design eliminates vibration and acoustic noise, which is critical for long exposures and high magnification imaging. A standard C-mount enables seamless integration with microscopes, telescopes, and custom optical assemblies.
