XCAM720P Series
Product Introduction
XCAM720PHC HDMI camera is capable of using mouse control for camera parameters and has 30 fps@720P (1280×720) format video output capability through HDMI interface. It can be used with various HDMI output devices.
XCAM720PHC HDMI camera sensor uses high-sensitivity APTINA or SONY image sensors, with built-in Linux-based XCamView camera control software. Users can directly control XCamView through mouse, achieving automatic/manual exposure switching, exposure compensation, exposure time, gain, white balance parameters, chromaticity, saturation, sharpness, noise reduction, sharpening, power frequency stripe removal and other camera parameter controls, as well as image capture, electronic zoom in/out, freeze/unfreeze, image flip and other functions. SD card supports maximum 32GB capacity.
XCAM720PHC HDMI camera has compact size, stable performance, and clear image quality, suitable for industrial field inspection, machine vision, education and medical analysis applications.
With specially designed high-resolution microscope and astronomical telescope adapters by ToupTek, PHC cameras can be expanded into microscope and astronomical cameras, eliminating the need for computers in microscope and astronomical applications for more convenience and practicality.
Product Features
- XCAM720PHC camera outputs video stream directly to HDMI devices through standard HDMI interface
- Quick connection with other optical equipment on production lines through C-type optical interface
- Fast video display, clear without flicker, good color reproduction
- Compact structure, high integration, stable performance, low failure rate
- Camera has built-in Linux-based Qt platform XCamView camera control software
- Direct mouse control for camera parameter control and other basic processing function control or selection
- XCAM720PHC camera features multi-functionality and high-definition image display
- Widely applicable to industrial inspection, teaching research, material analysis, precision measurement, medical and other fields
XCAM720P Series
Built-in SD card storage, supports HDMI output, suitable for field photography and simple observation with mouse control and OSD menu functions.
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| XCAM0720PHC |
Sony IMX322(C)
1/2.8" (5.78×3.02 mm)
|
2.8 μm × 2.8 μm | 2MP (1920×1080) | HDMI: 30 fps@1280×720; Static: 1920×1080 | HDMI | C-mount | SD card (max 32GB) | Mouse control SD card storage OSD menu Crosshair display Wired remote photography |
In-Depth Introduction

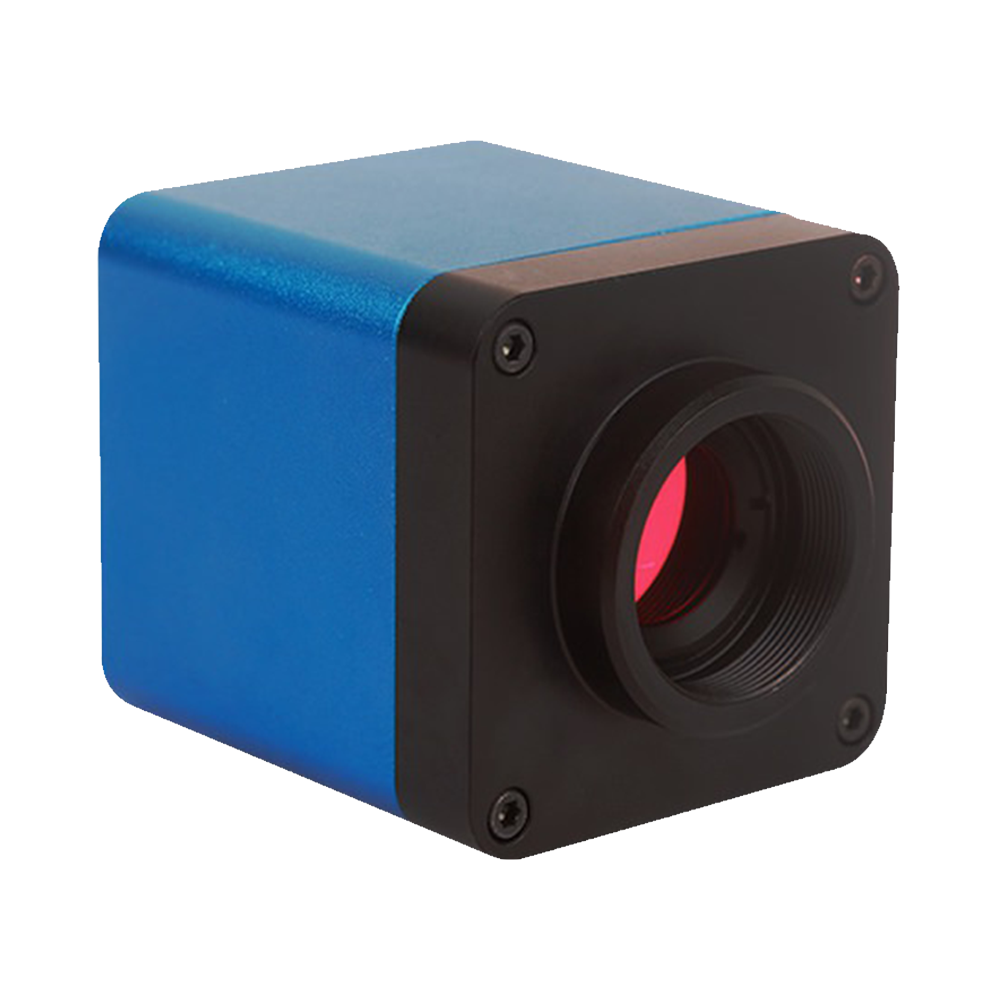

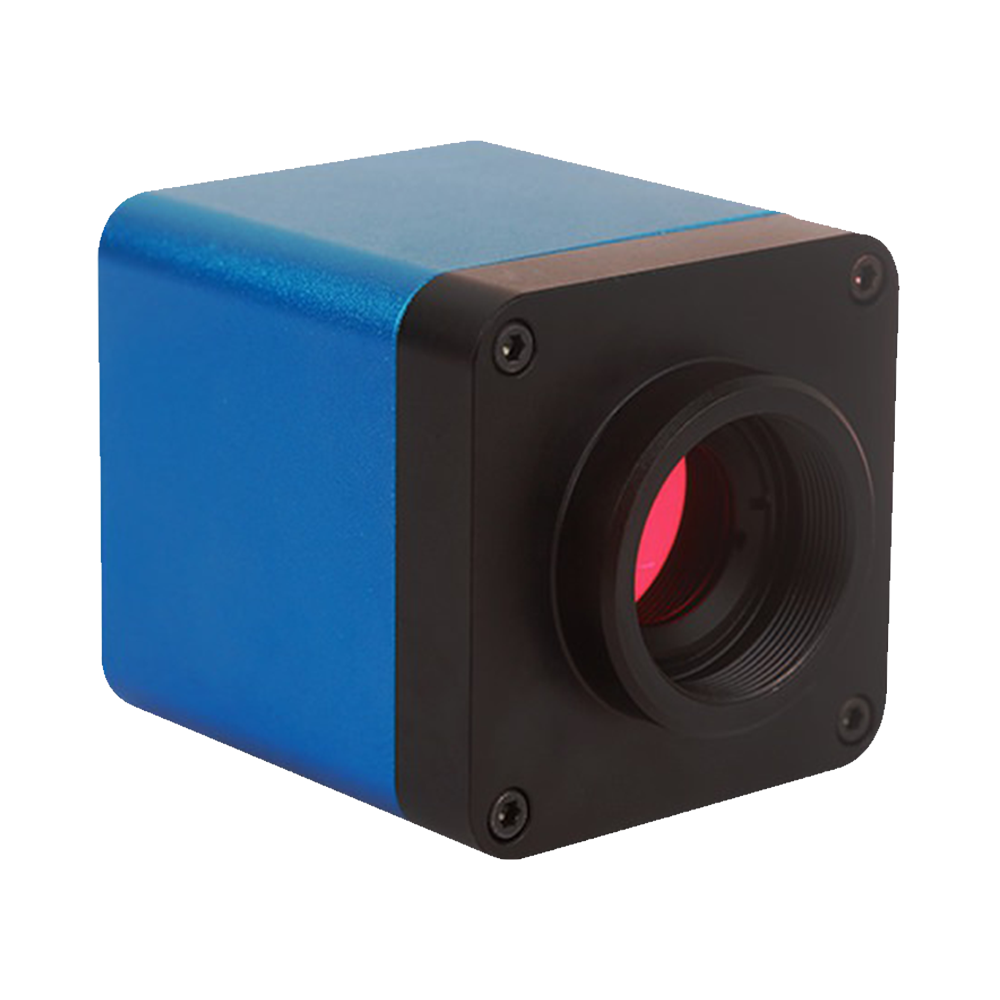

The Topscien XCAM720P Series is a C-mount microscope camera with HDMI real-time output, designed for 720P HD video and image capture in stereo microscopes, biological microscopes and other C-mount optical systems. The camera features built-in XCamView, allowing direct preview, photography and basic control on a display through USB mouse, supports SD card local storage, and operates independently without a computer.

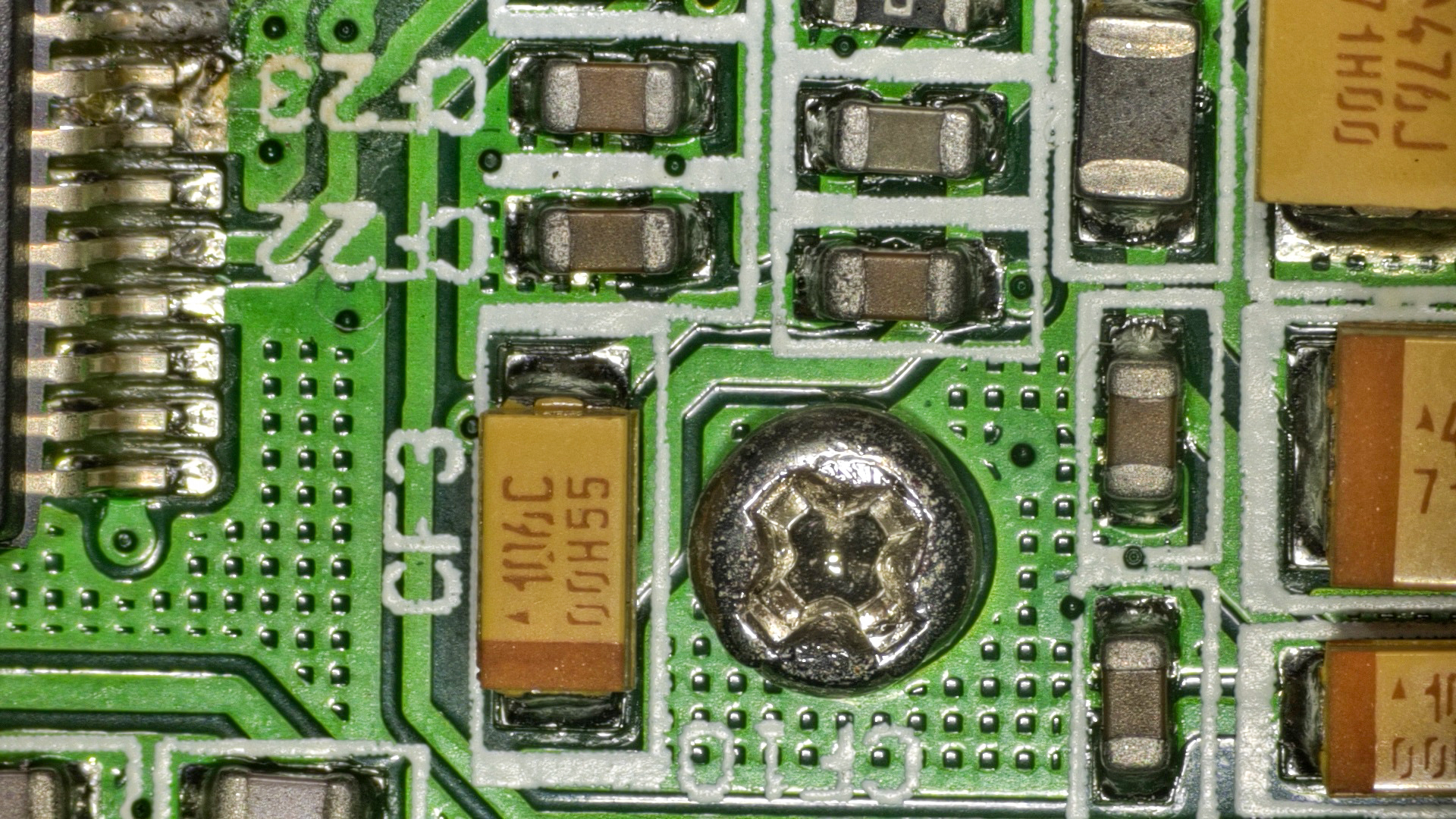

Utilizing high-sensitivity CMOS image sensor, it provides stable HDMI output at 1280×720 @ 30 fps, and supports static image capture with freeze display, digital zoom, image flip and other common operations, suitable for experimental teaching, scientific research recording and industrial inspection from entry-level to regular application scenarios.
Technical Features

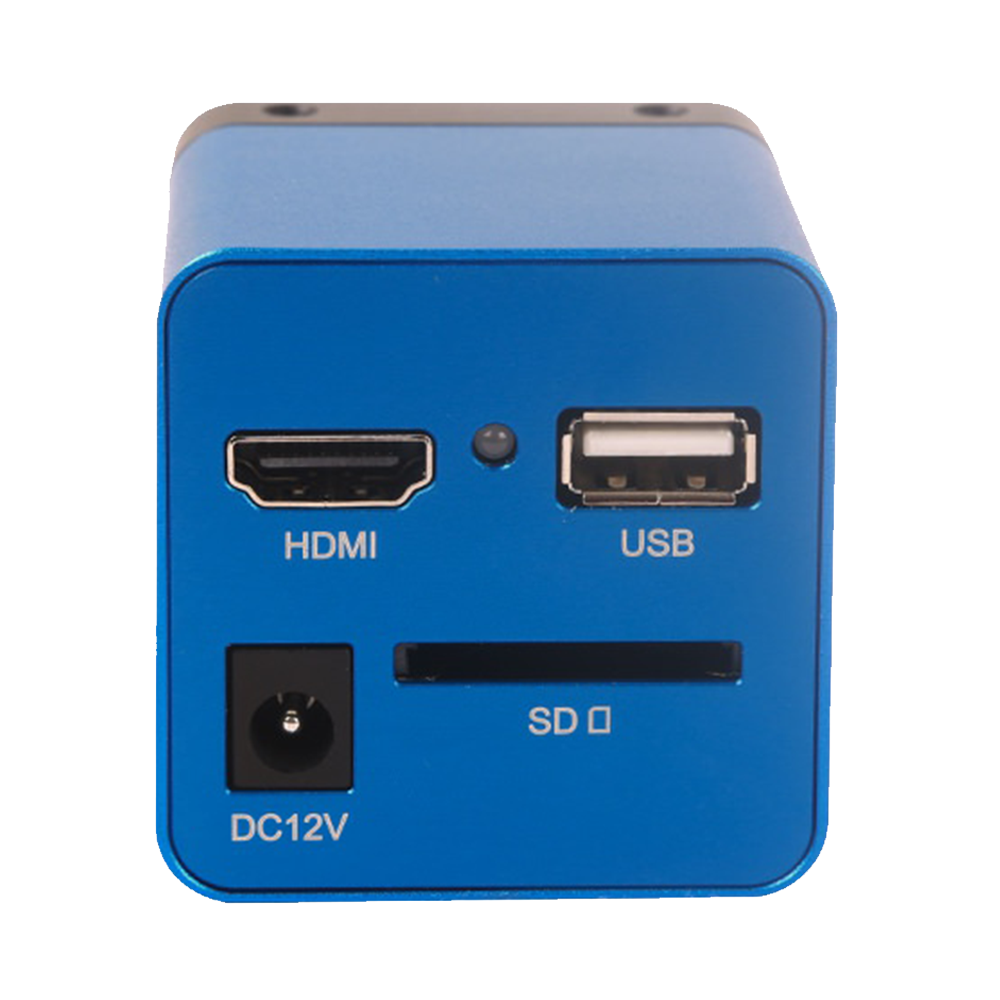

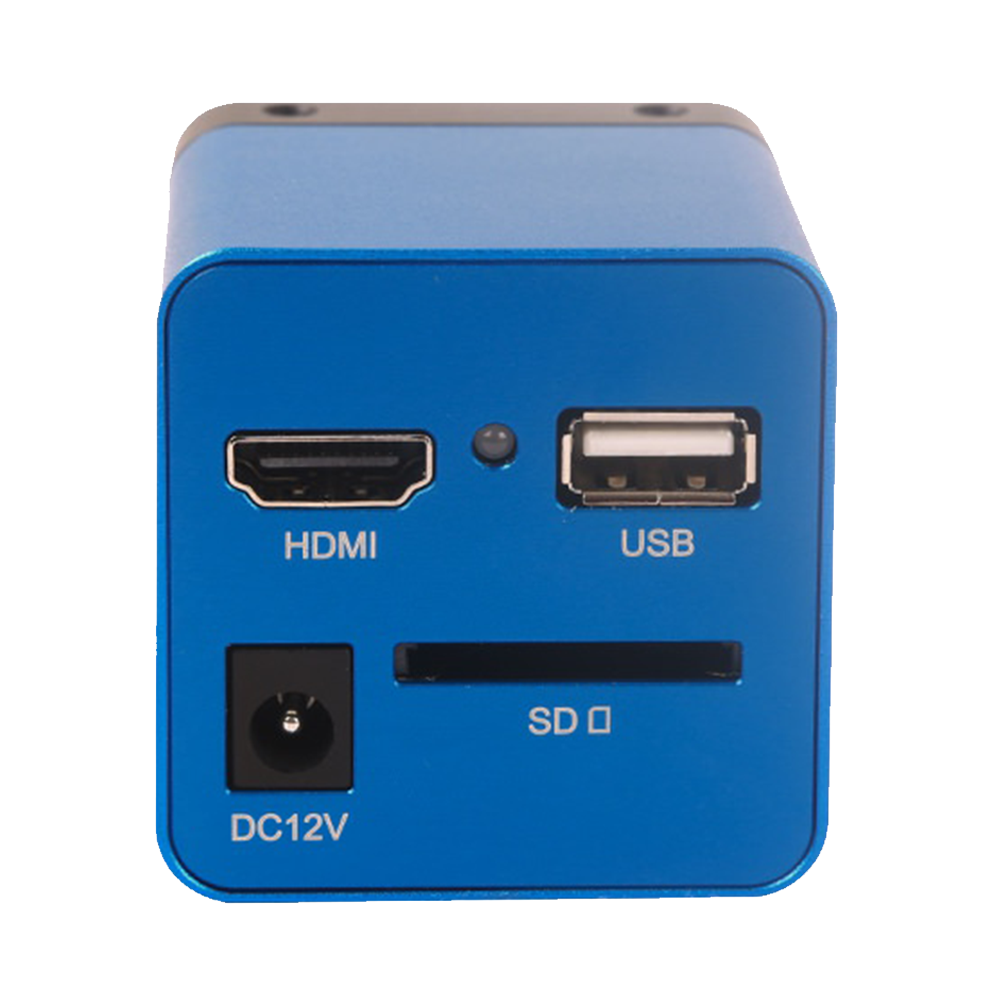

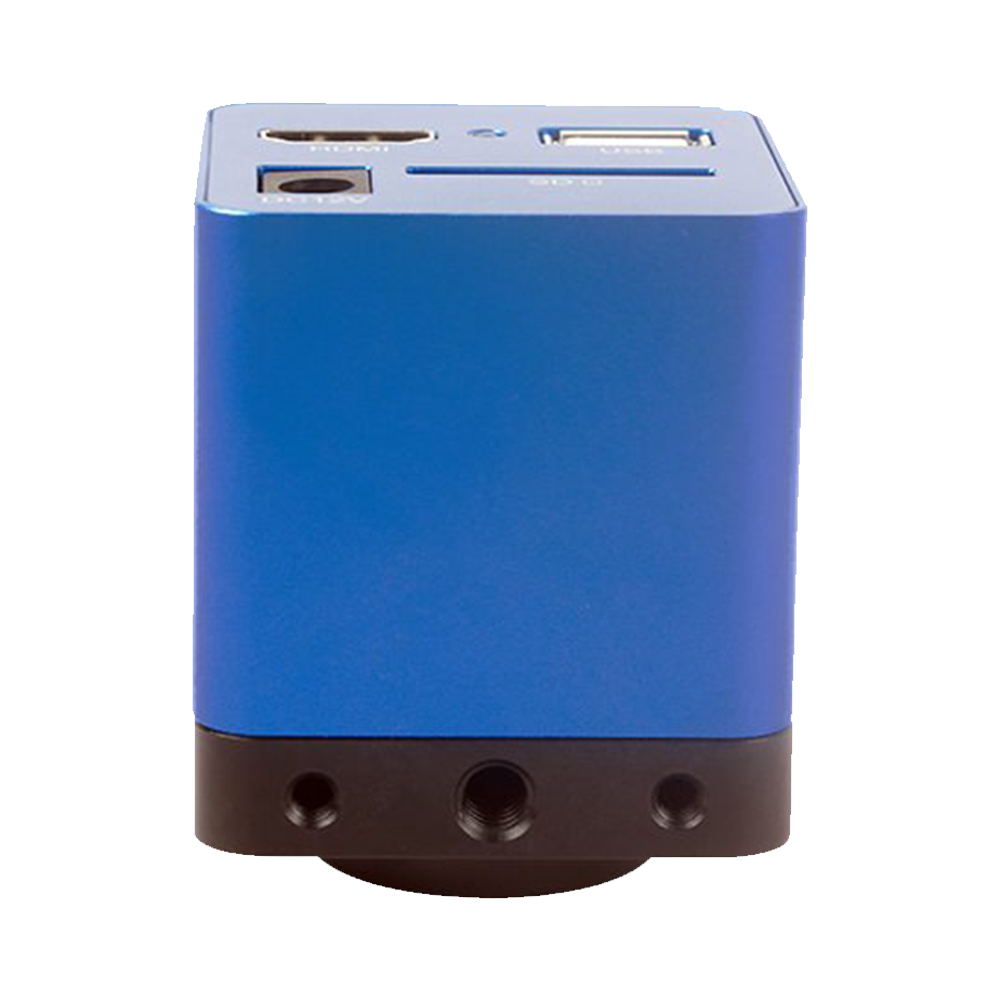

- Interface & Usage: HDMI real-time display; USB port for mouse control; supports SD card local storage; DC 12 V power supply, ready to use on startup
- Imaging Specifications: 720P (1280×720) 30 fps real-time output, meets teaching demonstration and field observation needs; supports static image capture
- Built-in Interface & Operations: XCamView bottom toolbar supports photography, digital zoom, horizontal/vertical flip, freeze/unfreeze and control panel access for common functions
- Image Adjustment: Default auto exposure and auto white balance; provides basic parameter adjustment (sharpness, contrast, gamma, etc.) for different light sources and sample environment adaptation

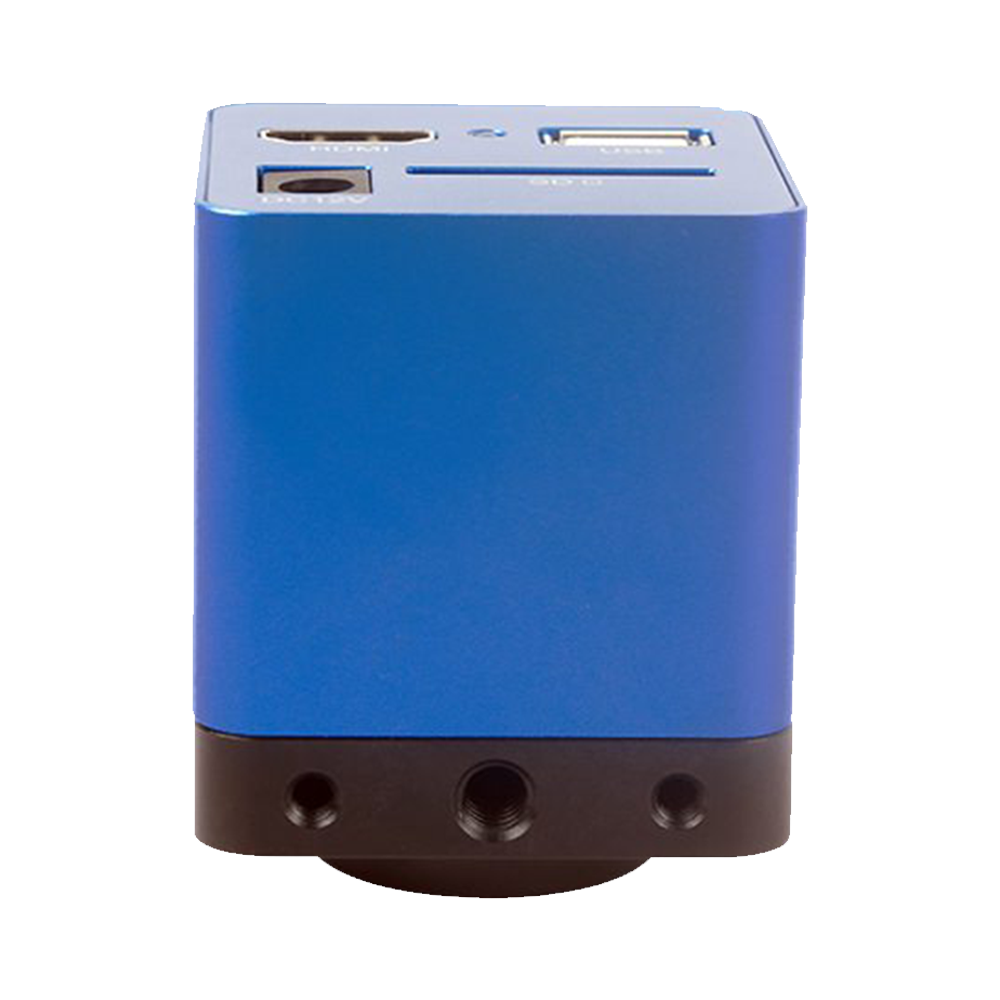

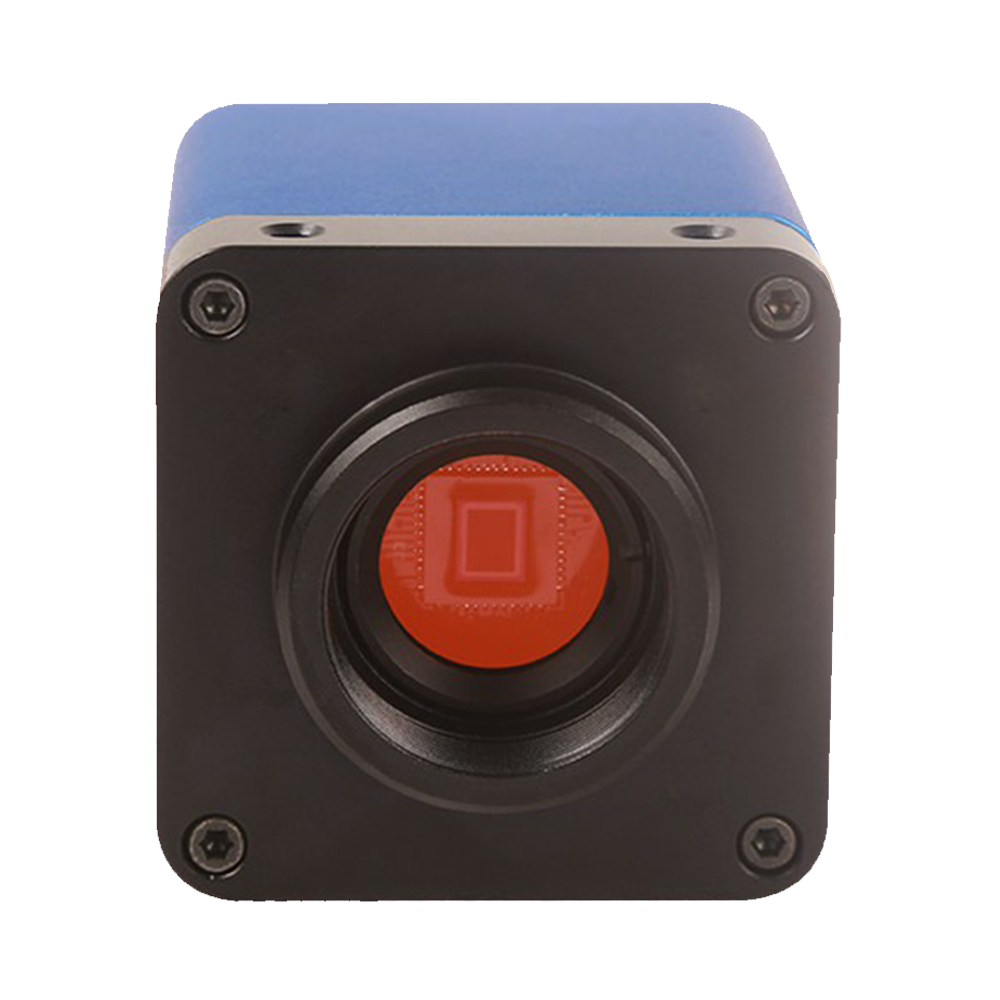

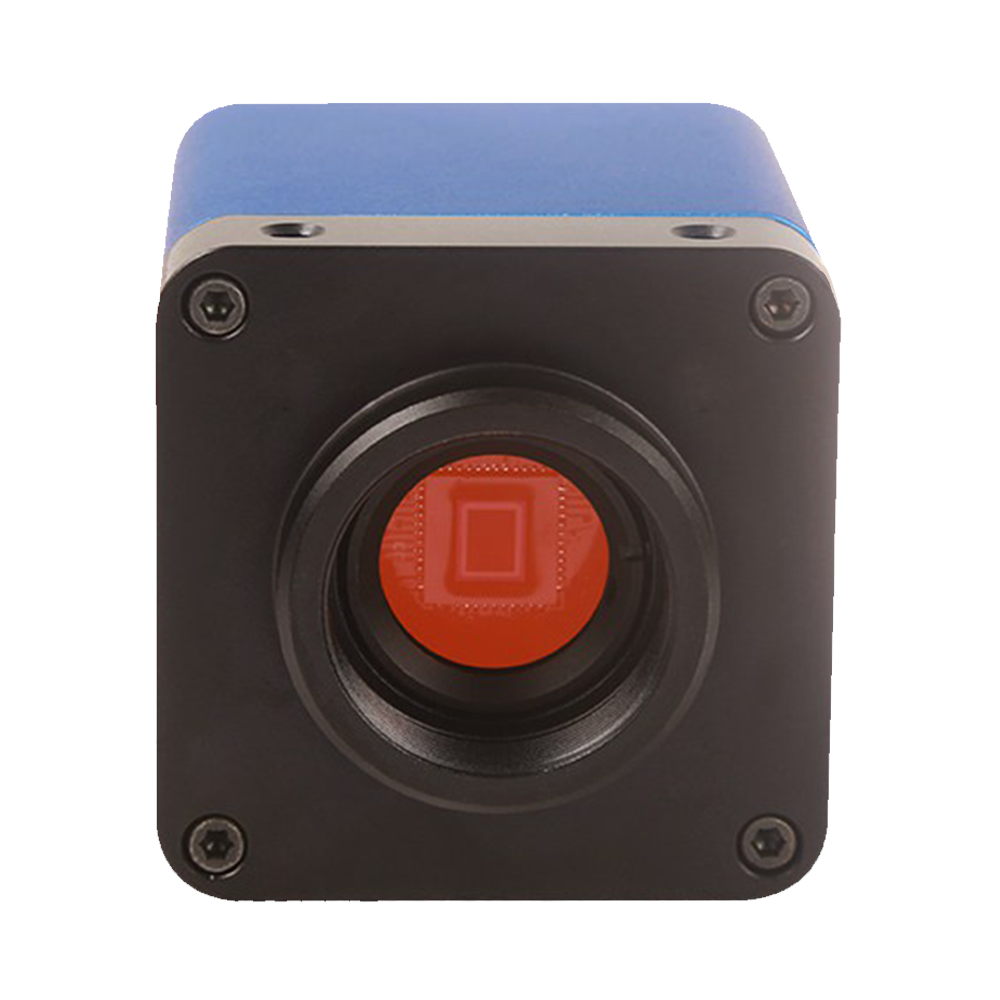

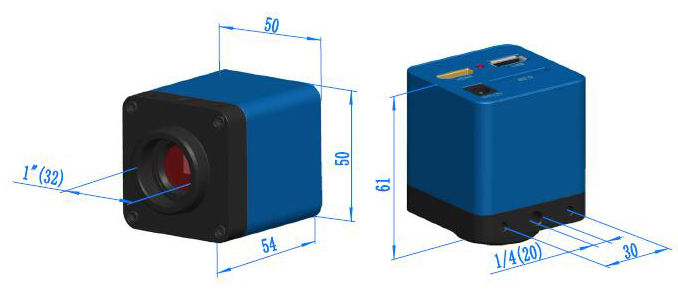

- Compatibility: Universal C-mount installation, compact metal body, suitable for portable or space-constrained system integration
Core Advantages
-
1
HDMI Plug-and-Play Connect display and mouse to operate, complete observation and capture without computer
-
2
720P Stable Real-Time Output 1280×720 @ 30 fps, meets classroom demonstration and routine inspection needs
-
3
Efficient Local Storage Supports SD card direct storage for easy retention and archiving
-
4
Simple Operation, Quick to Learn Intuitive XCamView menu with one-click access to common functions
-
5
Universal C-Mount, Easy Integration Compatible with multiple microscope brands and accessories, supports teaching, research and basic industrial applications
