400–2500 nm | China-made SWIR InGaAs | USB3/CameraLink | Cooled | Short-Wave Infrared Camera
Product Introduction
The SWIR 400-2500 nm series cameras are designed for ultra-wide spectral band high-end applications, featuring advanced InGaAs sensors and deep cooling architecture. Covering the 400-2500 nm spectral range, they are ideal for laser measurement, solar cell inspection, material sorting, spectral imaging, and scientific research. The USB 3.0 high-speed data interface enables fast integration and data processing. This series supports high frame rate acquisition, global shutter, wide dynamic range, and multi-platform SDK development, offering excellent imaging consistency and long-term operational stability. It is the ideal choice for research institutions and industrial automation systems.
Product Features
- 400-2500 nm wide-spectrum InGaAs sensor
- High sensitivity with deep cooling
- Global shutter
- High frame rate acquisition
- USB 3.0 high-speed data interface
- 4 GB memory
- Multi-platform SDK development support
- Rich I/O and external triggering
- Support for on-site firmware updates and OEM customization
Product Models
Optional 400–1700/1000–1900/1200–2200 | USB 3.0 Cooled 400–2500 nm Camera
| Product Model | Sensor | Resolution | Pixel Size | Spectral Range | Frame Rate | Data Interface | Dynamic Range | Actions |
|---|---|---|---|---|---|---|---|---|
| SWIR333KMB-E1222-U270 |
China-made 640×512 (InGaAs)
9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm |
1200–2200 nm
|
270 fps at 640×512
|
USB3 |
-
|
View Details |
| SWIR333KMB-E1019-U240 |
China-made 640×512 (InGaAs)
9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm |
1000–1900 nm
|
240 fps at 640×512
|
USB3 |
-
|
View Details |
| SWIR339KMB-E0417-U700 |
China-made 640×512 (InGaAs)
9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm |
400–1700 nm
|
724 fps at 640×512
|
USB3 |
-
|
View Details |
| SWIR339KMB-E0417-CL700 |
China-made 640×512 (InGaAs)
9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm |
400–1700 nm
|
724 fps at 640×512
|
CameraLink |
-
|
View Details |
Quantum Efficiency Curve #
Typical quantum efficiency response across the full 400–2500 nm SenSWIR range

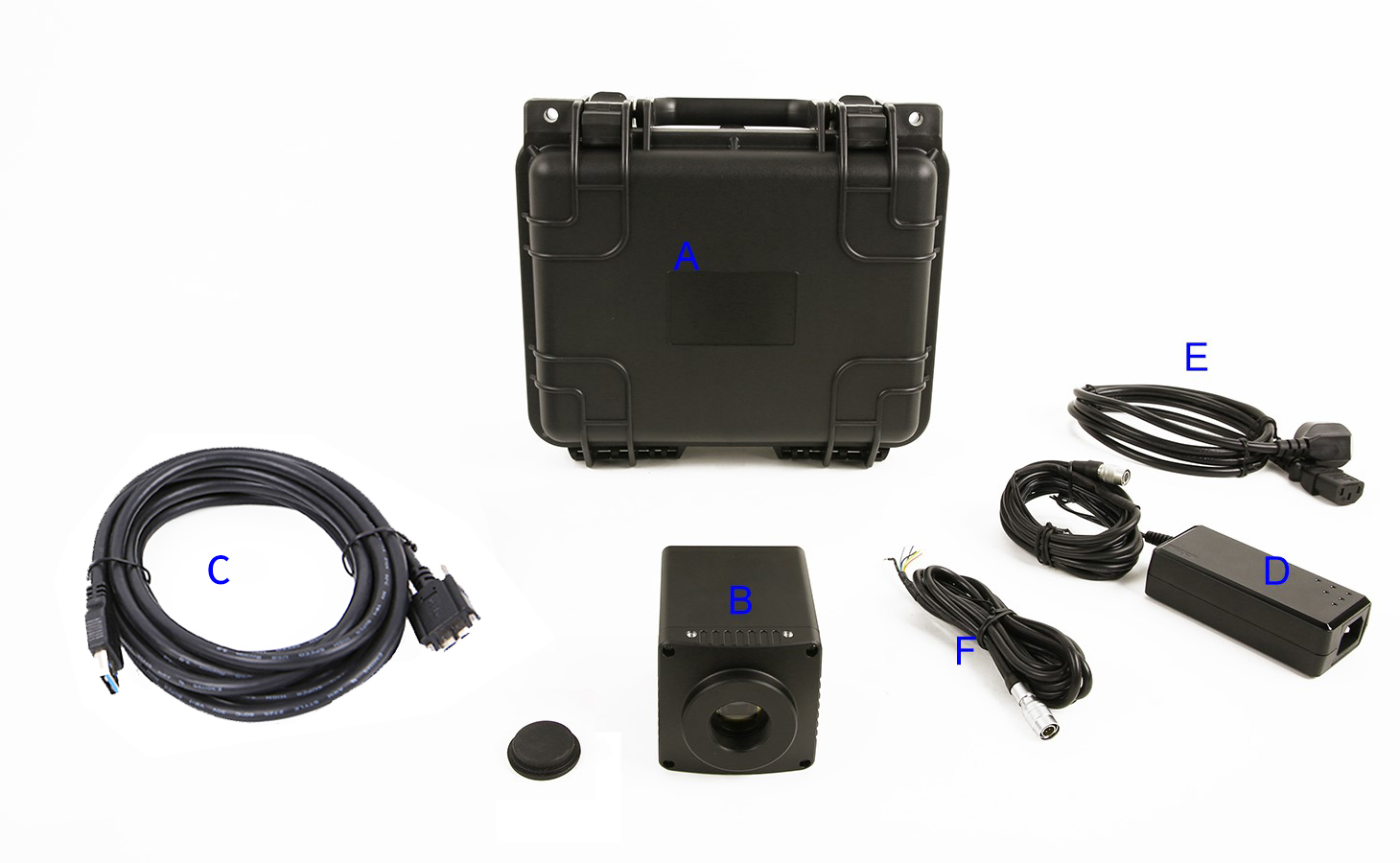

Packing List #
Standard configuration and packing details for the 400–2500 nm series (USB3 / CameraLink · deep cooling)
- A Outer carton (not shown): shipping box size L: 28.2 cm W: 25.2 cm H: 16.7 cm
- B 3-A instrument safety case: L: 28.0 cm W: 23.0 cm H: 15.5 cm (1 pc, ≈2.8 kg/box)

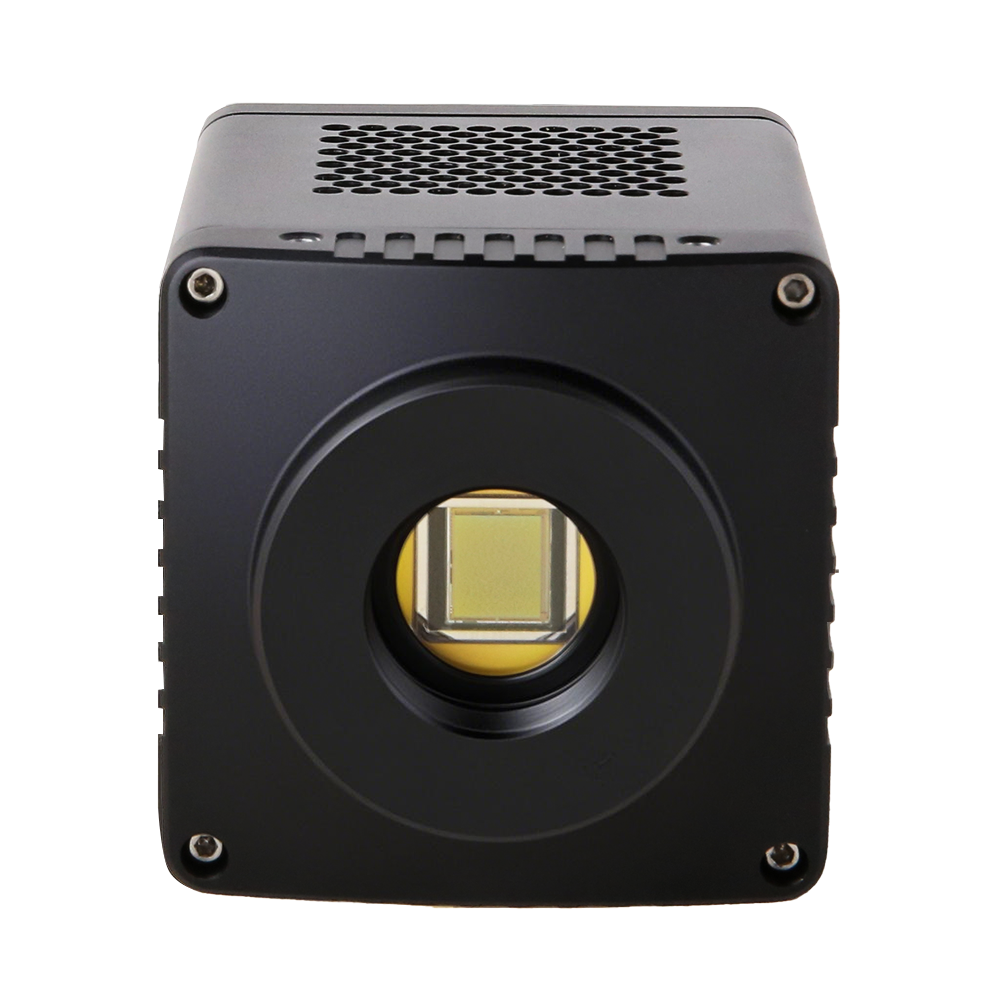

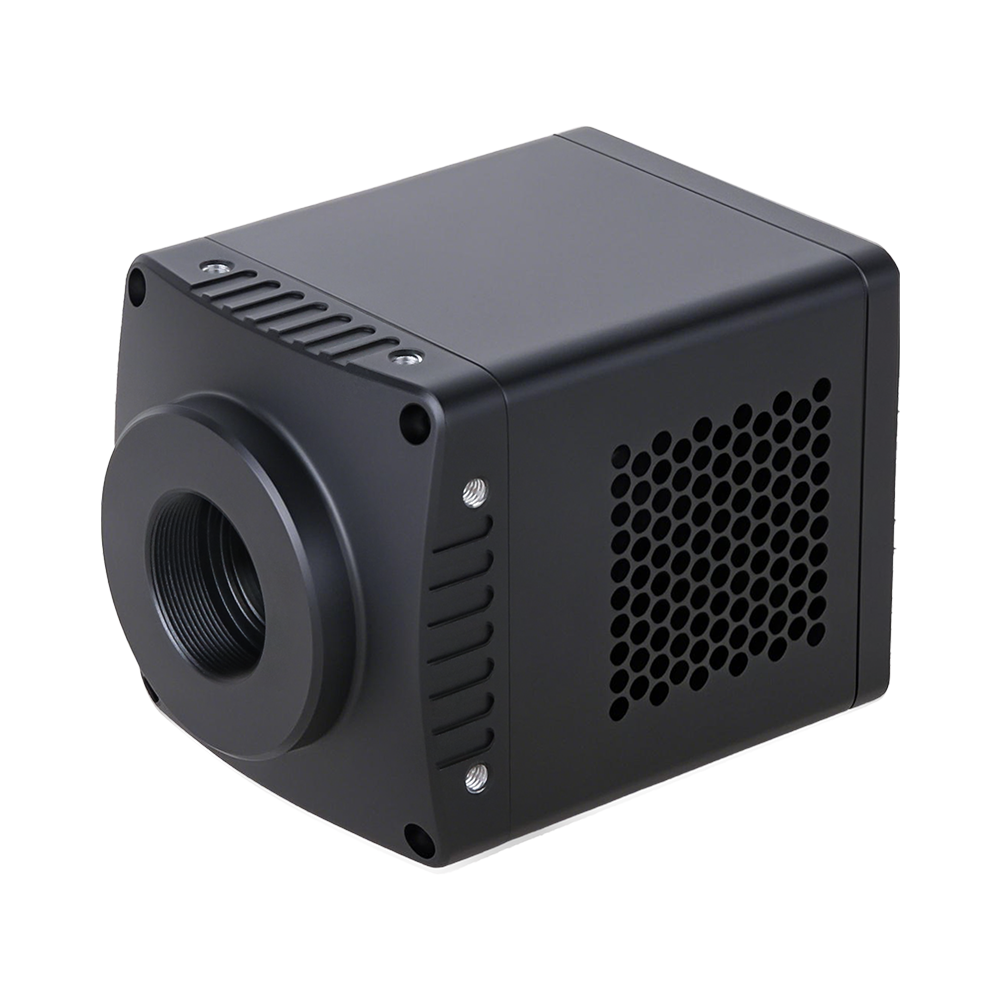

- C 400–2500 series USB3 cooled camera (C-mount, deep TEC cooling)
- D 12 V / 3 A power adapter + matching power cord (CN / US / EU / UK plugs)
- E USB3.0 A-to-B high-speed data cable (1.5 m)
- F External trigger / I/O control cable ×1

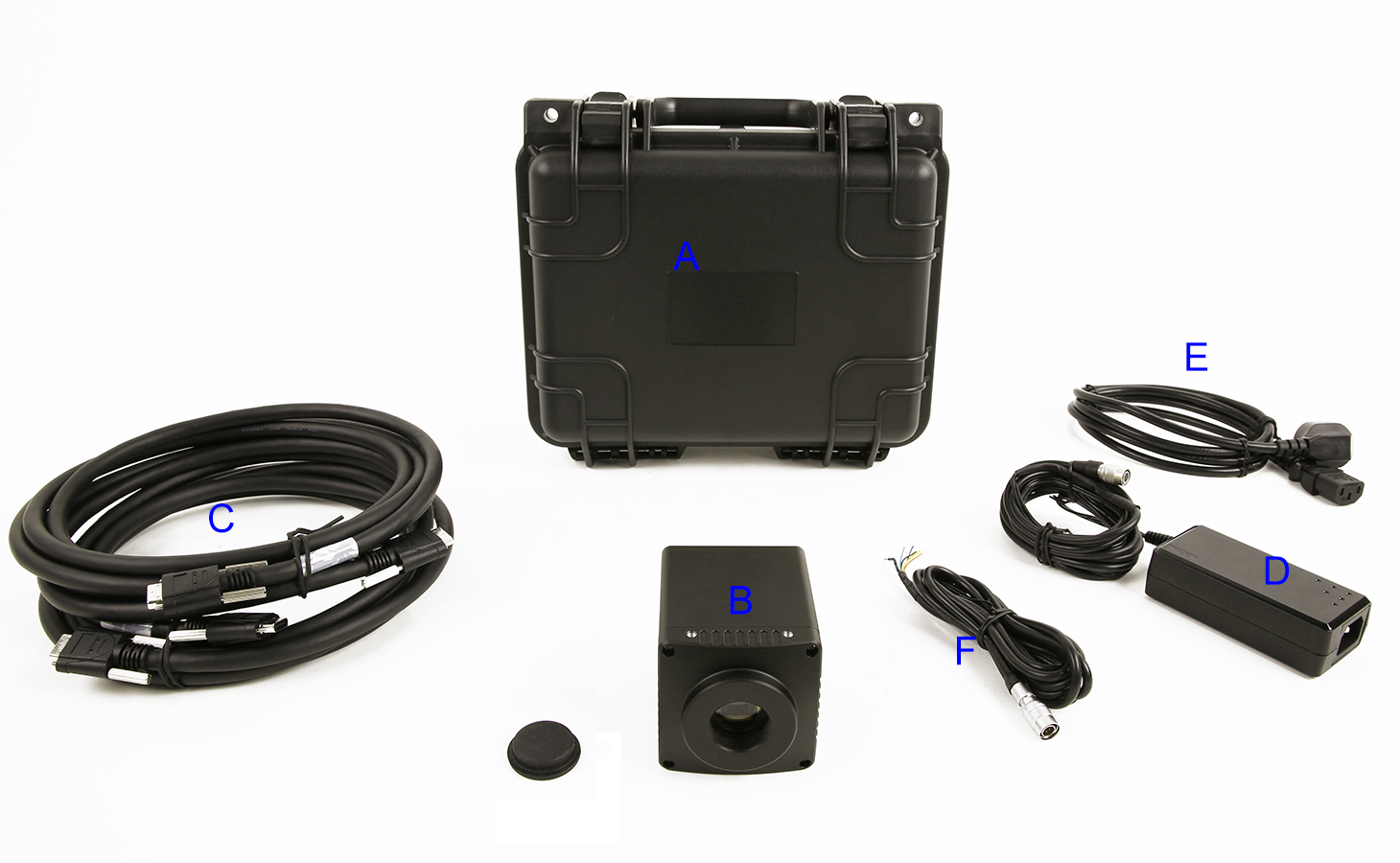

- A 3-A instrument safety case: L: 28.0 cm W: 23.0 cm H: 15.5 cm (1 pc, ≈2.8 kg/box)

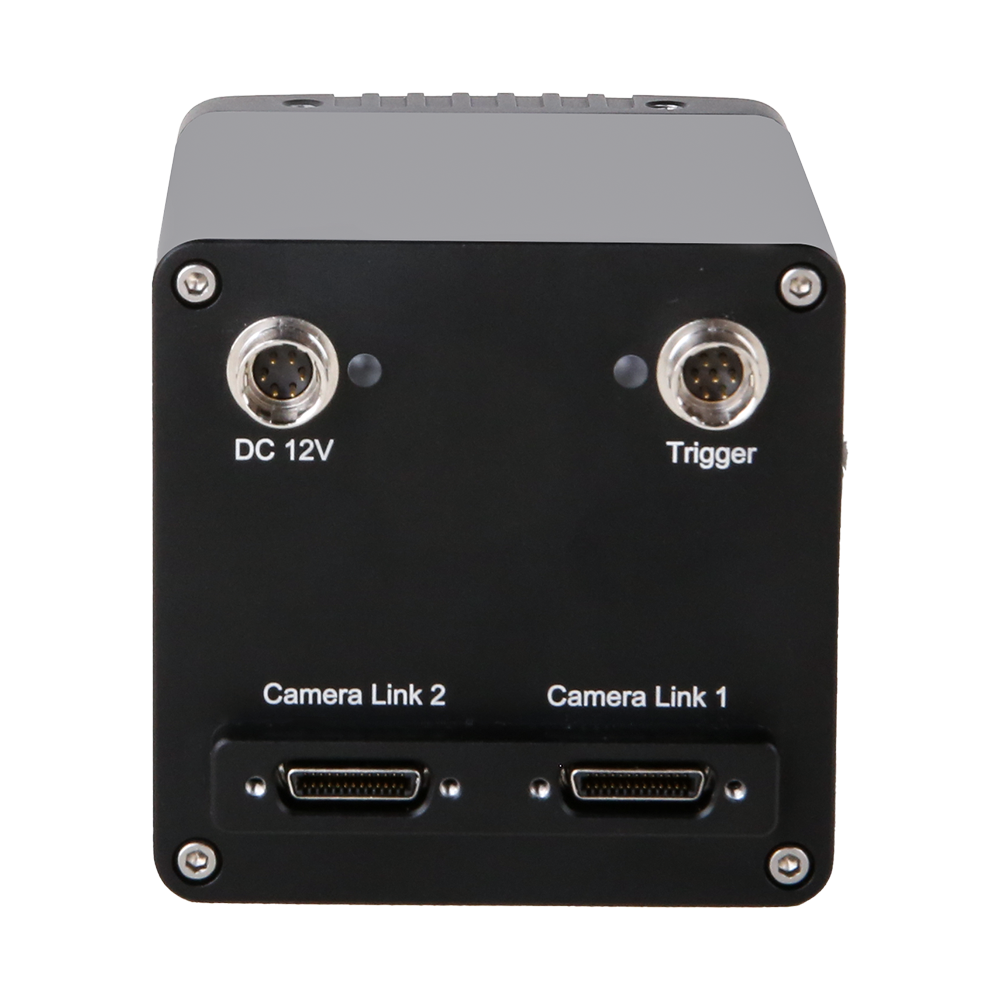

- B 400–2500 series CameraLink Full cooled camera (C-mount, deep TEC cooling)
- C CameraLink cables ×2
- D 12 V / 3 A 6-pin aviation connector power adapter
- E Power cord
- F External trigger / I/O control cable ×1
Note: Frame grabber not included; download CLView (based on Dalsa frame grabbers) and the SDK from the download center.

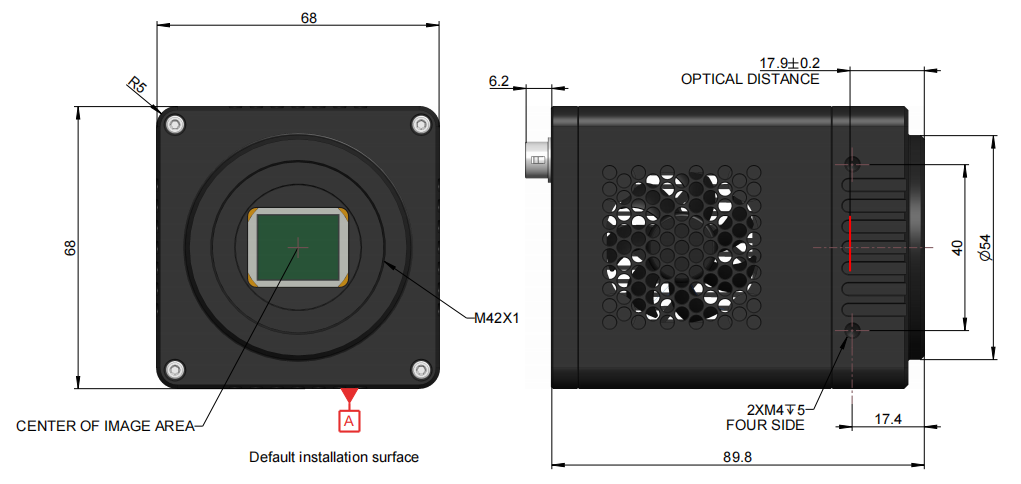

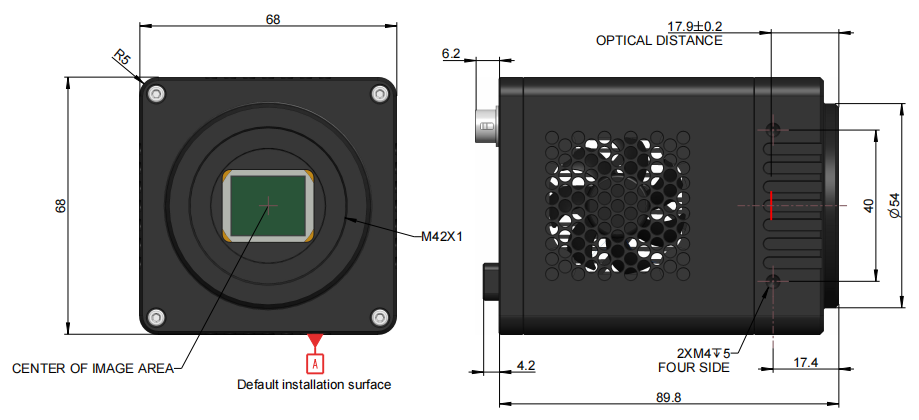

Product Dimensions #
Outline drawings of the USB3 / CameraLink cooled models (C-mount)
Frequently Asked Questions
Learn more about SWIR short-wave infrared camera technology
Deep Understanding of SWIR Cameras
Short-Wave Infrared (SWIR) cameras and their core sensors are important components of advanced imaging systems. SWIR technology covers the 900–1700 nanometer wavelength band and has excellent penetration capabilities in harsh environments, such as penetrating fog, smoke, and dust to achieve clear imaging under extreme conditions.
SWIR cameras primarily rely on short-wave infrared light reflection, similar to the visible light band, complementing the application range that thermal imaging cameras (LWIR) cannot cover, providing more complete imaging solutions. They are compact and flexibly integrated, making them easy to apply in various industrial and commercial systems.
The high resolution and high sensitivity of SWIR cameras can meet precision detection and high-requirement applications, capable of detecting minute changes and anomalies in samples, making them very suitable for quality control and defect detection. Some models support cooling, further ensuring imaging quality in high-temperature or high-noise environments.
To reduce system costs and improve integration efficiency, modern SWIR cameras commonly adopt standard optical interfaces and compact designs to accommodate broader application requirements. With the continuous development of imaging markets and technology, SWIR cameras have become one of the key technologies for high-end imaging and sensing in multiple industries due to their unique advantages.
Application Examples
Demonstration of SWIR camera applications in real-world scenarios
More Application Industry References
- Semiconductor Industry: Solar cell and chip inspection
- Agriculture: Spectral remote sensing applications via multirotor aircraft
- Recycling Industry: Material sorting of plastics, waste, and other materials
- Medical Imaging and Research: Hyperspectral and multispectral imaging
- Food Industry: Quality inspection and grading
- Beverage Industry: Liquid level detection in opaque containers
- Packaging: Seal inspection
- Glass Industry: High-temperature glass penetration defect detection
- Printing Industry: See-through hidden features
- Video Surveillance: Visual enhancement (e.g., smoke penetration)
- Security: Counterfeit detection, such as currency, wigs, or skin
