PZM-Serie
Product Introduction
Die PZM0840U-Serie ist ein hochleistungsfähiges tragbares USB-Digitalmikroskop, das ein 5-fach kontinuierliches Zoom-Objektiv ZM0840, eine USB-Kamera und eine LED-Ringbeleuchtung integriert. Ohne zusätzliche Stromversorgung ermöglicht es über USB-Anschluss hochauflösende Video- und Bilderfassung. Mit seiner einfachen Bedienung und hohen Tragbarkeit eignet es sich für verschiedene Präzisionsprüfungs- und Forschungsanwendungen.

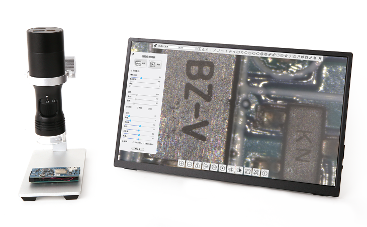

Die PZM0840H1080PA-EDRL-Serie ist ein hochleistungsfähiges tragbares HDMI-Digitalmikroskop, das das kontinuierliche Zoom-Objektiv ZM0840, eine 1080P HDMI-Kamera H1080PA und eine LED-Ringbeleuchtung integriert. Es sind zwei Modelle verfügbar: PZM0840H1080PA-EDRL mit eingebetteter EDRL LED-Lichtquelle und PZM0840H1080PA-DRL mit externer magnetischer DRL LED-Lichtquelle für größeren und helleren Beleuchtungsbereich. Ohne Computer und zusätzliche Stromversorgung ermöglicht es hochauflösende Video- und Bilderfassung mit einfacher Bedienung, geeignet für verschiedene Präzisionsprüfungsanwendungen.

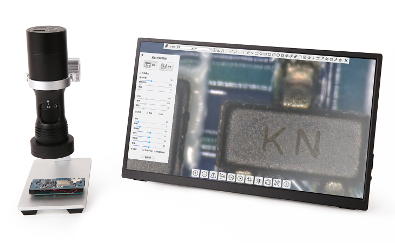

Handgeführte kontinuierliche Zoom-Einheit | HDMI/USB-Mehrfachschnittstelle | Multi-Terminal-Kompatibilität
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|
| PZM0840H1080PA |
Sony IMX307(C)
1/2.8" (5.57×3.13mm)
|
2.9μm × 2.9μm | 2MP (1920×1080) | HDMI: 60fps@1920×1080 | HDMI USB3.0 | PZM0840 kontinuierlicher Zoom-Hauptkörper | USB-Stick | Kontinuierlicher Zoom 0,8× – 4,0× Tragbares Design Direkte HDMI-Ausgabe USB-Stick-Speicherung Bildmessfunktion Videoaufzeichnung Mehrsprachenunterstützung Integrierte oder externe LED-Beleuchtung Tragbares Stativ |
| PZM0840U510A |
Sony IMX335(C)
1/2.8" (5.18×3.89mm)
|
2.0μm × 2.0μm | 5.1MP (2592×1944) | 26fps@2592×1944; 26fps@1280×960; 26fps@640×480 | USB2.0 | PZM0840 kontinuierlicher Zoom-Hauptkörper | Speicherung am PC. | Kontinuierlicher Zoom 0,8× – 4,0× Tragbares Design 5,1 MP hohe Auflösung Versorgung über USB2.0-Schnittstelle 8 LED-Ringbeleuchtung Ultra-Fine-Farbengine Unterstützt Multiplattform-SDK. Tragbares Stativsystem |
Package List #
Standard configurations and packaging details

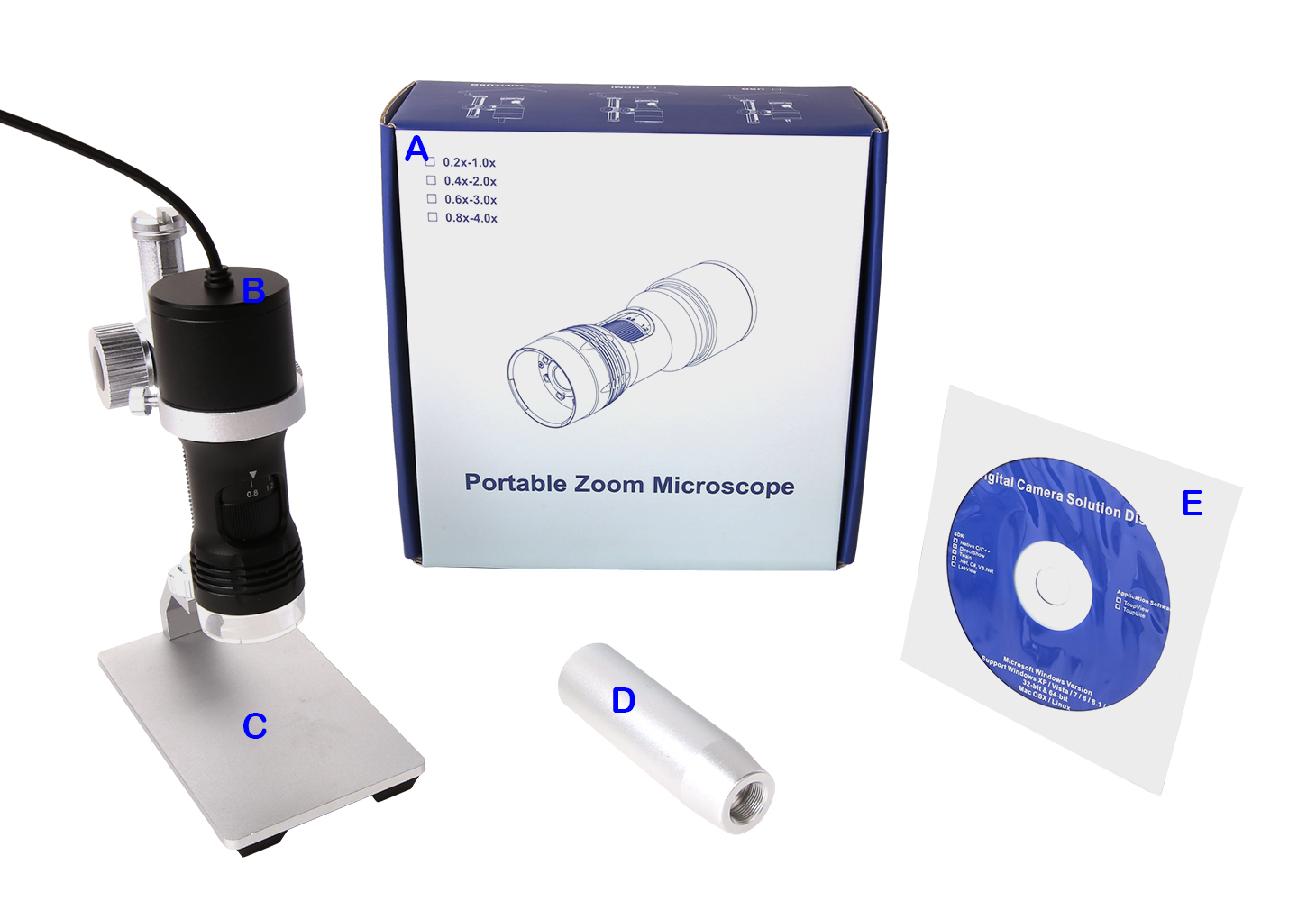

- A Box dimensions: 22 cm × 22 cm × 9 cm (approx. 0.8 kg/box)
- B PZM Series portable USB microscope ×1
- C Portable microscope stand ×1
- D Stand extension rod (compatible with long working distance auxiliary objectives)
- E Driver and software CD (Ø12 cm)
Optional Accessories
- F Additional auxiliary objectives (not shown)
- A Box dimensions: 22 cm × 22 cm × 9 cm (approx. 0.8 kg/box)
- B Motorized zoom HDMI digital microscope all-in-one ×1 (PZM0840H1080PA-EDRL)
- C Portable microscope stand ×1
- D Stand extension rod ×1
- E Power adapter + power cord
- F HDMI cable
- G USB mouse
Optional Accessories
- H USB flash drive (optional)
- I Additional auxiliary objectives (not shown)

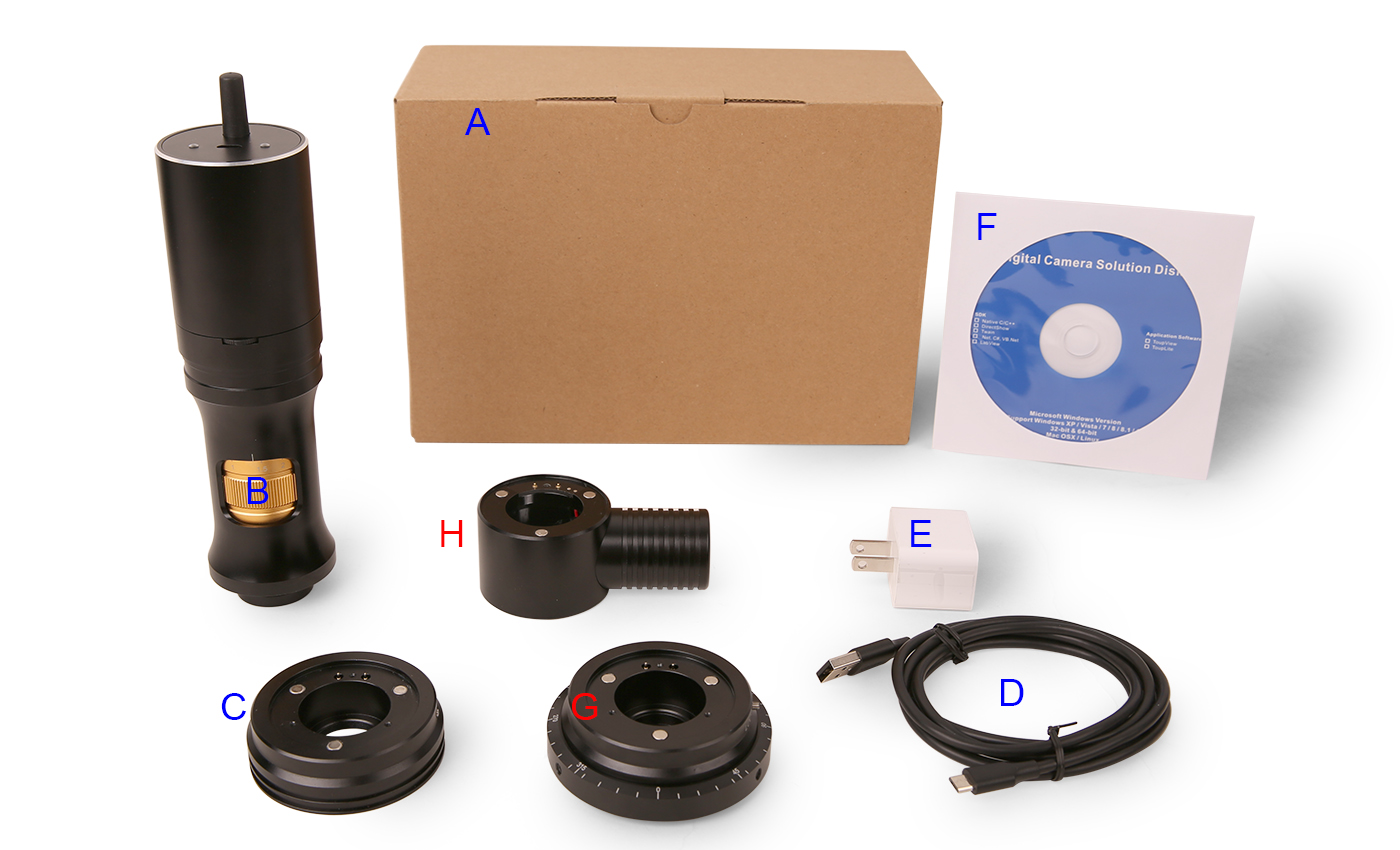

- A Box dimensions: 22 cm × 22 cm × 9 cm (approx. 0.8 kg/box)
- B Motorized zoom HDMI digital microscope all-in-one ×1 (PZM0840H1080PA-DRL with magnetic LED light installed)
- C Portable microscope stand ×1
- D Stand extension rod ×1
- E Power adapter + power cord
- F HDMI cable
- G USB mouse
Optional Accessories
- H USB flash drive (optional)
- I Additional auxiliary objectives (not shown)

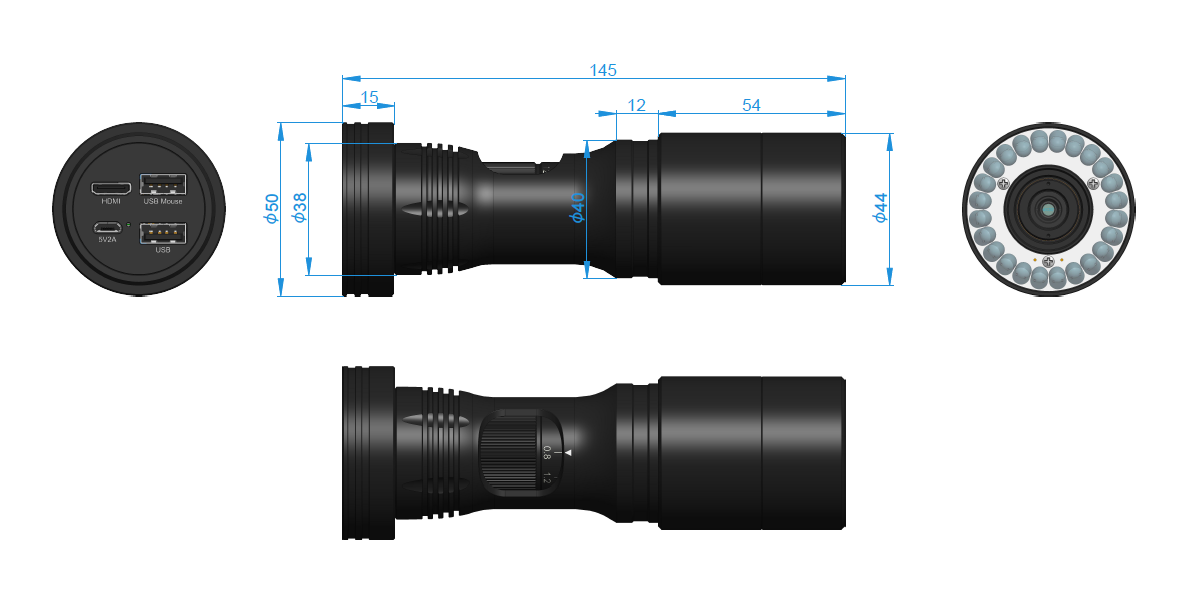

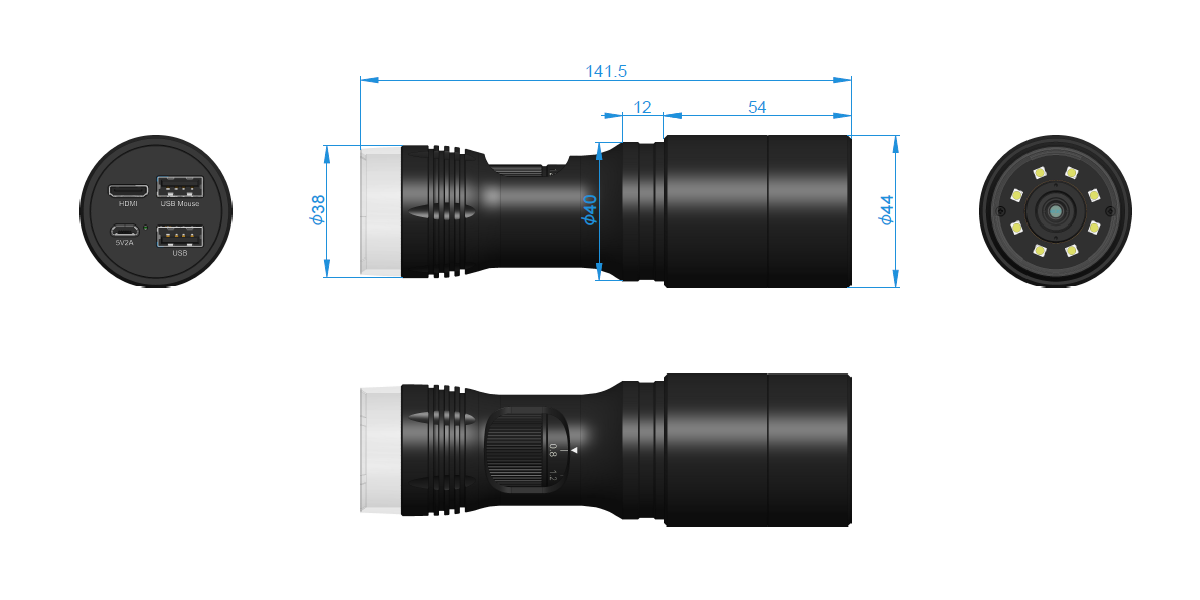

Product Dimensions #
Physical dimensions and chassis diagrams for each model
Confirm mounting holes, accessory compatibility, and interface orientation against the dimension drawings before installation; image paths are placeholders and can be replaced with actual filenames.
PZM Series Integrated Motorized Zoom Imaging System — Product Overview
ToupTek Photonics PZM Series integrated microscopy imaging systems combine high-performance motorized zoom optics, high-definition digital camera modules (HDMI/USB/Wi-Fi interfaces), and swappable LED lighting into a single solution for electronics inspection, semiconductor wafer analysis, precision assembly verification, biological research, and in-line industrial inspection.
The series supports 4K, 1080p, direct USB, and Wi-Fi transmission imaging modes, paired with a 0.7×–5.6× continuous zoom optical system. Power on and start imaging without complex configuration to capture, observe, and measure in minutes.
In-Depth Overview
1 Highly Integrated All-in-One Solution
- Integrates the optical core (continuous zoom objective), high-resolution camera module, and LED ring/coaxial illumination, ready for immediate deployment without additional components.
- Supports HDMI 4K/1080p output, USB 3.0 high-speed acquisition, and Wi-Fi transmission to meet diverse lab and production requirements.
2 Professional Optical Performance
- Utilizes a 0.7×–5.6× continuous zoom optical system with a working distance of 37.5–160 mm (depending on auxiliary objective), covering both wide fields of view and high magnifications.
- High numerical aperture (NA) optics deliver sharp imaging across the field with excellent depth of field.
3 Multiple Lighting and Accessory Options
- Ships with a controllable LED ring light and supports exchanging for coaxial or polarized illumination to handle reflective or textured samples.
- Compatible with standard C-Mount industrial camera interfaces and auxiliary objectives for system expansion.
4 Simple, Ready-to-Use Experience
- Rear panel provides HDMI 1.4 video output, USB direct connection, and Wi-Fi data transmission for flexible deployment in laboratories, quality inspection lines, and classrooms.
- Companion software enables brightness control, image capture, video recording, and measurement tools, greatly simplifying workflows.
Core Advantages
High-Resolution Imaging Across Interfaces
Supports 4K, 1080p, USB, and Wi-Fi output to enable real-time display and remote collaboration.
Highly Integrated Design
Combines optics, camera, and lighting to reduce system integration and calibration effort.
Wide Application Coverage
Serves electronics, semiconductor, optoelectronics, life sciences, and industrial quality inspection use cases.
Exceptional Optical Quality
Delivers wide fields of view, expandable magnification, excellent depth of field, and crisp imaging.
Streamlined Workflow
Plug-and-play design with flexible lighting options and software control boosts efficiency in experiments and inspections.
