C2CMOS Series
Product Introduction

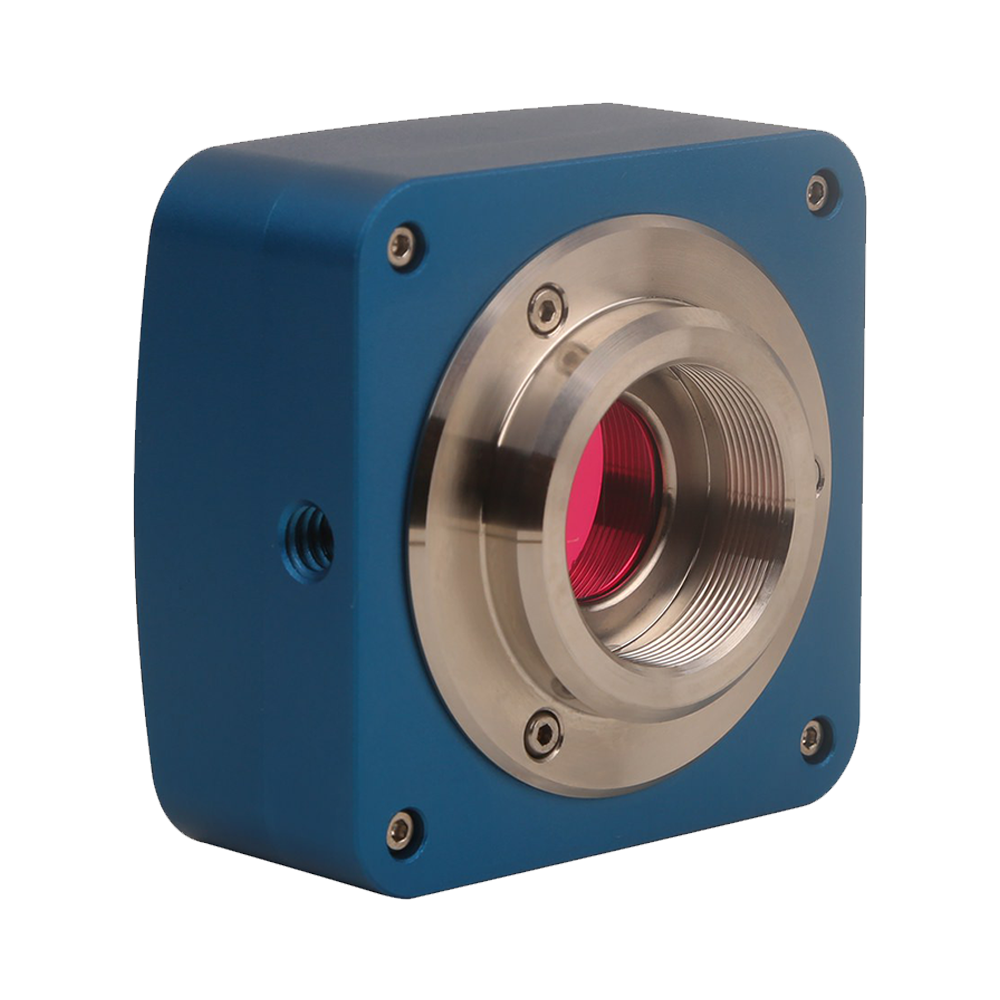

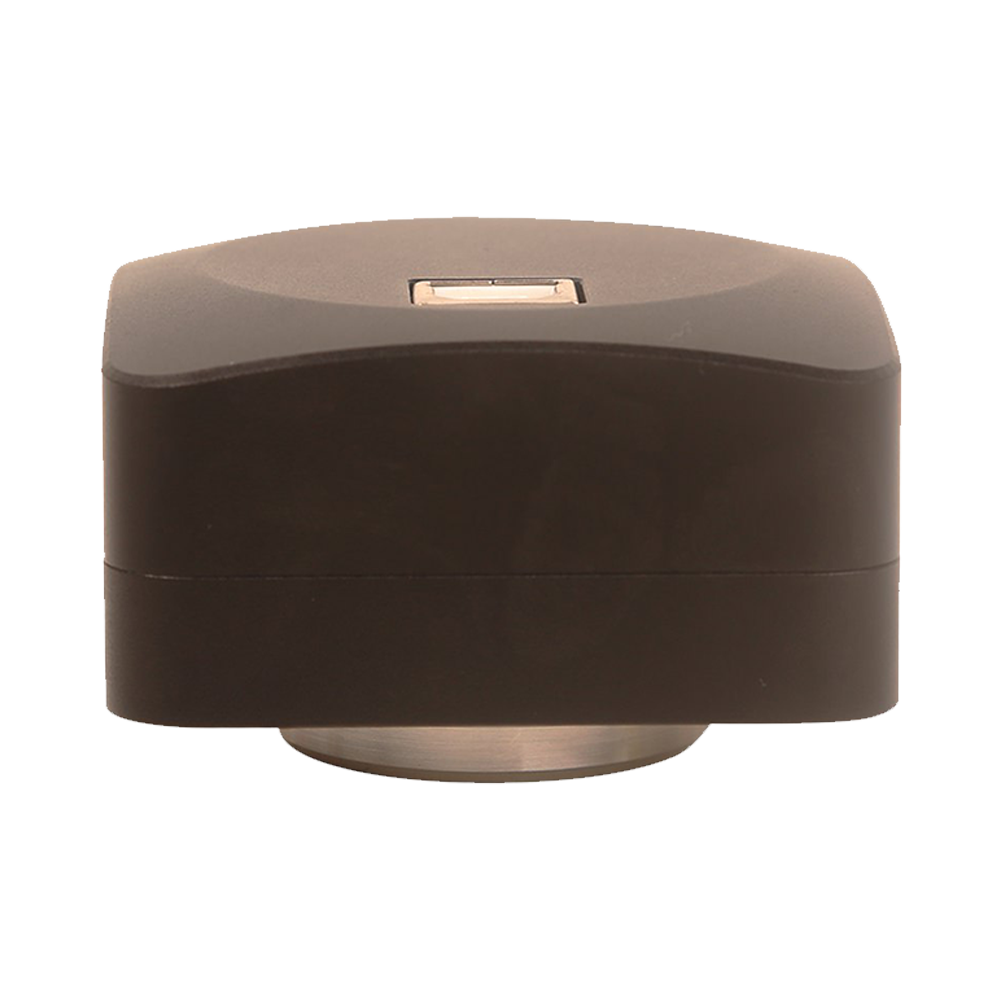

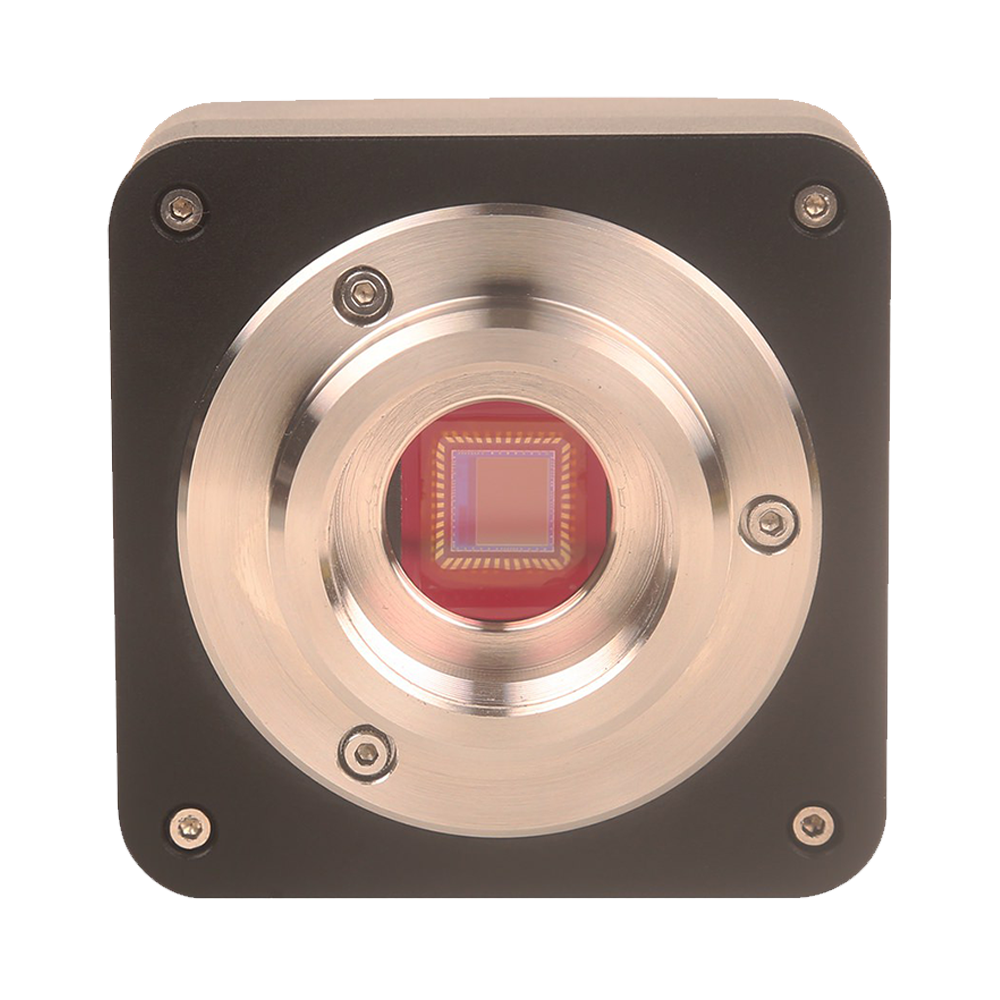

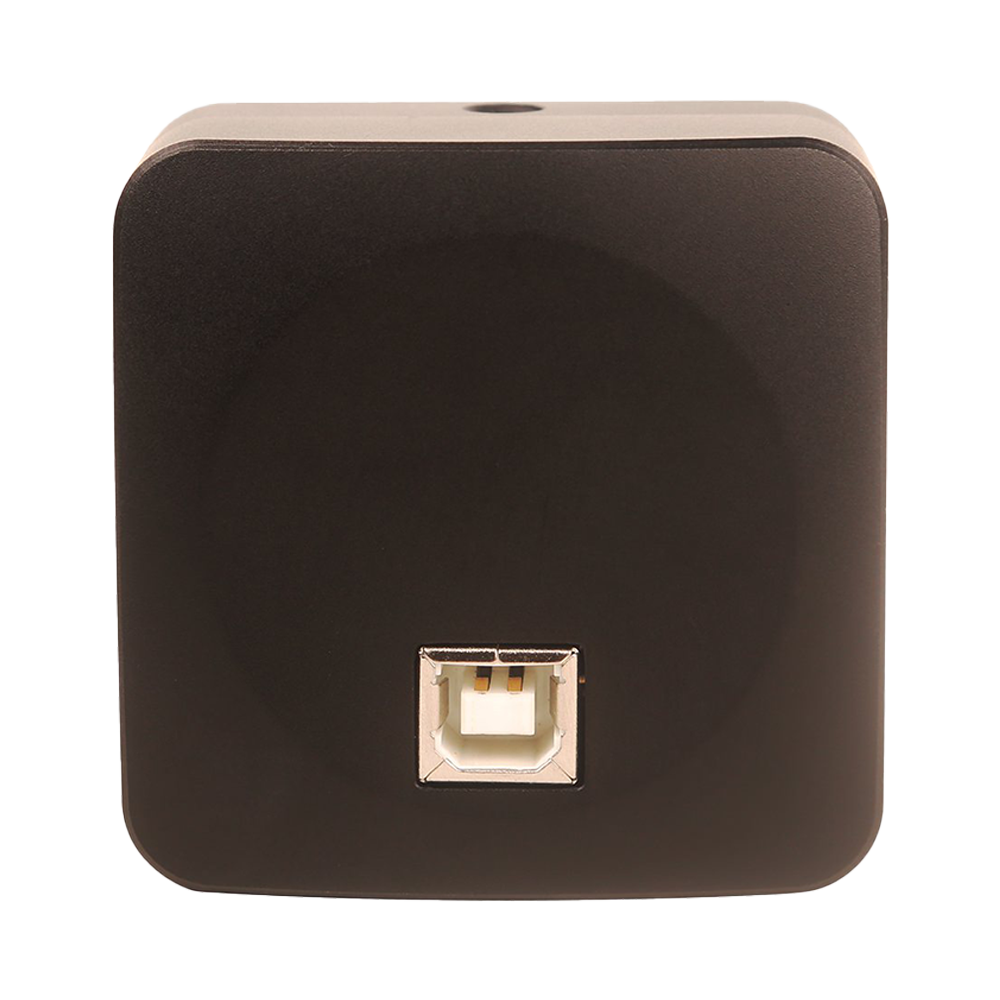

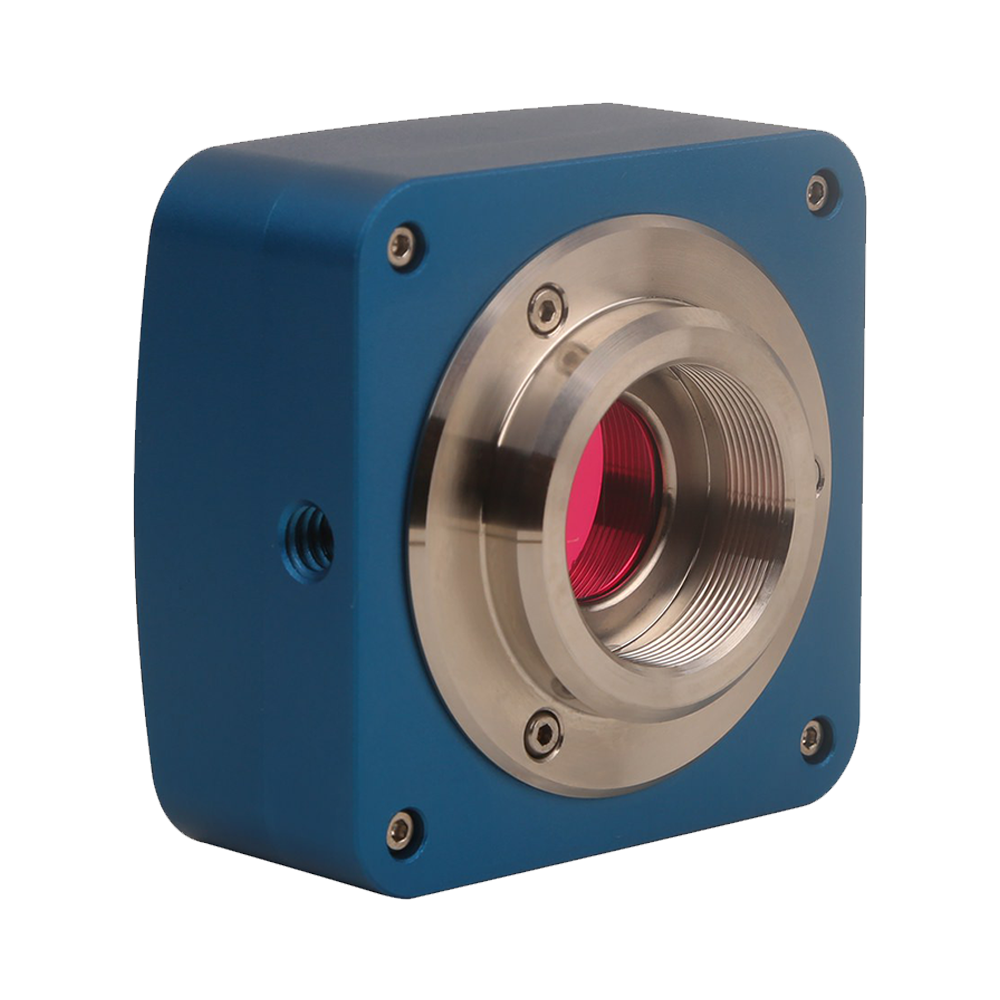

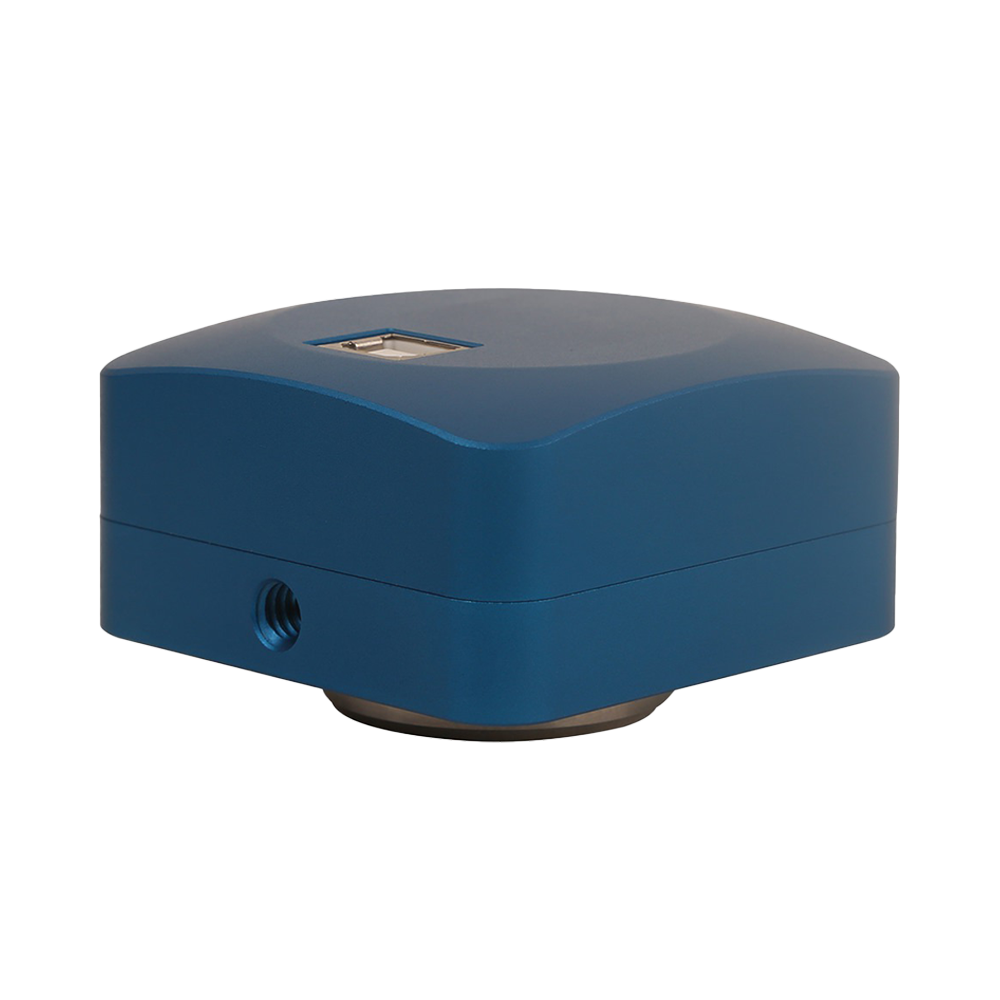

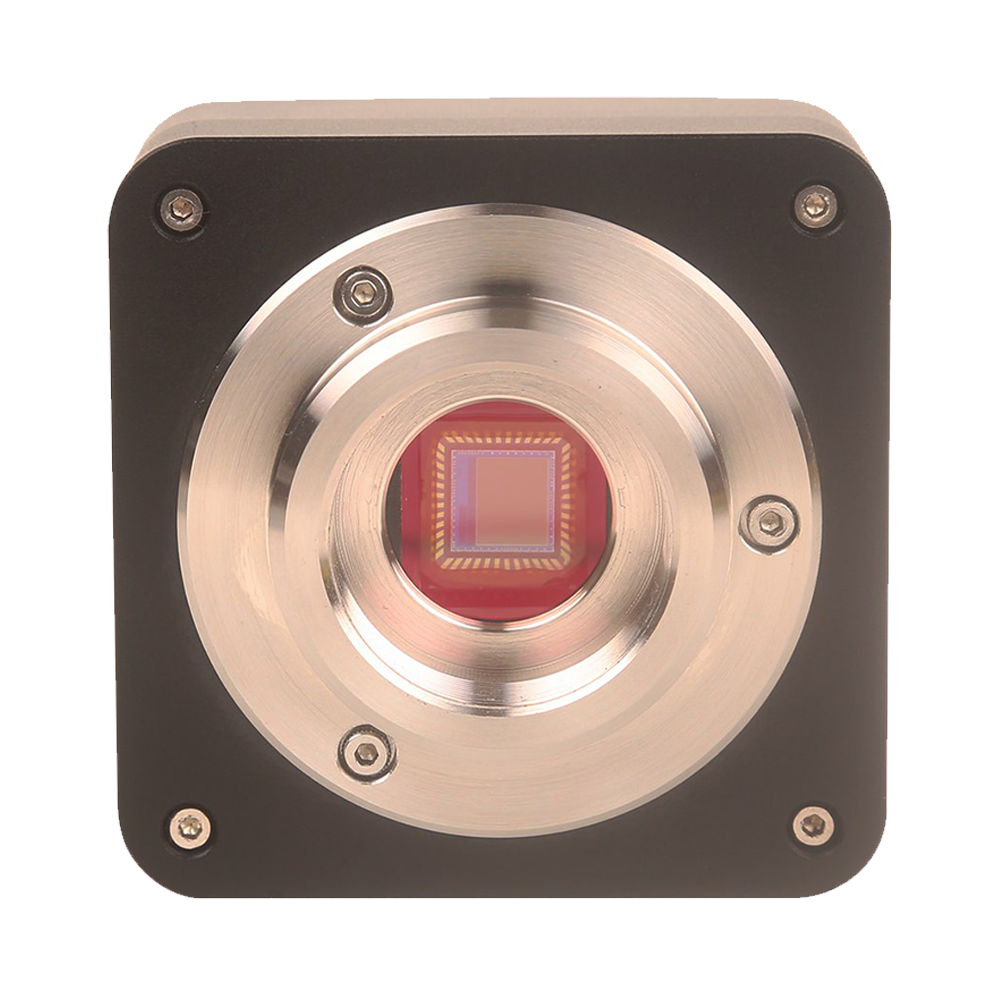

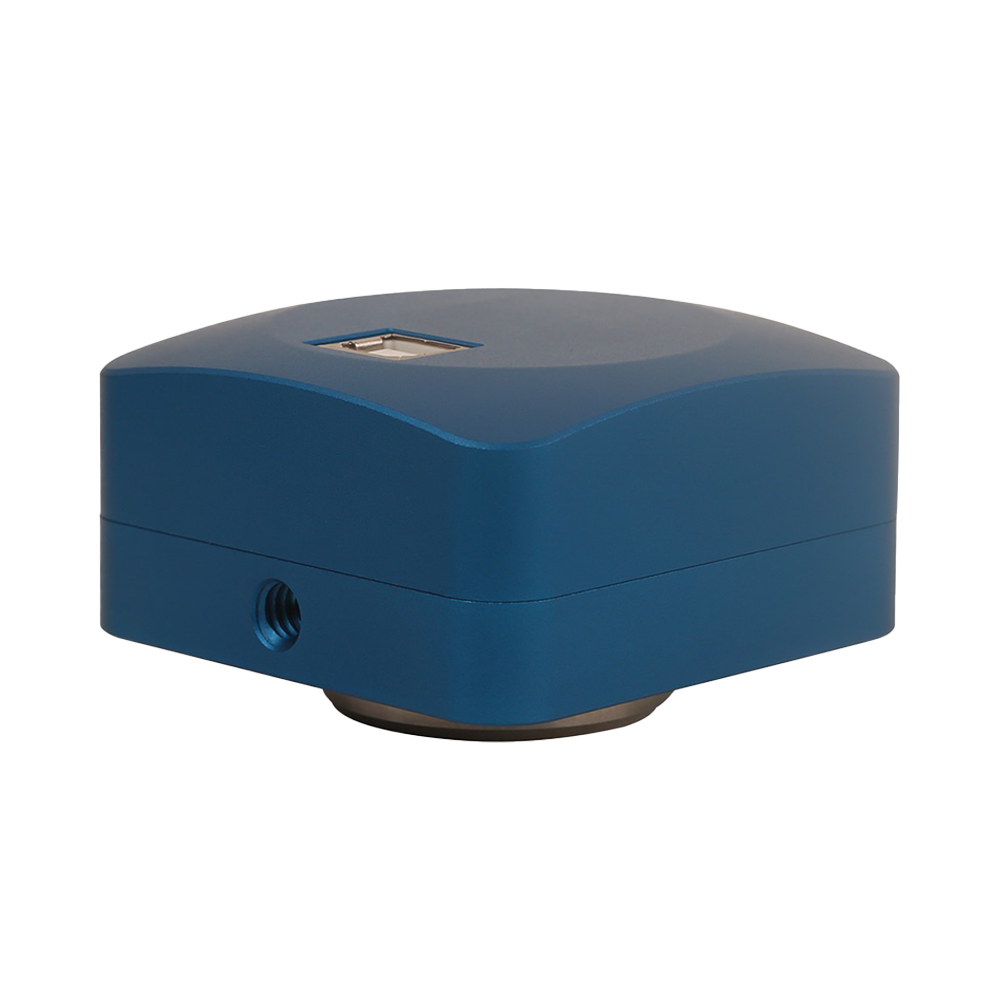

The C2CMOS series features compact C-mount USB2.0 microscopy cameras with built-in hardware ISP image processing engines. Through MJPEG compression and dedicated decoding links, these cameras achieve high frame rates and stable transmission under USB2.0 (480 Mbit/s) bandwidth. Typical models can reach 30 fps at 5 MP/8 MP, while 12 MP models achieve 15–20 fps (model and settings dependent). The cameras comply with UVC (USB Video Class) protocol for out-of-the-box compatibility with third-party software, while also including ToupView/ToupLite software and cross-platform SDK support for convenient system integration and secondary development. Suitable for educational demonstrations, microscopy documentation, and general experimental imaging.
Product Features
- Sensor: Sony / onsemi CMOS sensors (model dependent) with standard C-mount lens interface

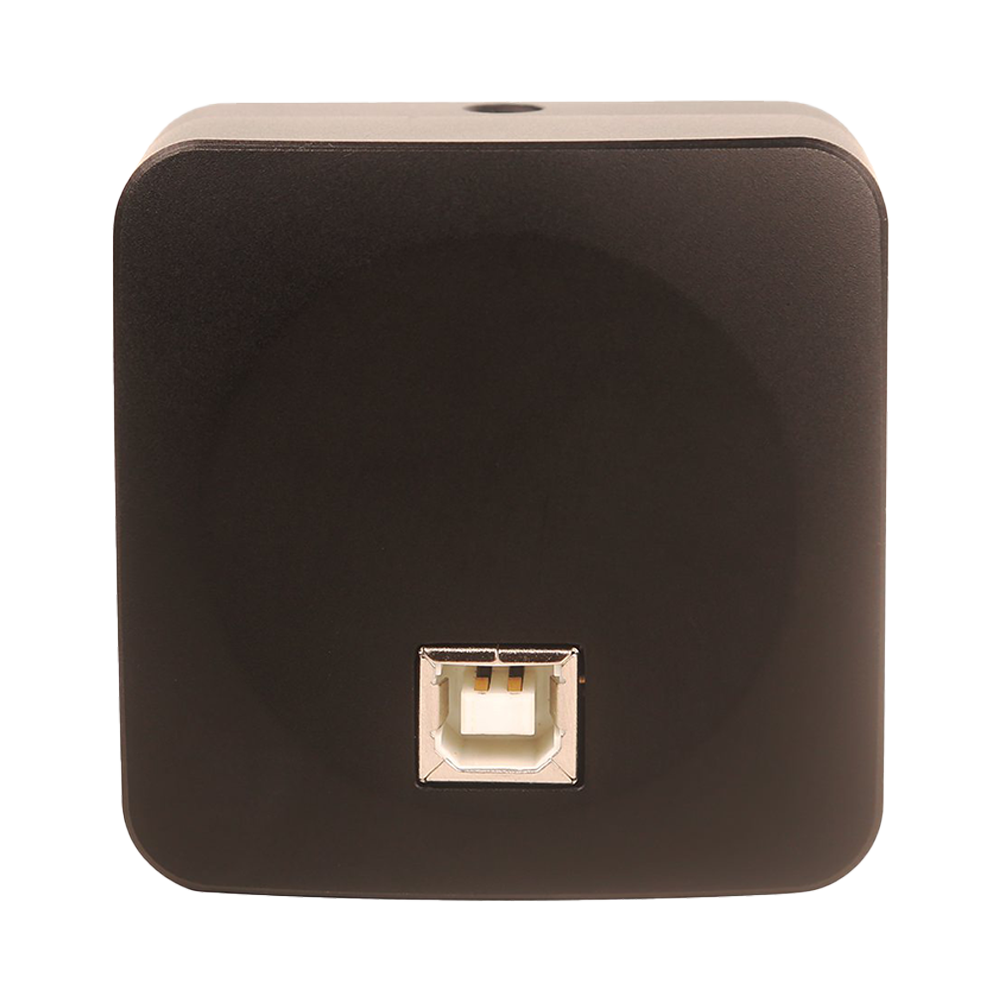

- USB2.0 (480 Mbit/s) data link with UVC protocol plug-and-play compatibility with third-party acquisition software
- MJPEG high-efficiency compression with dedicated decoding for higher frame rates and stable links
- Frame rate examples: 5 MP / 8 MP ≈ 30 fps; 12 MP ≈ 15–20 fps (model and settings dependent)
- Built-in hardware ISP: demosaicing, AE/AGC, AWB/ROI white balance, color correction, gamma, contrast/brightness, bad pixel correction, image flipping
- Supports histogram, flat field correction (FPN/PRNU), dark field correction, video ROI
- Onboard large-capacity buffer improves USB2.0 transmission stability and reduces frame loss risk
- Exposure control: automatic/manual switching with fine exposure time settings and ROI metering support

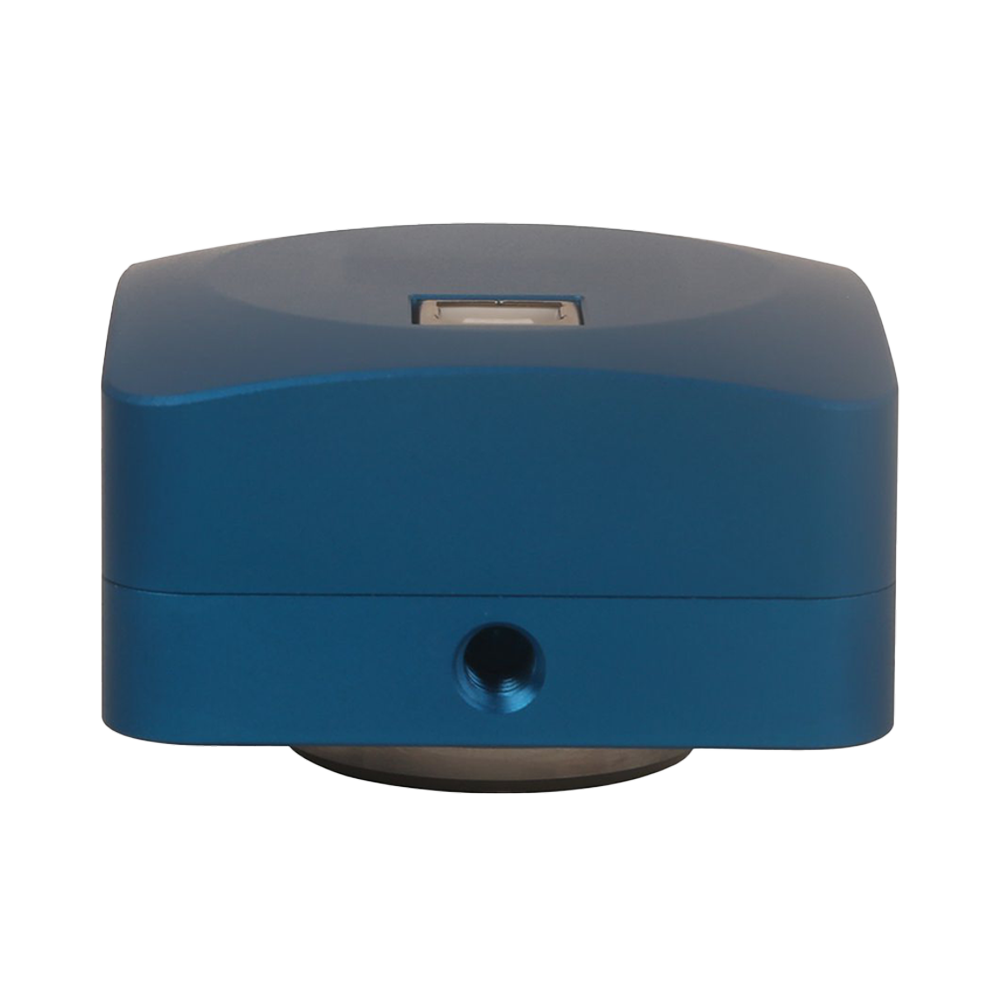

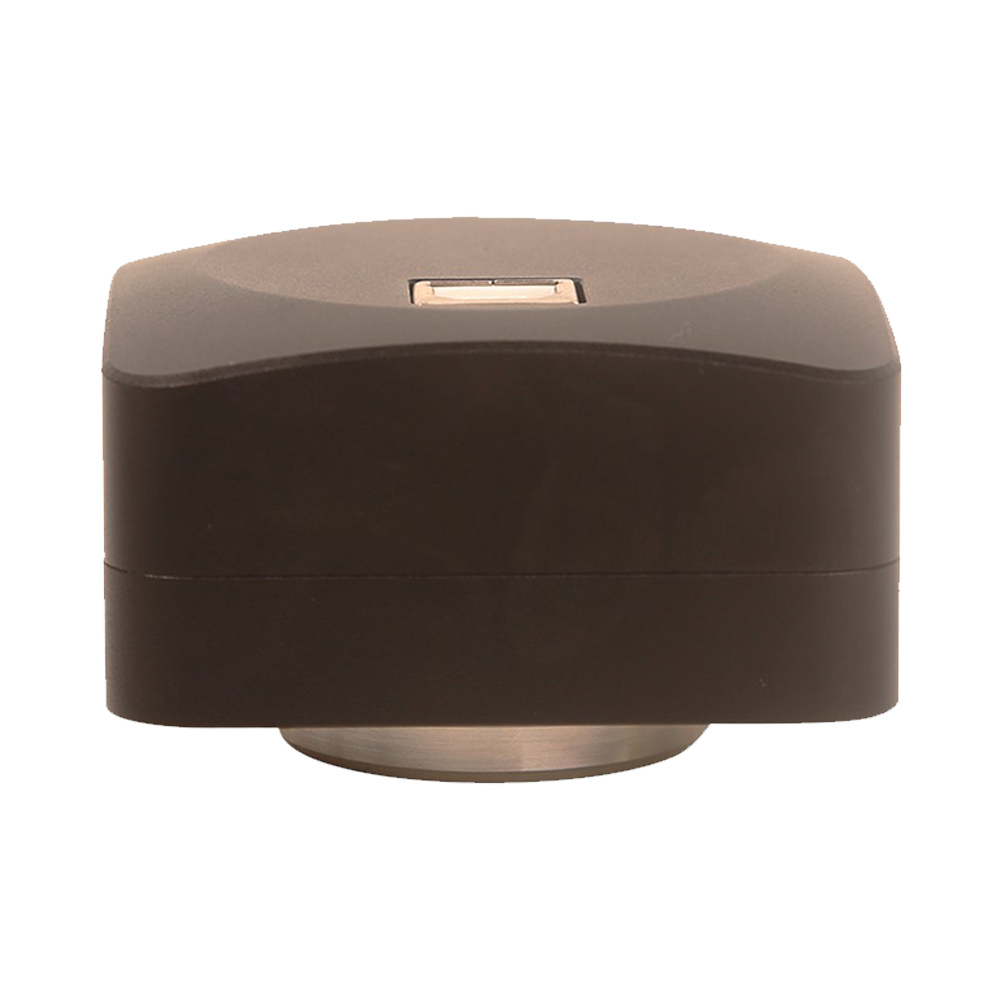

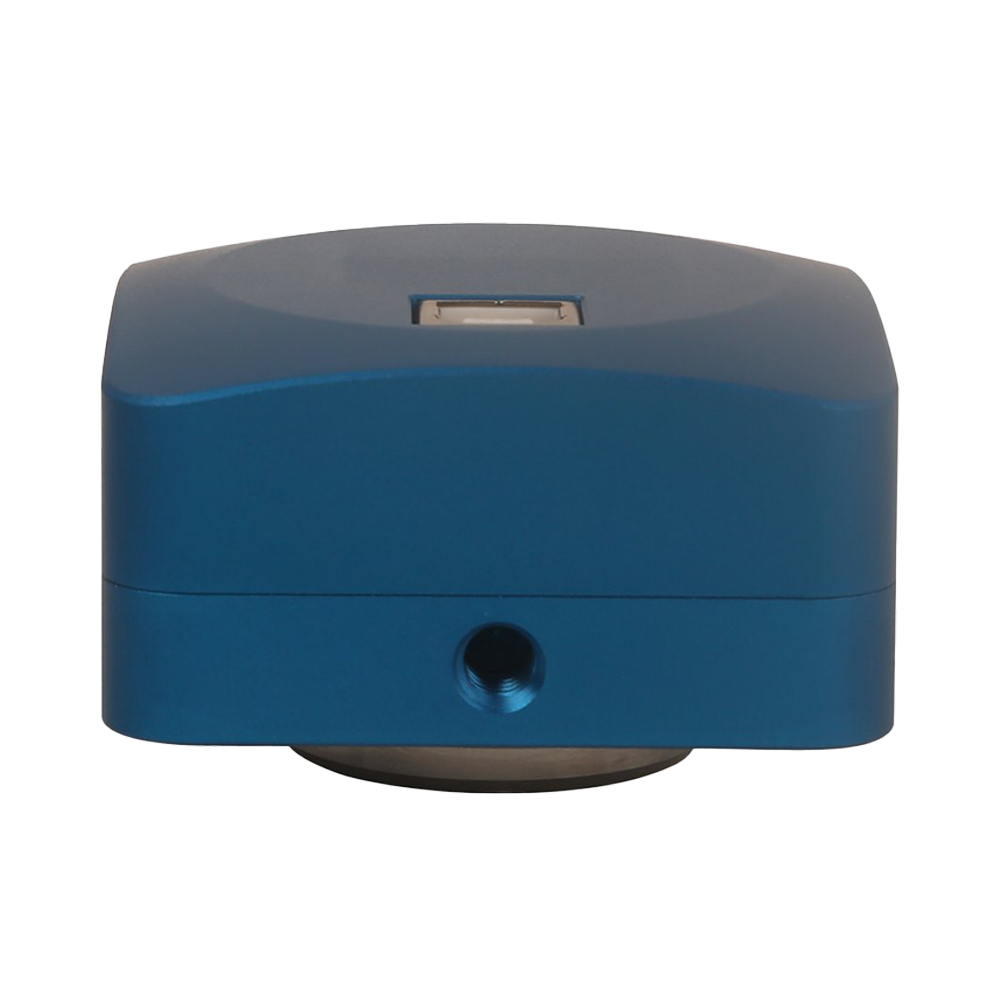

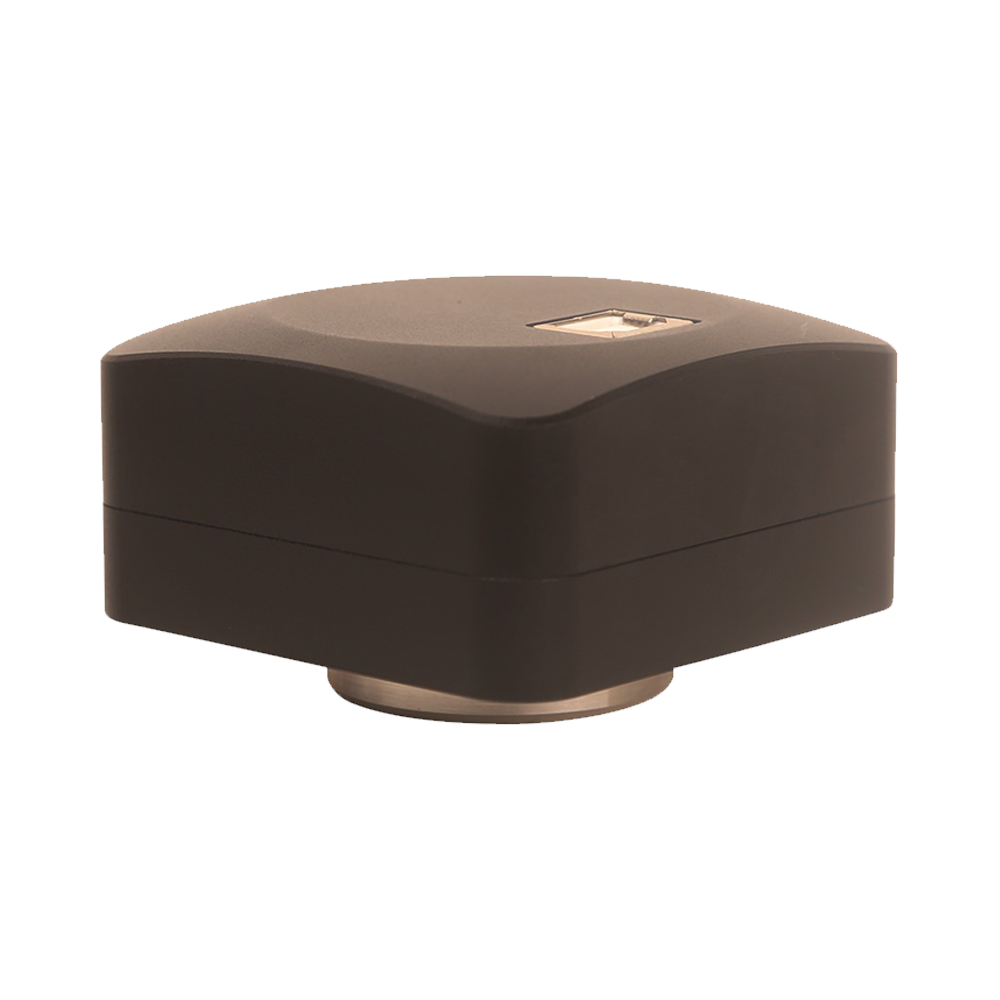

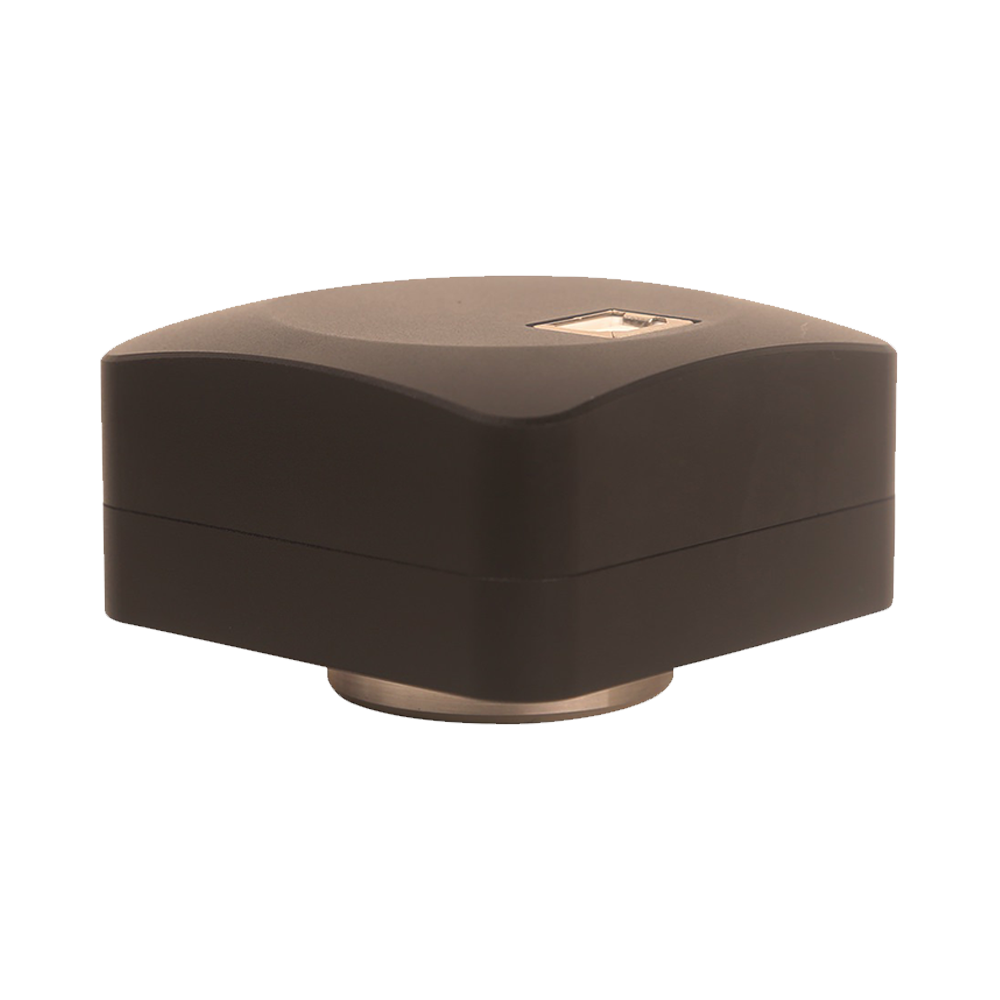

- Metal CNC housing (aluminum/zinc-aluminum alloy) for durability with heat dissipation and electromagnetic shielding
- Software and ecosystem: includes ToupView/ToupLite; provides Windows / Linux / macOS SDK
- Certification: compliant with CE / FCC (model dependent)
Product Models
Select the C2CMOS Series that fits your application requirements
| Product Model | Effective Pixels | Sensor Size | Shutter Type | Frame Rate (FPS) | Sensor Type | Data Interface | Color | Actions |
|---|---|---|---|---|---|---|---|---|
| C2CMOS12000KPA | 12M (3840×3040) |
5.95mm × 4.71mm
1/2.3" (7.57mm)
|
Rolling Shutter |
20 fps@3840×3040
20 fps@1920×1520
20 fps@960×760
|
IMX577(C) | USB2.0 | Color | View Details |
| C2CMOS08300KPA | 8.3M (3840×2160) |
6.22mm × 3.50mm
1/2.5" (7.12mm)
|
Rolling Shutter |
30 fps@3840×2160
30 fps@1920×1080
30 fps@1280×720
30 fps@960×540
|
IMX274(C) | USB2.0 | Color | View Details |
| C2CMOS05100KPA | 5.1M (2592×1944) |
5.70mm × 4.28mm
1/2.5" (7.11mm)
|
Rolling Shutter |
30 fps@2592×1944
30 fps@1280×960
30 fps@640×480
|
AR0521(C) | USB2.0 | Color | View Details |
| C2CMOS05100KPB | 5.1M (2592×1944) |
5.18mm × 3.89mm
1/2.8" (6.47mm)
|
Rolling Shutter |
26 fps@2592×1944
26 fps@1280×960
26 fps@640×480
|
IMX335(C) | USB2.0 | Color | View Details |
| C2CMOS03100KPA | 3.1M (2048×1536) |
5.73mm × 4.3mm
1/2.5" (7.17mm)
|
Rolling Shutter |
30 fps@2048×1536
30 fps@1024×768
|
Aptina(C) | USB2.0 | Color | View Details |
| C2CMOS02100KPA | 2.1M (1920×1080) |
5.73mm × 4.3mm
1/2.8" (7.17mm)
|
Rolling Shutter |
38 fps@1920×1080
38 fps@960×540
|
IMX307(C) | USB2.0 | Color | View Details |
Product Overview
Professional features of the C2CMOS series microscopy imaging cameras
The C2CMOS series represents high-performance USB 2.0 CMOS microscopy cameras developed by Spectrum Instruments. This series incorporates premium Sony or ON Semiconductor CMOS sensors, offering extensive resolution options from 2.1 to 12 megapixels, ensuring high-definition, low-noise imaging. The cameras feature built-in high-speed cache chips combined with high-performance MJPEG compression algorithms, achieving industry-leading frame rate performance under USB 2.0 interface for high real-time imaging requirements. The entire system utilizes CNC precision-machined aluminum alloy housing for durability and reliability, with no mechanical moving parts ensuring stable long-term operation.
Core Features
Premium CMOS Sensors
Sony/ON Semiconductor CMOS with high sensitivity, wide dynamic range, and low noise
High-Speed Cache & MJPEG Compression
Built-in cache chip achieving ultra-high frame rates under USB 2.0 interface
Ultra-Fine Color Engine
Hardware-level ISP image processing for accurate true color reproduction
Advanced Image Correction Functions
Dead pixel removal, flat/dark field correction, and other professional features
Performance Highlights
Resolution Range
2.1-12 MP
Multiple pixel optionsFrame Rate Performance
Up to 30 fps
5MP/8MP modelsPixel Size
1.55-2.9 µm
Fine imaging and high sensitivityExposure Range
0.1-2000 ms
Precisely adjustableIn-Depth Product Introduction
Premium CMOS Sensor Technology
The cameras incorporate premium Sony or ON Semiconductor CMOS sensors, combining high sensitivity, wide dynamic range, and low noise characteristics. Advanced sensor architecture ensures clear imaging and accurate color reproduction, delivering superior image quality even under low-light conditions. Different sensor models meet diverse requirements ranging from high-resolution fine observation to high-sensitivity low-light imaging applications.
Industry-Leading High-Speed Transmission Technology
Built-in high-speed cache chips combined with high-performance MJPEG compression algorithms achieve industry-leading frame rate performance under USB 2.0 interface. The 5MP/8MP models reach up to 30 fps, while 12MP models achieve up to 15 fps, fully satisfying high real-time imaging requirements. ROI mode can further enhance frame rates, suitable for capturing and analyzing rapid dynamic processes. The unique compression algorithm maximizes data transmission efficiency while maintaining image quality.
Advanced Ultra-Fine Color Engine
The cameras employ advanced hardware-level ISP image processing engines combined with unique Ultra-Fine color algorithms to accurately reproduce true colors and details, delivering exceptional image quality. Support for automatic and manual exposure switching enables precise exposure time control, while automatic, manual, and ROI white balance options meet precise imaging requirements in complex environments. Color reproduction technology ensures applications with extremely high color accuracy requirements, such as pathology and materials analysis.
Comprehensive Advanced Image Correction Functions
The cameras support real-time dead pixel removal, color mode switching, histogram adjustment, flat and dark field correction, image flipping, and video ROI among other advanced functions, comprehensively optimizing image quality. These professional-grade functions are typically found only in high-end scientific cameras; the C2CMOS series standardizes these features, providing users with more professional imaging tools. The combination of automation and precise control functions enables the cameras to adapt to various complex microscopy imaging scenarios.
Industrial-Grade Robust Thermal Design
The aluminum alloy CNC unibody housing design with no mechanical components provides excellent natural cooling performance. Precision metal machining ensures stable camera structure with high long-term stability and no vibration interference. Superior thermal performance ensures the sensor operates at optimal working temperature, guaranteeing consistent image quality. The robust housing design provides excellent electromagnetic shielding and impact protection.
Applications
C2CMOS series applications across various microscopy imaging fields
C2CMOS Series Core Advantages
Ultra-High Frame Rate
MJPEG compression algorithm optimized
Sony/ON Semiconductor Sensors
Premium imaging quality assurance
Hardware-Level ISP
Ultra-Fine color engine
Advanced Correction Functions
Professional-grade image optimization
Aluminum Alloy Housing
CNC precision machining
Automated Control
Auto exposure/white balance
Complete SDK
Multi-platform secondary development
Diverse Models
2.1-12 megapixel options
