XFCAM4K Series (Discontinued)
Product Introduction

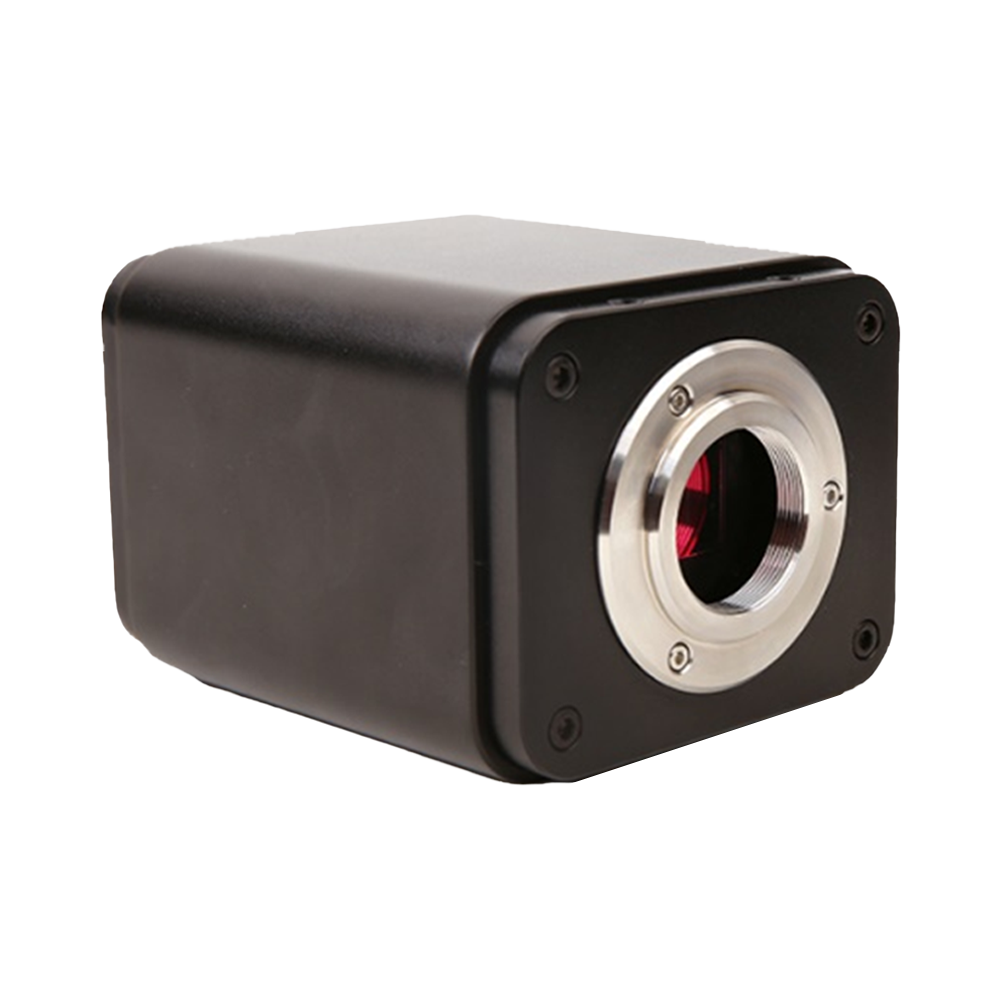

The XFCAM4K8MPA HDMI camera is a multi-output camera (HDMI+Wi-Fi+USB) designed by Toptic Optoelectronics. In XFCAM, 'X' represents multi-interface CMOS camera and 'F' represents autofocus. It features an ultra-high performance CMOS sensor. The camera can directly connect to HDMI displays, connect to computers via Wi-Fi or USB, and save images and videos to SD cards for on-site analysis and subsequent research.

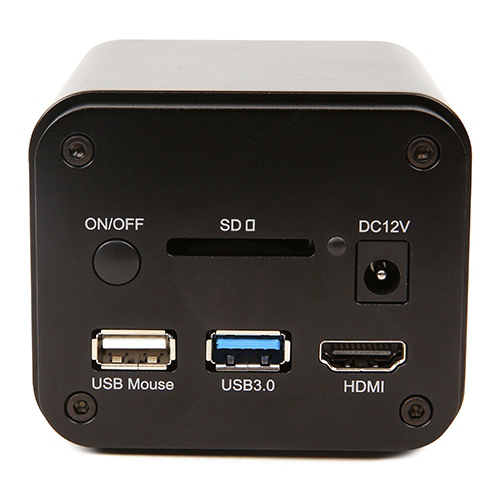

The XFCAM4K8MPA HDMI camera itself features an embedded ARM core, displaying camera control functions as a control panel directly on the HDMI display. Users can directly control various camera parameters using a USB mouse interface. Additionally, the HDMI display interface bottom features various toolbar buttons for user operation.
The key feature of the XFCAM4K8MPA camera is its embedded autofocus system, enabling autofocus on specific areas of the scene.
When the XFCAM4K8MPA HDMI camera connects to a computer by inserting a Wi-Fi module or via USB cable, users can directly control the camera hardware using the included ToupView or ToupLite software. The XFCAM4K8MPA camera can be used for on-site tool inspection, microscope observation, and other applications.
Product Features
- Sony Exmor/Starvis back-illuminated CMOS sensor
- 4K HDMI/Wi-Fi/USB multi-interface output
- 4K/1080P adaptive switching, 4K frame rate 30/60 fps
- SD card/USB3.0 flash drive capture of images or videos
- Embedded XCamView software for camera control
- Powerful ISP functions with significant sharpening and 3D noise reduction effects, convenient ROI white balance
- ToupView/ToupLite software for more convenient PC operation
- iOS/Android mobile applications, free download from app stores
- Autofocus through moving image sensor on HDMI interface and Windows platform USB/Wi-Fi interface
HDMI/USB3/Wi-Fi 4K C-Mount Autofocus Camera
| Model | Output Interface | Sensor | Resolution | Frame Rate | Lens Mount |
Key Features |
|---|---|---|---|---|---|---|
| XFCAM4K8MPA | HDMI USB3.0 Wi-Fi |
Sony IMX334(C)
1/1.8" (7.68×4.32 mm)
|
8MP (3840×2160) |
HDMI: 60 fps@4K USB: 30 fps@4K Wi-Fi: 30 fps@4K |
C-Mount | Autofocus 4K Ultra HD Wi-Fi Connectivity |
Product Features
Sony Exmor/Starvis back-illuminated CMOS sensor
4K HDMI/Wi-Fi/USB multi-interface output
4K/1080P adaptive switching, 4K frame rate 30/60 fps
SD card/USB3.0 flash drive capture of images or videos
Embedded XCamView software for camera control
Powerful ISP functions with significant sharpening and 3D noise reduction effects, convenient ROI white balance
ToupView/ToupLite software for more convenient PC operation
iOS/Android mobile applications, free download from app stores
Autofocus through moving image sensor on HDMI interface and Windows platform USB/Wi-Fi interface
深度介绍
XFCAM4K8MPA系列自动对焦相机采用Sony IMX334高性能CMOS，专为体视显微镜和工业检测领域设计，支持4K HDMI、USB3.0及Wi-Fi多平台同步输出。系统集成自动对焦、图像测量、视频录制等丰富功能，兼容多语言菜单与多操作系统，满足科研、教学与工业现场的多元化成像需求。
主要功能
- 4K超高清成像，Sony IMX334传感器，8MP高分辨率
- HDMI、USB3.0、Wi-Fi多平台输出，操作灵活
- 自动对焦、图像测量、视频录制等一站式影像处理
- 本地SD卡/U盘数据存储
- 多系统兼容，支持多语言菜单
核心优势
- 一机多用，支持多平台、多场景成像
- 智能对焦与丰富图像处理，提升实验效率
- 结构轻巧，易集成至各类设备
- 兼容性强，适用各主流显微镜与工业镜头
