AFDM is a series of electric controlled continuous zoom and autofocus all-in-one digital microscope with a large field of view by ToupTek Photonics. It is integrated with HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective and LED Integrated Illumintaion Light. AFDM is the abbreviation of Auto-focus Digital Microscope. Different products in the AFDM series can be formed with different part to satisfy the applicatuon requirement.
AFDM can be assembled with various brackets or arms and offer a continuous zooming ratio with different lens. AFDM also supports autofocus mode and manual focus mode.
AFDM comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the Camera to be connected directly to the HDMI monitor. The Camera has XFCAMView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the Camera and perform various operations through a USB mouse. The images and videos captured by AFDM can be saved on an SD card for on-site analysis and follow-up research.
AFDM can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.
AFDM411 supports 4K30FPS HDMI output and USB/ ETH/WIFI outputs.
The AFDM411 comes with H4KPA HDMI camera, EMZO-20XA lens and DRL-5076A-NPC light source(Optional);
- 5 groups 16 elements EMZO with 0.028~0.56X, 20 zoom ratio, supports auto and manual focus
- 192mmstandard working distance with 150~195mm depth of field
- At standard working distance, the large field of view 200mm*112.5mm at low magnification, helping users to quickly locate the target object, the small field of view 10mm*5.6mm at higher magnification, helping users to observe microscopically
- Sony 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio
- 4K HDMI/USB/ETH/WiFi multiple video outputs
- 4K/1080P auto switching according to monitor resolution
- SD card/USB flash drivefor captured image and video storage, support local preview and playback
- Built-in mouse control software XFCAMView,all functions can be realized with USB mouse
- Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar, AF Control Panel
- Multi-language support
- Head suction LED ring light, the brightness can be directly controlled by XFCAMView
- With the adapter bracket of 76mm diameter, a electric controlled continuous zoom AFDM can be built
Instance
PCB circuit board
Observation of tea leaves
Spare parts inspection
Coin (coaxial lighting source)

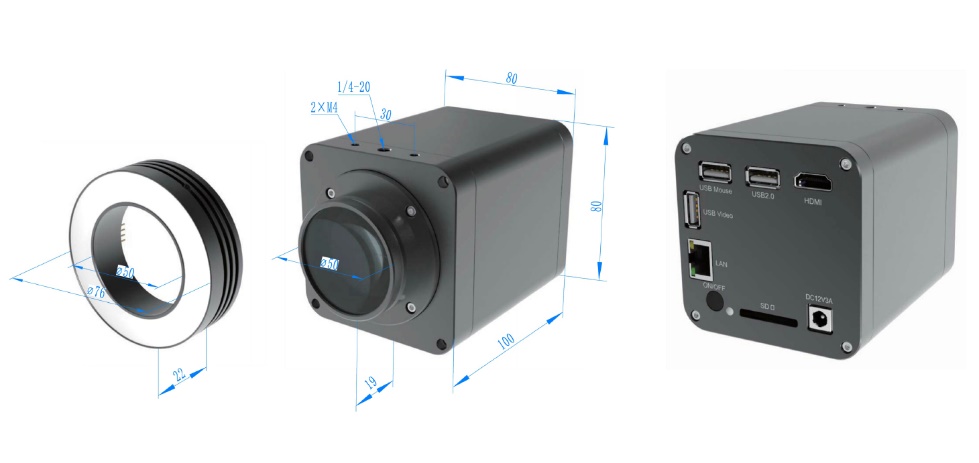

Camera interface and appearance dimensions
Packing Information of AFDM411 Series
|
Standard Packing List |
|||
|---|---|---|---|
|
A |
Gift box: L:220cm W:220cm H:110cm (1pcs, 2.0kg/box) |
||
|
B |
AFDM411 |
||
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 3A |
American Standard: Model: HKA03612030-7K : UL/CE/FCC(With American Standard AC Power Cable) European Standard: Model: HKA03612030-7K : UL/CE/FCC(With European Standard AC Power Cable) EMI Standard: FCC Part 15 Subpart B EMS Standard: EN61000-4-2,3,4,5,6 |
|
|
D |
USB Mouse |
||
|
E |
HDMI Cable |
||
|
F |
USB2.0 A male to A male gold-plated connectors cable /2.0m |
||
|
G |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
H |
Ethernet cable |
||
|
I |
LED Ring Light(DRL-5076A-NPC) |
||
|
J |
USB flash drive |
||
|
K |
USB WLAN adapter |
||
|
L |
SD card(16G) |
||
|
M |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
|

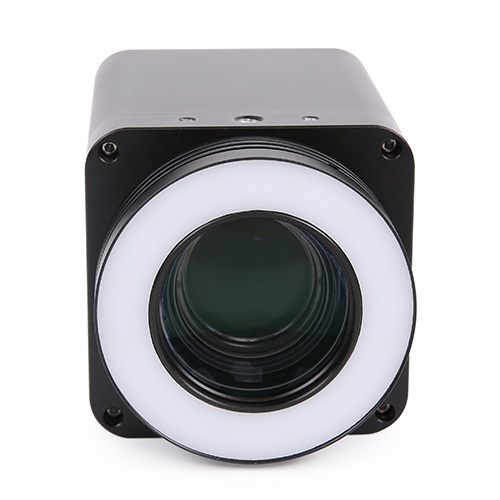

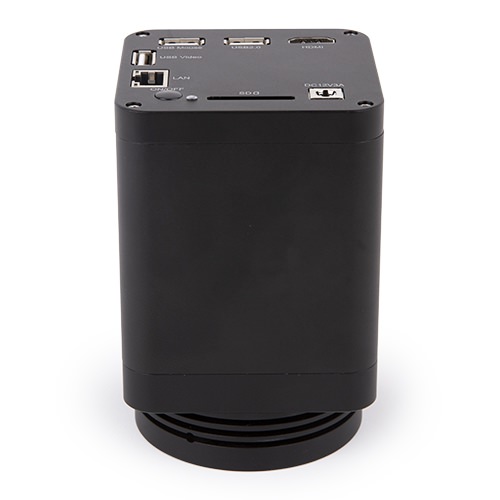

AFDM’s Front and Back View & AFDM’s Side and Front(with LED light) View
