SWIR Series UMV Camera

SWIR Series UMV Camera
  • SONY SenSWIR InGaAs sensor
  • Precise temperature control, the temperature difference can reach 10-25 degrees Celsius
  • Spectral response range: 400nm-1800nm
  • 5um pixel size
  • Global shutter
  • Supportinterface: USB3 / GigE / MIPI(developing) / CameraLink(developing)
  • 12-bit ADC
  • 4Gb memory

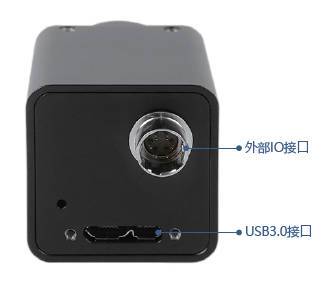

  • Support external IO trigger control
  • High framerate exceeding official parameters

Related models

Order Code Image Sensor Pixel(μm) G Sensitivity
Dark Signal
Data interface FPS/Resolution Binning Exposure
Dimensions
SWIR330KMB-UMV 0.33M/IMX991(M,GS)
1/4”(3.20x2.56)
5x5 121mV with 1/30s
1.0mV with 1/30s
USB3.0 428.1@640x512
227.7@320x256
1x1
1x1
15us~60s
33mm
SWIR1300KMB-UMV 1.3M/IMX990(M,GS)
1/2”(6.40x5.12)
5x5 121mV with 1/30s
1.0mV with 1/30s
USB3.0 223@1280x1024
428@640x512
1x1
1x1
15us ~60s
33mm
SWIR5000KMB-UMV Sony IMX992-AABJ-C
1/1.4”
3.45x3.45 121mV
638e/s(20°C)
USB3.0 223@1280x1024
428@640x512
1x1
1x1
15us ~60s
33mm

specification

Model

Parameter

SWIR5000KMB-UMV SWIR1300KMB-UMV SWIR330KMB-UMV
5.0M pixels 1/1.4” CMOS USB3.0 1.3M pixels 1/2” CMOS USB3.0 0.33M pixels 1/4” CMOS USB3.0
Sensor model Sony IMX992-AABJ-C Sony IMX990-AABJ-C Sony IMX991-AABJ-C
Sensor type InGaAs InGaAs InGaAs
Spectral range 400nm-1800nm 400nm-1800nm 400nm-1800nm
pixel size 3.45 µm x 3.45 µm 5.0 µm x 5.0 µm 5.0 µm x 5.0 µm
Target size 1/1.4” 1/2” 1/4”
ADC 12 Bit / 8 Bit 12 Bit / 8 Bit 12 Bit / 8 Bit

Frame Rate & Resolution

8 Bit:71@2560x2048、

252@1280x1024

12 Bit:35.5@2560x2048、

135.7@1280x1024

8 Bit:223fps@1280 x 1024、

428fps@640 x 512

12 Bit:118.7fps@1280 x 1024、

227.7fps@640 x 512

8 Bit:428.1fps@640 x 512、

807fps@320 x 256

12 Bit:227.7fps@640 x 512、

429.3fps@320 x 256

Image Buffer 512MByte 512MByte 512MByte
Conversion gain 43.0e/ADU 42.8e/ADU 43.0e/ADU
Conversion gain 59.6dB 58.7dB 59.6dB
Read noise 178.8e 197.6e 178.8e
Full well charge 176.2ke 175.4ke 176.2ke
Maximum SNR 52.5dB 52.4dB 52.5dB
Sensitivity 121mV 121mV 121mV
Dark current 638e/s(20°C) 638e/s(20°C) 638e/s(20°C)
Gain range 1x-15x 1x-15x 1x-15x
Exposure time range 15µs-60sec 15µs-60sec 15µs-60sec
Shutter mode Global shutter Global shutter Global shutter
Binning Software2x2,3x3,4x4 Software2x2,3x3,4x4 Software2x2,3x3,4x4
Data interface USB3.0 USB3.0 USB3.0

Digital I/O

1 optocoupler isolated input, 1 optocoupler isolated output,

One optical-coupling isolated input

1 optocoupler isolated input, 1 optocoupler isolated output,

One optical-coupling isolated input

1 optocoupler isolated input, 1 optocoupler isolated output,

One optical-coupling isolated input

Data Format 8bit / 12bit 8bit / 12bit 8bit / 12bit
Optical filter 400-1800nm(default); 1030-1800nm(optional) 400-1800nm(default); 1030-1800nm(optional) 400-1800nm(default); 1030-1800nm(optional)
CRA 2.35 Deg 2.35 Deg 2.35 Deg
Generalparameters
Power supply Power with USB3.0 or 12V Power adapter
Power consumption <2.11W
Temperature Working temperature -20~60℃, storage temperature -40~85℃
Humidity 20%-80% , non-condensing
Size and Weight 33mm×33mm×38mm,70g
Lens mount C-mount interface
Software ToupView/ SDK
Operating system Win32/WinRT/Linux/macOS/Android

Instance

SWIR Application Instance
semiconductor observation
SWIR Application Instance
Garbage sorting
SWIR Application Instance
Observation of fruit moisture
SWIR Application Instance
Temperature observation
SWIR Camera
SWIR330KMB-UMV spectral response curve
SWIR Camera
SWIR330KMB-UMV relative quantum efficiency
SWIR Camera
SWIR330KMB-UMV absolute quantum efficiency

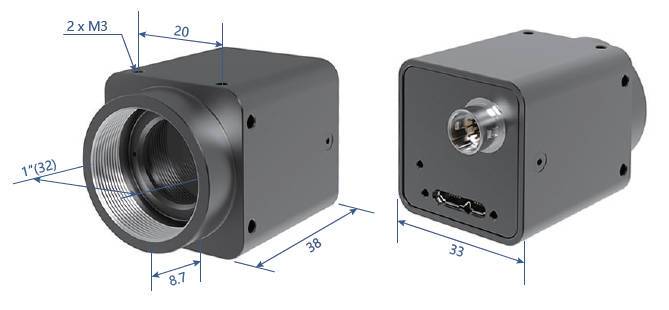

Camera Dimensions
