Introduction
IUC Series Machine Vision Camera
IUC series cameras feature sensor sizes in the APS to full-frame range. They are primarily used in the industrial and life sciences sectors, offering resolutions from 1.7M to 60M with sensor sizes ranging from 1.1" to 2.7". Data interfaces support USB3, CameraLink, and 10 Gigabit Ethernet. Among these, the KMA models are the monochrome camera series, while the KPA models are the color camera series. They support external triggering and include a built-in hardware ISP image processing engine to ensure accurate color reproduction and high-speed performance.
The AF version is compatible with Canon EF-mount lenses for autofocus functionality.
Key Features of the IUC Series Cameras:
- Utilizes high-quality image sensors from Sony, Gpixel, ONSEMI, etc.;
- Supports multiple interfaces including USB3, GigE, CameraLink, and CXP;
- Includes a built-in hardware image processing engine to ensure image fidelity and high-speed performance;
- Supports hardware triggering, software triggering, and free-run modes;
- Offers features such as ROI, image flipping, and bit-depth switching;
- Operates over a wide temperature range with low power consumption and stable performance;
- Supports in-field firmware upgrades;
- Comes with advanced video and image processing software ToupView and provides SDKs for Windows, Linux, and OSX, supporting native C/C++, C#/VB.Net, DirectShow, and Twain API;
- Complies with CE, FCC, and RoHS certifications.
No.
Specification
1

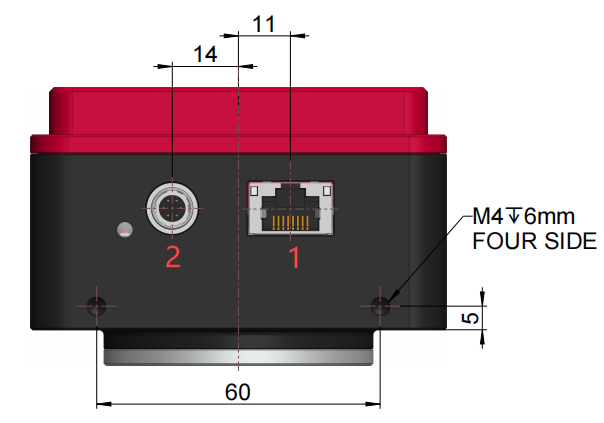

10GigE Interface
2
Trigger 7-PIN Interface
