Model Number
|
Image Sensor
|
Pixel Size(μm)
|
G Sensitivity
Dark Signal
|
FPS/Resolution
|
Binning
|
Exposure Time
|
|

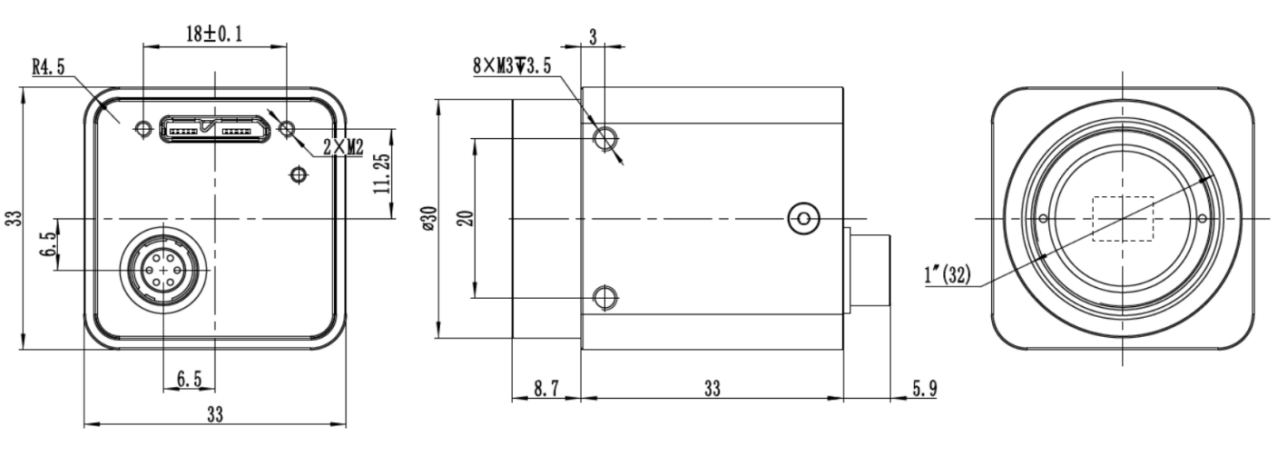

I3 with 33mm x 33mm x 33mm housing
|
|
I3ISPM00500KPA
IP800500A
|
0.5M/IMX433LQJ(C,GS)
1/1.7“ (7.31x5.58)
|
9.0x9.0
|
4910mv with 1/30s
0.3mv with 1/30s
|
166.5fps@812×620
|
1x1
|
6us~15s
|
|
I3ISPM01500KPA
IP801500A
|
1.5M/IMX273LQR(C,GS)
1/2.9“ (4.97x3.73)
|
3.45×3.45
|
1146mv with 1/30s
0.15mv with 1/30s
|
227.2fps@1440×1080
382.7fps@720×540
|
1x1
1x1
|
15us~15s
|
|
I3ISPM02300KPA
IP802300A
|
2.3M/IMX174LQJ(C,GS)
1/1.2“ (11.25x7.03)
|
5.86x5.86
|
1016mv with 1/30s
0.15mv with 1/30s
|
164.5fps@1920×1200
|
1x1
|
15us~15s
|
|
I3ISPM02300KPB
IP802300B
|
2.3M/IMX249LQJ(C,GS)
1/1.2“ (11.25x7.03)
|
5.86x5.86
|
1016mv with 1/30s
0.15mv with 1/30s
|
30fps@1920×1200
|
1x1
|
42us~15s
|
|
I3ISPM02400KPA
IP802400A
|
2.4M/GMAX4002(C,GS)
1/1.7“ (8.19x4.80)
|
4.0x4.0
|
3.26x107e-/((W/m2)·s)
8.3e-/s
|
155fps@2048×1200
620fps@1024×600
|
1x1
2x2
|
55us~15s
|
|
I3ISPM03100KPA
IP803100A
|
3.1M/IMX252LQR(C,GS)
1/1.8“ (7.07x5.30)
|
3.45×3.45
|
1146mv with 1/30s
0.15mv with 1/30s
|
115fps@2048×1536
230.3fps@1024×768
|
1x1
1x1
|
15us~15s
|
|
I3ISPM03100KPB
IP803100B
|
3.1M/IMX265LQR(C,GS)
1/1.8“ (7.07x5.30)
|
3.45×3.45
|
1146mv with 1/30s
0.15mv with 1/30s
|
55.4fps@2048×1536
115.1fps@1024×768
|
1x1
1x1
|
15us~15s
|
|
I3ISPM03200KPA
IP803200A
|
3.2M/IMX900AQR(C,GS)
1/3.1“ (4.61x3.46)
|
2.25x2.25
|
1162mv/lx/s
0.15mv with 1/30s
|
53.4fps@2048×1536
126.8fps@1024×768
|
1x1
1x1
|
11us~15s
|
|
I3ISPM04200KPA
IP804100A
|
4.2M/IMX664AAQR(C,RS)
1/1.8“(7.80x4.41)
|
2.9×2.9
|
5970mv with 1/30s
0.13mv with 1/30s
|
88.1fps@2688×1520
116.1fps@1344×760
|
1x1
2x2
|
15us~15s
|
|
I3ISPM05000KPA
IP805000A
|
5.0M/IMX250LQR(C,GS)
2/3“ (8.45x7.07)
|
3.45×3.45
|
1146mv with 1/30s
0.15mv with 1/30s
|
71.2fps@2448×2048
175.2fps@1224×1024
|
1x1
1x1
|
15us~15s
|
|
I3ISPM05000KPB
IP805000B
|
5.0M/IMX264LQR(C,GS)
2/3“ (8.45x7.07)
|
3.45×3.45
|
1146mv with 1/30s
0.15mv with 1/30s
|
35.6fps@2448×1536
87.6fps@1224×1024
|
1x1
1x1
|
15us~15s
|
|
I3ISPM05100KPA
IP805100A
|
5.1M/GMAX3405(C,GS)
2/3“ (8.32x6.96)
|
3.4x3.4
|
2.36x107e-/((W/m2)·s)
4.4e-/s
|
71fps@2448×2048
100fps@1224×1024
|
1x1
2x2
|
10us~15s
|
|
I3ISPM06300KPA
IP806300A
|
6.3M/IMX178LQJ(C, RS)
1/1.8“ (7.37x4.92)
|
2.4x2.4
|
425mv with 1/30s
0.15mv with 1/30s
|
58.7fps@3072×2048
59.5fps@1536×1024
|
1x1
2x2
|
17us~15s
|
|
I3ISPM08000KPA
IP808000A
|
8.0M/IMX546-AAQJ(C,GS)
2/3“ (7.78x7.78)
|
2.74x2.74
|
1574mv/lx/s
0.15mv with 1/30s
|
41fps@2840x2840
118fps@1420x1420
|
1x1
1x1
|
30us~15s
|
|
I3ISPM08300KPA
IP808300A
|
8.3M/IMX678-AAQR1-C(C, RS)
1/1.8“ (7.68x4.32)
|
2.0x2.0
|
3541mv/lx/s
0.15mv with 1/30s
|
45fps@3840x2160
70fps@1920x1080
|
1x1
2x2
|
30us~15s
|
|
I3ISPM08300KPB
IP808300B
|
8.3M/IMX585-AAQJ1-C(C,RS)
1/1.2“ (11.14x6.26)
|
2.9x2.9
|
5970mv with 1/30s
0.13mv with 1/30s
|
45fps@3840x2160
70fps@1920x1080
|
1x1
1x1
|
30us~15s
|
|
I3ISPM12000KPA
IP812000A
|
12M/IMX226CQJ(C, RS)
1/1.7“(7.52x5.64)
|
1.85x1.85
|
3637mv with 1/30s
0.15mv with 1/30s
|
29.9fps@4064×3046
59.9fps@2048×1080
|
1x1
2x2
|
400us~15s
|
|
I3ISPM12000KPB
IP812000B
|
12M/IMX676-AACR(C, RS)
1/1.6“(7.07x7.07)
|
2.0x2.0
|
280mv with 1/30s
0.1mv with 1/30s
|
27.7fps@3536×3536
65.8fps@1760×1760
|
1x1
2x2
|
13us~15s
|
|

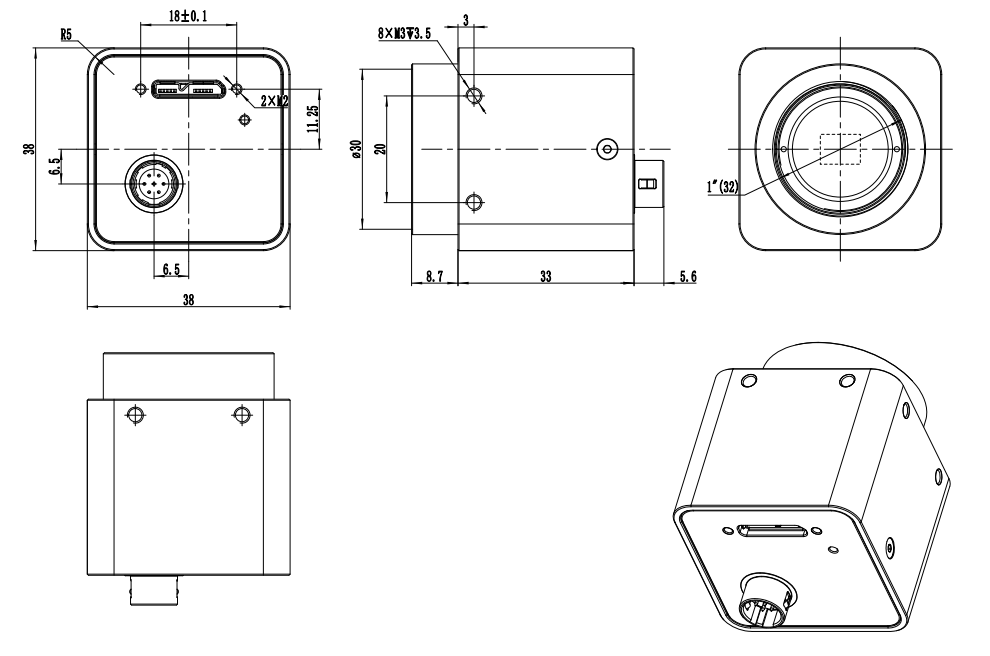

I3 with 38mm x 38mm x 33mm housing
|
|
I3ISPM01700KPA
IP801700A
|
1.7M/IMX432LQJ(C,GS)
1.1“ (14.4x9.9)
|
9.0x9.0
|
4910mv with 1/30s
0.3mv with 1/30s
|
98.6fps@1600×1100
|
1x1
|
6us~15s
|
|
I3ISPM01700KPB
IP801700B
|
1.7M/IMX425LQJ(C,GS)
1.1“ (14.4x9.9)
|
9.0x9.0
|
4910mv with 1/30s
0.3mv with 1/30s
|
210fps@1600×1100
|
1x1
|
6us~15s
|
|
I3ISPM02000KPA
IP802000A
|
2.0M/IMX430LQJ(C, GS)
1/1.7“(7.31x5.58)
|
4.5x4.5
|
2058mv with 1/30s
0.15mv with 1/30s
|
132fps@1624×1240
|
1x1
|
6us~15s
|
|
I3ISPM02800KPA
IP802800A
|
2.8M/IMX421LQJ(C,GS)
2/3“ (8.71x6.59)
|
4.5x4.5
|
2058mv with 1/30s
0.15mv with 1/30s
|
121fps@1936×1464
425fps@968×732
|
1x1
1x1
|
6us~15s
|
|
I3ISPM07100KPA
IP807100A
|
7.1M/IMX428LQJ(C,GS)
1.1“ (14.4x9.9)
|
4.5x4.5
|
2058mv with 1/30s
0.15mv with 1/30s
|
51.4fps@3200×2200
133.8fps@1584×1100
|
1x1
1x1
|
6us~15s
|
|
I3CMOS08300KMB
IM708300B
|
8.3M/IMX585-AAMJ1-C(M,RS)
1/1.2“ (11.14x6.26)
|
2.9x2.9
|
19120mv with 1/30s
0.13mv with 1/30s
|
45fps@3840x2160
70fps@1920x1080
|
1x1
1x1
|
30us~15s
|
|
I3ISPM12300KPA
IP812300A
|
12.3M/IMX304LQR-C(C,GS)
1.1“(14.13x10.35)
|
3.45×3.45
|
1146mv with 1/30s
0.15mv with 1/30s
|
23.4fps@4096x3000
46.3fps@2048x1500
46.3fps@1024x750
|
1x1
2x2
4x4
|
30us~15s
|
|
I3ISPM12500KPA
IP812500A
|
12.5M/GMAX3412(C,GS)
1.1“ (13.93x10.44)
|
3.4×3.4
|
2.36x107e-/((W/m2)·s)
81.6e-/s
|
30fps@4096x3072
60fps@2048x1536
|
1x1
2x2
|
15us~15s
|
|
I3ISPM20400KPA
IP820400A
|
20.4M/IMX541-AAQJ-C(C,GS)
1.1“ (12.32x12.32)
|
2.74x2.74
|
1574mv with 1/30s
0.15mv with 1/30s
|
17.5fps@4496×4496
64.4fps@2240×2240
64.4fps@1120×1120
|
1x1
2x2
4x4
|
30us~15s
|

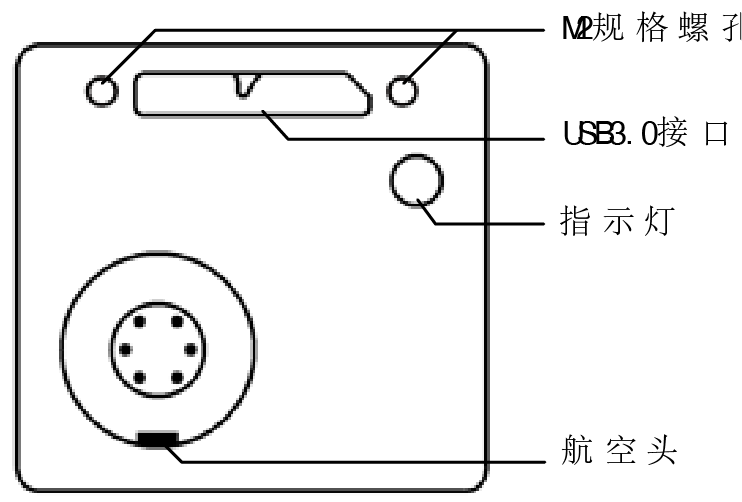

Digital I/O (V1)
1 opto-isolated input, 1 opto-isolated output, 1 non-isolated input, 1 non-isolated output
Data Format
8bit / 12bit
General Specifications
Power Supply Method
Powered via USB3.0 interface
Power Consumption
<3.5W
Temperature
Operating: -10 ~ 50℃, Storage: -30 ~ 70℃
Humidity
20%-80% (non-condensing)
Dimensions
33mm x 33mm x 33mm
Weight
70g
Lens Mount
C-mount
Software
Complete SDK Package / ToupView
Platform and Architecture
Win32/WinRT/Linux/macOS/Android; X86/X64/armhf/armel/arm64
Certifications
CE, FCC
