IUA Series Machine Vision Camera

For Purchase / Trial / OEM / ODM, Please Contact Us

Introduction

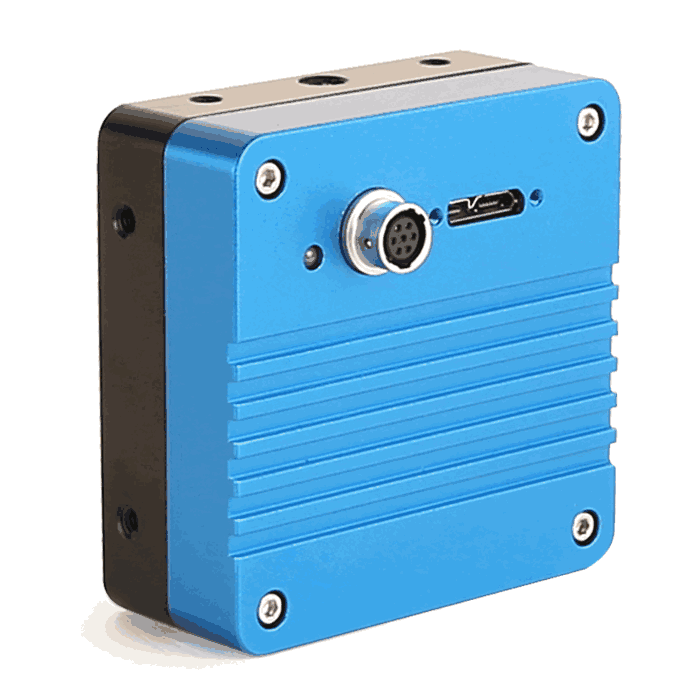

IUA Series Machine Vision Camera

IUA series is mainly applied in the industrial and life sciences fields, offering resolutions ranging from 0.39M to 45M, with sensor sizes spanning from 1/2.9" to 4/3".

This series of cameras uses a USB3.0 interface for fast, real-time transmission of uncompressed images. It supports image data acquisition and parameter settings (such as operating modes and image adjustments) via client software. The KMA models are monochrome cameras, while the KPA models are color cameras. They support external triggering and feature an integrated hardware ISP image processing engine to ensure accurate color reproduction and high-speed performance.

Key Features of the IUA Series Cameras:

Utilizes high-quality image sensors from Sony, Gpixel, ONSEMI, etc.;
Supports multiple interfaces including USB3, GigE, CameraLink, CXP, etc.;
Built-in hardware image processing engine to ensure image fidelity and high-speed performance;
Supports hardware triggering, software triggering, and free-run modes;
Offers functions such as ROI, image flipping, and bit-depth switching;
Wide operating temperature range, low power consumption, and stable performance;
Supports in-field firmware upgrades;
Includes advanced video and image processing software (ToupView) and provides multi-platform SDKs for Windows, Linux, and OSX, supporting native C/C++, C#/VB.Net, DirectShow, and Twain API;
Complies with CE, FCC, and RoHS certifications.

Related Models

Model Number	Image Sensor	Pixel Size(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure Time
IUA390KMA	0.39M/IMX287LLR(M,GS) 1/2.9“ (4.97x3.73)	6.9x6.9	7320mv with 1/30s 0.76mv with 1/30s	101.5fps@720×540	1x1	6us~15s
IUA503KMA	0.5M/IMX426LLJ(M,GS) 1/1.7“ (7.2x5.58)	9.0x9.0	8100mv with 1/30s 0.3mv with 1/30s	79.8fps@800×620	1x1	6us~15s
IUA503KMB	0.5M/IMX433LLJ(M,GS) 1/1.7“ (7.2x5.58)	9.0x9.0	8100mv with 1/30s 0.3mv with 1/30s	79.8fps@800×620	1x1	6us~15s
IUA1500KMA	1.5M/IMX273LLR(C,GS) 1/2.9“ (4.97x3.73)	3.45×3.45	1830mv with 1/30s 0.15mv with 1/30s	235.5fps@1440×1080 523fps@720×540	1x1 1x1	15us~15s
IUA1500KPA	1.5M/IMX273LQR(C,GS) 1/2.9“ (4.97x3.73)	3.45×3.45	1146mv with 1/30s 0.15mv with 1/30s	235.5fps@1440×1080 523fps@720×540	1x1 1x1	15us~15s
IUA1700KMA	1.7M/IMX432LLJ(M,GS) 1.1“ (14.4x9.9)	9.0x9.0	8100mv with 1/30s 0.3mv with 1/30s	98.6fps@1600×1100	1x1	6us~15s
IUA1700KPA	1.7M/IMX432LQJ(C,GS) 1.1“ (14.4x9.9)	9.0x9.0	4910mv with 1/30s 0.3mv with 1/30s	98.6fps@1600×1100	1x1	6us~15s
IUA1700KMB	1.7M/IMX425LLJ(M,GS) 1.1“ (14.4x9.9)	9.0x9.0	8100mv with 1/30s 0.3mv with 1/30s	210fps@1600×1100	1x1	6us~15s
IUA1700KPB	1.7M/IMX425LQJ(C,GS) 1.1“ (14.4x9.9)	9.0x9.0	4910mv with 1/30s 0.3mv with 1/30s	210fps@1600×1100	1x1	6us~15s
IUA2300KMA	2.3M/IMX174LLJ(M,GS) 1/1.2“ (11.25x7.03)	5.86x5.86	1650mv with 1/30s 0.15mv with 1/30s	164.5fps@1920×1200	1x1	15us~15s
IUA2300KPA	2.3M/IMX174LQJ(C,GS) 1/1.2“ (11.25x7.03)	5.86x5.86	1016mv with 1/30s 0.15mv with 1/30s	164.5fps@1920×1200	1x1	15us~15s
IUA2300KMB	2.3M/IMX249LLJ(M,GS) 1/1.2“ (11.25x7.03)	5.86x5.86	1650mv with 1/30s 0.15mv with 1/30s	30fps@1920×1200	1x1	42us~15s
IUA2300KPB	2.3M/IMX249LQJ(C,GS) 1/1.2“ (11.25x7.03)	5.86x5.86	1016mv with 1/30s 0.15mv with 1/30s	30fps@1920×1200	1x1	42us~15s
IUA2800KMA	2.8M/IMX421LLJ(M,GS) 2/3“ (8.71x6.59)	4.5x4.5	3354mv with 1/30s 0.15mv with 1/30s	121fps@1936×1464 425fps@968×732	1x1 1x1	6us~15s
IUA2800KPA	2.8M/IMX421LQJ(C,GS) 2/3“ (8.71x6.59)	4.5x4.5	2058mv with 1/30s 0.15mv with 1/30s	121fps@1936×1464 425fps@968×732	1x1 1x1	6us~15s
IUA5000KMA	5.0M/IMX264LLR(M,GS) 2/3“ (8.45x7.07)	3.45×3.45	1830mv with 1/30s 0.15mv with 1/30s	35.6fps@2448×2048 87.6fps@1224×1024	1x1 1x1	15us~15s
IUA5000KPA	5.0M/IMX264LQR(C,GS) 2/3“ (8.45x7.07)	3.45×3.45	1146mv with 1/30s 0.15mv with 1/30s	35.6fps@2448×2048 87.6fps@1224×1024	1x1 1x1	15us~15s
IUA5100KMA	5.1M/ IMX547-AAMJ-C(M,GS) 1/1.8“(6.71x5.61)	2.74x2.74	2252mv with 1/30s 0.15mv with 1/30s	63fps@2448×2048 208.4fps@1224×1024	1x1 2x2	30us~15s
IUA5100KPA	5.1M/ IMX547-AAQJ-C(C,GS) 1/1.8“(6.71x5.61)	2.74x2.74	1337mv with 1/30s 0.15mv with 1/30s	63fps@2448×2048 159fps@1224×1024	1x1 2x2	30us~15s
IUA6300KMA	6.3M/IMX178LLJ(M,RS) 1/1.8“ (7.37x4.92)	2.4x2.4	760mv with 1/30s 0.15mv with 1/30s	59.9fps@3072×2048 59.9fps@1536×1024	1x1 2x2	17us~15s
IUA6300KPA	6.3M/IMX178LQJ(C,RS) 1/1.8“ (7.37x4.92)	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	59.8fps@3072×2048 59.5fps@1536×1024	1x1 2x2	17us~15s
IUA7100KMA	7.1M/IMX428LLJ(M,GS) 1.1“ (14.4x9.9)	4.5x4.5	3354mv with 1/30s 0.15mv with 1/30s	51.3fps@3200×2200 133.8fps@1584×1100	1x1 1x1	6us~15s
IUA7100KPA	7.1M/IMX428LQJ(C,GS) 1.1“ (14.4x9.9)	4.5x4.5	2058mv with 1/30s 0.15mv with 1/30s	51.4fps@3200×2200 133.8fps@1584×1100	1x1 1x1	6us~15s
IUA8000KMB	8.0M/IMX546-AAMJ(M,GS) 2/3“ (7.78x7.78)	2.74x2.74	2649mv/lx/s 0.25mv with 1/30s	41fps@2840x2840 118fps@1420x1420	1x1 1x1	30us~15s
IUA8000KPB	8.0M/IMX546-AAQJ(C,GS) 2/3“ (7.78x7.78)	2.74x2.74	1574mv/lx/s 0.15mv with 1/30s	41fps@2840x2840 118fps@1420x1420	1x1 1x1	30us~15s
IUA8300KPA	8.3M/IMX485LQJ-C(C,RS) 1/1.2“ (11.14x6.26)	2.9x2.9	2188mv with 1/30s 0.15mv with 1/30s	45fps@3840x2160 70fps@1920x1080	1x1 1x1	30us~15s
IUA8300KMB	8.3M/IMX585-AAMJ1-C(M,RS) 1/1.2“ (11.14x6.26)	2.9x2.9	19120mv with 1/30s 0.13mv with 1/30s	45fps@3840x2160 70fps@1920x1080	1x1 1x1	30us~15s
IUA8300KPB	8.3M/IMX585-AAQJ1-C(C,RS) 1/1.2“ (11.14x6.26)	2.9x2.9	5970mv with 1/30s 0.13mv with 1/30s	45fps@3840x2160 70fps@1920x1080	1x1 1x1	30us~15s
IUA8300KME	8.3M/IMX678-AAMR1-C(M, RS) 1/1.8“ (7.68x4.32)	2.0x2.0	11288mv with 1/30s 0.15mv with 1/30s	45fps@3840x2160 70fps@1920x1080	1x1 1x1	30us~15s
IUA8300KPE	8.3M/IMX678-AAQR1-C(C, RS) 1/1.8“ (7.68x4.32)	2.0x2.0	3541mv with 1/30s 0.15mv with 1/30s	45fps@3840x2160 70fps@1920x1080	1x1 1x1	30us~15s
IUA10300KPA	10.3M/IMX294(C,RS) 4/3 “(9.56x6.5)	2.315x2.315	419mv with 1/30s 0.12mv with 1/30s	30.0@4128x2808 38.5 @4096x2160 59.8@2048x1080 87.2@1360x720 8 Bit / 14 Bit	1x1 1x1 2x2 3x3	150us~15s
IUA12000KPA	12M/IMX676-AACR1-C(C,RS) 1/1.6“ (7.07x7.07)	2.0x2.0	3637mv 0.15mv with 1/30s	27@3536x3536 60@1768x1768	1x1 2x2	30us~15s
IUA12300KMA	12.3M/IMX545-AAMJ-C(M,GS) 1/1.1“(11.22x8.22)	2.74x2.74	2252mv with 1/30s 0.15mv with 1/30s	28.2fps@4096x3000 100.9fps@2048x1500 100.9fps@1024x750	1x1 2x2 4x4	30us~15s
IUA12300KPA	12.3M/IMX545-AAQJ-C(C, GS) 1/1.1“(11.22x8.22)	2.74x2.74	1337mv with 1/30s 0.15mv with 1/30s	28.2fps@4096x3000 100.9fps@2048x1500 100.9fps@1024x750	1x1 2x2 4x4	30us~15s
IUA12300KMB	12.3M/IMX304LLR-C(M,GS) 1.1“(14.13x10.35)	3.45×3.45	1830mv with 1/30s 0.15mv with 1/30s	23.4fps@4096x3000 46.3fps@2048x1500 46.3fps@1024x750	1x1 2x2 4x4	30us~15s
IUA12300KPB	12.3M/IMX304LQR-C(C, GS) 1.1“(14.13x10.35)	3.45×3.45	1146mv with 1/30s 0.15mv with 1/30s	23.4fps@4096x3000 46.3fps@2048x1500 46.3fps@1024x750	1x1 2x2 4x4	30us~15s
IUA20000KMA	20.0M/IMX183CLK(M,RS) 1“ (13.06x8.84)	2.4x2.4	777mv with 1/30s 0.2mv with 1/30s	19.0fps@5440×3684 49.9fps@2736×1824 59.5fps@1824×1216	1x1 2x2 3x3	53us~15s
IUA20000KPA	20.0M/IMX183CQK(C,RS) 1“ (13.06x8.84)	2.4x2.4	462mv with 1/30s 0.2mv with 1/30s	19.0fps@5440×3684 48.8fps@2736×1824 59.4fps@1824×1216	1x1 2x2 3x3	53us~15s
IUA20400KMA	20.4M/IMX541-AAMJ-C(M,GS) 1.1“ (12.32x12.32)	2.74x2.74	2649mv with 1/30s 0.15mv with 1/30s	17.5fps@4496×4496 64.4fps@2240×2240 64.4fps@1120×1120	1x1 2x2 4x4	30us~15s
IUA20400KPA	20.4M/IMX541-AAQJ-C(C,GS) 1.1“ (12.32x12.32)	2.74x2.74	1574mv with 1/30s 0.15mv with 1/30s	17.5fps@4496×4496 64.4fps@2240×2240 64.4fps@1120×1120	1x1 2x2 4x4	30us~15s
IUA24500KMA	24.5M/IMX540-AAMJ-C(M,GS) 1.2“(14.58x12.60)	2.74x2.74	2649mv with 1/30s 0.15mv with 1/30s	14.7fps@5320×4600 54.3fps@2660×2300	1x1 2x2 4x4	30us~15s
IUA24500KPA	24.5M/IMX540-AAQJ-C(C,GS) 1.2“(14.58x12.60)	2.74x2.74	1574mv with 1/30s 0.15mv with 1/30s	14.7fps@5320×4600 54.4fps@2660×2300	1x1 2x2 4x4	30us~15s
IUA25000KMA	25M/GMAX0505(M, GS) 1.1“ (12.8x12.8)	2.5x2.5	QE@500nm: 65.8% 2.4e-/pixel/s	13fps@5120×5120 27fps@2560×2560 54fps@1280×1280	1x1 2x2 4x4	15us~15s
IUA25000KPA	25M/GMAX0505(C, GS) 1.1“ (12.8x12.8)	2.5x2.5	QE@520nm: 58.0% 2.4e-/pixel/s	13fps@5120×5120 27fps@2560×2560 54fps@1280×1280	1x1 2x2 4x4	15us~15s
IUA45000KMA	45M/IMX492LLJ-C(M,RS) 1.4“ (19.11x13.00)	2.315x2.315	176mv with 1/30s 0.03mv with 1/30s	8.1@8176x5616 30.0@4080x2808 8.1@7408x5556 33.0@3696x2778 10.4@8176x4320 34.7@4096x2160 62.5@2048x1080 86.5@1360x720	1x1 2x2 1x1 2x2 1x1 2x2 3x3 4x4	100us~15s
IUA45000KPB	45M/IMX492LQJ-C(C,RS) 1.4“ (19.11x13.00)	2.315x2.315	176mv with 1/30s 0.03mv with 1/30s	8.1@8176x5616 8.1@7408x5556 10.4@8176x4320	1x1 2x2 1x1 2x2 1x1 2x2 3x3 4x4	100us~15s
IUA - Special Bands (UV, NIR)
IUA2100KPA (NIR)	2.1M/IMX462LQR(C,RS,NIR) 1/2.8“ (5.57x3.13)	2.9x2.9	2376mv with 1/30s 0.15mv with 1/30s	120.3fps@1920x1080	1x1	11us~15s
IUA4100KPA (NIR)	4.1M/IMX464LQR(C,RS,NIR) 1/1.8“ (7.8x4.41)	2.9x2.9	2376mv with 1/30s 0.15mv with 1/30s	90fps@2688x1520	1x1	11us~15s
IUA500KMA (GPixel UV)	0.5M/GLUX1605BSI(M,UV,RS) 1“(12.8x9.6)	16x16	6.4x10⁸(e-/((W/m2).s)) QE91%@550nm 50(e-/s/pix)	60fps@800×600 60fps@400×300	1x1 2x2	27us~60s
IUA1300KMA (GPixel UV)	1.3M/GLUX9701BSI(M,UV,RS) 1“(12.49x9.99)	9.76x9.76	2.57x10⁸(e-/((W/m2).s)) QE89%@610nm 40(e-/s/pix)	30fps@1280×1024 30fps@640×512	1x1 2x2	63us~60s
IUA4200KMA (GPixel NIR)	4.2M/GSENSE2020e(M,NIR,RS) 1.2“(13.31x13.31)	6.5x6.5	8.1x10⁷(e-/((W/m2).s)) QE73%@595nm 13(e-/s/pix)	45fps@2048×2048 45fps@1024×1024	1x1 2x2	21us~60s
IUA4200KPA (GPixel NIR)	4.2M/GSENSE2020s(C,NIR,RS) 1.2“(13.31x13.31)	6.5x6.5	8.1x10⁷(e-/((W/m2).s)) QE64%@595nm 13(e-/s/pix)	45fps@2032×2046 45fps@1008×1022	1x1 2x2	50us~3600s
IUA4200KMB (GPixel UV)	4.2M/GSENSE2020BSI(M,UV,RS) 1.2“(13.31x13.31)	6.5x6.5	1.1x10⁸(e-/((W/m2).s)) QE93.7%@550nm 80(e-/s/pix)	32fps@2048×2048 32fps@1024×1024	1x1 2x2	12us~60s
IUA4200KME (GPixel UV)	4.2M/GSENSE400BSI(M,UV,RS) 2.0“(22.53x22.53)	11.0x11.0	3.25x10⁸(e-/((W/m2).s)) QE95.3%@560nm 345(e-/s/pix)	37fps@2048×2048 37fps@1024×1024	1x1 2x2	21us~60s
IUA8000KMA (GS-UV)	8.0M/IMX487-AAMJ(M,UV,GS) 2/3“ (7.78x7.78)	2.74x2.74	145mv with 1/30s 0.15mv with 1/30s	45fps@2840×2840 198fps@1420×1420	1x1 2x2	30us~15s

* C: Color; M: Monochrome; UV: Ultraviolet; RS: Rolling Shutter; GS: Global Shutter; NIR: Near-Infrared Enhanced.

* UV cameras can be de-glassed

Detailed Specifications

Only a portion is displayed here; for more details, please refer to the top "Download Materials" section.

Model Parameter	IUA390KMA
Model Parameter	0.39M pixel 1/2.9 "CMOS USB3.0 industrial camera
Camera
Sensor model	Sony IMX287LLR
Pixel size	6.9 µm x 6.9 µm
Sensor size	1/2.9”
Frame rate	101.5fps@720 x 540
Conversion Gain	2.73 (e-/ADU)
Readout Noise	0.79 (e-)
Full Well	11.2 (ke-)
Dynamic range	72dB
Signal-to-Noise ratio	40.5dB
Peak QE	71%@575nm
Sensitivity	7320mV
Dark current	0.76mV
Gain range	1x-50x
Exposure time	6µs-15sec
Shutter	Global Shutter
Binning	Software2x2, 3x3, 4x4
Data interface	USB3.0 (USB3.1 GEN1)
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, two non-isolated input and output
Data Format	8bit / 12bit
General Specifications
Power supply	Power with USB3.0/ DC12V
Power consumption	1.4W
Temperature	Working temperature -10~50℃; Storage temperature -30~70℃
Humidity	20% - 80% No condensation
Size	68mmx68mmx28.1mm
Weight	228g
Lens mount	C-mount
Software	ToupView/SDK
Platform and architecture	Windows 32-bit/Windows RT/Linux/macOS/Android；x86/x64/ARM HF/ARM EL/ARM64
Certification	CE, FCC

Model Parameter	IUA4200KMA
Model Parameter	4.2M pixels 1.2” CMOS USB3.0 industrial camera
Camera
Sensor model	GPixel GSENSE2020e (NIR)
Pixel size	6.5 µm x 6.5 µm
Sensor size	1.2”
Frame rate	45fps@2048 x 2048 45fps@1024 x 1024
Conversion Gain	HCG: 0.83 / LCG: 5.23 / HDR: 0.70 (e-/ADU)
Readout Noise	HCG: 6.19 / LCG: 37.48 / HDR: 2.80 (e-)
Full Well	HCG: 13.5 / LCG: 85.7 / HDR: 46.0 (ke-)
Dynamic range	HCG: 66.5 / LCG: 67.0 / HDR: 84.0 (dB)
Signal-to-Noise ratio	HCG: 41.3 / LCG: 49.3 / HDR: 46.6 (dB)
Peak QE	8.1x10⁷(e-/((W/m2).s))
Sensitivity	73%@595nm
Dark current	13e-/s/pix
Gain range	1x-8x
Exposure time	21µs-60sec
Shutter	Rolling shutter
Binning	Hardware 2x2; Software 2x2, 3x3, 4x4
Data interface	USB3.0 (USB3.1 GEN1)
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, two non-isolated input and output
Data Format	8bit / 12bit / HDR16
General Specifications
Power supply	Power with USB3.0/ DC12V
Power consumption	3.0W
Temperature	Working temperature -10~50℃, storage temperature-30~70℃
Humidity	20%-80%, no condensation
Size	68mmx68mmx28.1mm
Weight	270g
Lens mount	C-mount
Software	ToupView/ SDK
Platform and architecture	Windows 32-bit/Windows RT/Linux/macOS/Android；x86/x64/ARM HF/ARM EL/ARM64
Certification	CE, FCC, RoHS

Model Parameter	IUA45000KPB
Model Parameter	45M pixels 1.4” CMOS USB3.0 industrial camera
Camera
Sensor model	Sony IMX492LQJ-C
Pixel size	2.315 µm x 2.315µm
Sensor size	1.4”
Frame rate	8.1@8176x5616 8.1@7408x5556 10.4@8176x4320
Conversion Gain	3.59 (e-/ADU)
Readout Noise	2.70 (e-)
Full Well	14.7 (ke-)
Dynamic range	72dB
Signal-to-Noise ratio	41.7dB
Sensitivity	107mV
Dark current	0.03mV
Gain range	1x-50x
Exposure time	100µs-15sec
Shutter	Rolling shutter
Binning	Software2x2, 3x3, 4x4; Hardware 2x2, 3x3, 4x4
Data interface	USB3.0 (USB3.1 GEN1)
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, two non-isolated input and output
Data Format	8bit / 12bit
General Specifications
Power supply	Power with USB3.0/ DC12V
Power consumption	2.05W
Temperature	Working temperature -10~50℃, storage temperature -30~70℃
Humidity	20%-80%, no condensation
Size	68mmx68mmx28.1mm
Weight	214g
Lens mount	C-mount
Software	ToupView/ SDK
Platform and architecture	Windows 32-bit/Windows RT/Linux/macOS/Android；x86/x64/ARM HF/ARM EL/ARM64
Certification	CE, FCC

Spectral Response Curve / QE

Only a portion is displayed here; for more details, please refer to the top "Download Materials" section.

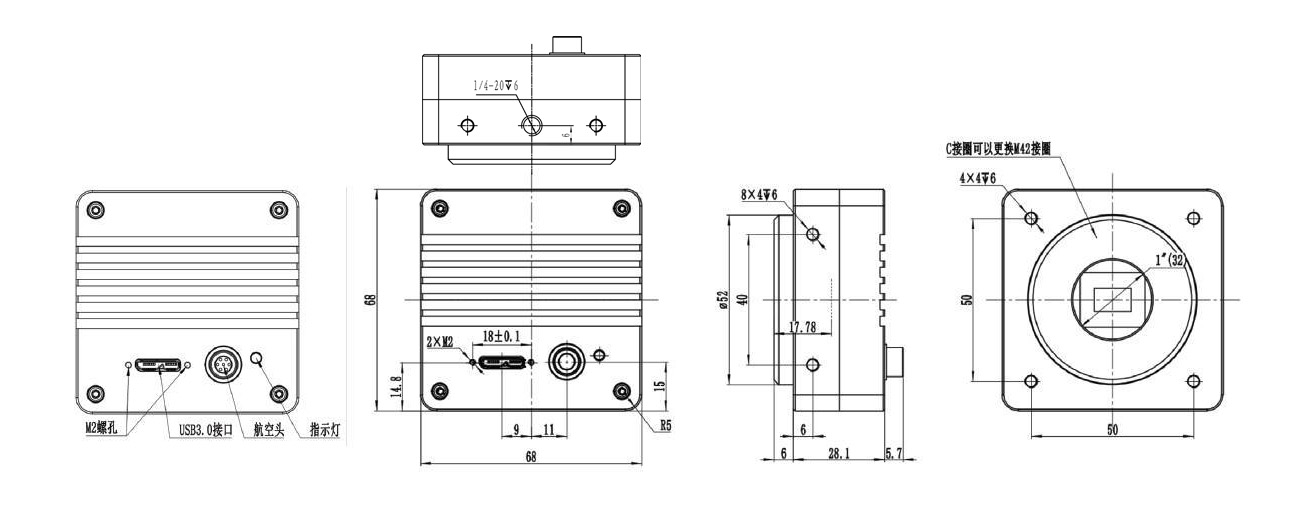

Overall Dimensions (mm)

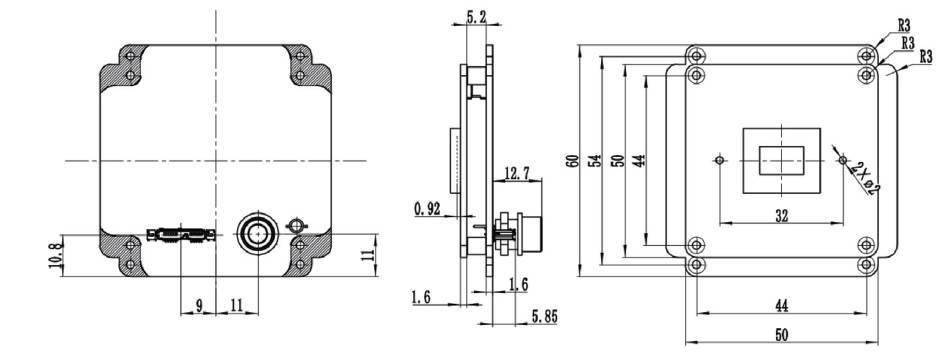

Bare Board Dimensions (mm)

Installation Accessories

Order number	Accessories name	Quantity	Instruction
1	Camera	1	Camera referred in this manual
2	I/O cable	1	7 Pin cable or extended cable
3	Cable	1	Micro USB3.0 cable
4	Lens (optional)	1	C-mount lens

IUA

Navigation

IUA Series Machine Vision Camera

For Purchase / Trial / OEM / ODM, Please Contact Us

Introduction

IUA Series Machine Vision Camera

Related Models

* C: Color; M: Monochrome; UV: Ultraviolet; RS: Rolling Shutter; GS: Global Shutter; NIR: Near-Infrared Enhanced.

* UV cameras can be de-glassed

Detailed Specifications

IUA390KMA

IUA4200KMA

IUA45000KPB

Spectral Response Curve / QE

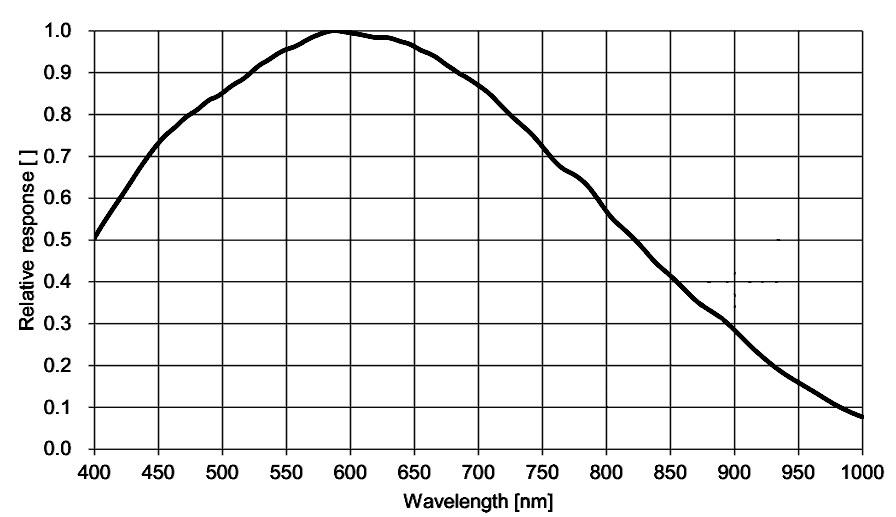

IUA390KMA Spectral Response Curve

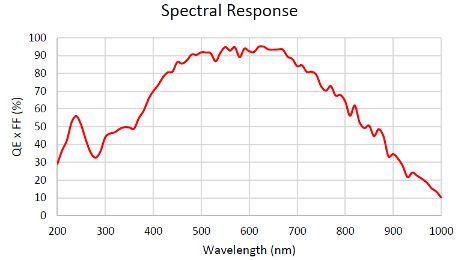

IUA4200KME Spectral Response Curve

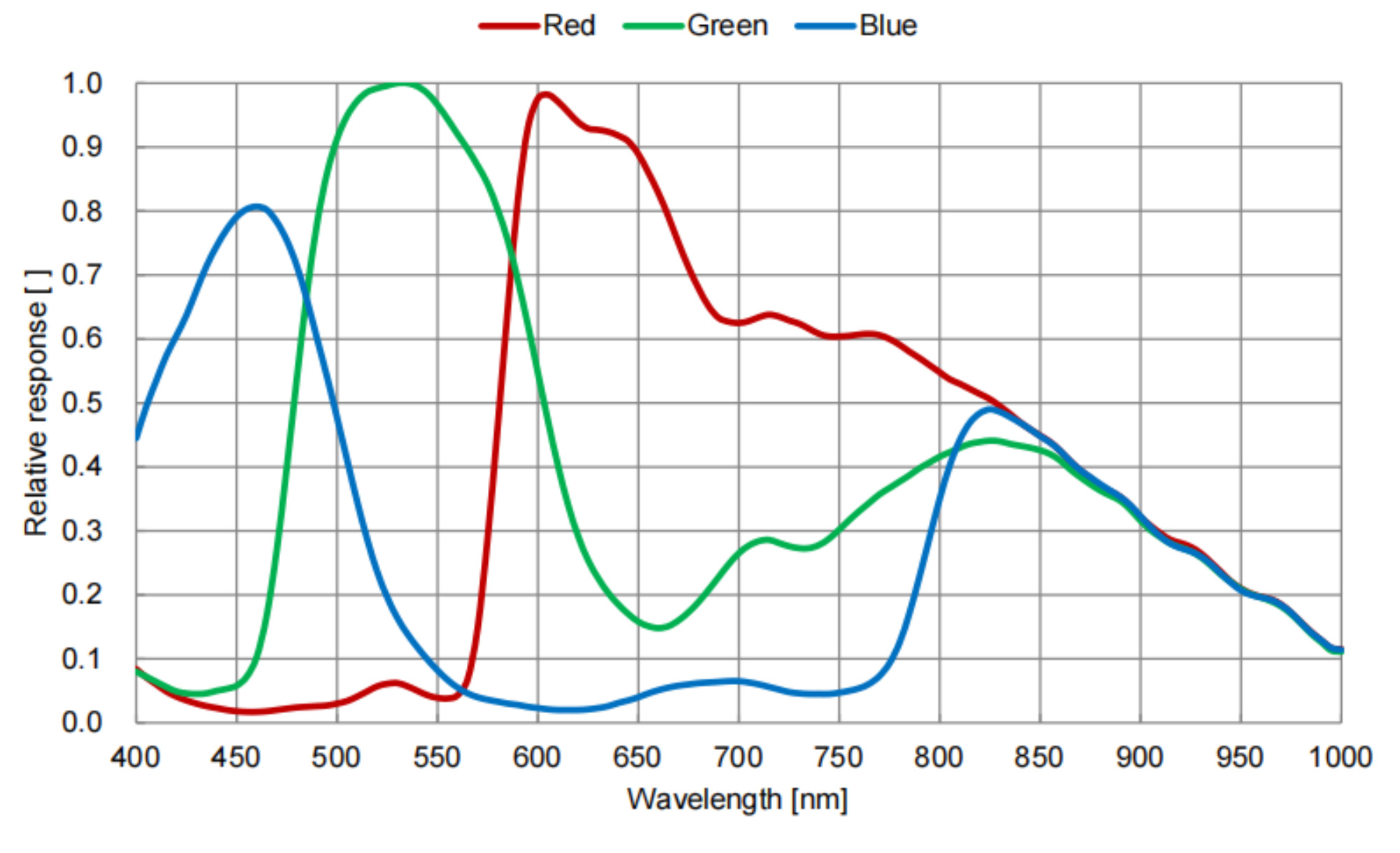

IUA45000KPB Spectral Response Curve
