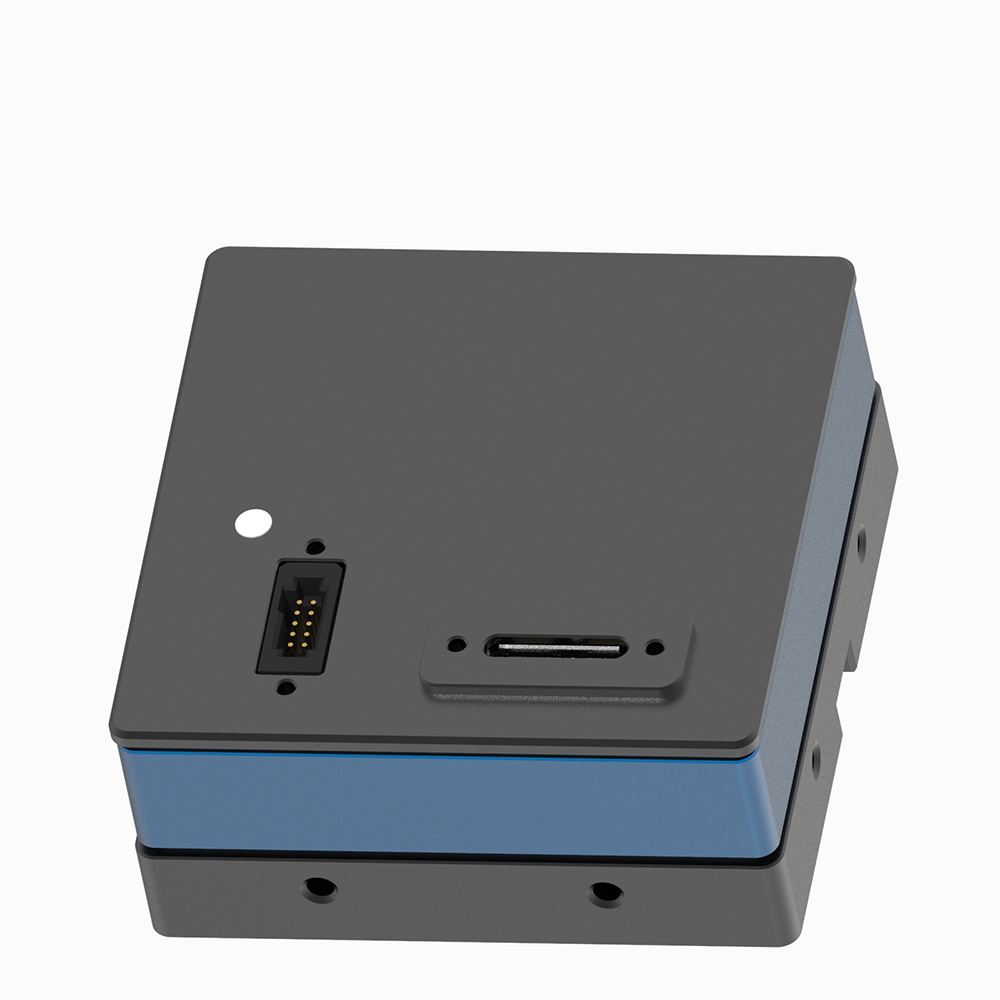

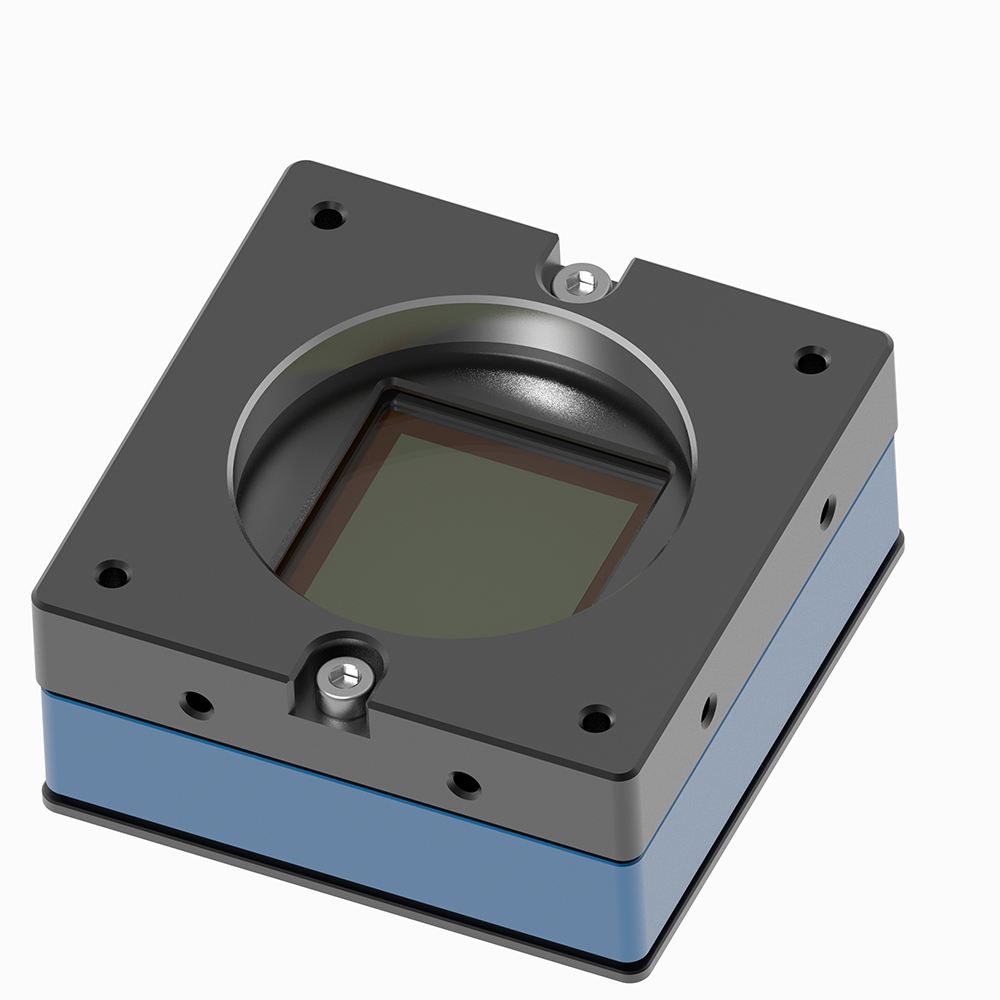

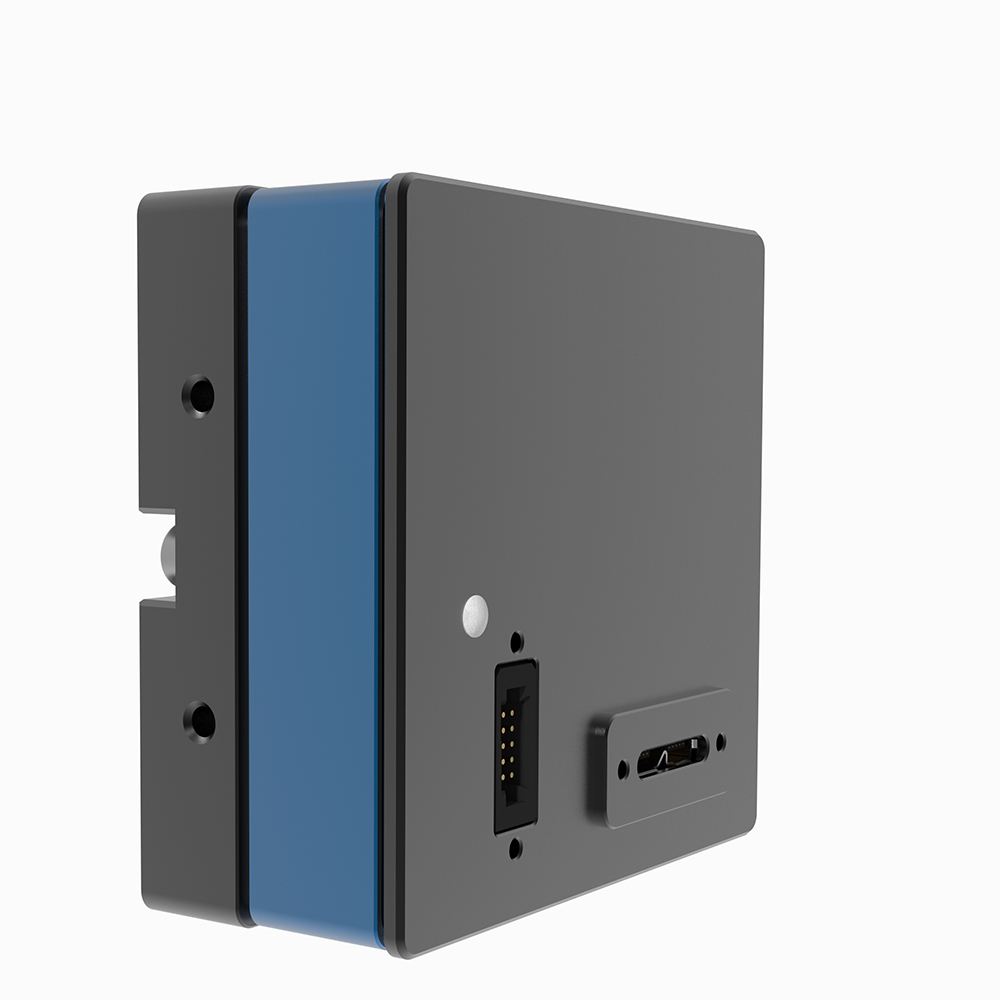

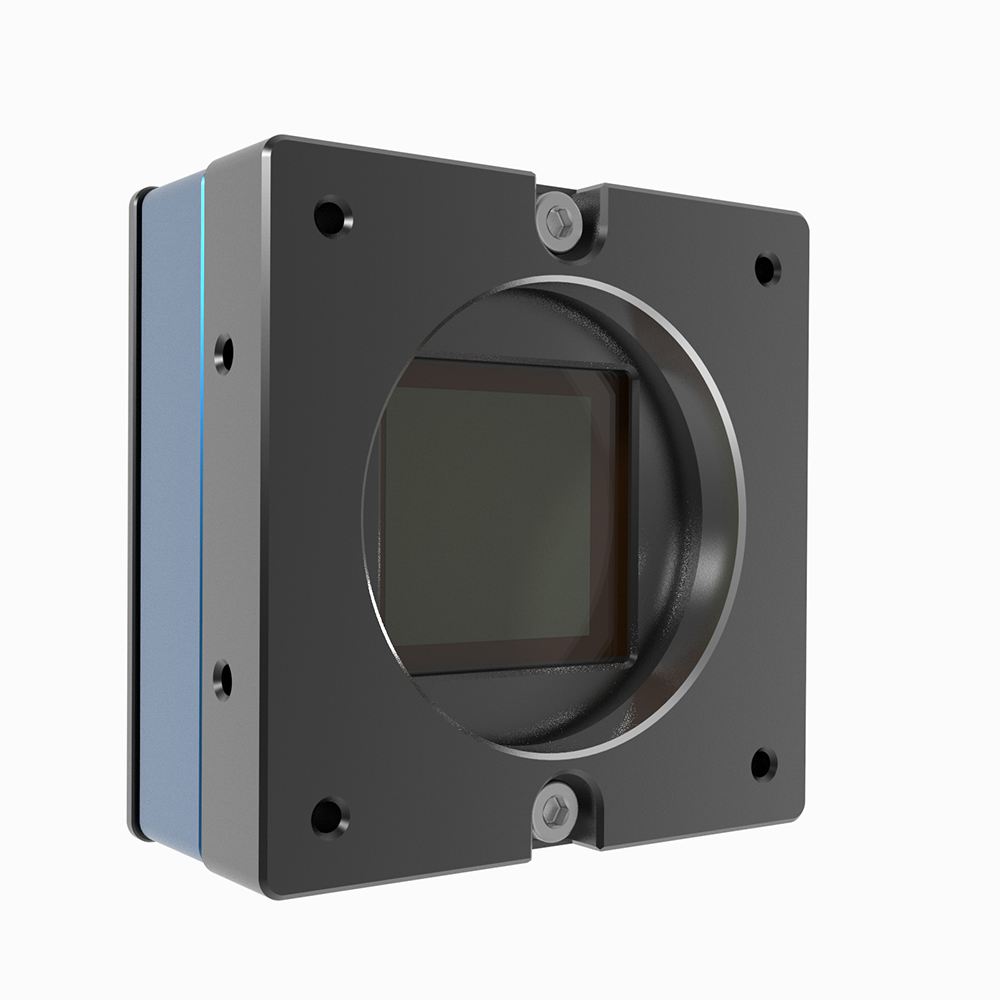

IUD Series Machine Vision Camera / Industrial Camera
The IUD series cameras are USB3 interface cameras with a global shutter and enhanced near‐infrared performance. They are designed for OCT retinal imaging and have the potential to replace competing GigE interface products from abroad.

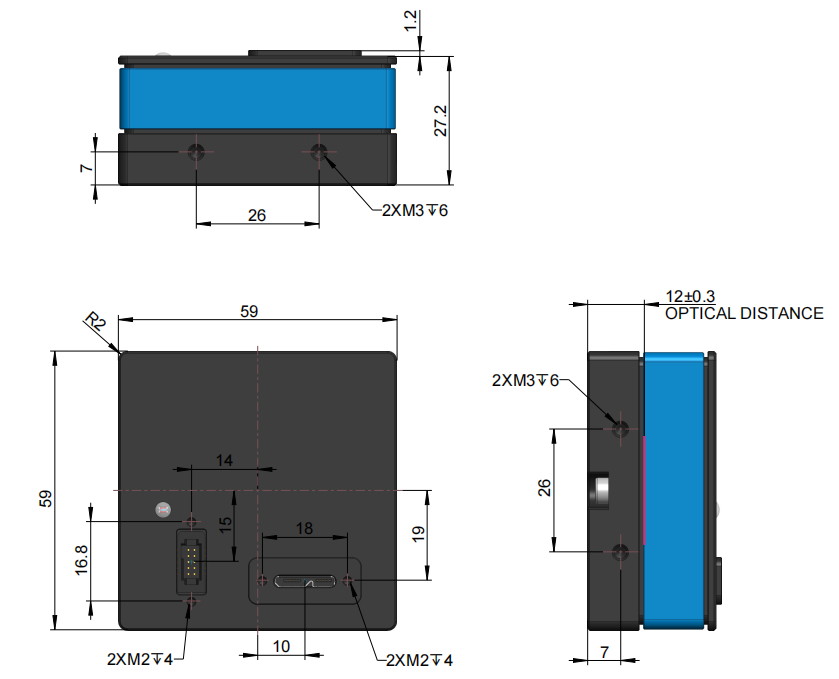

The IUD series uses ONSEMI chips and is available in two resolution options: 16MP and 25MP. At 25MP, the camera can achieve speeds of up to 14.8 fps, while at 16MP it can reach up to 20 fps. It is well suited for OCT and other ophthalmic imaging as well as near‐infrared industrial inspection. The camera supports both external trigger synchronization and free-run capture. Its compact design integrates a large sensor into a miniaturized body, making it ideal for applications in confined spaces. The camera’s power consumption is specially optimized so that it can be powered solely via USB3 without the need for an additional power supply.
Key Features of the IUD Series Cameras:
- Global shutter that exposes all pixels simultaneously, ideal for capturing fast-moving objects and reducing motion blur.
- Utilizes in-pixel dual-sampling correction (CDS) technology for high dynamic range and effective noise suppression.
- Bad pixel correction.
- Pixel binning.
- ROI (Region of Interest), a dedicated ROI for automatic adjustment functions.
- Auto gain (manual gain control: 0 to 32 dB).
- Auto exposure (manual exposure control: 30 μs to 33.5 s).
- LUTs (Lookup Tables).
- Gamma correction.
- Bandwidth control.
- Image buffering.

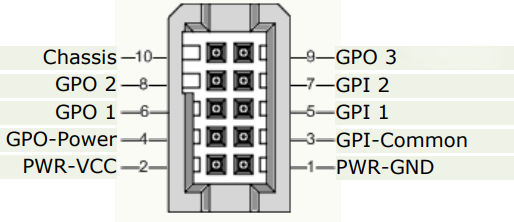

- Synchronized output modes: Trigger Ready, Input, Exposure, Readout, Imaging, Strobe, GPO.
- Event channel.
- User settings can be stored.
Model Number
Image Sensor
Pixel Size(μm)
G Sensitivity/Dark Signal
FPS/Resolution
Binning
Exposure Time
IUD16000KMA
(NIR)
16.0M/PYTHON 16K (M, GS)
(18.43x18.43)
4.5x4.5
TBD
22.5@4096x4096
1x1
1us~60s
IUD25000KMA
(NIR)
25.0M/PYTHON 25K (M, GS)
2.04“ (23.04x23.04)
4.5x4.5
<1/5000
3.9 e−/s@ 20°C
14.8@5120x5120
14.8@2560x2560
14.8@1664x1664
1x1
2x2
3x3
1us~60s
*C: Color; M: Monochrome; RS: Rolling Shutter; GS: Global Shutter; NIR: Near-Infrared Enhancement.
