TZM0756 Series Monocular Zoom Objective(MZO)

For Purchase/Trial/OEM/ODM, Please Contact Us

Contact Us Download Information
ToupTek

Introduction

TZM0756 Product Introduction

TZM0756 series MZO (Monocular Zoom Objective, single-tube continuously variable magnification microscope objective) adopts a modular design concept with dual-end parallel light paths, offering excellent optical performance and high customizability. It is specially designed for applications in machine vision inspection, industrial inspection, scientific research, and education.

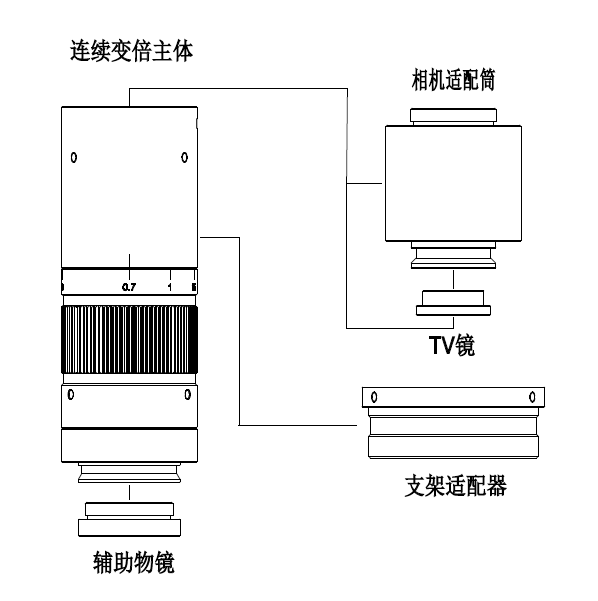

The TZM0756 series MZO consists of three basic modules: the continuously variable magnification main body (which already includes the auxiliary lens and TV lens), a mounting adapter, and optional modules. In addition to the continuously variable main body, users can choose the other modules according to their application needs. The TZM0756 series MZO, when paired with a camera module (optional), can form a digital continuously variable magnification microscope system.

The standard configuration of the TZM0756 series MZO is TZM0756-W100-TV100-A50, with a magnification range of 0.7X to 4.5X and a maximum magnification ratio of 6.5X. The main features of the TZM0756 series MZO are as follows:

  • The standard model TZM0756-W100-TV100-A50 has a magnification range of 0.7X to 5.6X.
  • High Magnification Ratio: 8X
  • High NA: 0.018-0.092 (using a 1X auxiliary lens)
  • High Resolution: 18.6μm-3.65μm (using a 1X auxiliary lens)
  • Wide Field of View: 0.99mm-34.28mm
  • Large Image Plane: Maximum compatible image sensor size: 2/3 inch (using a 1X TV lens)
  • Working distance: 37.5mm-160mm
  • Focus is maintained throughout the magnification change
  • Compatible with infinity-corrected microscope objectives (both biological and metallurgical objectives)
  • Compact size: 150mm x 40mm (standard model)
  • Optional auxiliary lenses available in 0.50X, 0.75X, 1.00X, 1.50X, and 2.00X
  • Optional TV lenses available in 0.50X, 0.75X, 1.00X, 1.50X, and 2.00X
  • Optional adjustable LED ring light (available)
  • Optional adjustable LED ring polarizing light (available)
  • Optional adjustable LED coaxial illumination (available)
  • Optional high-brightness LED transmission backlight (available)
  • Optional 45mm or 50mm mounting adapter (available)

TZM0756 Series MZO Naming Rules

TZM0756

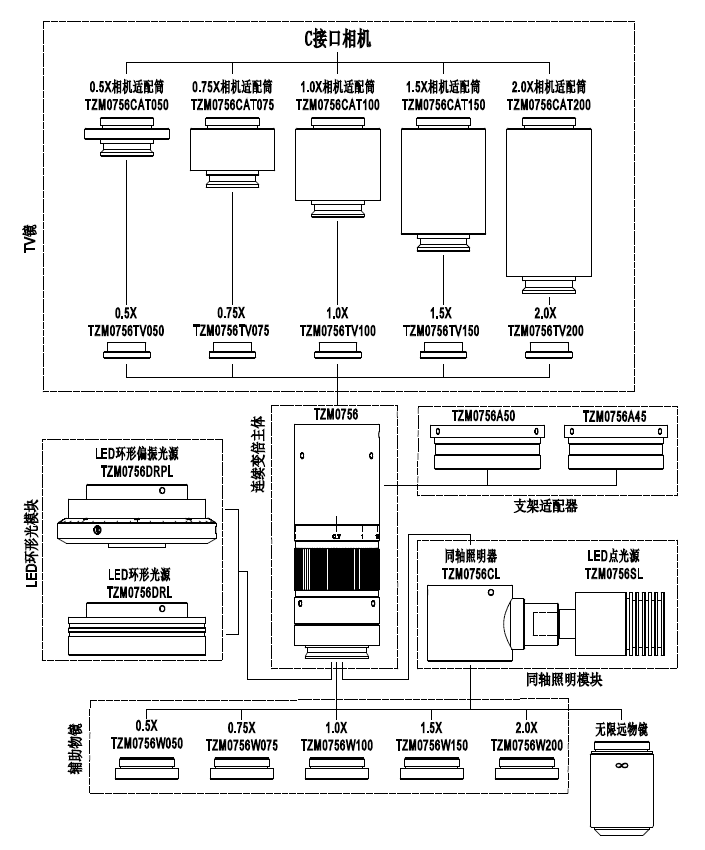

The TZM0756 series MZO adopts a finite conjugate optical system design, and the overall modular structure is shown in the figure on the left. The TZM0756 series MZO consists of five basic modules: the continuously variable main body, the auxiliary lens, the TV lens, the mounting adapter, and the optional modules.

The final naming method for the TZM0756 series MZO is to separate the names of each module with a hyphen "-", forming a comprehensive name that clearly distinguishes the MZO’s performance parameters. For example: TZM0756aa-Wbbb-TVccc-Add

For example, if the main body module selected is TZM0756TD, paired with a 1.00X auxiliary lens W100, a 0.50X TV lens TV050, and a 50mm mounting adapter A50, then the continuously variable microscope objective is named: TZM0756TD-W100-TV050-A50

Currently available TZM0756aa modules: TZM0756, TZM0756T, TZM0756D, TZM0756TD;

  • Currently available Wbbb modules: W100, W050, W075, W150, and W200;
  • Currently available TVccc modules: TV100, TV050, TV075, TV150, and TV200;
  • Currently available Add modules: A50 and A45;
  • Auxiliary lenses, TV lenses, and mounting adapters with other magnifications can be customized according to requirements.
  • The optional modules mainly include ring light modules, available in both standard ring light and polarizing ring light versions, as well as a coaxial illumination module (consisting of a coaxial illuminator and LED point light source).

Purchase and Configuration

The parameters for different configurations of the TZM0460 series MZO are listed in the table below. You can determine your desired combination by following these steps:

  • Determine the possible 1) FOV and 2) object working distance, and select the auxiliary lens accordingly
  • If using a 705 infinity-corrected objective, choose the adapter from M26x0.705 to M20x0.705
  • Based on 1) sensor size (1/x inch), 2) imaging diagonal, 3) imaging width, and 4) imaging height, determine the camera’s imaging circle and select the TV lens
  • Select a 45mm or 50mm mounting adapter
  • Select an LED ring light module for reflected illumination
  • If necessary, choose a coaxial illumination module
  • If necessary, choose a transmitted light illumination module
  • Select a compatible camera

Our company offers a variety of microscope cameras. You can refer to the Camera Selection Tool to review the specifications and choose the appropriate camera from the list.

Combinations of the Continuously Variable Main Body, Auxiliary Lens, and TV Lens

Camera

Continuous Zoom Body - Auxiliary Lens - TV Lens

Working Distance (mm)

Magnification

Diagonal Field of View (mm)

Object-side Numerical Aperture

1/3“

TZM0756-W050-TV050

160

0.18X-1.40X

34.28-4.28

0.009-0.046

TZM0756-W075-TV050

105

0.26X-2.10X

20.81-2.86

0.013-0.069

TZM0756-W100-TV050

80

0.35X-2.80X

17.14-2.14

0.018-0.092

TZM0756-W150-TV050

52

0.53X-4.20X

11.43-1.43

0.026-0.138

TZM0756-W200-TV050

38

0.70X-5.60X

8.57-1.07

0.035-0.182

1/1.8”

TZM0756-W050-TV075

160

0.26X-2.10X

33.97-4.25

0.009-0.046

TZM0756-W075-TV075

105

0.40X-3.15X

22.67-2.84

0.013-0.069

TZM0756-W100-TV075

80

0.53X-4.20X

17.02-2.13

0.018-0.092

TZM0756-W150-TV075

52

0.79X-6.30X

11.34-1.42

0.026-0.138

TZM0756-W200-TV075

38

1.05X-8.40X

8.51-1.06

0.035-0.182

2/3“

TZM0756-W050-TV100

160

0.35X-2.80X

31.74-3.93

0.009-0.046

TZM0756-W075-TV100

105

0.53X-4.20X

20.99-2.61

0.013-0.069

TZM0756-W100-TV100

80

0.70X-5.60X

15.80-1.96

0.018-0.092

TZM0756-W150-TV100

52

1.05X-8.40X

10.46-1.31

0.026-0.138

TZM0756-W200-TV100

38

1.40X-11.2X

7.90-0.99

0.035-0.182

1”

TZM0756-W050-TV150

160

0.53X-4.20X

30.48-3.81

0.009-0.046

TZM0756-W075-TV150

105

0.79X-6.30X

20.25-2.54

0.013-0.069

TZM0756-W100-TV150

80

1.05X-8.40X

15.24-1.90

0.018-0.092

TZM0756-W150-TV150

52

1.58X-12.6X

10.13-1.27

0.026-0.138

TZM0756-W200-TV150

38

2.10X-16.8X

7.62-0.95

0.035-0.182

4/3“

TZM0756-W050-TV200

160

0.70X-5.60X

32.14-4.02

0.009-0.046

TZM0756-W075-TV200

105

1.05X-8.40X

21.43-2.68

0.013-0.069

TZM0756-W100-TV200

80

1.40X-11.2X

16.07-2.01

0.018-0.092

TZM0756-W150-TV200

52

2.10X-16.8X

10.71-1.34

0.026-0.138

TZM0756-W200-TV200

38

2.80X-22.4X

8.04-1.00

0.035-0.182

Related Modules

The continuous zoom body is the main component of the TZM0756 series MZO. Its code is TZM0756aa; where “TZM0756” indicates the regular continuous zoom body, “TZM0756T” is the model with adjustable back focus, “TZM0756D” is the fixed magnification model, and “TZM0756TD” is the model with both adjustable back focus and fixed magnification. The detailed description is as follows:

Continuous Zoom Body Code and Its Functions

Order Number

Meaning

TZM0756

Postfix meaning

TZM0756

Ordinary Middle Zoom Module

ZM：Zoom

0756：0.7X~5.6X

NA

TZM0756T

Middle Zoom Module with back focus trimmable(adjustable) function

T：Trim

TZM0756D

Middle Zoom Module with detent to fix the magnification function

D：Detent

TZM0756TD

Middle Zoom Module with back focus trimmable and magnification detent functions

TD：Trim & Detent

The auxiliary lens is a replaceable component that directly attaches to the bottom of the continuous zoom body via a threaded connection. Its code is Wbbb, where “bbb” indicates the magnification of the auxiliary lens. It is mainly used to change the overall magnification of the TZM0756 series MZO. Different auxiliary lenses offer different working distances. For example, compared to an auxiliary lens W100 with 1.00X magnification and an 80mm working distance, a 0.50X auxiliary lens W050 will halve the overall magnification of the TZM0756 series MZO and extend the working distance to approximately 160mm, and so on. The optical parameters of the auxiliary lens are shown in the table below:

Auxiliary Lens

Order number

Magnification

Working distance（mmm）

Field of View in the object side(TV050，1/3"sensor)

Lower magnification

Higher magnification

W050

0.5X

160

34.28mm

4.28mm

W075

0.75X

105

20.81mm

2.86mm

W100

1.00X

80

17.14mm

2.14mm

W150

1.50X

51.5

11.43mm

1.43mm

W200

2.00X

37.5

8.57mm

1.07mm
* The same auxiliary lens, when paired with different TV lenses, only has a minor impact on the field of view, as it is meant to adapt to image sensors of different sizes.

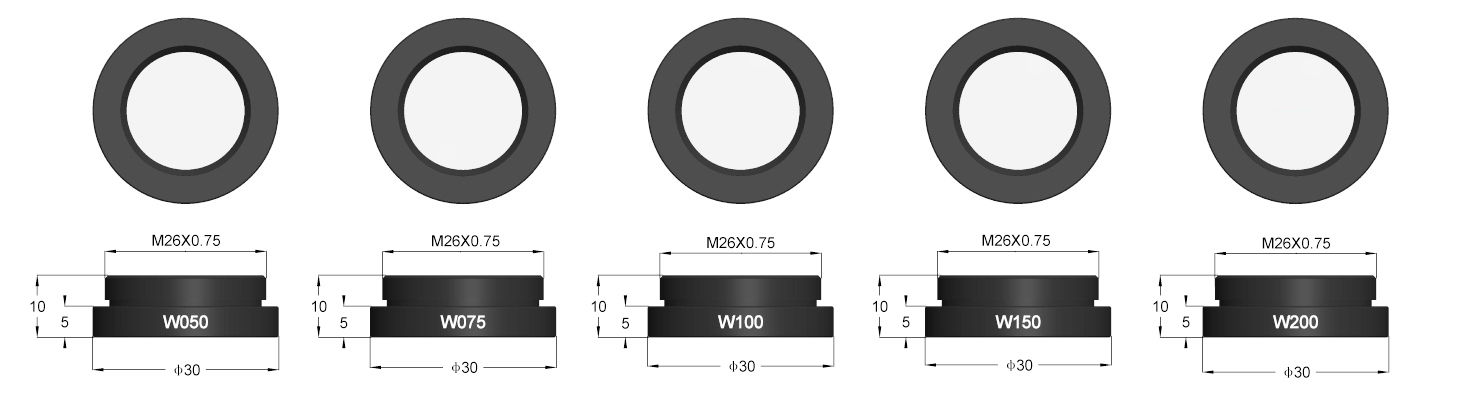

Auxiliary lenses for TZM0756 MZO
Auxiliary Lenses for TZM0756 MZO

Module 3 is the TV lens, which attaches to the top of the continuous zoom body via a threaded connection. Its code is TVccc, where “ccc” represents the magnification of the TV lens. It is mainly used to match image sensors of different sizes. For example, compared to a TV lens TV100 with 1.00X magnification, a 0.50X TV lens TV050 will match an image sensor that is half the size, while the field of view remains essentially unaffected. The specifications for the TV lens are shown in the table below:

TV Lens

Order number

The maximum compatible sensor size

TV050

1/3"

TV075

1/1.8"

TV100

2/3"

TV150

1"

TV200

4/3"
* A TV lens with higher magnification can also be paired with a smaller image sensor; however, this will reduce the overall field of view of the MZO.

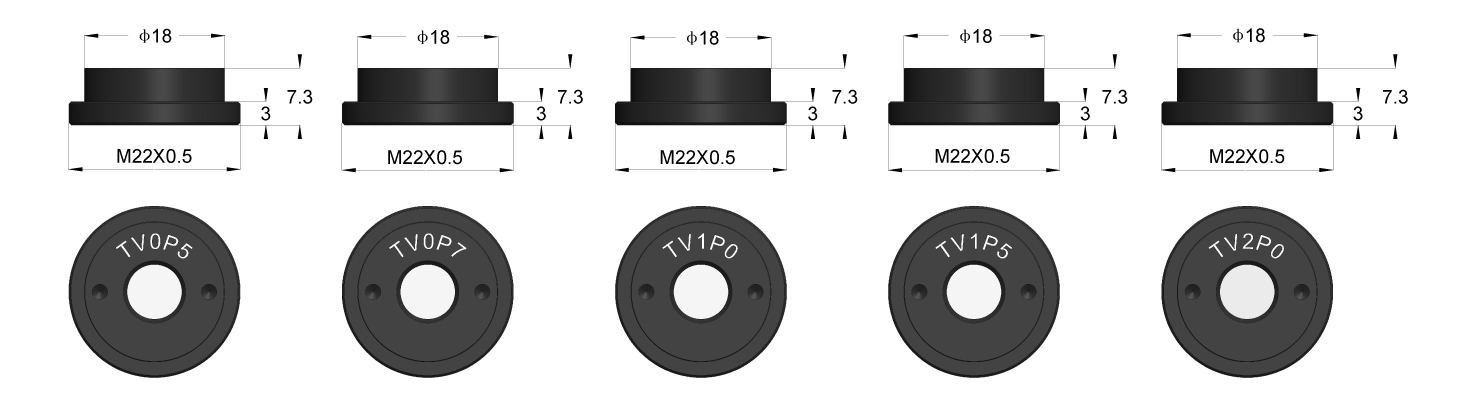

Various TV lenses for TZM0756
Various TV Lenses for TZM0756

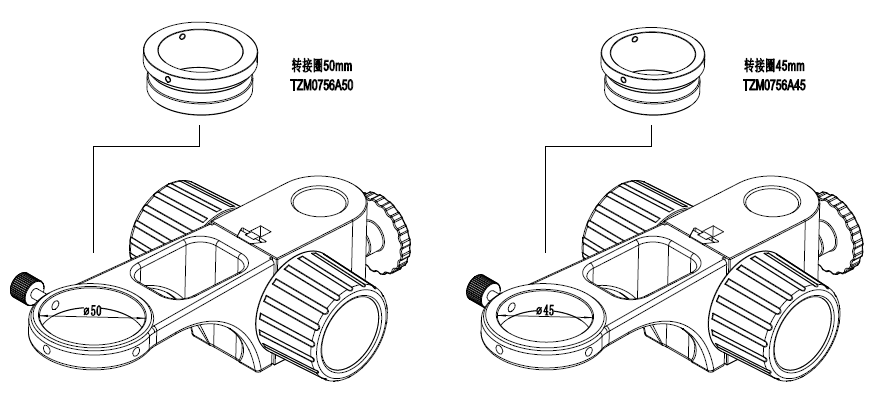

Module 4 is the mount adapter, which is used to install mounts of different diameters by fitting around the continuous zoom body. Its code is Add, where “dd” indicates the mount diameter. It is available in both 45mm and 50mm versions. The installation method of the mount adapter is shown in the image below.

Mount adapters for TZM0756 MZO
Mount Adapters for TZM0756 MZO

The optional modules mainly include ring light modules (both standard and polarized ring lights) and a coaxial illumination module (consisting of a coaxial illuminator and LED point light source). The details of the optional modules are shown in the table below.

Light Source Modules Compatible with the TZM0640 Series MZO

Module Name

Model

Model Description

LED Ring Light Module

TZM0756DRL-65/85

LED Ring Light

TZM0756DRPL-65

LED Polarized Ring Light

Coaxial Illumination Module

TZM0756CL+TZM0756SL

Coaxial Illuminator + LED Point Light (3W)

Transmitted Illumination Module

TZM0756TL

LED Transmitted Backlight

LED Light Power Supply

40600014

Power Adapter 12V/1A (US Standard)

40600015

Power Adapter 12V/1A (EU Standard)

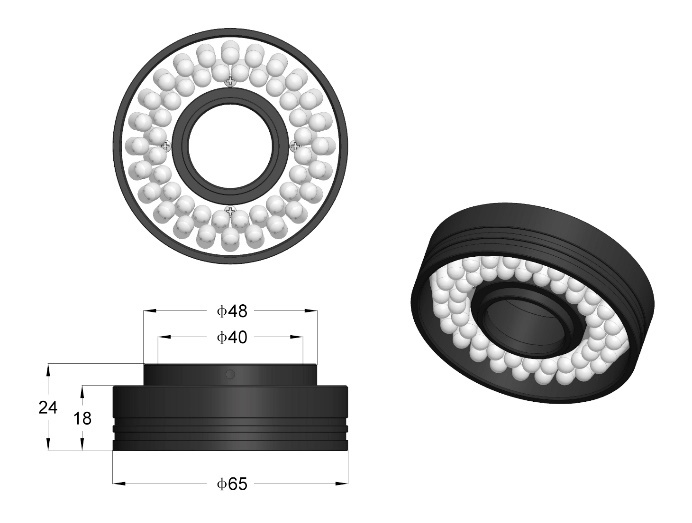

TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination

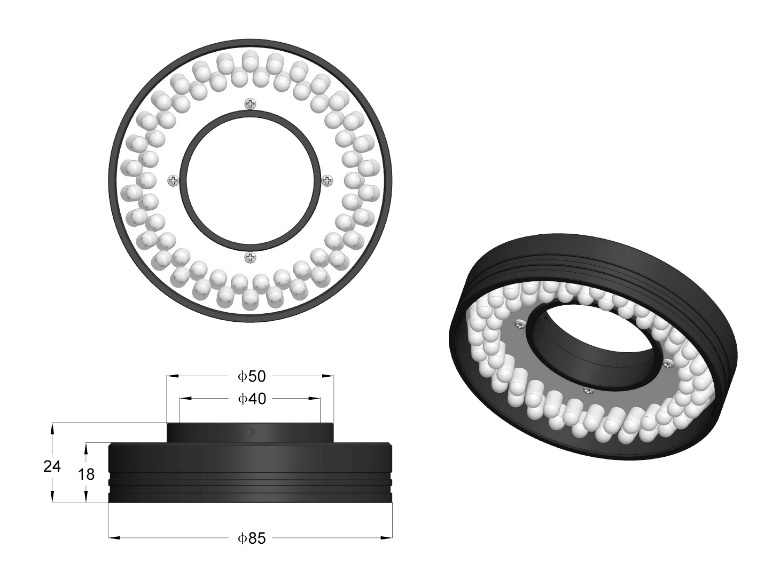

TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination

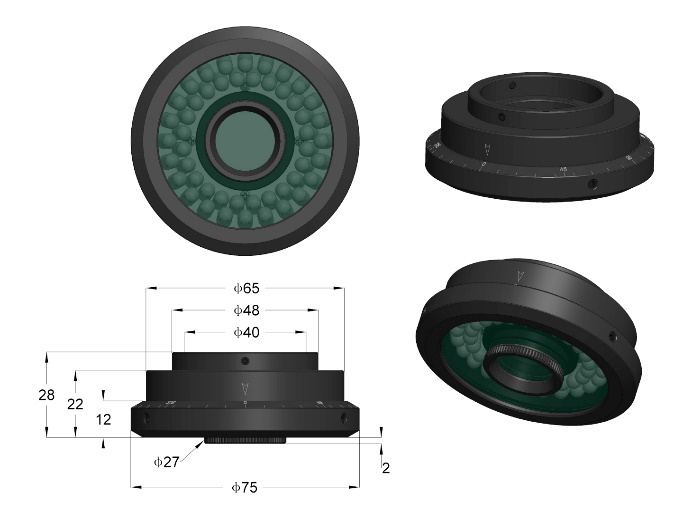

TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination
TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination
TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination

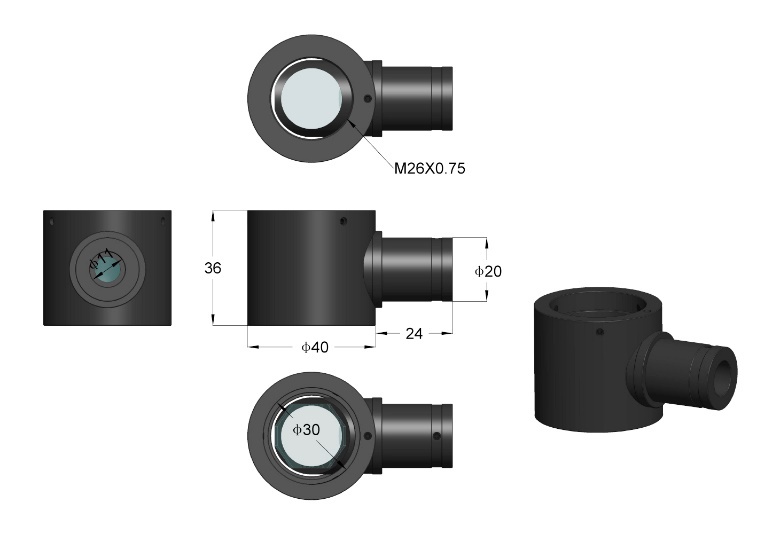

TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator

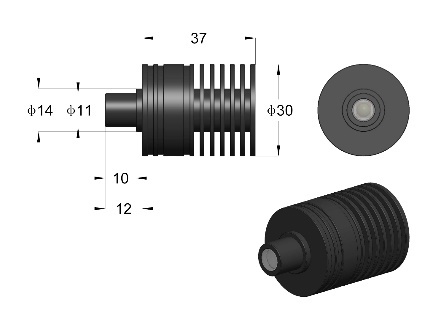

TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination

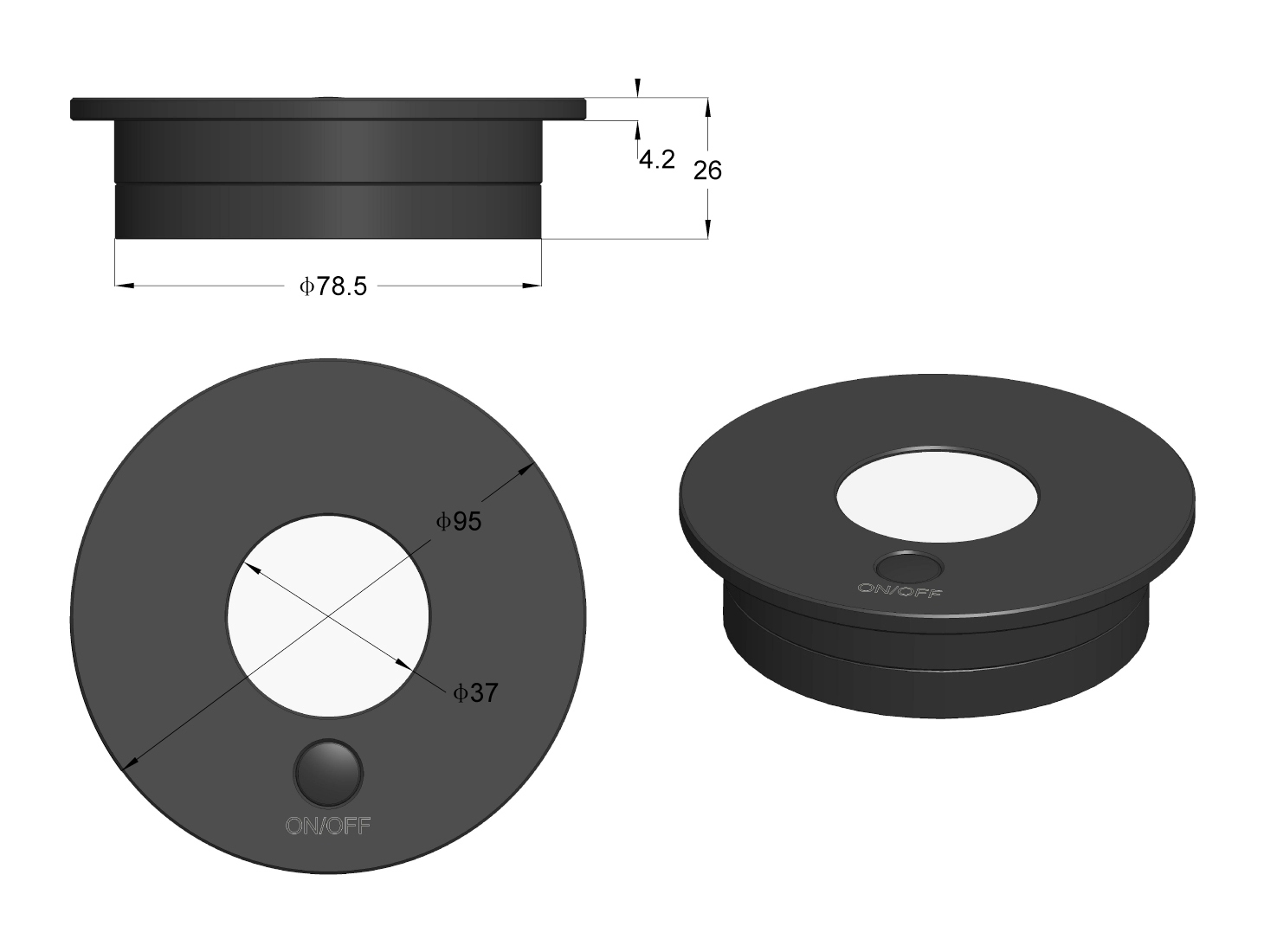

TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination
TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination
TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination

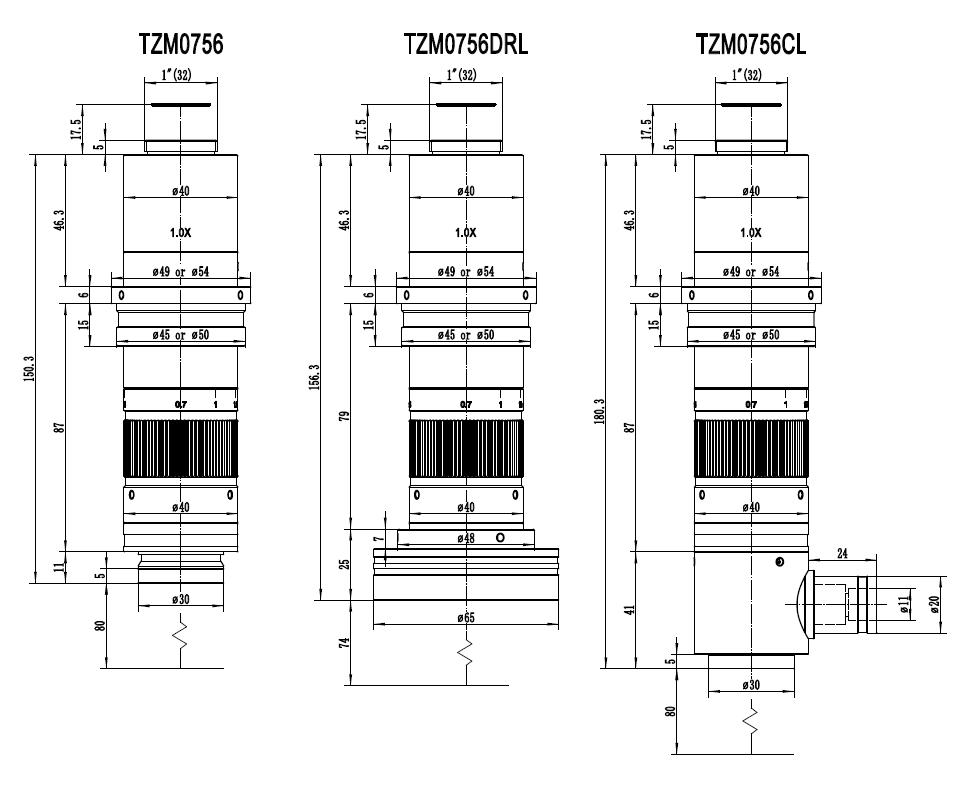

Configuration and Dimensions

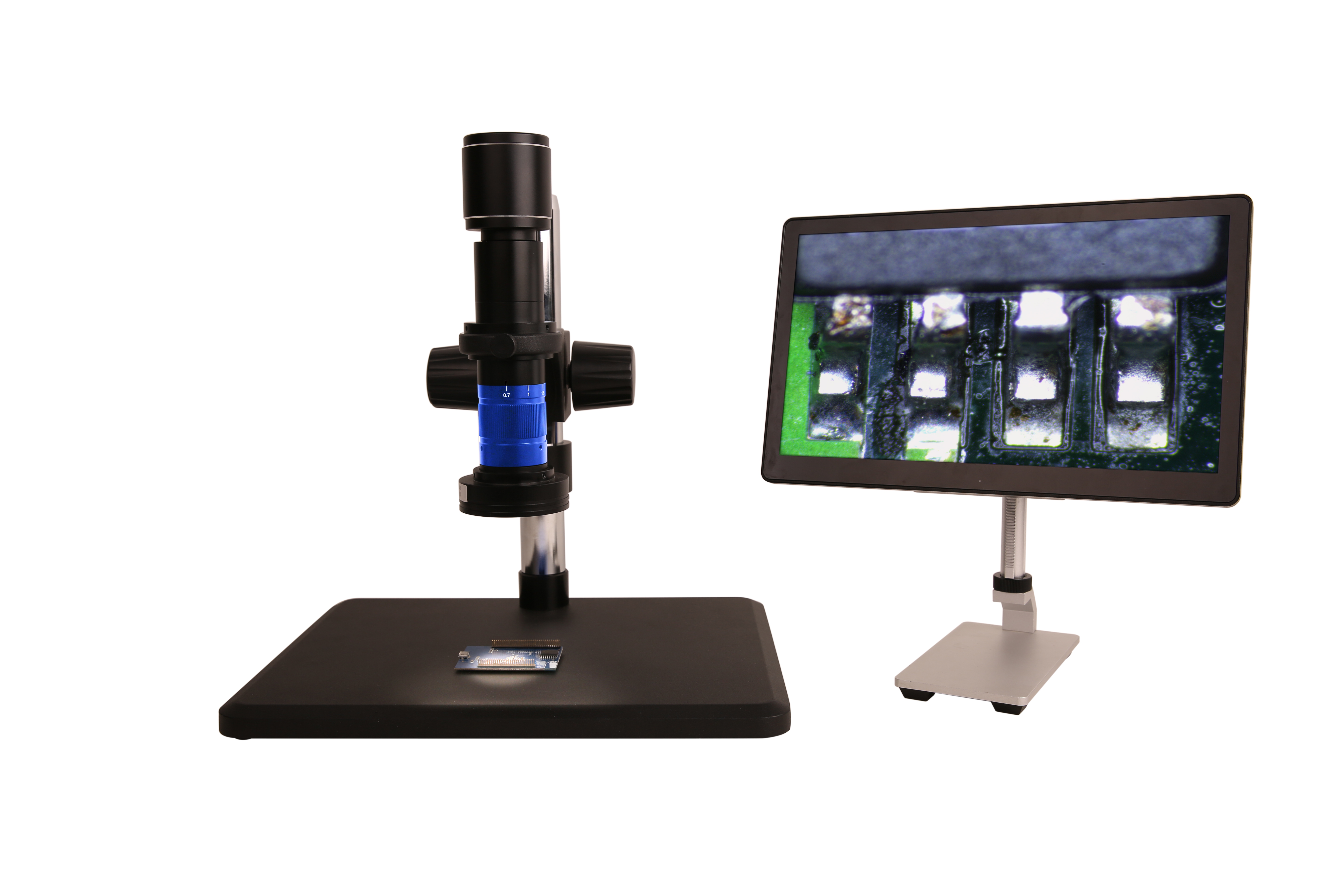

TZM0756-W100-TV100 + TZM0756DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-10A + SCR
TZM0756-W100-TV100 + TZM0756DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-10A + SCR
TZM0756-W100-TV100 + TZM0756DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-10A + SCR

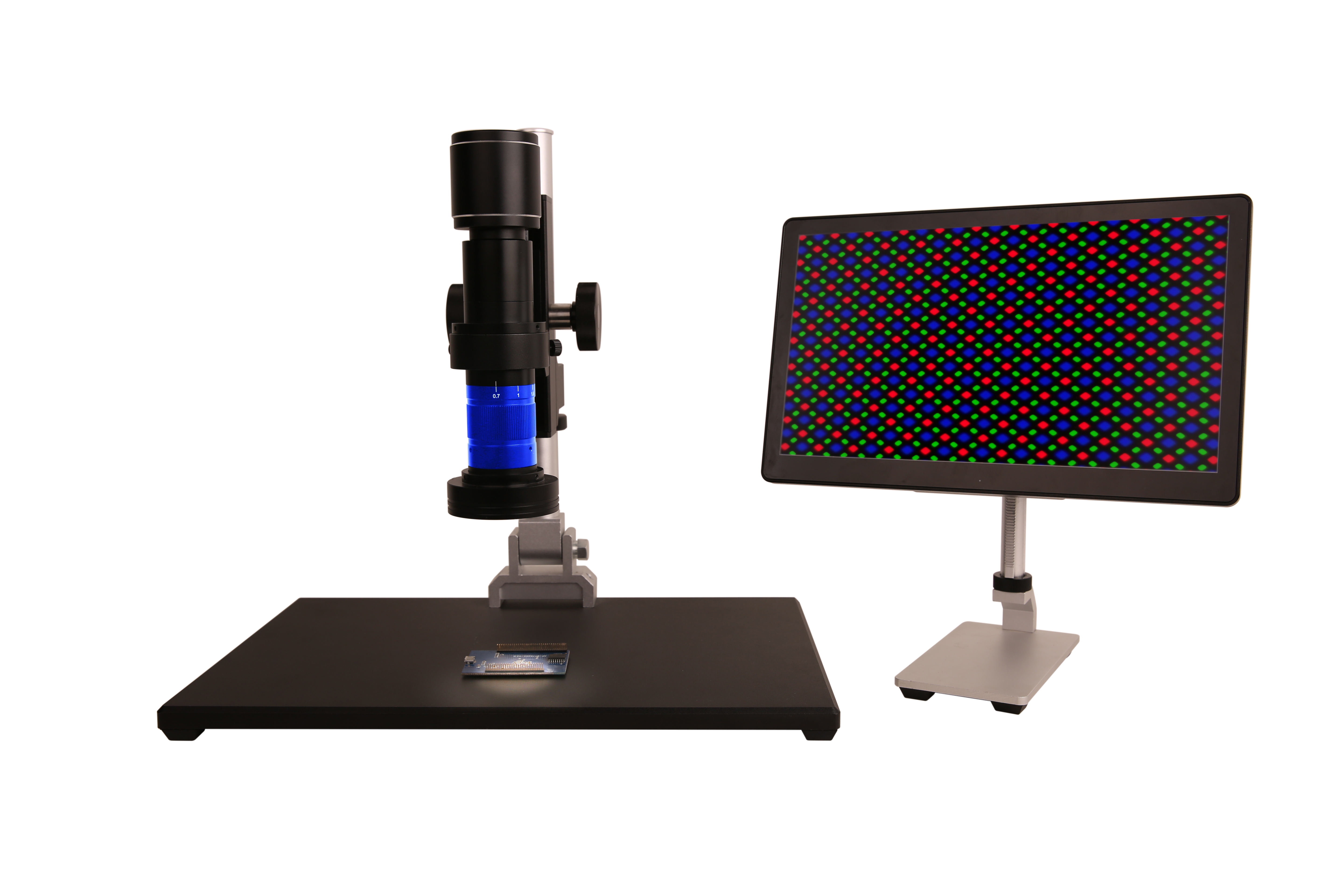

TZM0756-W100-TV100 + TZM0756DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-20A + SCR
TZM0756-W100-TV100 + TZM0756DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-20A + SCR
TZM0756-W100-TV100 + TZM0756DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-20A + SCR

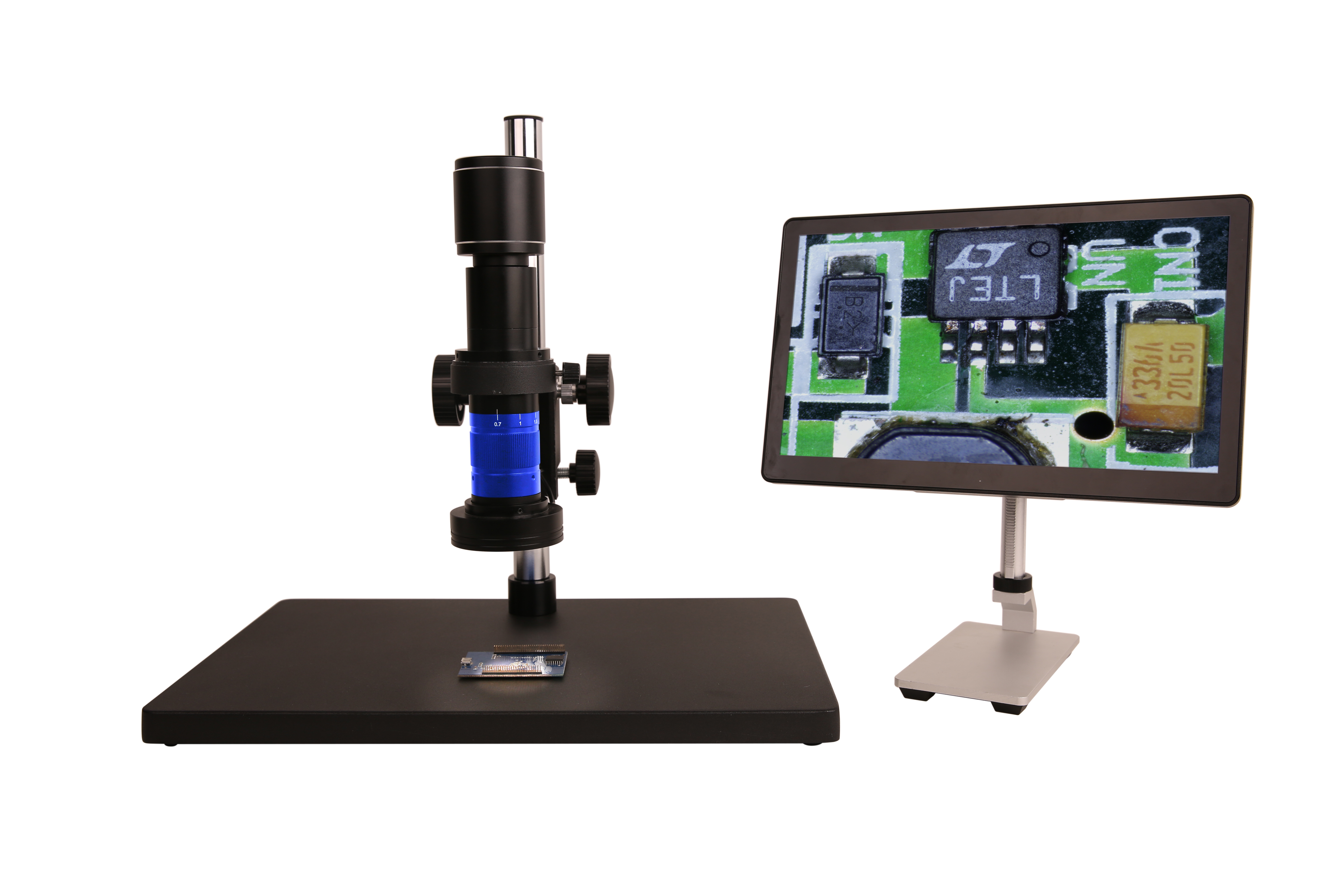

TZM0756-W100-TV100 + TZM0756DRL + HDMI Camera XCAMLite1080PA (Round) + TPS-200A + SCR
TZM0756-W100-TV100 + TZM0756DRL + HDMI Camera XCAMLite1080PA (Round) + TPS-200A + SCR
TZM0756-W100-TV100 + TZM0756DRL + HDMI Camera XCAMLite1080PA (Round) + TPS-200A + SCR

Packaging List

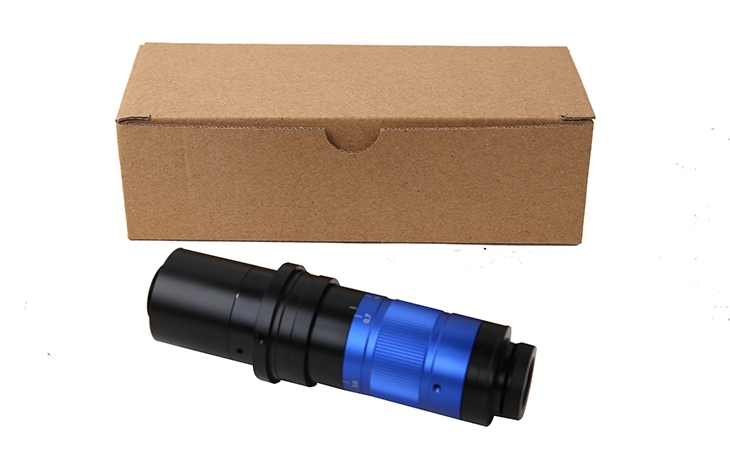

Packaging Image of TZM0756 Series MZO Main Body with Optional Bracket A45 or A50

TZM0756 main body, including auxiliary lens, zoom body, and TV lens, plus camera adapter tube + bracket adapter
Packaging Image of TZM0756 Main Body with Optional Bracket A45 or A50

TZM0756 Series MZO Main Body, including Auxiliary Lens, Zoom Body and TV Lens (can be TZM0756-W2100-TV2050, TZM0756-W2100-TV2075, TZM0756-W2075-TV2050, or TZM0756-W2075-TV2075) plus Camera Adapter Tube + Bracket Adapter

TZM0756DRL-65, including LED ring light + power adapter
TZM0756DRL-65, including LED Ring Light + Power Adapter
