TZM015120 Product Introduction

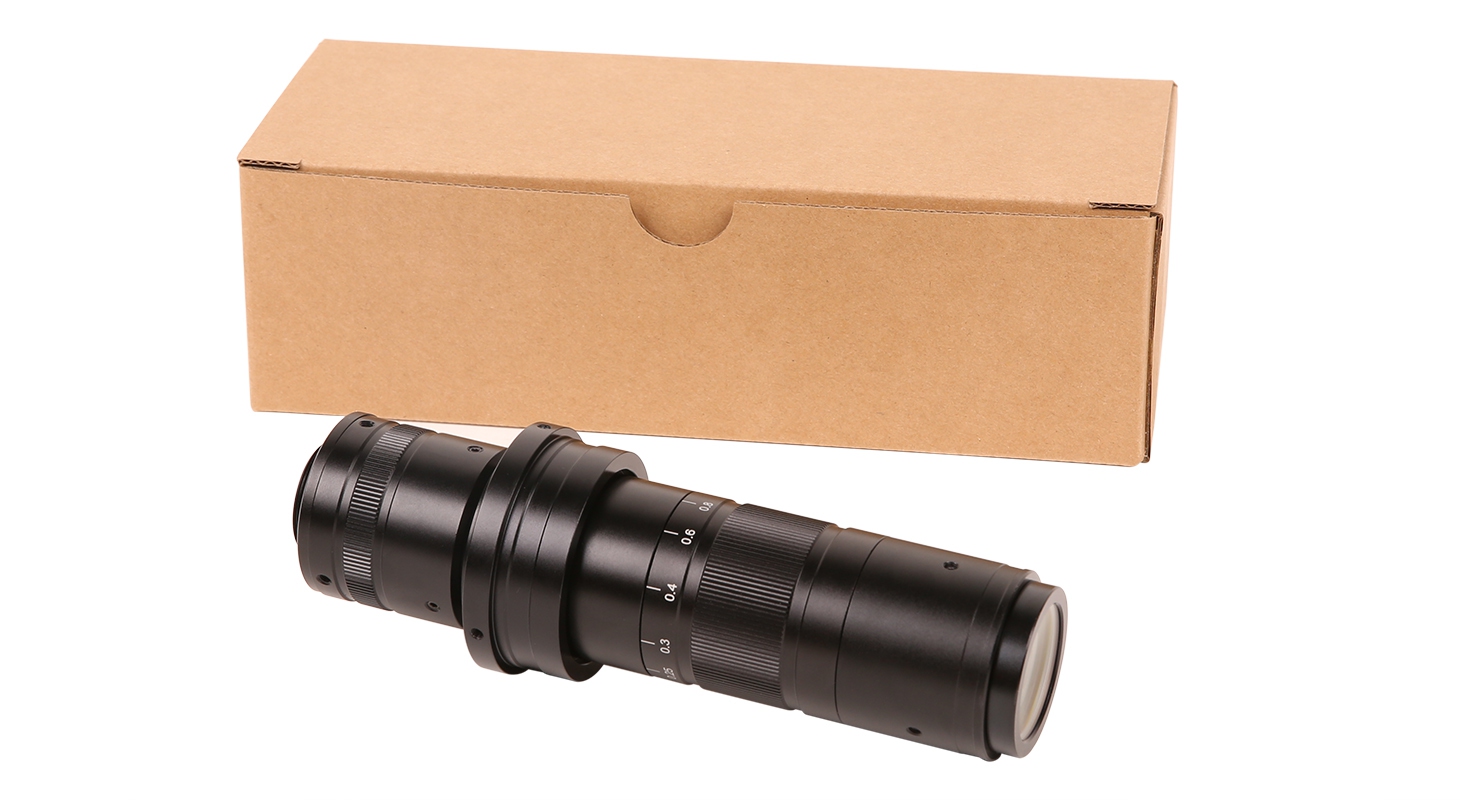

TZM015120 series MZO (Monocular Zoom Objective, single-tube continuous zoom microscope) adopts a dual-end parallel optical path modular design concept. It features excellent optical performance, low magnification, a large field of view, and strong customization options. It is specifically designed for machine vision inspection, industrial inspection, scientific research, and educational applications.

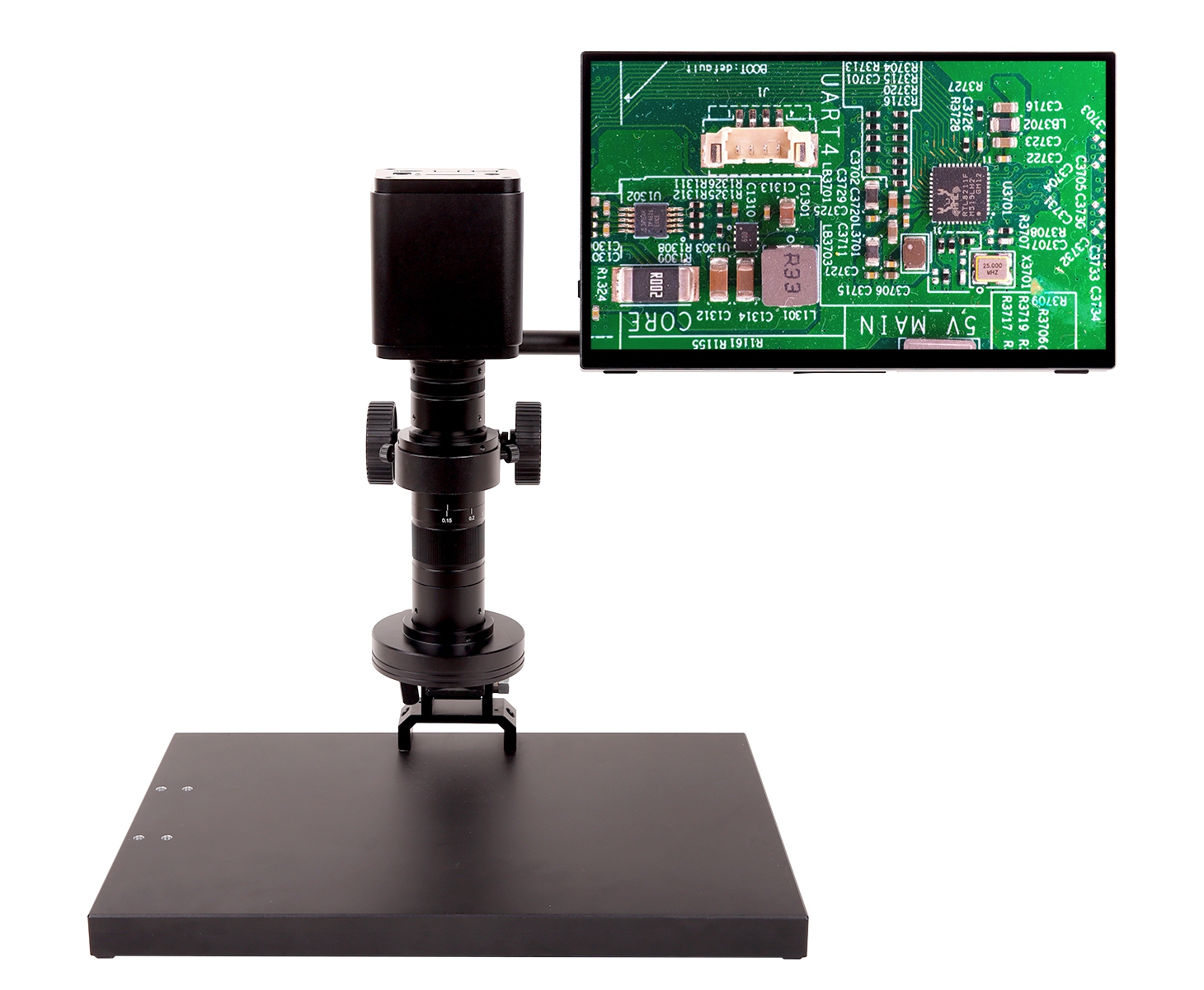

The standard configuration of the TZM015120 series MZO is TZM015120-W4100-TV4100-A50, with the following features:

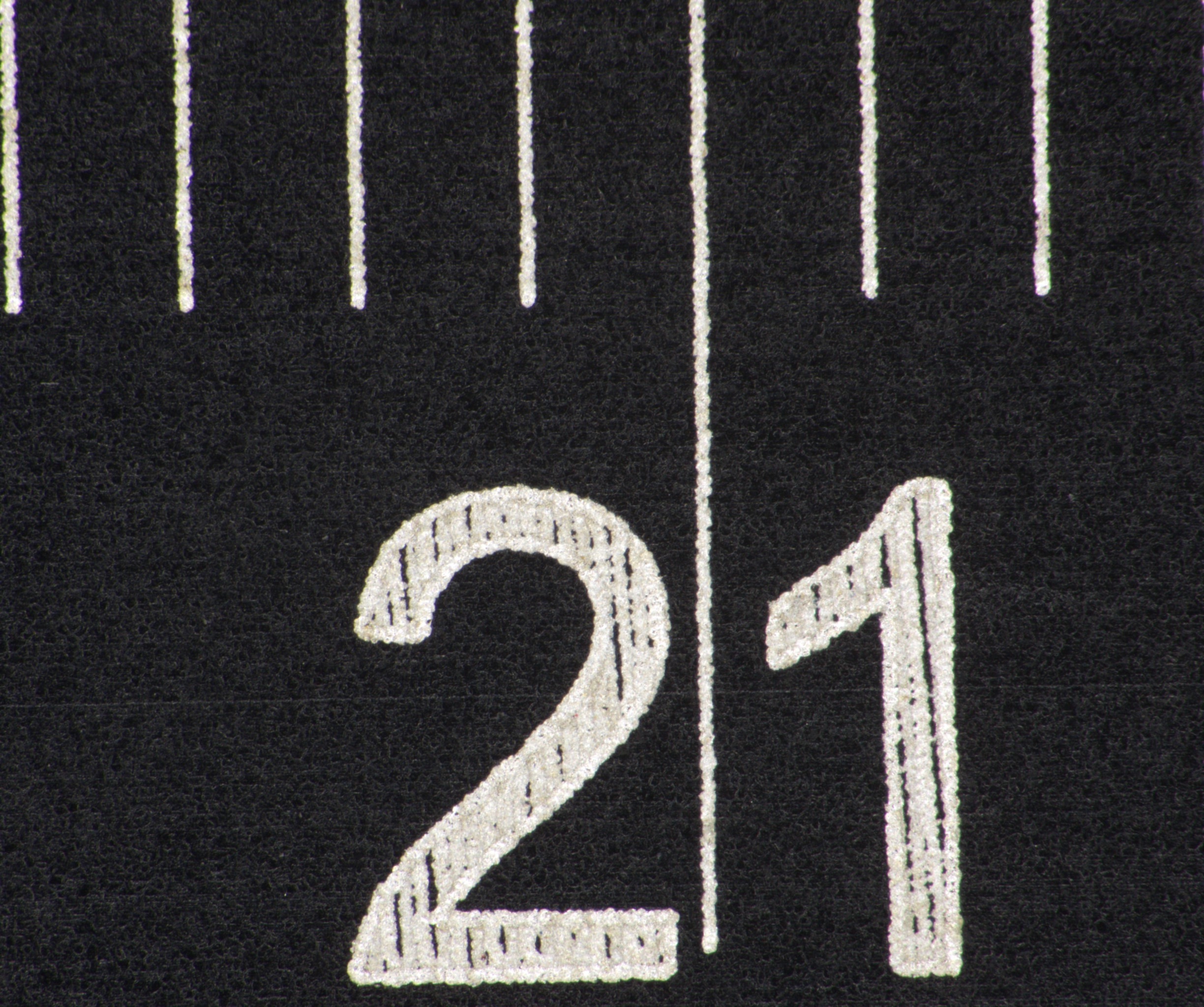

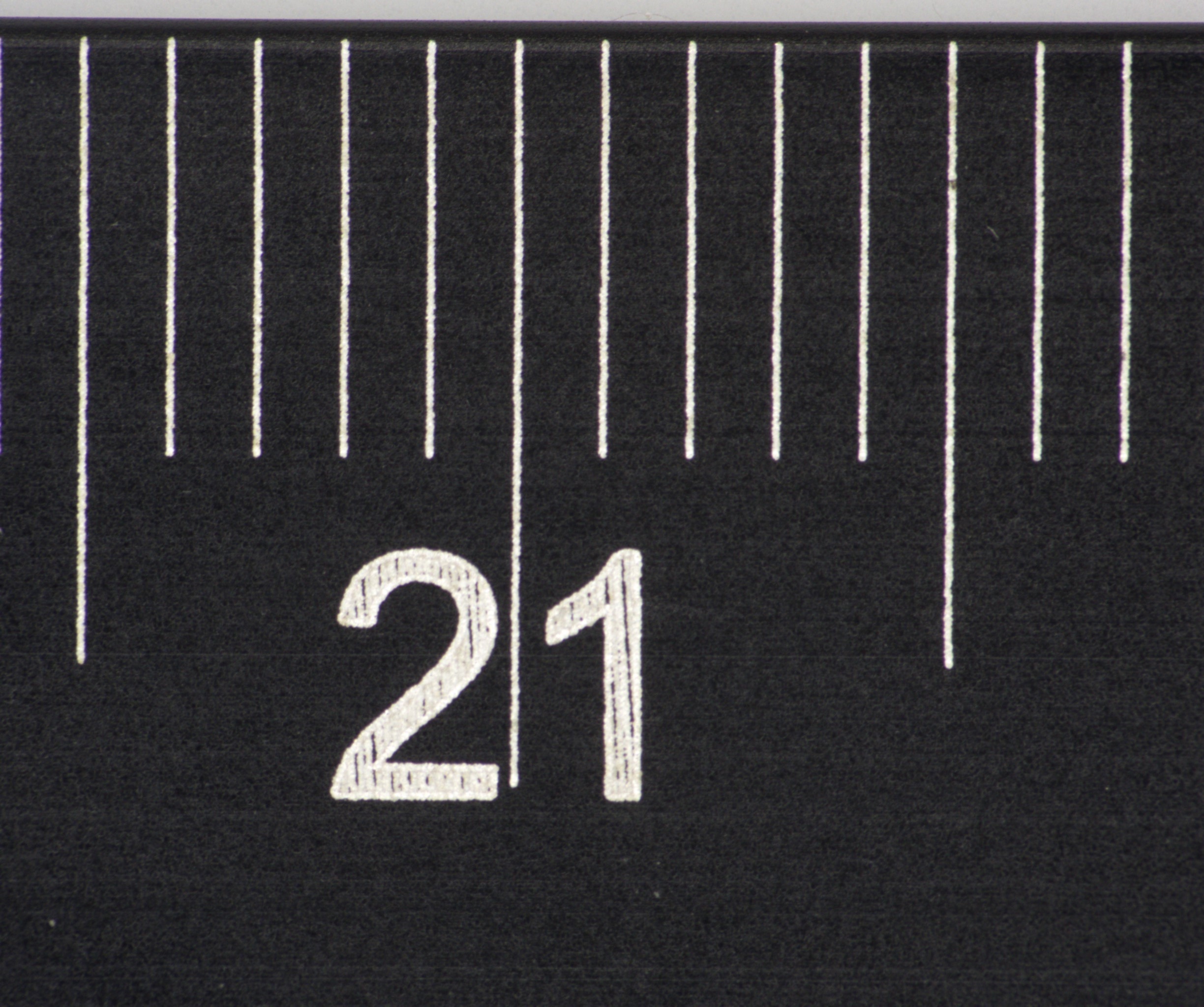

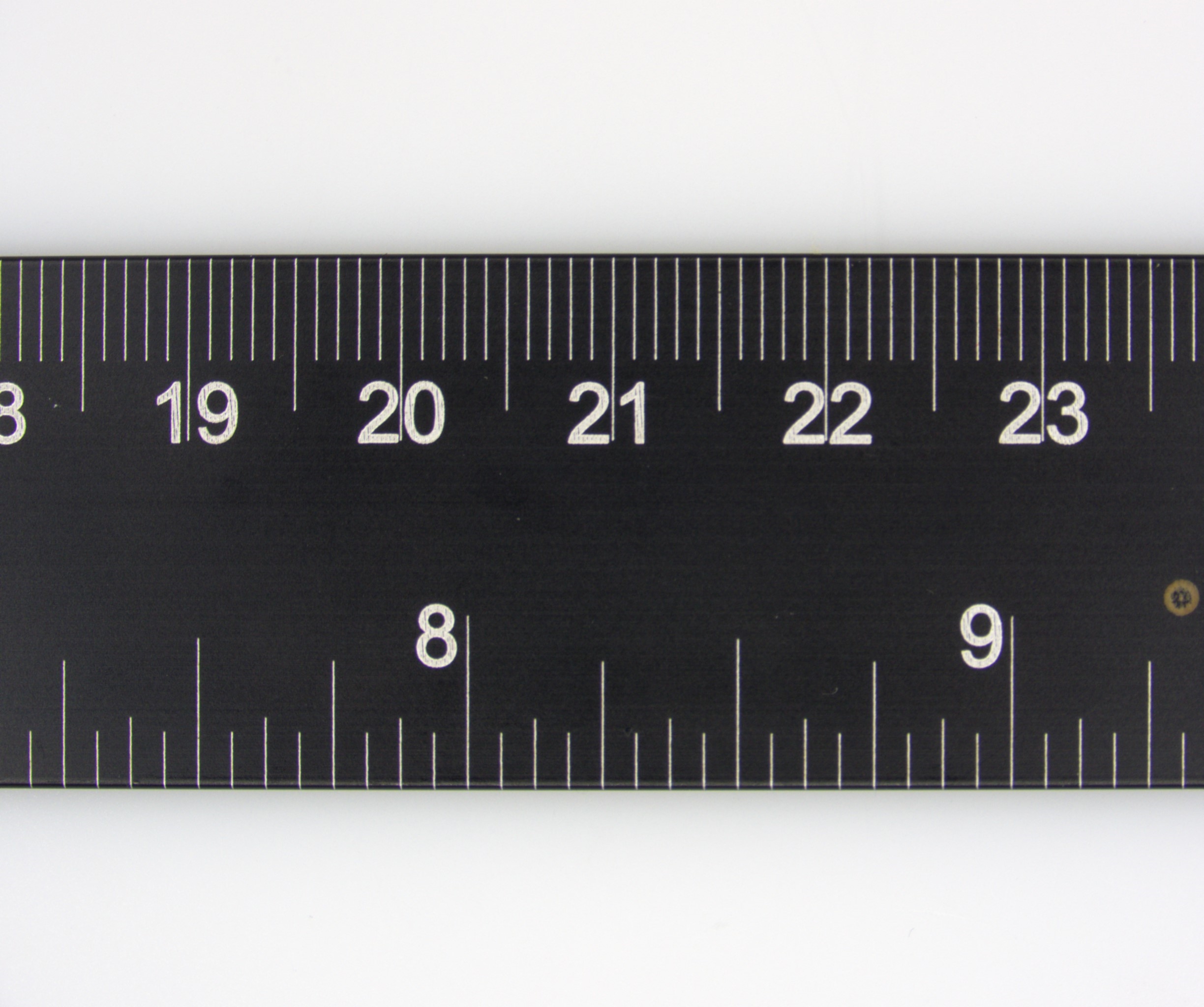

- Continuous zoom range of 0.15X–1.20X (low magnification, large field of view) with a zoom ratio of 8X
- Large NA: 0.0083–0.046 (using a 1X auxiliary objective)

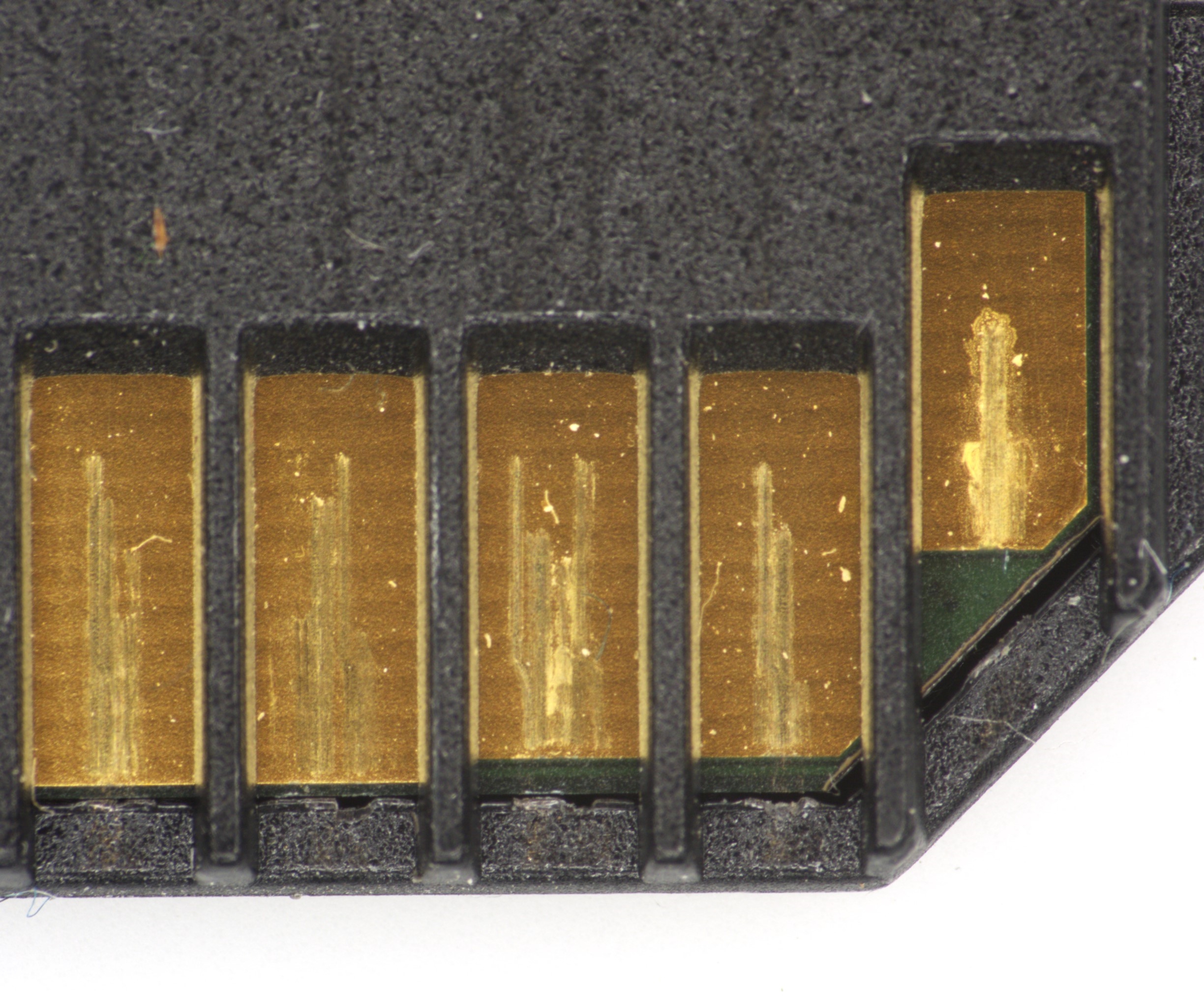

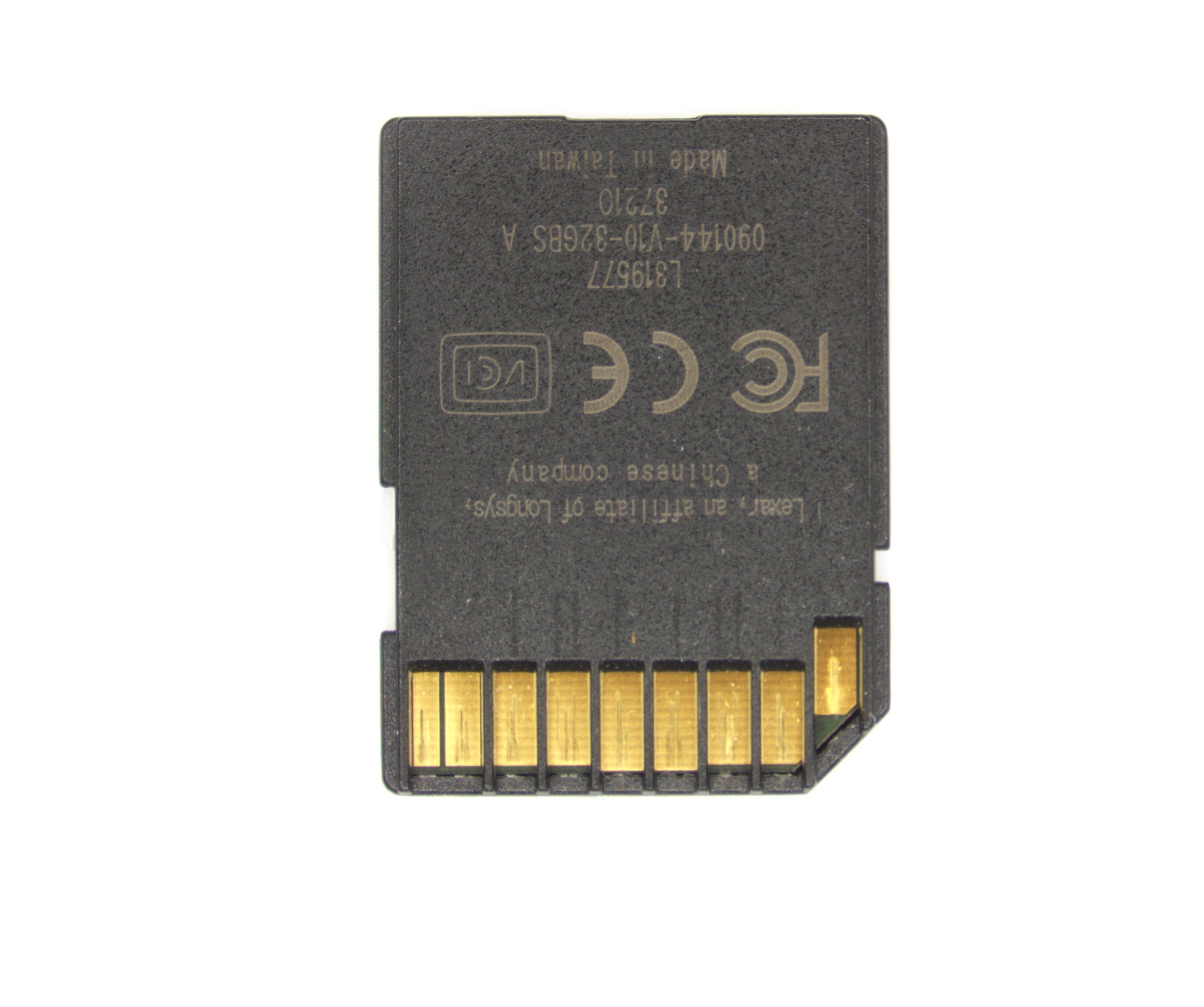

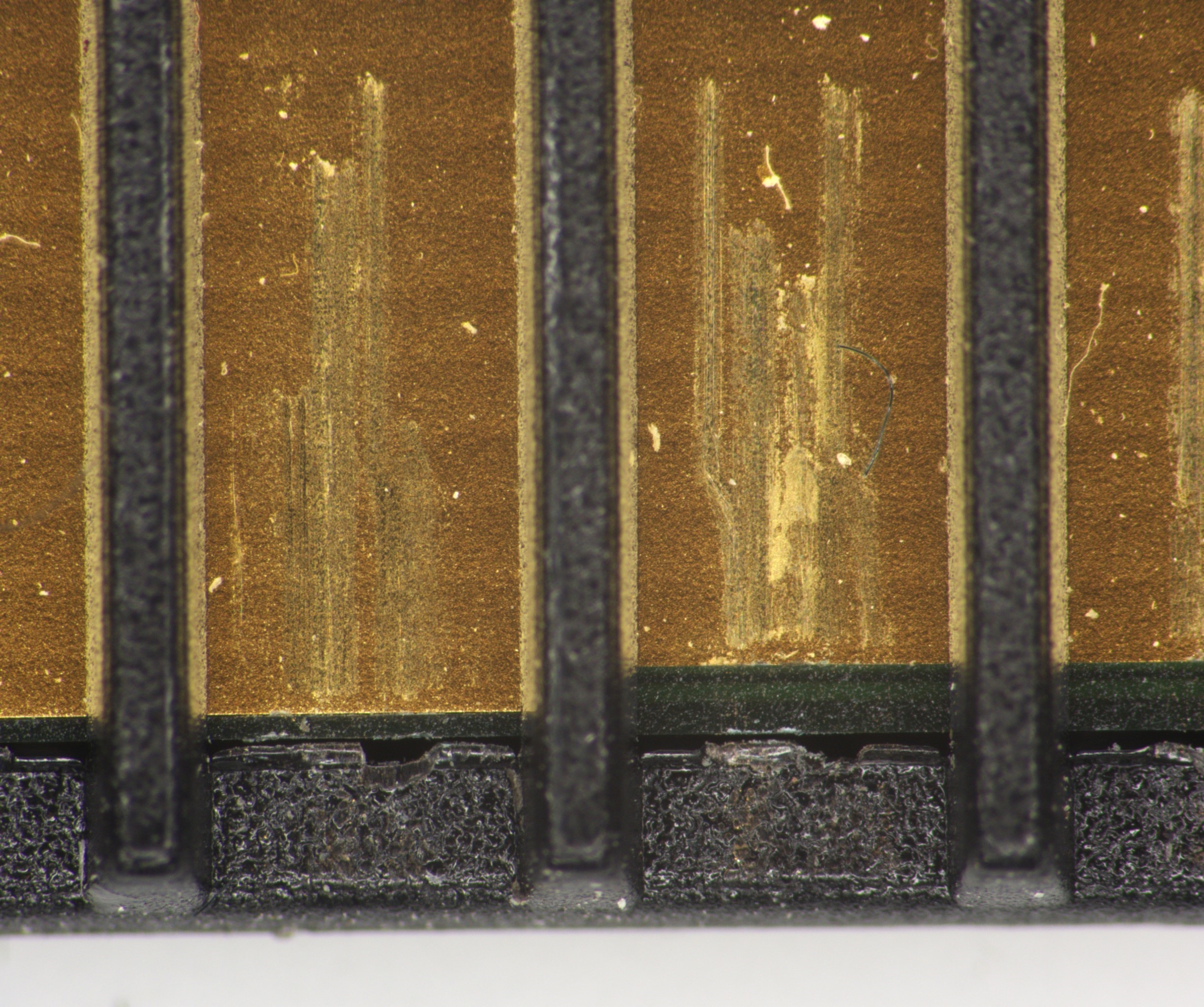

- High resolution: 33.1 μm–5.9 μm (using a 1X auxiliary objective)
- Maximum compatible image sensor size: 2/3 inch (using a 1X TV lens)
- Working distance: 130 mm (using a 1X auxiliary objective)
- Adjustable back focal distance, ensuring parfocal zooming
- Adjustable image center; the image center remains unchanged during zooming

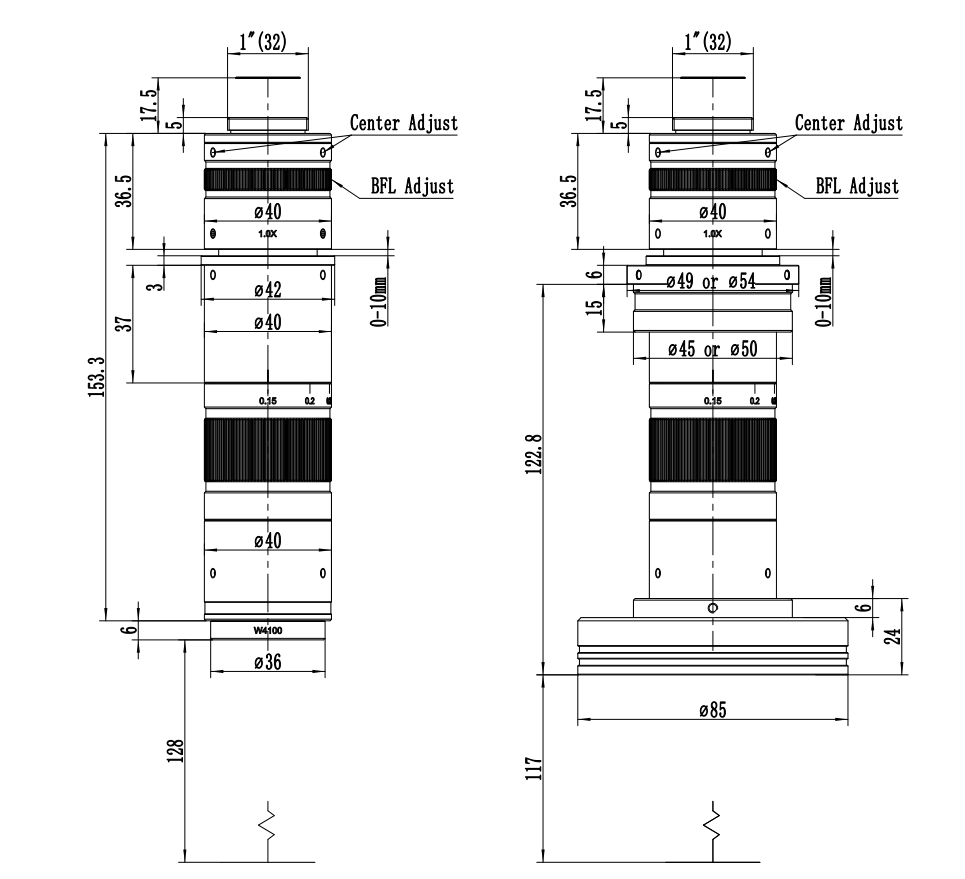

- Compact dimensions: 164 mm x 40 mm (standard model)
- Optional auxiliary objectives available at 1.00× (other magnifications can be customized)
- Optional TV lenses available at 1.00× (other magnifications can be customized)

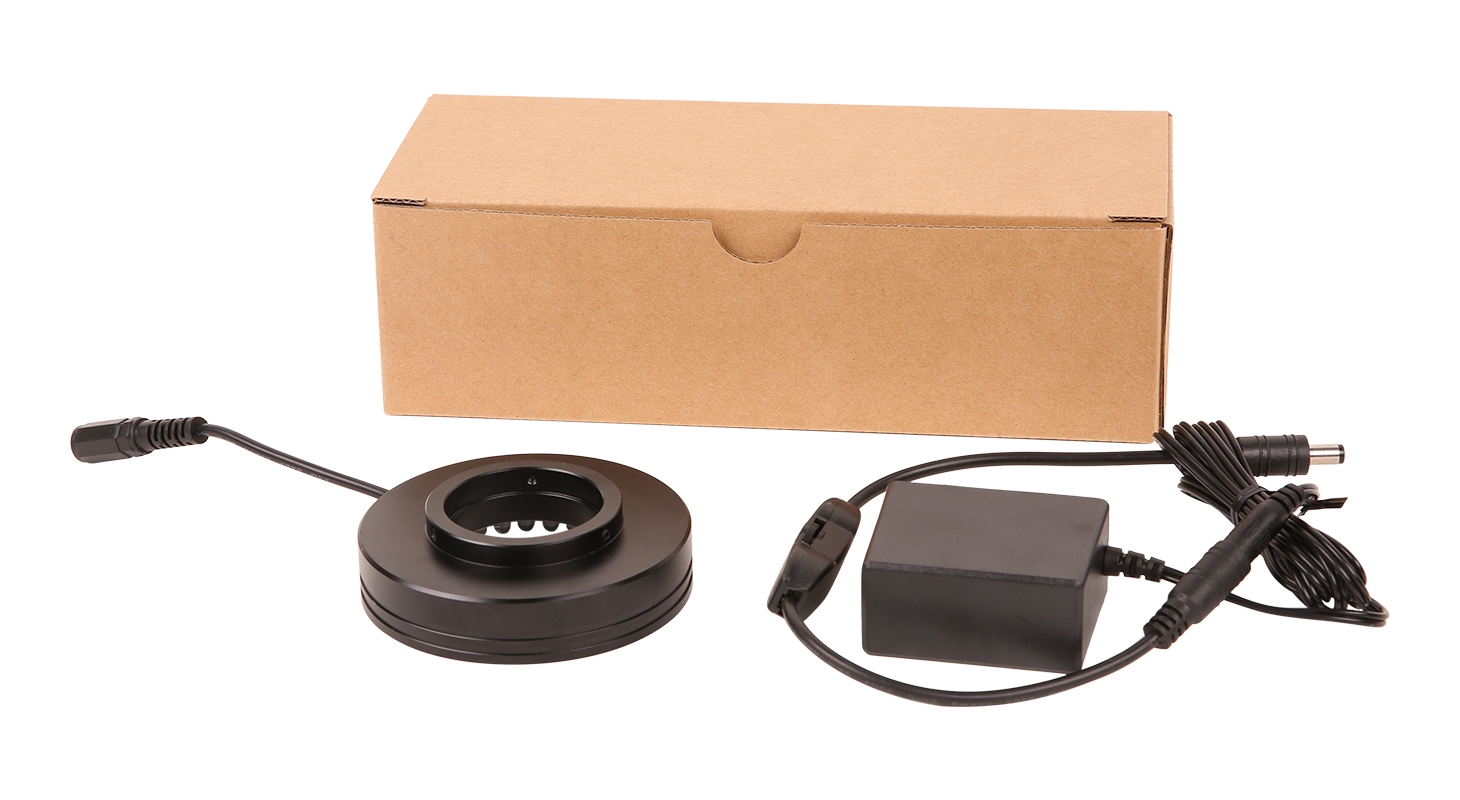

- Optional brightness-adjustable LED ring light
- Optional 45 mm or 50 mm mounting adapter
Model
WD/mm
PMAG
NA
Camera Size
FOV/mm
Resolution/um
TZM015120(D)-W4100-TV4100
130
0.15x-1.20x
0.008-0.046
1/3”
1/2”
2/3”
5.0-40.0
6.7-53.3
9.2-73.0
33.1-5.9
TZM015120(D)-W4050-TV4100
(TBD)
260
0.075x-0.60x
0.004-0.023
1/3”
1/2”
2/3”
10.0-80.0
13.4-106.6
18.4-146.0
68.0-11.9
TZM015120(D)-W4075-TV4100
(TBD)
173
0.1125x-0.90x
0.006-0.035
1/3”
1/2”
2/3”
6.7-53.3
8.9-71.1
12.3-97.3
45.8-7.9
TZM015120(D)-W4150-TV4100
(TBD)
86
0.225x-1.8x
0.012-0.069
1/3”
1/2”
2/3”
3.3-26.7
4.5-35.5
6.1-48.7
22.9-4.0
TZM015120(D)-W4200-TV4100
(TBD)
65
0.3x-2.4x
0.016-0.092
1/3”
1/2”
2/3”
2.5-20.0
3.4-26.7
4.6-36.5
17.2-3.0
