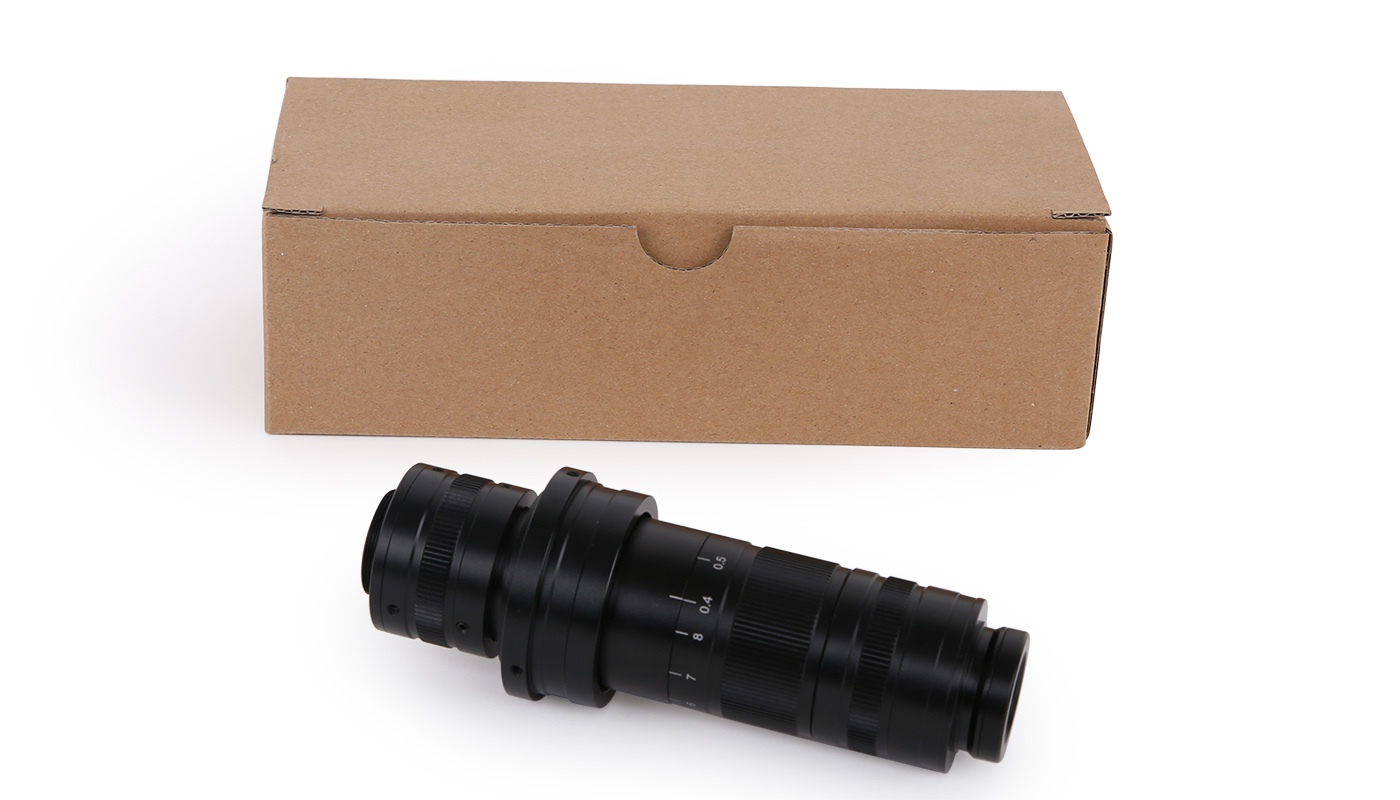

TZM0880 Series 0.8-8.0X Monocular Zoom Objective (MZO)

For Purchase/Trial/OEM/ODM, Please Contact Us

Contact Us Download Materials
ToupTek

Introduction

TZM0880 Product Introduction

TZM0880 series MZO (Monocular Zoom Objective, single-tube continuously variable magnification objective) adopts a dual-end parallel optical path modular design concept, offering excellent optical performance and high configurability. It is specially designed for applications in machine vision inspection, industrial inspection, scientific research, and education.

The standard configuration of the TZM0880 series MZO is TZM0880-W3100-TV3100-A50, with the following features:

  • Continuously variable magnification from 0.8X to 8.0X, with a magnification ratio of 10X
  • High NA: 0.02-0.11 (using a 1X auxiliary objective)
  • High resolution: 15.3µm to 2.45µm (using a 1X auxiliary objective)
  • Wide field of view: 0.89mm to 42.86mm
  • Maximum compatible image sensor size: 2/3 inch (using a 1X TV lens)
  • Working distance: 56mm to 248mm
  • Adjustable back focal distance with parfocal zooming
  • Fixed image center during zooming
  • Compatible with infinity-corrected biological or metallurgical objectives
  • Compact dimensions: 194mm x 40mm (standard model)
  • Optional auxiliary objectives available in magnifications: 0.35x, 0.50x, 0.75x, 1.00x, 1.50x
  • Optional TV lenses available in magnifications: 0.50x, 0.75x, 1.00x
  • Optional adjustable brightness LED ring light
  • Optional adjustable brightness LED ring polarizing light
  • Optional adjustable brightness LED coaxial illumination
  • Optional high-brightness LED transmitted bottom light
  • Optional 45mm or 50mm adapter for mounting

TZM0880 Series MZO Naming Rules

TZM0880

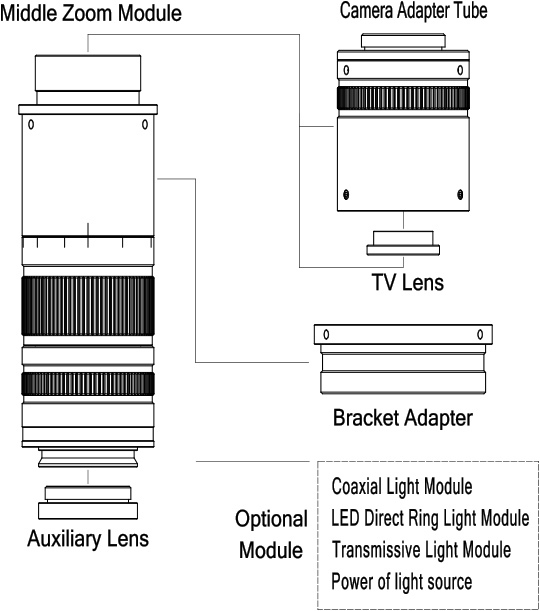

The TZM0880 series MZO consists of five basic modules, as shown in the diagram on the left. The five basic modules are: the continuous zoom body, the auxiliary objective, the TV lens, the mounting adapter, and the optional modules. Except for the continuous zoom body, users can choose the other modules according to their application requirements.


The final naming method for the TZM0880 series MZO is to separate the names of each module with a hyphen (“-”), forming a comprehensive name that makes it easy to identify the parameters of the MZO. For example, if you choose a continuous zoom body TZM0880D, a 1.00X auxiliary objective W3100, a 0.50X TV lens TV3050, and a 50mm mounting adapter A50, then the name of the continuous zoom microscope becomes: TZM0880D-W3100-TV3050-A50

Currently available TZM0880a modules: TZM0880 (standard version, with “a” omitted) and TZM0880D (D indicates fixed zoom).

Currently available W3bbb modules: W3100, W3035, W3050, W3075, W3150.

Currently available TV3ccc modules: TV3100, TV3050, TV3075.

Currently available Add modules: A50 and A45.

The optional modules mainly include ring light modules (standard ring light and polarized ring light) and a coaxial illumination module (consisting of a coaxial illuminator and an LED point light source).

Other magnifications of auxiliary objectives, TV lenses, and mounting adapters can be customized as needed.

Purchase and Matching

The parameters for different configurations of the TZM0880 series MZO are listed in the table below. You can determine the required combination by following these steps:

  • Determine the potential 1) FOV and 2) object-side working distance, and then select the auxiliary objective accordingly.
  • If using an infinity-corrected objective with 705, choose a lens adapter to convert from M26x0.705 to M20x0.705.
  • Based on 1) sensor size (1/x inch), 2) imaging diagonal, 3) imaging width, and 4) imaging height, determine the camera’s imaging circle size and select the appropriate TV lens.
  • Select a 45mm or 50mm mounting adapter.
  • Select an LED ring light module for reflective illumination.
  • If necessary, choose a coaxial illumination module.
  • If necessary, choose a transmitted light illumination module.
  • Select a compatible camera.

Our company offers a variety of microscopy cameras. You can refer to the Camera Selection Tool to review detailed specifications and choose the appropriate camera from the available list.

Continuous Zoom Body – Auxiliary Objective – TV Lens Combinations

Camera

Main Zoom Module-Auxiliary Lens-TV Lens

WD(mm)

PMAG

DFOV(mm)

NAO

1/3inch

TZM0880-W3035-TV3050

248

0.14X-1.4X

42.86-4.29

0.006-0.039

TZM0880-W3050-TV3050

174

0.2X-2.0X

30.00-3.00

0.009-0.056

TZM0880-W3075-TV3050

115

0.3X-3.0X

20.00-2.00

0.014-0.084

TZM0880-W3100-TV3050

86

0.4X-4.0X

15.00-1.50

0.018-0.112

TZM0880-W3150-TV3050

56

0.6X-6.0X

10.00-1.00

0.027-0.168

1/2inch

TZM0880-W3035-TV3075

248

0.21X-2.1X

38.10-3.81

0.006-0.039

TZM0880-W3050-TV3075

174

0.3X-3.0X

26.67-2.67

0.009-0.056

TZM0880-W3075-TV3075

115

0.45X-4.5X

17.78-1.78

0.014-0.084

TZM0880-W3100-TV3075

86

0.6X-6.0X

13.33-1.33

0.018-0.112

TZM0880-W3150-TV3075

56

0.9X-9.0X

8.89-0.89

0.027-0.168

2/3inch

TZM0880-W3035-TV3100

248

0.28X-2.8X

39.29-3.93

0.006-0.039

TZM0880-W3050-TV3100

174

0.4X-4.0X

27.5-2.75

0.009-0.056

TZM0880-W3075-TV3100

115

0.6X-6.0X

18.33-1.83

0.014-0.084

TZM0880-W3100-TV3100

86

0.8X-8.0X

13.75-1.38

0.018-0.112

TZM0880-W3150-TV3100

56

1.2X-12X

9.17-0.92

0.027-0.168

Related Modules

The continuous zoom body is the main component of the TZM0880 series MZO, with the code TZM0880a; here, TZM0880 indicates the continuous zoom body code and “a” represents the auxiliary function code of the continuous zoom body. The specific definitions are shown in the table below.

Continuous Zoom Body Code and Its Functions

Order Number

Meaning

TZM0880

Postfix meaning

TZM0880

Ordinary Middle Zoom Module

ZM：Zoom

0880：0.8X~8.0X

NA

TZM0880D

Middle Zoom Module with detent to fix the magnification function

D：Detent

Module 2 is the interchangeable auxiliary objective, which is connected to the bottom of the continuous zoom body (Module 1) via a threaded connection. Its code is W3bbb, where “3” is the product series number and “bbb” represents the magnification of the auxiliary objective. Auxiliary objectives with different magnifications are used to switch the overall magnification of the TZM0880 series MZO; their working distances also vary. For example, compared with the auxiliary objective W3100 with 1.00X magnification and an 86mm working distance, an auxiliary objective W3050 with 0.50X magnification will halve the overall magnification of the TZM0880 series MZO, and its working distance will extend from 86mm to about 174mm, and so on; the optical parameters of the auxiliary objectives are shown in the table below.

Auxiliary Objective

Order number

Magnification

Working distance（mmm）

W3035

0.35X

248

W3050

0.50X

174

W3075

0.75X

115

W3100

1.00X

86

W3150

1.50X

56
* The same auxiliary objective, when paired with different TV lenses, only has a minimal effect on the field of view in order to accommodate different sizes of image sensors.

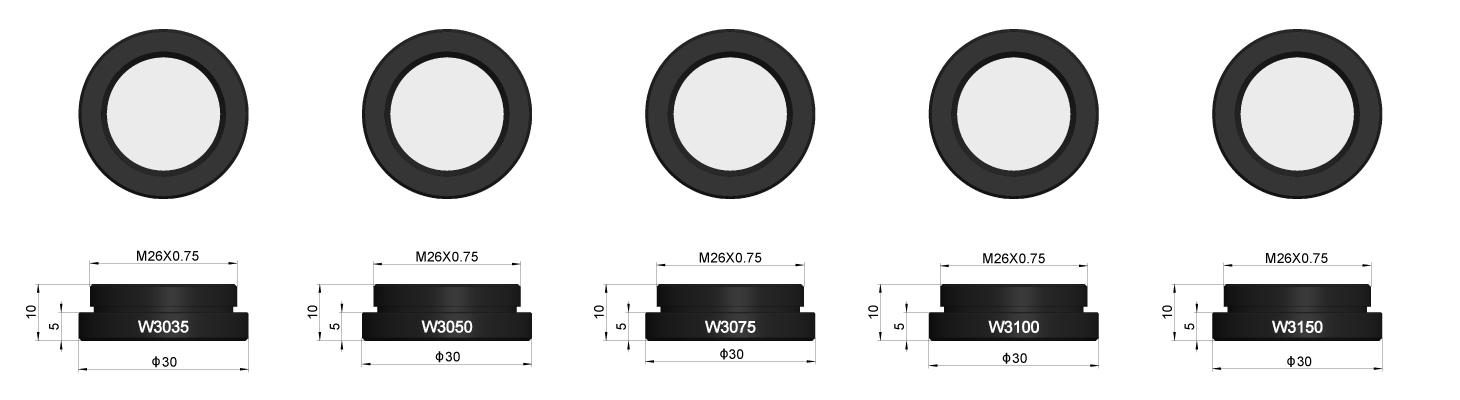

The five different magnification auxiliary objectives for TZM0880
The five different magnification auxiliary objectives for TZM0880

Module 3 is the interchangeable TV lens, which is connected to the top of the continuous zoom body (Module 1) via a threaded connection. Its code is TV3ccc, where “3” is the series number and “ccc” represents the magnification of the TV lens. It is mainly used to match image sensors of different sizes. For example, compared with the TV lens TV3100 with 1.00X, the TV lens TV3050 with 0.50X reduces the matched image sensor size by half while the field of view remains essentially unaffected; the parameters of the TV lens are shown in the table below.

TV Lens

Order number

Magnification

The maximum compatible sensor size

TV3050

0.50X

1/3"

TV3075

0.75X

1/1.8"

TV3100

1.00X

2/3"
* A TV lens with a higher magnification can also be paired with a smaller image sensor; however, this will reduce the overall field of view of the MZO.

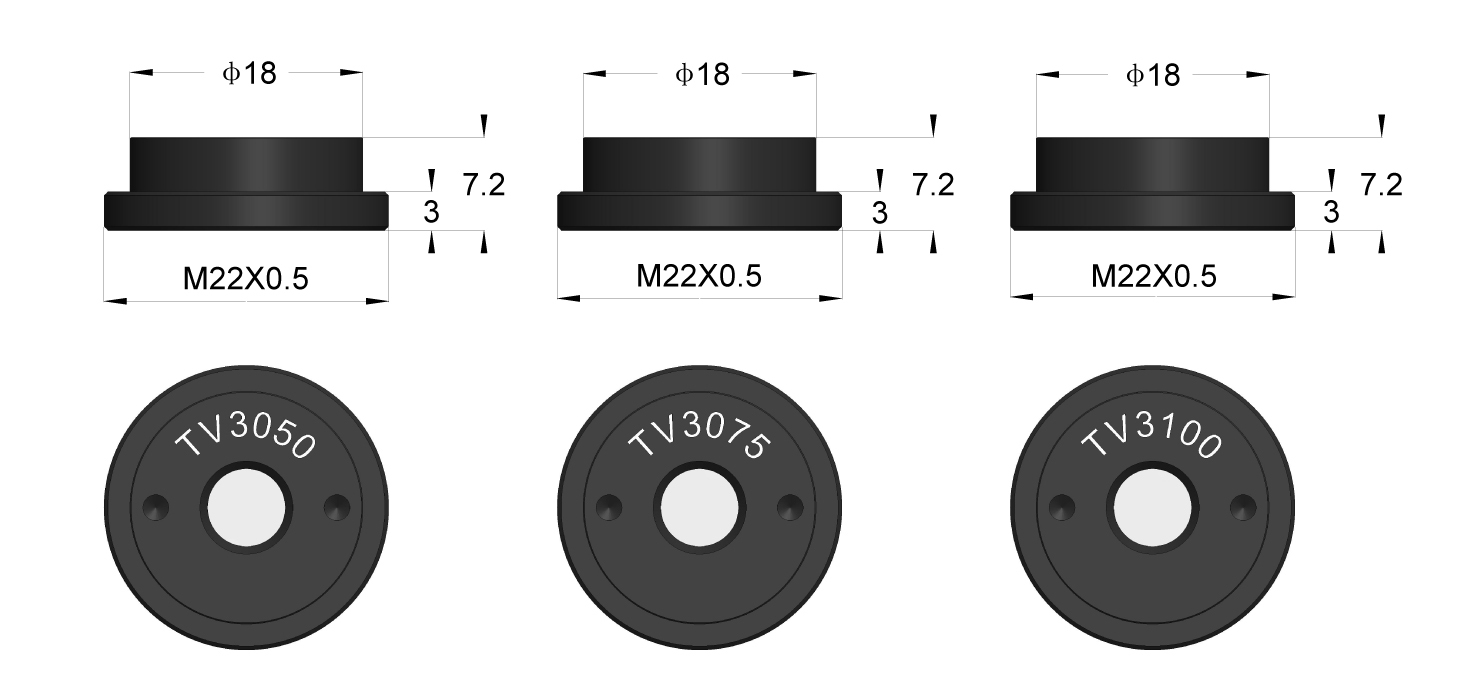

The three different magnification TV lenses for TZM0880
The three different magnification TV lenses for TZM0880

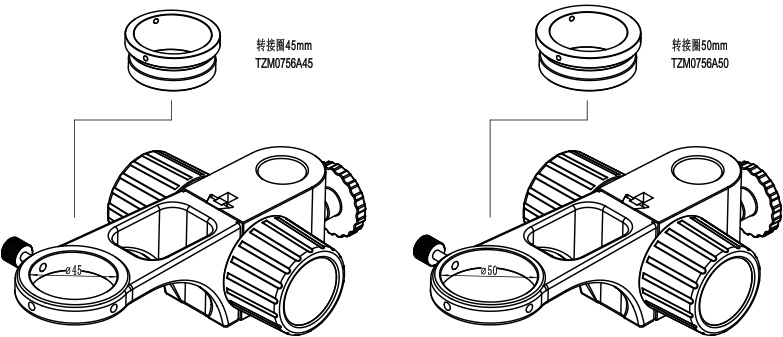

Module 4 is the mounting adapter, used to adapt mounts of different diameters and is installed between the continuous zoom body modules. Its code is Add, with “dd” indicating the mount diameter; available in 45mm and 50mm versions. The mounting adapter and the mount installation method are shown in the diagram below.

TZM0880 series MZO Mounting Adapter
TZM0880 series MZO Mounting Adapter

The optional modules mainly include ring light modules (both standard and polarized ring lights) and a coaxial illumination module (consisting of a coaxial illuminator and LED point light source). The details of the optional modules are shown in the table below.

Light Source Modules Compatible with the TZM0640 Series MZO

Module Name

Model

Model Description

LED Ring Light Module

TZM0756DRL-65/85

LED Ring Light

TZM0756DRPL-65

LED Polarized Ring Light

Coaxial Illumination Module

TZM0756CL+TZM0756SL

Coaxial Illuminator + LED Point Light (3W)

Transmitted Illumination Module

TZM0756TL

LED Transmitted Backlight

LED Light Power Supply

40600014

Power Adapter 12V/1A (US Standard)

40600015

Power Adapter 12V/1A (EU Standard)

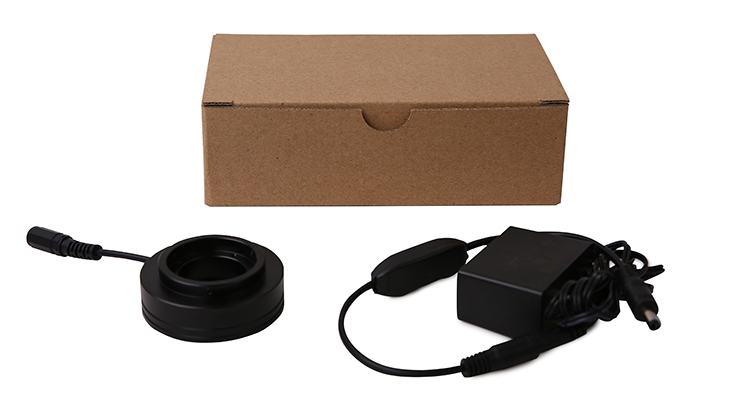

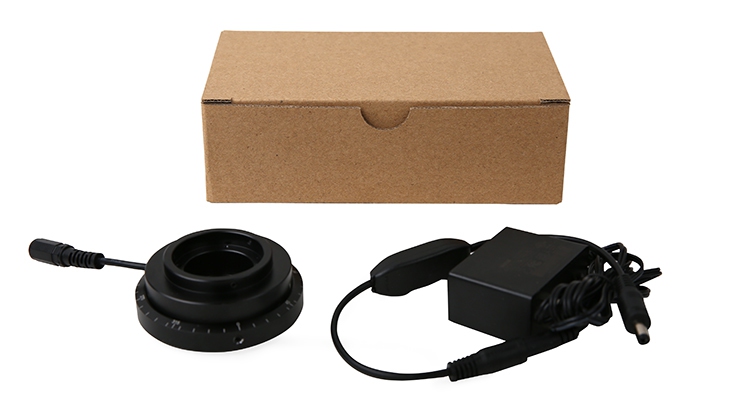

TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination
TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination
TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination

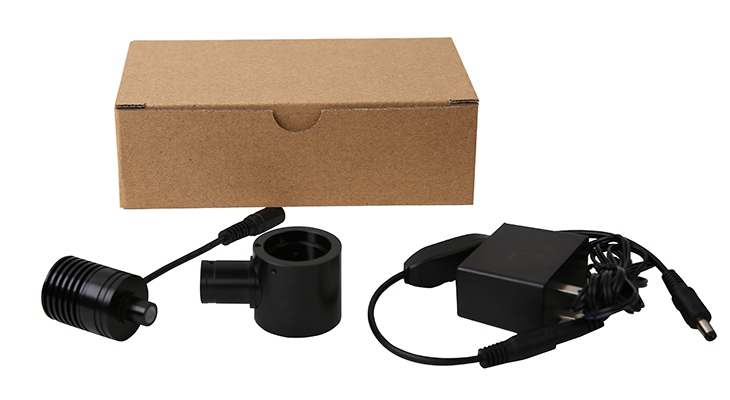

TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination
TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination
TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination

Configuration and External Dimensions

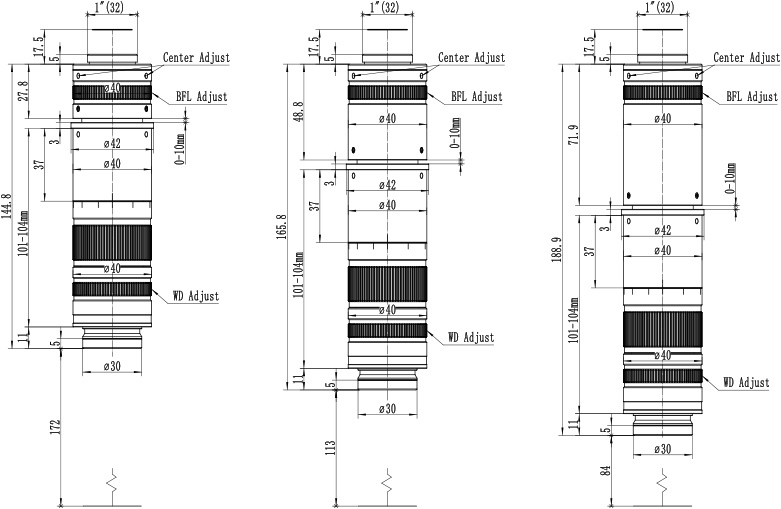

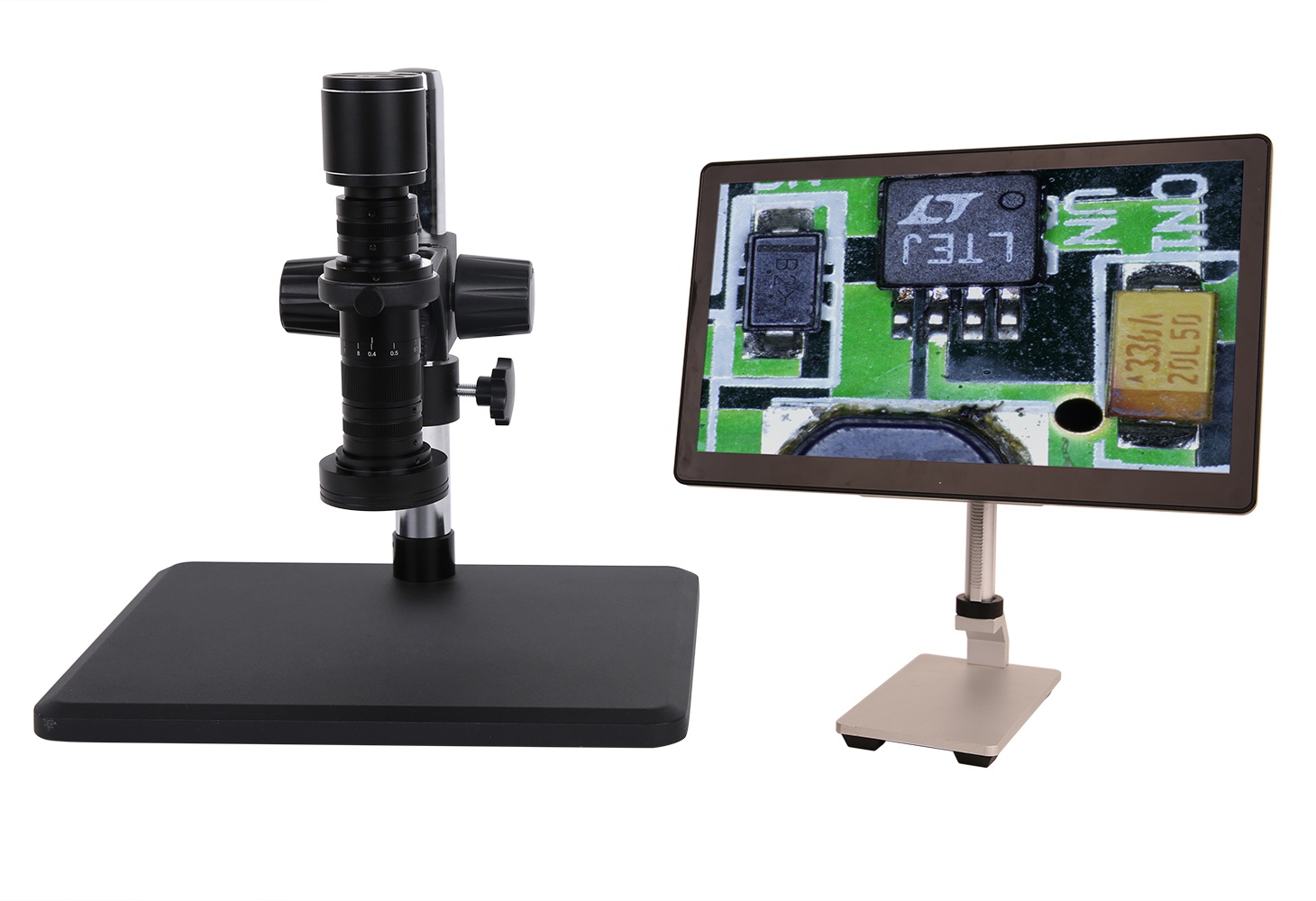

The dimensions for the TZM0880 Series MZO, configured with auxiliary objectives and TV lenses of different magnifications, are shown in the diagram below. For example, the overall length of the TZM0880-W3100-TV3100 configuration is 194mm.

Dimension Diagram for TZM0880 Series MZO Configured with Different Auxiliary Objectives and TV Lenses
Dimension Diagram for TZM0880 Series MZO Configured with Different Auxiliary Objectives and TV Lenses
Left) TZM0880-W3050-TV3050; Middle) TZM0880-W3075-TV3075; Right) TZM0880-W3100-TV3100

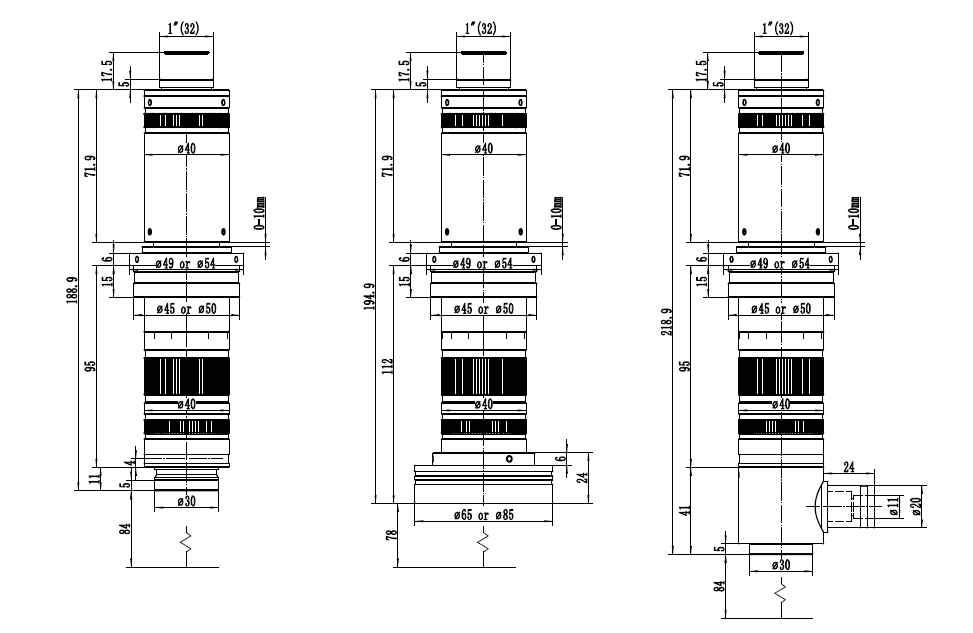

Dimensions of the Standard Model and Configurations with Different Lighting Options for the TZM0880 Series MZO
Dimensions of the Standard Model and Configurations with Different Lighting Options for the TZM0880 Series MZO
Left) Standard TZM0880 model; Middle) TZM0880 with standard ring light; Right) TZM0880 with coaxial lighting

TZM0880-W100-TV100 + TZM0880DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-10A + SCR
TZM0880-W100-TV100 + TZM0880DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-10A + SCR
TZM0880-W3100-TV3050 + TZM0756DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-20A + SCR

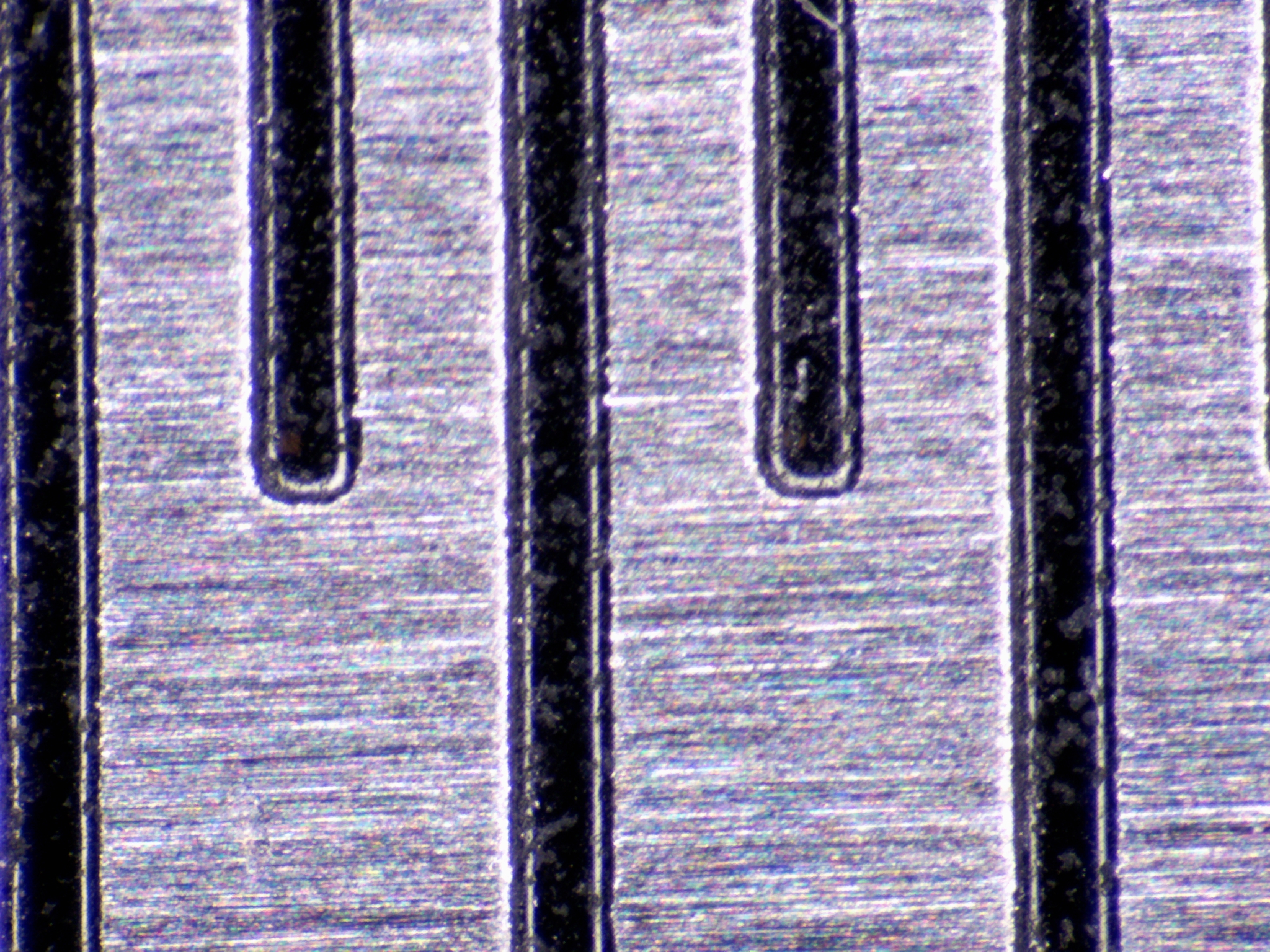

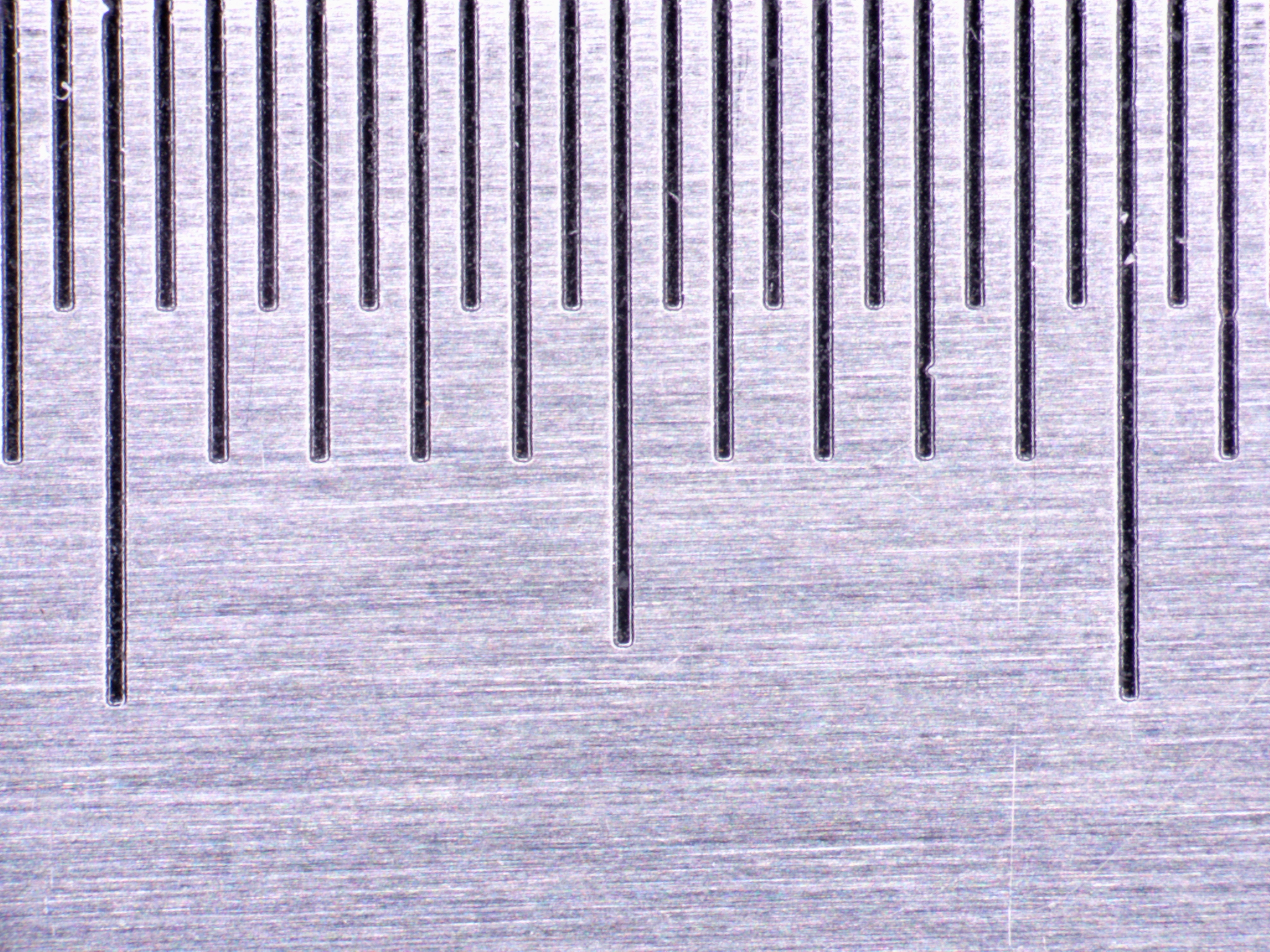

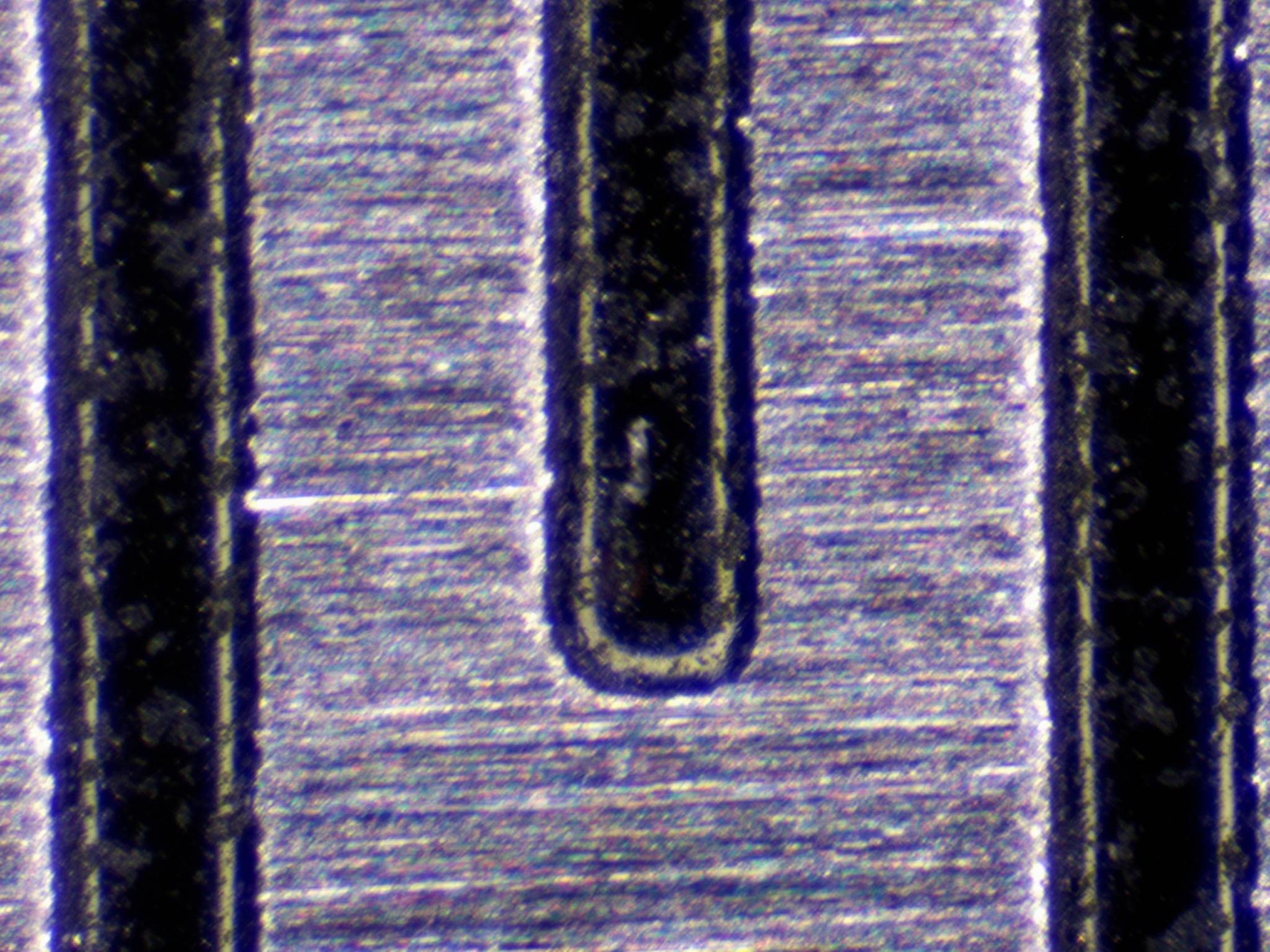

Steel Ruler Images Captured by TZM0880-W3100-TV3050 with Ring Light – Left: 0.8X, Middle: 4.0X, Right: 8.0X
TZM0880-W5100-TV5100 0.3X
TZM015120-W5100-TV5100 1.2X
TZM015120-W5100-TV5100 2.5X
Steel ruler images captured by TZM0880-W3100-TV3050 with ring light – Left: 0.8X, Middle: 4.0X, Right: 8.0X

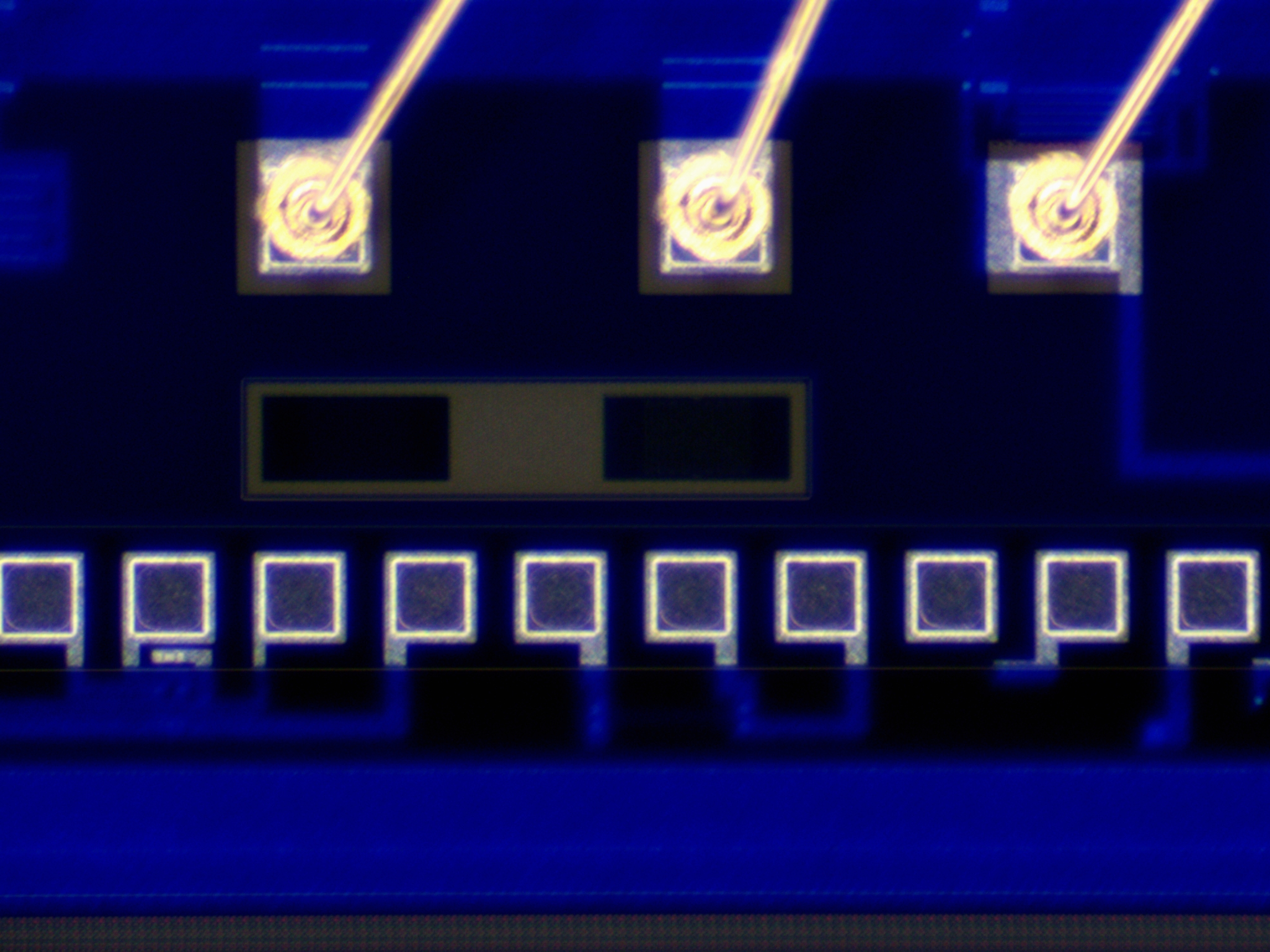

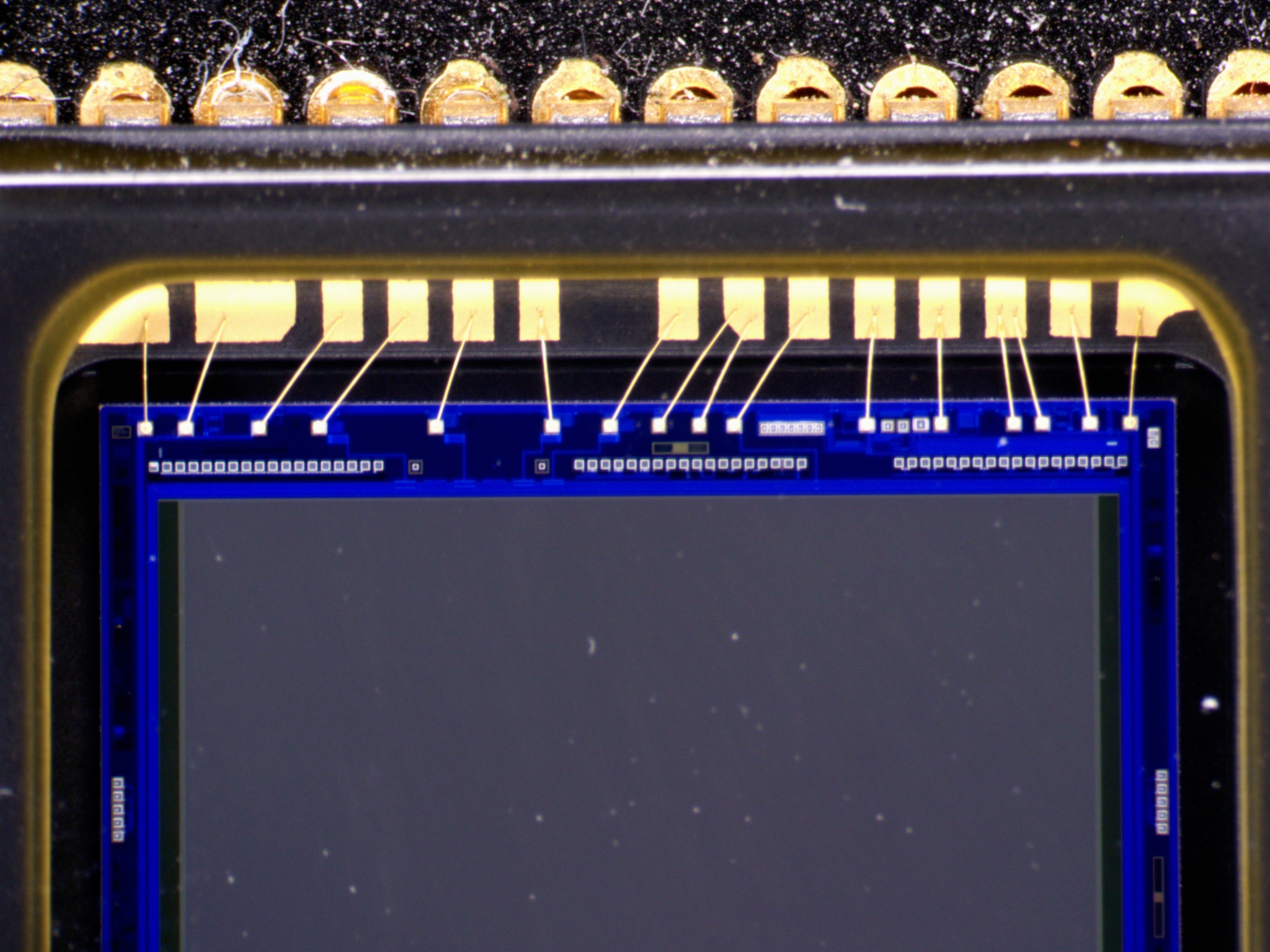

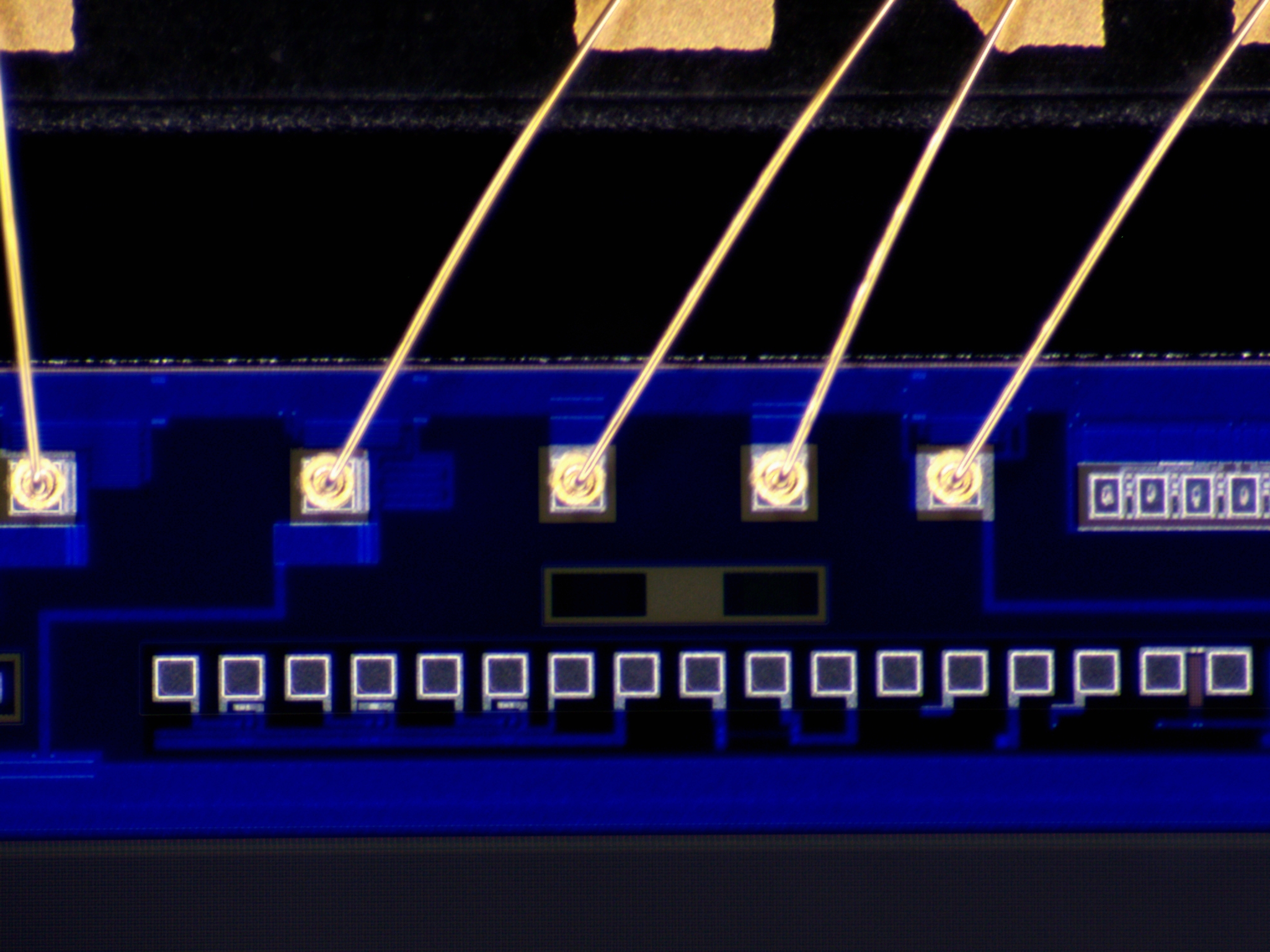

CCD Images Captured by TZM0880-W3100-TV3050 – Left: 0.8X, Middle: 4.0X, Right: 8.0X
TZM015120-W5100-TV5100 0.3X
TZM015120-W5100-TV5100 1.2X
TZM015120-W5100-TV5100 2.5X
CCD images captured by TZM0880-W3100-TV3050 – Left: 0.8X, Middle: 4.0X, Right: 8.0X

Packaging List
