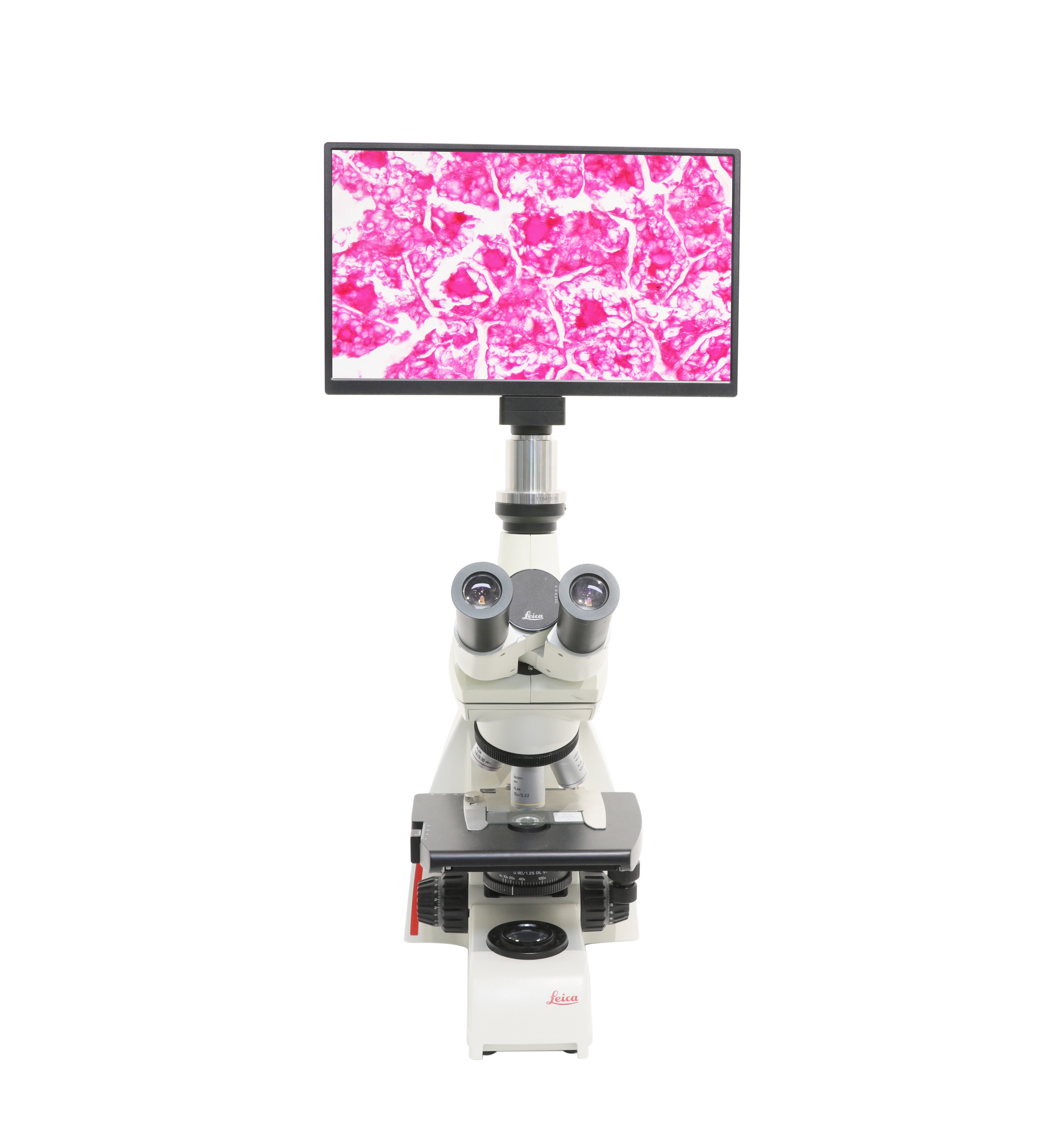

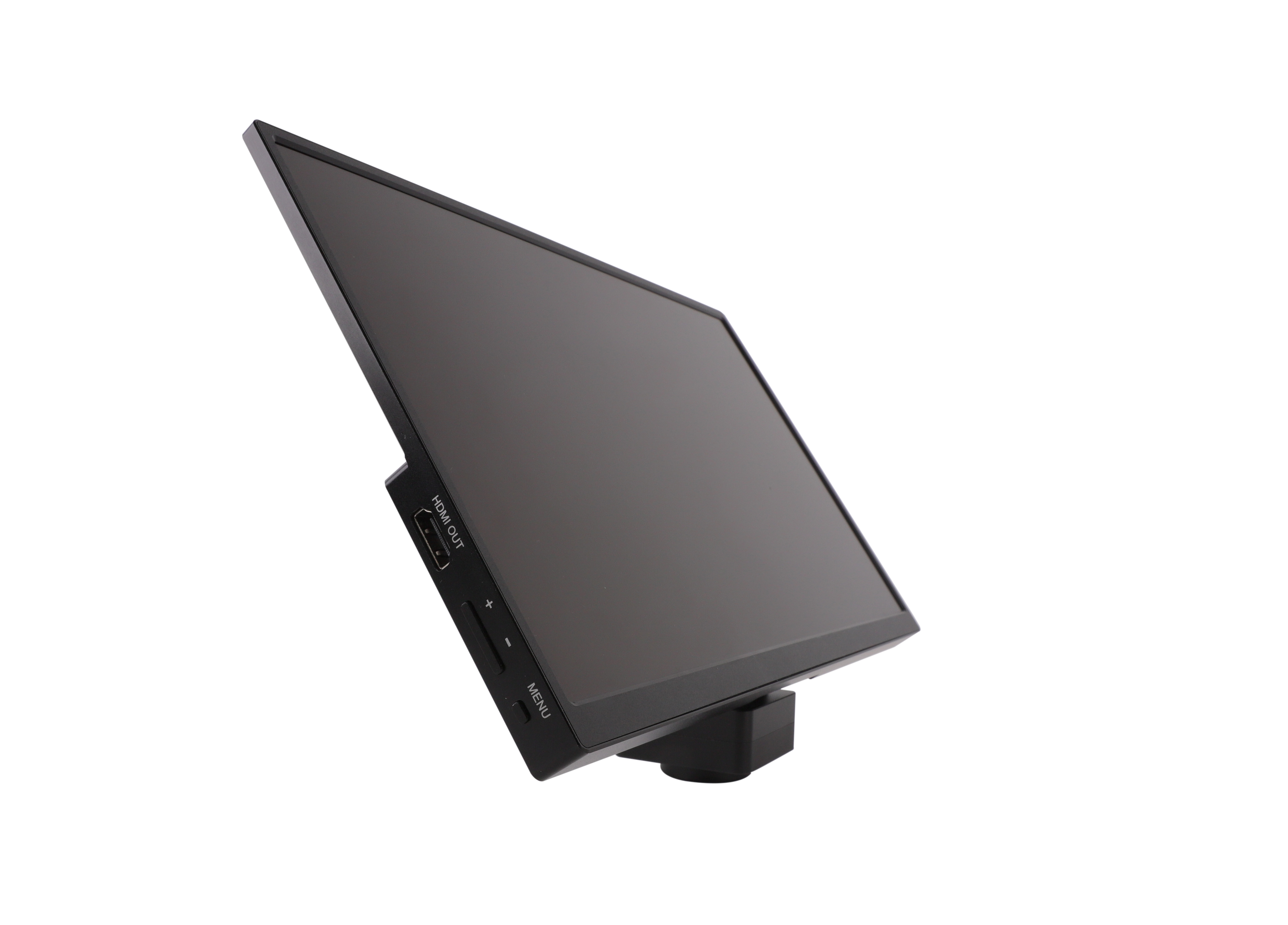

The AIOCAMTOP4K is a multifunctional all-in-one camera that integrates a 4K image acquisition and processing system and a 13.3-inch display screen for capturing digital images of stereo microscopes, biological microscopes, or online interactive teaching.
- The camera and display screen are integrated together, eliminating wiring and facilitating installation
- Sony STARVIS 2 back-illuminated CMOS sensor
- Support HDMI1.4 interface connection to external displays for synchronous output, 4K/1080P auto switching according to monitor resolution
- Support USB 2.0 interface for synchronous output of real-time video
- USB flash drive for captured image and video storage, support local preview and playback
- Supports USB Voice Control module, enabling real-time control of the camera through voice commands for snap, recording, freeze, and other operations
- Excellent ISP with local tone mapping and 3D denoising
- Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
- ToupView/ToupLite software for PC
- iOS/Android applications for smart phones or tablets
Specification

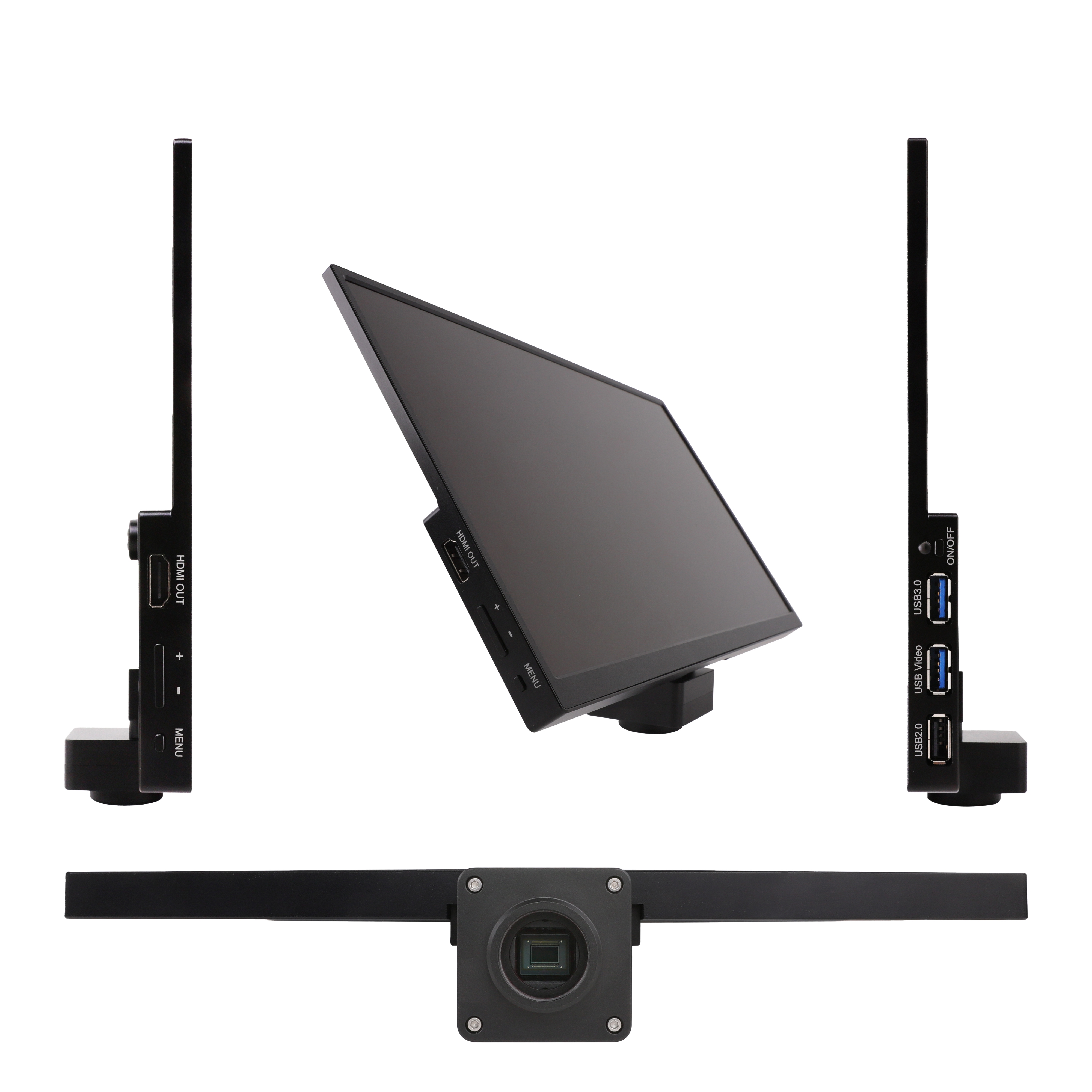

The AIOCAMTOP4K series all-in-one camera panel interface is shown

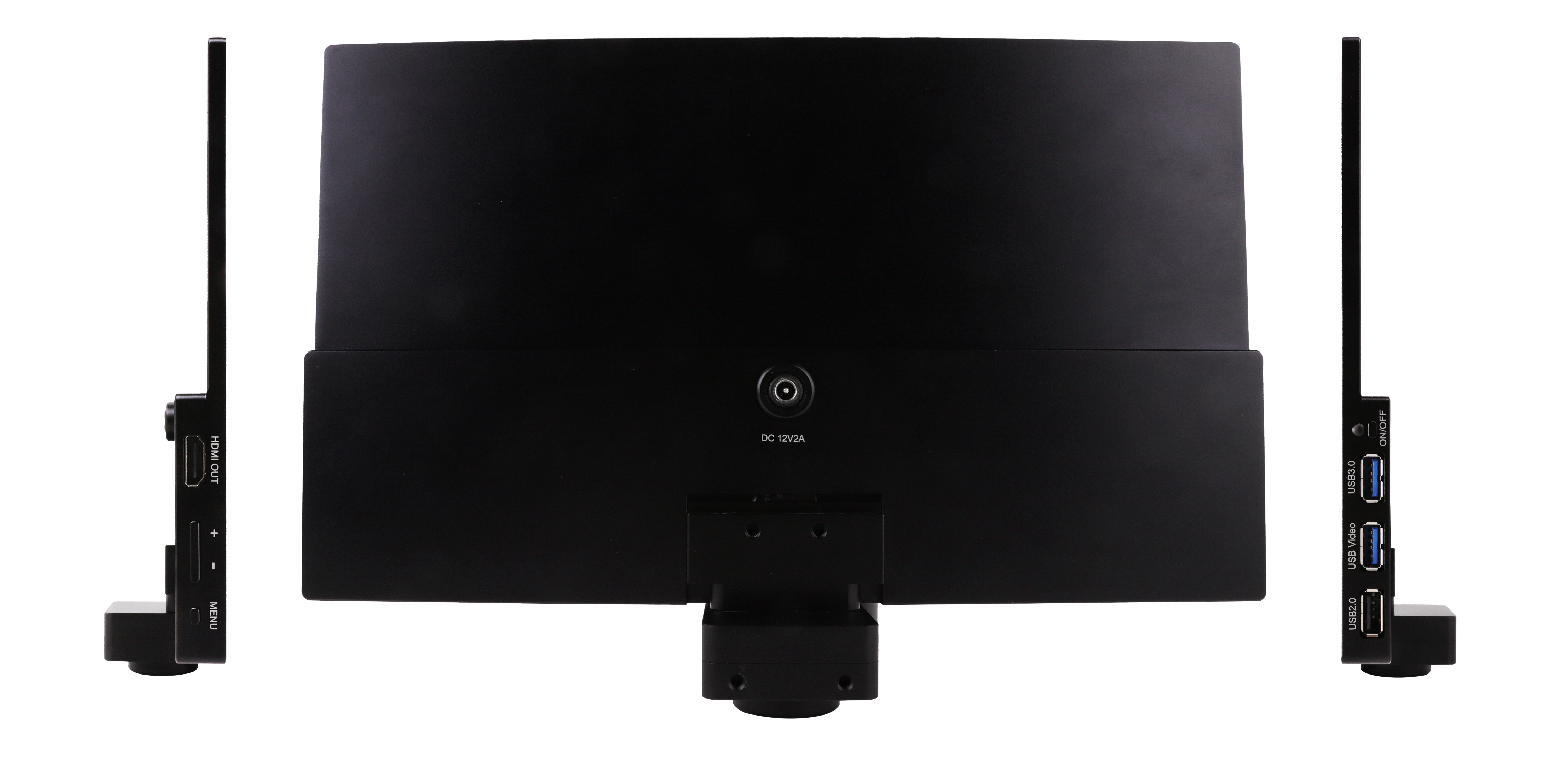

Available Ports on the Panel of the Camera Body
|
Interface or Button |
Function Description |
|
USB 2.0(2) |
Connect USB mouse for easy operation with embedded XCamView software |
|
USB Video |
Connect PC or other host device to realize video image transmission |
|
ON/OFF |
Power switch (Short press to turn on, long press to turn off) |
|
HDMI OUT |
Comply with HDMI1.4 standard. Used to extend 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
LED |
LED status indicator |
|
+/- |
Display brightness adjustment button |
|
MENU |
Display menu key |
|
DC 12V2A |
Power adapter connection (12V/2A) |
|
Video Output Interface |
Function Description |
|
HDMI Interface |
Synchronize video output through HDMI OUT interface, comply with HDMI1.4 standard; 30fps@4K Or 30fps@1080P |
|
WiFi Interface |
Connecting 5G WiFi adapter (USB2.0 slot) in AP/STA mode |
|
USB Video Interface |
Connecting USB Video port of PC for video transfer |
|
Other Function |
Function Description |
|
Video Saving |
Video format：8M (3840*2160) H264/H265 encoded MP4 file |
|
Image Capture |
8M (3840*2160) JPEG/TIFF image in USB flash drive |
|
Measurement Saving |
Measurement information saved in different layer with image content |
|
ISP |
Exposure(Automatic / Manual Exposure) / Gain， White Balance(Manual / Automatic / ROI Mode)， Sharpening， 3D Denoise， Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment, Hue Adjustment, Color to Gray， 50HZ/60HZ Anti-flicker Function |
|
Image Operation |
Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, Cross Line, Overlay, PIP, Browser (including Picture Browsing, Video Playback, Video Compare, Picture Compare, Image Processing), Measurement Function |
|
Embedded RTC(Optional) |
To support accurate time on board |
|
Restore Factory Settings |
Restore camera parameters to its factory status |
|
Multiple Language Support |
English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian |
|
Software Environment under WiFi/USB Video Output |
|
|
White Balance |
Auto White Balance |
|
Color Technique |
Ultra-Fine Color Engine |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
Recording System |
Still Picture or Movie |
|
Operating System |
Microsoft® Windows® 8 / 8.1 / 10 / 11(32 & 64 bit) |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 4GB or More |
|
|
Ethernet Port: RJ45 Ethernet Port |
|
|
Display:19” or Larger |
|
|
CD-ROM |
|
|
Operating Environment |
|
|
Operating Temperature (in Centidegree) |
-10°~ 50° |
|
Storage Temperature (in Centidegree ) |
-20°~ 60° |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 12V/2A Adapter |

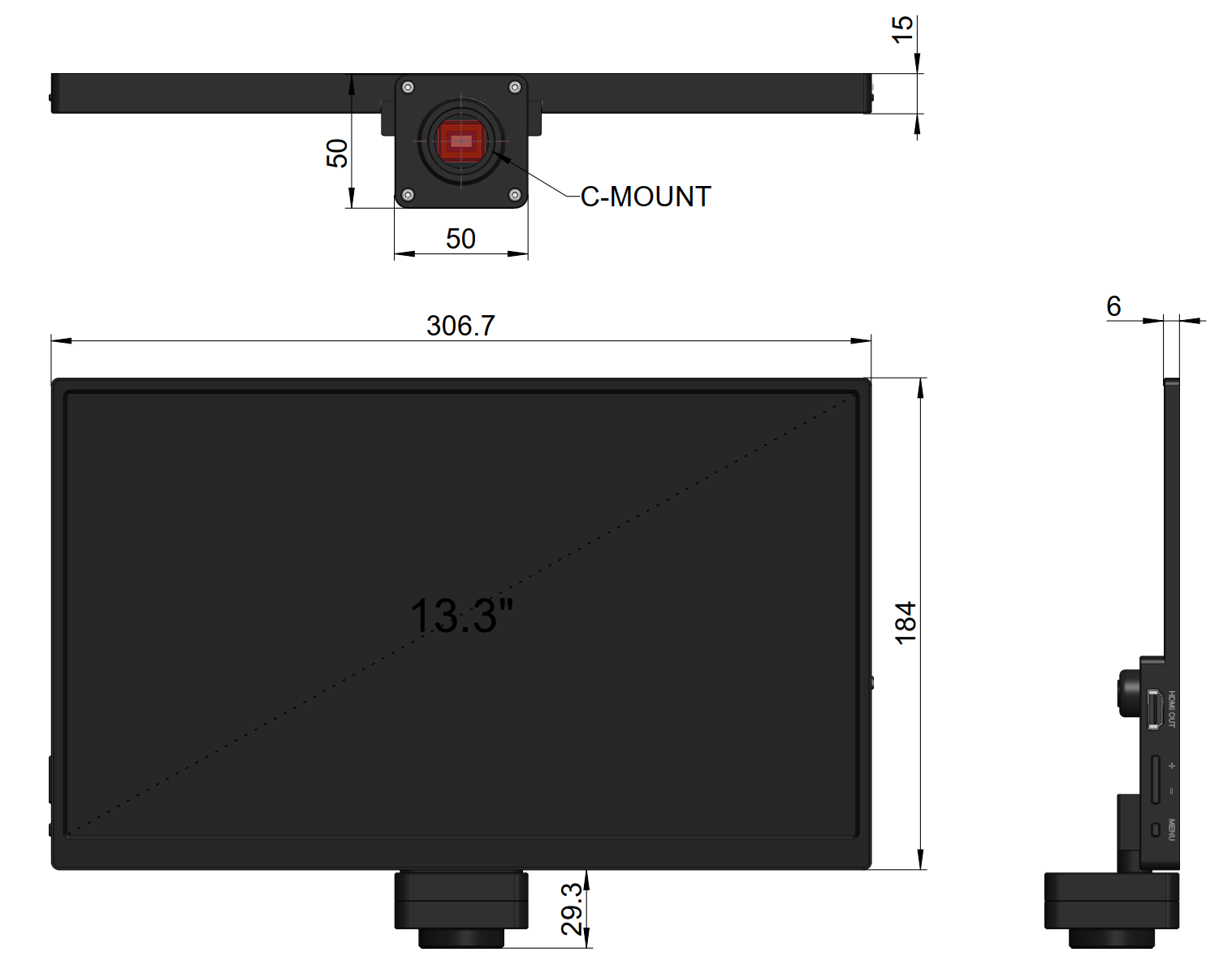

Dimension of AIOCAMTOP4K Series All-in-One Camera
Instance
SunflowerStemCS
SunflowerStemCS
ThreeYearTiliaStemCS
PCB

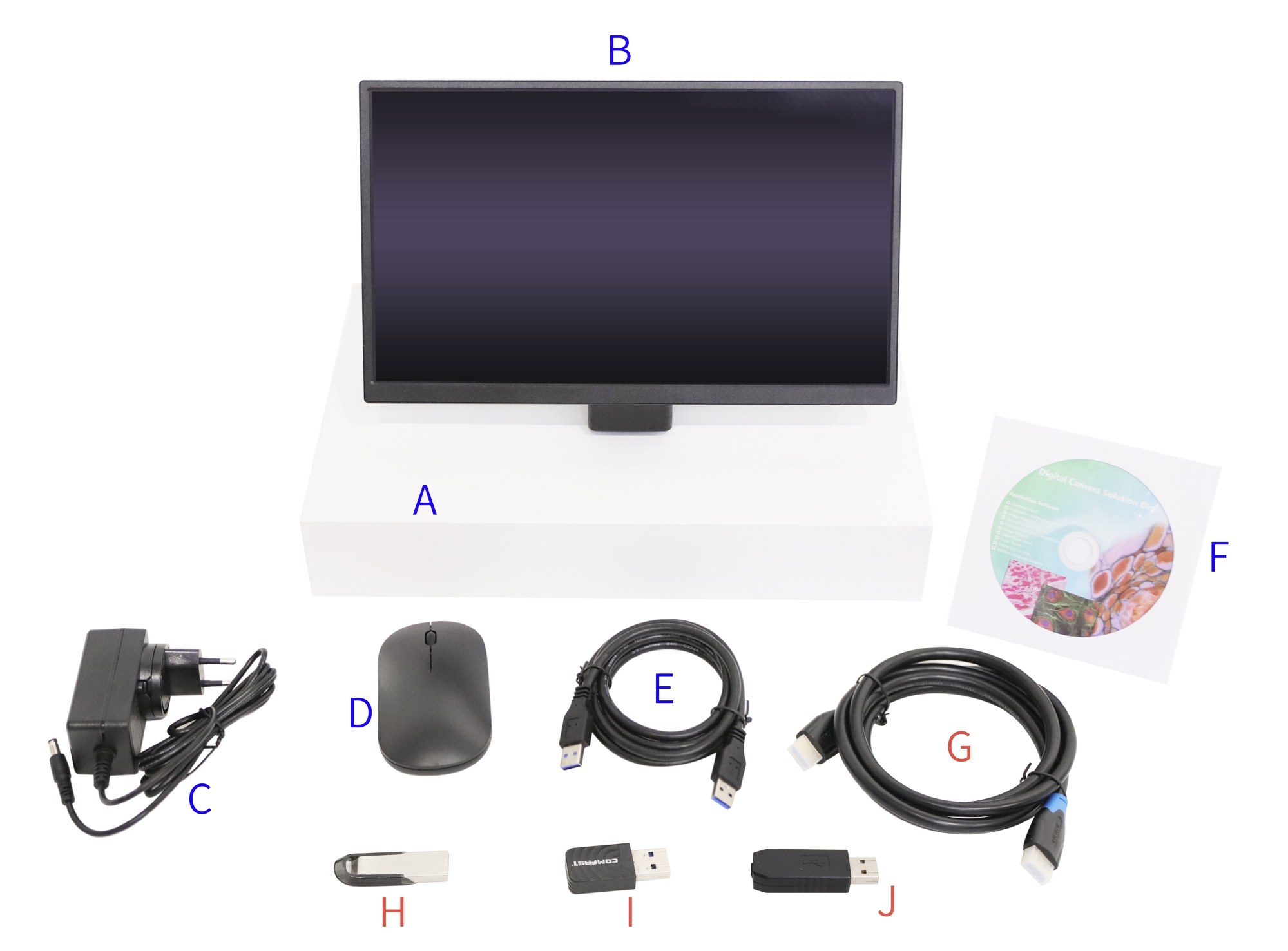

AIOCAMTOP4K Series All-in-One Camera Packing Information
|
Standard Packing List |
|
|
A |
Gift box: L:35.6cm W:24.9cm H:7.5cm (1pcs, 1.68Kg/ box) |
|
B |
AIOCAMTOP4K Series All-in-One Camera |
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 2A |
|
D |
USB wireless mouse |
|
E |
USB2.0 A male to A male gold-plated connectors cable /2.0m |
|
F |
CD (Driver & utilities software, Ø12cm) |
|
Optional Accessory |
|
|
G |
HDMI Cable |
|
H |
USB flash drive |
|
I |
USB WiFi adapter |
|
J |
Voice control module (Chinese or English) |
AIOCAMTOP4K8MPC
Sony IMX678(C)
1/1.8"(7.68x4.32)
2.0x2.0
1364mv with 1/30s
0.15mv with 1/30s
30@3840*2160(HDMI)
30@3840*2160(WiFi)
30@3840*2160(USB)
1x1
0.04~1000
