TPHD4K133D is born with ToupTek's XCAM series HDMI Camera and can be used for high definition display. It adopts IPS LCD panel(Super TFT) to guarantee the wide view angle and high contrast. Together with XCAM HDMIcamera,TPHD4K133D could make the imaging & display solution simple, flexible and intuitive.
Outstanding performance of TPHD4K133D helps XCAM HDMI Camera reach fast frame rate and excellent color.
- True 4K HDMI displayer
- 13.3 inch active area
- IPS LCD panel, 178 degree wide viewing angle
- HDR dynamic image enhancement
- 100% SRGB primary gamut
- 400cd/m2 display brightness, high contrast ratio up to 1000:1
- 4mm narrow frame design on three sides, with 90% of the screen area, great visual experience
- No delay is felt with 3ms response, and dynamic definition is optimized to keep the picture stable and clear
- without residual shadow
- Standard HDMI interface
- Connect computer to realize screen projection, splitting and expansion
- Integrated invisible folding support, easy viewing angle adjustment
- Easy to connect with HDMI camera
|
Basic Performance |
|
|---|---|
|
TPHD4K133D |
Common/touch, 2 means square |
|
LCD Panel |
OLED |
|
Input Video Format |
HDMI |
|
Native Resolution |
3840 x 2160 |
|
Display Type |
16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD |
|
Typical Contrast Ratio |
1000:1 |
|
Colors |
16.7 Million |
|
Viewing Angle(L/R/U/D) |
IPS Full View(178°) |
|
Active Display Area |
295mm(W) × 165mm(H) |
|
Pixel Pitch |
0.154(W) X 0.154(H) mm |
|
Refresh Rate |
60Hz |
|
Brightness |
400cd/m 2 |
|
Backlight |
LED Backlight， 50000 hours |
|
Outline Parameter |
|
|
Color |
Black |
|
Dimension |
306(L)*183(H)*8(T) mm |
|
Weight |
560g |
|
Operating Environment |
|
|
Operating Temperature |
-15 Degree~55 Degree |
|
Humidity Non Condensing |
Operating:10%-90%, Storage: 5%-90% |
|
Synchronization Range |
30-80 KHz Horizontal, 55-75 Hz Vertical |
|
Power Supply |
AC110V-220V /DC5~12V(1A ) (Type C) |
|
Power Consumption |
Max 12W |

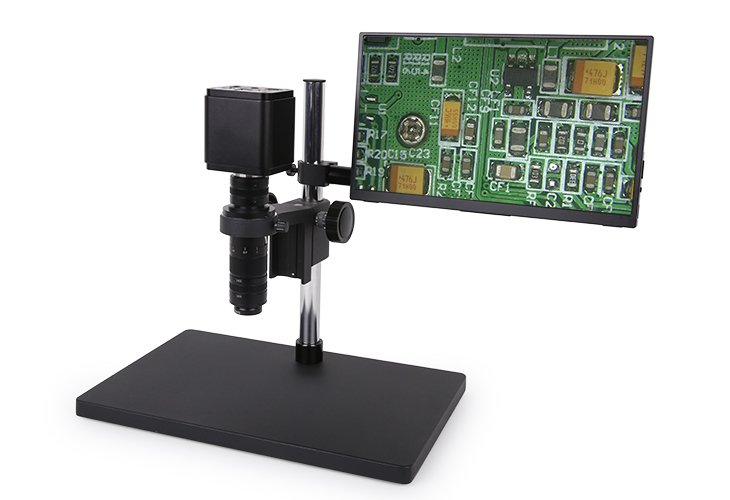

TPHD4K133D and XCAM Series HDMI Camera

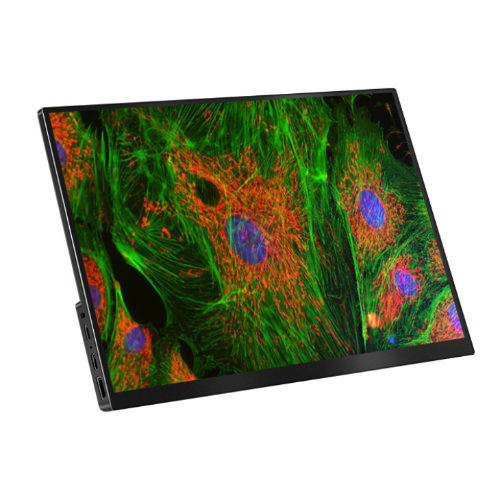

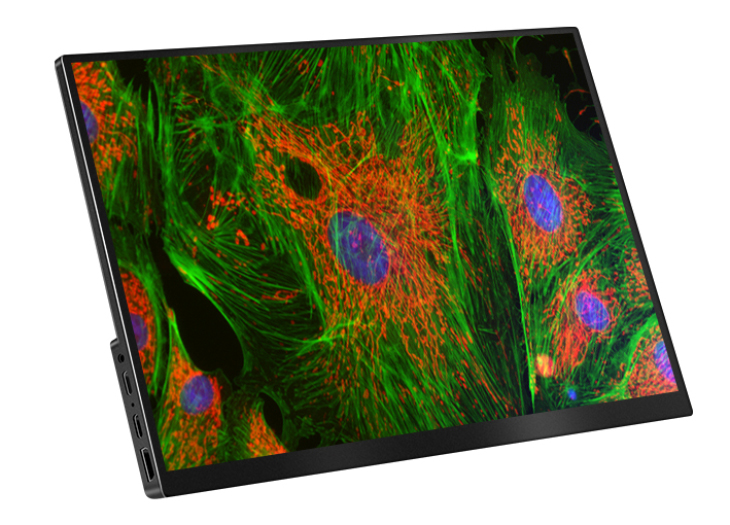

Front View of TPHD4K133D Displayer

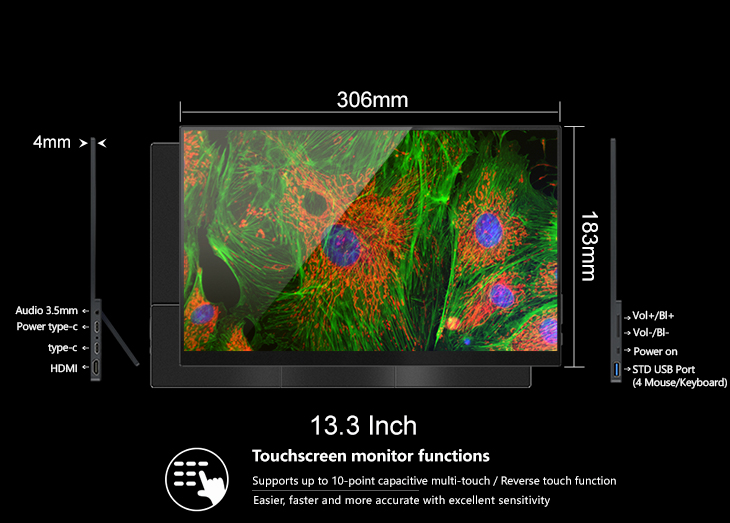

Dimension, Interface and Control Button of TPHD4K133D Displayer

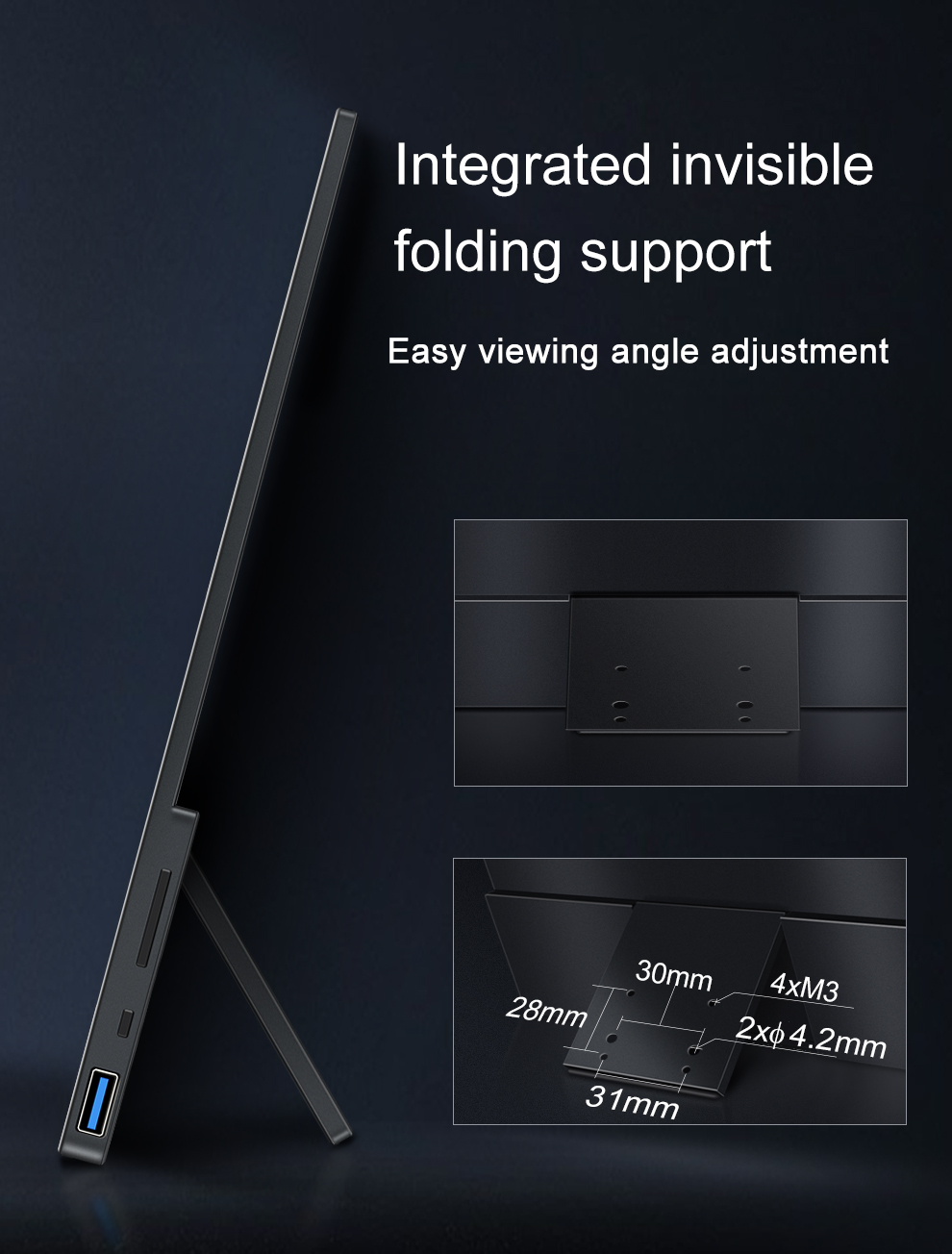

Integrated Invisible Folding Support of TPHD4K133D Displayer

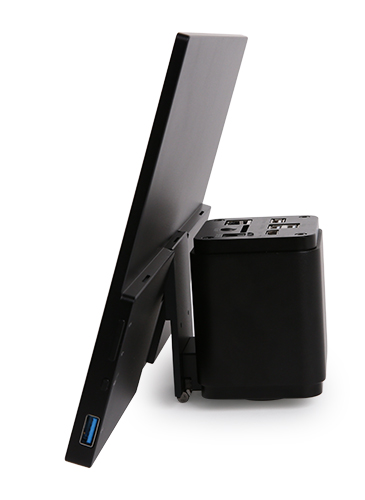

Right Side View of TPHD4K133D Displayer and XCAM Series HDMI Camera’s Connection

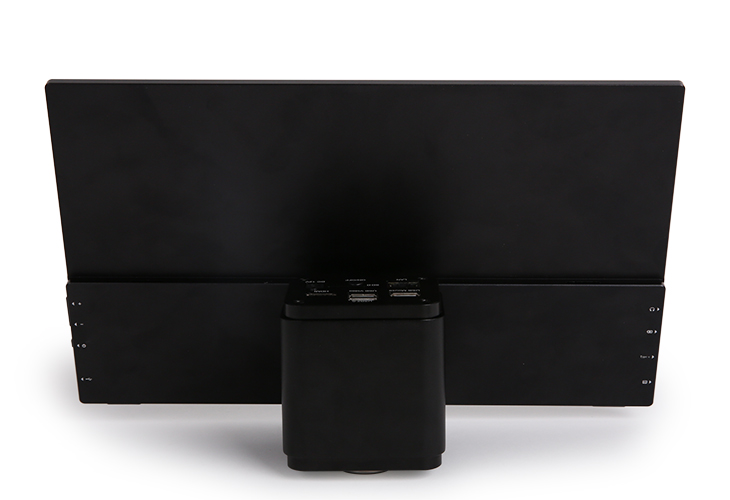

Back View of TPHD4K133D Displayer and XCAM Series HDMI Camera’s Connection
Order Code
Active Area(Inch)
Video Fomat
Resolution
Contrast
Color Gamut
View Angle
Touch Function
TPHD4K133D(OLED)
13.3
HDMI
4K
3000:1
100%
IPS Full View(178°)
NA
