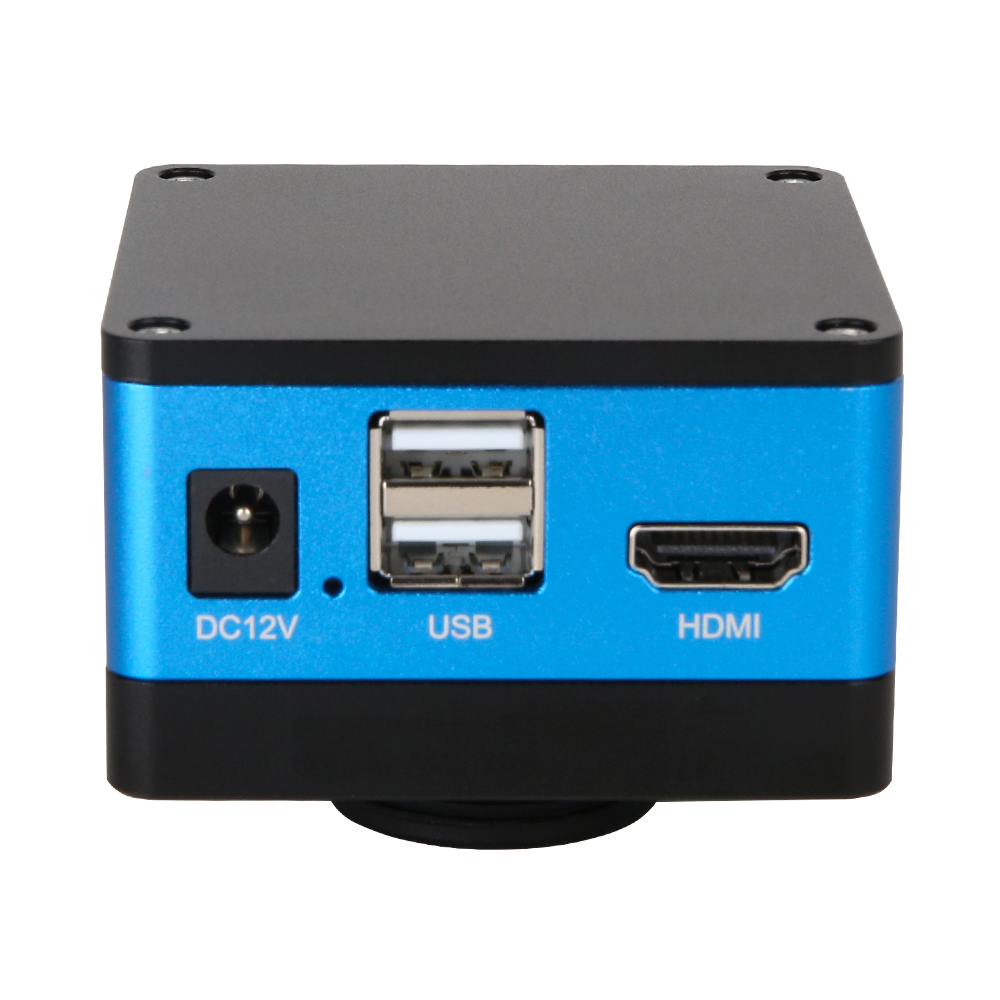

OCAM4K8MPB HDMI camera
Product Introduction
OCAM4K8MPB is a high-performance HDMI camera featuring Sony IMX415(C) sensor, with resolution up to 8MP, supporting HDMI1.4 , USB2.0 multiple output methods.
Product Features
- 4K HDMI output
Product Details
OCAM4K8MPB Specifications
| Key Parameters | |
| Product Model | OCAM4K8MPB |
| Product Series | HDMI camera |
| Sensor Parameters | |
| Sensor Model | Sony IMX415(C) |
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 1/2.8" |
| Pixel Size | 1.45 μm × 1.45 μm |
| Resolution | 8MP |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Performance Parameters | |
| Frame Rate | HDMI: 30 fps@3840×2160 |

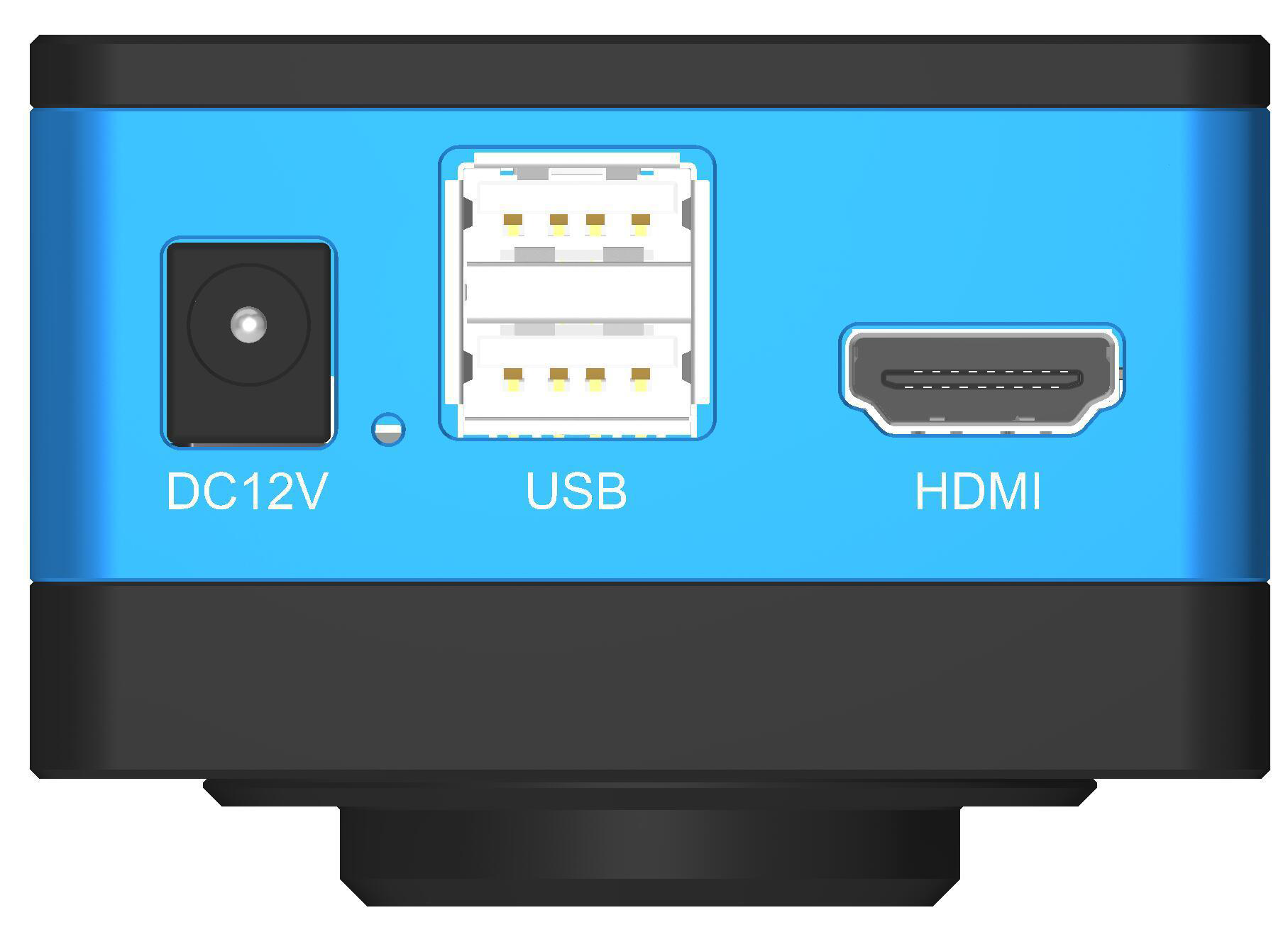

| Output Interfaces | HDMI1.4 , USB2.0 |
| Lens Mount | C-mount |
| Storage Support | USB drive |
| Software Support | XCamView |
| Physical Parameters | |
| Power Supply | DC 12 V/1A |
| Dimensions | Unknown |
| Weight | Unknown |
| Environmental Parameters | |
| Operating Temperature | -10 °C ~ 50 °C |
| Other Information | |
| OS Support | Windows, Linux, macOS |
| Certification | CE, FCC |
Product Overview
OCAM4K8MPB is a All-in-one HDMI multi-interface camera designed specifically for high-definition real-time imaging, featuring the following core characteristics:
- Plug and Play Design: Direct HDMI HD video output without PC, ready for microscopic observation and recording with just a display
- USB Voice Control Module: Supports real-time camera control via voice commands for photo capture, video recording, freeze, and other operations, freeing your hands
- Barcode Scanner Capture: Supports barcode scanner-triggered capture function, suitable for batch sample recording and traceability management
- Intelligent Measurement Functions: Built-in XCamView software with auto edge detection, auto parallel line distance measurement, auto rectangle measurement and other intelligent measurement features
- Local Storage & Comparison: Supports USB storage, local preview and playback, image comparison, video comparison functions for convenient sample analysis
- Powerful ISP Processing: Provides dark field enhancement, sharpening, and 3D noise reduction functions to significantly improve image quality
- Scene Quick Switching: Supports quick switching between biological microscope and stereo microscope default effects to meet multi-scene usage requirements
Core Performance Indicators
4K
Video Resolution
60 fps
Maximum Frame Rate
Multi-Interface
HDMI/USB Output
8MP
Sensor Resolution
Advanced Features
Voice Control
Voice control via USB voice module for enhanced operation convenience
Barcode Capture
Supports barcode scanner-triggered photography, suitable for batch sample management
Intelligent Measurement
Auto edge detection and measurement functions improve measurement efficiency and accuracy
ISP Optimization
Powerful image processing capabilities to optimize imaging quality
Why Choose This Product
OCAM4K8MPB with its plug-and-play design philosophy, diverse control methods, and powerful image processing capabilities, is particularly suitable for microscopic observation scenarios requiring high-definition real-time display. The addition of voice control and barcode capture functions greatly improves operational efficiency, making it an ideal choice for teaching demonstrations, industrial inspection, scientific research recording, and other fields.
Application Scenarios
Microscope imaging
Microscope imaging
Application Gallery
Fibrous connective tissue.Sec
Paramecium WM
Circuit board
Sunflower.L.S
Selection Recommendations
- 4K HD Requirements: Choose OCAM4K8MPA or OCAM4K8MPB, supporting 3840×2160 resolution
- High Frame Rate Requirements: Choose OCAM1080P series, supporting 60 fps high-speed imaging
- Large Sensor Requirements: Choose IMX678 sensor model with 1/1.8" large sensor
- Budget-Friendly Choice: Choose IMX415 or IMX462 sensor models for high cost-performance ratio
OCAM4K8MPB Product Manual
PDF format, including detailed technical parameters, dimension drawings, and application guide
Software Downloads
XCamView / ToupView / ToupLite professional imaging software
3D Model Files
STEP format for system integration design
OCAM Multi-Interface Camera | Packing List #
Standard Items in the Box
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, approx. 1.57 kg per box)
- B OCAM series camera ×1
- C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A (GS12U12-P1I / GS12E12-P1I)
- D USB mouse ×1
- E HDMI 2.0 cable ×1
- F High-speed USB 2.0 A↔A gold-plated data cable (2.0 m)
- G Driver and application disc (Ø12 cm)
Optional Accessories
- H SD card (≥16 GB, Class 10)
- I Adjustable eyepiece adapters 108001/AMA037, 108002/AMA050, 108003/AMA075
- J Fixed eyepiece adapters 108005/FMA037, 108006/FMA050, 108007/FMA075
- K 30 mm eyepiece conversion ring 108015
- L 30.5 mm eyepiece conversion ring 108016
- M Micrometer 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
- N USB flash drive (backup media)
- O USB Wi-Fi adapter (required for Wi-Fi/AP mode)

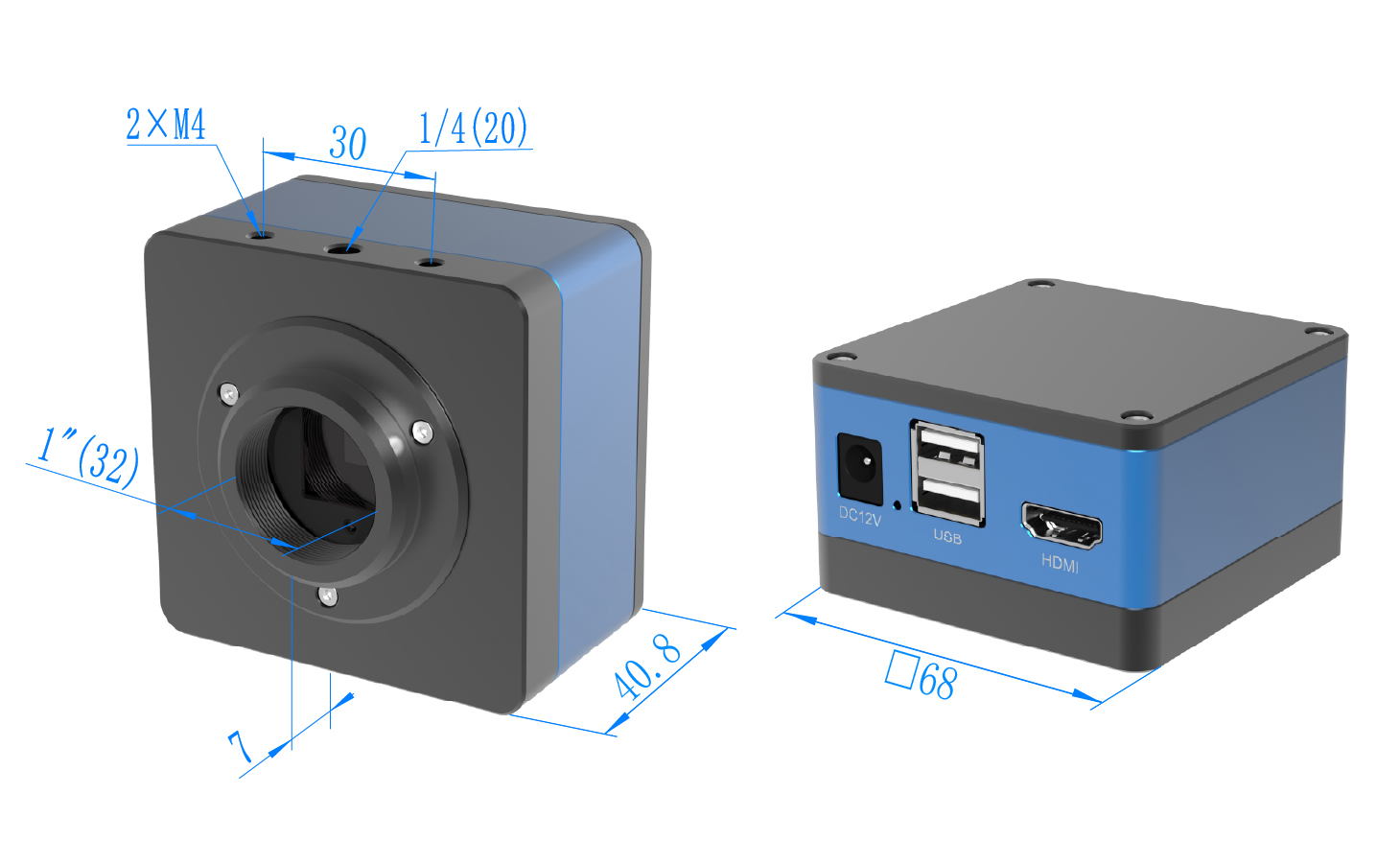

OCAM Multi-Interface Camera | Dimensions #
Chassis dimensions and mounting references
Refer to manual Figure 3-124
Confirm the mount holes and interface orientation with the dimension drawing before installation.
OCAM Multi-Interface HDMI Microscope Camera Series — Product Overview
Tupu Optoelectronics OCAM HDMI camera series is a computer-free standalone microscope camera designed for image and video capture on stereo and biological microscopes.
The series integrates a Sony Starvis back-illuminated CMOS high-sensitivity sensor with embedded XCamView intelligent control software, delivering measurement tools, grid management, template presets, and automated measurements to support teaching, research, and industrial inspection workflows.
In-Depth Overview
-
High-quality imaging with multi-interface support:
Built around a Sony Starvis back-illuminated CMOS sensor, the camera maintains low-noise imaging while delivering high-resolution HDMI output. -
Convenient interaction tools:
Supports a USB voice control module for hands-free photo capture, video recording, and freeze-frame operations, plus barcode scanner capture for improved efficiency. -
Intelligent image processing:
The integrated XCamView software offers auto edge detection, automatic parallel line and rectangle measurement, shadow enhancement, sharpening, and 3D noise reduction to optimize and analyze visuals. -
Streamlined data management:
Supports USB drive storage with local preview, playback, and side-by-side comparisons between images or between images and videos. -
Multi-scenario compatibility:
Switches quickly between default imaging profiles for biological and stereo microscopes to adapt to different observation and teaching needs.
Key Advantages
Plug-and-play, no PC required
Use the HDMI output directly to simplify microscope imaging setup.
Intelligent interaction and automation
Voice control, barcode capture, and automated measurements streamline every workflow.
High sensitivity, low noise imaging
The Sony Starvis sensor secures excellent quality even under low light.
Flexible storage and playback
USB storage with preview and comparison features supports teaching and analysis.
