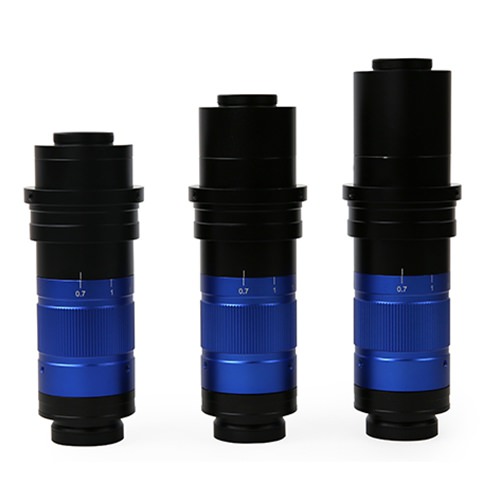

TZM0745A Series Monocular Zoom Objective (MZO)

For Purchase/Trial/OEM/ODM, Please Contact Us

Contact Us Download PDF
ToupTek

Introduction

TZM0745A Product Introduction

TZM0745A series MZO (Monocular Zoom Objective, a monocular continuously zooming objective) adopts a modular design concept with dual-end parallel optical paths, offering superior optical performance and excellent customization options. It is specifically designed for machine vision inspection, industrial inspection, scientific research, and educational applications.

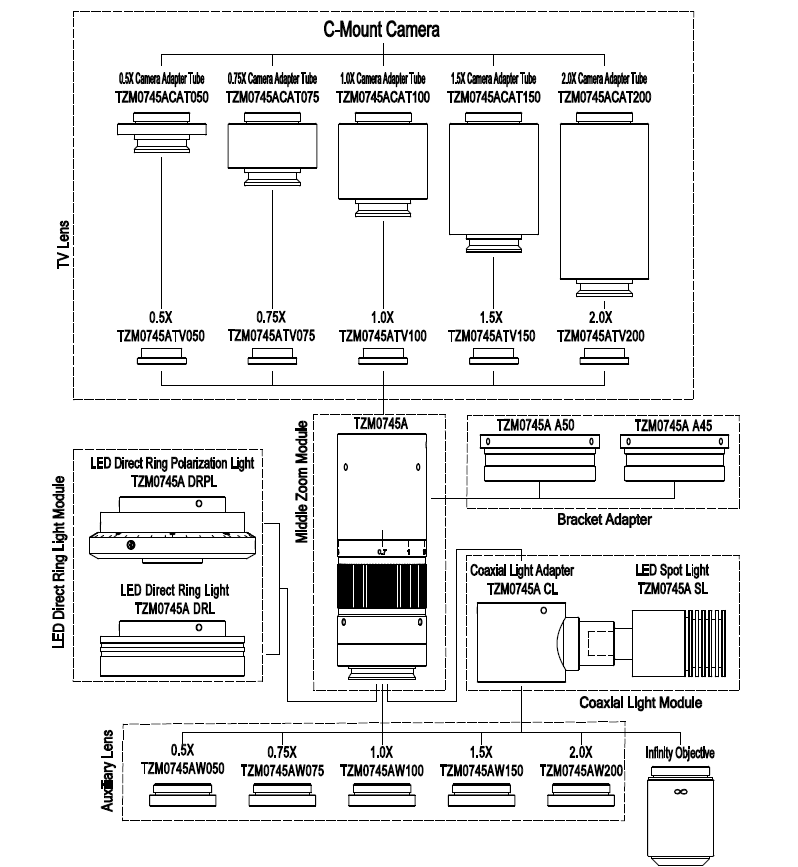

The TZM0745A series MZO is composed of three basic modules: the continuously zooming main body (which already includes the auxiliary objective and TV lens), the mounting adapter, and the optional module. In addition to the continuously zooming main body, the other modules can be selected by the user according to application requirements. When paired with a camera module (optional), the TZM0745A series MZO can form a digital continuously zooming microscope system.

The standard configuration for the TZM0745A series MZO is TZM0745A-W100-TV100-A50, offering a zoom range of 0.7X to 4.5X with a zoom ratio of up to 6.5X. The main features of the TZM0745A series MZO are as follows:

  • The standard model TZM0745A-W100-TV100-A50 offers a zoom range from 7X to 4.5X.
  • High Zoom Ratio: 5X
  • Large NA: 0.018–0.078 (using a 1X auxiliary objective)
  • High Resolution: 6 µm – 4.3 µm (using a 1X auxiliary objective)
  • Large Field of View: 25 mm – 34.28 mm
  • Large Image Plane: Maximum compatible sensor size is 2/3 inch (using a 1X TV lens)
  • Working distance: 5 mm – 160 mm
  • Maintains focus during zooming
  • Compatible with infinity-corrected microscope objectives (both biological and metallurgical microscopes)
  • Compact dimensions: 150 mm x 40 mm (standard model)
  • Optional auxiliary objectives available in 50X, 0.75X, 1.00X, 1.50X, and 2.00X magnifications
  • Optional TV lenses available in 50X, 0.75X, 1.00X magnifications
  • Optional adjustable LED ring light
  • Optional adjustable LED ring polarizing light
  • Optional adjustable LED coaxial illumination
  • Optional high-brightness LED transmission base light
  • Optional 45 mm or 50 mm mounting adapters

TZM0745A Series MZO Naming Rules

TZM0745A

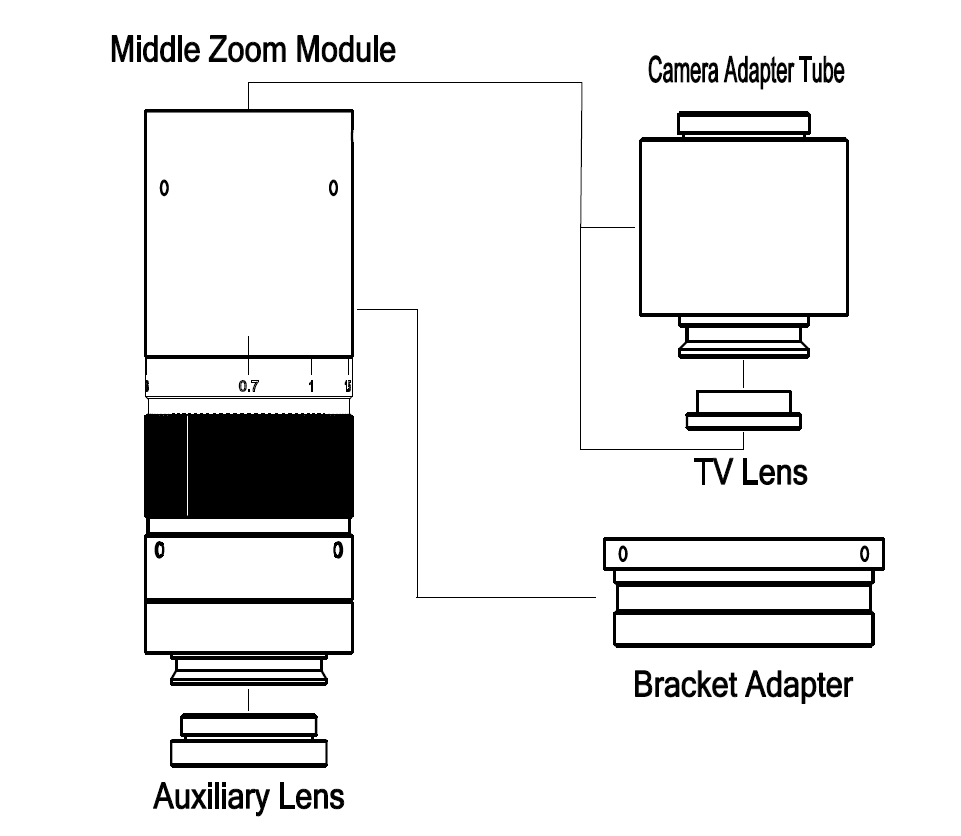

The TZM0745A series MZO adopts a finite conjugate optical system design, as shown in the left image. The five basic modules of the TZM0745A series MZO are: the continuously zooming main body, the auxiliary objective, the TV lens, the mounting adapter, and the optional module.

The final naming method for the TZM0745A series MZO is to separate the names of each module with a hyphen (“-”), forming a composite name that clearly indicates the MZO’s specifications. For example: TZM0745Aaa-Wbbb-TVccc-Add

For instance, if you choose the main body module TZM0745ATD, a 1.00X auxiliary objective (W100), a 0.50X TV lens (TV050), and a 50mm mounting adapter (A50), then the continuously zooming microscope objective will be named: TZM0745ATD-W100-TV050-A50

Currently available TZM0745Aaa modules: TZM0745A, TZM0745AT, TZM0745AD, TZM0745ATD;

  • Currently available Wbbb modules: W100, W050, W075, W150, and W200;
  • Currently available TVccc modules: TV100, TV050, TV075, TV150, and TV200;
  • Currently available Add modules: A50 and A45;
  • Other magnifications for the auxiliary objective, TV lens, and mounting adapter can be customized as needed.

Purchase and Matching

The parameters for different configurations of the TZM0460 series MZO are listed in the table below. You can determine the required combination by following these steps:

  • Determine the possible 1) FOV and 2) object working distance, then select the auxiliary objective accordingly.
  • When using an infinity objective with a 705 specification, choose the objective adapter that converts M26x0.705 to M20x0.705.
  • Based on 1) sensor size (in 1/x inches), 2) imaging diagonal, 3) imaging width, and 4) imaging height, determine the camera’s imaging circle size and select a TV lens.
  • Choose a 45mm or 50mm mounting adapter.
  • Select the LED ring light module for reflective illumination.
  • If necessary, select a coaxial illumination module.
  • If needed, choose a transmitted illumination module.
  • Select the appropriate camera.

Our company offers a variety of microscope cameras. You can refer to the Camera Selection Tool to review the corresponding parameters in the camera list, obtain detailed information, and then choose the suitable camera.

Different Combinations of Continuously Zooming Main Body – Auxiliary Objective – TV Lens

Camera

Main Zoom Module-Auxiliary-Lens-TV Lens

WD(mm)

PMAG

DFOV(mm)

NAO

1/3"

TZM0745A-W050-TV050

160

0.18X-1.13X

34.28-5.33

0.009-0.039

TZM0745A-W075-TV050

105

0.26X-1.69X

22.86-3.56

0.013-0.059

TZM0745A-W100-TV050

80

0.35X-2.25X

17.14-2.67

0.018-0.078

TZM0745A-W150-TV050

52

0.53X-3.38X

11.43-1.78

0.026-0.117

TZM0745A-W200-TV050

38

0.70X-4.50X

8.57-1.33

0.035-0.155

1/2"

TZM0745A-W050-TV075

160

0.26X-1.69X

30.48-4.74

0.009-0.039

TZM0745A-W075-TV075

105

0.40X-2.53X

20.32-3.16

0.013-0.059

TZM0745A-W100-TV075

80

0.53X-3.38X

15.24-2.37

0.018-0.078

TZM0745A-W150-TV075

52

0.79X-5.06X

10.16-1.58

0.026-0.117

TZM0745A-W200-TV075

38

1.05X-6.75X

7.62-1.19

0.035-0.155

2/3"

TZM0745A-W050-TV100

160

0.35X-2.25X

31.43-4.89

0.009-0.039

TZM0745A-W075-TV100

105

0.53X-3.38X

20.95-3.26

0.013-0.059

TZM0745A-W100-TV100

80

0.70X-4.5X

15.71-2.44

0.018-0.078

TZM0745A-W150-TV100

52

1.05X-6.75X

10.46-1.63

0.026-0.117

TZM0745A-W200-TV100

38

1.40X-9.00X

7.90-1.22

0.035-0.155

1"

TZM0745A-W050-TV150

160

0.53X-3.38X

30.48-4.74

0.009-0.039

TZM0745A-W075-TV150

105

0.79X-5.06X

20.25-3.16

0.013-0.059

TZM0745A-W100-TV150

80

1.05X-6.75X

15.24-2.37

0.018-0.078

TZM0745A-W150-TV150

52

1.58X-10.13X

10.13-1.58

0.026-0.117

TZM0745A-W200-TV150

38

2.10X-13.5X

7.62-1.19

0.035-0.155

4/3"

TZM0745A-W050-TV200

160

0.70X-4.50X

32.14-5.00

0.009-0.039

TZM0745A-W075-TV200

105

1.05X-6.75X

21.43-3.33

0.013-0.059

TZM0745A-W100-TV200

80

1.40X-9.00X

16.07-2.50

0.018-0.078

TZM0745A-W150-TV200

52

2.10X-13.5X

10.71-1.67

0.026-0.117

TZM0745A-W200-TV200

38

2.80X-18.00X

8.04-1.25

0.035-0.155

Related Modules

The continuous zoom main body is the primary component of the TZM0745A series MZO. Its code is TZM0745Aaa; where “TZM0745A” represents the continuous zoom main body code, and “aa” represents the auxiliary function code. The details are described in the table below.

Continuous Zoom Main Body Code and Its Functions

Order Number

Meaning

TZM0745A

Postfix meaning

TZM0745A

Ordinary Middle Zoom Module

ZM：Zoom

0745：0.7X~4.5X

NA

TZM0745AT

Middle Zoom Module with back focus trimmable(adjustable) function

T：Trim

TZM0745AD

Middle Zoom Module with detent to fix the magnification function

D：Detent

TZM0745ATD

Middle Zoom Module with back focus trimmable and magnification detent functions

TD：Trim & Detent

Module 2 is the interchangeable auxiliary objective, which is directly mounted via threads to the bottom of the continuous zoom main body. Its code is Wbbb, where “bbb” indicates the magnification of the auxiliary objective. Different auxiliary objectives with various magnifications are used to change the overall magnification of the TZM0745A series MZO, and their working distances also differ. For example, compared to an auxiliary objective W100 with 1.00X magnification and an 80mm working distance, a 0.50X auxiliary objective W050 will reduce the overall magnification by half while extending the working distance to about 160mm. The optical parameters of the auxiliary objectives are listed in the table below.

Auxiliary Objective

Order number

Magnification

Working distance（mmm）

Field of view in the object side(TV050，1/3"sensor)

Lower magnification

Higher magnification

W050

0.5X

160

34.28mm

5.33mm

W075

0.75X

105

20.81mm

3.56mm

W100

1.00X

80

17.14mm

2.67mm

W150

1.50X

51.5

11.43mm

1.78mm

W200

2.00X

37.5

8.57mm

1.33mm
* When the same auxiliary objective is paired with different TV lenses, it only adapts to different sizes of image sensors, with little impact on the field of view.

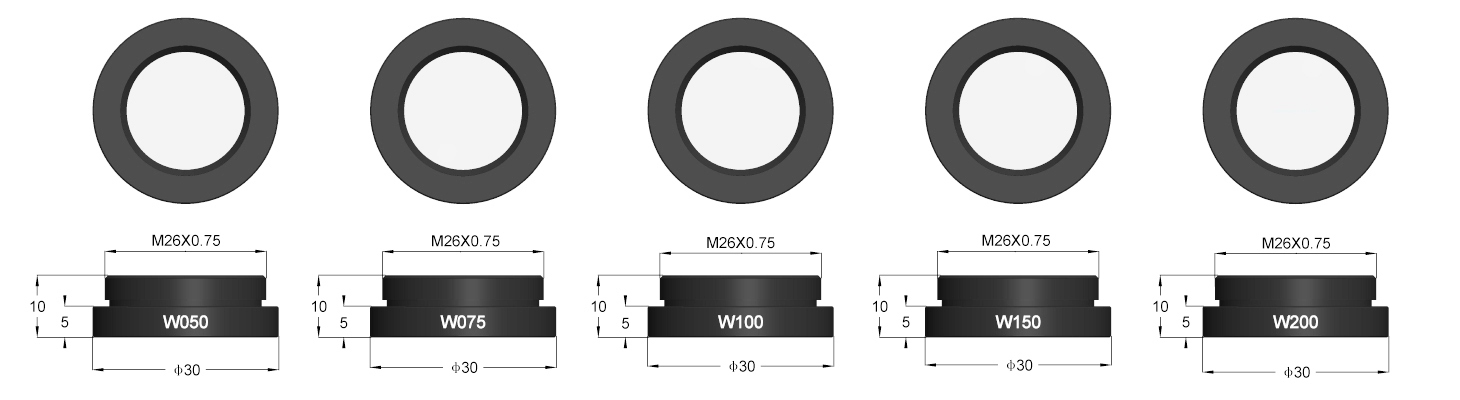

Five different magnification auxiliary objectives for TZM0745A
Five different magnification auxiliary objectives for TZM0745A

Module 3 is the TV lens, which is interchangeable and mounts via threads to the top of the continuous zoom main body. Its code is TVccc, where “ccc” indicates the magnification of the TV lens. It is mainly used to match image sensors of different sizes. For example, compared to a TV lens TV100 with 1.00X magnification, a TV lens TV050 with 0.50X magnification will match an image sensor that is half the size, while the field of view remains largely unaffected. The TV lens parameters are listed in the table below.

TV Lens

Order number

The maximum compatible sensor size

TV050

1/3"

TV075

1/1.8"

TV100

2/3"

TV150

1"

TV200

4/3"
* A TV lens with a higher magnification can also be paired with a smaller image sensor; however, this may reduce the overall field of view of the MZO.

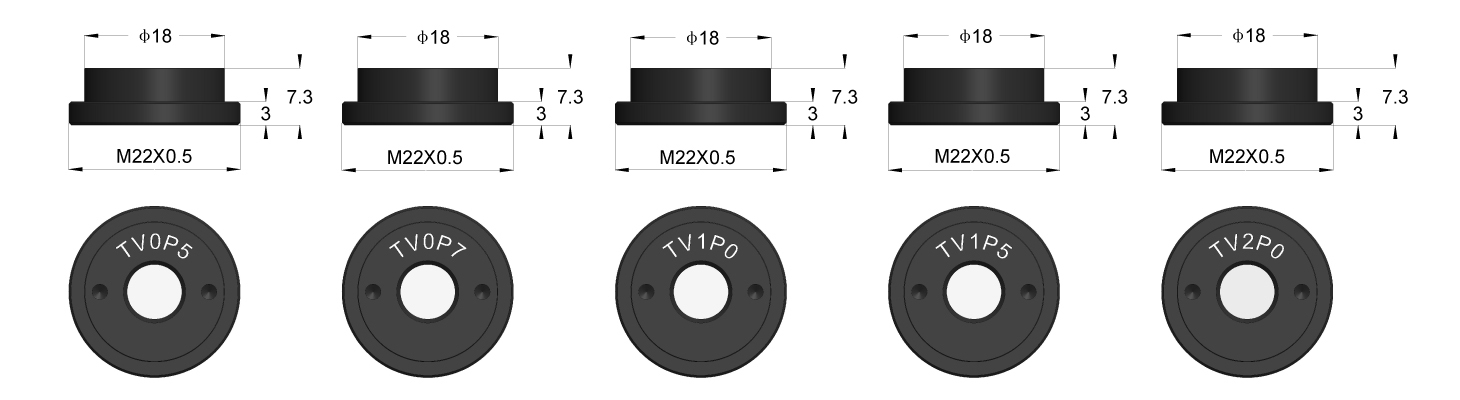

TV lenses with various magnifications for TZM0745A
TV lenses with various magnifications for TZM0745A

Module 4 is the mounting adapter, used for stands of different diameters, and is mounted between the continuous zoom main body modules. Its code is Add, where “dd” represents the mounting diameter, available in both 45mm and 50mm options. The installation method with the stand is shown in the diagram below.

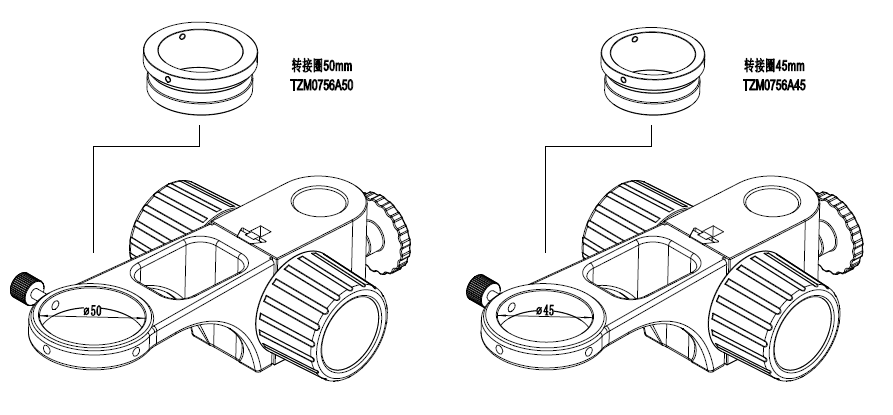

TZM0745A Series MZO Mounting Adapter
TZM0745A Series MZO Mounting Adapter

The optional modules mainly include ring light modules (both standard and polarized ring lights) and a coaxial illumination module (consisting of a coaxial illuminator and LED point light source). The details of the optional modules are shown in the table below.

Light Source Modules Compatible with the TZM0640 Series MZO

Module Name

Model

Model Description

LED Ring Light Module

TZM0756DRL-65/85

LED Ring Light

TZM0756DRPL-65

LED Polarized Ring Light

Coaxial Illumination Module

TZM0756CL+TZM0756SL

Coaxial Illuminator + LED Point Light (3W)

Transmitted Illumination Module

TZM0756TL

LED Transmitted Backlight

LED Light Power Supply

40600014

Power Adapter 12V/1A (US Standard)

40600015

Power Adapter 12V/1A (EU Standard)
TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination
TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination
TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination
TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination
TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination

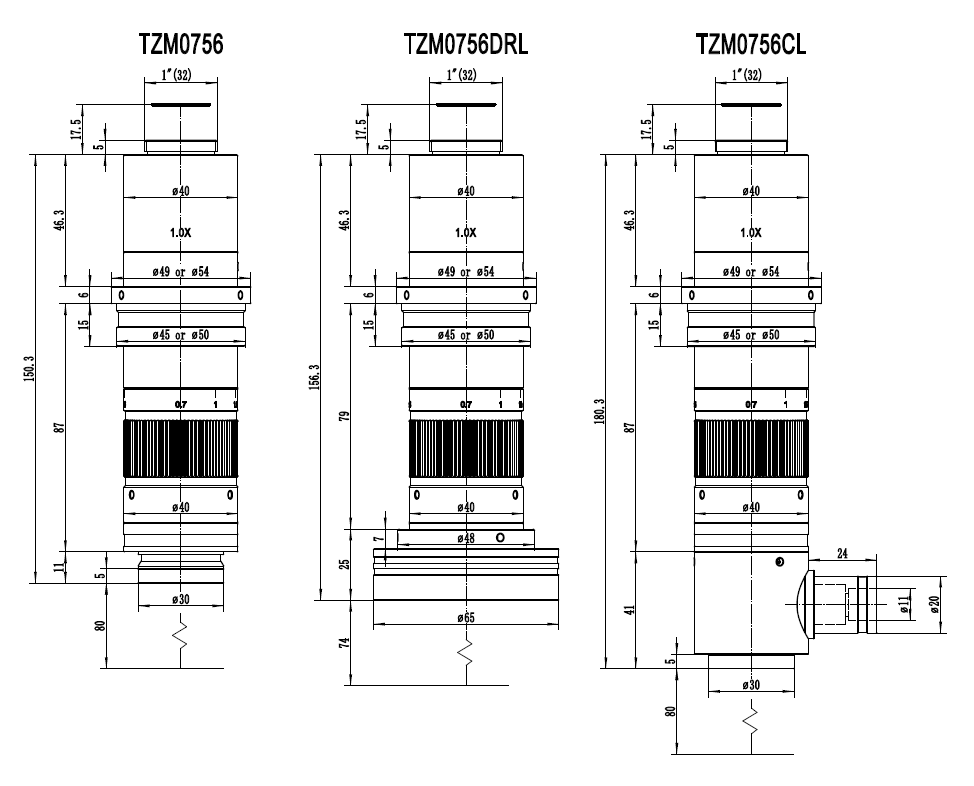

Configuration and Physical Dimensions

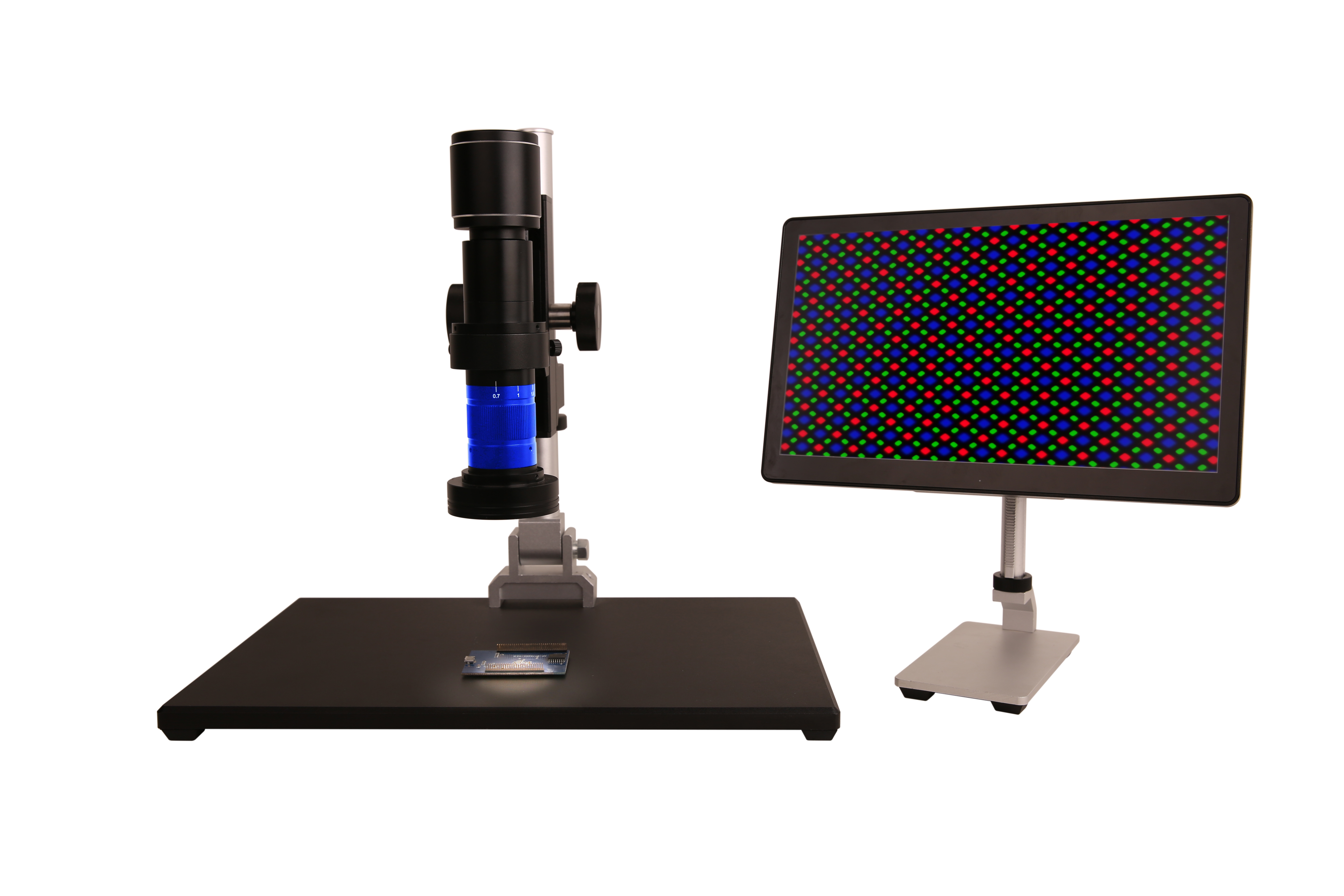

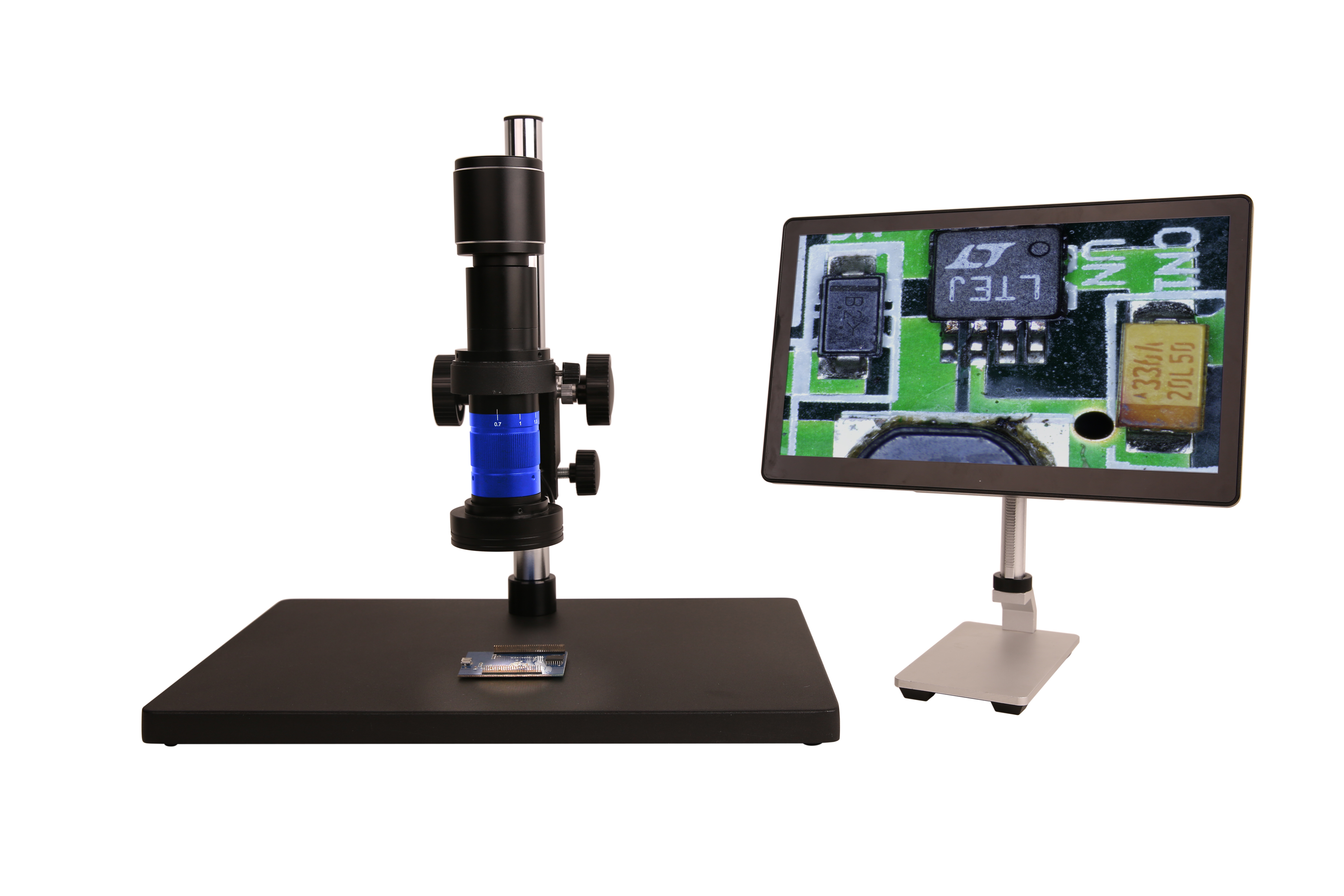

TZM0745A-W100-TV100 + TZM0745ADRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-10A + SCR
TZM0745A-W100-TV100 + TZM0745ADRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-10A + SCR
TZM0745A-W100-TV100 + TZM0745ADRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-10A + SCR

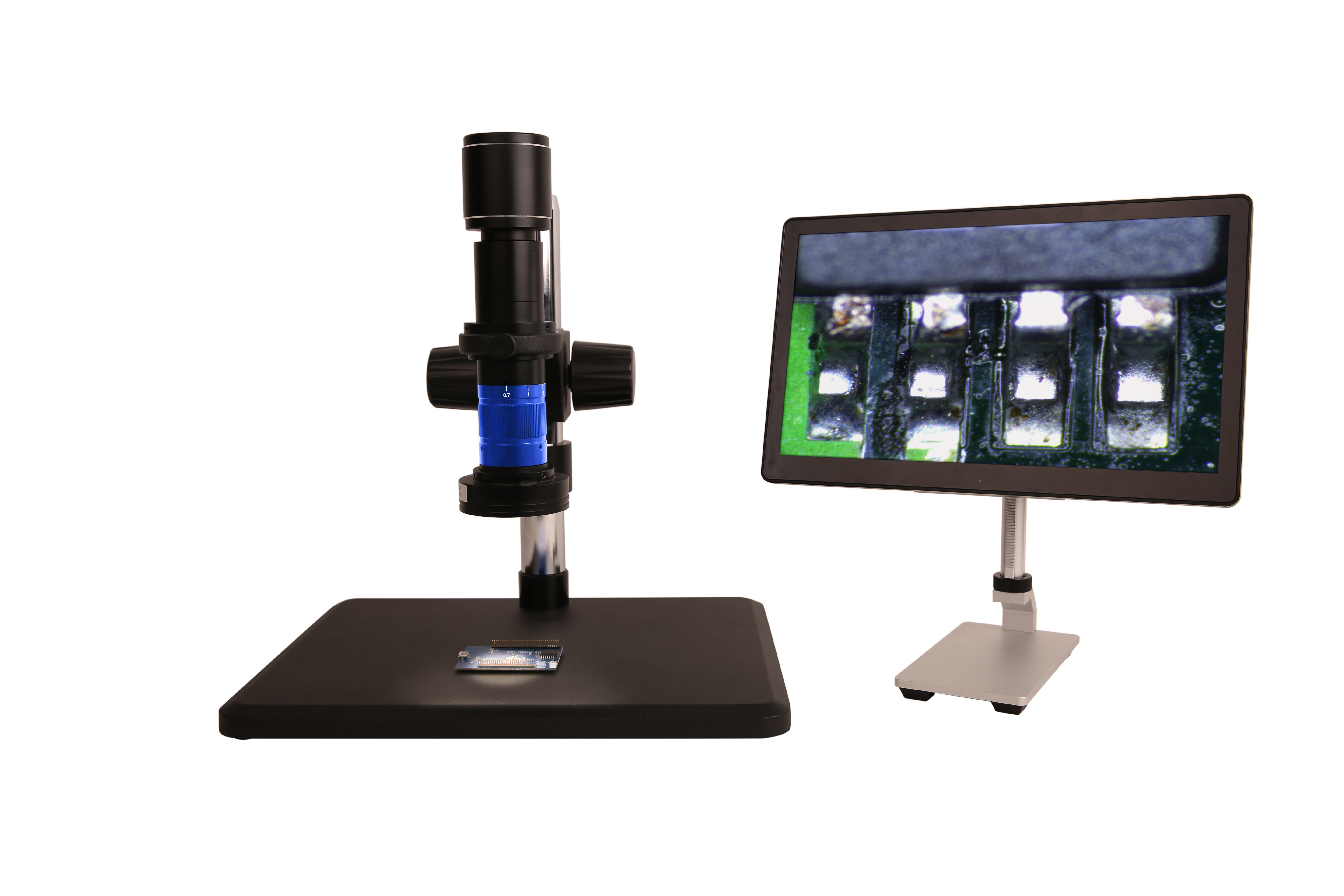

TZM0745A-W100-TV100 + TZM0745ADRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-20A + SCR
TZM0745A-W100-TV100 + TZM0745ADRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-20A + SCR
TZM0745A-W100-TV100 + TZM0745ADRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-20A + SCR
TZM0745A-W100-TV100 + TZM0745ADRL + HDMI Camera XCAMLite1080PA (Circular) + TPS-200A + SCR
TZM0745A-W100-TV100 + TZM0745ADRL + HDMI Camera XCAMLite1080PA (Circular) + TPS-200A + SCR
TZM0745A-W100-TV100 + TZM0745ADRL + HDMI Camera XCAMLite1080PA (Circular) + TPS-200A + SCR
