SWIR Series Camera / Short-Wave Infrared

For purchases, trials, OEM, or ODM, please contact us

Introduction

SWIR Series Camera

SWIR series is a USB3 / GigE / 10G / CameraLink interface short-wave infrared camera which adopts SONY or nationally produced InGaAs sensor. This camera has high quantum efficiency and high sensitivity, suitable for many common SWIR applications in different industrial segments.

The 400-1700nm version uses the SONY SenSWIR InGaAs sensor
The 900-1700nm version uses the nationally produced InGaAs sensor
The resolution covers 5MP-0.33MP
Provide cooling version or uncooled version
Precise temperature control, the temperature difference can reach 10-25 degrees Celsius
Spectral response range: 400nm-1700nm/ 900-1700nm
15um /5um / 3.45um pixel size
Global shutter
USB3 / GigE / 10G / CameraLink / analog AV and other data interfaces
Higher14-bit ADC
4Gb memory
Support external IO trigger control
High framerate exceeding official parameters
Support field update firmware
Accept OEM custom development

Application

Semiconductor observation

Remote observation

Observation of fruit moisture content

Temperature observation

Agriculture: Applications of spectral remote sensing via multi - rotor aircraft

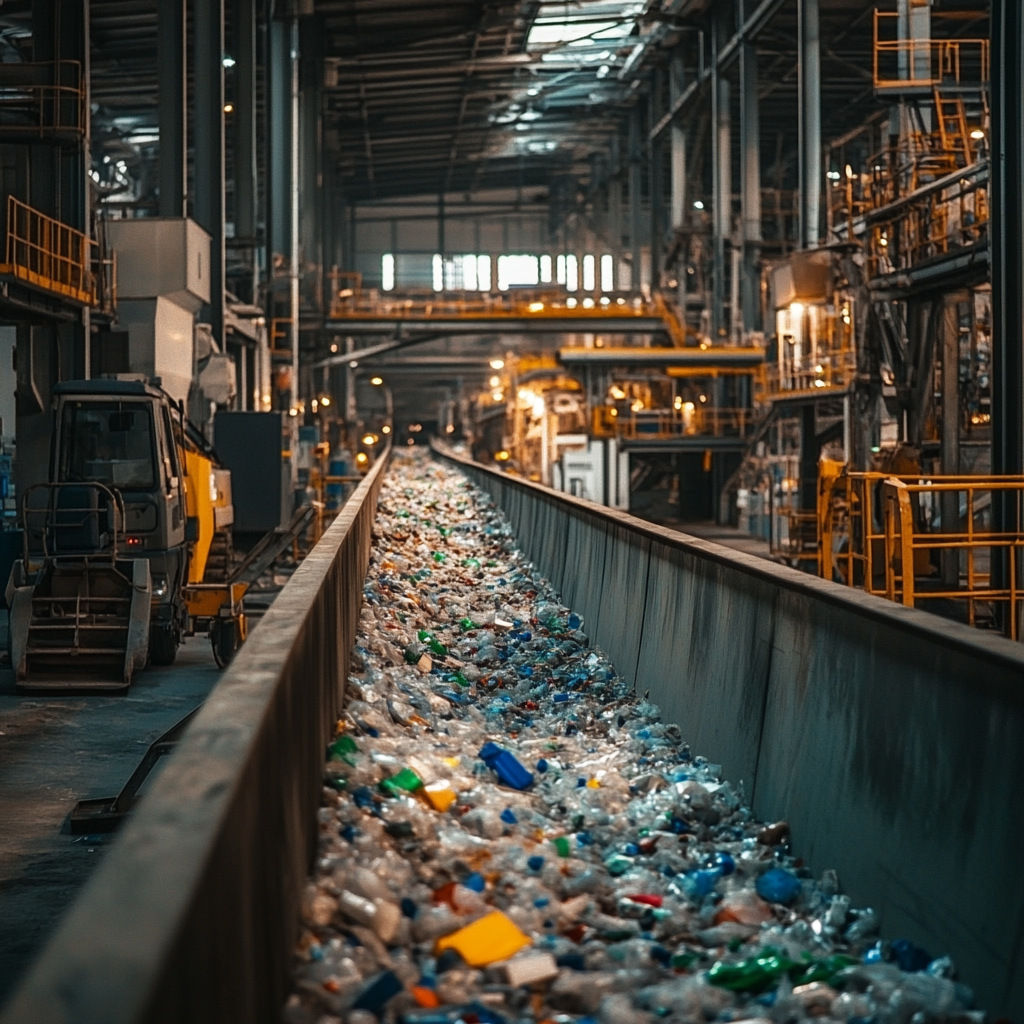

Recycling industry: Material sorting of plastics, waste, and other materials

Beverage industry: Liquid level detection in opaque containers

Glass industry: Detection of perspective defects in high - temperature glass

Additional references for application industries:

Semiconductor industry: Solar cell and chip inspection
Agriculture: Spectral remote sensing applications by multi-rotor aircraft
Recycling industry: Material sorting of plastics, waste and other materials
Medical Imaging and Research: Hyperspectral and multispectral imaging
Food industry: Quality inspection and classification
Beverage industry: Liquid level detection in opaque containers
Packing: Sealed inspection
Glass industry: High temperature glass fluoroscopy defect detection
Printing: Insight into hidden features
Video surveillance: Visual enhancement (e.g. smoke perspective)
Security: Detection of counterfeit goods, such as currency, wigs or skin

Relevant models (All SWIR product series)

Model Number	Image Sensor	Pixel Size(μm)	Dynamic Range SNR	Data Interface	FPS/Resolution-8bit	Binning	Exposure Time Dimensions
5.0MP IMX992
SWIR5000KMA	5.0M/IMX992(M,GS) 1/1.4”(8.94x7.09) Built-in TEC	3.45x3.45	51.5dB 48.5dB	USB3	61.9@2560x2048 135.7@1280x1024	1x1 1x1	15us~60s 80mm
SWIR5000KMA-10G	5.0M/IMX992(M,GS) 1/1.4” (8.94x7.09) Built-in TEC	3.45x3.45	51.5dB 48.5dB	10G	165@2560x2048 322@1280x1024	1x1 1x1	15us~60s 80mm
SWIR5000KMA-CL	5.0M/IMX992(M,GS) 1/1.4” (8.94x7.09) Built-in TEC	3.45x3.45	51.5dB 48.5dB	CameraLink	100@2560x2048 322@1280x1024	1x1 1x1	15us~60s 80mm
SWIR5000KMB	5.0M/IMX992(M,GS) 1/1.4” (8.94x7.09) External TEC	3.45x3.45	51.5dB 48.5dB	USB3	61.9@2560x2048 135.7@1280x1024	1x1 1x1	15us~60s 80mm
SWIR5000KMB-UMV	5.0M/IMX992(M,GS) 1/1.4” (8.94x7.09) Without TEC	3.45x3.45	51.5dB 48.5dB	USB3	61.9@2560x2048 135.7@1280x1024	1x1 1x1	15us~60s 33mm
3.0MP IMX993
SWIR3000KMA	3.0M/IMX993(M,GS) 1/1.8”(7.07x5.3) Built-in TEC	3.45x3.45	51.5dB 48.5dB	USB3	93@2048x1536 176@1024x768	1x1 1x1	15us~60s 80mm
SWIR3000KMA-10G	3.0M/IMX993(M,GS) 1/1.8”(7.07x5.3) Built-in TEC	3.45x3.45	51.5dB 48.5dB	10G	150@2048x1536 300@1024x768	1x1 1x1	15us~60s 80mm
SWIR3000KMA-CL	3.0M/IMX993(M,GS) 1/1.8”(7.07x5.3) Built-in TEC	3.45x3.45	51.5dB 48.5dB	CameraLink	150@2048x1536 300@1024x768	1x1 1x1	15us~60s 80mm
SWIR3000KMB	3.0M/IMX993(M,GS) 1/1.8”(7.07x5.3) External TEC	3.45x3.45	51.5dB 48.5dB	USB3	93@2048x1536 176@1024x768	1x1 1x1	15us~60s 80mm
SWIR3000KMB-UMV	3.0M/IMX993(M,GS) 1/1.8”(7.07x5.3) Without TEC	3.45x3.45	51.5dB 48.5dB	USB3	93@2048x1536 176@1024x768	1x1 1x1	15us~60s 33mm
1.3MP IMX990
SWIR1300KMA	1.3M/IMX990(M,GS) 1/2”(6.40x5.12) Built-in TEC	5x5	58.7dB 52.6dB	USB3	200@1280x1024 392@640x512	1x1 1x1	15us~60s 80mm
SWIR1300KMA-G	1.3M/IMX990(M,GS) 1/2”(6.40x5.12) Built-in TEC	5x5	58.7dB 52.6dB	GigE	90@1280x1024 253@640x512	1x1 1x1	15us~60s 80mm
SWIR1300KMA-CL	1.3M/IMX990(M,GS) 1/2”(6.40x5.12) Built-in TEC	5x5	58.7dB 52.6dB	CameraLink	200@1280x1024 392@640x512	1x1 1x1	15us~60s 80mm
SWIR1300KMB	1.3M/IMX990(M,GS) 1/2”(6.40x5.12) External TEC	5x5	58.7dB 52.6dB	USB3	200@1280x1024 392@640x512	1x1 1x1	15us~60s 80mm
SWIR1300KMB-G	1.3M/IMX990(M,GS) 1/2”(6.40x5.12) External TEC	5x5	58.7dB 52.6dB	GigE	90@1280x1024 253@640x512	1x1 1x1	15us~60s 80mm
SWIR1300KMB-UMV	1.3M/IMX990(M,GS) 1/2”(6.40x5.12) Without TEC	5x5	58.7dB 52.6dB	USB3	223@1280x1024 428@640x512	1x1 1x1	15us~60s 33mm
0.33MP IMX991
SWIR330KMA	0.33M/IMX991(M,GS) 1/4”(3.20x2.56) Built-in TEC	5x5	58.7dB 52.6dB	USB3	400@640x512 753@320x256	1x1 1x1	15us~60s 80mm
SWIR330KMA-G	0.33M/IMX991(M,GS) 1/4”(3.20x2.56) Built-in TEC	5x5	58.7dB 52.6dB	GigE	258.8@640x512 486.1@320x256	1x1 1x1	15us~60s 80mm
SWIR330KMA-CL	0.33M/IMX991(M,GS) 1/4”(3.20x2.56) Built-in TEC	5x5	58.7dB 52.6dB	CameraLink	400@640x512 753@320x256	1x1 1x1	15us~60s 80mm
SWIR330KMB	0.33M/IMX991(M,GS) 1/4”(3.20x2.56) External TEC	5x5	58.7dB 52.6dB	USB3	400@640x512 753@320x256	1x1 1x1	15us~60s 80mm
SWIR330KMB-G	0.33M/IMX991(M,GS) 1/4”(3.20x2.56) External TEC	5x5	58.7dB 52.6dB	GigE	258.8@640x512 486.1@320x256	1x1 1x1	15us~60s 80mm
SWIR330KMB-UMV	0.33M/IMX991(M,GS) 1/4”(3.20x2.56) Without TEC	5x5	58.7dB 52.6dB	USB3	428.1@640x512 227.7@320x256	1x1 1x1	15us~60s 33mm

* -G: GigE; -10G: 10 Gigabit interface; -CL: CameraLink interface; -UMV: Unmanned Vehicle, designed for use with aircraft or drones, featuring a relatively compact camera form factor.

* C: Color; M: Monochrome; UV: Ultraviolet; RS: Rolling shutter; GS: Global shutter.；

* Built-in TEC: The Thermoelectric Cooler (TEC) is integrated within the sensor, offering a cooling temperature difference of up to 25°C. External TEC: The TEC is located outside the sensor, providing a cooling temperature difference of up to 10°C. Without TEC: Non-cooled version, characterized by a small camera form factor.

* Customized RG (Remove over glass) versions of SWIR1300KMB-UMV and SWIR330KMB-UMV are available upon request.

Model Number	Image Sensor	Pixel Size(μm)	Dynamic Range SNR	Data Interface	FPS/Resolution-8bit	Binning	Exposure Time Dimensions
1.3MP 1280 x 1024
SWIR1302KMB-U200 2024Q3	1.3M/1280x1024 1.5” (19.2x15.36) Built-in TEC	15x15	69.2dB 65.4dB	USB3	200@1280x1024	China produced of key chips	16us~1s 68mm
SWIR1302KMB-10G 2024Q3	1.3M/1280x1024 1.5” (19.2x15.36) Built-in TEC	15x15	69.2dB 65.4dB	10G	200@1280x1024	China produced of key chips	16us~1s 68mm
SWIR1302KMA-CL200 2024Q3	1.3M/1280x1024 1.5” (19.2x15.36) Built-in TEC	15x15	69.2dB 65.4dB	CameraLink	200@1280x1024	China produced devices	16us~1s 68mm
SWIR1302KMB-CL200 2024Q3	1.3M/1280x1024 1.5” (19.2x15.36) Built-in TEC	15x15	69.2dB 65.4dB	CameraLink	200@1280x1024	China produced of key chips	16us~1s 68mm
0.33MP 640 x 512
SWIR331KMB-U700	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	USB3	724@640x512	China produced of key chips	16us~5s 68mm
SWIR331KMB-G125	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	GigE	125@640x512	China produced of key chips	25us~5s 68mm
SWIR331KMB-G350	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	GigE	360@640x512	China produced of key chips	25us~5s 68mm
SWIR331KMB-G700	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	GigE	360@640x512 700@320x256	China produced of key chips	25us~5s 68mm
SWIR331KMB-10G	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	10GigE	724@640x512	China produced of key chips	25us~5s 68mm
SWIR331KMA-CL500	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	CameraLink	517@640x512	China produced devices	16us~1s 68mm
SWIR331KMA-CL700	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	CameraLink	724@640x512	China produced devices	16us~1s 68mm
SWIR331KMA-CL1000 2024Q4	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	CameraLink	1000@640x512	China produced devices	16us~1s 68mm
SWIR331KMB-CL500	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	CameraLink	517@640x512	China produced of key chips	16us~1s 68mm
SWIR331KMB-CL700	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	CameraLink	724@640x512	China produced of key chips	16us~1s 68mm
SWIR331KMB-UMV	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	USB3	400@640x512	China produced of key chips	16us~5s 45mm
SWIR339KMB-CL700	0.33M/640x512 3/4” (9.60x7.68) Built-in TEC	15x15	70.6dB 63.0dB	CameraLink	724@640x512	China produced of key chips	16us~1s 68mm
0.24MP 640 x 384
SWIR240KMB-CL960	0.24M/640x384 3/4” (9.60x5.76) Built-in TEC	15x15	70.6dB 63.0dB	CameraLink	960@640x384	China produced of key chips	16us~1s 68mm

* The frame rate of SWIR331KMB - G700 is restricted by the network interface. At full resolution, it can only reach 360 fps. The frame rate can be enhanced via ROI.

* SWIR331KMB - U700 and SWIR331KMB - G125 are available in the C0 (Class 0) version, which supports the long - exposure mode and can achieve deep cooling down to - 45℃.

* Built - in TEC: The TEC is inside the sensor, with a cooling temperature difference of 25℃.

Detailed parameters

Camera parameter indicators with a band response range of 400 - 1700

Model Parameter	SWIR5000KMA
Model Parameter	5.0M pixels 1/1.4” CMOS USB3.0 industrial camera
Camera
Sensor model	Sony IMX992-AABA-C
Sensor Type	InGaAs
Spectral Range	400nm-1700nm
Pixel size	3.45 µm x 3.45 µm
Sensor size	1/1.4”
ADC	12 Bit / 8 Bit
Frame rate	8 Bit：61.9fps@2560x2048、135.7fps@1280x1024 12 Bit：35.5fps@2560x2048、135.7fps@1280x1024
Image Buffer	512MByte
Conversion Gain	10.3e/ADU（HCG）17.29e/ADU（LCG）
Dynamic range	51.36dB（HCG）51.47dB（LCG）
Readout Noise	111.88e（HCG）186.61e（LCG）
Full Well	41.39ke（HCG）69.92ke（LCG）
SNRmax	46.17dB（HCG）48.45dB（LCG）
Sensitivity	TBD
Dark current	TBD
Gain range	1x-15x
Exposure time	15µs-60sec
Shutter	Global shutter
Binning	Software2x2, 3x3, 4x4
Data interface	USB3.0
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, two non-isolated input and output
Data Format	8bit / 12bit
Cooling performance	25°C below ambient temperature
Optical filter	400-1800nm(default); 1030-1800nm(optional)
CRA	2.35 Deg
General specification
Power supply	Power with USB3.0 or 12V Power adapter
Power consumption	<2.1W(without cooling) / <25W(cooling)
Temperature	Working temperature -20~60℃, storage temperature -40~85℃
Humidity	20%-80%, no condensation
Size	80mm×80mm×45.5mm
Weight	<390g
Lens mount	C-mount
Software	ToupView/ SDK
Operating system	Win32/WinRT/Linux/macOS/Android
Certification	CE, FCC

Model Parameter	SWIR3000KMA
Model Parameter	3.0M pixels 1/1.8” CMOS USB3 industrial camera
Camera
Sensor model	Sony IMX993-AABA-C
Sensor Type	InGaAs
Spectral Range	400nm-1700nm
Pixel size	3.45 µm x 3.45 µm
Sensor size	1/1.8”
ADC	12 Bit / 8 Bit
Frame rate	8 Bit：93fps@2048x1536、176fps@1024x768 12 Bit：57fps@2048x1536、176fps@1024x768
Image Buffer	512MByte
Conversion Gain	10.3e/ADU（HCG）17.29e/ADU（LCG）
Dynamic range	51.36dB（HCG）51.47dB（LCG）
Readout Noise	111.88e（HCG）186.61e（LCG）
Full Well	41.39ke（HCG）69.92ke（LCG）
SNRmax	46.17dB（HCG）48.45dB（LCG）
Sensitivity	TBD
Dark current	TBD
Gain range	1x-15x
Exposure time	15µs-60sec
Shutter	Global shutter
Binning	Software2x2, 3x3, 4x4
Data interface	USB3
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, two non-isolated input and output
Data Format	8bit / 12bit
Cooling performance	25°C below ambient temperature
Optical filter	400-1800nm(default); 1030-1800nm(optional)
CRA	2.35 Deg
General specification
Power supply	Power with USB3.0 or 12V Power adapter
Power consumption	<2.1W(without cooling) / <25W(cooling)
Temperature	Working temperature -20~60℃, storage temperature -40~85℃
Humidity	20%-80%, no condensation
Size	80mm×80mm×45.5mm
Weight	<390g
Lens mount	C-mount
Software	ToupView/ SDK
Operating system	Win32/WinRT/Linux/macOS/Android
Certification	CE, FCC

Model Parameter	SWIR1300KMA
Model Parameter	1.31M pixels 1/2” CMOS USB3 industrial camera
Camera
Sensor model	Sony IMX990-AABA-C
Sensor Type	InGaAs
Spectral Range	400nm-1700nm
Pixel size	5.0 µm x 5.0 µm
Sensor size	1/2”
ADC	12 Bit / 8 Bit
Frame rate	8 Bit：200fps@1280 x 1024、392fps@640 x 512 12 Bit：108fps@1280 x 1024、209fps@640 x 512
Image Buffer	512MByte
Conversion Gain	44.3e/ADU
Dynamic range	58.7dB
Readout Noise	211e
Full Well	181.6ke
SNRmax	52.6dB
Sensitivity	121mV
Dark current	383e/s(0°C) 510e/s(10°C) 638e/s(20°C)
Gain range	1x-15x
Exposure time	15µs-60sec
Shutter	Global shutter
Binning	Software2x2, 3x3, 4x4
Data interface	USB3
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, two non-isolated input and output
Data Format	8bit / 12bit
Cooling performance	25°C below ambient temperature
Optical filter	400-1800nm(default); 1030-1800nm(optional)
CRA	2.35 Deg
General specification
Power supply	Power with USB3.0 or 12V Power adapter
Power consumption	<2.1W(without cooling) / <25W(cooling)
Temperature	Working temperature -20~60℃, storage temperature -40~85℃
Humidity	20%-80%, no condensation
Size	80mm×80mm×45.5mm
Weight	<390g
Lens mount	C-mount
Software	ToupView/ SDK
Operating system	Win32/WinRT/Linux/macOS/Android
Certification	CE, FCC

When the ambient temperature is 25.5 degrees Celsius, the camera is placed on a wooden table, and the exposure time is 1.5 milliseconds in 8 - bit mode.

Resolution	Overclock	Frame rate	Power consumption	Sensor temperature
1280*1024	Off	135fps	1.75W	42.3
1280*1024	On	223fps	2.11W	43.2
640*512	Off	258fps	1.51W	38.1
640*512	On	428fps	1.75W	40

Model Parameter	SWIR330KMA
Model Parameter	0.33M pixels 1/4” CMOS USB3 industrial camera
Camera
Sensor model	Sony IMX991-AABA-C
Sensor Type	InGaAs
Spectral Range	400nm-1700nm
Pixel size	5.0 µm x 5.0 µm
Sensor size	1/4”
ADC	12 Bit / 8 Bit
Frame rate	8 Bit：400fps@640 x 512、753fps@320 x 256 12 Bit：212fps@640 x 512、400fps@320 x 256
Image Buffer	512MByte
Conversion Gain	42.29e/ADU
Dynamic range	59.7dB
Readout Noise	176.7e
Full Well	173.23ke
SNRmax	52.39dB
Sensitivity	121mV
Dark current	383e/s(0°C) 510e/s(10°C) 638e/s(20°C)
Gain range	1x-15x
Exposure time	15µs-60sec
Shutter	Global shutter
Binning	Software2x2, 3x3, 4x4
Data interface	USB3
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, two non-isolated input and output
Data Format	8bit / 12bit
Cooling performance	25°C below ambient temperature
Optical filter	400-1800nm(default); 1030-1800nm(optional)
CRA	2.35 Deg
General specification
Power supply	Power with USB3.0 or 12V Power adapter
Power consumption	<2.1W(without cooling) / <25W(cooling)
Temperature	Working temperature -20~60℃, storage temperature -40~85℃
Humidity	20%-80%, no condensation
Size	80mm×80mm×45.5mm
Weight	<390g
Lens mount	C-mount
Software	ToupView/ SDK
Operating system	Win32/WinRT/Linux/macOS/Android
Certification	CE, FCC

Camera parameter specifications for the 900 - 1700 (band response range)

Model Parameter	SWIR1302KMB-U200
Model Parameter	1.3M pixels 1.5” InGaAsUSB industrial camera
Camera
Sensor model	China produced 640x512
Sensor Type	InGaAs CMOS
Spectral Range	900nm-1700nm
Pixel size	15 µm x 15 µm
Sensor size	1.5”
ADC	14 Bit
Frame rate	200fps@1280x1024
Image Buffer	512MByte
QE	≥70@1.55μm
Conversion Gain	1μV/e- (LG), 16μV/e- (MG), 53.3μV/e- (HG)
Dynamic range	70.59dB(LG), 67.96dB(MG), 47.98dB(HG) *1 (Only reference)
Readout Noise	586.82e(LG), 35.05e(MG), 68.44e(HG) (Only reference)
Full Well	1.9Me- (LG), 118.75Ke- (MG), 33.75Ke-(HG) *1
SNRmax	62.98dB(LG), 49.43dB(MG), 42.34dB(HG) (Only reference)
Dark current	30fa@0.1V&18℃ (Only reference)
Exposure time	16µs-1sec
Shutter	Global shutter
Data interface	USB3
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, two non-isolated input and output
Data Format	Mono 8 / Mono 14 / Packet12
Cooling performance	40°C below ambient temperature
General specification
Power supply	12V Power adapter
Power consumption	8.4W(TEC OFF)/ <16W(TEC ON)
Temperature	Working temperature -30~60℃, storage temperature -40~85℃
Humidity	20%-80%, no condensation
Size	68mm×68mm×89.8mm
Weight	485g
Lens mount	M42
Software	ToupView/ SDK

*1： LG: CDS-OFF, DeNoise-ON; MG: CDS-ON, DeNoise-OFF; HG: CDS-ON, DeNoise-OFF.

Model Parameter	SWIR331KMA -CL1000	SWIR331KMA -CL700		SWIR331KMA -CL500
	0.33M pixels 3/4” InGaAs CameraLink industrial camera
Camera
Sensor model	China produced 1280x1024
Sensor type	InGaAs CMOS
Spectral range	900nm - 1700nm
pixel size	15 µm x 15 µm
Target size	3/4"
ADC	14-bit
Frame Rate & Resolution	1000fps@640 x 512	724fps@640 x 512	517fps@640 x 512
Memory	512MB
QE	75%@ 1350nm
Conversion gain	970.01e-/DN(LG), 18.02e-/DN(MG), 3.31e-/DN (HG)
Dynamic Range	69.2dB(LG), 63.2dB(MG), 57.4dB(HG) *1
Read noise	1.3DN(LG), 2.7DN(MG), 5.0DN(HG)
Full well charge	3.5Me(LG), 70Ke(MG), 12Ke(HG) *1
Maximum SNR	65.4dB(LG), 48.5dB(MG), 40.7dB(HG)
Dark current	30fa@0.1V&18℃
Exposure time range	16us~1s
Shutter mode	Global shutter
Data interface	CameraLink Full
Digital I/O	1 optocoupler isolated input, 1 optocoupler isolated output
Data Format	Mono 12 / Mono 14
Cooling temperature difference	40°C below ambient temperature
Camera type	Nationally produced devices
General parameters
Power supply	DC12V power supply
Power consumption	8.4W (TEC OFF ) / <16W (TEC ON )
Temperature	Working temperature -30 ~ 60 ℃, storage temperature - 40 ~ 85 ℃
Humidity	20%-80% , non-condensing
Size	68mm×68mm×90.3mm
Weight	485g
Lens mount	C-mount interface
Software	Provide SDK development kit and CL View software based on Delsa acquisition card

*1： LG: CDS-OFF, DeNoise-ON; MG: CDS-ON, DeNoise-OFF; HG: CDS-ON, DeNoise-OFF.

Quantum Efficiency / QE

Absolute QE curves of SWIR5000KMA-G and SWIR5000KMB-G

Absolute quantum efficiency of IM992/IM993

Absolute quantum efficiency of IMX990/IMX991

Camera interface and external dimensions

External dimensions of SWIR 400 - 1700 cameras

External dimensions of cooled cameras in the SWIR series with USB interface

External dimensions (mm) of cooled cameras in the SWIR series with USB interface

External dimensions (mm) of cooled cameras with GigE interface in the SWIR series

Parameter	Specification
Size	808045.5mm
Mount	C mount

External dimensions (mm) of cooled cameras with CameraLink interface in the SWIR series

Parameter	Specification
Size	757581.9mm
Mount	C mount

Dimensions (mm) of uncooled cameras with SWIR UMV series interfaces

Interface of SWIR 400 - 1700 cameras

Dimensions of the SWIR series cooled cameras with USB interface

Parameter	Specification
Size	808045.5mm
Mount	C mount

External dimensions of the SWIR series GigE interface cooled cameras

Parameter	Specification
Size	808045.5mm
Mount	C mount

Dimensions of the SWIR Series Cooled Cameras with CameraLink Interface

Parameter	Specification
Size	757581.9mm
Mount	C mount

Dimensions of the uncooled camera in the SWIR UMV series interface

Parameter	Specification
Size	333338mm
Mount	C mount

Dimensions of the SWIR 900 - 1700 Camera

Dimensions of the SWIR331 Camera

ameraLink interface in the SWIR331 series

Dimensions of the front and side of cameras with CameraLink interface in the SWIR331 series

Parameter	Specification
Size	686890.3mm
Mount	C mount

Dimensions of the front and side of the SWIR331 camera (a GigE interface camera)

The Front and side view dimensions of the CameraLink interface camera

Parameter	Specification
Size	686890.3mm
Mount	C mount

The Front and side view dimensions of the GigE interface camera

The Front and side view dimensions of the USB interface camera

Parameter	Specification
Size	686890.3mm
Mount	C mount

Dimensions and specifications of the SWIR331 camera

The external dimensions of the SWIR1302 camera.

Dimensions of the front and side of the SWIR1302 camera with a CameraLink interface

Parameter	Specification
Size	686890.3mm
Mount	C mount

Specifications of the external dimensions of the SWIR1302 camera

Dimensions of the front and side of the SWIR1302 camera with a GigE interface

Parameter	Specification
Size	686889.8mm
Mount	M42

Specifications of the external dimensions of the SWIR1302 camera

Dimensions of the front and side of the SWIR1302 camera with a USB interface

Parameter	Specification
Size	686889.8mm
Mount	M42

External dimensions and specifications of the SWIR1302 camera

Interface of the SWIR 900 - 1700 Camera

Item	Specification
1	DC 12V power
2	External IO connection port
3	CameraLink1
4	CameraLink2

Item	Specification
1	DC 12V power
2	External IO connection port
3	GigE port

Item	Specification
1	DC 12V power
2	External IO connection port
3	USB port

Packing List

Packing List for Cameras with a Band Response Range of 400 - 1700

Packing Information for SWIR Series USB Cooled Cameras

Standard Packaging List
A	External box for B(not shown in this figure) Carton size: L:28.2cm W:25.2cm H:16.7cm
B	3-A safety equipment case: L:28cm W:23cm H:15.5cm (1pcs, 2.8Kg/ box)
C	SWIR 400-1700 series USB Cooled Camera
D	Power cord. National standard, American standard, European standard, British standard power cord ( D1, D2, D3, D4 ) for choosing
E	Power adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 3A
F	High-speed USB3.0 A male to B male gold-plated connector cable/1.5m
G	One external trigger control cable
H	USB flash disk (with driver and application software in it)

Packing information for SWIR series GigE cooled cameras

Standard Packaging List
A	External box for B(not shown in this figure) Carton size: L:28.2cm W:25.2cm H:16.7cm
B	3-A safety equipment case: L:28cm W:23cm H:15.5cm (1pcs, 2.8Kg/ box)
C	SWIR 400-1700 series GigE Cooled Camera
D	Power cord. National standard, American standard, European standard, British standard power cord ( D1, D2, D3, D4 ) for choosing
E	Power adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 3A
F	One external trigger control cable
G	GigE cable: G1:3m G2:5m G3:10m(G4：50m not shown in this figure)
H	USB flash disk (with driver and application software in it)

Packing information for SWIR series CameraLink cooled cameras

Standard Packaging List
A	3-A safety equipment case: L:28cm W:23cm H:15.5cm (1pcs, 2.8Kg/ box)
B	SWIR 400-1700 series CL Cooled Camera
C	2 CameraLink cables
D	12V/3A 6 PIN air plug power adapter
E	Power cord. National standard, American standard, European standard, British standard power cord (E1, E2, E3, E4 ) for choosing
F	One external trigger control cable

Packing information for SWIR series USB uncooled cameras

Standard Packaging List
A	External box for B(not shown in this figure) Carton size: L:28.2cm W:25.2cm H:16.7cm
B	3-A safety equipment case: L:28cm W:23cm H:15.5cm (1pcs, 2.8Kg/ box)
C	SWIR 400-1700 series USB uncooled camera
D	High-speed USB3.0 A male to B male gold-plated connector cable/1.5m
E	One external trigger control cable
F	USB flash disk (with driver and application software in it)

Packing List for Cameras with a Band Response Range of 900 - 1700

Packing information for cameras in the SWIR series with CameraLink interface

Standard Packaging List
A	3-A safety equipment case: L:28cm W:23cm H:15.5cm (1pcs, 2.8Kg/ box)
B	SWIR 900-1700 series CL camera
C	2 CameraLink cables
D	12V/3A 6 PIN air plug power adapter
E	Power cord. National standard, American standard, European standard, British standard power cord (E1, E2, E3, E4 ) for choosing
F	One external trigger control cable

Packing information for cameras in the SWIR series with GigE interface

Standard Packaging List
A	External box for B(not shown in this figure) Carton size: L:28.2cm W:25.2cm H:16.7cm
B	3-A safety equipment case: L:28cm W:23cm H:15.5cm (1pcs, 2.8Kg/ box)
C	SWIR 900-1700 series GigE camera
D	12V/3A 6 PIN air plug power adapter
E	Power adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 3A
F	One external trigger control cable
G	GigE cable: G1:3m G2:5m G3:10m(G4：50m not shown in this figure)
H	USB flash disk (with driver and application software in it)

Packing information for cameras in the SWIR series with USB interface

Standard Packaging List
A	3-A safety equipment case: L:28cm W:23cm H:15.5cm (1pcs, 2.8Kg/ box)
B	SWIR 900-1700 series USB camera
C	High-speed USB3.0 A male to B male gold-plated connector cable/1.5m
D	12V/3A 6 PIN air plug power adapter
E	Power adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 3A
F	One external trigger control cable

SWIR

Navigation

SWIR Series Camera / Short-Wave Infrared

For purchases, trials, OEM, or ODM, please contact us

Introduction

SWIR Series Camera

Application

Additional references for application industries:

Relevant models (All SWIR product series)

Parameter list of cameras with SWIR 400 - 1700 (band response range)

* -G: GigE; -10G: 10 Gigabit interface; -CL: CameraLink interface; -UMV: Unmanned Vehicle, designed for use with aircraft or drones, featuring a relatively compact camera form factor.

* C: Color; M: Monochrome; UV: Ultraviolet; RS: Rolling shutter; GS: Global shutter.；

* Customized RG (Remove over glass) versions of SWIR1300KMB-UMV and SWIR330KMB-UMV are available upon request.

List of parameters for the SWIR 900 - 1700 (spectral band response range) Camera

* The frame rate of SWIR331KMB - G700 is restricted by the network interface. At full resolution, it can only reach 360 fps. The frame rate can be enhanced via ROI.

* SWIR331KMB - U700 and SWIR331KMB - G125 are available in the C0 (Class 0) version, which supports the long - exposure mode and can achieve deep cooling down to - 45℃.

* Built - in TEC: The TEC is inside the sensor, with a cooling temperature difference of 25℃.

Detailed parameters

Camera parameter indicators with a band response range of 400 - 1700

SWIR 400 - 1700, 5 Megapixels, 3.45μm, IMX992 -> Technical specifications of the SWIR5000KMA camera

SWIR 400 - 1700 3MP 3.45um IMX993 -> Parameters and specifications of the SWIR3000KMA camera

SWIR 400 - 1700, 1.3MP, 5um, IMX990 -> Technical specifications of the SWIR1300KMA camera

SWIR 400 - 1700, 0.33MP, 5um, IMX991 -> Camera specifications for SWIR330KMA

Camera parameter specifications for the 900 - 1700 (band response range)

SWIR 900 - 1700 1.3MP 15um -> Camera parameter specifications for the SWIR1302KMB - CL200

*1： LG: CDS-OFF, DeNoise-ON; MG: CDS-ON, DeNoise-OFF; HG: CDS-ON, DeNoise-OFF.

SWIR 900 - 1700, 0.33MP, 15um -> Technical specifications of the SWIR331KMB - U700 camera

*1： LG: CDS-OFF, DeNoise-ON; MG: CDS-ON, DeNoise-OFF; HG: CDS-ON, DeNoise-OFF.

Quantum Efficiency / QE

Absolute QE curves of SWIR5000KMA-G and SWIR5000KMB-G

Absolute quantum efficiency of IM992/IM993

Absolute quantum efficiency of IMX990/IMX991

SWIR1302 Quantum Efficiency Curve

SWIR331 Quantum Efficiency Curve

Camera interface and external dimensions

External dimensions of SWIR 400 - 1700 cameras

External dimensions of cooled cameras in the SWIR series with USB interface

External dimensions (mm) of cooled cameras in the SWIR series with USB interface

External dimensions (mm) of cooled cameras with GigE interface in the SWIR series

External dimensions (mm) of cooled cameras with GigE interface in the SWIR series

External dimensions (mm) of cooled cameras with CameraLink interface in the SWIR series

External dimensions (mm) of cooled cameras with CameraLink interface in the SWIR series

Dimensions (mm) of uncooled cameras with SWIR UMV series interfaces

Dimensions (mm) of uncooled cameras with SWIR UMV series interfaces

Interface of SWIR 400 - 1700 cameras

Cooled cameras with USB interfaces

SWIR GigE Interface Cooled Camera

SWIR Cooled Camera with CameraLink Interface

Uncooled camera with SWIR USB interface

Dimensions of the SWIR 900 - 1700 Camera

Dimensions of the SWIR331 Camera

Dimensions of the front and side of cameras with CameraLink interface in the SWIR331 series

Front and side dimensions of the SWIR331 GigE interface Camera

The Front and side view dimensions of the CameraLink interface camera

The Front and side view dimensions of the GigE interface camera

Dimensions of the front and side of the SWIR331 camera with a USB interface

The Front and side view dimensions of the USB interface camera

Dimensions and specifications of the SWIR331 camera

The external dimensions of the SWIR1302 camera.

Dimensions of the front and side of the SWIR1302 camera with a CameraLink interface

Dimensions of the front and side of the SWIR1302 camera with a CameraLink interface

Specifications of the external dimensions of the SWIR1302 camera

Dimensions of the front and side of the SWIR1302 camera with a GigE interface

Dimensions of the front and side of the SWIR1302 camera with a GigE interface

Specifications of the external dimensions of the SWIR1302 camera

Dimensions of the front and side of the SWIR1302 camera with a USB interface

Dimensions of the front and side of the SWIR1302 camera with a USB interface

External dimensions and specifications of the SWIR1302 camera

Interface of the SWIR 900 - 1700 Camera

Camera with CameraLink interface featuring a spectral response range of 900 - 1700

Cameras with a GigE interface and a band response range of 900 - 1700

Cameras with a USB interface and a band response range of 900 - 1700

Packing List

Packing List for Cameras with a Band Response Range of 400 - 1700

Packing Information for USB Cooled Cameras

Packing information for GigE cooled cameras

Packing information for CameraLink cooled cameras

Packing information for USB uncooled cameras

Packing List for Cameras with a Band Response Range of 900 - 1700

Packing information for cameras with CameraLink interface
