Camera Accessories / Microscope Accessories

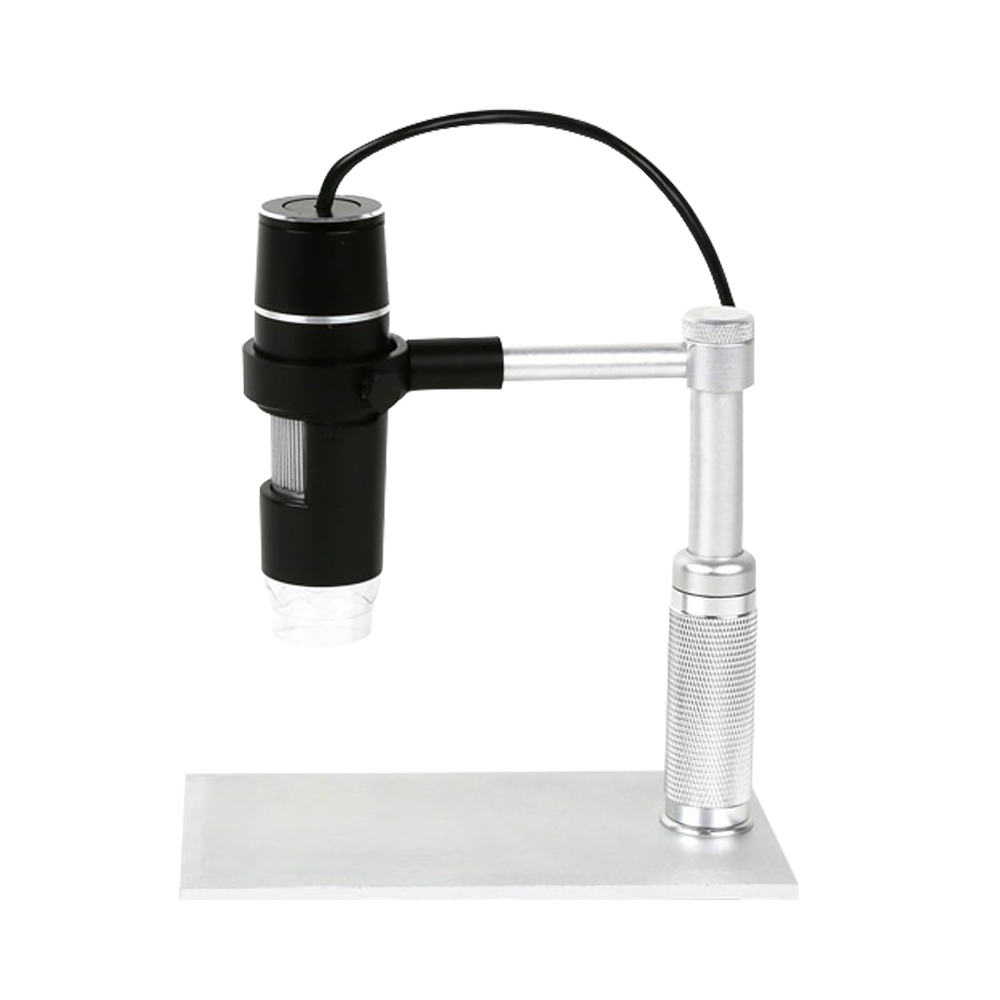

TPS-600 Series Stand Accurate coarse and fine tuning design, with a fine tuning accuracy of 0.002mm; The bracket is adjustable throughout its entire range, and the base is designed with modular design;

Embedded power adapter cable in the bracket; Three models of brackets are available for selection;

High hardness and wear-resistant material, with environmentally friendly electroplating and oxidation treatment on the surface.

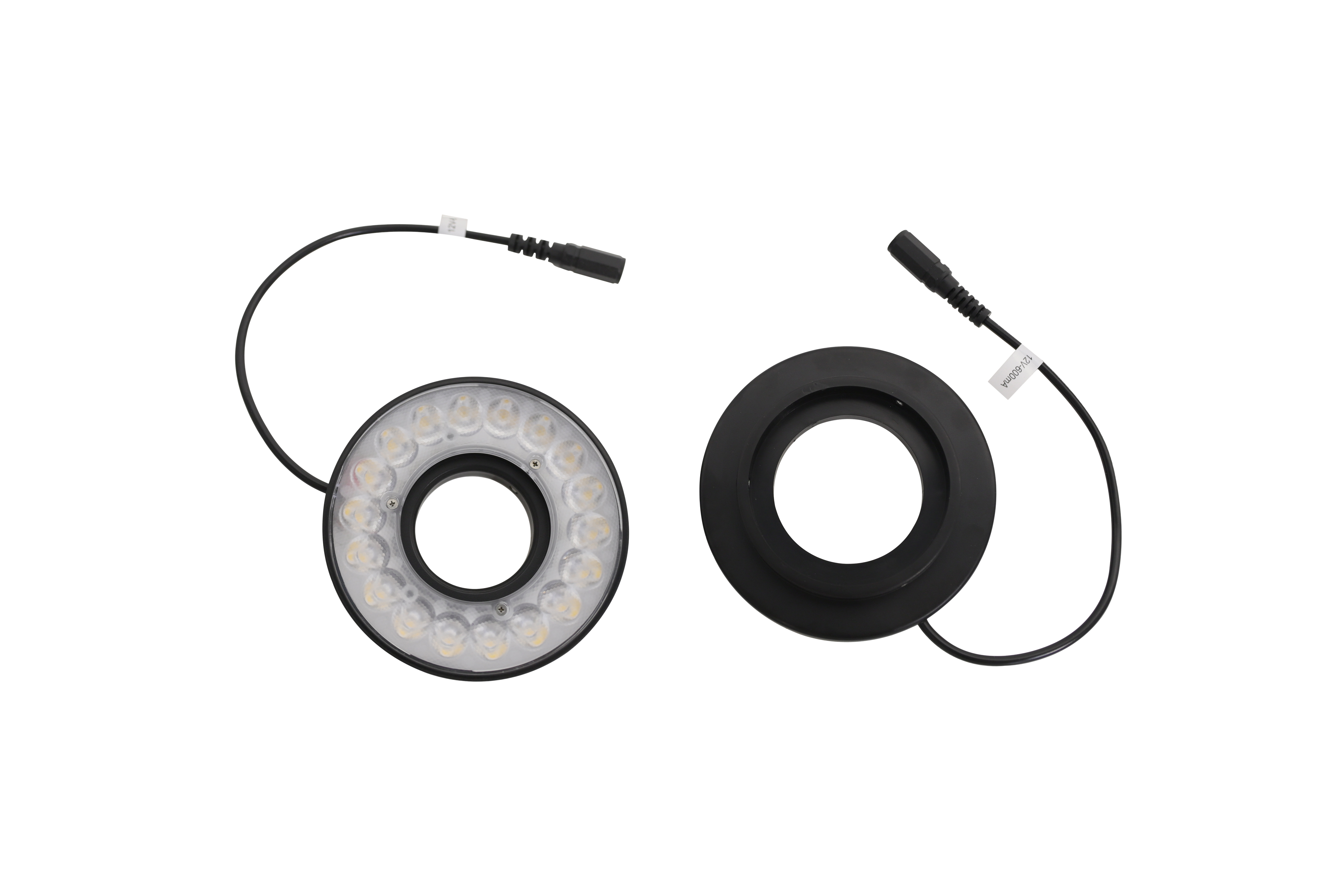

The DRL-10040/DRL-10065 series direct ring light is shown in the figure below. It consists of a housing, 18 high-brightness LEDs, and a professionally designed uniform light lens array that matches the LED. It can be applied to common monocular microscopes and stereo microscopes to achieve uniform illumination within a working distance of 80-130 mm.

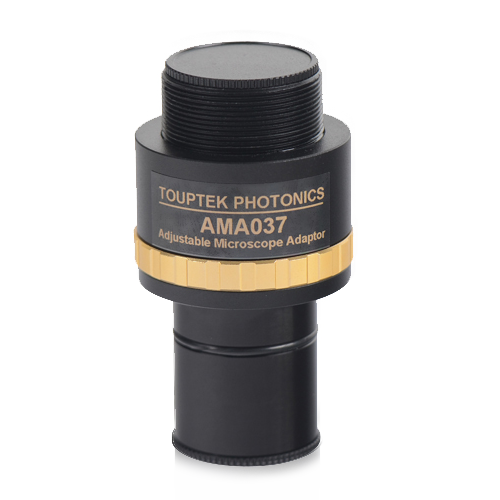

Convert the Olympus trinocular microscope phototube/head/port (have standard 42 mm，1.65 inch inner diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch), T2 mount type(M42x0.75 mm metric thread) or M52 mount type(M52x0.75mm metric thread);
With different built-in reduction lens (2.25X, 1.5X,1.2X,1X, 0.8X,0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 2.7”, 1.8”, 4/3”, 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
Can be installed in UIS trinocular tube such as : BX series, BX2 series, CX series, CX2 series, MX series;
Build of material: anodized aluminum;
Telecentric optics with low light deficiency;
Parfocal with different microscope objective lenses;
Diffraction limited MTF;
Aperture totally coupled with UIS microscope objective’s exit pupil;
